Product Type	CO2 Jet Effect Machine
Brand	The Confetti Maker
Model	CO2 Jet
Dimensions (approx.)	30 x 20 x 20 cm
Weight (approx.)	6 kg
Power Supply	AC 110-240V, 50/60Hz
Power Consumption	50 W
CO2 Compatibility	Standard CO2 cylinders with appropriate regulator
Output Control	Manual trigger and DMX512 (via 3-pin XLR)
Main Functions	Adjustable jet blast, continuous or pulse mode
Safety Features	Pressure relief valve, automatic shut-off, thermal protection
Housing Material	Steel and aluminum
Operating Environment	Indoor use, well-ventilated area
Maintenance	Regular cleaning of nozzle, check connections for leaks
Spare Parts Available	Nozzle, solenoid valve, gaskets
Reparability	Service manual available, user-replaceable parts
Included Accessories	Power cable, DMX cable, manual, mounting bracket
Documentation	Free PDF manual available at notice-facile.com

Frequently Asked Questions - CO2 Jet The Confetti Maker

What is a CO2 jet and how does it work?

A CO2 jet is an effect machine that emits a powerful blast of carbon dioxide gas, creating a visible jet or cloud. It operates by releasing pressurized CO2 through a solenoid valve, typically controlled via manual trigger or DMX signals. Always ensure proper ventilation.

Can I use any CO2 cylinder with the CO2 Jet?

The CO2 Jet is designed to work with standard CO2 cylinders equipped with a compatible regulator. Use only cylinders with the correct CGA-320 valve or similar. Never use a cylinder without a pressure regulator.

How do I connect the CO2 Jet to a DMX controller?

Connect a 3-pin XLR cable from your DMX controller to the DMX input of the CO2 Jet. Set the DMX address using DIP switches (see manual). The machine responds to standard DMX channels for intensity and duration.

What safety precautions should I take when using the CO2 Jet?

Always operate in a well-ventilated area to avoid CO2 buildup. Avoid directing the jet at people or sensitive equipment. Use the safety relief valve and never exceed maximum pressure. Wear protective eyewear during setup.

How often should I clean the nozzle?

Clean the nozzle after every few uses or if you notice reduced output. Use a soft brush and compressed air to remove debris. For stubborn blockages, soak in warm water and dry thoroughly before reuse.

What is the typical CO2 consumption?

Consumption depends on output duration and frequency. A 20lb CO2 cylinder may provide several hundred short bursts. Expect approximately 10-20 seconds of continuous blast per pound of CO2.

Can the CO2 Jet be used outdoors?

Yes, but only in calm weather conditions. Wind can disperse the CO2 effect and affect performance. Ensure the machine is protected from rain and extreme temperatures.

Why is my CO2 Jet not producing a strong blast?

Check the CO2 cylinder pressure and regulator setting. Ensure the solenoid valve is fully open (electrically and mechanically). Clean the nozzle if clogged. Verify DMX settings if used.

How do I reset the CO2 Jet after a safety shutdown?

First, turn off the machine and disconnect the power. Check for any obvious issues like overheating or pressure overload. Allow the machine to cool down if necessary. Reconnect power and turn on; if the issue persists, consult the manual.

Where can I find replacement parts for the CO2 Jet?

Replacement parts like nozzles, solenoid valves, and seals are available through authorized dealers or directly from The Confetti Maker. Check the manual for part numbers and ordering information.

USER MANUAL CO2 Jet The Confetti Maker

Exterior view of a black CO2-JET industrial device with a cylindrical sensor and warning symbol (no readable text beyond branding)

Article : TCMFX Co2 Jet

Thank you for purchasing the TCMFX CO2 Jet.

The Confetti Maker is manufacturer of biodegradable, colorfast and fireproof confetti products and special effects.

The products we manufacture are used for various events, such as concerts, opening ceremonies, sporting events and theater show productions. With our products your party is guaranteed to be a great success.

"We create experiences"

This manual describes the TCM Fx CO 2 Jet.

All information in this manual is important for the safe and proper functioning of the TCM FX CO 2 Jet.

Please read the manual carefully if you are not familiar with this device.

The Confetti Maker wishes you lots of fun with your purchase!

© Copyright 2017 the Confetti Maker FX®. This manual and its content is copyright of the Confetti Maker FX®. All rights Reserved.

No part of this manual may be reproduced or transmitted in any form or by any means including photocopying and recording without the written permission of the copyright holder.

The Confetti Maker Reserves the right to make any changes without direct knowledge of the customer.

Please contact your supplier for additional information regarding maintenance and repair.

This user manual has been written with care and attention to detail; however, should you find any errors or omissions, please contact your supplier and inform them of your findings.

Please be aware that The Confetti Maker FX® shall not be held liable by the user for any damages, losses or third party claims arising from any uses of this product.

General Safety

WARNING!

Read the manual carefully before using the TCMFX CO2-Jet.

The Confetti Maker ® is not liable for injury, damage and/or excessive wear resulting from improper maintenance, improper use or modifications to the device.

If you have any questions, issues or problems that do not get discussed in this guide, please tell your supervisor or call/e-mail the technical support from The Confetti Maker®.

TCM _FX CO2 Jet and the manual may not be modified without permission of The Confetti Maker®.

In case of damage or problems, always consult The Confetti Maker® as soon as possible.

DECLARATION OF CONFORMITY

Manufacturer: The Confetti Maker

Product: TCM FX CO 2 Jet

We declare that the above products meet the following European directives and standards:

- Low Voltage Directive 2006/42/EC

- EMC Directive 2004/108/EC

- RoHS Directive 2002/95/EC

Year of Manufacturing: 2017

Name: The Confetti Maker

Place: Rotterdam

Date: 11-07-2017

Director: H. S. Maikoe

All Technical Trade Centre b.v.

Hoeverakensingel 20

3077 SR Rotterdam

Nederland

Tel. [phone]

Specifications

Input : Powercon / CO2

Output : Powercon / CO2

Weight : 2Kg

Size : 80 x 50 x 130mm (L x W x H)

Base Plate : 110 x 125 mm (L x W)

Voltage : 230V AC 50/60Hz

Power : 30W

Ideal environmental values

Temperature : 0 - 45 °C

Humidity : max. 75%

Keep away from:

• Dust
• Corrosive gasses
• High concentrations of organic gasses.

Exterior view of a black CO-JET industrial device with a cylindrical top and base unit (no visible text or symbols on the device itself)

Using the CO2 Jet

The CO2 Jet is designed to be activated by a control panel at a distance. The smoke plumes can reach between 6 to 8 meters, depending on the environment. When transporting the CO2 Jet preferably use a flight case.

Warning!

Do NOT aim the CO2 Jet at people or animals.

Always keep a safe distance between the CO2 Jet and the crowd of at least 6 meters.

CO2

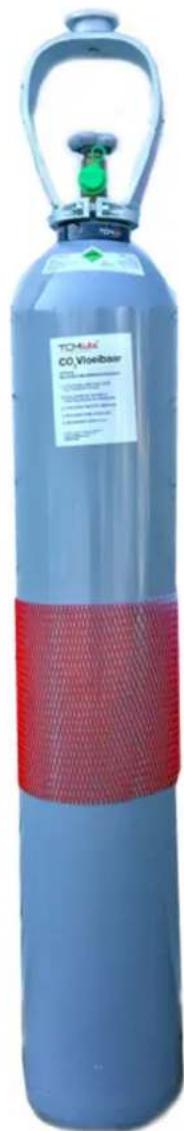

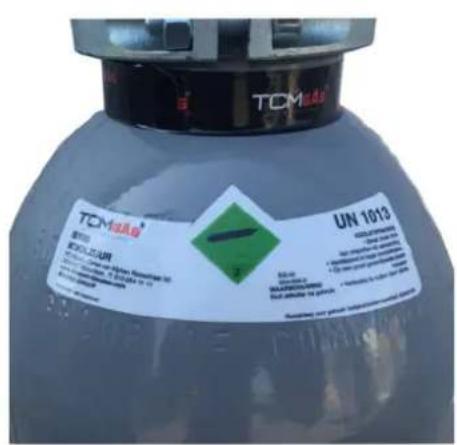

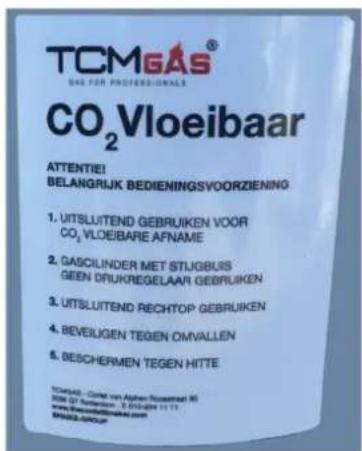

The CO2 Jet can be connected with different types of gas bottles.

With the 22,5kg bottle you can shoot up to 60seconds.

With the 37,5kg bottle you can shoot up to 90seconds.

Accessories

The CO2 Jet is provided with Co2 through a hose that is connected to a gas cylinder.

The CO2 hoses are for sale and rent in various lengths.

• 5m
• 10m
• 15m

Coiled black hydraulic hose with red connectors, no visible text or symbols

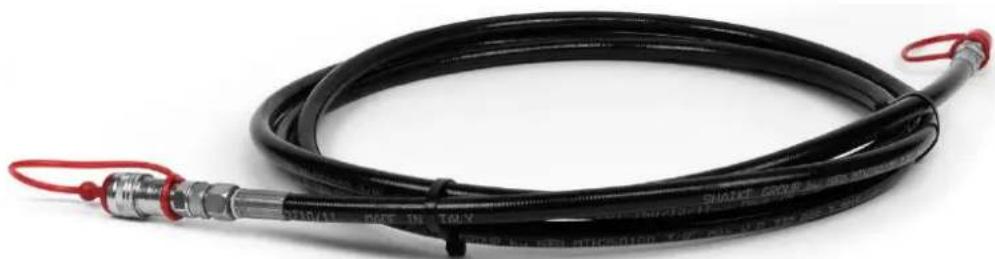

CO2 Hose

The CO2 Hose supplies the CO2 Jet with CO2. Connect male plug to the CO2 gas bottle. Connect the female plug to the CO2 Jet.

Close-up of a mechanical hydraulic tool with red and black components (no text or symbols visible)

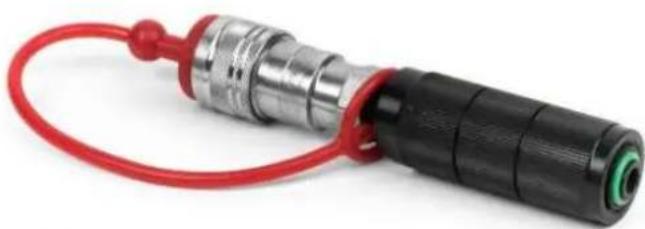

Quick Connector

With the Quick connector a CO2 hose can easily be connected to a CO2 bottle. Screw the Black side of the Quick connector on to the CO2 bottle. Plug the other side of the connector to the male side of the CO2 hose.

Coiled black cable with blue and gray connectors, no visible text or symbols

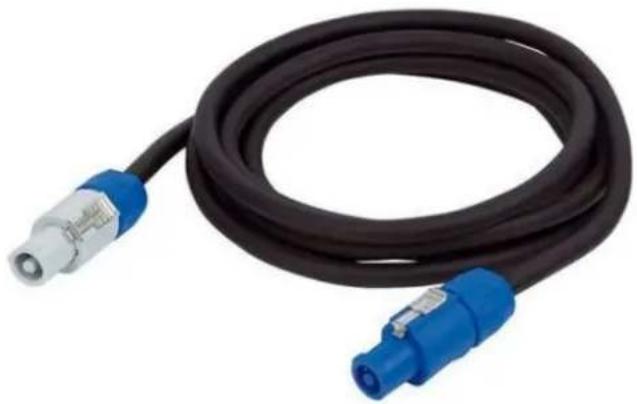

Loop Through Cable

The function of the loop through cable is supplying multiple devices with a single power socket. Looping through the device should only be done without power. The first CO2 Jet is connected to a power socket with the power socket to Powercon cable. The second CO2 Jet is powered with the blue Powercon connector on the loop through cable. The grey side of the loop through cable connects to the grey connector on the first CO2 Jet. Connect the Powercon by plugging the Powercon into the connector on the CO2 Jet and turning it clockwise until you hear a click sound. Repeat this process for the rest of the CO2 Jets.

Coiled black and blue electrical plug with a black terminal, isolated on white background (no text or symbols)

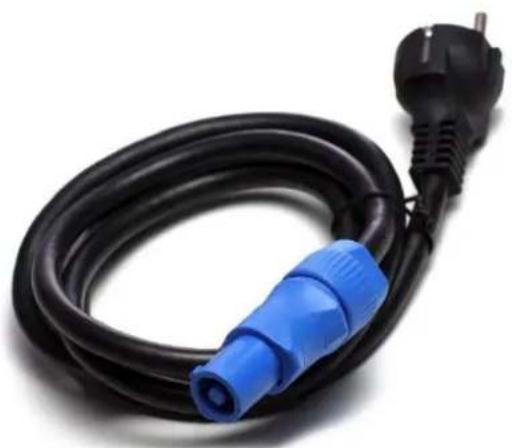

Power Socket to Powercon cable

The power socket to Powercon cable is the power cable of the CO2 Jet. The power socket side connects to 230V 50-60HZ. The power connector connects to the CO2 Jet. Connect the Powercon by plugging the Powercon into the CO2 Jet and turning it clockwise until you hear a click sound.

Front view of a black electronic device with four switches and a central display (no visible text or symbols)

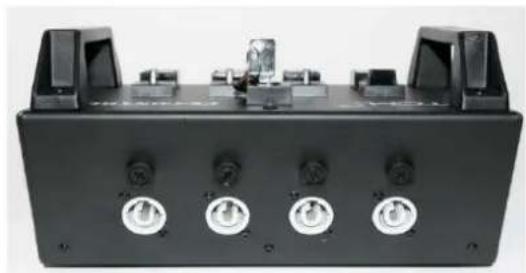

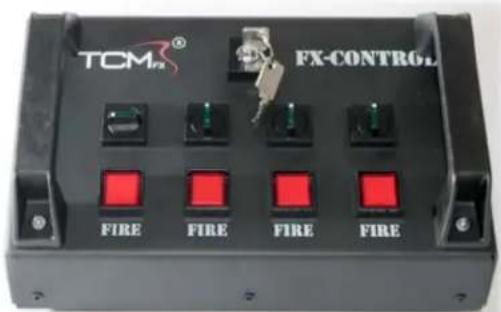

TCM FX-Control

The TCM FX-Control is designed to control multiple TCM products.

Connect the power socket to Powercon cable to the blue connector on the side of the FX Control.

Connect the CO2 Jet to the FX-Control with the loop through cable. Connect the blue side of the cable to the CO2 Jet and the grey side of the cable to the back side of the FX Control.

When firing the CO2 Jet first switch the key switch to unlock the panel.

Switch the safety switch to the right so the white dot is pointing upwards. When the red fire button is pushed, the CO2 Jet will activate. Turn the safety switch to the left when the CO2 Jet is not in use.

Black electronic device casing with buttons and ports (no visible text or symbols)

To connect multiple FX Control panels use the loop through cable. Connect the Blue side of the Powercon to the second FX-Control. Connect the grey side of the loop through cable to the grey connector on the FX-Control. Both FX-Controllers are now powered.

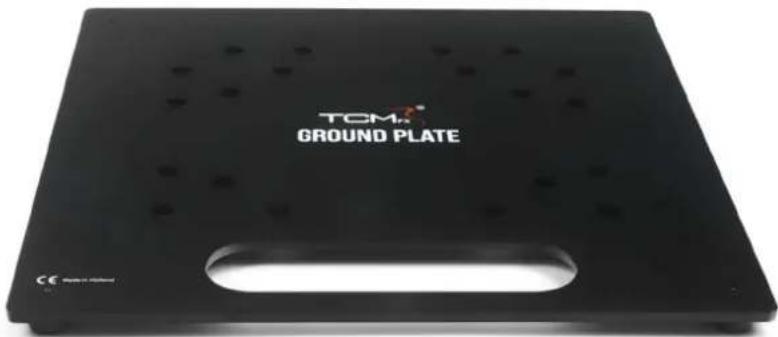

Ground plate

The TCM FX ground plate is designed to secure the CO2 Jet to the ground. The heavy ground plate ensures that the CO2 Jet won't tip when shooting CO2.

Installation and use of the CO2 Jet

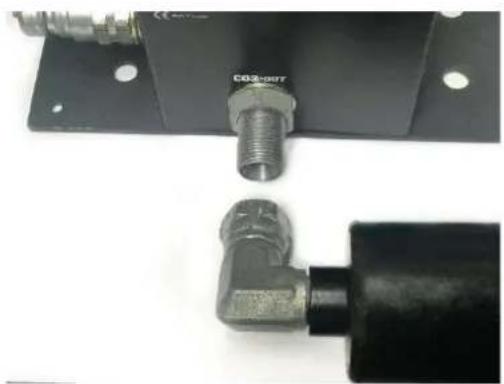

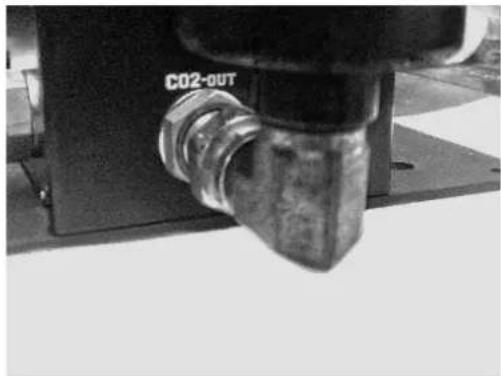

Step 1

Connect the outlet tube to the “CO2 Out” side and turn the nut clockwise. Tighten securely with a wrench.

Close-up of two mechanical connectors with metallic fittings, one labeled 'CO2- port' (no other text or symbols visible)

Close-up of a mechanical component labeled 'CO2-OUT' with no visible text or symbols on the object itself.

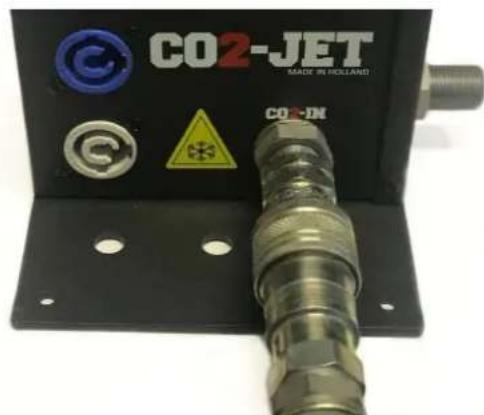

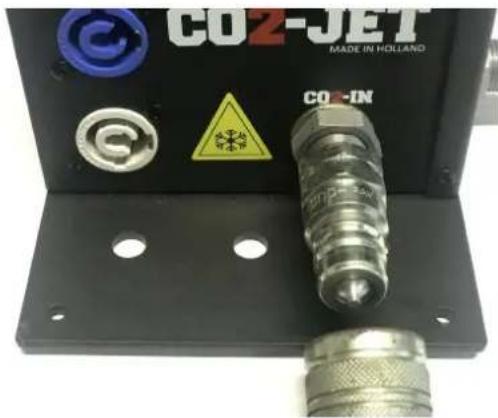

Step 2

Place the CO2 hose to the "CO2 In" side.

Close-up of a CO2-JET industrial device with metallic connectors and a warning symbol (no readable text or labels)

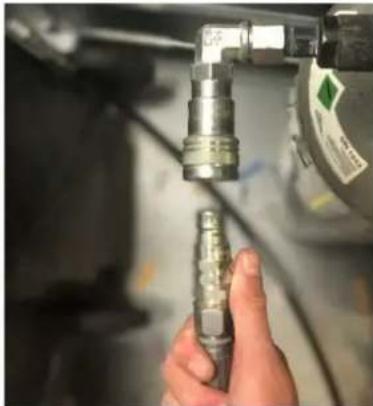

Step 3

Connect the other end of the hose to the gas cylinder.

Close-up of a hand holding a metallic pipe fitting attached to a mechanical component (no visible text or symbols)

Step 4

Place the blue Powercon cable in the first CO2 Jet. Only connect the cable if the cable is not powered. Plug the Powercon into the connector on the CO2 jet and make a small turn to the right until you hear a click sound. The cable is now properly connected.

Optional

If you want to connect multiple CO2 Jets to a single powerline you have to interconnect the Powercons by plugging the blue side of the loop through cable to the second CO2 Jet. Plug the grey connector on the loop through cable into the grey connector on the first CO2 Jet.

Warranty

The CO2 Jet has a 3 year warranty which will be void if the CO2 Jet is handled differently than described in this manual.

When the CO2 Jet has been opened by anyone other than the Confetti Maker.

The Confetti maker is not responsible for any paint or hardware damaged as a result of rough handling.

CAUTION! Always contact your supplier in case of malfunctions. Never try to repair the CO2 Jet yourself.

WARNING

READ THIS DOCUMENT BEFORE INSTALLING OR USING CO2 JET. IMPROPER SELECTION, IMPROPER USE, USE BY ANYONE OTHER THAN TRAINED USERS HAVING APPROPRIATE TECHNIAL EXPERTISE OF THE CO2 JET CAN CAUSE DAMAGE TO EQUIPMENT OR PROPERTY.

This document and other information from the CO2 Jet, its subsidiaries and authorized distributors together only provide product installation guidelines and product or system usage options, each of which are intended to operate in conjunction with further investigation by trained users having appropriate technical expertise to facilitate the safe handling and use of the CO2 Jet. The CO2 Jet is not intended to be used or handled by any users other than trained users having appropriate technical expertise. The information and documentation contained in our catalog and on the website, www.theconfettimaker.com, is only provided for technical illustration purposes only and may not be used or relied upon as a statement of suitability for use in any particular application. Users, through their own analysis and testing, are solely responsible for assuring that the CO2 Jet is used in a safe and intended manner with all performance, endurance, maintenance, safety and warning requirements necessary for safe application being met.
