KBT4177 - Toaster Kubo - Free user manual and instructions

Product Type	Toaster
Model	KBT4177
Power Supply	220-240 V, 50/60 Hz
Power Consumption	1180-1400 W
Toast Slots	2
Functions	Toast, Reheat, Defrost, Stop
Controls	Lever, buttons with indicator lights
Crumb Tray	Removable, clean occasionally
Clip for Bread	Included clips for even toasting
Material	Metal exterior, plastic parts
Safety Features	Auto shut-off, cool-touch handles, no immersion
Maintenance	Wipe exterior with damp cloth; do not use abrasives
Certifications	CE compliant
Warranty	2 years for manufacturing defects

Frequently Asked Questions - KBT4177 Kubo

Can I use this toaster to defrost frozen bread?

Yes, press the defrost button to toast bread directly from the freezer.

How do I stop the toaster mid-cycle?

Press the stop button to immediately cancel toasting.

Can I reheat already toasted bread?

Yes, use the reheat button to warm up toast without further browning.

How to clean the crumb tray?

Slide out the crumb tray and brush crumbs with a small brush or cloth. Ensure it locks back into place.

What to do if bread gets stuck in the toaster?

Unplug the toaster first, then gently remove the bread. Never use metal utensils.

Why does the toaster smoke on first use?

Some smoke is normal due to manufacturing residues. It will stop after a few minutes.

Can I use metal objects to clean inside?

No, do not insert metal objects. Use only the crumb tray and a soft cloth.

What type of power supply does it need?

It operates on 220-240 V, 50/60 Hz with a power consumption of 1180-1400W.

Is the toaster suitable for commercial use?

No, it is designed for household use only.

How to make toast evenly?

Use the two clips and swap them halfway through toasting for even browning.

USER MANUAL KBT4177 Kubo

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5
1.2. Power Cord and Other Cables 5
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 10

2.1. Product Description 10
2.2. Using the Product 10
2.3. Maintenance 11

3. TECHNICAL SPECIFICATIONS 12

4. POST-SALE SERVICE 13

5. ENVIRONMENTAL PROTECTION 13

1. SAFETY INSTRUCTIONS

	WARNING
	RISK OF ELECTRIC SHOCKDO NOT OPEN
Warning: to avoid the risk of electric shock,do not remove the cover. The interior doesnot contain any parts that can be repairedby the user. Ask for assistance from theCustomer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future. Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any

manual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved.

Children may not play with the appliance.

Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at

www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

- Read all instructions before using the product.

- Maintenance and service operations are only to be carried out by authorized professionals.

- Any damage caused by manual modifications to the product is not covered by the warranty.

• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Before using the appliance, check that the mains voltage corresponds to the rating of the appliance.
• Do not touch the hot surfaces - Use the handles or knobs.
• To protect against electric shock, do not immerse the cords, plugs or appliances in water or any other liquid.
• Do not leave any appliance unattended while it is operating.
• Close supervision is necessary when any appliance is used by or near children or infirm persons.
• Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.

EN

KUBO

• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• Before using the appliance, check that the mains voltage corresponds to the rating of the appliance.
• Do not touch the hot surfaces - Use the handles or knobs.
• To protect against electric shock, do not immerse the cords, plugs or appliances in water or any other liquid.
• Do not leave any appliance unattended while it is operating.
• Close supervision is necessary when any appliance is used by or near children or infirm persons.
• Bread may burn. Therefore, this toaster must not be used near or below curtains or other combustible materials.

• Do not place the cable or any other object over the bread openings whilst the toaster is in operation.

• Do not attempt to dislodge food while the toaster is in operation.

• The toaster lever must be in the 'UP' position before connecting or disconnecting the plug from the wall outlet.
• Do not insert metal objects or other utensils into the toaster, as this will cause an electric shock or cause a fire.
• Do not leave the toaster unattended whilst in operation.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.

2. OPERATING INSTRUCTIONS

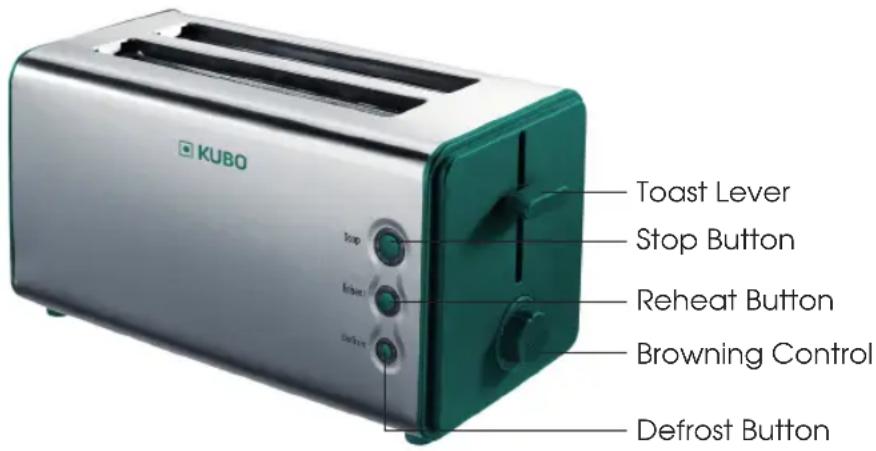

2.1. Product Description

2.2. Using the Product Bread can be toasted as follows:

• Push the plug into the socket and turn on the toaster using the toast lever. NOTE: When using the appliance for the first time, it will emit some smoke. This is normal and it will stop by itself after a few minutes.
• The stop button with the indicator light - the light comes on automatically once the toaster is turned on.
• The stop button is there to prematurely stop the toasting process.
• Reheat button with indicator light - the light goes on when the button is pressed.
• The reheat button is used to heat up the toast.

• The defrost button with indicator light - the light goes on when the button is pressed.

• The defrost button is used for toasting bread directly from the freezer.

• Place the bread in the toaster clip.
• The clip can be opened by pushing it together by hand.
• Place the clip in the toaster slot, but the toast does not come up by itself.
• Select the baking time, once the baking time is completed, the timer will close the toaster, and it will remain on standby.
• Experiment to find the perfect toasting time. The optimal time changes depending on the freshness of the bread and of other ingredients. We advise you to alternate the two toaster clips halfway through the toasting process. This will ensure that the bread is evenly browned.
• Do not use a knife, fork or other utensil to remove the bread from the toaster or to clean the toaster. If the bread becomes lodged in the toaster, unplug the appliance before attempting to remove it.
• The top of the appliance becomes hot because metal conducts heat very well. Therefore, do not touch the outside of the toaster during use and keep out of reach of children.
• Switch off the toaster and unplug it from the power outlet.
• Allow it to cool down before cleaning.
• Wipe the exterior of the toaster and the cord with a soft damp cloth or sponge.

2.3. Maintenance

EN

KUBO

• Do not use abrasive or strong household cleaners, as they will damage the finish.
• The crumb tray should be cleaned occasionally.
• Brush the crumbs from the tray using a small brush or cloth.
• Slide the crumb tray back, ensuring it locks into place.
• Do not try to clean the inside of the toaster, as this may damage the heating elements.
  • Water and other liquids must never enter the toaster.

3. TECHNICAL SPECIFICATIONS

Technical Data

Model no.: KBT4177 XL 2E

Power supply: 220 - 240 V, 50/60Hz

Power consumption: 1,180W - 1,400W

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

4. POST-SALE SERVICE

KUBO has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty. All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

5. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Estimado cliente:

Exterior view of a KUBO 2000 toaster with green control buttons and front panel (no text or symbols on the device itself)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Caro(a) cliente,

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

PT

KUBO

KUBO

Imported, produced and distributed by 1 Importado, producido y distribuido por Importado, produzido e distribuido por
