WR2491A - Ladder Clas Ohlson - Free user manual and instructions

Product Type	Ladder
Brand	Clas Ohlson
Model	WR2491A
Material	Aluminum
Maximum Load Capacity	150 kg (330 lbs)
Number of Steps	4
Step Depth	80 mm
Step Width	300 mm
Overall Height (closed)	1.2 m
Working Height	2.5 m
Weight	5 kg
Color	Silver
Anti-Slip Feet	Yes
Locking Mechanism	Yes
Safety Certification	EN 131
Suitable For	Household use
Maintenance	Wipe with damp cloth; store in dry place
Storage	Indoor, dry location
Warranty	2 years

Frequently Asked Questions - WR2491A Clas Ohlson

What is the maximum weight capacity of the Clas Ohlson WR2491A ladder?

The maximum load capacity is 150 kg (330 lbs), suitable for most household tasks.

How do I safely use the ladder?

Always place the ladder on a stable, level surface. Ensure all four feet are on the ground. Lock the spreader bars fully. Climb facing the ladder and maintain three points of contact.

Can I use the ladder on uneven ground?

It is not recommended. Use on firm, level ground only. For uneven surfaces, consider using ladder levelers or a different ladder.

How do I fold and store the ladder?

To fold, release the locking mechanism and gently collapse the ladder. Store in a dry, indoor location away from moisture to prevent corrosion.

Is this ladder suitable for professional or industrial use?

No, the WR2491A is classified for household use only. For professional applications, choose a ladder with higher duty rating.

What materials is the ladder made of?

The ladder is constructed from aluminum, making it lightweight yet strong and resistant to rust.

How should I clean the ladder?

Clean with a soft cloth dampened with water or mild detergent. Avoid abrasive cleaners that may damage the finish.

Does the ladder come with a warranty?

Yes, Clas Ohlson offers a 2-year warranty against manufacturing defects. Keep the receipt as proof of purchase.

Can I repair the ladder myself if something breaks?

Minor repairs like tightening screws are possible. However, for structural components, contact Clas Ohlson support. Do not use a damaged ladder.

What are the dimensions of the ladder when closed?

When closed, the ladder measures approximately 1.2 m (height) x 0.3 m (width) x 0.08 m (depth).

USER MANUAL WR2491A Clas Ohlson

Free-standing Step Ladder

Fristående trappstege Frittstående gardintrapp Vapaasti seisovat tikkaat Stehleiter

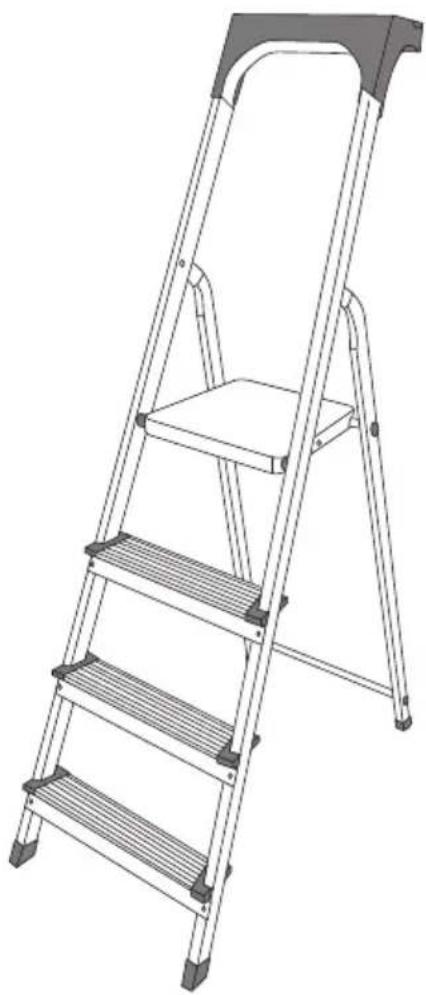

Line drawing of a metal ladder with a seat, showing stepwise structure and mounting brackets (no text or symbols)

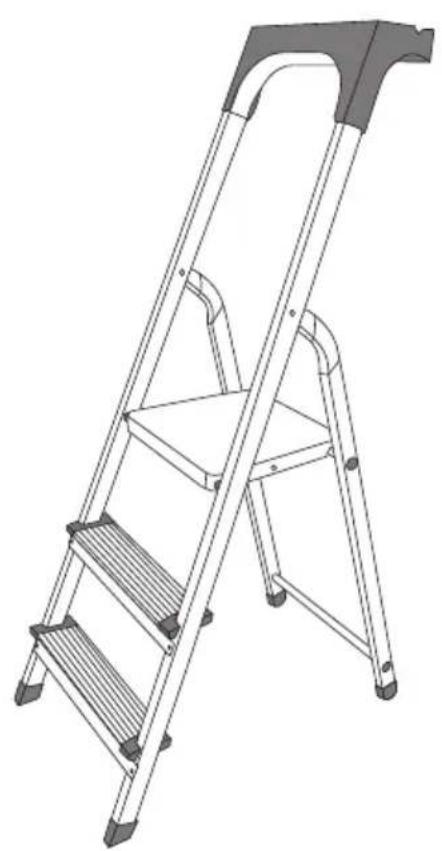

Line drawing of a metal ladder with a curved handle and stepped base (no text or symbols)

Art.no

40-6946

40-6949

Model

WR2491A

WR2391A

Ver. 20180522

Free-standing Step Ladder

Art.no

40-6946

Model

WR2491A

40-6949

WR2391A

Please read the entire instruction manual before use and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

General safety instructions for all ladders

Warning sign depicting a person falling into a triangular frame (no text or symbols)

Warning: Fall hazard.

Simple line drawing of a ladder with an 'X' mark and a cross symbol (no text or labels)

Inspect the ladder after delivery. Before every use, visually check that the ladder is not damaged and is safe to use. Never use a damaged ladder.

Maximum total load 150 kg.

Simple line drawing of a ladder leaning against a wall with a cross symbol (no text or labels)

Do not use the ladder on an uneven or unfirm base.

Simple icon of a person climbing a ladder with an 'X' symbol (no text or numbers present)

Do not overreach.

Do not erect the ladder on contaminated ground.

The ladder may only be used by a maximum of one person at a time.

Simple pictogram of a person climbing a pole with a cross symbol (no text or labels)

Do not ascend or descend unless you are facing the ladder.

Silhouette of a person climbing a pole with a checkmark (no text or symbols)

Keep a secure grip on the ladder when ascending and descending. Maintain a handhold whilst working from a ladder or take additional safety precautions if you cannot.

Silhouette of a person climbing a ladder with a checkmark and an 'X' symbol (no text or symbols present)

Avoid work that imposes a sideways load on ladders, such as side-on drilling through solid materials.

Do not carry equipment which is heavy or difficult to handle while using a ladder.

Simple line drawing of two flip-flops with a cross symbol (no text or labels)

Do not wear unsuitable footwear when climbing a ladder.

Illustration of a beer mug with pills, syringe, and a cross symbol (no text or labels)

Do not use the ladder if you are not fit enough. Certain medical conditions or medication, alcohol or drug abuse could make ladder use unsafe.

• Do not spend long periods on a ladder without regular breaks. Tiredness is a safety risk.
• Place and secure the ladder in such a way that it will not be damaged during transport.
• Ensure that the ladder is suitable for the task.
• Do not use the ladder if contaminated, e.g. with wet paint, mud, oil or snow.
• Do not use the ladder outside in adverse weather conditions, such as strong wind.
• When positioning the ladder, take into account the risk of collision with the ladder e.g. from pedestrians, vehicles or doors. Secure doors (not fire exits) and windows in the work area wherever possible.

Warning, electricity hazard.

Simple line drawing of a ladder leaning against a curved surface with an 'X' mark (no text or symbols)

Identify any electrical risks in the work area, such as overhead lines or other exposed electrical equipment and do not use the ladder where electrical risks occur.

Use non-conductive ladders for unavoidable live electrical work.

Simple line drawing of a person standing on a bridge with a cross symbol (no text or labels)

Do not use the ladder as a bridge.

• Do not modify the ladder design.
• Do not move a ladder while standing on it.
• Pay attention to the wind when using the ladder outdoors.

Icon of a human head silhouette with an industrial factory and a cross symbol (no text or labels)

Icon showing a house with a checkmark and a human head silhouette (no text or symbols)

This ladder is designed for domestic use.

Additional safety instructions for standing ladders

Simple line drawing of a person climbing a ladder with a 'X' symbol (no text or labels)

Do not step off the side of standing ladder onto another surface.

Open the ladder fully before use.

Diagram of a ladder structure with an arrow indicating direction, no text or symbols present

Only use the ladder with restraint devices engaged.

Illustration of a person climbing a ladder next to a wall with an 'X' symbol (no text or labels)

A standing ladder shall not be used as a leaning ladder unless it is designed to do so.

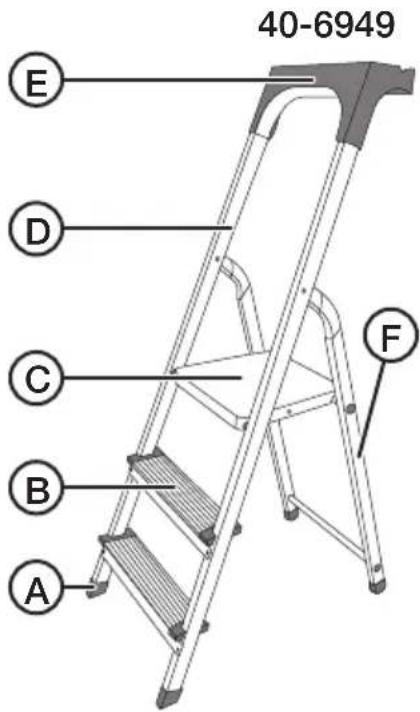

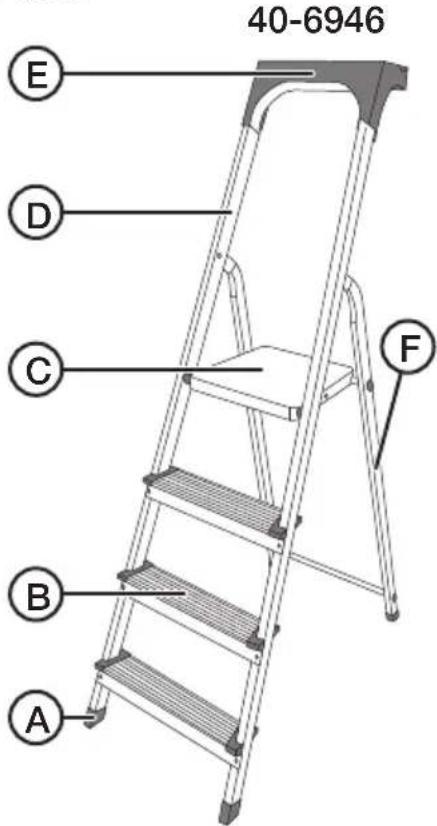

Product description

A. Base
B. Tread
C. Platform
D. Stile
E. Hand/Knee rail with integrated tool holder
F. Support leg

• Free-standing Step Ladder
- 4 × treads (incl. platform).
- Hand/Knee rail with integrated tool holder.

• Free-standing Step Ladder
- 3 × treads (incl. platform).
- Hand/Knee rail with integrated tool holder.

Assembly

1. Unpack the parts and remove all packaging.

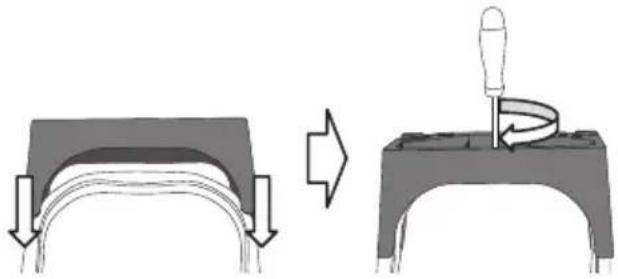

2. Firmly press in the hand/knee rail (E) on the upper part of the ladder and secure it with the included screw.

Instructions for use

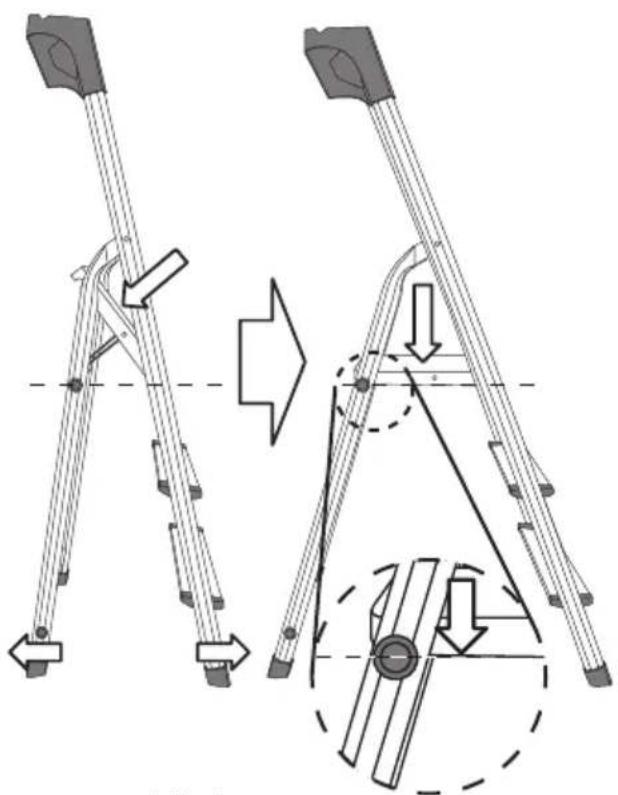

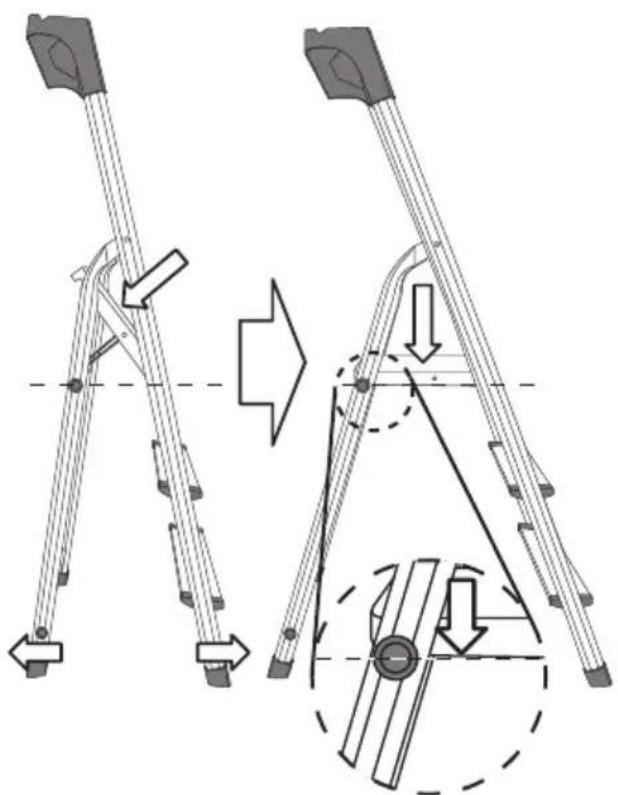

Fold down the support legs (F) completely and press the platform (C) down towards the stay between the support legs.

Warning:

Make sure that the platform is horizontal and completely fixed against the support leg stay before you climb the ladder. If it is not, the ladder is not secure in its fully extended position, which could result in an injury or damage to property.

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Mechanical linkage diagram showing two configurations with arrows indicating movement, no text or symbols present

Regular working order inspections

Visual inspections should be performed regularly to check that:

• the stiles are not bent, twisted, cracked, corroded or damaged in any way
• the surface of the stiles around each rung fixing is in good condition
• no fittings, bolts or nuts are loose, missing or corroded
• none of the treads are loose, missing, corroded or damaged in any way
• none of the ladder feet are missing, loose, worn or damaged in any way
• the entire ladder is free from mud, wet paint, oil, grease or other slippery substances.

Warning:

If the ladder fails to comply with any of the requirements listed above, it must NOT be used.

Care and maintenance

Cleaning

Clean the product using a damp cloth. Use only mild cleaning agents, never solvents or corrosive chemicals.

Storage

When not in use, the ladder should be stored:

• in a dry and sheltered location
- in a position which ensures that the ladder remains straight
- where it cannot be damaged by vehicles, heavy items or contaminants
- where it cannot pose a tripping or fall hazard or create an obstacle
• where it cannot easily be used for criminal purposes
- where it cannot be climbed by unauthorised users (e.g. children).

Responsible disposal

The product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local council.

Specifications

Material Aluminium

40-6946

Number of treads 4 (incl. platform)

Size 146 × 83 × 44.4 cm

Platform height 83 cm

Max load 150 kg

40-6949

Number of treads 3 (incl. platform)

Size 124 × 68 × 41.5 cm

Platform height 61 cm

Max load 150 kg

Warning sign depicting a person falling into a triangular frame (no text or symbols)

Varning! Fallrisk.

Simple line drawing of a ladder with an 'X' mark and a cross symbol (no text or labels)

Simple pictogram of a person climbing a pole with a cross symbol (no text or labels)

Simple line drawing of a ladder leaning against a wall with an 'X' symbol (no text or labels)

Silhouette of a person climbing a pole with a checkmark (no text or symbols)

Simple icon of a person climbing a ladder with an 'X' symbol (no text or numbers present)

Silhouette of a person climbing a ladder with a checkmark and X symbol (no text or symbols present)

Simple line drawing of two flip-flops with a cross mark (no text or symbols)

Illustration of a beer mug with pills, a syringe, and a cross symbol (no text or labels)

Simple line drawing of a ladder leaning against a curved surface with an 'X' symbol (no text or labels)

Simple line drawing of a person crossing a bridge with a cross symbol (no text or labels)

Icon of a human head silhouette with an industrial factory and a cross symbol (no text or labels)

Icon showing a house with a checkmark and a human head silhouette (no text or symbols)

Simple line drawing of a person climbing a ladder with a 'X' symbol (no text or labels)

Diagram of a ladder structure with an arrow indicating direction, no text or symbols present

Illustration of a person climbing stairs with a 'X' symbol (no text or labels)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Warning sign depicting a person falling into a triangular frame (no text or symbols)

Advarsel! Fare for fall.

Plasser aldri stigen på risikabelt underlag, som f.eks. oljeflekker eller i vanndammer.

Simple line drawing of a ladder with an 'X' mark and a cross symbol (no text or labels)

Simple pictogram of a person climbing a pole with an 'X' symbol (no text or labels)

Klatre aldri på stigen med ryggen vendt inn mot stigen.

Simple line drawing of a ladder leaning against a wall with a cross symbol (no text or labels)

Silhouette of a person holding a tool with a checkmark (no text or symbols)

Simple icon of a person climbing a ladder with an 'X' symbol (no text or numbers present)

Silhouette of a person climbing a ladder with a checkmark and X symbol (no text or numbers present)

Simple line drawing of two flip-flops with a cross mark (no text or symbols)

Illustration of a beer mug with pills, a syringe, and a cross symbol (no text or labels)

Bruk ikke stigen hvis du ikke er i tilstrekkelig god form til det. Enkelte medisinske tilstander, og bruk av spesielle medisiner, alkohol eller rusmidler bør ikke kombineres med klatring i stigen, da dette kan føre til skader.

Warning sign depicting a lightning bolt symbol (no text or numbers present)

Simple line drawing of a ladder with an arrow and a cross symbol, no text or labels present

Simple line drawing of a person standing on a bridge with a cross symbol (no text or labels)

Icon of a human head silhouette with an industrial factory and a cross symbol (no text or labels)

Icon showing a house with a checkmark and a human head silhouette (no text or symbols)

Stigen er beregnet til privat bruk.

Simple line drawing of a person climbing a ladder with a 'X' symbol (no text or labels)

Diagram of a ladder structure with an arrow indicating direction, no text or symbols present

Eventuelle låse- anordninger må sikres før stigen kan tas i bruk.

Illustration of a person climbing stairs with a 'X' symbol (no text or labels)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Warning sign depicting a person falling into a triangular frame (no text or symbols)

Simple line drawing of a ladder with an 'X' mark and a checkmark symbol (no text or labels)

Simple pictogram of a person climbing a pole with an 'X' symbol (no text or labels)

Simple line drawing of a ladder leaning against a wall with a cross symbol (no text or labels)

Silhouette of a person climbing a pole with a checkmark (no text or symbols)

Simple icon of a person climbing a ladder with an 'X' symbol (no text or numbers present)

Silhouette of a person climbing a ladder with a checkmark and an 'X' symbol (no text or symbols present)

Simple line drawing of two flip-flops with a cross mark (no text or symbols)

Illustration of a beer mug with a syringe, pills, and a cross symbol (no text or labels)

Warning sign depicting a lightning bolt symbol (no text or numbers present)

Sähköiskun vaara.

Simple line drawing of a ladder leaning against a curved surface with an 'X' symbol (no text or labels)

Simple line drawing of a person standing on a bridge with a cross symbol (no text or labels)

Icon of a human head silhouette with an industrial factory and a cross symbol (no text or labels)

Icon showing a house with a checkmark and a human head silhouette (no text or symbols)

Simple line drawing of a person climbing a ladder with a 'X' symbol (no text or labels)

Diagram of a ladder structure with an arrow indicating direction, no text or symbols present

Illustration of a person climbing stairs with a 'X' symbol (no text or labels)

Diagram showing a mechanical component before and after assembly, with no visible text or symbols

Warning sign depicting a person falling into a triangular frame (no text or symbols)

Simple line drawing of a ladder with an 'X' mark and a cross symbol (no text or labels)

Simple pictogram of a person climbing a pole with an 'X' symbol (no text or labels)

Simple line drawing of a ladder leaning against a wall with a cross symbol (no text or labels)

Silhouette of a person climbing a pole with a checkmark (no text or symbols)

Simple icon of a person climbing a ladder with an 'X' symbol (no text or numbers present)

Silhouette of a person climbing a ladder with a checkmark and X symbol (no text or numbers present)

Simple line drawing of two flip-flops with a cross mark (no text or symbols)

Illustration of a beer mug with pills, syringe, and a cross symbol (no text or labels)

Simple line drawing of a ladder with an arrow and a cross symbol (no text or labels)

Simple line drawing of a person standing on a bridge with a cross symbol (no text or labels)

Icon of a human head silhouette with an industrial factory and a cross symbol (no text or labels)

Icon showing a house with a checkmark and a human head silhouette (no text or symbols)

Simple line drawing of a person climbing a ladder with a 'X' symbol (no text or labels)

Diagram of a ladder structure with dashed lines indicating hidden edges and a checkmark (no text or symbols)

Simple line drawing of a person climbing stairs with a cross symbol (no text or labels)

Postal 10 – 13 Market Place

Kingston upon Thames

Surrey

KT1 1JZ

Deutschland

Kundenservice Hotline: [phone]

E-Mail: [e-mail]

Homepage

www.clasohlson.de
