Product Type	Freestanding Washing Machine
Loading Type	Front Load
Dimensions (H x W x D)	84.5 x 60 x 59 cm
Weight	72 kg
Power Supply	220-240 V, 50 Hz, 10 A
Energy Efficiency Class	A (EU energy label)
Annual Energy Consumption	137 kWh/year
Annual Water Consumption	9900 L/year
Maximum Load Capacity	8 kg
Maximum Spin Speed	1400 rpm
Noise Level (Wash/Spin)	51 dB / 74 dB
Motor Type	EcoSilence Drive (inverter motor)
AntiVibration Design	Yes
Programs	Cotton, Synthetics, Delicates, Wool, Quick Wash, Eco, etc.
Key Features	SpeedPerfect, EcoPerfect, VarioPerfect, ActiveWater, AquaStop
Drum Material	Stainless steel
Drum Clean Indicator	Yes
Self-Cleaning Detergent Drawer	Yes
Child Lock	Yes
Repair Score	10/10 (excellent repairability)
Spare Parts Availability	At least 10 years

Frequently Asked Questions - Serie 8 WAV28EH3GB BOSCH

How do I clean the detergent drawer?

What does the SpeedPerfect function do?

How can I activate the child lock?

Why is my washing machine not draining?

What is the maximum load for a cotton cycle?

How do I run a drum clean cycle?

What should I do if the machine displays 'E:...' error?

Can I use liquid detergent?

How do I prevent excess foam?

What is the warranty period?

USER MANUAL Serie 8 WAV28EH3GB BOSCH

Register your new device on MyBosch now and get free benefits: bosch-home.com/welcome

Washing machine

WAV28EH3GB

[en] User manual and installation instructions

For further information, please refer to the Digital User Guide.

Table of contents

1 Safety 4

1.1 General information...... 4
1.2 Intended use...... 4
1.3 Restriction on user group...... 4
1.4 Safe installation 5
1.5 Safe use 7
1.6 Safe cleaning and maintenance.... 9

2 Preventing material damage ..... 10

3 Environmental protection and saving energy.... 11

3.1 Disposing of packaging ..... 11
3.2 Save energy and conserve resources.... 11
3.3 Energy saving mode 12

4 Installation and connection..... 12

4.1 Unpacking the appliance ..... 12
4.2 Contents of package...... 12
4.3 Requirements for the installation location .... 13

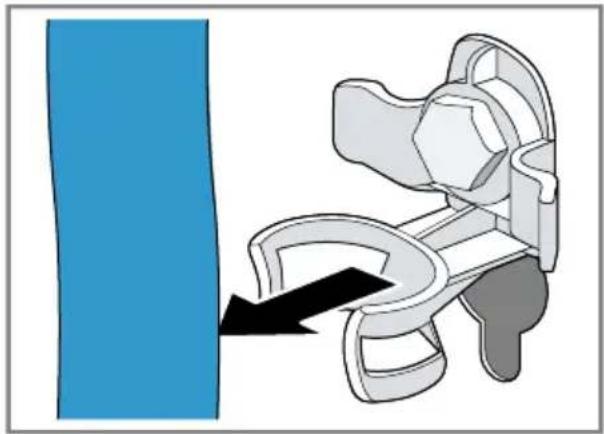

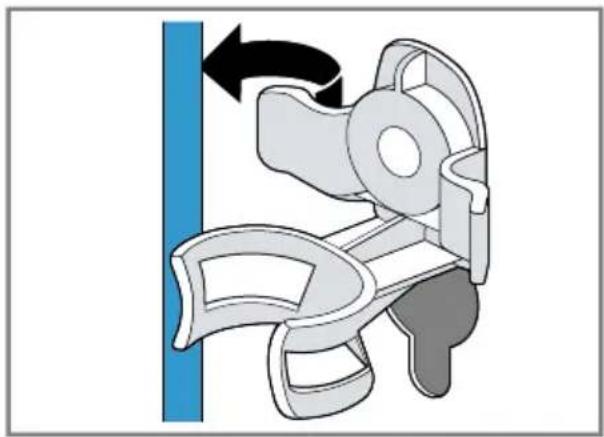

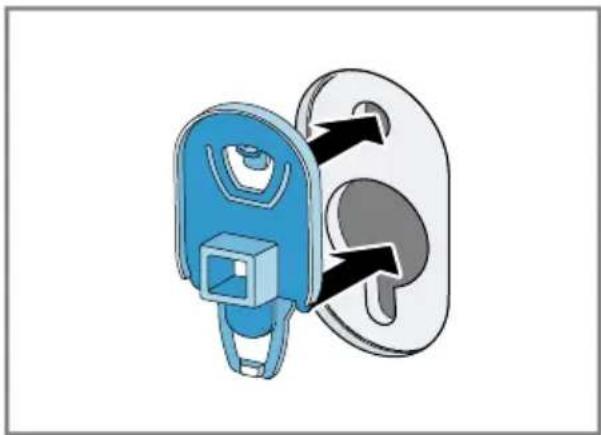

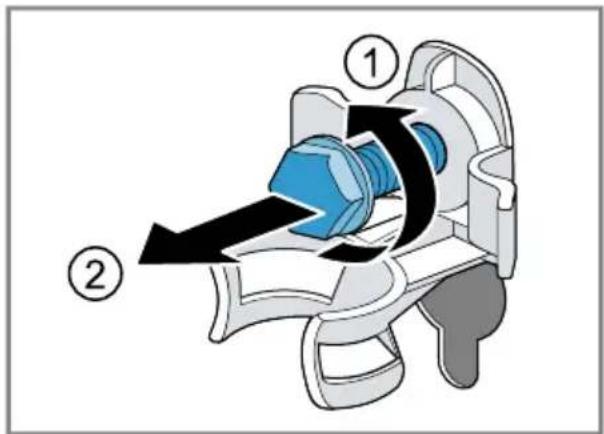

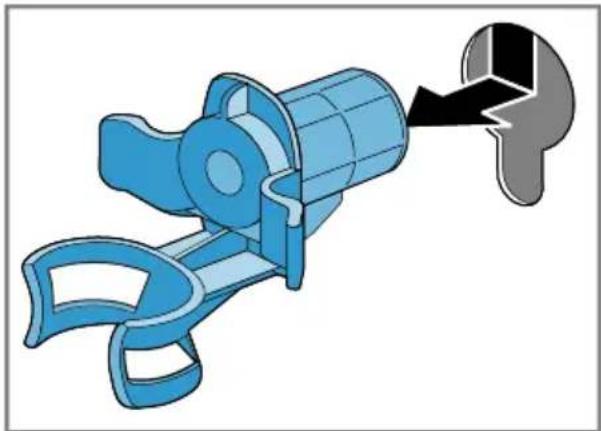

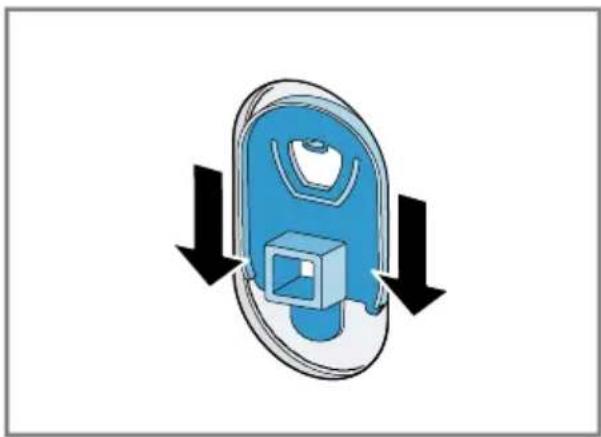

4.4 Removing the transit bolts ..... 13

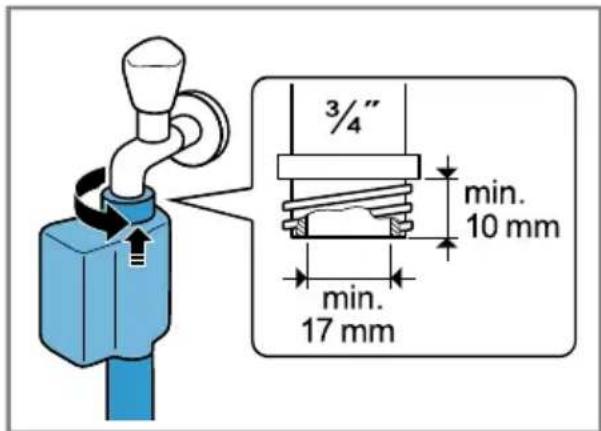

4.5 Connecting the appliance ..... 15

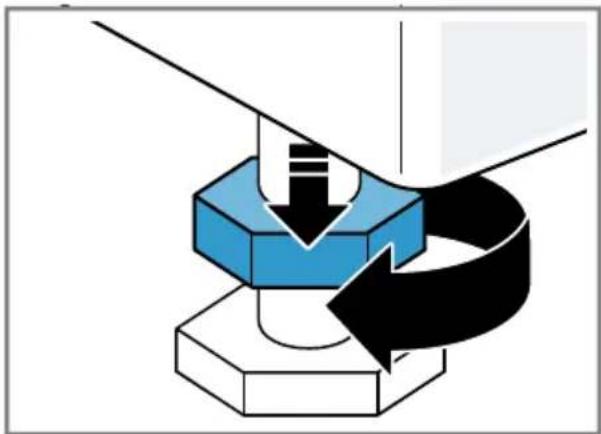

4.6 Aligning the appliance...... 15
4.7 Connecting the appliance to the electricity supply...... 16

5 Familiarising yourself with your appliance.... 17

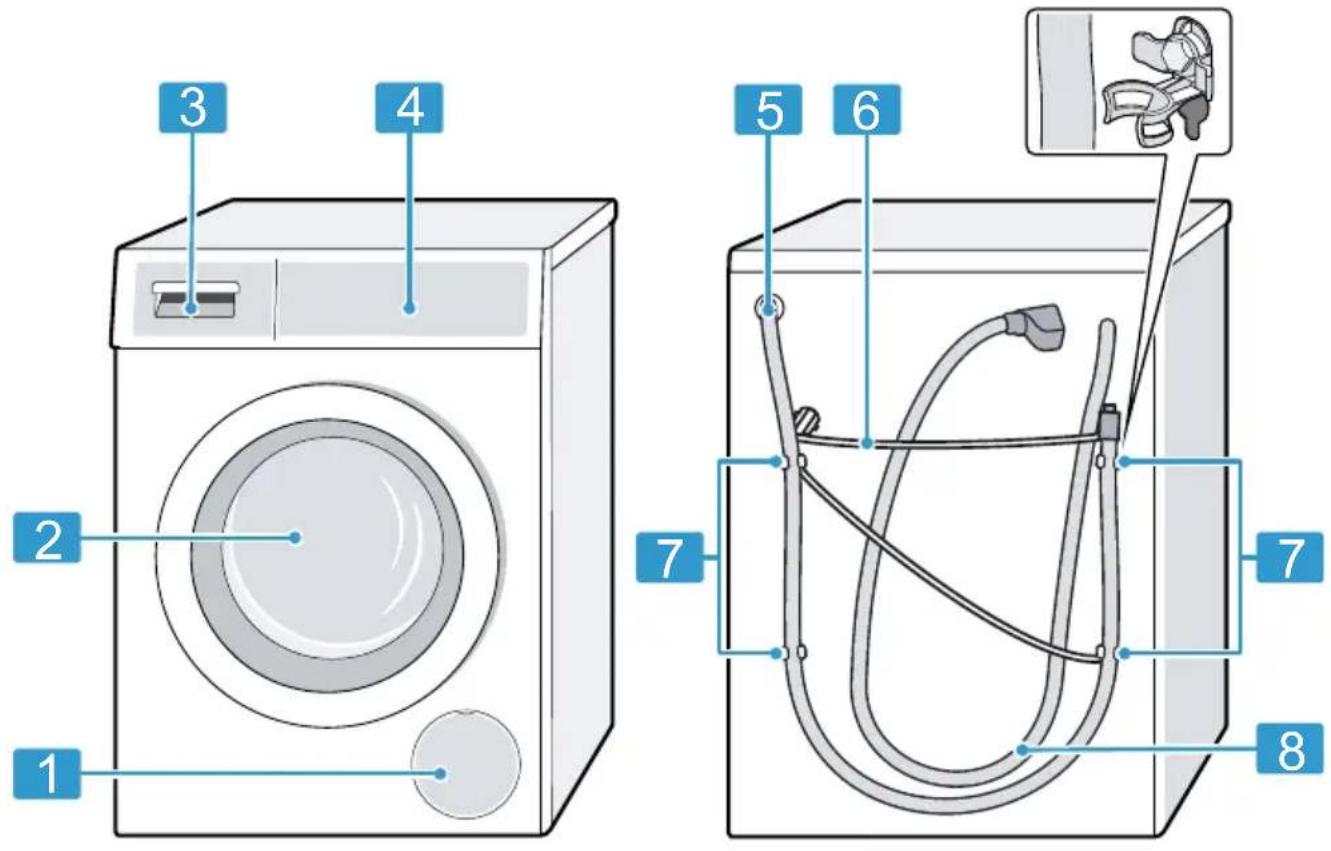

5.1 Appliance 17
5.2 Detergent drawer.... 18
5.3 Control panel.... 18
5.4 Operating logic.... 18

6 Before using for the first time ... 19

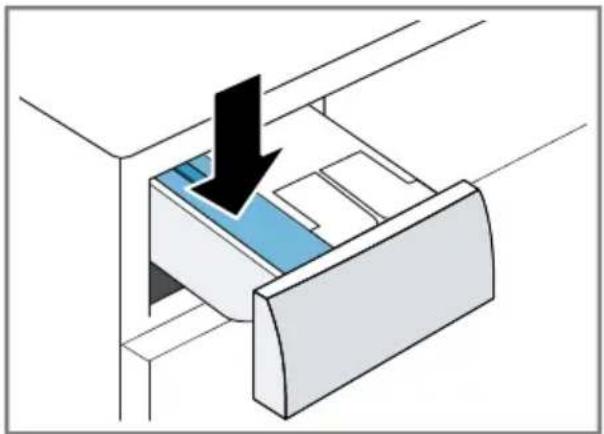

6.1 Starting an empty washing cycle 19

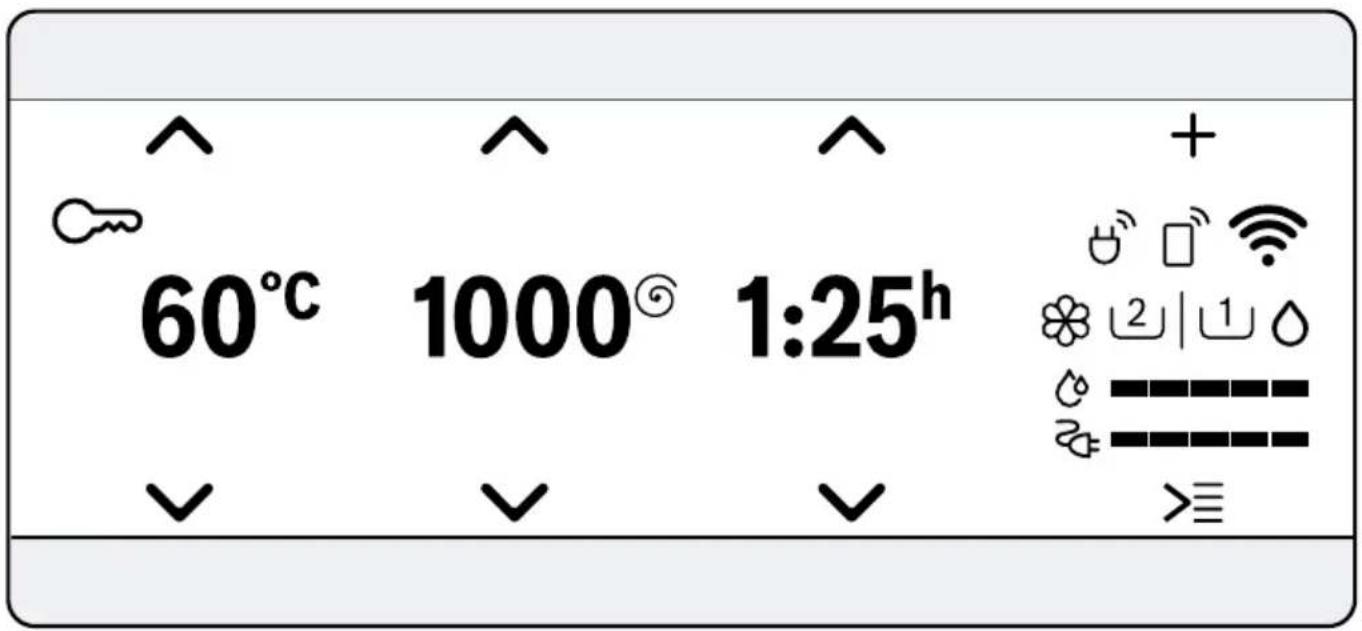

7 Display 20

8 Buttons 23

9 Programmes 26

10 Accessories.... 31

11 Laundry.... 31

11.1 Preparing the laundry...... 31

12 Detergents and care products 32

13 Basic operation ...... 32

13.1 Switching on the appliance .... 32
13.2 Setting a programme .... 32
13.3 Adjusting the programme settings 32
13.4 Saving the programme settings.... 33
13.5 Loading laundry.... 33
13.6 Adding detergent and care product 33
13.7 Starting the programme ..... 33
13.8 Adding laundry 33
13.9 Cancelling the programme .... 34
13.10 Resuming the programme when the programme status is Rinse Hold .... 34
13.11 Unloading the laundry ..... 34

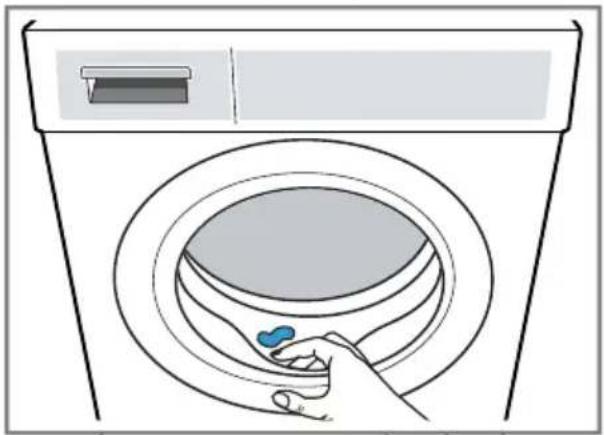

13.12 Switching off the appli- ance.... 34

14 Childproof lock.... 34

14.1 Activating the childproof lock.... 34
14.2 Deactivating the childproof lock.... 34

15 Intelligent dosing system ..... 35

15.1 Starting the programme with intelligent dosing system 35
15.2 Filling the dispensers 35
15.3 Basic dosage 36

16 Home Connect 36

16.1 Connecting the appliance to a WLAN home network (Wi-Fi) with WPS function ..... 37
16.2 Connecting the appliance to a WLAN home network (Wi-Fi) without WPS function.... 37
16.3 Connecting the appliance to the Home Connect app..... 38
16.4 Activating Wi-Fi on the appliance 38
16.5 Deactivating Wi-Fi on the appliance.... 38
16.6 Resetting the appliance network settings .... 38
16.7 Remote start.... 38
16.8 Remote diagnostics 39
16.9 Data protection.... 39

17 Basic settings.... 39

18 Cleaning and servicing...... 40

18.1 Cleaning the drum...... 40

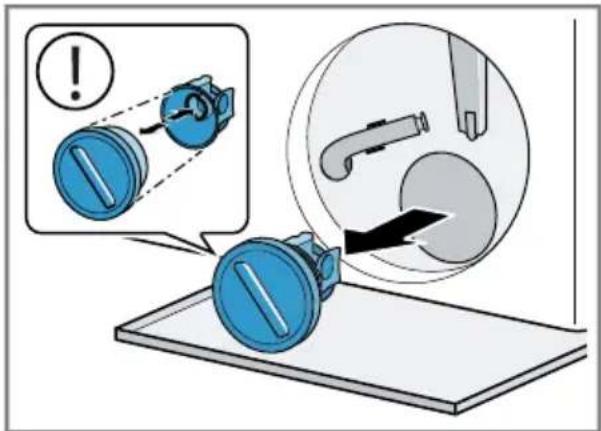

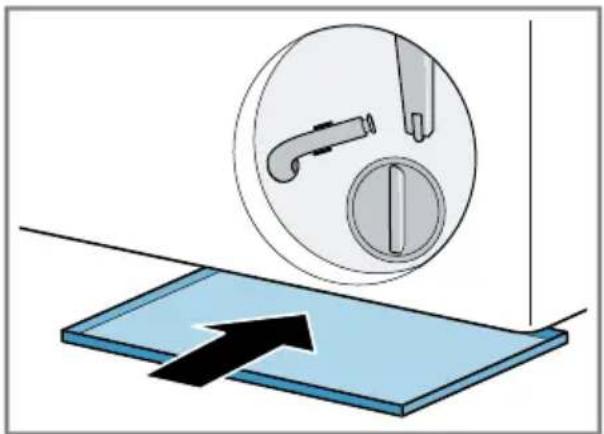

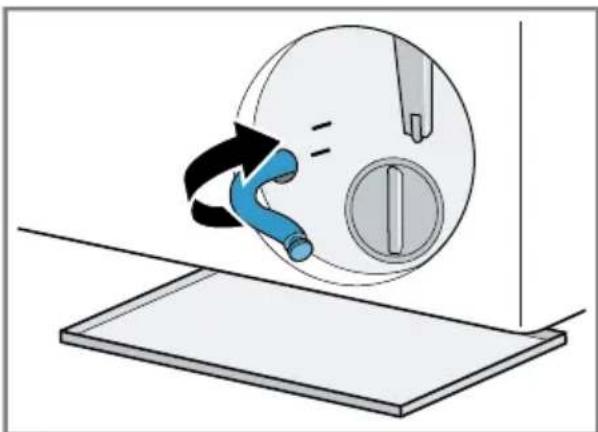

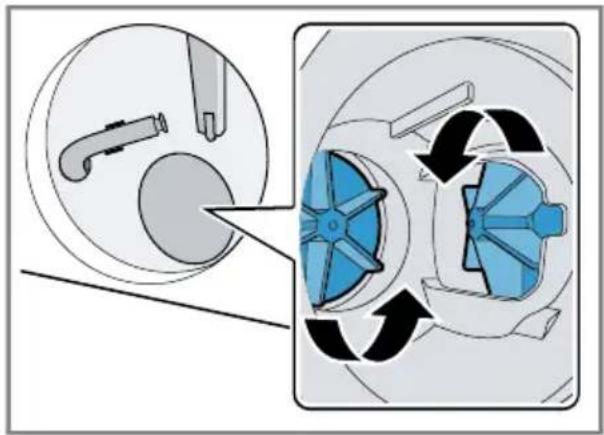

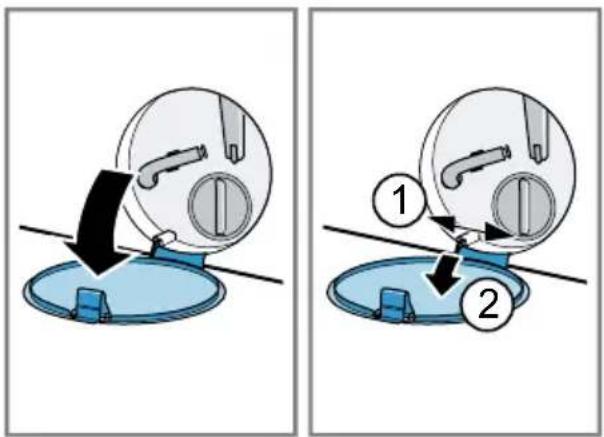

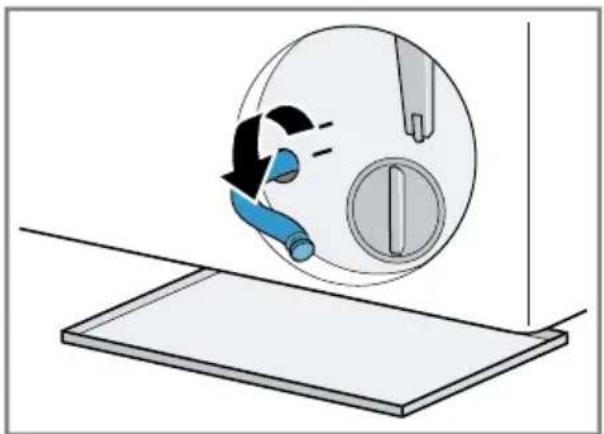

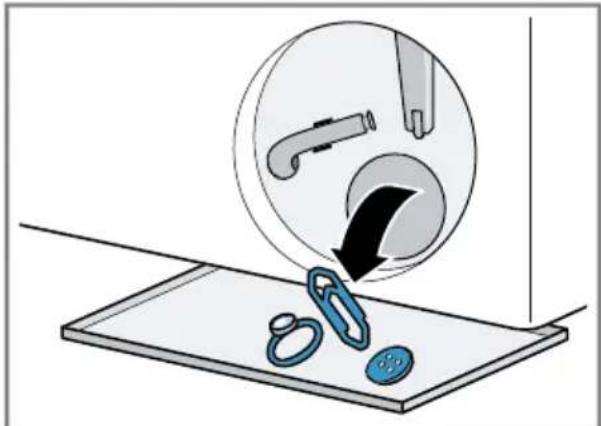

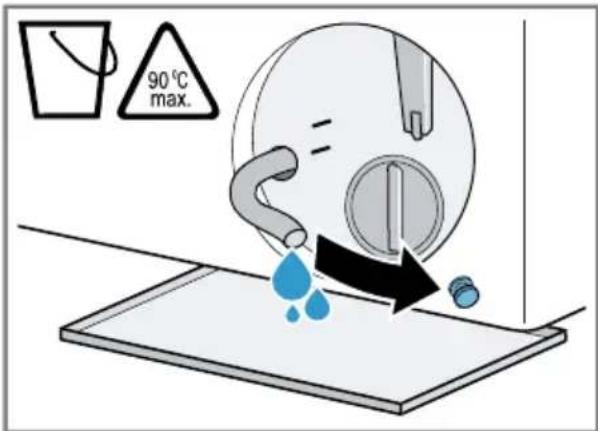

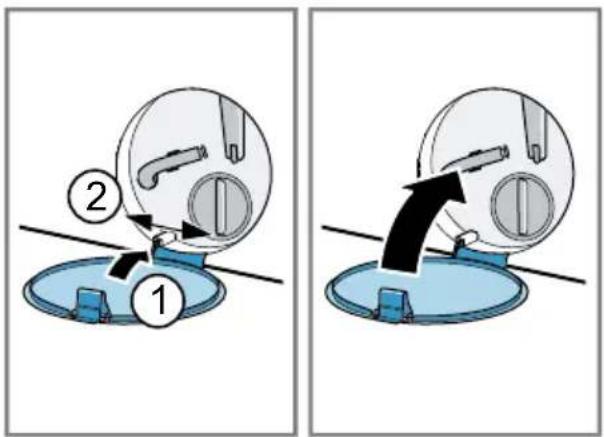

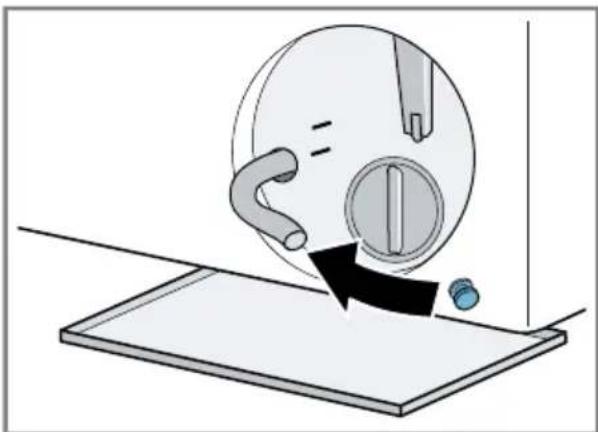

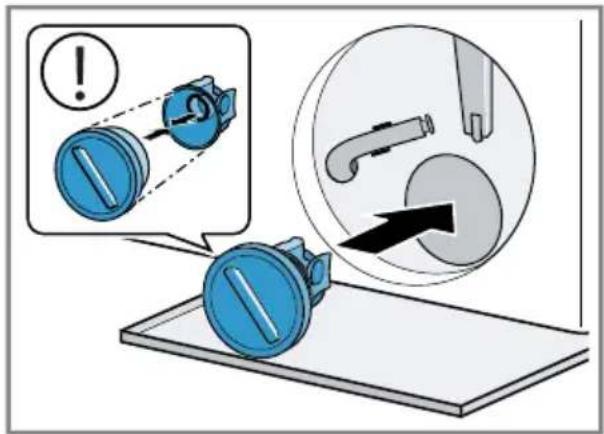

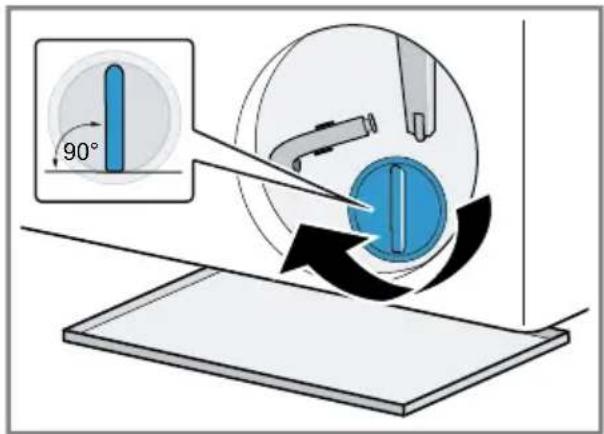

18.2 Cleaning the drain pump...... 40

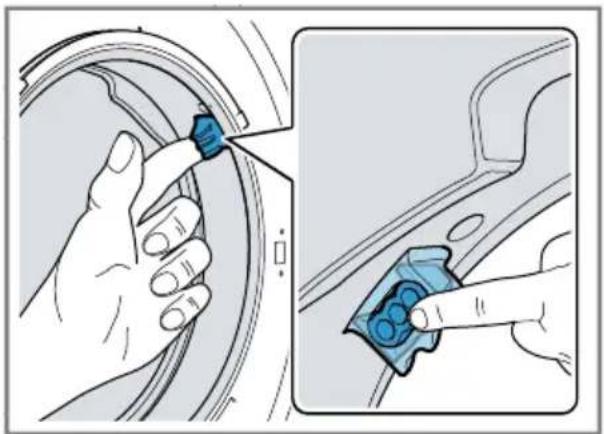

18.3 Cleaning the intake open- ing in the rubber gasket...... 42

19 Troubleshooting...... 43

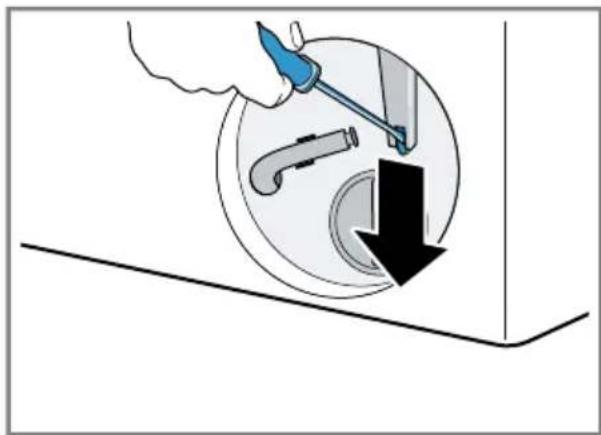

19.1 Emergency release 52

20 Transportation, storage and disposal 52

20.1 Removing the appliance ..... 52

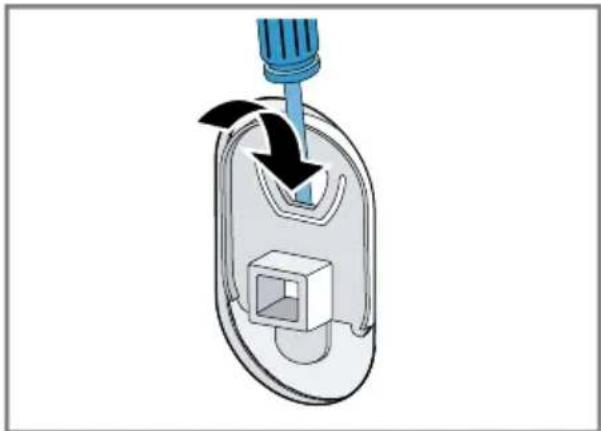

20.2 Inserting the transit bolts...... 52
20.3 Using the appliance again ..... 52
20.4 Disposing of old appliance .... 53

21 Customer Service.... 53

21.1 Product number (E-Nr.) and production number (FD)...... 53
21.2 AQUA-STOP guarantee ..... 54

22 Consumption values...... 55

23 Technical specifications...... 56

24 Declaration of Conformity ..... 56

1 Safety

Observe the following safety instructions.

1.1 General information

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

1.2 Intended use

Only use this appliance:

■ For washing machine-washable fabrics and hand-washable wool in accordance with the care label.
■ With tap water and commercially available detergents and care products suitable for washing machines.
■ In private households and in enclosed spaces in a domestic environment.
■ Up to an altitude of max. 4000 m above sea level.

1.3 Restriction on user group

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Children must not play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

Keep children under the age of 3 years and pets away from the appliance.

1.4 Safe installation

Take note of the safety instructions when installing the appliance.

⚠ WARNING – Risk of electric shock!

Improper installation is dangerous.

• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed. The installation must have a sufficiently large cross section.
• When using a residual current circuit breaker, only use a type with the ~mark .
  ▶ Never equip the appliance with an external switching device, e.g. a timer or remote control.
• When the appliance is installed, the mains plug of the power cord must be freely accessible. If free access is not possible, an all-pole isolating switch must be installed in the permanent electrical installation according to the installation regulations.
• When installing the appliance, check that the power cable is not trapped or damaged.
  If the insulation of the power cord is damaged, this is dangerous.
  ▶ Never let the power cord come into contact with hot appliance parts or heat sources.
  ▶ Never let the power cord come into contact with sharp points or edges.
  ▶ Never kink, crush or modify the power cord.

⚠ WARNING – Risk of fire!

It is dangerous to use an extended power cord and non-approved adapters.

▶ Do not use extension cables or multiple socket strips.
▶ If the power cord is too short, contact Customer Service.
▶ Only use adapters approved by the manufacturer.

⚠ WARNING – Risk of injury!

The high weight of the appliance may result in injury when lifted.

▶ Do not lift the appliance on your own.
If this appliance is not correctly installed in a washer-dryer stack, the installed appliance may fall.
▶ Only stack the dryer on a washing machine using the connection kit from the dryer manufacturer. No other installation method is permitted.
- Do not install the appliance in a washer-dryer stack if the dryer manufacturer does not offer a suitable connection kit.
- Do not install appliances from different manufacturers and with varying depths and widths in a washer-dryer stack.
- Do not install a washer-dryer stack on a platform; the appliances may tip over.

⚠ WARNING – Risk of suffocation!

Children may put packaging material over their heads or wrap themselves up in it and suffocate.

• Keep packaging material away from children.
  ▶ Do not let children play with packaging material.

CAUTION – Risk of injury!

The appliance may vibrate or move when in use.

• Place the appliance on a clean, even, solid surface.

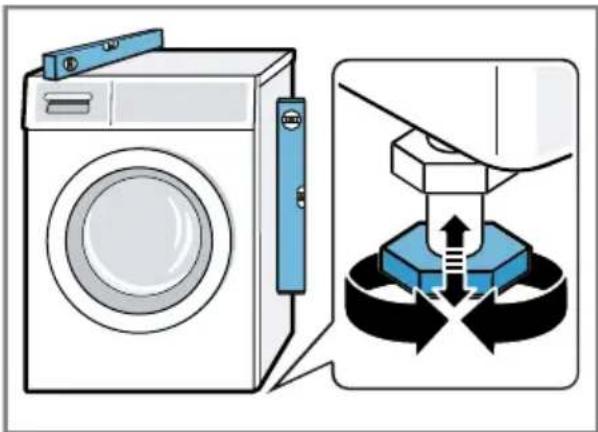

• Align the appliance using the appliance feet and a spirit level. If hoses and power cords have been laid incorrectly, this causes a tripping hazard.
• Lay hoses and power cords in such a way that there is no risk of tripping.

If the appliance is moved by holding onto protruding components, such as the appliance door, the parts may break off.

- Do not move the appliance by holding onto protruding parts.

⚠️ CAUTION – Risk of cutting!

Touching sharp edges on the appliance may lead to cuts.

▶ Do not touch the sharp edges on the appliance.

- Wear protective gloves when installing and transporting the appliance.

1.5 Safe use

⚠ WARNING – Risk of electric shock!

If the appliance or the power cord is damaged, this is dangerous.

▶ Never operate a damaged appliance.
▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box and turn off the water tap.
▶ Call customer services. → Page 53
An ingress of moisture can cause an electric shock.
▶ Only use the appliance in enclosed spaces.
▶ Never expose the appliance to intense heat or humidity.
- Do not use steam- or high-pressure cleaners, hoses or sprays to clean the appliance.

⚠ WARNING – Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

• Do not install the appliance behind a door as this may obstruct the appliance door or prevent it from opening.
• With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.

⚠ WARNING – Risk of suffocation!

Children may breathe in or swallow small parts, causing them to suffocate.

• Keep small parts away from children.
  ▶ Do not let children play with small parts.

⚠ WARNING – Risk of poisoning!

Detergents and care products may result in poisoning if consumed.

▶ If accidentally swallowed, seek medical advice.
- Keep detergents and care products out of the reach of children.

⚠ WARNING – Risk of explosion!

Laundry that has been pretreated with cleaning agents that contain solvents may cause an explosion in the appliance.

- Rinse pretreated laundry thoroughly with water before washing.

⚠️ CAUTION – Risk of injury!

The covering plate may break if you stand on or climb onto the appliance.

▶ Do not stand on or climb onto the appliance.

The appliance may tip over if you sit on or lean against the open door.

▶ Do not sit on or lean against the appliance door.
▶ Do not place any objects on the appliance door.

Reaching into the drum while it is still turning may cause hand injuries.

- Wait for the drum to come to a complete stop before reaching inside.

⚠️ CAUTION – Risk of scalding!

When you wash at high temperatures, the detergent solution gets hot.

▶ Do not touch the hot detergent solution.

⚠️ CAUTION – Risk of chemical burns!

If the detergent drawer is opened, detergent and care products may spray out from the appliance. Contact with eyes or skin may cause irritation.

• Rinse eyes and/or skin thoroughly with clean water if they come into contact with detergents or care products.
  ▶ If accidentally swallowed, seek medical advice.
• Keep detergents and care products out of the reach of children.

1.6 Safe cleaning and maintenance

Take note of the safety instructions when cleaning and performing maintenance work on the appliance.

⚠ WARNING – Risk of electric shock!

Incorrect repairs are dangerous.

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
An ingress of moisture can cause an electric shock.

- Do not use steam- or high-pressure cleaners, hoses or sprays to clean the appliance.

⚠ WARNING – Risk of injury!

The use of non-original spare parts and non-original accessories is dangerous.

▶ Only use the manufacturer's original spare parts and original accessories.

⚠ WARNING – Risk of poisoning!

Poisonous fumes may be given off if you use cleaning agents that contain solvents.

▶ Do not use cleaning agents that contain solvents.

2 Preventing material damage

Follow these instructions to avoid material damage and damage to the appliance.

ATTENTION!

The functionality of the appliance may be impaired if you use the wrong quantity of fabric softener, detergent, care product or cleaning agent.

▶ Follow the dosage recommendations from the manufacturer.

Exceeding the maximum load capacity impairs the function of the appliance.

- Observe the maximum load capacity for each programme and do not exceed it.

→ "Programmes", Page 26

The appliance is secured for transportation using transit bolts. Transit bolts which have not been removed may result in material damage and damage to the appliance.

▶ Before starting up the appliance, remove the transit bolts completely and keep them in a safe place.
▶ Before transport, fit the transit bolts fully in order to prevent damage in transit.

Material damage may be caused if the water inlet hose is connected incorrectly.

• Tighten the screw connections on the water inlet until they are hand-tight.
• Ideally, connect the water inlet hose directly to the water tap, without any additional connecting elements such as adapters, extensions, valves or similar.

▶ Make sure that the valve housing for the water inlet hose does not come into contact with its surroundings and is not subjected to any external forces.
- Ensure that the inner diameter of the water tap is at least 17 mm.
▶ Make sure that the length of the thread on the connection to the water tap is at least 10 mm.

If the water pressure is too high or too low, the appliance may not be able to operate properly.

• Ensure that the water pressure in the water supply system is at least 100 kPa (1 bar) and max. 1000 kPa (10 bar).
• If the water pressure exceeds the maximum value specified, a pressure-reducing valve must be installed between the drinking water connection and the hose set of the appliance.
• Do not connect the appliance to the mixer tap of an unpressurised hot-water boiler.

Modified or damaged water hoses may result in material damage and damage to the appliance.

▶ Never kink, crush, modify or cut through water hoses.
▶ Only use the water hoses supplied with the appliance or genuine spare hoses.
▶ Never re-use water hoses that have been used before.

Operating the appliance using water that is dirty or too hot may lead to material damage and damage to the appliance.

▶ Only operate the appliance with cold mains water.

Unsuitable cleaning products may damage the surfaces of the appliance.

- Do not use harsh or abrasive detergents.

• Do not use cleaning products with a high alcohol content.
• Do not use hard scouring pads or cleaning sponges.
• Clean the appliance with nothing but water and a soft, damp cloth.
• Remove all detergent residue, spray residue or other residues immediately if they come into contact with the appliance.

3 Environmental protection and saving energy

3.1 Disposing of packaging

The packaging materials are environmentally compatible and can be recycled.

- Sort the individual components by type and dispose of them separately.

3.2 Save energy and conserve resources

If you follow these instructions, your appliance will use less electricity and less water.

Choose programmes with low temperatures and longer wash times and use maximum load capacity.

√ Energy consumption and water consumption is most efficient.

Use the economy programme settings.

√ If you adjust the programme settings for a programme, the display shows the expected consumption.

Add detergent based on the laundry's degree of soiling.

√ For light to normal soiling, a smaller amount of detergent is sufficient. Observe the dosage recommendation from the detergent manufacturer.

Reduce the washing temperature for lightly and normally soiled laundry.

√ At lower temperatures, the appliance consumes less energy. For light to normal soiling, lower temperatures than indicated on the care label are also sufficient.

Set the maximum spin speed if you want to dry the laundry in the tumble dryer afterwards.

√ The drier the laundry, the shorter the programme duration when drying which, in turn, reduces energy consumption. A higher spin speed reduces the residual moisture in the laundry and increases the volume of the spin noise.

Wash the laundry without prewash.

√ Washing with prewash increases the programme duration and increases energy and water consumption.

The appliance has a continuous automatic load adjustment function.

√ Depending on the type of fabric and load capacity, the continuous automatic load adjustment function optimally adjusts the water consumption and programme duration.

The appliance comes with an Aqua-Sensor.

√ During the rinse cycle, the Aqua-Sensor checks the degree of turbidity of the rinsing water, and adjusts the duration and number of rinse cycles accordingly.

3.3 Energy saving mode

If you do not use the appliance for an extended period, it automatically switches to energy-saving mode. Energy-saving mode ends when you use the appliance again. If you do not continue operating the appliance, it switches off.

Note: If Wi-Fi is activated, the appliance will not switch itself off automatically.

4 Installation and connection

4.1 Unpacking the appliance

ATTENTION!

Objects remaining in the drum that are not designed for operation with the appliance may cause material damage and damage to the appliance.

- Remove these objects, along with all supplied accessories, from the drum before starting the appliance.

1. Remove any packaging and protective covers completely from the appliance.

→ "Disposing of packaging", Page 11.

1. Check the appliance for visible damage.

2. Open the appliance door. → "Basic operation", Page 32

3. Remove any accessories from the drum.
4. Close the appliance door.

4.2 Contents of package

After unpacking all parts, check for any damage in transit and completeness of the delivery.

ATTENTION!

If the appliance is operated with incomplete or defective accessories, the appliance may not be able to operate properly, or this may result in material damage or damage to the appliance.

• Do not operate the appliance with incomplete or defective accessories.
• Replace the accessories in question before operating the appliance.
  → "Accessories", Page 31

Note: The appliance has been tested at the factory to check it is in working order. As a result, water stains may remain in the appliance. These marks will disappear after the first wash cycle.

The delivery consists of the following:

■ Washing machine
■ Accompanying documents
■ Transit bolts
→ "Removing the transit bolts", Page 13
■ Cover caps
■ Elbow for securing the water outlet hose

4.3 Requirements for the installation location

WARNING

Risk of electric shock!

The appliance contains live parts. Touching live parts is dangerous.

- Do not operate the appliance without a cover cap.

WARNING

Risk of injury!

When using the appliance on a base, the appliance may tip over.

▶ Always secure the feet of the appliance to a base using the manufacturer's fixing brackets → Page 31 before using the appliance for the first time.

ATTENTION!

The appliance may contain residual water. If you tilt the appliance beyond 40^ , this residual water may leak out.

▶ Tilt the appliance carefully.

Installation loca- Requirements tion

Base Secure the appli-

Illustration of a washing machine on a base (no text or symbols)

ance with fixing brackets → Page 31.

Wooden joist floor

Simple line drawing of a washing machine on a platform (no text or symbols)

Place the appli- ance on a water- resistant wooden board (minimum thickness of 30 mm) which is screwed tightly to the floor.

Installation loca- Requirements tion

Kitchen unit Only install the

Line drawing of a washing machine with three doors and front panel (no text or symbols)

appliance underneath a continuous worktop that is securely connected to adjacent cabinets. Required niche width: 60 cm.

Against a wall Do not trap the hoses between the wall and the appliance.

Diagram showing a pipe or channel with a brick wall and directional arrow, no text or symbols present

ATTENTION!

Residual water may freeze. Freezing residual water may damage the appliance and frozen hoses may burst.

- Do not install the appliance outdoors or in areas where there is a risk of frost.

4.4 Removing the transit bolts

The appliance is secured for transportation using transit bolts on the rear of the appliance.

Note: Keep the transit bolt screws and the sleeves in a safe place for future transport → Page 52.

en Installation and connection

1. Pull the hoses out of the holders.

Illustration of a mechanical device with a black arrow pointing to a blue vertical bar (no text or symbols)

1. Unscrew ① and remove ② all 4 screws for the transit bolts with a WAF 13 wrench.

1. Pull the power cable out of the holder.

Mechanical assembly diagram showing a clamping mechanism with directional arrow (no text or symbols)

1. Remove the 4 sleeves.

3D illustration of a blue mechanical component with a black arrow pointing to it, showing internal structure and part outline (no text or symbols)

1. Put on the 4 cover caps.

Diagram of a blue mechanical device with black arrows pointing to a circular component (no text or symbols)

1. Press down on the 4 cover caps.

Diagram of a blue mechanical component with directional arrows indicating flow or movement (no text or symbols)

4.5 Connecting the appliance Connecting the water inlet hose

WARNING

Risk of electric shock!

The appliance contains live parts. Touching live parts is dangerous.

▶ Do not immerse the electrical AquaStop valve in water.

1. Connect the water inlet hose to a tap (26.4 mm = 3/4").

1. Open the water tap carefully and check that the connection points are tight.

Water outlet connection types

This information is intended to help you to connect this appliance to the water outlet.

ATTENTION!

When draining, the water outlet hose is subject to water pressure and may come loose from the installed connection point.

- Secure the water outlet hose against unintentional loosening.

Note: Observe the draining heights. The maximum draining height is 100 cm.

Siphon Secure the con-

Diagram of a pipe outlet with a blue arrow indicating flow direction (no text or symbols)

nection point with a (24–40 mm) hose clamp.

Sink Fix and secure

Illustration of a bathroom sink with a tool and magnified view showing the handle (no text or symbols)

the water outlet hose with an el- bow.

Plastic pipe with rubber sleeve or gully

Diagram of a medical or electrical setup with tubing, connectors, and a grid base (no text or symbols)

Fix and secure the water outlet hose with an elbow.

4.6 Aligning the appliance

In order to reduce noise and vibration and to prevent the appliance from moving, align the appliance correctly.

1. Loosen the lock nuts using a WAF 17 wrench by turning it in a clockwise direction.

Diagram showing a mechanical assembly with a blue hexagonal base and black arrows indicating motion or force direction (no text or symbols)

en Installation and connection

1. To align the appliance, turn the appliance feet. Check that the appliance is level using a spirit level.

Illustration of a washing machine next to a mechanical press or stamping device (no text or symbols present)

All appliance feet must stand firmly on the ground.

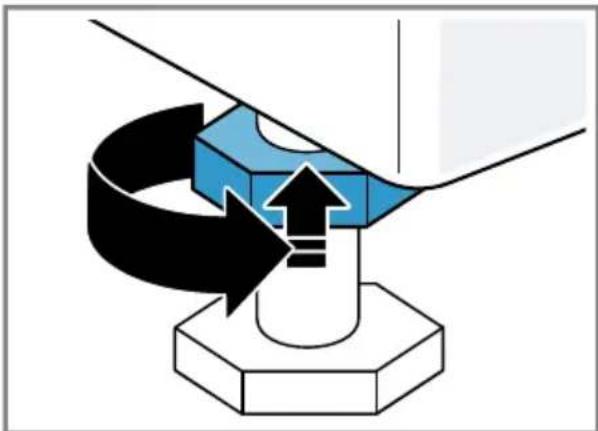

1. Screw the lock nuts tightly against the housing using a WAF 17 wrench.

Diagram showing a mechanical assembly with a rotating component and directional arrows, no text or symbols present.

In doing so, hold the foot tight and do not adjust its height.

4.7 Connecting the appliance to the electricity supply

1. Insert the mains plug of the appliance's power cable in a socket nearby.
   The connection details of the appliance can be found under Technical data → Page 56.
2. Check the mains plug is inserted properly.

5 Familiarising yourself with your appliance

5.1 Appliance

You can find an overview of the parts of your appliance here.

On certain models, specific details such as the colour and shape may differ from those pictured.

en Familiarising yourself with your appliance

1	Maintenance flap for the drain pump → Page 40
2	Door
3	Detergent drawer → Page 18
4	Control panel → Page 18

5	Water outlet hose → Page 15
6	Power cord → Page 16
7	Transit bolts → Page 13
8	Water inlet hose → Page 15

5.2 Detergent drawer

5.3 Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

1	Programmes
2	Programme selector → Page 32
3	Buttons → Page 23
4	Display → Page 20

5.4 Operating logic

Main menu

To select programme settings, press the buttons above or below the symbols.

Pure diagram of horizontal bars with arrow symbols, no text or labels present

The selected programme setting is shown in the middle of the display.

Sub-menu

To select the settings you require, press the buttons below the symbols until the required setting is selected in the display.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

To select the settings you require, press the buttons below the symbols until the required setting is selected in the display.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols

If a setting is activated, the display shows √The selection does not need to be confirmed again. The sub-menu closes automatically after a few seconds.

6 Before using for the first time

Prepare the appliance for use.

6.1 Starting an empty washing cycle

Your appliance was inspected thoroughly before leaving the factory. To remove any residual water, run the first wash cycle without any laundry.

1. Press ①

The switch-on process takes a few seconds.

1. Set the Drum clean programme.
2. Close the door.
3. Pull out the detergent drawer.
4. Add washing powder to the manual dosing compartment.

Diagram of a mechanical device with a black arrow pointing to a component (no text or symbols present)

To prevent foaming, use only half of the amount of detergent recommended by the detergent manufacturer for light soiling. Do not use detergent suitable for woollens or delicates.

1. Push in the detergent drawer.
2. Press Start/Reload ▷ start the programme.

√ The display shows the remaining programme duration.

1. Start the first wash cycle or press ① to switch off the appliance.

→ "Basic operation", Page 32

7 Display

The display shows the current settings, options or relevant information.

Example: Display

Display Designation More information
0:40 h1	Programme duration/programme time remaining	Approximate expected programme duration or programme time remaining.
10 h1	"Ready in" time	→ "Buttons", Page 23
9,0 kg1	Recommended load	The maximum load capacity for the selected programme in kg.
0 - 1400 Spin speed Set spin speed in rpm. → "Buttons", Page 230: No spin cycle, draining only
* - 90 °C Temperature Set temperature in °C. → "Buttons", Page 23*(cold)
√ Navigation Selecting settings. → "Operating logic", Page 18
+ Other programme settings	Activate, deactivate or adjust other programme settings. → "Buttons", Page 24
1 Example
≡	Saving the pro-grammeOther pro-grammes	Save a programme → Page 33.Set other programmes → Page 32.
∞	Childproof lock ■	lights up: The childproof lock is activ-ated.■ flashes: The childproof lock is activated and the appliance has been operated.→ "Deactivating the childproof lock",Page 34
∅	Easy Iron The reduced creasing function is activ-ated.→ "Buttons", Page 25
+1+2+3∅	Additional rinse Additional rinse cycles are activated.→ "Buttons", Page 24
⊥	Prewash Prewash is activated.→ "Buttons", Page 24
∅	Water Plus Wash with more water is activated.→ "Buttons", Page 24
∅	Soaking Soaking is activated.→ "Buttons", Page 24
∅	Rinse Hold Rinse Hold is activated.→ "Buttons", Page 24
∅	Baby food The stain type is activated.
∅	Blood The stain type is activated.
∅	Egg The stain type is activated.
∅	Strawberry The stain type is activated.
∅	Soil and sand The stain type is activated.
∅	Grass The stain type is activated.
∅	Coffee The stain type is activated.
∅	Cosmetics	The stain type is activated.
∅	Orange	The stain type is activated.
∅	Red Wine	The stain type is activated.
∅	Chocolate	The stain type is activated.
∅	Sweat	The stain type is activated.
∅	Dirty socks	The stain type is activated.
∅	Grease and oil	The stain type is activated.
1 Example
	Tea The stain type is activated.
	Tomato The stain type is activated.
	Energy consumption	Energy consumption for the selected programme.■ —: Low energy consumption■ —: High energy consumption
	Water consumption	Water consumption for the selected programme.■ —: Low water consumption■ —: High water consumption
	Remote start Remote start is activated.→ "Buttons", Page 24
	Wi-Fi ■ Lights up: The appliance is connected to your home network.■ Flashes: The appliance is trying to connect to your home network.→ "Home Connect ", Page 36
	Wi-Fi The appliance is not connected to your home network.→ "Home Connect ", Page 36
	Energy manager The appliance is connected to the smart energy system (energy manager). Connecting the appliance to the energy manager
Dosage: 50%1	Dosing recommendation	The recommended dosage for detergent, if intelligent dosage has been deactivated. Detergent dosageNote: The dosing recommendation indicates the load capacity that should be used for the relevant detergent dosage. The percentage refers to the maximum load capacity for the programme.
50 ml1	Basic dosage Basic dosage for detergent or fabric softener.→ "Basic dosage", Page 36
1 Example

8 Buttons

With the Options button, you can open the sub-menu for additional programme settings. The additional programme settings are listed in the overview for the buttons.

The selection of programme settings depends on the programme that is set. You can see the selection options for each programme in the overview for .

Button Selection More information
Start/Reload Start■ Cancel■ Pause	Start, cancel or pause the pro-gramme.
SpeedPerfect ■ Activate■ Deactivate	Activate or deactivate a shorter pro-gramme duration.Note:Energy consumption increases.The washing result is not affected by this.
Intensive Plus ● Activate■ Deactivate	Activate or deactivate an extended washing programme.The programme duration is extended by up to 30 minutes.Suitable for heavily soiled laundry.
Stains Multiple selection Select the type of stain.The temperature, drum movement and soaking time are all adjusted to suit the type of stain.
Finish in Up to 24 hours Set the programme end.The programme duration is already in-cluded in the set number of hours.Once the programme has started, the programme duration is displayed.
Temperature - 90 ⚙ Adjust the temperature in °C.
Spin Speed 0 - 1400 rpm Adjust the spin speed or deactivate the spin cycle.If 0 is selected, the water is not drained and the spin cycle is deactivated. The laundry stays wet inside the drum.
1 (mains switch) ■ Switch on■ Switch off	Switch the appliance on or off.
Remote Start■	Activate■ Deactivate■ Open the Home Connect menu	→ "Remote start", Page 38
Child Lock push 3 sec.	■ Activate■ Deactivate	→ "Childproof lock", Page 34
3 sec. (Basic Settings 3 sec.)	Multiple selection Basic settings
Options Multiple selection Activate additional programme settings.→ "Adjusting additional programme settings", Page 33The additional programme settings can be found in this overview.
Pre-wash ■ Activate■ Deactivate	Activate or deactivate prewash, e.g. for washing heavily soiled laundry.
Rinse Plus ■	■ [07w3]■	Activate or deactivate up to three additional rinse cycles.Recommended for particularly sensitive skin or in regions with very soft water.
Rinse Hold ■ Activate■ Deactivate	Activate or deactivate spinning and draining at the end of the washing cycle.The laundry remains in the water after the last rinse cycle.→ "Resuming the programme when the programme status is Rinse Hold", Page 34
Water Plus ■ Activate■ Deactivate	Wash with more water.Recommended for particularly sensitive skin and for treating laundry more gently.
Soak ■ Activate■ Deactivate	Activate or deactivate soaking.Before the main wash cycle starts, the laundry remains in the water for longer.For laundry with particularly stubborn soiling.
Less Ironing ■ Activate■ Deactivate		Activate or deactivate the reduced creasing programme.In order to reduce creasing in the laundry, the spin cycle and the spin speed are adapted.The laundry is damp enough after washing that it needs to be hung out on a washing line.

9 Programmes

Note: The laundry's care labels provide you with additional information about programme selection. Care symbols on the care labels

Programme Description Max.		load(kg)
Cottons Wash hard-wearing items made from cotton, linenor blended fabrics.Also suitable as a short programme for normally soiled laundry when you activate SpeedPerfect.Programme setting:Max. 90 °CMax. 1400 rpm		9,05,0 ^1
Eco 40-60 Wash items made from cotton, linen or blended fabrics.Note: Fabrics which can be washed from 40 °C up to 60 °C s per the care symbol can be washed together.The washing performance corresponds to the best possible washing performance class according to the legal requirements.For this programme, the washing temperature is automatically adjusted depending on the load size, in order to achieve the best possible energy efficiency with the best possible washing result. You cannot change the washing temperature.Programme setting:Note: The temperature cannot be adjusted in this programme and is set automatically.Max. - °CMax. 1400 rpm		9,0
Easy Care Wash items made from synthetic or blended fabrics.Programme setting:Max. 60 °CMax. 1200 rpm		4,0
Mixed Load Wash items made from cotton, linen, or synthetic or blended fabrics.Suitable for lightly soiled laundry.Programme setting:Max. 60 °C		4,0
^1 SpeedPerfect activated
	Max. 1400 rpm
Delicates/Silk Wash delicate, washable items made from silk, viscose and synthetic fabrics.Use a detergent that is suitable for delicates or silk.Note:Wash especially delicate items or items with hooks, eyelets or clips in a mesh laundry bag.Programme setting:Max. 40 °CMax. 800 rpm		2,0
Wool Hand- or machine-washable items that are made from wool or contain wool.To prevent the laundry from shrinking, the drum moves the items very gently with long pauses.Use a detergent that is suitable for wool.Programme setting:Max. 40 °CMax. 800 rpm		2,0
Rinse/Freshen Up	Rinse and then spin the laundry, and drain the water.Programme setting: Max. 1400 rpm	-
Drain Drain the water, e.g. when a programme is cancelled.Do not use fabric softener.		-
Spin Spin and drain the water.Do not use fabric softener.Programme setting: Max. 1400 rpm		-
Memory Save the programme that you require and the customised programme settings.		-
Additional Programs	Set additional programmes.The additional programmes can be found in this programme overview.The selectable programme settings depend on the selected programme.	-
AllergyPlus Wash	hard-wearing items made from cotton, linen or blended fabrics.Suitable for allergy sufferers and for strict hygiene requirements.Note:Once the set temperature has been reached, it remains constant throughout the entire washing process.	6,5
^1 SpeedPerfect activated
	Programme setting:■ Max. 60 °C■ Max. 1400 rpm
Shirts Wash non-iron shirts and blouses made from cotton, linen, or synthetic or blended fabrics.		2,0
Tip: In order to avoid creasing in your laundry, you can activate Less Ironing. The laundry is only given a short spin and can be removed while still dripping wet. Hang out shirts and blouses while they are still dripping wet so that they drip dry.
Note: Use the Delicates/Silk programme to wash shirts and blouses made from silk or delicate fabrics.
Programme setting:■ Max. 60 °C■ Max. 800 rpm
Sportswear Wash sports and leisure items made from synthetic fibres, microfibre or fleece.Use a detergent that is suitable for sports items.Do not use fabric softener.		2,0
Tip: Use the Easy Care programme to wash heavily soiled laundry.
Programme setting:■ Max. 40 °C■ Max. 800 rpm
Auto Soft Wash delicate items made from cotton, or synthetic or blended fabrics.Gentle laundry care.The degree of soiling and the type of fabric are automatically detected. The washing process is adapted.		3,5
Note: The temperature and spin speed cannot be adjusted in this programme and are set automatically.The maximum temperature is 30 °C.The maximum spin speed is 1000 rpm.
Auto Wash hard-wearing items made from cotton, or synthetic or blended fabrics.The degree of soiling and the type of fabric are automatically detected. The washing process is adapted.		6,0
^1 SpeedPerfect activated
	Note: The temperature and spin speed cannot be adjusted in this programme and are set automatically.The maximum temperature is 40 °C.The maximum spin speed is 1400 rpm.
Duvet Wash pillows or quilts stuffed with synthetic fibres or down fillings.Wash large items separately.Use a detergent that is suitable for down or delicates.Use sparingly.Do not use fabric softener.Note: To prevent excessive foaming, remove air from laundry items by rolling them up before you wash them.Programme setting:Max. 60 °CMax. 1200 rpm	2,5
Easy Care Plus Wash dark-coloured and colour-intense items made from cotton or easy-care fabric, e.g. jeans.Turn laundry inside-out before washing.Use liquid detergent.Programme setting:Max. 40 °CMax. 1200 rpm	4,0
Drum clean Cleaning and caring for the drum.Use this programme in the following cases:Before using the appliance for the first timeIf you regularly wash at temperatures of 40 °C or lowerAfter a prolonged period of non-useUse washing powder or a detergent that contains bleach.Halve the amount of detergent to avoid foaming.Do not use fabric softener.Do not use liquid detergent or detergent that is intended for woollens or delicates.Note: The drum cleaning indicator will flash to remind you if you have not used a programme at 60 °C or higher for a long time.	-

^1 SpeedPerfect activated

Programme Description Max.		load(kg)
Super Quick15'/30'	Wash items made from cotton, or synthetic or blended fabrics.Short programme for small items of lightly soiled laundry.The programme duration is approx. 30 minutes.If you wish to reduce the programme duration to 15 minutes, activate SpeedPerfect. The maximum load is reduced to 2,0 kg.Programme setting:Max. 40 °CMax. 1200 rpm	4,0
^1 SpeedPerfect activated

10 Accessories

Use original accessories. These have been made especially for your appliance.

	Use Order number
Water inlet hose extension	Extend the water inlet hose for cold water or AquaStop (approx. 2.50 m).	WMZ2381
Fixing brackets Improves the stability of the appliance.		WMZ2200
Platform Install the appliance at a raised height so that it can be easily loaded and unloaded.		WMZPW20W

11 Laundry

Note: More detailed instructions for use can be found on www.bosch-home.com or by scanning the QR code on the title page of this user manual.

11.1 Preparing the laundry

ATTENTION!

Objects remaining in the laundry may damage the laundry and the drum.

• Remove all items from any pockets in your laundry before using the appliance.

• To protect your appliance and the laundry, prepare the laundry beforehand.

• Empty any pockets

• Brush sand out of all collars and pockets
• Close bed covers and cushion covers

• Close all zips, Velcro fasteners, hooks and eyes

• Tie cloth belts, apron strings, etc. together or use a laundry bag.

• Tie together longer drawstrings, and tie cords with solid end-pieces in hoods or trousers
• Remove curtain hooks and lead strips or use a mesh laundry bag
• Use a mesh laundry bag for small items of laundry, such as children's socks
• Some stubborn or dried-in stains can be removed by washing several times
• Wash large and small items of laundry together
• Do not rub fresh stains but dab them with soapy water
• Separate items of laundry and shake them out, or observe the programme description

12 Detergents and care products

Notes

■ More detailed instructions for use can be found on www.bosch-home.com or by scanning the QR code on the title page of this user manual.
■ Observe the information on safety → Page 4 and preventing material damage → Page 10.

The manufacturer's instructions for use and dosage can be found on the packaging.

Notes

■ Only use liquid detergents that are self-flowing
■ Do not mix different liquid detergents
■ Do not mix detergent and fabric softener
■ Do not use products that have expired or are highly congealed
■ Do not use products containing solvents, caustic agents or volatile substances (e.g. bleach)
■ Use dyes sparingly as salt may damage stainless steel
■ Do not use bleaching agents in the appliance
■ Do not pour vinegar into the dispensers → Page 35 of the intelligent dosing system

13 Basic operation

Note: You can find further information in the digital instruction manual by scanning the QR code in the table of contents or on www.bosch-home.com.

13.1 Switching on the appli- ance

Requirement: The appliance has been correctly installed and connected.

→ "Installation and connection", Page 12

▶ Press ①
The switch-on process takes a few seconds.
√ An audible function test is carried out.

Note: The lighting for the drum goes out automatically.

13.2 Setting a programme

1. Turn the programme selector and set the required programme. → "Programmes", Page 26

2. If necessary, adjust the programme settings → Page 32.

Setting additional programmes

1. Set the Additional Programs programme.
2. Press > to call up the sub-menu.
3. Set a programme.
4. Press Main menu to call up the main menu.
5. Adjust the programme settings if required.
6. Start the programme.

13.3 Adjusting the programme settings

Requirement: A programme has been set.

→ "Setting a programme", Page 32

▶ Adjust the programme settings. → "Buttons", Page 23

Observe the information about operating logic → Page 18.

Notes

■ The programme settings are not saved permanently for the programme.
■ The setting is saved if you activate or deactivate the intelligent dosing system.

Adjusting additional programme settings

1. Press Options to call up additional programme settings.
2. Select the programme settings.
3. Press Options to call up the main menu.

13.4 Saving the programme settings

1. Set the Memory programme.
2. Press > to call up the sub-menu.
3. Select a programme.
4. Press Main menu to call up the main menu.
5. Adjust the programme settings if required.
   √ The programme is saved.

13.5 Loading laundry

Note: To prevent creasing, take note of the maximum load for the → "Programmes", Page 26.

Requirement: The laundry is prepared. → "Laundry", Page 31

1. Open the door. Make sure that the drum is empty.

2. Place the laundry in the drum.

3. Close the door. Ensure that there is no laundry trapped in the door.

13.6 Adding detergent and care product

For programmes in which intelligent dosing is not possible or desirable, you can add detergent manually.

Note: The dosing recommendation is aimed at the maximum load for the programme.

Tip: In addition to intelligent dosing, you can also add additional care product for laundry, e.g. stain remover, starch or bleach, to the manual dosing compartment. Do not add any additional detergent to the manual dosing compartment to avoid overdosage and/or foaming.

Note: Observe the information about detergents and care products → Page 32.

1. Pull out the detergent drawer.
2. Pour in detergent. → "Detergent drawer", Page 18
3. If required, add the care product.
4. Push in the detergent drawer.

13.7 Starting the programme

Note: If you want to change the time until the programme ends, set the "Ready in" time first.

▶ Press Start/Reload ▷.
√ The drum rotates and load detection takes place. This can take up to 2 minutes, after which water enters the drum.
√ The display shows either the programme duration or the "Ready in" time.

13.8 Adding laundry

1. Press Start/Reload ▷ The appliance pauses.

2. Open the appliance door.

3. Add or remove laundry.

en Childproof lock

1. Close the appliance door.
2. Press Start/Reload ▷00

13.9 Cancelling the programme

1. Press Start/Reload ▷
2. Open the appliance door.

The appliance door remains locked for safety reasons if the temperature and water levels are high.

• If the temperature is high, start the Rinse/Freshen Up programme.

• If the water level is high, start the Spin programme or select a suitable programme for draining. "Programmes", Page 26

• Remove the laundry → Page 34.

13.10 Resuming the pro- gramme when the pro- gramme status is Rinse Hold

1. Start the Spin programme or select a suitable programme for draining.

→ "Programmes", Page 26

1. Press Start/Reload ▷

13.11 Unloading the laundry

1. Open the appliance door.
2. Remove the laundry.

13.12 Switching off the appli- ance

1. Press Ⓓ

2. Wipe the rubber gasket dry and remove any foreign objects.

Line drawing of a hand placing a blue leaf on the front wheel of a washing machine (no text or symbols)

1. Leave the appliance door and detergent drawer open so that residual water can evaporate.

14 Childproof lock

Secure your appliance against being operated unintentionally using the controls.

14.1 Activating the childproof lock

- Press and hold the two Child Lock push 3 sec. buttons for approx. 3 seconds.

√ The display shows.
√ The controls are locked.
√ The childproof lock remains active even after the appliance has been switched off.

14.2 Deactivating the child-proof lock

Requirement: To deactivate the childproof lock, the appliance must be switched on.

- Press and hold the two Child Lock push 3 sec. buttons for approx. 3 seconds.

So that the programme currently running is not cancelled, the programme selector must be set to the initial programme.

√ goes out in the display.

15 Intelligent dosing sys- tem

The optimum quantities of liquid detergent and fabric softener are dispensed automatically depending on the programme and settings.

15.1 Starting the programme with intelligent dosing system

If you do not want to dose liquid detergent and fabric softener manually, use the intelligent dosing system. This function is available depending on the selected programme and is activated automatically.

Note

If you are using the intelligent dosing system, do not add additional detergent or fabric softener into the compartment for manual dosing.

→ "Adding detergent and care product", Page 33

If you want to dose manually for a set programme, observe the following information:

■ Deactivate the intelligent dosing system before starting the programme. The selected settings are retained even after the appliance has been switched off.

■ Pour detergent or fabric softener into the compartment for manual dosing.

→ "Adding detergent and care product", Page 33

■ Activate the intelligent dosing system once the programme has ended.

Requirements

■ The laundry is prepared.
→ "Preparing the laundry", Page 31
■ The laundry is sorted. Sorting laundry
■ The laundry is placed in the appliance.
→ "Loading laundry", Page 33

■ The programme is set. → "Setting a programme", Page 32

■ The intelligent dosing system is activated.

1. Fill the dispensers → Page 35. To replace the contents of the dispenser with another product, clean the detergent drawer.
2. If required, adjust the basic dosage → Page 36.
3. If required, adjust the programme settings → Page 32.
4. Start the programme → Page 33.
5. The → "Unloading the laundry", Page 34.

15.2 Filling the dispensers

If you want to use the intelligent dosing system or if the appliance displays an indication during operation of the appliance, fill the dispensers.

Note: Fill the dispensers only with suitable detergent and care products → Page 32.

If you want to add more liquid detergent or fabric softener in the dispenser, use the same product.

If you want to use both dispensers for liquid detergent, adjust the contents of the dispensers.

1. Pull out the detergent drawer.

2. Open the dispenser cover.

3. Pull out the detergent drawer.

4. Open the dispenser cover.

en Home Connect

1. Pour liquid detergent and fabric softener into the relevant dispensers.
   → "Detergent drawer", Page 18
   Do not exceed the marking for the maximum filling level when filling.

2. Close the dispenser cover.

Note: To prevent the liquid detergent or fabric softener from drying out, close the dispenser cover immediately after filling.

1. If required, add cleaning aids such as stain remover, water softener or bleach into the compartment for manual dosing.

→ "Adding detergent and care product", Page 33

1. Push in the detergent drawer.

2. Adjust the basic dosage

Page 36.

15.3 Basic dosage

The basic dosage depends on the manufacturer's instructions for the detergent, the water hardness and the degree of soiling of the laundry. Always set a basic dosage that corresponds to the dosage for a standard load of 4.5 kg. Detergent dosage You can individually adjust the basic dosages for each dispenser. Changing the basic settings

16 Home Connect

This appliance is network-capable. Connecting your appliance to a mobile device lets you control its functions via the Home Connect app, adjust its basic settings and monitor its operating status.

Note: You can find further information in the digital instruction manual by scanning the QR code in the table of contents or on www.bosch-home.com.

The Home Connect services are not available in every country. The availability of the Home Connect function depends on the availability of Home Connect services in your country. You can find information about this at: www.home-connect.com.

■ → "Connecting the appliance to a WLAN home network (Wi-Fi) with WPS function", Page 37

■ → "Connecting the appliance to a WLAN home network (Wi-Fi) without WPS function", Page 37

The Home Connect app guides you through the entire login process. Follow the instructions in the Home Connect app to configure the settings.

Tips

■ Please consult the documents supplied by Home Connect.
■ Please also follow the instructions in the Home Connect app.

Notes

■ Please note the safety precautions in this instruction manual and make sure that they are also observed when operating the appliance via the Home Connect app. → "Safety", Page 4

■ Operating the appliance on the appliance itself always takes priority. During this time it is not possible to operate the appliance using the Home Connect app.

16.1 Connecting the appliance to a WLAN home network (Wi-Fi) with WPS function

Requirements

■ Your router has a WPS function.
■ Wi-Fi is activated on the router.
■ The Wi-Fi basic setting is activated on the appliance.
→ "Activating Wi-Fi on the appliance", Page 38
■ The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location.
■ The Home Connect app is installed on your mobile device.

1. Press and hold Remote Start for at least 3 seconds.

√ You are now in the Home Connect menu.

1. Select Connect.

2. Confirm the message in the display.

3. Press the WPS button on the router within the next 2 minutes. Take note of the information in the documents for your router.

√ flashes on the display.
√ The device connects to the Wi-Fi home network.
√ If the display shows Connected and lights up permanently, the appliance is connected to the Wi-Fi home network.

1. Connect the appliance to the Home Connect app. → Page 38

16.2 Connecting the appliance to a WLAN home network (Wi-Fi) without WPS function

If your router does not have a WPS function, you can connect the appliance to your WLAN home network (Wi-Fi) manually.

Requirements

■ Wi-Fi is activated on the router.
■ The Wi-Fi basic setting is activated on the appliance. → "Activating Wi-Fi on the appli- ance", Page 38
■ The appliance receives signals from the WLAN home network (Wi-Fi) at its installation location.
■ The Home Connect app is installed on your mobile device.

1. Press and hold □ Remote Start for at least 3 seconds.

√ You are now in the Home Connect menu.

1. Select Man. network log-in.

2. Select Connect

3. Confirm the message on the display.

√ flashes on the display.
√ The appliance now sets up its own Wi-Fi home network with the name (SSID) HomeConnect.

1. Call up the Wi-Fi settings on the mobile device.

Connect the mobile device to the HomeConnect Wi-Fi network and enter the Wi-Fi password (key) HomeConnect.

√ Your mobile device connects to the appliance. The connection process may take up to 60 seconds.

1. Open the Home Connect app on your mobile device and carry out the steps in the app.

en Home Connect

1. In the Home Connect app, enter the network name (SSID) and password (key) for your home network.
2. Carry out the steps in the Home Connect app to connect the appliance.
   √ If the display shows Connected and lights up permanently, the appliance is connected to the Wi-Fi home network.
3. Connect the appliance to the Home Connect app → Page 38.

16.3 Connecting the appli- ance to the Home Con- nect app

Requirements

■ The appliance is connected to the WLAN home network (Wi-Fi).
■ The Home Connect app is open and you have logged on.

1. Select Connect app.
2. Select Connect to the app.
3. Confirm the message in the display.

√ The appliance connects to the Home Connect app.

1. Once your appliance is displayed in the Home Connect app, carry out the last steps in the Home Connect app.

√ If the display shows Connected, the appliance is connected to the Home Connect app.

16.4 Activating Wi-Fi on the appliance

Note: When Wi-Fi is activated, the energy consumption increases in comparison to the values specified in the consumption value table.

1. Press and hold Remote Start for approx. 3 seconds.

2. Select Wi-Fi On/Off.

3. Select on.

√ Wi-Fi is activated.

Note: If Wi-Fi is activated, the appliance will not switch itself off automatically.

16.5 Deactivating Wi-Fi on the appliance

1. Press and hold □ Remote Start for at least 3 seconds.
2. Select Wi-Fi On/Off.
3. Select off.

√ Wi-Fi is deactivated

Note: The connection is automatically re-established when the Wi-Fi is switched back on.

16.6 Resetting the appliance network settings

1. Press and hold □ Remote Start for at least 3 seconds.
2. Select Network settings.
3. Select Reset.

√ The network settings are reset.

16.7 Remote start

Enable the appliance for remote start via the Home Connect app.

Activating remote start Notes

■ Remote start is deactivated for safety reasons in the following circumstances:

• Open the appliance door.
• Press Start/Reload
• Press Remote Start.
  – Switch off the appliance.
• Following a power cut.

■ Remote start cannot be activated for safety reasons in the following circumstances:

- The appliance door is open.

- The detergent drawer has not been pushed in fully.

Requirements

■ The appliance is connected to your Wi-Fi home network.
■ The appliance is connected to the Home Connect app.
■ A programme is selected.
▶ Press □ Remote Start.

If you press and hold the button for at least 3 seconds, the Home Connect menu opens. If you briefly press the button, the appliance is enabled for remote start via the Home Connect app. If you open the appliance door, the function is automatically deactivated.

√ Remote Start lights up.

Note: To deactivate the function, press □ Remote Start.

16.8 Remote diagnostics

Customer Service can use Remote Diagnostics to access your appliance if you contact them, have your appliance connected to the Home Connect server and if Remote Diagnostics is available in the country in which you are using the appliance.

Tip: For further information and details about the availability of Remote Diagnostics in your country, please visit the service/support section of your local website: www.home-connect.com

16.9 Data protection

Please see the information on data protection.

The first time your appliance is registered on a home network connected to the Internet, your appliance will transmit the following types of data to the Home Connect server (initial registration):

■ Unique appliance identification (consisting of appliance codes as well as the MAC address of the Wi-Fi communication module installed).
■ Security certificate of the Wi-Fi communication module (to ensure a secure data connection).
■ The current software and hardware version of your appliance.
■ Status of any previous reset to factory settings.

This initial registration prepares the Home Connect functions for use and is only required when you want to use the Home Connect functions for the first time.

Note: Please note that the Home Connect functions can only be utilised with the Home Connect app. Information on data protection can be retrieved in the Home Connect app.

17 Basic settings

You can configure the appliance to meet your needs.

Note: You can find further information in the digital instruction manual by scanning the QR code in the table of contents or on www.bosch-home.com.

18 Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Note: You can find further information in the digital instruction manual by scanning the QR code in the table of contents or on www.bosch-home.com.

18.1 Cleaning the drum

CAUTION Risk of injury!

Permanently washing at low temperatures and a lack of ventilation for the appliance may damage the drum and cause injury.

▶ Regularly run a programme for cleaning the drum or wash at temperatures of at least 60 °C.
Leave the appliance to dry after every operation with the door open, and leave the detergent drawer to dry.

- Run the Drum clean programme without laundry and using all-purpose washing powder.

18.2 Cleaning the drain pump

Clean the drain pump in the event of faults, e.g. blockages or rattling noises.

Emptying the drain pump

1. Turn off the water tap.
2. Switch off the appliance.

3. Disconnect the appliance's mains plug from the power supply.

4. Open and remove the service flap.

1. Slide a sufficiently large container under the opening.

Diagram showing a mechanical component with a magnified inset of a tool and a blue base, no text or symbols present.

1. Take the drain hose out of the holder.

Diagram showing a circular component with internal components and a blue tool interacting with it, placed on a flat surface (no text or symbols)

7. ⚠️ CAUTION - Risk of scalding!

When you wash at high temperatures, the detergent solution gets hot.

- Do not touch the hot detergent solution.

To allow the detergent solution to flow out into the container, remove the sealing cap.

1. Firmly press on the sealing cap.

Diagram showing a mechanical device with a curved handle and rotating arrow, no text or symbols present

1. Insert the drain hose into the holder.

Diagram showing a pipe being inserted into a circular component, with no text or symbols present.

Cleaning the drain pump

Requirement: The drain pump is empty. → Page 40

1. Since water may remain in the drain pump, unscrew the pump cap carefully.

- The filter insert in the pump housing may become stuck due to coarse particles of dirt. Loosen the dirt and remove the filter insert.

1. Clean the interior, the thread on the pump cap and the pump housing.

Illustration of a medical procedure showing a hand tool interacting with a blue ring and a blue button on a tray (no text or symbols present)

The pump cap is comprised of two parts which can be taken apart for cleaning.

en Cleaning and servicing

1. Ensure that both impellers can turn.

Diagram showing a mechanical component being converted into a circular housing with blue fan-like components (no text or symbols)

1. Insert the pump cap.

- Ensure that the parts of the pump cap are correctly assembled.

1. Screw the pump cap as far as it will go.

The handle on the pump cap must be in a vertical position.

1. Insert and close the service flap.

18.3 Cleaning the intake opening in the rubber gasket

Regularly check the intake opening in the rubber gasket for any blockages and clean the intake opening.

1. Open the appliance door.

2. Remove any blockages from the intake opening.

Illustration showing a hand inserting a blue plastic clip into a car wheel, with a close-up of the clip's handle (no text or symbols present)

Note: Do not use any sharp or pointed objects.

19 Troubleshooting

You can rectify minor faults on your appliance yourself. Read the troubleshooting information before contacting after-sales service. This will avoid unnecessary costs.

WARNING

Risk of electric shock!

Incorrect repairs are dangerous.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

Fault Cause and troubleshooting

The display goes out and Start/Reload flashes.	Energy-saving mode is active► Press any button.✓ The symbol lights up again.
"E:36 / -25 / -26" Drain pump is blocked.► → "Cleaning the drain pump", Page 40
"E:38 / -25 / -26" Drain pump is blocked.► → "Cleaning the drum", Page 40if the fault is displayed again,► → "Cleaning the drain pump", Page 40
i-DOS error, deactivate i-DOS	The pump for the intelligent dosing system is blocked.1. Switch off the appliance.2. Clean the pump unit.3. If this display appears again, call customer service.→ "Customer Service", Page 53Note: You can start the washing programme if you deactivate the intelligent dosing system and dose manually.→ "Buttons", Page 23
All other error codes. Malfunction► Call the after-sales service.→ "Customer Service", Page 53Fault Cause and troubleshooting
Water cooling To protect the wastewater pipes, the hot detergent solution is cooled before being drained.► Wait until the detergent solution has cooled down.
"E:30/-20" Solenoid valve defective.► Call the after-sales service.→ "Customer Service", Page 53
The appliance is not working.	The mains plug of the power cord is not plugged in.► Connect the appliance to the power supply.
	The circuit breaker in the fuse box has tripped.► Check the circuit breaker in the fuse box.
	There has been a power cut.► Check whether the lighting in your kitchen or other appliances are working.
The programme does not start.	You have not pressed Start/Reload ▷□□► Press Start/Reload ▷□□
	Door is not closed.1. Close the door.2. Press Start/Reload ▷□□ start the programme.
	Childproof lock is activated.► → "Deactivating the childproof lock", Page 34
	Finish in is activated.► Check whether Finish in is activated.→ "Buttons", Page 23
	Laundry is caught in the door.1. Open the door again.2. Remove any trapped laundry.3. Close the door.4. Press Start/Reload ▷□□ start the programme.
	The detergent drawer has not been pushed in as far as it can go.► Push the detergent drawer in as far as it will go.
	The pump for the intelligent dosing system is blocked.1. Switch off the appliance.
The programme does not start.	2. Clean the pump unit.3. If this display appears again, call customer service.→ "Customer Service", Page 53Note: You can start the washing programme if you de-activate the intelligent dosing system and dose manu-ally.→ "Buttons", Page 23
The door cannot be opened.	Rinse Hold is activated.► Continue the programme by selecting Spin or Drain and pressing Start/Reload D.00 → "Resuming the programme when the programme status is Rinse Hold", Page 34
	The temperature is too high.► Wait until the temperature has dropped.► → "Cancelling the programme", Page 34
	Water level is too high.► Select a suitable programme for draining.→ "Programmes", Page 26
	Power failure.► Open the door using the emergency release.→ "Emergency release", Page 52
The water is not drain-ing.	Drain pipe or water outlet hose is blocked.► Clean the drain pipe and the water outlet hose.
	Drain pipe or water drain hose is caught or jammed.► Ensure that the drain pipe and water drain hose are not kinked or trapped.
	Drain pump is blocked.► → "Cleaning the drain pump", Page 40
	Rinse Hold is activated.► Continue the programme by selecting Spin or Drain and pressing Start/Reload D.00 → "Resuming the programme when the programme status is Rinse Hold", Page 34
	The water outlet hose is connected too high.► Install the water outlet hose at a maximum height of 1 metre.
	Pump cover is not correctly assembled.► Correctly assemble the pump cover.
	Detergent dosage is too high.
The water is not draining.	Immediate measure: Mix one tablespoon of fabric softener with 0.5 litres of water and pour the mixture into the compartment for manual dosing (not for outdoor clothing, sportswear or items stuffed with down).If intelligent dosing is activated, reduce the basic dosage → Page 36.If you dose manually, reduce the amount of detergent for the next washing cycle with the same load.
	Unapproved extension installed on the water drain hose.Remove any unapproved extensions from the water hose. Connecting the appliance
Water is not flowing in. Detergent is not being dispensed.	You have not pressed Start/Reload ▷▶Press Start/Reload ▷▶
	The filter in the water inflow is blocked.Clean the water inflow filter.
	The tap is turned off.Turn on the tap.
	The water inlet hose is kinked or jammed.Ensure that the water inlet hose is not kinked or jammed.
The spin cycle runs several times.	The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry.Not a fault – no action required.Note:When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
The programme duration changes during the wash cycle.	The programme operation is optimised electronically.This may change the programme duration.Not a fault – no action required.
	The unbalanced load detection system eliminates an imbalance by repeatedly redistributing the laundry.Not a fault – no action required.Note:When loading, where possible, place large and small items of laundry together in the drum. Different sized items of laundry distribute themselves better during the spin cycle.
	Foam detection system switches on a rinse cycle if foam build-up is too high.
The programme duration changes during the wash cycle.	Not a fault – no action required.
No water is visible in the drum.	Water is below the visible area.Not a fault – no action required.Do not add any extra water to the appliance while it is operating.
Drum jerks after the programme starts.	This is caused by an internal motor test.Not a fault – no action required.
Vibrations and movement of the appliance whilst spinning.	Appliance is not correctly aligned.Aligning the appliance
	The appliance feet are not fixed.Secure the appliance feet. Aligning the appliance
	Transit bolts have not been removed.Removing the transit bolts
Drum rotates, water does not flow in.	Load detection is active.Not a fault – no action required.Note:The load detection can take up to two minutes.
Heavy foam build-up Detergent dosage is too high.Immediate measure: Mix one tablespoon of fabric softener with 0.5 litres of water and pour the mixture into the compartment for manual dosing (not for outdoor clothing, sportswear or items stuffed with down).If intelligent dosing is activated, reduce the basic dosage → Page 36.If you dose manually, reduce the amount of detergent for the next washing cycle with the same load.
i-DOS cannot be actuated.	Intelligent dosing is not intended for this programme.Not a fault – no action required.
	Programme progress does not allow intelligent dosing.No remedial action possible.
High spin speed not reached.	A low spin speed is selected.The next time you run a wash cycle, set a higher spin speed.
	Less Ironingis activated.Select the programmes that are suitable for the type of fabric.
High spin speed not reached.	Unbalance load detection system is using a reduced spin speed to eliminate an unbalance.► Redistribute the laundry in the drum.Note:Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.► Start the Spin programme.
The spin programme does not start.	Drain pipe or water outlet hose is blocked.► Clean the drain pipe and the water outlet hose.
	Drain pipe or water drain hose is caught or jammed.► Ensure that the drain pipe and water drain hose are not kinked or trapped.
	The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distributed.► Redistribute the laundry in the drum.Note:Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.► Start the Spin programme.
Rushing, hissing noise.	Water is flushed under pressure into the detergent drawer.► Not a fault – normal operating noise.
Longer, whirring noise before the start of the wash cycle or fabric softening.	Intelligent dosing system dispenses detergent or care products.► Not a fault – normal operating noise.
Loud noises during the spin cycle.	Appliance is not correctly aligned.► Aligning the appliance
	The appliance feet are not fixed.► Secure the appliance feet. Aligning the appliance
	Transit bolts have not been removed.► Removing the transit bolts
Banging noises, rat- tling in the drain pump.	Foreign bodies have got into the drain pump.► → "Cleaning the drain pump", Page 40
Slurping, rhythmical suction noise.	The drain pump is active, the detergent solution is pumped out.► Not a fault – normal operating noise.
Creasing. The spin speed is too high.► The next time you run a wash cycle, set a lower spin speed.
The spin result is not satisfactory. The laundry is too wet/too damp.	A low spin speed is selected.► The next time you run a wash cycle, set a higher spin speed.► Start the Spin programme.
	Less Ironing is activated.► Select the programmes that are suitable for the type of fabric.
	Drain pipe or water outlet hose is blocked.► Clean the drain pipe and the water outlet hose.
	Drain pipe or water drain hose is caught or jammed.► Ensure that the drain pipe and water drain hose are not kinked or trapped.
	The unbalanced load detection system has interrupted the spin cycle because the laundry is unevenly distributed.► Redistribute the laundry in the drum.Note: Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.► Start the Spin programme.
	Unbalance load detection system is using a reduced spin speed to eliminate an unbalance.► Redistribute the laundry in the drum.Note: Where possible, mix large and small items in the drum. Different sized items of laundry distribute themselves better during the spin cycle.► Start the Spin programme.
Detergent residue on the damp washing.	Detergents may contain water-insoluble substances that deposit on the laundry.► Start the Rinse/Freshen Up programme.
Detergent residue on the damp washing.	Unsuitable detergent added to the dispenser of the intelligent dosing system.1. Check whether the detergent used is suitable.→ "Detergents and care products", Page 322. Drain the dispenser.3. Clean the dispenser.4. Refill the dispenser.→ "Filling the dispensers", Page 35
	Basic dosage is not correctly adjusted.► If intelligent dosing is activated, reduce the basic dosage → Page 36.
Detergent residue on the dry laundry.	Detergents may contain water-insoluble substances that deposit on the laundry.► Brush out the laundry after washing and drying.
	Unsuitable detergent added to the dispenser of the intelligent dosing system.1. Check whether the detergent used is suitable.→ "Detergents and care products", Page 322. Drain the dispenser.3. Clean the dispenser.4. Refill the dispenser.→ "Filling the dispensers", Page 35
	Basic dosage is not correctly adjusted.► If intelligent dosing is activated, reduce the basic dosage → Page 36 .
Insufficient cleaning.	Basic dosage is not correctly adjusted.► If intelligent dosing is activated, adjust the basic dosage → Page 36 correctly.
	Detergent or care products have congealed in dispensers of the intelligent dosing system.1. Check whether the detergent used is suitable.→ "Detergents and care products", Page 322. Drain the dispenser.3. Clean the dispenser.4. Refill the dispenser.→ "Filling the dispensers", Page 35
	Unsuitable detergent added to the dispenser of the intelligent dosing system.1. Check whether the detergent used is suitable.→ "Detergents and care products", Page 322. Drain the dispenser.
Insufficient cleaning. 3. Clean the dispenser.4. Refill the dispenser. "Filling the dispensers", Page 35
HomeConnect is not working correctly.	Different causes are possible.► Go to www.home-connect.com.
No connection to the home network.	Wi-Fi is switched off.► "Activating Wi-Fi on the appliance", Page 38
	Wi-Fi is activated but a connection to your home network cannot be established.1. Ensure that the home network is available.2. Reconnect the appliance to the home network.→ "Connecting the appliance to a WLAN home network (Wi-Fi) with WPS function", Page 37→ "Connecting the appliance to a WLAN home network (Wi-Fi) without WPS function", Page 37
Water is leaking out at the water inlet hose.	Water inlet hose is not correctly/securely connected.1. Connect the water supply hose correctly. Connecting the water inlet hose2. Tighten the screw connection.
Water is leaking out at the water outlet hose.	The water outlet hose is damaged.► Replace the damaged water outlet hose.
	Water outlet hose is not connected correctly.► Connect the water outlet hose correctly. Water outlet connection types
Odours have formed in the appliance.	Humidity and detergent residue may promote the formation of bacteria.► "Cleaning the drum", Page 40► If you are not using the appliance, leave the door and detergent drawer open so that residual water can evaporate.

en Transportation, storage and disposal

19.1 Emergency release

Releasing the door

Requirement: The drain pump is empty. → Page 40

1. ATTENTION! Escaping water may cause material damage.

- Do not open the door if you can see water through the glass. Pull the emergency release downwards with a tool and release.

Diagram showing a tool interacting with a circular component, with a black downward arrow indicating motion or direction (no text or symbols present)

√ The door lock is released.
2. Insert the maintenance flap and lock it into place.
3. Close the maintenance flap.

20 Transportation, storage and disposal

You can find out here how to prepare your appliance for transportation and storage. You will also find out how to dispose of old appliances.

20.1 Removing the appliance

Note: More detailed instructions for use can be found on www.bosch-home.com or by scanning the QR code on the title page of this user manual.

1. Turn off the water tap.

2. Empty the water inlet hose.

3. Switch off the appliance.

4. Unplug the appliance's mains plug.
5. Drain the water. → "Cleaning the drain pump", Page 40
6. Detach the hoses.
7. Empty the dispensers.

20.2 Inserting the transit bolts

Secure the appliance for transportation using transit bolts in order to prevent damage.

1. Use a screwdriver to remove the 4 cover caps.

Diagram of a medical or laboratory device with a blue tool inserted into a container, showing a black arrow indicating direction (no text or symbols present)

Keep the cover caps.

1. Install the 4 transit bolts. Refer to the description Removing the transit bolts for this and proceed in reverse order.

20.3 Using the appliance again

• For further information, see → "Installation and connection", Page 12 and
  → "Before using for the first time", Page 19.

20.4 Disposing of old appli- ance

Valuable raw materials can be re-used by recycling.

WARNING

Risk of harm to health!

Children can lock themselves in the appliance, thereby putting their lives at risk.

• Do not install the appliance behind a door as this may obstruct the appliance door or prevent it from opening.

• With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.

• Unplug the appliance from the mains.

• Cut through the power cord.
• Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

21 Customer Service

If you have any queries on use, are unable to rectify faults on the appliance yourself or if your appliance needs to be repaired, contact Customer Service.

Function-relevant genuine spare parts according to the corresponding Eco-design Order can be obtained from Customer Service for a period of at least 10 years from the date on which your appliance was placed on the market within the European Economic Area.

Note: Under the terms of the manufacturer's warranty the use of Customer Service is free of charge.

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

If you contact Customer Service, you will require the product number (E-Nr.) and the production number (FD) of your appliance.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

21.1 Product number (E-Nr.) and production number (FD)

You can find the product number (E-Nr.) and the production number (FD) on the appliance's rating plate. Depending on the model, the rating plate is located:

■ On the inside of the door.
■ On the inside of the maintenance flap.
■ On the rear of the appliance.

Make a note of your appliance's details and the Customer Service telephone number to find them again quickly.

21.2 AQUA-STOP guarantee

In addition to warranty claims against the seller under the purchase agreement and in addition to our manufacturer's warranty, we offer compensation under the following conditions.

■ If our Aqua-Stop system is defective and causes water damage, we will make good the damage for private users. To ensure protection from water damage, the appliance must be connected to the power supply.
■ The liability guarantee is valid for the service life of the appliance.
■ A claim can only be made under the guarantee if the appliance has been correctly installed and connected with Aqua-Stop according to our instructions; this also includes correctly fitting the Aqua-Stop extension (genuine accessory). Our guarantee does not cover defective supply lines or fittings up to the Aqua-Stop connection on the tap.
■ If your appliance is fitted with Aqua-Stop, you can in principle leave your appliance unattended during operation and the tap turned on afterwards. The tap only needs to be turned off if you are away from home for a long period, e.g. on holiday for several weeks.

22 Consumption values

The following information is provided in accordance with the EU Ecodesign Regulation. The values given for programs other than the Eco 40-60 are indicative only and were determined in accordance with the applicable standard EN60456. The automatic dosing function has been deactivated for this purpose.

Note on the comparison test: Deactivate the automatic dosing function unless this function is the object of the test.

Programme Load (kg)	Pro-gramme dura-tion (h:min) ^1	Energy con-sump-tion (kWh/cycle) ^1	Water con-sump-tion (l/cycle) ^1	Max-imum temper-ature (°C) 5 mins ^1	Spin speed (rpm) ^1	Resid-ual mois-ture (%) ^1
Eco 40-60 ^2	9,0 3:44	0,940	65,0 43	1400	53,00
Eco 40-60 ^2	4,5 2:53	0,340	49,0 29	1400	53,00
Eco 40-60 ^2	2,5 2:53	0,190	34,0 25	1400	53,00
Cot-tons 20 °C	9,0 3:28	0,450	93,0 24	1400	53,00
Cot-tons 40 °C	9,0 3:28	1,200	93,0 44	1400	53,00
Cot-tons 60 °C	9,0 3:34	2,000	93,0 62	1400	53,00
Cot-tons 40 °C + Pre-wash	9,0 3:58	1,270	100,0 44	1400	53,00
Easy Care 40 °C	4,0 2:30	0,770	56,0 43	1200	29,00
Mixed Load 40 °C	4,0 1:03	0,640	43,0 41	1400	52,00
Wool 30 °C	2,0 0:41	0,200	40,0 24	800	32,00

^1 Due to the influence of water pressure, hardness and inlet temperature, ambient temperature, type, amount and soiling of laundry, detergent used, fluctuations in the power supply and the selected additional functions, the actual values may deviate from the stated values.

^2 Test programme in accordance with the EU Ecodesign Directive and the EU Energy Labelling Regulation with cold water (15 °C).

23 Technical specifications

Appliance height 84,8 cm
Appliance width 59,8 cm
Appliance depth 63,2 cm
Weight 82,3 kg	1
Maximum load 9,0 kg
Mains voltage 220-240 V,50 Hz
Minimum installation protection	10 A
Nominal power 2300 W
Power consumption	Off mode:0,10 WLeft-on mode:0,50 WTime until the networked standby mode is set (Wi-Fi):5 minsNetworked standby mode (Wi-Fi): 1,50 W
Water pressure	Minimum:100 kPa(1 bar)Maximum:1000 kPa(10 bar)
Length of the water inlet hose	150 cm
Length of the water outlet hose	150 cm
Length of the power cable	210 cm
1 Depending on the appliance specifications

This product contains light sources from energy efficiency class F. These light sources are available as a spare part and must only be replaced by trained specialist staff.

You can find more information about your model online at https://eprel.ec.europa.eu/ ^1 . This web address is linked to the official EU EPREL product database. Please then follow the instructions on searching for models. The model identifier is made up of the characters before the slash in the product number (E-Nr.) on the rating plate. Alternatively, you can also find the model identifier in the first line of the EU energy label.

24 Declaration of Con- formity

Robert Bosch Hausgeräte GmbH hereby declares that the appliance with Home Connect functionality conforms to the basic requirements and other relevant provisions of Directive 2014/53/EU.

A detailed RED Declaration of Conformity can be found online at www.bosch-home.com among the additional documents on the product page for your appliance.

CE

Hereby, Robert Bosch Hausgeräte GmbH declares that the appliance with Home Connect functionality is in compliance with relevant statutory requirements.

A detailed Declaration of Conformity can be found online at www.bosch-home.co.uk among the additional documents on the product page for your appliance.

2.4 GHz band (2400–2483.5 MHz):
Max. 100 mW
5 GHz band (5150–5350 MHz +
5470-5725 MHz): Max. 100 mW

BE BG CZ DK DE EE IE EL ES

FR HR IT CY LI LV LT LU HU

MT NL AT PL PT RO SI SK FI

SE NO CH TR IS UK (NI)

5 GHz WLAN (Wi-Fi): For indoor use only.

5 GHz WLAN (Wi-Fi): For indoor use only.

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
• Discounts for accessories & spare-parts
• Digital manual and all appliance data at hand
- Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones: www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

9001599859 (010819)

en
