FG-2602 - Generator VOLTCRAFT - Free user manual and instructions

Product Type	Dual-Channel Arbitrary Waveform Generator
Model	FG-2602
Brand	VOLTCRAFT
Channels	2
Display	3.9 inch TFT LCD, 480×320 pixels, 65536 colors
Maximum Sine Frequency	60 MHz
Maximum Square Frequency	30 MHz
Maximum Ramp Frequency	1 MHz
Maximum Pulse Frequency	15 MHz
Maximum Arbitrary Frequency	10 MHz
Sample Rate	300 MSa/s
Vertical Resolution	14 bits
Waveform Length (Arbitrary)	2 to 1M points
Output Amplitude (High Z, ≤25 MHz)	1 mVpp to 20 Vpp
Output Impedance	50 Ω typical
Modulation Types	AM, FM, PM, PWM, FSK, ASK, PSK
Sweep	Linear and Logarithmic, up to 500 s
Burst	N-Cycle (1-50,000), Infinite, Gated
Built-in Arbitrary Waveforms	45
Counter Frequency Range	100 mHz to 200 MHz
Interfaces	USB host, USB device (B), Ext Mod In, Ext Trig/Burst/FSK In, Ref Clk In/Out
Power Supply	220-240 VAC, 50/60 Hz, <35 W
Fuse	250 V, F0.5AL
Dimensions (W×H×D)	235 mm × 110 mm × 295 mm
Weight	3 kg
Warranty	3 years (1 year for accessories)
Cleaning	Disconnect power; use soft damp cloth with mild detergent; avoid corrosive chemicals
Safety	Proper grounding; use correct power cord and fuse; do not operate without covers

Frequently Asked Questions - FG-2602 VOLTCRAFT

How do I output a sine wave?

Press the Sine button on the front panel. Then use the menu keys (F1-F5) to set frequency, amplitude, offset. Turn the knob or enter numeric values. Press CH1 or CH2 to enable output.

What is the maximum output amplitude?

For high impedance load, up to 20 Vpp (≤25 MHz). For 50 Ω load, up to 10 Vpp (≤25 MHz). Above 25 MHz, amplitude reduces.

Can I generate an arbitrary waveform?

Yes. Press the Arb button, then choose a built-in waveform (45 types) or create a custom waveform via Editable Wform. You can define up to 1M points with 14-bit resolution.

How do I set modulation?

Press the Mod button, then select Mod (or Sweep/Burst). Choose modulation type (AM, FM, PM, PWM, FSK, ASK, PSK). Set parameters like frequency, depth, deviation using the menu keys and knob.

What does the 'Both' button do?

The Both button displays parameters for both channels simultaneously. You can edit the selected channel's waveform and parameters. The backlight indicates it is active.

How do I set the output load?

Press Utility → Output Setup → select CH1Load or CH2Load. Choose HighZ or a specific impedance (1 Ω to 10 kΩ). This matches the displayed voltage to the actual load.

Can I connect the generator to a PC?

Yes. Use a USB cable to connect the USB (type B) port on the rear panel to a PC. Install the Ultrawave software and driver from the CD. Then you can control the generator remotely.

The display is blank after power-on. What should I do?

Check the power cord connection, ensure the voltage selector is correct, and verify the fuse (250V F0.5AL) is not blown. If the problem persists, contact service.

How do I set the phase deviation between channels?

Press Utility → Output Setup → PhaseDev. Turn it On and set the angle from 0° to 360° using the knob or number keys.

What is the warranty period?

The product carries a 3-year warranty on materials and workmanship, and 1 year for accessories. It applies to the original purchaser and is not transferable.

USER MANUAL FG-2602 VOLTCRAFT

Dual-Channel Arbitrary Waveform Generator

User Manual

FG-2102
FG-2252
FG-2502
FG-2602

General Warranty

We warrants that the product will be free from defects in materials and workmanship for a period of 3 years (1 year for accessories) from the date of purchase of the product by the original purchaser from the our Company. This warranty only applies to the original purchaser and is not transferable to the third party.

If the product proves defective during the warranty period, we either will repair the defective product without charge for parts and labor, or will provide a replacement in exchange for the defective product. Parts, modules and replacement products used by our company for warranty work may be new or reconditioned like new performance. All replaced parts, modules and products become the property of our company.

In order to obtain service under this warranty, customer must notify our company of the defect before the expiration of the warranty period. Customer shall be responsible for packaging and shipping the defective product to the service center designated by our company, and with a copy of customer proof of purchase.

This warranty shall not apply to any defect, failure or damage caused by improper use or improper or inadequate maintenance and care. We shall not be obligated to furnish service under this warranty a) to repair damage resulting from attempts by personnel other than our company representatives to install, repair or service the product; b) to repair damage resulting from improper use or connection to incompatible equipment; c) to repair any damage or malfunction caused by the use of not our supplies; or d) to service a product that has been modified or integrated with other products when the effect of such modification or integration increases the time or difficulty of servicing the product.

Please contact the nearest Sales and Service Offices for services or a complete copy of the warranty statement.

Excepting the after-sales services provided in this summary or the applicable warranty statements, we will not offer any guarantee for maintenance definitely declared or hinted, including but not limited to the implied guarantee for marketability and special-purpose acceptability. We should not take any responsibilities for any indirect, special or consequent damages.

Table of Contents

1.General Safety Requirements....1
2.Safety Terms and Symbols 2
3.General Characteristics....3
4.Quick Start....4

Front/Rear Panel and User Interface 5

Front Panel 5
Rear Panel 6
User Interface....7

General Inspection....8

Foot Stool Adjustment 8

Power-On Check 8

AC Power Input Setting 8
Power On....9

5.Front Panel Operation 10

To set channels....11

To set signals ....12

To Output Sine Signals....12

To Set the Frequency/Period 12
To Set the Amplitude 13
To Set the Offset 13
To Set the High Level....13
To Set the Low Level 13

To Output Square Signals 13
To Set the Duty Cycle 14
To Output Ramp Signals 15
To Set the Symmetry....15
To Output Pulse Signals....16
To Set the Pulse Width / Duty Cycle 17
To Output Noise Signals 17
To Output Arbitrary Signals....18
To Select the Built-in Waveform....19
The User-Definable Waveform....20
To Output DC....22

To Generate the Modulated Waveform....22

AM (Amplitude Modulation)....22
FM (Frequency Modulation) 24
PM (Phase Modulation)....25
PWM (Pulse Width Modulation) 26

FSK (Frequency Shift Keying)....26

ASK (Amplitude Shift Keying) 28

PSK (Phase Shift Keying) 29

To Generate Sweep....30

To Generate Burst....31

Set the N-Cycle Burst....32

Set the Gated Burst 33

To Save and Recall ....33

To Use USB Storage 33

To Edit the File Name 34

To Set the Utility Function....34

To Set Display Parameter 34

To Set the Bright ....34

To Set the Separator ....35

To Set the Screen Saver....35

To Set the Counter 35

To Set Output Parameter 36

To Set the Output Load....36

To Set the Phase Deviation ....36

To Set the System....37

Language Setting....37

Power On Setting....37

To Return to Default Setting....37

To Set the Beep....38

View System Information 38

To Set the Clock Source....39

To Use Built-in Help ....39

6.Communication with PC 40

7.SCPI 41

8.Troubleshooting 41

9. Technical Specifications .... 42

10. Appendix 48

Appendix A: Enclosure ....48

Appendix B: General Care and Cleaning....48

1. General Safety Requirements

Before any operations, please read the following safety precautions to avoid any possible bodily injury and prevent this product or any other products connected from damage. In order to avoid any contingent danger, this product is only used within the range specified.

Check AC power input setting according to the standards in your own country (see page 8, AC Power Input Setting).

Only the qualified technicians can implement the maintenance.

To avoid Fire or Personal Injury:

■ Use Proper Power Cord. Use only the power cord supplied with the product and certified to use in your country.
■ Product Grounded. This instrument is grounded through the power cord grounding conductor. To avoid electric shock, the grounding conductor must be grounded. The product must be grounded properly before any connection with its input or output terminal.
- Check all Terminal Ratings. To avoid fire or shock hazard, check all ratings and markers of this product. Refer to the user's manual for more information about ratings before connecting to the instrument.
■ Do not operate without covers. Do not operate the instrument with covers or panels removed.
■ Use Proper Fuse. Use only the specified type and rating fuse for this instrument.
■ Avoid exposed circuit. Do not touch exposed junctions and components when the instrument is powered.
■ Do not operate if in any doubt. If you suspect damage occurs to the instrument, have it inspected by qualified service personnel before further operations.
■ Use your instrument in a well-ventilated area. Make sure the instrument installed with proper ventilation, refer to the user manual for more details.
■ Do not operate in wet conditions.
■ Do not operate in an explosive atmosphere.
- Keep product surfaces clean and dry.

2. Safety Terms and Symbols

Safety Terms

Terms in this Manual. The following terms may appear in this manual:

Warning: Warning indicates the conditions or practices that could result in injury or loss of life.

Caution: Caution indicates the conditions or practices that could result in damage to this product or other property.

Terms on the Product. The following terms may appear on this product:

Danger: It indicates an injury or hazard may immediately happen.

Warning: It indicates an injury or hazard may be accessible potentially.

Caution: It indicates a potential damage to the instrument or other property might occur.

Safety Symbols

Symbols on the Product. The following symbol may appear on the product:

Hazardous Voltage

Refer to Manual

Protective Earth Terminal

Chassis Ground

Test Ground

3. General Characteristics

The product is dual-channel multi-function generator which combines Arbitrary Waveform Generation and Function Generation. The product introduces Direct Digital Synthesizer (DDS) technology to provide stable, precise, pure and low distortion signal. The user-friendly interface design and panel layout bring exceptional user experience. Support USB storage device. Provide more alternative solutions for users.

Features and benefits:

◆ 3.9 inch high resolution (480 × 320 pixels) TFT LCD display;
◆ Advanced DDS technology, max. 60 MHz frequency output;
◆ Max. Sample rate: 300 MSa/s, Frequency resolution: 1 μHz;
◆ Vertical resolution: 14 bits, max. 1 M waveform record length;
◆ Abundant waveform output: 5 basic waveforms and 45 built-in arbitrary waveforms output;
Exponential rise, Exponential fall, Sin(x)/x, Staircase, etc. 45 built-in waveforms and user defined arbitrary waveform;
◆ Abundant modulation functions along with output liner/logarithm sweep and pulse string waveform;
◆ Standard interface: USB port, USB (type B) connector.

4. Quick Start

This chapter will deal with the following topics mainly:

● Front/Rear Panel Overview
- User Interface Overview
● How to Implement General Inspection
● How to Adjust the Foot Stools
● How to Implement Power-On Check

Front/Rear Panel and User Interface

Front Panel

Figure 4-1 Front panel overview (FG-2252 shown)

1	LCD	Display the user interface
2	Menu selection buttons	Include 5 buttons: F1 - F5, activate the corresponding menu
3	Number keys	Input parameters, include: number, point and plus/minus sign
4	Knob	Change the current highlighted number, also can be used to select file location or switch the character of the soft keyboard when entering file name.In Sweep and N-Cycle Burst, if you choose Source as "Manual", every time you press this knob, the generator will be triggered once.In signal output interface, press this knob to enter Channel Copy menu.
5	Direction key	Move the cursor of the focused parameter or select the file locations
6	Save button	Store/recall the user-defined arbitrary waveform data
7	Utility button	Set the auxiliary system function.
8	Help button	View the build-in help information
9	CH2 Output Control	Turn on/off the output of CH2. The backlight will be lighted

1. Quick Start

		when CH2 is tuned on.
10	CH2 Output	Output signal of CH2
11	Foot stool	Make the instrument to be tilted for ease of operation
12	CH1 Output Control	Turn on/off the output of CH1. The backlight will be lighted when CH1 is tuned on.
13	CH1 Output	Output signal of CH1
14	CH1/2 button	Switch channel displayed on the screen between CH1 and CH2.
15	Modulation (Mod)	Generate the Modulated waveforms, Sweep and Burst; these functions are only used for CH1.
16	Both button	Display the editable parameters of both channels. When the function is enabled, the backlight of the button turns on.
17	USB port	Connect with an external USB device, such as connect a USB device to the instrument.
18	Waveform selection buttons	Include: Sine , Square , Ramp , Pulse , Noise , and Arbitrary waveform. When a waveform is selected, the backlight of the button turns on.
19	Power button	Turn on/off the generator

Rear Panel

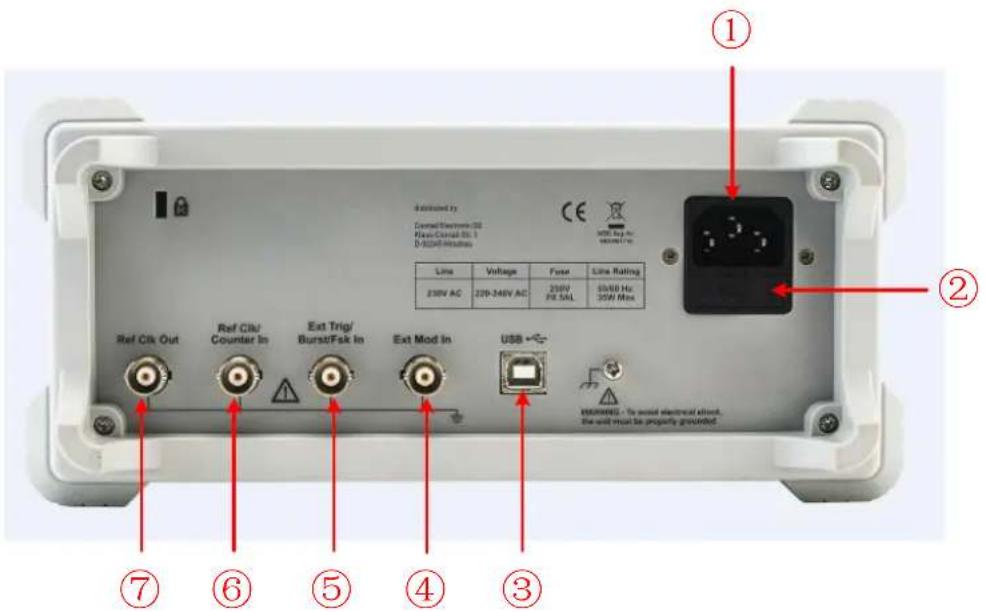

Figure 4-2 Rear panel overview

1. Quick Start

1 Power socket	AC input connector
2 Fuse	The rating is
	220 - 240 VAC	250 V, F0.5AL
3 USB (type B) connector	This can be used to connect a USB type B controller. Connect with an external device, such as connected to a PC and controlled via PC software.
4 Ext Mod In Connector	External modulation input, use it as external signal source.
5 Ext Trig/Burst/Fsk In connector	This signal can be used as external signal source in Sweep, Burst and FSK mode.
6 Ref Clk/Counter In connector	To accept an external clock signal, or to accept the input signal of counter. (See page 39, To Set the Counter)
7 Ref Clk Out connector	To synchronize generators. Output a clock signal generated by the crystal inside the generator. (See page 39, To Set the Clock Source)

User Interface

Figure 4-3 User interface (take Sine for instance)

① Current channel
② Parameter 1, display parameter and edit the focused parameter
③ Current signal type or mode
④ The setting menu of current signal or mode
⑤ Parameter 3, display parameter and edit the focused parameter

⑥ Parameter 2, display parameter and edit the focused parameter
⑦ Display current waveform
⑧ Offset/low level, depends on the highlighted menu item on the right
⑨ Amplitude/high level, depends on the highlighted menu item on the right
⑩ Frequency/period, depends on the highlighted menu item on the right
⑪ Load, High Z represents high resistance

General Inspection

After you get a new Waveform Generator, it is recommended that you should make a check on the instrument according to the following steps:

1. Check whether there is any damage caused by transportation.

If it is found that the packaging carton or the foamed plastic protection cushion has suffered serious damage, do not throw it away first till the complete device and its accessories succeed in the electrical and mechanical property tests.

2. Check the Accessories

The supplied accessories have been already described in the Appendix A: Enclosure of this Manual. You can check whether there is any loss of accessories with reference to this description. If it is found that there is any accessory lost or damaged, please get in touch with your distributor or our local office.

3. Check the Complete Instrument

If it is found that there is damage to the appearance of the instrument, or the instrument can not work normally, or fails in the performance test, please get in touch with your distributor or our local office. If there is damage to the instrument caused by the transportation, please keep the package. With the transportation department or the distributor responsible for this business be informed about it, a repairing or replacement of the instrument will be arranged by the distributor.

Foot Stool Adjustment

Unfold the foot stools on the bottom of the generator, as ⑪ in Figure 4-1.

Power-On Check

AC Power Input Setting

Adopt 100 - 120 VAC or 220 - 240 VAC power source. Users should regulate the voltage scale of the Power Switch according to the standards in their own country (see Figure 4-2)

at the rear panel.

To change the voltage scale of the instrument, do the following steps:

(1) Turn off the power button at the front panel and remove the power cord.
(2) Regulate the Power Switch to the desired voltage scale.

Power On

(1) Connect the instrument to the AC supply using the supplied power cord.

Warning:

To avoid electric shock, the instrument must be grounded properly.

(2) Press down the power button at the front panel, the screen shows the boot screen.

5. Front Panel Operation

This chapter will deal with the following topics mainly:

● How to Set Channels
● How to Output Sine Signals
● How to Output Square Signals
● How to Output Ramp Signals
● How to Output Pulse Signals
● How to Output Noise Signals
● How to Output Arbitrary Signals
● How to Output DC
● How to Generate the Modulated Waveform
● How to Generate Sweep
● How to Generate Burst
● How to Save and Recall
● How to Set the Utility Function
● How to Use Built-in Help

To set channels

● To Switch Channels for Display

Press CH1/2 button to switch channel displayed on the screen between CH1 and CH2.

● To Display/Edit Both Channels

Press Both button to display the parameters of both channels.

To switch channel: Press CH1/2 to switch the editable channel.

To select waveform: Press Waveform selection buttons to select waveform of current channel.

To select parameter: Press F2 - F5 to choose the Parameter 1 to Parameter 4; Press it again to switch the current parameter such as Frequency/Period.

To edit parameter: Turn the knob to change the value of cursor position. Press </> direction key to move the cursor. (The number keys can not be used to input.)

Figure 5-1: The User Interface of Both button

● To Turn On/Off Output of Channels

Press CH1 or CH2 to turn on/off output of the corresponding channel. The indicator will be lighted when the corresponding channel is tuned on.

- Channel Copy

(1) In signal output interface, press the knob on the front panel to enter Channel Copy menu.
(2) Press F1 to select From CH2 To CH1, or press F2 to select From CH1 To CH2.

To set signals

The following describes how to set and output Sine, Square, Ramp, Pulse, Noise, Arbitrary, DC signals and copy channel.

To Output Sine Signals

Press \~ button to call the user interface of Sine signal, the Sine waveform parameters can be set by operating the Sine setting menu on the right.

The parameters of Sine waveform are: Frequency/Period, Amplitude/High Level, Offset/Low Level. You can operate the menu by using the menu selection buttons on the right.

Figure 5-2: The User Interface of Sine Signal

To Set the Frequency/Period

Press F1 button, the chosen menu item is highlighted, the focused parameter is displayed in Parameter 1. Press F1 button to switch between Frequency/Period.

Two methods to change the chosen parameter:

- Turn the knob to change the value of cursor position. Press </> direction key to move the cursor.

- Press a number key in the front panel, an input box will pop up; keep going to input the value. Press ← direction key to delete the last number. Press F1 - F3 to choose the unit, or press F4 to go to next page and choose other units. Press F5 to cancel the input.

Figure 5-3: Set the frequency using number keys

To Set the Amplitude

Press F2, confirm whether the "Ampl" menu item is highlighted; if not, press F2 to switch into "Ampl". In Parameter 2, a cursor appears under the value of amplitude. Use the knob or the number keys to set the desired value.

To Set the Offset

Press F3, confirm whether the "Offset" menu item is highlighted; if not, press to switch into "Offset". In Parameter 3, a cursor appears under the value of offset. Use the knob or the number keys to set the desired value.

To Set the High Level

Press F2, confirm whether the "Hi_Level" menu item is highlighted; if not, press F2 to switch into "Hi_Level". In Parameter 2, a cursor appears under the value of amplitude. Use the knob or the number keys to set the desired value.

To Set the Low Level

Press F3, confirm whether the "Lo_Level" menu item is highlighted; if not, press F3 to switch into "Lo_Level". In Parameter 3, a cursor appears under the value of offset. Use the knob or the number keys to set the desired value.

To Output Square Signals

Press 📋 button to call the user interface of Square signal, the Square waveform parameters can be set by operating the Square setting menu on the right.

The parameters of Square waveform are: Frequency/Period, Amplitude/High Level, Offset/Low Level, Duty, TTL Output. You can operate the menu by using the menu selection buttons on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To Output Sine Signals on page 12.

Press F5 button to select TTL Output, TTL level will be outputted. When the load is High Z, the output signal is set to 5Vpp amplitude and 2.5V offset. When the load is 50 Ω,

the output signal is set to 2.5Vpp amplitude and 1.25V offset.

Figure 5-4: The User Interface of Square Signal

Term Explanation

Duty Cycle:The percentage that the High Level takes up the whole Period.

To Set the Duty Cycle

(1) Press F4 button, the "Duty" menu item is highlighted, the current value of the Duty cycle is displayed in Parameter 1.
(2) Turn the knob to change the value directly; or press the number keys to input the desired value, press F4 to choose "%".

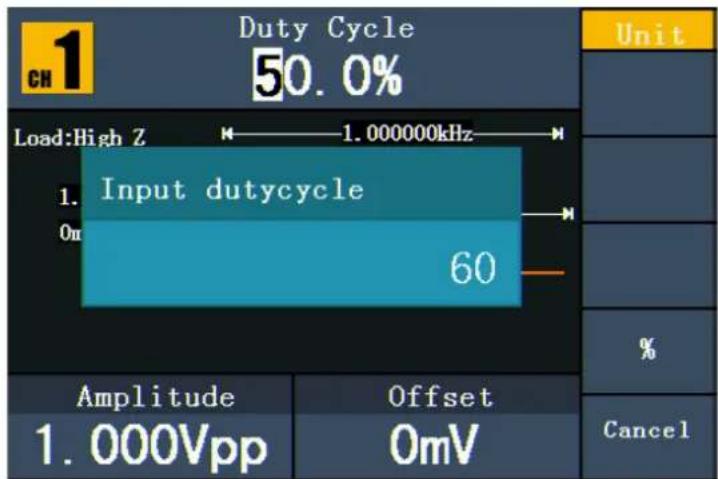

Figure 5-5: Set the Duty cycle of Square signal

To Output Ramp Signals

Press ⬆ button to call the user interface of Ramp signal, the Ramp waveform parameters can be set by operating the Ramp setting menu on the right.

The parameters of Ramp waveform are: Frequency/Period, Amplitude/High Level, Offset/Low Level, Symmetry. You can operate the menu by using the menu selection buttons on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To Output Sine Signals on page 12.

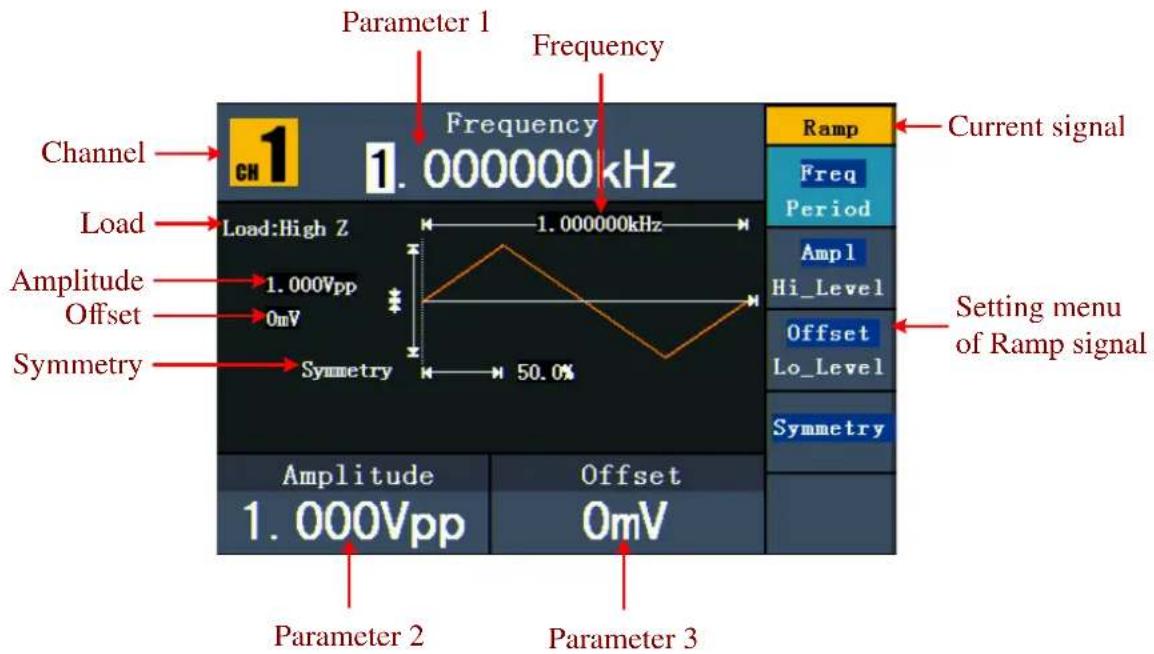

Figure 5-6: The User Interface of Ramp Signal

Term Explanation

Symmetry:The percentage that the Rising Period takes up the whole Period.

To Set the Symmetry

(1) Press F4 button, the "Symmetry" menu item is highlighted, the current value of the symmetry is displayed in Parameter 1.
(2) Turn the knob to change the value directly; or press the number keys to input the desired value, press F4 to choose "%".

Figure 5-7: Set the symmetry of Ramp signal

To Output Pulse Signals

Press Ⓞ button to call the user interface of Pulse signal, the Pulse waveform parameters can be set by operating the Pulse setting menu on the right.

The parameters of Pulse waveform are: Frequency/Period, Amplitude/High Level, Offset/Low Level, Pulse Width/Duty. You can operate the menu by using the menu selection buttons on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To Output Sine Signals on page 12.

Figure 5-8: The User Interface of Pulse Signal

Term Explanation

Pulse Width:

There are two kinds of Pulse Width—positive and negative.

Positive Pulse Width is the time span between thresholds of 50% of the rising edge amplitude to the next 50% of the falling edge amplitude.

Negative Pulse Width is the time span between thresholds of 50% of the falling edge amplitude to the next 50% of the rising edge amplitude.

Pulse Width is determined by Period and Duty Cycle;

the formula is: Pulse Width = Period * Duty Cycle.

To Set the Pulse Width / Duty Cycle

(1) Press F4 button, the chosen menu item is highlighted, the focused parameter is displayed in Parameter 1. Press F4 to switch between Pulse Width/Duty.

(2) Turn the knob to change the value directly; or press the number keys to input the desired value and choose the unit.

Figure 5-9: Set the Pulse Width of Pulse signal

To Output Noise Signals

The noise signal which the generator output is white noise. Press 📌 button to call the user interface of Noise signal, the Noise waveform parameters can be set by operating the Noise setting menu on the right.

The parameters of Noise waveform are: Amplitude/High Level, Offset/Low Level. You can operate the menu by using the menu selection buttons on the right.

To set the Amplitude/High Level, Offset/Low Level, please refer to To Output Sine Signals on page 12.

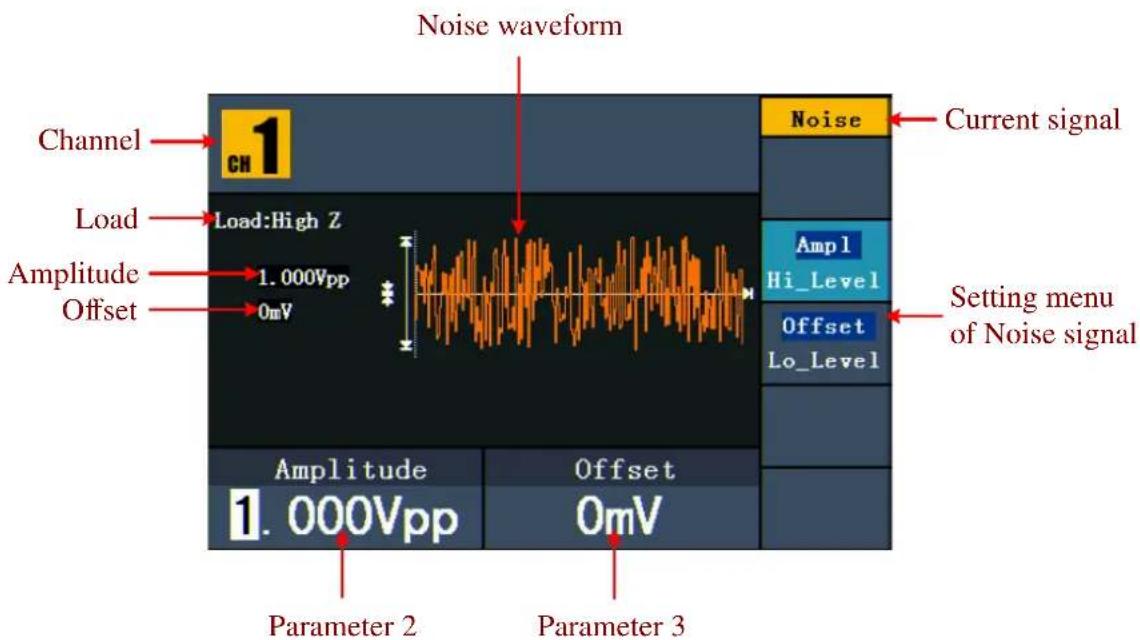

Figure 5-10: The User Interface of Noise Signal

To Output Arbitrary Signals

Press 🐎 button to call the user interface of Arbitrary signal, the Arbitrary waveform parameters can be set by operating the Arbitrary setting menu on the right.

The menu items of Arbitrary waveform are: Frequency/Period, Amplitude/High Level, Offset/Low Level, Built-in Waveform, Editable Waveform. You can operate the menu by using the menu selection buttons on the right.

To set the Frequency/Period, Amplitude/High Level, Offset/Low Level, please refer to To Output Sine Signals on page 12.

The Arbitrary signal consists of two types: the system built-in waveform and the user-definable waveform.

Figure 5-11: The User Interface of Arbitrary Signal

To Select the Built-in Waveform

There are 45 built-in Arbitrary waveforms.

Steps for selecting the built-in waveform:

(1) Press 📌 button, then press F4 to enter the Built-in Wform menu.

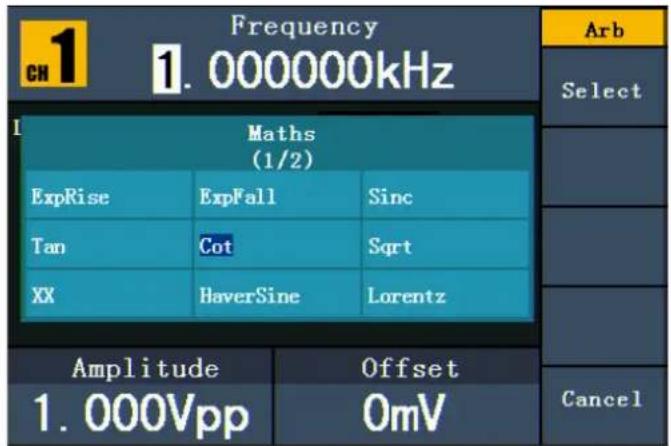

(2) Press F1 - F4 to select Common, Maths, Window or Others. E.g. select Maths to enter the following interface.

(3) Turn the knob or press / direction key to choose the desired waveform. E.g. select ExpRise. Press F1 to output the Exponential Rise waveform.

Built-in Waveform Table

Name	Explanation
Common
StairD Stair-down waveform
StairU Stair-up waveform
StairUD	Stair-up and stair-down waveform
Trapezia Trapezoid waveform
RoundHalf RoundHalf wave
AbsSine	Absolute value of a Sine
AbsSineHalf	Absolute value of half a Sine
SineTra	Sine transverse cut
SineVer	Sine vertical cut
NegRamp	Negative ramp
AttALT	Gain oscillation curve
AmpALT	Attenuation oscillation curve
CPulse	Coded pulse
PPulse	Positive pulse
NPulse	Negative pulse
Maths
ExpRise	Exponential rise function
ExpFall	Exponential fall function

5.Front Panel Operation

Sinc Sinc function
Tan Tangent
Cot Cotangent
Sqrt Square root
XX Square function
HaverSine HaverSine function
Lorentz Lorentz function
In Natural logarithm function
Cubic Cubic function
Cauchy Cauchy distribution
Besselj Bessell function
Bessely Bessell function
Erf	Error function
Airy	Airy function
Windows
Rectangle	Rectangle window
Gauss	Gauss distribution
Hamming	Hamming window
Hann	Hanning window
Bartlett	Bartlett window
Blackman	Blackman window
Laylight	Laylight window
Triang	Triangle window (Fejer window)
Others
DC	DC signal
Heart	Heart signal
Round	Round signal
LFMPulse	Linear FM pulse
Rhombus	Rhombus signal
Cardiac	Cardiac signal

The User-Definable Waveform

Press 📌 button and press F5 to select "Editable Wform".

Menu item	Instruction
Create Wform	Create a new waveform.
Select Wform	Select the waveform stored in internal storage (FLASH) or USB device (USBDEVICE).
Edit Wform	Edit the stored waveform.

How to Create a New Waveform

(1) Enter the operation menu: Press → Editable Wform → Create Wform.
(2) Set the number of waveform points: Press F1 to select "Wform Points", turn the knob or press the number keys to input the desired value and choose the unit. X1, XK, XM respectively represent 1, 1000, 1000,000. The waveform points range is 2 - 1000,000.
(3) Set the interpolation: Press F2 to switch between On/Off. If you choose On, the points will be connected with beelines; otherwise, the voltages between two consecutive points will not change, and the waveform looks like a step-up one.
(4) Edit the waveform points: Press F3 to enter the operation menu.

- Press F1 to choose "Points", input the number of the point to be edited.

- Press F2 to choose "Voltage", input the voltage for the current point.

- Repeat the step above, set all the points to your needs.

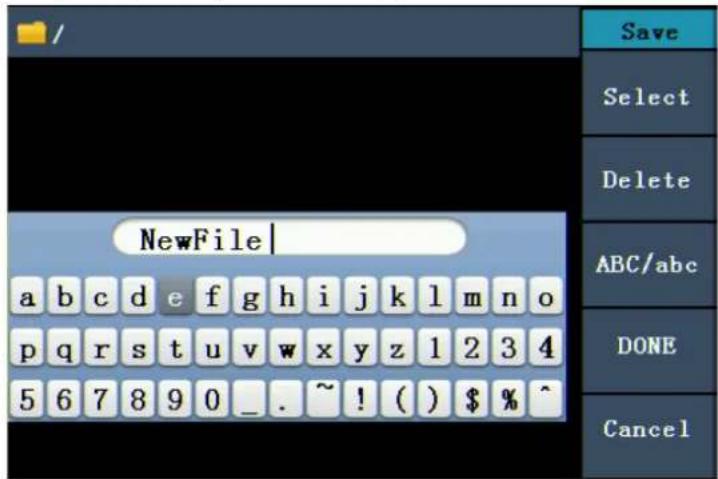

- Press F4 to choose "Store", enter the file system. If a USB device is connected, press </> direction key to select the storage. "USBDEVICE" is the USB device storage, "FLASH" is the internal storage. Choose Next level, enter the desired storage path, choose Save, an input keyboard pops up, input the file name, and then choose DONE.

How to Select a Stored Waveform

(1) Enter the operation menu: Press → Editable Wform → Select Wform.
(2) Enter the storage path of the desired waveform file. Turn the knob or press </> direction key to select the desired waveform file.
(3) Choose Recall output.

How to Edit a Stored Waveform

(1) Enter the operation menu: Press → Editable Wform → Edit Wform.
(2) Enter the storage path of the desired waveform file. Turn the knob or press </> direction key to select the desired waveform file.
(3) Choose Recall suppress.

How to Delete a Stored Waveform

(1) Press Save function button to enter the file system.
(2) Enter the storage path of the desired waveform file. Turn the knob or press </> direction key to select the desired waveform file.
(3) Choose Delete.

To Output DC

(1) Press CH1/2 to select the channel that you want to output DC.
(2) Press 📌 button, then press F4 to enter the Built-in Wform menu.
(3) Press F4 to select Others. Select DC. Press F1 to output DC.
(4) Press F3, confirm whether the "Offset" menu item is highlighted; if not, press F3 to switch into "Offset". In Parameter 3, a cursor appears under the value of offset. Use the knob or the number keys to set the desired value and choose the unit.

Figure 5-12: The DC Setting Interface

To Generate the Modulated Waveform

Modulation function is only used for CH1. Press the Mod button, then press F1 to select Mod to generate modulated waveform. The waveform generator can modulate waveform using AM, FM, PM, PWM, FSK, ASK and PSK. To turn off the modulation, press the Mod button.

AM (Amplitude Modulation)

The modulated waveform consists of two parts: the Carrier Waveform and the Modulating Waveform. The Carrier Waveform can only be Sine. In AM, the amplitude of the Carrier Waveform varies with the instantaneous voltage of the modulating waveform. The user interface of the AM is shown as below.

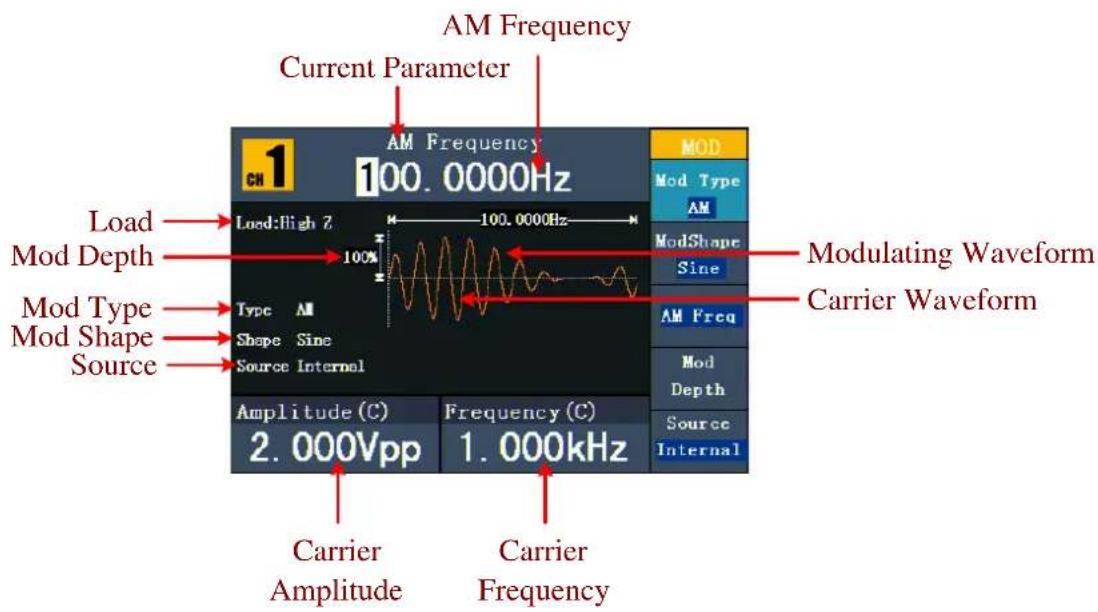

Figure 5-13: The User Interface of AM

How to set the parameters of AM

(1) Press Mod function button, then press F1 to select Mod.
(2) Press F1 to switch Mod Type to AM. If the Carrier Waveform is not Sine, the system will switch it to Sine automatically.
(3) Press \~ button to display the waveform and parameters of the Carrier Waveform. You can change the parameters, please refer to To Output Sine Signals on page 12. Press \~ button again to return to the Modulation mode interface.
(4) Press F5 to select the source. If the source is External, use the Ext Mod In connector in the rear panel to input the external signal, the setting of AM is finished. If you choose Internal, continue to the steps below.
(5) Press F2 to choose Mod Shape, you can choose Sine, Square ,Ramp, Noise or Arb.
(6) Press F3 to set AM Frequency. The range is 2 mHz - 20 kHz (Internal source only).
(7) Press F4 to set Mod Depth. The range is 0% - 100%.

Term Explanation

AM Frequency:

The frequency of modulating waveform.

Mod Depth:

The Amplitude Range of modulating waveform. In the 0% Modulation, the output amplitude is the half of the set one. In the 100% Modulation, the output amplitude is the same with the set one. For an external source, the depth of AM is controlled by the voltage level of the signal connected to the Ext Mod In connector in the rear panel. +1V corresponds to the currently set depth 100%.

FM (Frequency Modulation)

The modulated waveform consists of two parts: the Carrier Waveform and the Modulating Waveform. The Carrier Waveform can only be Sine. In FM, the frequency of the Carrier Waveform varies with the instantaneous voltage of the modulating waveform. The user interface of the FM is shown as below.

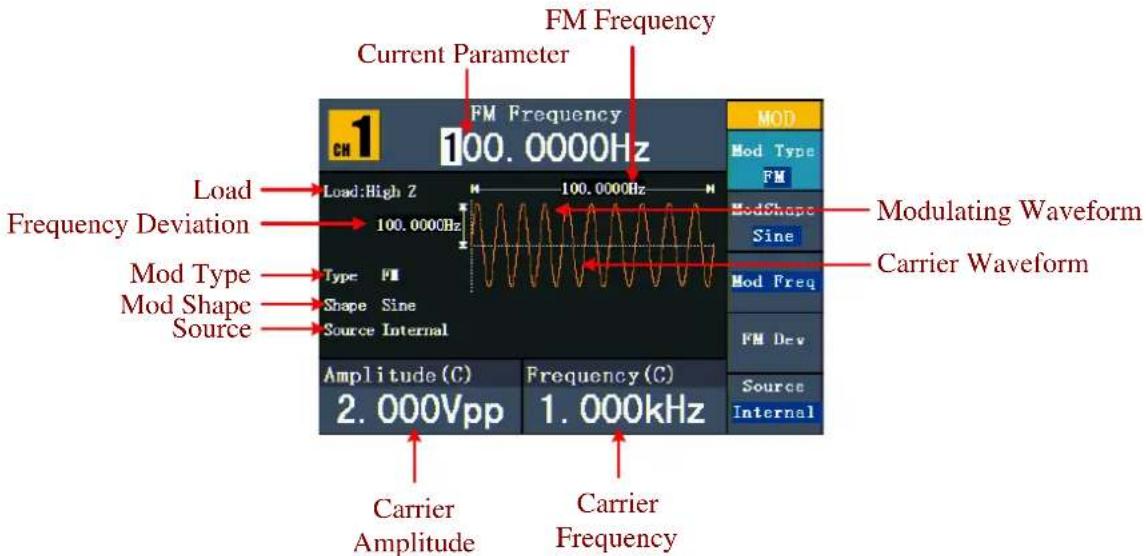

Figure 5-14: The User Interface of FM

How to set the parameters of FM

(1) Press Mod function button, then press F1 to select Mod.
(2) Press F1 to switch Mod Type to FM. If the Carrier Waveform is not Sine, the system will switch it to Sine automatically.
(3) Press \~ button to display the waveform and parameters of the Carrier Waveform. You can change the parameters, please refer to To Output Sine Signals on page 12. Press \~ button again to return to the Modulation mode interface.
(4) Press F5 to select the source. If the source is External, use the Ext Mod In connector in the rear panel to input the external signal, then skip ahead to step (7). If you choose Internal, continue to the steps below.

(5) Press F2 to choose Mod Shape, you can choose Sine, Square, Ramp, Noise or Arb.
(6) Press F3 to set Mod Frequency. The range is 2 mHz - 20 kHz (Internal source only).
(7) Press F4 to set FM Deviation. The Deviation should be less than the Carrier Waveform Frequency.

Note:

The Sum of the Deviation and the Carrier Frequency must be less than or equal to the sum of upper limit of current carrier frequency and 1kHz.

For an External Source, the Deviation is controlled by the voltage Level of the signal connected to the Ext Mod In connector in the rear panel. +1 V corresponds to the selected Deviation and -1 V to the negative selected Deviation.

PM (Phase Modulation)

The modulated waveform consists of two parts: the Carrier Waveform and the Modulating Waveform. The Carrier Waveform can only be Sine. In PM, the phase of the Carrier Waveform varies with the instantaneous voltage level of the modulating waveform. The user interface of the PM is shown as below.

Figure 5-15: The User Interface of PM

How to set the parameters of PM

(1) Press Mod function button, then press F1 to select Mod.
(2) Press F1 to switch Mod Type to PM. If the Carrier Waveform is not Sine, the system will switch it to Sine automatically.
(3) Press \~ button to display the waveform and parameters of the Carrier Waveform. You can change the parameters, please refer to To Output Sine Signals on

page 12. Press ∼ button again to return to the Modulation mode interface.

(4) Press F5 to select the source. If the source is External, use the Ext Mod In connector in the rear panel to input the external signal, then skip ahead to step (7). If you choose Internal, continue to the steps below.
(5) Press F2 to choose Mod Shape, you can choose Sine, Square, Ramp, Noise or Arb.
(6) Press F3 to set PM Frequency. The range is 2 mHz - 20 kHz (Internal source only).
(7) Press F4 to set Phase Deviation. The Phase Deviation between the Modulating Waveform and the Carrier Waveform ranging from 0^ to 180^ .

PWM (Pulse Width Modulation)

The modulated waveform consists of two parts: the Carrier Waveform and the Modulating Waveform. PWM can only be used for pulse modulation, so the Carrier Waveform must be Pulse. In PWM, the width of the Carrier Waveform (Pulse) varies with the instantaneous voltage of the modulating waveform.

How to set the parameters of PWM

(1) Press Mod function button, then press F1 to select Mod.
(2) Press F1 to switch Mod Type to PWM. If the Carrier Waveform is not Pulse, the system will switch it to Pulse automatically.
(3) Press 📂 button to display the waveform and parameters of the Carrier Waveform. You can change the parameters, please refer to To Output Pulse Signals on page 16. Press 📂 button again to return to the Modulation mode interface.
(4) Press F5 to select the source. If the source is External, use the Ext Mod In connector in the rear panel to input the external signal, then skip ahead to step (7). If you choose Internal, continue to the steps below.
(5) Press F2 to choose Mod Shape, you can choose Sine, Square, Ramp or Arb.
(6) Press F3 to set Mod Frequency. The range is 2 mHz - 20 kHz (Internal source only).
(7) Press F4 to set Width Deviation/Duty Deviation (depends on the P_Width/Duty menu item of the Pulse setting menu when you exit the Modulation mode). The maximum range of the Duty Deviation is the smaller one in [Pulse Duty, 1-Pulse Duty]. The maximum range of the Width Deviation is Pulse Width.

FSK (Frequency Shift Keying)

The FSK Modulation is a modulation method, the output frequency of which switches between two the pre-set frequencies (Carrier Waveform Frequency and the Hop Frequency). The Frequency of the Output Frequency switch between the carrier waveform frequency and the Hop frequency is called the FSK rate. The frequency by which the output frequency switch from each other is determined by the Internal

Frequency generator or the Signal Voltage Level offered by the Ext Trig/Burst/Fsk In connector in the rear panel. The Carrier Waveform can only be Sine. The user interface of the FSK is shown as below.

Figure 5-16: The User Interface of FSK

How to set the parameters of FSK

(1) Press Mod function button, then press F1 to select Mod.
(2) Press F1 to switch Mod Type to FSK. If the Carrier Waveform is not Sine, the system will switch it to Sine automatically.
(3) Press \~ button to display the waveform and parameters of the Carrier Waveform. You can change the parameters, please refer to To Output Sine Signals on page 12. Press \~ button again to return to the Modulation mode interface.
(4) Press F5 to select Internal or External as FSK source.
(5) If you select Internal, press F3 to set the FSK Rate. If you select External, press F3 to switch Slope between Positive and Negative. The external source can be offered by the Ext Trig/Burst/Fsk In connector in the rear panel. Set the Slope to Positive and the generator would output the carrier frequency when the external input signal is logic low level and output the hop frequency when the external input signal is logic high level. The situation is the opposite when the Slope is set to Negative.
(6) Press F4 to set Hop Frequency. Carrier waveform frequency shifts to the Hop frequency with the specified FSK rate, and then returns to the original frequency.

Term Explanation

FSK Rate:

The frequency at which the output frequency shifts between the carrier frequency and the Hop frequency (Internal Modulation only).

ASK (Amplitude Shift Keying)

Amplitude Shift Keying modulation is a modulation technique that shifts the output signal amplitude between two amplitudes: the carrier amplitude and modulating amplitude.

Figure 5-17: The User Interface of ASK

How to set the parameters of ASK

(1) Press Mod function button, then press F1 to select Mod.
(2) Press F1 to switch Mod Type to ASK. If the Carrier Waveform is not Sine, the system will switch it to Sine automatically.
(3) Press ∼ button to display the waveform and parameters of the Carrier Waveform. You can change the parameters, please refer to To Output Sine Signals on page 12. Press ∼ button again to return to the Modulation mode interface.
(4) Press F5 to select Internal or External as ASK source.
(5) If you select Internal, press F3 to set the ASK Rate. If you select External, press F3 to switch Slope between Positive and Negative. The external source can be offered by the Ext Trig/Burst/Fsk In connector in the rear panel. Set the Slope to Positive and the generator would output the lower of the carrier amplitude and modulating amplitude when the external input signal is logic low level and output the greater when the external input signal is logic high level. The situation is the opposite when the Slope is set to Negative.

(6) Press F4 to set Amplitude. Carrier waveform amplitude shifts to the modulating

amplitude with the specified ASK rate, and then returns to the original amplitude.

Term Explanation

ASK Rate:

The rate at which the output amplitude shifts between the carrier amplitude and the modulating amplitude is called the ASK rate (Internal Modulation only).

PSK (Phase Shift Keying)

Phase Shift Keying modulation is a modulation technique that shifts the output signal phase between two phases: the carrier phase and modulating phase.

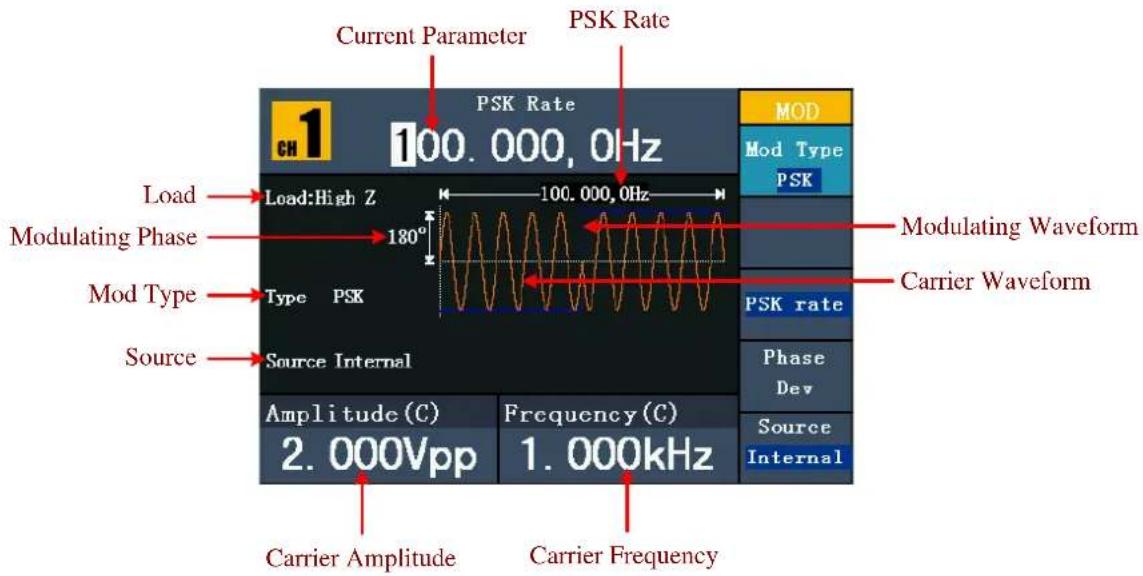

Figure 5-18: The User Interface of PSK

How to set the parameters of PSK

(1) Press Mod function button, then press F1 to select Mod.
(2) Press F1 to switch Mod Type to PSK. If the Carrier Waveform is not Sine, the system will switch it to Sine automatically.
(3) Press \~ button to display the waveform and parameters of the Carrier Waveform. You can change the parameters, please refer to To Output Sine Signals on page 12. Press \~ button again to return to the Modulation mode interface.
(4) Press F5 to select Internal or External as PSK source.
(5) If you select Internal, press F3 to set the PSK Rate. If you select External, press F3 to switch Slope between Positive and Negative. The external source can be offered by the Ext Trig/Burst/Fsk In connector in the rear panel. Set the Slope to Positive and the generator would output the carrier phase when the external input signal is logic low level and output the modulating phase when the external input signal is logic high level. The situation is the opposite when

the Slope is set to Negative.

(6) Press F4 to set Phase Deviation. Carrier waveform phase shifts to the modulating phase with the specified PSK rate, and then returns to the original phase.

Term Explanation

PSK Rate:

The rate at which the output phase shifts between the carrier phase and the modulating phase is called the PSK rate (Internal Modulation only).

To Generate Sweep

Sweep function is only used for CH1. In the frequency sweep mode, the generator "steps" from the start frequency to the stop frequency at the sweep rate you specify. Sweep can be generated by Sine, Square or Ramp Waveforms.

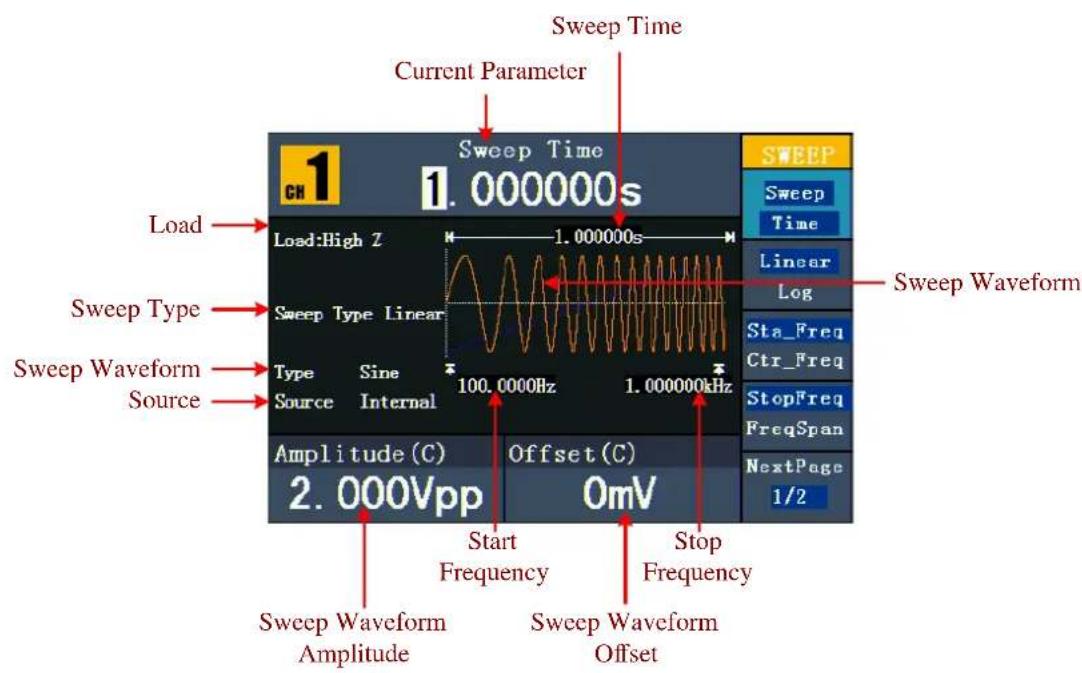

Figure 5-19: The User Interface of Sweep Mode

How to set the parameters of Sweep

(1) When the output signal is Sine, Square or Ramp waveform, press the Mod button, then press F2 to select Sweep to enter the Sweep mode.
(2) Press ∼, ⊥ or ∼ button to choose the waveforms. Take Sine for instance, press ∼ to display the waveform and parameters. You can change the parameters, please refer to To set signals on page 12. Press ∼ button again to return to the Sweep mode interface.

(3) Press F1 to set Sweep Time, the Time Span of the Sweep for which the Frequency changes from the Start Frequency to Stop Frequency.
(4) Press F2 to select the Sweep Type. Linear means setting the Sweep with linear spacing; Log means setting the Sweep with logarithmic spacing.
(5) Use Start Freq and Stop Freq or Center Freq and Freq Span to set the range of the frequency. Press F3 to select Sta_Freq or Cen_Freq, and set the desired value.
(6) Press F4 to select StopFreq or FreqSpan, and set the desired value.
(7) Press F5 to select NextPage, press it again to enter the next page.
(8) Press F1 to select the source. Internal means using the internal source. External means using the Ext Trig/Burst/Fsk In connector in the rear panel to input the external signal. Manual means choosing manual trigger; in Sweep interface, press the knob on the front panel to trigger a Sweep.

To Generate Burst

Burst function is only used for CH1. Press the Mod button, then press F3 to select Burst to generate versatile waveforms in burst. Burst can last for certain times of waveform cycle (N-Cycle Burst), or to be controlled by external gated signals (Gated Burst). Bust can apply to Sine, Square, Ramp, Pulse and Arbitrary waveforms (Noise can not be used).

Term Explanation

Burst:

Output Waveforms with set cycle times. Generally it is called BURST function within every Signal Generator.

N-Cycle Burst:

N-Cycle has specific number of waveform cycles, and every burst is activated by a trigger event.

Gated Burst:

Gated burst use external source to control burst as when to be activated.

Set the N-Cycle Burst

Figure 5-20: The User Interface of N-Cycle Burst

(1) When the output signal is Sine, Square, Ramp, Pulse or Arbitrary waveform, press the Mod button, then press F3 to select Burst.
(2) Press ∼, □, ∽, □ or 🌐 button to choose the waveform. Take Sine for instance, press ∼ to display the waveform and parameters. You can change the parameters, please refer to To set signals on page 12. Press ∼ button again to return to the Burst mode interface.
(3) Press F3 to switch to N Cycle.
(4) Press F1 to select Burst Period, set it to the desired value.
(5) Press F2 to select Start Phase (if current waveform is Pulse, skip this step), define the Start and the Stop Point in a waveform. The phase varies from -360^ to +360^ . For an Arbitrary Waveform, 0^ is the first waveform point.
(6) Press F4 to select Cycles or Infinite. Set the number of Waveform Cycle in an N-Cycle (from 1 to 50,000). If you choose Infinite, then a continuous waveform will be generated which will not stop until a trigger event happens (the knob on the front panel is pressed).

Note:

• If needed, Burst Period will increase to cater to the specific number of cycles.
• For an infinite-cycle Burst, External or Manual Trigger is needed to activate burst.

(7) Press F5 to select the source. Internal means using the internal source. External means using the Ext Trig/Burst/Fsk In connector in the rear panel to input the external signal. Manual means choosing manual trigger; in N-Cycle Burst interface, press the knob on the front panel to output a burst signal.

Set the Gated Burst

Figure 5-21: The User Interface of Gated Burst

(1) When the output signal is Sine, Square, Ramp, Pulse or Arbitrary waveform, press the Mod button, then press F3 to select Burst.
(2) Press ∼, ∩, ∽, ∩ or ∽ button to choose the waveforms. Take Sine for instance, press ∼ to display the waveform and parameters. You can change the parameters, please refer to To set signals on page 12. Press ∼ button again to return to the Burst mode interface.
(3) Press F3 to switch to Gated.
(4) Press F2 to select Start Phase, define the Start and the Stop Point in a waveform. The phase varies from -360^ to +360^ . For an Arbitrary Waveform, 0^ is the first waveform point.
(5) Press F5 to switch between Positive/Negative. Set the Polarity for the Gated Signal.

To Save and Recall

Press Save function button to enter the file system.

To Use USB Storage

The storage location is divided into the internal storage (FLASH) and the USB device storage (USBDEVICE). When a USB device is connected, the storage menu will show "USBDEVICE" and "FLASH". Otherwise, the storage menu will show "FLASH" only.

(1) Install the USB device: insert a USB device into the "⑰USB port" on the front panel in Figure 4-1, and the screen will show "Detect USB device". Press Save function button to enter the file system, the storage menu will show "USBDEVICE" and "FLASH".
(2) Enter the storage: Turn the knob or press / direction key to choose the desired storage. Press F1 to enter the chosen storage. Provide operations as Next

level, Up one level, New folder, Delete, Rename, Copy, Paste.

(3) Remove the USB device: Remove the USB device from the USB port on the front panel. The system will inform you "The USB device is removed", and the "USBDEVICE" in the storage menu will disappear.

To Edit the File Name

In file system, the user can edit the name of a file or a folder. When the system needs the user to input a name, an input keyboard will appear.

Figure 5-22: Edit the File Name

(1) Turn the knob or press / direction key to move the cursor left and right in the keyboard. Press F3 to switch between capital and small of the characters.
(2) Press F1 to enter the current character. Press F2 to delete the last character.
(3) Press F4 to finish editing and save the file. Press F5 to cancel the save operation.

Note: The length of file name is up to 15 characters.

To Set the Utility Function

Press Utility function key to enter the Utility Menu. You can set the parameters of the Generator such as: Display Parameter, Counter Parameter, Output Parameter and System Setting. Press Utility again to exit the Utility Menu.

To Set Display Parameter

To Set the Bright

(1) Press Utility and choose Disp Setup, press F1 to select Bright.
(2) Turn the knob to change the value, press / direction key to move the cursor left and right; or press the number keys to input the desired value in percent, press F4 to select the unit. The bright range is 0% - 100%.

To Set the Separator

The user can set the separator of the displayed parameter.

(1) Press Utility and choose Disp Setup, press F2 to select Sep.

(2) Press F2 to switch between Comma, Space, Off.

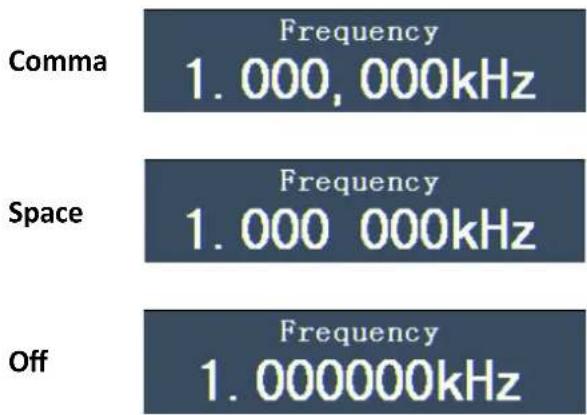

Take the Frequency parameter for instance:

To Set the Screen Saver

The screen saver will run automatically if no operation is taken for any key within the set time. Press any button to resume.

(1) Press Utility and choose Disp Setup, press F3 to select Scrn Svr.

(2) Press F3 to switch between On/Off.

(3) If On is selected, you can set the screen saver time. Turn the knob to change the value, press / direction key to move the cursor left and right; or press the number keys to input the desired time in minutes, press F4 to select the unit. The screen saver time range is 1 - 999 minutes.

To Set the Counter

The counter can measure the signal with frequency from 100 mHz to 200 MHz.

The operation steps:

(1) Press Utility and choose Counter.

(2) Connect the signal to the connector [Ref Clk/Counter In] on the rear panel.

(3) Press F3 to choose Set, enter measurement setting menu.

● To set the coupling mode: Press F1 to switch Coupling as AC/DC.

- To set the sensitivity: Press F2 to switch Sens as Low/Middle/High. For low amplitude signal, the "Middle" or "High" sensitivity should be used. For low frequency signal with high amplitude and slower rising edge, low sensitivity is a better choice.

- To set the high frequency restrain on/off: Press F3 to switch HFR as ON/OFF. High frequency restrain is used for filtering the high frequency signal in

measuring the low frequency signal, and improve the measure accuracy.

To measure low frequency signal lower than 1 kHz, you should put on the high frequency restrain to filter the high frequency noise disturb.

To measure high frequency signal higher than 1 kHz, you should put off the high frequency restrain.

• To set the trig level: Press F4 to choose TrigLev. Turn the knob to change the value, press / / direction key to move the cursor left and right; or press the number keys to input the desired value and choose the unit. The range of trig levle is -2.5 V - 2.5 V.
• Press F5 to choose Back to previous menu, view the result.

After all the set was done, the counter will measure the signal according to the current set. If the reading is unsteady, please repeat the above step until it is steady.

(4) Press F1 to switch to view the measure result of frequency or period. Press F2 to switch to view the measure result of positive width or duty.

To Set Output Parameter

To Set the Output Load

For either of CH1 Output and CH2 Output on the Front panel, the Generator has a built-in 50Ω series impedance. If the actual load does not match the set one, the displayed amplitude and offset are incorrect. This function is used to match the displayed voltage with the expected one.

Steps for setting the Load of each channel:

(1) Press Utility and choose Output Setup. Press F1 to select CH1Load, or press F2 to select CH2Load; press it again to select HighZ or *Ω ("*" represents a value).
(2) To change the load value, after selecting * , turn the knob to change the value, press / direction key to move the cursor left and right; or press the number keys to input the desired value. Press F3 or F4 to select the unit. The load range is 1 - 10k .

Note:

For either of CH1 Output and CH2 Output on the Front panel, the waveform generator has a fixed 50Ω Series Impedence. No matter what Value the set parameter is, if the real load is different from the set one, the displayed voltage will not equal the real voltage.

To Set the Phase Deviation

You can set the phase deviation of the two channels.

(1) Press Utility and choose Output Setup, press F3 to select PhaseDev.
(2) Press F3 to switch between On/Off.
(3) If On is selected, you can set the value of phase deviation. Turn the knob to change the value, press / direction key to move the cursor left and right; or press the number keys to input the desired value in degree, press F4 to select the unit. The phase deviation range is 0 - 360°.

To Set the System

Language Setting

Press Utility and choose System, press F1 to switch display languages.

Power On Setting

(1) Press Utility and choose System, press F2 to select Power On.
(2) Press F2 to switch between Default/Last. Default means that all the settings return to default when powered. Last means that all the settings return to the last one when powered.

To Return to Default Setting

Press Utility and choose System, press F3 to select Set to Default, press F1 to confirm. All the settings will be set to default. The default settings of the system are as follows:

Output Default
Function Sine Wave
Frequency 1 kHz
Amplitude/Offset 1 V	_p-p / 0 Vdc

Waveforms	Default
Frequency 1 kHz
Amplitude	1 V_p-p
Offset	0 Vdc
Duty Cycle of Square	50%
Symmetry of Ramp	50%
Pulse Width of Pulse	200 us
Duty Cycle of Pulse	20%

Modulation	Default
Modulation waveform	100 Hz, Sine Wave (except FSK)100 Hz, Square Wave (FSK)
AM Depth	100%
FM Deviation	100 Hz
PM Phase Deviation	0^
PWM deviation	0.0%
FSK Hop Frequency	100 Hz
FSK Rate	100 Hz
ASK Rate	100 Hz
PSK Rate	100 Hz
Source Internal

Sweep Default
Start/Stop Frequency 100 Hz/1 kHz
Time 1 sec
Mode Linear

Burst Default
Frequency 1 kHz
Count 1 Cycle
Period 1 sec
Phase 0°

Others Default
Brightness	100%
Separator	Comma
Screen Saver time	30 minutes
Load	High Z
Phase Deviation	0^
Clock Source	Internal
Channel Output Control	Off

To Set the Beep

(1) Press Utility and choose System, enter the second page of the menu.
(2) Press F1 to select Beep.
(3) Press F1 to switch between On/Off. On is to activate the sound when the system informs you. Off is to deactivate it.

View System Information

(1) Press Utility and choose System, enter the second page of the menu.
(2) Press F2 to select Sys info. You can view the Version and Serial number.

To Set the Clock Source

The waveform generator provides an internal clock source and also accepts external clock source input from the [Ref Clk/Counter In] connector at the rear panel. It can also output a clock source from the [Ref Clk Out] connector for other device to use.

Note:

The amplitude of the [Ref Clk/Counter In] input signal must be over 1 V.

(1) Press Utility and choose System, enter the second page of the menu.
(2) Press F3 to select CLK Sou.
(3) Press F3 to switch between Internal/External.

To Use Built-in Help

(1) Press Help function button, the catalog will display in the screen.
(2) Press F1 or F2 to choose help topic, or just turn the knob to choose.
(3) Press F3 to view the details about the topic; press F5 to go back to the catalog.
(4) Press Help again to exit the help, or just do other operations.

6. Communication with PC

The Waveform Generator supports communications with a PC through USB port. You can use the ultrawave communication software to set the parameters, control the output of the Waveform Generator.

The Waveform Generator supports communications with a PC by SCPI commands through USB port.

Here is how to connect with PC. Install the ultrawave communication software on the supplied CD.

(1) Connection: Use a USB data cable to connect the USB (type B) connector on the rear panel of the Waveform Generator to the USB port of a PC.
(2) Install the driver: When the Waveform Generator is turned on, a dialog will appear on the PC screen and guide you to install the USB driver. The driver is in the "USBDRV" folder under the directory where the ultrawave communication software is installed.
(3) Port setting of the software: Run the ultrawave software; click "Communications" in the menu bar, choose "Ports-Settings", in the setting dialog, choose "Connect using" as "USB". After connect successfully, the connection information in the bottom right corner of the software will turn green.

For the detail communication protocol of SCPI, please refer to FG Series Waveform Generator SCPI Protocol.

To learn about how to operate the software, press F1 in the software to open the help document.

7. SCPI

The waveform generator supports SCPI, and the users can operate and control the device by USB port. For the detailed information about SCPI, please refer to FG Series Waveform Generator SCPI Protocol.

8. Troubleshooting

1. The instrument is powered on but no Display.

• Check if the power is connected properly.
• Check if the Power Switch is in the proper voltage scale.
• Check if the fuse which is below the AC Power socket is used appropriately and in good condition (the cover can be pried open with a straight screwdriver).
• Restart the instrument after the steps above.
• If the problem still exists, please contact us for service.

2. The measured value of output signal amplitude disaccords to the displayed value:

Check if the actual load matches the set one. Please refer to To Set the Output Load on page 36.

If you encounter other problems, try to reset the settings (refer to To Return to Default Setting on page 37) or restart the instrument. If it still can not work properly, please contact us for service.

9. Technical Specifications

All these specifications apply to the Waveform Generator unless otherwise explanation. To reach these specifications, the instrument must have been operating continuously for more than 30 minutes within the specified operating temperature.

All the specifications are guaranteed unless those marked with "typical".

Waveforms
Standard Waveforms	Sine, Square, Ramp, Pulse, Noise
Arbitrary Waveforms	Exponential rise, Exponential fall, Sin(x)/x, Staircase etc. 45 built-in waveforms, User-Definable Waveform
Numbers of channel	2

Frequency CharacteristicFrequency resolution: 1 μHzFG-2102,FG-2252 Max sampling rate 125 MSa/s, FG-2502 ,FG-2602 Max sampling rate300 MSa/s
Sine	FG-2102	1 μHz—10 MHz
	FG-2252	1 μHz—25 MHz
	FG-2502	1 μHz—50 MHz
	FG-2602	1 μHz—60 MHz
Square	FG-2102FG-2252	1 μHz—5 MHz
	FG-2502	1 μHz—25 MHz
	FG-2602	1 μHz—30 MHz
Ramp	1 μHz—1MHz
Pulse	FG-2102FG-2252	1 μHz—5 MHz
	FG-2502	1 μHz—10 MHz
	FG-2602	1 μHz—15 MHz
White Noise	25 MHz bandwidth (−3 dB) (typical)
Arbitrary	1 μHz—10 MHz

Amplitude Characteristic
Output Amplitude	FG-2102	High Z	1 μHz to 10 MHz	1 mVPP - 20 VPP
		50 Ω	1 μHz to 10 MHz	1 mVPP - 10 VPP
	FG-2252	High Z	1 μHz to 25 MHz	1 mVPP - 20 VPP
		50 Ω	1 μHz to 25 MHz	1 mVPP - 10 VPP
	FG-2502	High Z	1 μHz to 25 MHz	1 mVPP - 20 VPP
			25 MHz to 50 MHz	1 mVPP - 10 VPP
		50 Ω	1 μHz to 25 MHz	1 mVPP - 10 VPP
			25 MHz to 50 MHz	1 mVPP - 5 VPP

1. Technical Specifications

	FG-2602	High Z	1 μHz to 25 MHz	1 mVPP - 20 VPP
			25 MHz to 60 MHz	1 mVPP - 10 VPP
		50 Ω	1 μHz to 25 MHz	1 mVPP - 10 VPP
			25 MHz to 60 MHz	1 mVPP - 5 VPP
Amplitude Accuracy	1 mVPP or 14 bits
DC Offset Range (AC+DC)	±5 V (50 Ω) ±10 V (High Z)
DC Offset Accuracy	±(1 % of |setting| + 1 mV + amplitude Vp-p * 0.5%)
Output Impedance	50 Ω (typical)

Waveform Characteristic
Sine
Flatness (when the Amplitude is 1.0 V_p-p (+4 dBm), load is 50 Ω)	FG-2102FG-2252	1 μHz to 10 MHz: ±0.2 dB10 MHz to 25 MHz: ±0.3 dB
	FG-2502FG-2602	1 μHz to 10 MHz: ±0.2 dB10 MHz to 25 MHz: ±0.3 dB25 MHz to 60 MHz: ±0.5 dB
Harmonic Distortion (when the Amplitude is 1.0 V_p-p )	FG-2102FG-2252FG-2502FG-2602	<-40 dBc
Total Harmonic Distortion (when the Amplitude is 1 V_p-p )	10 Hz to 20 kHz: <0.2 %
Phase Noise	-110 dBc/Hz at 1 MHz frequency,10 kHz offset, 1 V_p-p , typical
Residue Clock Noise	-57 dBm (typical)
Square
Rise/Fall Time	<12 ns (10% - 90%) (typical, 1 kHz, 1 V_p-p )
Jitter (rms)	FG-2102FG-2252	1 ns + 30 ppm
	FG-2502FG-2602	300 ps + 100 ppm of period
Non-symmetry (below 50% Duty Cycle)	1% of period+ 5 ns
Overshoot	< 5%
Duty Cycle	FG-2102FG-2252	20% - 80% (< 1 MHz)50% (1 MHz - 5 MHz)
	FG-2502FG-2602	20% - 80% (< 1 MHz)50% (≥ 1 MHz)
Ramp
Linearity	< 0.1% of peak output (typical, 1 kHz, 1 V_p-p , Symmetry 50%)
Symmetry	0% to 100%
Pulse
Pulse Width	FG-2102FG-2252	40 ns to 1000 ks
	FG-2502FG-2602	20 ns to 1000 ks
Accuracy	10 ns
Rising/Falling Edge Time	< 12 ns
Overshoot	< 5%
Jitter	FG-2102FG-2252	1 ns + 30 ppm
	FG-2502FG-2602	300 ps + 100 ppm of period
Arbitrary
Waveform Length	FG-2102FG-2252	2 - 8k points
	FG-2502FG-2602	2 - 1M points
Sample Rate	FG-2102FG-2252	125 MSa/s
	FG-2502FG-2602	300 MSa/s
Amplitude Accuracy	14 bits
Rise/Fall Time, typical	FG-2102FG-2252	< 10 ns
	FG-2502FG-2602	< 8 ns
Jitter (RMS) , typical	< 6 ns

Modulated Waveform
AM
Carrier Waveforms	Sine
Source	Internal/ External
Internal Modulating Waveforms	Sine, Square, Ramp, White Noise, Arbitrary
Internal AM Frequency	2 mHz - 20 kHz
Depth	0.0% - 100.0%
FM
Carrier Waveforms	Sine
Source	Internal/ External
Internal Modulating Waveforms	Sine, Square, Ramp, White Noise, Arbitrary
Internal Modulating Frequency	2 mHz - 20 kHz
Frequency Deviation	2 mHz - 20 MHz
PM
Carrier Waveforms	Sine
Source	Internal/ External
Internal Modulating Waveforms	Sine, Square, Ramp, White Noise, Arbitrary
Internal PM Frequency	2 mHz - 20 kHz
Phase Deviation	0° - 180°
PWM
Carrier Waveforms	Pulse
Source	Internal/ External
Internal Modulating Waveforms	Sine, Square, Ramp, Arbitrary
Internal Modulating Frequency	2 mHz - 20 kHz
Width Deviation	Pulse width 0.0 ns to 200.00 usec
FSK
Carrier Waveforms	Sine
Source	Internal/ External
Internal Modulating Waveforms	50% duty cycle square
FSK Rate	2 mHz - 100 kHz
ASK
Carrier Waveforms	Sine
Source	Internal/ External
Internal Modulating Waveforms	50% duty cycle square
ASK Rate	2 mHz - 100 kHz
PSK
Carrier Waveforms	Sine
Source	Internal/ External
Internal Modulating Waveforms	50% duty cycle square
PSK Rate	2 mHz - 100 kHz
Sweep
Type	Linear, Logarithmic
Carrier Waveforms	Sine, Square, Ramp
Direction	Up / Down
Sweep Time	1 ms to 500 s ± 0.1%
Source	Source, External or Manual
Burst
Waveforms	Sine, Square, Ramp, Pulse, Arbitrary
Types	Count (1 to 50,000 periods), infinite, gated
Start Phase	-360° - +360°
Internal Period	(10 ms - 500 s) ± 1%
Gated Source	External Trigger
Trigger Sources	Source, External or Manual

Counter Specification
Function	Frequency, period, positive Pulse width, Duty cycle
Frequency Range	Single channel: 100 mHz - 200 MHz
Frequency Resolution	6 digits
Frequency Accuracy

Voltage Range and Sensitivity (non-modulation signal)
DC coupled	DC offset range	±1.5 VDC
	100 mHz - 100 MHz	250 mVp-p - 5 Vp-p (AC+DC)
	100 MHz - 200 MHz	450 mVp-p - 3 Vp-p (AC+DC)
AC coupled	1 Hz - 100 MHz	250 mVp-p - 5 Vp-p
	100 MHz - 200 MHz	450 mVp-p - 4 Vp-p
Pulse width and Duty cycle Measure	1 Hz - 10 MHz (250 m Vp-p - 5 Vp-p)
Input adjust	Input impedance	1 MΩ (DC Coupling)High Z (AC Coupling)
	Coupling mode	AC, DC
	High frequency restrain	High frequency noise restrain (HFR)On or Off
	sensitivity	Low, Middle, High
Trigger level range	±2.5 V

Input/Output
Channel Coupling, Channel Copy
Phase Deviation	0 - 360°
Rear Panel
Interfaces	USB (type B) connector
External Modulation Input
Input Frequency Range	DC-20 kHz
Input Voltage Range	±5 Vpk
Input Impedance	10 kΩ (typical)
External Trigger Input
Level	TTL-compatible
Slope	Rising or falling (selectable)
Pulse Width	>100 ns
Trigger Delay	0.0 ns - 60 s
External Reference Clock Input
Impedance	1 kΩ, AC coupled
Requested Input voltage swing	100 mVp-p to 5 Vp-p
Locking range	10 MHz ± 9 kHz
Counter Input (share the same port as External Reference Clock Input)
DC coupled	DC offset range	±1.5 VDC
	100 mHz - 100 MHz	250 mVp-p - 5 Vp-p
	100 MHz - 200 MHz	450 mVp-p - 3 Vp-p
AC coupled	1 Hz - 100 MHz	250 mVp-p - 5 Vp-p
	100 MHz - 200 MHz	450 mVp-p - 4 Vp-p
External Reference Clock Output
Impedance	50 kΩ, AC coupled
Amplitude	3.3 Vp-p, access 1 MΩ

Display

Display Type	3.9 inch colored LCD (Liquid Crystal Display)
Display Resolution	480 (Horizontal) × 320 (Vertical) Pixels
Display Colors	65536 colors, 16 bits, TFT screen

Power

Supply	220 - 240 VAC, 50/60 Hz, CAT II
Consumption	Less than 35 W
Fuse	250 V, F0.5AL

Environment

Temperature	Working temperature: 0°C - 40°CStorage temperature: -20°C - 60°C
Relative Humidity	≤ 90%
Height	Operating: 3,000 mNon-operating: 15,000 m
Cooling Method Fan cooling

Mechanical Specifications

Dimension	235 mm × 110 mm × 295 mm (W*H*D)
Weight	3 kg

Interval Period of Adjustment:

One year is recommended for the calibration interval period.

10. Appendix

Appendix A: Enclosure

● A power cord that fits the standard of the destination country
A USB cable
● A CD (PC link application software)
● A Safety hintsheet
● A BNC/Q9 cable

Appendix B: General Care and Cleaning

General Care

Do not store or leave the instrument where the liquid crystal display will be exposed to direct sunlight for long periods of time.

Caution: To avoid any damage to the instrument, do not exposed it to any sprays, liquids, or solvents.

Cleaning

Inspect the instrument as often as operating conditions require.

To clean the instrument exterior, perform the following steps:

1. Wipe the dust from the instrument surface with a soft cloth. Do not make any scuffing on the transparent LCD protection screen when clean the LCD screen.
2. Disconnect power before cleaning your instrument. Clean the instrument with a wet soft cloth not dripping water. It is recommended to scrub with soft detergent or fresh water. To avoid damage to the instrument, do not use any corrosive chemical cleaning agent.

Warning: Before power on again for operation, it is required to confirm that the instrument has already been dried completely, avoiding any electrical short circuit or bodily injury resulting from the moisture.
