PAR-54 - Lighting Qtx - Free user manual and instructions

Product Type	LED Par Can
Model	PAR-54
Brand	Qtx
Dimensions (L x W x H)	200 x 180 x 170 mm
Weight	1.2 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	60 W
Light Source	54 x 0.5W LEDs (RGB)
Beam Angle	25°
Control Protocol	DMX512
Control Modes	DMX, Master/Slave, Sound Active, Auto
DMX Channels	3 / 7 channels
Cooling	Fan cooled
Housing Material	Aluminum alloy
IP Rating	IP20
Protection	Overheat protection
Certifications	CE, RoHS
Accessories Included	Power cord, DMX cable, mounting bracket
Cleaning	Use a dry cloth; avoid liquids
Safety Warning	Do not stare at beam; disconnect power before maintenance
Spare Parts Availability	Spare parts available from manufacturer
General Info	Stage lighting fixture, suitable for indoor use

Frequently Asked Questions - PAR-54 Qtx

How do I connect the PAR-54 to a DMX controller?

Use a standard DMX cable to connect the DMX IN of the first fixture to the controller's DMX OUT. Then daisy-chain additional fixtures by connecting DMX OUT to DMX IN. Set the DMX address using the display panel.

How to set the PAR-54 to sound active mode?

Press the MODE button until 'Snd' appears on the display. The fixture will react to sound via the built-in microphone. Adjust sensitivity if needed.

What is the power consumption of the PAR-54?

The power consumption is approximately 60W at full output.

Can the PAR-54 be used outdoors?

No, the PAR-54 has an IP20 rating, meaning it is only suitable for indoor use. Do not expose to rain or moisture.

How do I clean the PAR-54?

Use a soft, dry cloth to wipe the housing and lens. Do not use any liquids or cleaning agents, as they may damage the fixture.

What is the beam angle of the PAR-54?

The beam angle is 25 degrees, providing a medium-throw spotlight effect.

How to reset the PAR-54 to factory settings?

Hold down the MODE and ENTER buttons simultaneously for 3 seconds until the display shows 'rSt'. Release the buttons to reset.

What is the warranty period for the PAR-54?

Qtx typically offers a 1-year warranty on lighting products. Check your purchase documentation for specific terms.

Where can I download the user manual for the PAR-54?

The user manual is available for free on the Qtx website or at notice-facile.com in the lighting section.

Can the LEDs in the PAR-54 be replaced?

The LEDs are non-replaceable as they are integrated into the board. If a LED fails, the entire light engine may need replacement by a qualified technician.

USER MANUAL PAR-54 Qtx

Please read through this manual thoroughly before use, any damage Caused by misuse of product will not be covered by warranty.

Thank you for choosing the PAR54, a lightweight and compact LED PAR Can fitted with 9x 6W 4-in-1 RGBW LEDs. This unit can be controlled by auto, sound-to-light, master/slave programs or via 8 channel DMX. A versatile and value solution for background wash illumination requirements.

In the box:

Your PAR54 should arrive with you in a single carton in good condition. The carton should contain 1 x main unit with bracket and screws, 1x remote control, 1 x UK IEC mains lead and 1 x user guide.

Warning:

To prevent risk of fire or electric shock, do not expose the unit to rain or damp environments. In the event of a spillage, disconnect the mains and allow the unit to dry out naturally. Qualified personnel should then check the unit before continuing use.

Please do not open cover, contains high voltage. This product is not serviceable or repairable by the end user. Please refer to qualified personnel for service and repair.

Placement:

• Use the included mounting bracket to fix to a stand or lighting truss
- Keep away from damp or dusty environments
- Ensure adequate airflow around the fixture housings
- Ensure adequate access to controls and connections

Cleaning:

• Use a soft cloth with a neutral detergent to clean the casing as required
• Use a vacuum cleaner to clear ventilation grilles of any dust or debris build-ups
- Do not use strong solvents for cleaning the unit

Rear panel controls:

1. Manual control buttons
2. DMX Signal in

3. DMX signal out

4. LED display

5. IEC power in (fused)

Manual control menu:

Press the "MENU" button to enter the settings menu.

Press "UP" and "DOWN" buttons to navigate through various setting functions.

Press "ENTER" button to save the desired setting.

Menu	Number range	Function and description
A001	A001-A512	DMX512 address setting
IrYE	IrYE or Irno	IR remote control on or off
AU01	AU01-AU07	Manual colour selection
FF00	FF00-FF99	Colour jump setting (speed slow to fast)
EE00	EE00-EE99	Colour fade setting (speed slow to fast)
CC00	CC00-CC99	Colour pulse setting (speed slow to fast)
F000	F000-F255	Strobe setting (speed slow to fast)
SoUD	SoU0-SoU9	Sound to light colour jump setting (sensitivity high to low)
SUnD	SUn0-SUn9	Sound to light colour pulse setting (sensitivity high to low)
r000	r000-r255	Red dimming (0-100%)
G000	G000-G255	Green dimming (0-100%)
b000	b000-b255	Blue dimming (0-100%)
u000	u000-u255	White dimming (0-100%)
o000	o000-o255	IR remote control dimming (dark to bright)

Remote control:

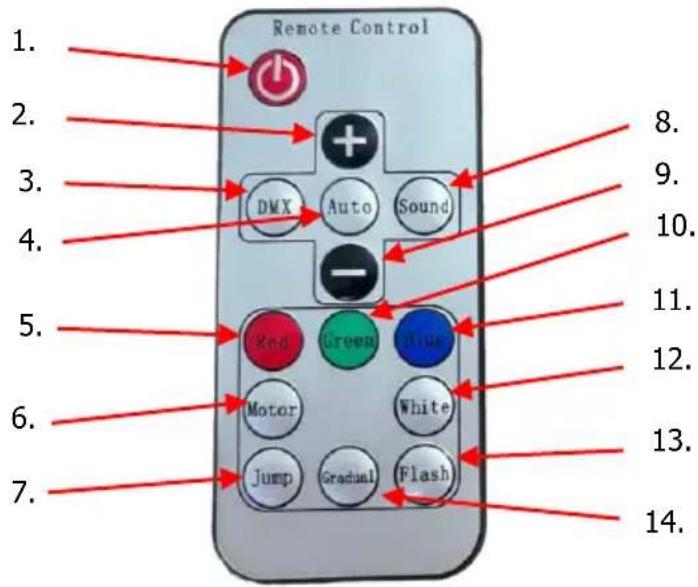

The PAR54 is supplied with an I.R. remote control for quick access to most of the basic functions of the unit. This has a maximum range of approximately 4-5m and must be aimed towards the front of the unit. Controls and functions are listed on the diagram below:

1. Power = Remote on/off

2. • = Increase option setting

3. DMX = DMX512 open/off

4. Auto = Automatic mode

5. Red = Red open/off

6. Motor = Manual colour select

7. Jump = Colour jump mode

8. Sound = Sound activated mode

9. -- = Decrease option setting

10. Green = Green open/off

11. Blue = Blue open/off

12. White = White open/off

13. Flash = Strobe open/off

14. Gradual = Colour fade mode

DMX mode:

The PAR54 can be controlled by DMX signal, simply connect the DMX signal source to the DMX input on the unit via a balanced XLR lead. Extra fixtures can be controlled by the same DMX signal by looping through the DMX out on the unit. To enter DMX mode, select A001 from the menu and confirm the correct start address by using the "UP" and "DOWN" buttons and "ENTER" to confirm.

This unit has 8 DMX channels as indicated in the table below:

Channel	Value	Function
CH1	0-255	Master dimming (0-100%)
CH2	10-255	Strobe (speed slow to fast)
CH3	0-50	CH1-CH6 control
	051-100	Manual colour selection
	101-150	Colour jump
	151-200	Colour fade
	201-250	Colour pulse
CH4	0-255	Function speed control (slow to fast)
CH5	0-255	Red dimming (0-100%)
CH6	0-255	Green dimming (0-100%)
CH7	0-255	Blue dimming (0-100%)
CH8	0-255	White dimming (0-100%)

Specifications:

Power supply	110-240Vac, 50/60Hz (IEC)
Power consumption	36W
Fuse rating	F3A
LED quantity	9 x 6W RGBW
DMX channels	8
Beam angle	45°
Dimensions	205 x 205 x 80mm
Weight	955g

Troubleshooting:

No power (mains)	Check mains voltage is correct, and outlet is switched on
	Check IEC lead and fuse (if fuse continually blows, refer to your dealer)
No light output	Check control panel mode settings
	Check DMX settings from controller (dimmer levels, blackout etc.)
Unresponsive to DMX	Check that unit is in DMX mode and ensure DMX address remains lit to confirm receiving DMX signal
	Check DMX controller is not set to black out
	Check DMX controller is on correct fixture/page
	Check master dimmer value
	Check correct DMX address is set
	Check DMX connection and leads
Overheating/cutting out	Ensure adequate ventilation and unit is not too close to a heat source

This product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The goods must be disposed of according to your local council guidelines.

Errors and omissions excepted.

Copyright© 2022 AVSL Group Ltd, Unit 2 Bridgewater Park,

Taylor Road, Trafford Park, Manchester. M41 7JQ.

AVSL (Europe) Ltd, Unit 3D North Point House, North Point Bus. Park, New Mallow Road, Cork, Ireland.
