Product Type	Air Fryer / Healthy Fryer
Model	Easy Fry XXL AG701DS0
Brand	OBH Nordica
Capacity	XXL (approx. 5.5 L)
Power Consumption	Approx. 1500 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Temperature Range	80 °C – 200 °C
Timer	Up to 60 minutes with auto shut-off
Display	Digital touch screen
Housing Material	Plastic and metal
Bowl / Basket Material	Non-stick coated
Weight	Approx. 5.0 kg
Dimensions (W x D x H)	Approx. 35 x 30 x 35 cm
Warranty	2 years limited manufacturer guarantee
Safety Features	Overheat protection, auto shut-off, cool-touch handle
Cleaning	Removable non-stick basket, dishwasher safe parts
Additional Functions	8 preset programs, manual mode, preheat function
Accessories Included	Frying basket, recipe book

Frequently Asked Questions - Easy Fry XXL AG701DS0 OBH NORDICA

How do I preheat the Easy Fry XXL?

Select the desired temperature and let the appliance run empty for 3-5 minutes. The display will indicate when it's ready.

Can I use oil in the air fryer?

Yes, you can add a small amount of oil (1-2 tablespoons) for crispier results. Avoid using too much oil as it may cause smoke.

How do I clean the basket and bowl?

Remove the basket and bowl, wash with warm soapy water and a non-abrasive sponge. Both are dishwasher safe for easy cleaning.

What is the maximum capacity for french fries?

For best results, do not fill the basket more than half full. Typically 500-800 g of frozen fries is recommended.

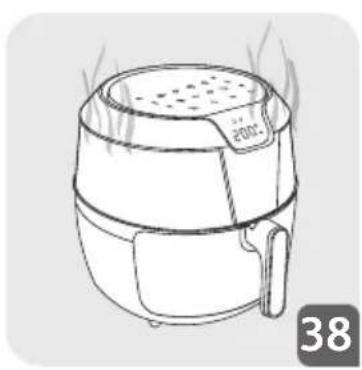

Why does the appliance emit a burning smell when first used?

This is normal. The protective coating on the heating element burns off during first use. Run the appliance empty at 200 °C for 10 minutes to eliminate the odor.

Can I bake a cake in the air fryer?

Yes, you can use a silicone or metal cake pan that fits in the basket. Reduce the recipe temperature by 10 °C and check doneness earlier.

What should I do if the appliance stops working suddenly?

Unplug it and check the power cord and socket. If it still doesn't work, contact OBH Nordica service center for assistance. Do not attempt to repair yourself.

Is the basket non-stick?

Yes, the basket has a non-stick coating for easy food release. Use only wooden or silicone utensils to avoid scratching.

How long does it take to cook frozen chicken wings?

At 200 °C, cook frozen chicken wings for 20-25 minutes, shaking halfway through. Adjust time based on quantity and size.

Can I use aluminum foil or parchment paper?

Yes, you can place parchment paper or foil in the basket, but leave space for air circulation. Never cover the entire basket bottom.

USER MANUAL Easy Fry XXL AG701DS0 OBH NORDICA

DESIGNING GOOD LIFE

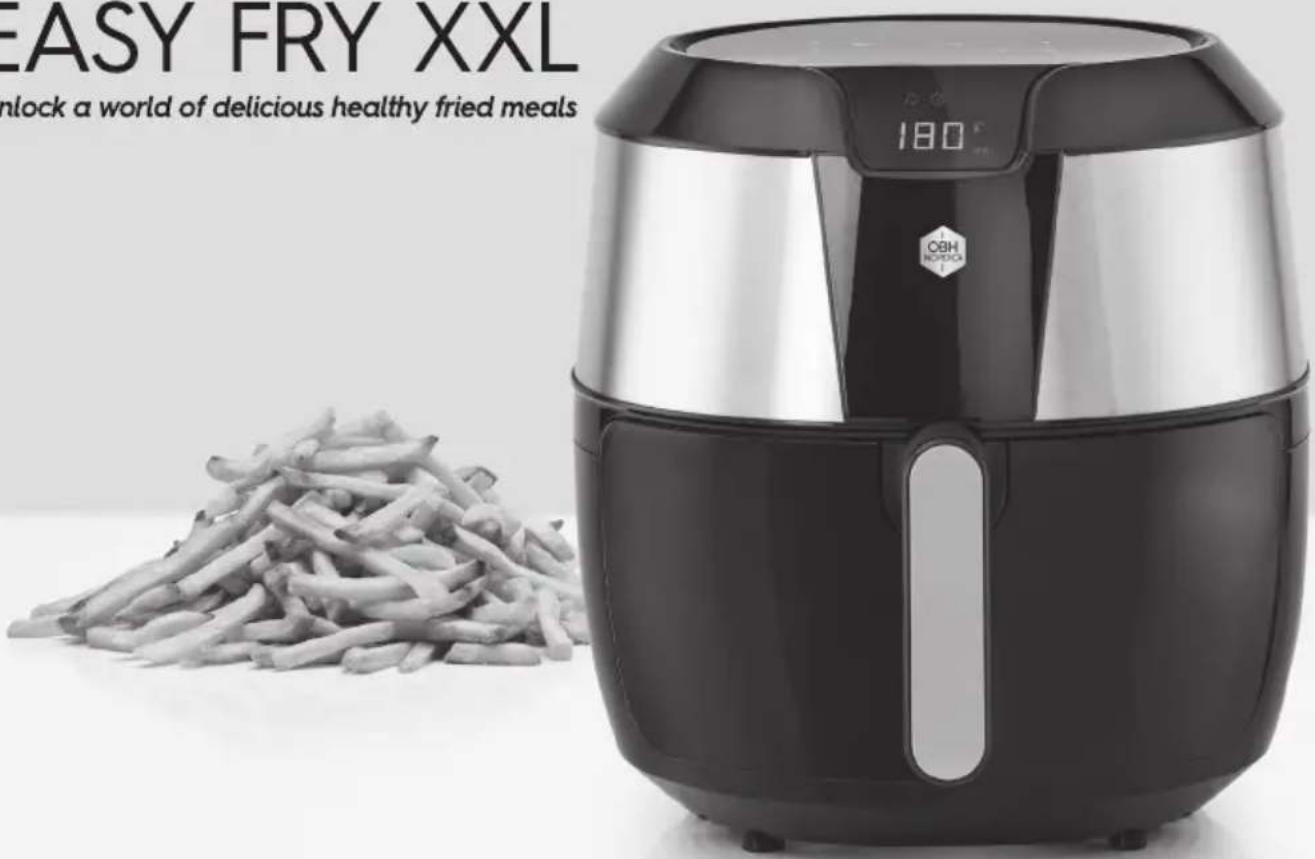

Healthy Fryer

EASY FRY XXL

Unlock a world of delicious healthy fried meals

Making good!

Svenska ......sida 14 - 17

Dansk ....side 18 - 21

3

3

4

4

4

5

5

6

• Hot surface	g		min
	1200 28	-30		180
	1000 23
	1200 28	-30		180	---
	1000 23
	1200 21	-25		200
	1000 17
	5 pcs 15
	600 11	-13 180
	5 pcs 20
[PHY3]	1600 60	200
	1500 15	-17 200
	2000 38	-42 200
	4 pcs 14	-
	500 9	-11 200
	500 13	-15 180	min
	150 - 300		7 - 10 190
	8 pcs 18 -
	8 pcs 9 - 11 160

Visiting address: Deltapark 37, 3. sal

Phone: [phone]

Direct: [phone]

www.obhnordica.dk

Viktige råd

BEGRENSET GARANTI for OBH Nordica

Garantien

Important safeguards

- This appliance is intended to be used in household only. It is not intended to be used in the following applications, and the guarantee will not apply for:

- staff kitchen areas in shops, offices and other working environments;

- farm houses;

- by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments.

- This appliance is not intended to be operated by means of an external timer or a separate remotecontrol system.

- If the power supply cord is damaged, it must be replaced by the manufacturer, an authorised service centre or a similarly qualified person in order to avoid any danger.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance

and its cord out of reach of children less than 8 years.

• The temperature of accessible surfaces may be high when the appliance is operating. Do not touch the hot surfaces of the appliance (depending on model).
• Clean removable parts with a non abrasive sponge and dishwashing liquid or in a dishwasher (depending on model).
• Clean the inside and the outside of the appliance with a damp sponge or cloth.
• The appliance can be used up to an altitude of 4000 m.

Do

• Read and follow the instructions for use. Keep them safe.
• Remove all packaging materials and any promotional labels or stickers from your appliance before use. Be sure to also remove any materials from underneath the removable bowl (depending on model).
• Check that the voltage of your mains network corresponds to the voltage given on the rating plate on the appliance (alternative current).
• Given the diverse standards in effect, if the appliance is used in a country other than that in which it is purchased, have it checked by an approved Service Centre.
  • For models with detachable power cords, only use the original power cord.
  • Always plug the appliance into an earthed socket.
• Use the appliance on a flat, stable, heat-resistant work surface away from water splashes.
  • Always unplug your appliance: after use, to move it, or to clean it.
• In the event of fire, unplug the appliance and smother the flames using a damp tea towel.
• To avoid damaging your appliance, please ensure that you follow recipes in the instructions and recipe book; make sure that you use the right amount of ingredients.

Do not

• Do not use the appliance if it or the power cord is damaged or if it has fallen and has visible damage or appears to be working abnormally. If this occurs, the appliance must be sent to an Approved Service Centre.
• Do not use an extension lead. If you nevertheless decide to do so, under your own responsibility, use an extension lead that is in good condition and compliant with the power of the appliance.
• Do not let the power cord dangle.
• Do not unplug the appliance by pulling on the power cord.
  • Never move the appliance when it still contains hot food.

• Never operate your appliance when empty.
- Do not switch on the appliance near to flammable materials (blinds, curtains...). or close to an external heat source (gas stove, hot plate etc.).
- Do not store any inflamamable products close to or underneath the furniture unit where the appliance is located.
- Never take the appliance apart yourself.

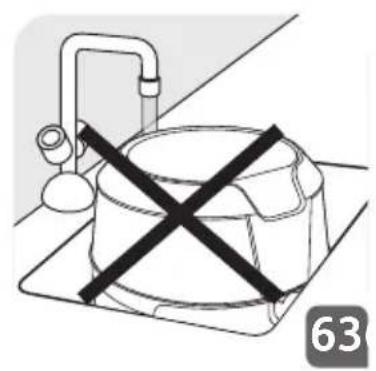

- Do not immerse the product in water.
- Do not use any powerful cleaning products (notably soda based strippers), nor brillo pads, nor scourers.
- Do not store your appliance outside. Store it in a dry and well ventilated area.

Advice/information

• When using the product for the first time, it may release a non-toxic odour. This will not affect use and will disappear rapidly.
• For your safety, this appliance conforms with applicable standards and regulations (Directives on Low Voltage, Electromagnetic Compatibility, Materials in contact with food, Environment, etc.).
• This appliance is designed for domestic use only and not outdoor. In case of professional use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee does not apply.
• For your safety, only use the accessories and spare parts designed for your appliance.

Environnement

- Before discarding your appliance, the battery from the timer has to be removed and disposed at a local civic waste collection centre or an approved service centre. (depending on model).

Environment protection first!

Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.

OBH Nordica LIMITED GUARANTEE

The Guarantee

OBH Nordica guarantees this product against any manufacturing defect in materials or workmanship during 2 years within Sweden, Norway, Denmark and Finland, starting from the initial date of purchase or delivery date.

This manufacturer's commercial guarantee covers all costs related to restoring the proven defective product so that it conforms to its original specifications, through the repair or replacement of any defective part and the necessary labour. At OBH Nordicas choice, a replacement product may be provided instead of repairing a defective product. OBH Nordicas sole obligation and your exclusive resolution under this guarantee are limited to such repair or replacement.

Conditions & Exclusions

OBH Nordica shall not be obliged to repair or replace any product which is not accompanied by a valid proof of purchase. The defective product may be returned to the store of purchase.

This guarantee applies only for products purchased and used for domestic purposes and will not cover any damage which occurs as a result of misuse, negligence, failure to follow OBH Nordica instructions, or a modification or unauthorised repair of the product, faulty packaging by the owner or mishandling by any carrier. It also does not cover normal wear and tear, maintenance or replacement of consumable parts, or the following:

• using the wrong type of water or consumable
• mechanical damages, overloading
• damages or poor results specifically due to wrong voltage or frequency as stamped on the product ID or specification
• ingress of water, dust or insects into the product
• scaling (any de-scaling must be carried out according to the instructions for use)
• damage as a result of lightning or power surges
• damage to any glass or porcelain ware in the product
• accidents including fire, flood, etc
• professional or commercial use

Consumer Statutory Rights

OBH Nordica's commercial guarantee does not affect the Statutory Rights a consumer may have or those rights that cannot be excluded or limited, nor rights against the retailer from which the consumer purchased the product. This guarantee gives a consumer specific legal rights, and the consumer may also have other legal rights which vary from Country to Country. The consumer may assert any such rights at his sole discretion.
