INN-718 - Pince à sandwich Innoliving - Free user manual and instructions

Product Type	Sandwich Maker (Tostiéra)
Brand	Innoliving
Model	INN-718
Power Supply	220-240V~50/60Hz
Power Consumption	750W
Cooking Plates	Non-stick coated
Indicator Lights	Red light (power/heating), Green light (ready)
Handle	Cool-touch handle with hook closure
Non-slip Feet	Yes
Preheating Required	Yes, until green light turns off
Cooking Time	Approximately 3-5 minutes
Recommended Utensils	Non-metallic (wood or plastic)
Cleaning	Wipe plates with damp cloth; do not immerse in water
Storage	Can be stored vertically
Safety Features	Automatic temperature regulation, cool-touch handle, non-slip feet
Certifications	CE marked
Country of Origin	Made in China
Dimensions	Not specified
Weight	Not specified

Frequently Asked Questions - INN-718 Innoliving

How do I preheat the Innoliving INN-718 sandwich maker?

Plug in the appliance. The red light will turn on. Close the plates and wait until the green light turns off, indicating the sandwich maker is ready for use.

How long does it take to cook a sandwich?

Typically 3 to 5 minutes. The green light may cycle on and off to maintain temperature.

Can I use metal utensils on the cooking plates?

No. Use only non-metallic utensils such as wood or plastic spatulas to avoid damaging the non-stick coating.

How should I clean the sandwich maker?

Unplug and let it cool completely. Wipe the cooking plates with a damp cloth, and clean the exterior with a soft cloth. Do not immerse in water.

Is it safe to leave the appliance unattended while cooking?

No. Never leave the product unattended during use. Always supervise children and pets.

What do the indicator lights mean?

The red light indicates power is on and the plates are heating. The green light indicates the appliance is ready for use. During cooking, the green light may turn off and on to maintain temperature.

Can I use the sandwich maker outdoors?

No. This appliance is designed for indoor household use only. Do not use outdoors or near water.

What voltage does the INN-718 require?

It operates on 220-240V~50/60Hz power supply.

Can I store the sandwich maker vertically?

Yes. The unit can be stored vertically to save space.

At first use, I noticed some smoke. Is this normal?

Yes. A thin line of smoke may appear during the first use due to heating of internal components. This is normal and will stop after a few uses.

USER MANUAL INN-718 Innoliving

innoliving easy tech, easy life

TOSTIERA

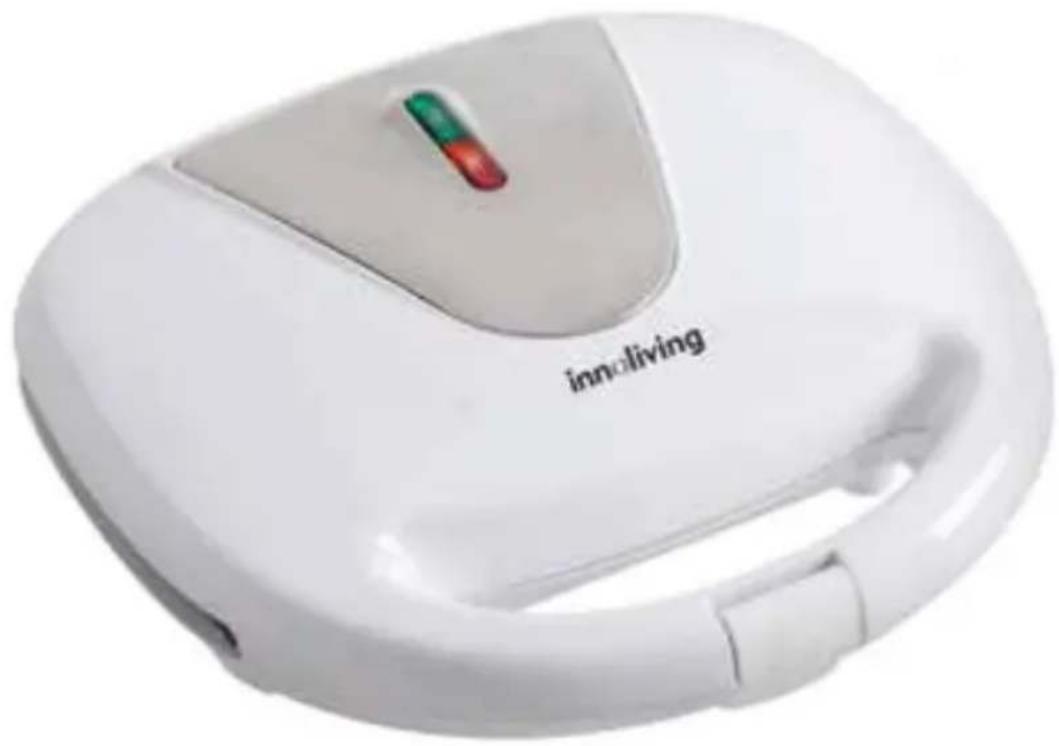

White stainless steel grill with a green and red button, labeled 'innoliving' (no additional text or symbols visible)

INN-718

MANUALE D'USO

USER MANUAL

Thank you for having purchased the Innoliving Sandwich Maker INN-718. Before use, read the instruction carefully and keep this manual safe for future references.

IMPORTANT SAFETY INSTRUCTIONS

• Before connecting the unit, make sure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance. The rating label is on the product.
• Keep all packing material (plastic bags, cardboard, polystyrene, etc.) out of reach of the children, since they are potential sources of danger and must be disposed of as provided by law.
• During use, place the products on a flat, stable and heat-resistant surface.
• Do not place the appliance on or near heat sources, electric elements, or in a heated oven. Do not place the product on other appliances.
• Do not use the appliance near walls and curtains.
• Do not use the product outdoors.
• Close supervision is necessary if the unit is used near children. Keep the product and its power cord out of reach of children under 8 years of age. Keep the product out of reach of animals during use.
• Never leave the product unattended during use. This product can be used by children older than 8 years old and people with reduced physical, mental or sensory capacity, or lack of experience and knowledge only if under supervision or if they received instructions regarding the safe use of the equipment and understand the risks associated with its use. Make sure that children do not play with the appliance. Cleaning and maintenance operation should not be done by children unless they are at least 8 years old and are under supervision.
• If the power cord is damaged, it must be replaced by the manufacturer or its authorized service or by a qualified person to avoid any risk.
• The unit is not intended to be operated by an external timer or remote control.
  • The product surfaces becomes extremely hot during use.
• WARNING: Plates reach high temperatures once the product is operating.
• Do not let the cable hang on the end of the table or sink.
• Do not allow the power cord to come into contact with hot surfaces.
• Make sure to preheat the plate before using the sandwich maker.
  • Always unplug the appliance from the power supply after use and before cleaning.
• Do not immerse the appliance in water. Avoid water to come in the appliance.
• Never immerse the appliance in water. Avoid water entering the appliance.
• Do not use sharp or abrasive objects in contact with the plates as this will damage the surface.
  • Always clean the appliance after use.
• This appliance has been conceived for household use only, do not use for industrial or professional use.
• Do not leave the unit exposed to atmospheric agents (rain, sun, etc.).
• We recommend the use of a suction blower or an adequate ventilation of the room during use.

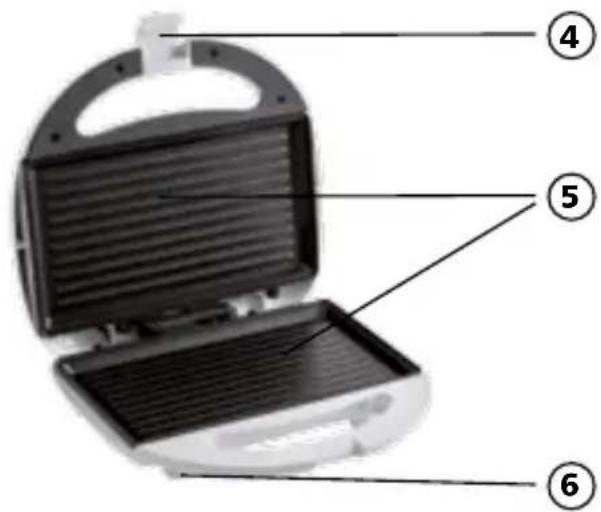

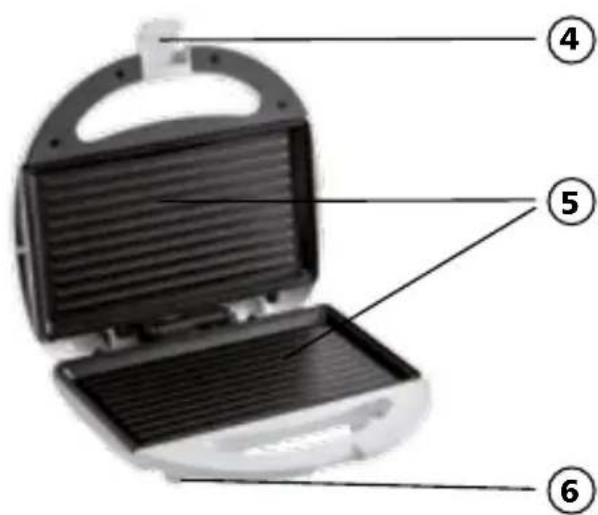

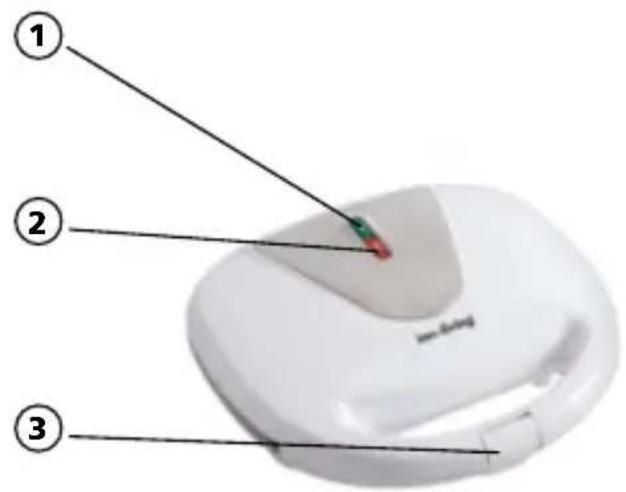

PRODUCT DESCRIPTION

1. Green Light Indicator "Ready for Use"
2. Red Light Indicator ignition/heating plates
3. Handle
4. Hook Closure
5. Non-stick cooking plates
6. Non-slip feet

HOW TO USE

Before use, remove any labels on the plates.

Make sure that the cooking plates are clean and free of dust. If necessary, clean with a damp cloth.

At first use, you might notice the spill of a thin line of smoke. This is only due to the heating of some components.

Preheating

Place the appliance on a flat surface. Slide the hook closure (4) to open the plate.

Gently grease the plates with butter or cooking oil.

Insert the plug into a socket. The red light (2) and the green light (1) will light up.

Keep the plate closed during the preheating phase until the green "Ready to use" light (1) is switched off.

Operation

• When the green light goes off, the sandwich maker is ready for use.
• Place the toast in the bottom plate and close the plates, squeezing slightly until the hook is closed (4). Be careful not to touch the hot parts of the appliance.
  • The cooking of the toast is usually effected within 3-5 minutes.
• Use a non-metallic tool (such as a wooden spatula) to remove the toast from the plates. Do not use sharp or abrasive kitchen utensils.
• Disconnect the product from the power supply after use.

- Note: During cooking, the green light indicating when the appliance is ready to cook will turn on and off to keep the appliance at the correct temperature.

CLEANING AND MAINTENANCE

Before proceed with any cleaning or maintenance operation, disconnect the appliance from the power supply and let the appliance to cool completely down.

Avoid using sharp metal tools or abrasive products as they may damage the coating of the plates.

Remove any residual oil from the plates using a sheet of kitchen paper.

Use a wooden or plastic spatula to remove any remaining food residues on the cooking plates.

Do not use sharp or abrasive tools.

Clean the cooking plates with a soft cloth or damp sponge.

Clean the outside of the appliance with a damp cloth.

Do not immerse the appliance in water or other liquids.

The unit can also be stored vertically.

RATING LABEL:

Innoliving Spa

Via Merloni, 9 - 60131 Ancona - Italy

INN-718 TOSTIERA - SANDWICH MAKER

220-240V\~50/60Hz 750W

LOT n.

MADE IN CHINA

The product is made conforming with all the applicable European regulations

Read carefully the User Manual

For food contact

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 "2012/19/UE. Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE) "The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste.

The user should, therefore, take the equipment with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014.

innoliving easy tech, easy life

Innoliving Spa

Via Merloni, 9

60131 Ancona Italy

Tel 199.188.335

www.innoliving.it

MADE IN CHINA

CE
