Product Type	Fan Heater
Brand	Innoliving
Model	INN-577
Dimensions (W x H x D)	20 cm x 25 cm x 15 cm
Weight	1.2 kg
Power Supply	220-240V ~ 50Hz
Power Consumption	2000W
Heating Elements	Ceramic PTC
Fan Speeds	2 (Low/High)
Thermostat	Adjustable thermostat
Oscillation	Yes, 70°
Safety Features	Overheat protection, tip-over switch
Housing Material	ABS plastic
Color	White/Black
Control Type	Rotary knob
Noise Level	Approx. 45 dB
Room Area Coverage	Up to 20 m²
Maintenance	Clean air intake grille regularly with soft brush
Spare Parts Availability	Contact Innoliving service or authorized dealers
Certifications	CE, RoHS

Frequently Asked Questions - INN-577 Innoliving

How do I clean the Innoliving INN-577 heater?

Always unplug the heater before cleaning. Use a soft brush or vacuum to remove dust from the air intake and outlet grilles. Do not use water or abrasive cleaners.

Can I use the heater in a bathroom?

No, the INN-577 is not designed for damp environments. It should only be used in dry indoor areas to avoid electrical hazards.

What does the tip-over switch do?

The tip-over switch automatically turns off the heater if it is accidentally knocked over, preventing fire hazards.

Why does the heater turn off by itself?

The unit has overheat protection. If it exceeds safe temperature, it will shut off. Allow it to cool, then check for blocked airflow or dirty filters.

How much electricity does the INN-577 consume?

The heater has a power rating of 2000W at maximum setting. Actual consumption depends on the thermostat and fan speed selected.

Is the heater suitable for a bedroom?

Yes, it is quiet enough for bedroom use (approx. 45 dB). However, never leave it unattended while sleeping.

What should I do if the heater emits a burning smell?

A slight burning smell on first use is normal as manufacturing residues burn off. If persistent, turn off and disconnect, then contact customer service.

Can I use an extension cord with this heater?

It is not recommended. If necessary, use a heavy-duty cord rated for at least 2000W and ensure it is fully unwound to prevent overheating.

How do I adjust the thermostat?

Turn the thermostat knob clockwise for higher temperature. Once the room reaches the set temperature, the heater will cycle on and off to maintain it.

Where can I find replacement parts?

Contact Innoliving customer support or visit their website for authorized spare parts and service centers.

USER MANUAL INN-577 Innoliving

Exterior view of a modern office rental unit (no signage)

INN-577

MANUALE D'USO

USER MANUAL

Thank you for purchasing the Halogen Heater INNOLIVING INN-577.

Please read the following instructions carefully and save this manual for possible future consultation.

Before using this appliance, please read the operating instructions carefully, in particular the safety notes and follow them.

Keep this manual for the entire life of the appliance, for future consultation. Failure to follow the instructions could cause accidents and void the warranty by raising the manufacturer from any liability.

This appliance must be used only for the purpose for which it was designed, that is as halogen convector for domestic use. Any other use is considered improper and therefore dangerous.

IMPORTANT SAFETY NORMS AND WARNINGS

WARNING: Do not use this heating appliance with programmers, timers or any other device that automatically switches on the appliance, as there is a risk of fire if the appliance is covered or positioned incorrectly.

IMPORTANT: In order to avoid overheating, never cover the appliance during operation, as this would cause a dangerous increase in temperature.

ATTENTION: This heater is not equipped with an ambient temperature control device. Do not use in small rooms when these are occupied by people unable to leave the room alone, unless they are under constant surveillance.

• Keep all packing material (plastic bags, cardboard, polystyrene, etc..) out of reach of the children, since they are potential sources of danger and must be disposed of as provided by law
• Before plugging into the socket, make sure the voltage of your mains supply corresponds to the value indicated on the appliance and that the socket and power line are appropriate for the load required.
• The appliance must be used in the portable configuration only. The

appliance is designed and produced for domestic use only.

- Do not use this appliance near showers, baths, swimming pools, etc.

• Always use the heater in an upright position.

- Do not cover the appliance when in operation to avoid the risk of fire.

- Do not position the heater immediately below a wall power socket.

- Do not use the heater to dry laundry. Never obstruct the intake and outlet grilles (danger of overheating).

- Do not use the appliance on wet floor and surfaces.

- Do not immerse the appliance or the cable in water or other liquids.

- Do not touch the appliance with wet hands.

- Place the appliance on a flat and stable surface.

- Never leave the appliance unattended when in use.

- This appliance can be used by children over 8 years old and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, only under proper supervision, or if they received the instructions regarding the safe use of the device and if they understand the dangers involved. Cleaning and maintenance should not be performed by children unless they are older than 8 years old and operate under proper supervision. Make sure that children do not play with the appliance.

- Children under 3 years old must be kept out of reach of the appliance if not constantly supervised.

• Children from 3 to 8 years old can only turn on/off the product, if it has been already placed in its operating position and if they received

instruction regarding the safe use of the device and the dangers involved. Children from 3 to 8 years old should not connect/disconnect the product from the main socket, or make adjustments or cleaning and maintenance operations.

ATTENTION: Some parts of the product can become extremely hot during operation and cause burns. Particular attention must be paid in the presence of children or vulnerable people.

• The heater must be positioned at least 1m from furniture, walls, curtains, or other objects
• The appliance must not be positioned near walls, furniture, curtains etc.
  • The use of extension leads is not recommended.
• Do not use the power cord to lift or carry the appliance or pull the transformer plug out of the wall socket.
  • Make sure that the cable has no kinks or bends.
• Check the status of the electrical cable. Damaged or knotted cable increase the risk of electric shock.
• If the power cable is damaged, it must be replaced by the manufacturer, the authorized after sales service or a qualified electrician in order to eliminate all risk.
• Do not use the appliance in rooms measuring less than 4m^2 .
  • Always unplug the heater before proceeding with cleaning and wait for it cool down before cleaning.
• Do not use aggressive detergents to clean the appliance.
• Do not allow the appliance or the cable to come in contact with hot surfaces.

• Always unplug the heater when not in use.
- This appliance must be used only for the purpose for which it was conceived.
- Avoid dropping the appliance.
- If you encounter any problems with the device, contact the authorized after sales service. Do not try to repair the product yourself.
- The appliance is not to be used if it has been dropped, if there are visible signs of damage or if it is leaking.
- In case of failure or faulty operation, switch the appliance off and do not tamper. Contact the after sales service to repair it.

MAINTENANCE

The appliance only needs regular external cleaning.

After use and before cleaning, always unplug the appliance and wait for it to cool down. Clean the grids from dust.

Clean painted parts only with a damp cloth.

ASSEMBLY

Assemble the body of the appliance and the base following these instructions.

Remove the butterfly nuts from the bottom of the body of the appliance. Insert the power cable through the slot in the central part of the base and assemble the body and the base and fix them using the butterfly nuts previously removed and insert the cable in the empty space.

OPERATION

Connect the appliance to the electricity supply. Verify that the output has a current rating of at least 10 AMPERE.

Select the speed using the appropriate button located on the top of the device. To activate the oscillation, press the appropriate switch, press it again to disable the oscillating movement.

The appliance can be moved manually by pressing the handle located at the rear of the appliance.

It's not recommended to move the appliance during its working.

SECURITY SYSTEM

The appliance is equipped with a safety system that turns off the appliance when it is tilted or when it is overturned, all through a safety switch located in the lower part of the appliance.

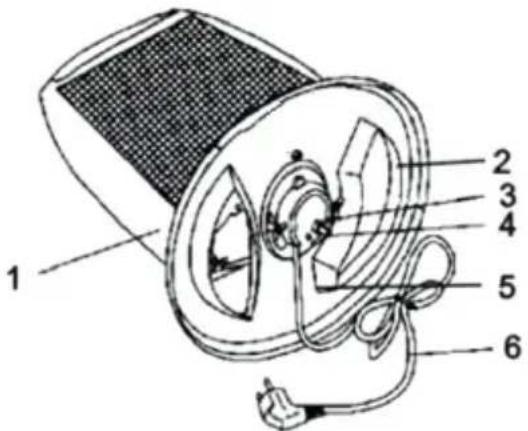

1. HEATER
2. BASE
3. BUTTERFLY NUTS
4. ROLLOVER PROTECTION SWITCH
5. CABLE CONNECTION
6. CABLE

DATA LABEL

Innoliving Spa

Via Merloni 2/B - 60131 Ancona - Italy

INN-577 STUFA ALOGENA - HALOGEN HEATER

220-240V\~50/60Hz 1200W

This product complies with all the applicable EU directives.

Read carefully the instruction manual.

Do not cover the appliance when in operation to avoid the risk of fire

INFORMATION FOR USERS pursuant to Legislative Decree N° 49 of 14 March 2014

"Implementation of Directive 2012/19 / EU on waste electrical and electronic equipment (WEEE)"

The crossed-out bin symbol shown on the equipment indicates that the product at the end of its useful life must be collected separately from other waste. The user must, therefore, deliver the equipment complete with the essential components at the end of its life to the appropriate separate collection centers for electronic and electrotechnical waste, or return it to the retailer when purchasing new equipment of an equivalent type, for one to one, or 1 to zero for equipment with a longest side less than 25 cm. Adequate separate collection for the subsequent start-up of the discarded equipment for recycling, treatment and environmentally compatible disposal helps to avoid possible negative effects on the environment and health and favors the recycling of the materials of which the equipment is made. Illegal disposal of the product by the user involves the application of the administrative sanctions referred to in Legislative Decree no. Legislative Decree N° 49 of 14 March 2014.

INFORMATION FOR ELECTRICAL LOCAL ROOM HEATING APPLIANCES

Data	Symbol		Value	Unit		Data	Unit
Thermal Power						Type of heat output, only for electric local space heaters (indicate only one option)
Nominal heat output	P_max		1,20	kW		Manual control of the thermal load with integrated thermostat	no
Minimum heat output (indicative)	P_min		0,4	kW		Manual control of the thermal load with feedback of the ambient and / or external temperature	no
Maximum continuous heat output	P_max,t		1,20	kW		Electronic control of the thermal load with feedback of the ambient and / or external temperature	no
Auxiliary electricity consumption						Fan assisted heat output	no
At nominal heat output	eI_max		0,0	kW		Type of heat output / room temperature control (indicate only one option)
At minimum heat output	eI_min		0,0	kW		Single phase heat output without room temperature control	no
In standby mode	eI_ss		0,0	kW		Two or more manual steps without room temperature control	yes
						With room temperature control by mechanical thermostat	no
						With electronic control of the room temperature	no
						With electronic control of the room temperature and daily timer	no
						With electronic control of the room temperature and weekly timer	no
						Other control options (multiple options can be selected)
						Room temperature control with presence detection	no
						Room temperature control with open window detection	no
						With remote control option	no
						With adaptable start control	no
						With operating time limitation	no
						With black globe thermometer	no
MANUFACTURER		INNOLIVING S.p.A - Via Merlomi 2/8 - 60131 Ancona

innoliving

Innoliving Spa

Via Merloni, 2/B

60131 Ancona Italy

Tel [phone]

www.innoliving.it

MADE IN CHINA

CE
