Product Type	Refrigerator
Model	KK 262 E
Brand	Scancool
Total Capacity	Approx. 200 L
Dimensions (H x W x D)	85 cm x 55 cm x 58 cm
Weight	35 kg
Energy Efficiency Class	A+
Annual Energy Consumption	180 kWh
Climate Class	N-ST
Noise Level	42 dB(A)
Refrigerator Capacity	170 L
Freezer Capacity	30 L
Defrost Type	Auto (Refrigerator), Manual (Freezer)
Number of Shelves	3 glass shelves
Door Balconies	3 adjustable
Crisper Drawer	1 for fruits and vegetables
Ice Cube Tray	1 included
Temperature Control	Manual dial (1-7)
Reversible Door	Yes, door hinges reversible
Power Supply	220-240 V, 50 Hz
Maintenance	Clean interior with mild soap; defrost freezer manually when ice > 5 cm
Safety Features	Child lock (some models), automatic temperature control
Spare Parts Availability	Shelves, door gaskets, thermostats available via service center

Frequently Asked Questions - KK 262 E Scancool

What is the energy consumption of the Scancool KK 262 E?

The annual energy consumption is approximately 180 kWh, based on standardized test conditions.

How do I adjust the temperature?

Use the manual dial inside the refrigerator compartment. Setting 1 is warmest, setting 7 is coldest. Typically, setting 3-4 is recommended for normal operation.

Can I reverse the door opening direction?

Yes, the door hinges are reversible. Refer to the user manual for step-by-step instructions on changing the door swing.

How often should I defrost the freezer?

Defrost the freezer compartment when the ice build-up reaches about 5 mm thickness, or at least twice a year for optimal performance.

What should I do if the refrigerator is too noisy?

Check if the appliance is level and stable. Ensure it is not touching walls or cabinets. Normal sounds include humming (compressor) and gurgling (refrigerant). If excessive, contact service.

How do I clean the refrigerator?

Unplug the appliance, remove all food, and wipe interior surfaces with a soft cloth dampened with lukewarm water and mild detergent. Rinse and dry thoroughly before restarting.

What is the climate class of this refrigerator?

The climate class is N-ST, meaning it is designed for ambient temperatures between 16°C and 38°C.

How much storage capacity does the refrigerator have?

The total net capacity is approximately 200 L, with 170 L for the fresh food compartment and 30 L for the freezer.

Does the refrigerator have a child lock?

Some models include a child lock feature on the temperature dial. Check your specific unit; if not, external locks are available.

Where can I find spare parts or service?

Contact Scancool customer service or an authorized service center. Common spare parts like shelves, door gaskets, and thermostats are available.

USER MANUAL KK 262 E Scancool

Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children without supervision.

To avoid contamination and depravity of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the of the appliance.
• Cleaning regularly surfaces that can come in contact with food and is accessible for drainage systems.
• Clean water tanks if they have not been used for 48 h. or more; Flush the water system connected to a water supply if water has not been drawn for 5 days or more.
• Store raw meat and fish in suitable containers in the refrigerator, so it is not in contact with, or can drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
  • This refrigerating appliance is not intended to be used as a built-in appliance.
• Note: When operating in an environment other than the specified climate type (i.e., beyond the rated ambient temperature range), the appliance may not be able to maintain the desirable compartment temperatures.
• Lamp type : LED light. Energy efficiency level : F

Dansk Page 3

English Page 8

Illustration of a hand using a screwdriver to lift a red spiral-shaped object into a container (no text or symbols)

3D rendering of a rectangular electronic device with a reflective top surface and internal compartments (no text or symbols visible)

Illustration of a hand using a syringe to lift a red circular object into a flat panel (no text or symbols)

Safety Instructions and Warnings

Before starting the appliance, read the information given in the User's Guide carefully.

The User's Guide contains very important observations relating to the assembly, operation and maintenance of the appliance. Keep the User's Guide in a safe place and remember to hand it over to the subsequent owner, if you ever sell the appliance.

The manufacturer does not accept responsibility for any damages that may arise due to non-observation of the following instruction.

Damaged appliances are not to be put into operation. In case of doubt, consult your supplier.

• Connection and installation of the appliance are not to be carried out in strict compliance with the relative instructions set forth in this User's Guide.
• For the purpose of safety, the appliance must be properly grounded in accordance with specifications.

- Always remember to unplug the appliance before cleaning. To disconnect the appliance, pull at the plug itself, not the cord.

- Keep alcoholic beverages in airtight bottles or containers and always store in an upright position. In addition, do not store any explosive substances inside the appliance. Danger of explosion.

- Do not damage any parts of the appliance that carry refrigerant by piercing or perforating the refrigerant's grooves with sharp or pointed items, crushing or twisting any tubes, or scraping the coatings of the surface. If the refrigerant spurts out and gets into eyes, it may result in serious eye injuries.

- Do not obstruct or cover the ventilation grille of the appliance.

- Do not allow children to play with the appliance. In no case should children be allowed to sit on the drawers or hang onto the door.

- Should you have bought your new fridge/freezer to replace an old appliance, please make sure that all existing latch or bolt-locks on the old appliance are destroyed, before you dispose of it.

- This will ensure that a child cannot get trapped inside.

- Please have the old appliance ecologically disposed of by a company specialised in environmental protection, since the appliance may contain harmful components in the refrigerant and this must be removed with special equipment. Please check with your dealer or with your local authority.

- Make sure that the refrigerant system containing the refrigerant, especially the heat exchanger at the back of the appliance, is not damaged during transportation to the disposal or collection site, so that you can be sure that the refrigerant does not leak out. Details concerning the type of refrigerant/isolating agent sue can be found on the appliance rating plate.

- Warning: Keep ventilation openings in the appliance enclosure or in the structure for building in, clear of obstruction.

- Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage of the appliance.
• It is necessary to have the plug accessible after installation.
• If the supply cord is damaged, it must be replaced by a supplied cord or assembly available form the manufacturer or its service agent.
• Connection of power supply and installation should be conducted in accordance with the instructions in the operation manual.
• Only the tools regulated by the manufacturer can be used for defrosting.

Specifications

• This appliance is designed for food refrigeration, ice making and frozen food storage.
• It is intended strictly for household use. If using it for industrial or commercial purpose, be sure to observe the relevant norms and regulations.
  • The refrigerant circuit is leak-proof.

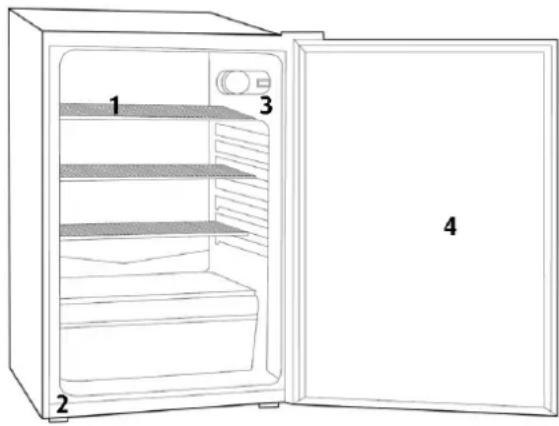

Product view

Line drawing of a refrigerator with labeled compartments (1, 2, 3, 4) and no text or symbols on the cabinet itself.

1 Shelves

2 Feets

3 Temperature Controller

4 Door

This diagram may vary slightly with the layout of the refrigerator you have just purchased due to technical improvements.

Unpacking

• Remove all packing materials.
• Check attachments and materials
• Checking should be conducted with reference to the Packing List. Contact the local distributor if discrepancies are found.
• Ensure proper location of the refrigerator.
• Make sure the refrigerator is kept upright during handling. If an inclination is required, it should not exceed 45 degrees. Otherwise the appliance may get damaged resulting not only in compromised refrigeration performance.
  • To avoid product damage or personal injury, the refrigerator should be unpacked by two pesons after it is located in a previously selected position.
• Before installation, make sure the refrigerator has no visible exterior damage. *When handling the refrigerator, do not lift it by holding the worktop, to prevent any damage to the refrigerator.
• Do not start up a refrigerator that is damaged.
• Clean the refrigerator before use.
  • After the refrigerator has been sited and cleaned, let it stand for more than 30 minutes before connecting the power source

Starting the refrigerator

After connecting to the power supply, turn the temperature controller clockwise from position OFF to any position between 1 and 6 to start the refrigerator. The refrigerator compressor will stop when the temperature controller is at position OFF.

Adjusting the temperature:

The temperature inside the refrigerator is adjusted by turning the temperature controller. Positions 1 to 6 represent different temperatures from the lowest to the highest.

Appliance switched off - OFF setting

Minimum temperature - 1 setting

Optimal temperature - 2-5 setting

Maximum temperature - 6 setting

Caution: Some time will be required for the refrigerator to reach the set level when temperature adjustments are made. The length of this period is determined by difference in the existing and set temperatures, the ambient temperature, the frequency with which the door is opened and closed and the amount of food in storage.

Loading the refrigerator with food

When the refrigerator is switched on, do not load food until 1\~2 hours have passed.

Usually, food for cold storage or deep freezing can be loaded when the temperature inside the compartment reaches the set point.

Instructions

Cold storage is for short-term food storage or for daily consumption.

Although the temperature in most parts of the cold storage compartment can be regulated between 0 and 10 degrees Centigrade, extended periods of food storage is not recommended. Cold storage should only be used for short-term storage.

• Hot food must be cooled to room temperature before storing in the refrigerator
• Dry any water droplets on the food before placing it in the refrigerator.
• It is recommended that food be sealed in suitable storage bags before being placed in the refrigerator; this will prevent moisture in the food from evaporating and prevent vegetables and fruit from withering or altering in flavor.
• Do not store excess quantities or weights of food; food should be stored with spaces in between for better storage results. Never overload shelves, as they may collapse under excessive loads.
• Food to be stored should be sorted according to consumer requirements. Food consumed daily should be placed in the most convenient area, this will minimize opening periods for the door. Do not place food too close to the internal walls.

Food holder cleaning

- Food holders can be taken out for cleaning

Instructions for food storage

• Storage period will be extended if vegetables are placed with their roots towards the cold source.
  • Leaves of carrots or turnips should be removed before storage.
• Put a wad of tissue on the bottle holder before placing bottles on it so that later cleaning is easier
• Onions, garlic, ginger, water chestnuts and other root vegetables should not be stored in the refrigerator, as these foods are suitable for long-term storage at normal temperatures.
• Ripe squash, melon, papaw, bananas and pineapples should not be stored in the refrigerator. Freezing will accelerate the ripening process.

Defrosting the cold storage compartment

The cold storage compartment is designed for automatic defrosting. Frost formed on the back wall will melt and flow via the drainpipe to the evaporating container over the compressor on the back of the refrigerator, where the heat generated by the compressor will evaporate the water.

Caution: Always keep the drain over the vegetable and fruit tray clear to ensure the normal flow of defrosted water. Use the rod provided to clear any blockages.

Cleaning

The refrigerator should be cleaned regularly to prevent the formation of bad odors.

1 Disconnect the power before cleaning the refrigerator.
2 Do not use a hard brush, steel brush, detergent, gasoline or other solvents, hot water, acid or alkali for cleaning.
3 Wipe water drops on the surface of the refrigerator with a soft cloth.

(1) Do not use excessive amounts of water for cleaning the refrigerator
(2) Use a dry cloth to clean the switch, the lamp and the temperature controller

Always keep the rubber door seal clean

Clean the back and sides of the refrigerator regularly.

Cessation of Operation

If the power failure lasts for an extended period, unplug the refrigerator and clean the refrigerator as previously described. Keep the door of refrigerator open when the power is turned off to prevent any food remaining in the compartment from producing bad odors.

Caution: It is recommended that the refrigerator is not turned off

Power failure

Even in summer, food can be stored in the refrigerator for a few hours after a power failure.

1 Don't put additional food into the refrigerator during a power failure.
2 Avoid opening the door during power failures

If prior notice of a power failure is given, make some ice and put it in a container in the top of the cold storage compartment.

Caution: temperature in the refrigerator will rise during a power failure or in the event of technical problems, and the storage period will be reduced.

During Vacations

Remove any food from refrigerator is the vacation is short. Turn the temperature selection knob to the proper position, and make sure that the door of the refrigerator is properly closed.

If the vacation is long, take out the food from the refrigerator and disconnect the power. When the frost inside melts, clean and dry the compartment.

Discarding

- Remove the door of the refrigerator when you get rid of it, in case children may get trapped in.

Moving the refrigerator

• Unplug the refrigerator
• Remove any food
• Tighten the shelf and vegetable tray with tapes
  • Tightly close the door with tape

Questions and Answers

Events below are not problems:

1 The temperature of the refrigerator and the compressor will rise and the compressor will run for comparatively longer periods when the refrigerator is first started.
2 Wipe water drops on the external surface of the refrigerator with a soft cloth.
3 When the refrigerator is opened frequently or stay open too long in humid seasons, the cavity will be dampened.
4 A slight sound will be heard when the liquid refrigerant circulates or when the compressor switches on and off.
5 A slight sound will be heard when defrosted water drops into the evaporating dish.
6 The compressor will operate for comparatively longer periods if excessive quantities of food are stored or the ambient temperature is high.
7 The evaporator will produce odors if the compartment is not cleaned.

Caution: The refrigerator should never be restarted until a period of at least five minutes has elapsed.

Please determine the cause of the problem before making any repairs.

Refrigerator will not start.

• Bad connection to power source (plug, socket and fuse)
  • The temperature knob is at the 0 position
• Low voltage

The lamp does not blink.

• Bulb failure
  • Power supply not connected
  • The temperature knob is at the 0 position

Excessive noise.

• Uneven placement
• Contact between the refrigerator and a wall or other article

Compressor operates for a long period or temperature does not reach set point.

• First time of operation
• Excessive food stored

• Frequent opening of the refrigerator door due to hot weather * The temperature controller is not set properly

• Refrigerator is in direct sunlight, or close to a heat source *

• Poor ventilation, or dirt on the condenser

Food dry

- Food not properly covered or sealed

Strange odor

• Failure to seal food properly
  • Rotting food inside refrigerator *
• Refrigerator should be cleaned.

Normal operation sounds

In order to maintain a constant product temperature, the motor starts at regular intervals. It sounds it makes are ordinary operation sounds, and they will automatically shorten as soon as the product has reached the desired temperature. This includes the following sounds:

Minor errors/disturbances

Errors may occur with the use of the product. Before contacting the service department, please first check whether you can solve them using the following instructions:

Hum

Comes from the engine. This hum may sometimes be stronger, such as when the engine starts.

Gurgling sounds or slight hum

Comes from the coolant which circulates in the product.

Click

There is small click each time the electronics card starts or stops the engine.

Light background noise

If the refrigerator has a fan (depending on model), the air that circulates inside the product may create a light background noise.

Disposal of the old appliance

Before disposing an old appliance, please make sure it's inoperative and safe. Unplug the appliance and remove or destroy all of the springs, latches, or bolt-locks in order to avoid the risk of child entrapment. It must be noted that the refrigeration system contains insulating gases and refrigerants, which require specialized waste disposal. The valuable materials contained in a refrigerator can be recycled. Contact your local

waste disposal center for proper disposal of an old appliance and contact your local authority or your dealer if you have any question. Please ensure that the pipe work of your refrigerator dose-not get damaged prior to being picked up by the relevant waste disposal center, and contribute to environmental awareness by insisting on an appropriate, any-pollution method of disposal.

Disposal of the packaging of your new appliance

All the packaging materials employed in the package of your new appliance may be disposed without any danger to the environment. The cardboard box may be broken or cut into smaller pieces and given to a waste paper disposal service. The wrapping foil is made of polyethylene and the polyethylene pads and stuffing contain no fluorochloric hydrocarbon. All these valuable materials may be taken to a waste collecting center and used again after adequate recycling. Consult your local authorities for the name and address of the waste materials collecting centers and waste paper disposal services nearest to your house.

Changing the door direction

1. Before reversing the door's opening direction, unplug the appliance and remove all food.

2. Using a flat screwdriver pry and remove hinge caps (if appropriate).

3. Using a Phillips screwdriver remove the door upper hinge while holding the door (step. 1).

4. Tilt the appliance (up to 40 degrees) to have sufficient access to the lower hinge (step. 2).

5. Using a Phillips screwdriver, remove the lower door hinge.

6. Attach the lower hinge on the other side (step. 3).

7. Position the door assembly in such a way so that pin of the lower hinge is aligned with the appropriate hole of the lower door bracket.

8. Attach the middle hinge on the other side of the appliance so that the lower pin of the middle hinge is aligned with the appropriate hole of the upper door bracket. Position the second door assembly so that the upper pin of the middle hinge is aligned with the appropriate hole of the lower door bracket (step 4).*

9. Check that the door is properly aligned with the cabinet.

10. Switch on the appliance as described in the relevant section of its operating instructions.

* This action applies to appliances with both refrigeration and freezer chambers.

Illustration of a hand using a tool to adjust or install a component, no text or symbols present

3D rendering of a rectangular electronic device with a reflective top surface, labeled with number 2 (no text or symbols on the device itself)

DK

Adgang til professionel reparation, såsom internetsider, adresser, kontaktoplysninger

Model nr: KK 152 E

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: KK 152 E

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	680842
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	7 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2024 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: KK 262 E

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	680939
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	7 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: KK 367 E

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	680941
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	7 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE
