PK1011 - Refrigerator PROGRESS - Free user manual and instructions

Product Type	Freestanding Refrigerator
Brand	Progress
Model	PK1011
Total Capacity (Net)	90 Liters
Energy Efficiency Class	F (EU 2010 scale)
Annual Energy Consumption	105 kWh/year
Voltage / Frequency	220-240 V ~ 50 Hz
Current	0.5 A
Dimensions (Height x Width x Depth)	85 x 50 x 55 cm
Net Weight	25 kg
Climate Class	N-ST (16°C - 38°C)
Refrigerant	R600a (isobutane)
Noise Level	40 dB(A)
Defrost Type	Manual (Ice compartment)
Number of Shelves	3 glass shelves
Interior Light	Yes, LED
Reversible Door	Yes
Adjustable Thermostat	Yes, rotary dial
Safety Class	I (grounded plug)
Repairability Index	7.0 / 10
Spare Parts Availability	At least 7 years after production
Included Accessories	Ice cube tray, instruction manual

Frequently Asked Questions - PK1011 PROGRESS

How should I install the refrigerator?

Place the refrigerator on a level, sturdy floor away from heat sources and direct sunlight. Ensure at least 10 cm clearance around the sides and back for ventilation. Let the appliance stand for 4 hours after transport before connecting to power.

How do I adjust the temperature?

Use the thermostat dial inside the refrigerator compartment. Turn to a higher number (e.g., 5-7) for colder temperatures, and a lower number (1-3) for warmer. The recommended setting is medium (3-4) for normal use.

How often should I clean the refrigerator?

Clean the interior every 2-3 months with a soft cloth and mild detergent dissolved in water. Do not use abrasive cleaners. Wipe dry afterwards. Clean the door seals regularly.

How do I defrost the freezer compartment?

When ice buildup exceeds 5 mm, unplug the refrigerator and remove food. Leave the door open to allow melting. Do not use sharp tools to remove ice. Clean and dry before turning back on.

Can I reverse the door opening direction?

Yes, the door can be reversed. Unscrew the hinges and door handle, move them to the opposite side, and reassemble. Detailed instructions are in the manual. You may need an extra person or tools.

Why is my refrigerator making noise?

Normal noises include humming from the compressor, gurgling from refrigerant flow, and occasional clicking when the thermostat switches. If noise is loud or irregular, check that the appliance is level and not touching walls or cabinets.

What is the warranty period?

Standard warranty is 2 years from the date of purchase. Keep your sales receipt as proof. The warranty covers manufacturing defects but not damage from incorrect use or normal wear and tear.

How can I save energy with this refrigerator?

Place the refrigerator away from heat sources and in a cool room. Keep the door closed as much as possible. Allow hot food to cool before storing. Defrost regularly. Set the thermostat to medium.

What should I do if the refrigerator is not cooling?

Check that the appliance is plugged in and the thermostat is not set to 0. Ensure the door seals are clean and closing properly. Allow 24 hours for the temperature to stabilize after loading food. If still not cooling, contact customer service.

What to do after a power failure?

If the power is off for less than 2 hours, food should remain safe. Do not open the door unnecessarily. If longer, check food temperatures and discard any perishables that have thawed or exceeded 4°C for more than 2 hours.

USER MANUAL PK1011 PROGRESS

Technical line drawing of a mechanical assembly with a central upward arrow (no text or symbols)

Flytbare hylder

Simple line drawing of a roof structure with raindrops falling (no text or symbols)

Illustration of a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Pause i brug

Illustration of a hand using a tool to adjust or install a component, with arrows indicating motion (no text or symbols present)

Safety instructions 18

Installation 20

Control panel 22

Daily use 22

Hints and tips 23

Care and cleaning 24

Troubleshooting 25

Noises 28

Technical data 28

Information for test institutes 29

Subject to change without notice.

Get usage advice, brochures, trouble shooter, service and repair information:

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
• Children aged from 3 to 8 years are allowed to load and unload the appliance provided that they have been properly instructed.
• This appliance may be used by persons with very extensive and complex disabilities provided that they have been properly instructed.
• Children of less than 3 years of age should be kept away from the appliance unless continuously supervised.

• Do not let children play with the appliance.

• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

• Keep all packaging away from children and dispose of it appropriately.

General Safety

- This appliance is intended to be used in household and similar applications such as:

– Farm houses; staff kitchen areas in shops, offices and other working environments;
- By clients in hotels, motels, bed and breakfast and other residential type environments.

- To avoid contamination of food respect the following instructions:

• do not open the door for long periods;
  – clean regularly surfaces that can come in contact with food and accessible drainage systems;
• store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

- WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING: Do not damage the refrigerant circuit.

- WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not use water spray and steam to clean the appliance.

- Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.

- When the appliance is empty for long period, switch it off, defrost, clean, dry and leave the door open to prevent mould from developing within the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons in order to avoid a hazard.

SAFETY INSTRUCTIONS

Installation

WARNING! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Do not use the appliance before installing it in the built-in structure due to safety manner.
• Follow the installation instructions supplied with the appliance.

• Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.

- Make sure the air can circulate around the appliance.

- At first installation or after reversing the door wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to flow back in the compressor.

- Before carrying out any operations on the appliance (e.g. reversing the door), remove the plug from the power socket.

- Do not install the appliance close to radiators or cookers, ovens or hobs.

- Do not expose the appliance to the rain.

- Do not install the appliance where there is direct sunlight.

- Do not install this appliance in areas that are too humid or too cold.

- When you move the appliance, lift it by the front edge to avoid scratching the floor.

- The appliance contains a bag of desiccant. This is not a toy. This is not food. Please dispose of it immediately.

Electrical connection

WARNING! Risk of fire and electric shock.

WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not use multi- plug adapters and extension cables.

• The appliance must be earthed.
- Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• Always use a correctly installed shockproof socket.
- Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable, compressor). Contact the Authorised Service Centre or an electrician to change the electrical components.
- The mains cable must stay below the level of the mains plug.
- Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
- Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

Use

WARNING! Risk of injury, burns, electric shock or fire.

The appliance contains flammable gas, isobutane (R600a), a natural gas with a high level of environmental compatibility.

Be careful not to cause damage to the refrigerant circuit containing isobutane.

• Do not change the specification of this appliance.
• Do not put electrical appliances (e.g. ice cream makers) in the appliance unless they are stated applicable by the manufacturer.
• If damage occurs to the refrigerant circuit, make sure that there are no flames and sources of ignition in the room. Ventilate the room.
• Do not let hot items to touch the plastic parts of the appliance.
• Do not store flammable gas and liquid in the appliance.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.
• Do not touch the compressor or the condenser. They are hot.

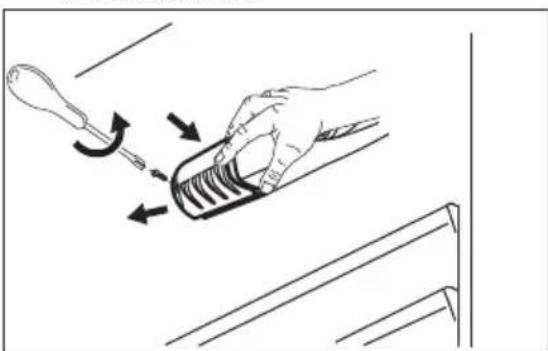

Internal lighting

WARNING! Risk of electric shock.

- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications and are not suitable for household room illumination.

Care and cleaning

WARNING! Risk of injury or damage to the appliance.

- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• This appliance contains hydrocarbons in the cooling unit. Only a qualified person must do the maintenance and the recharging of the unit.
• Regularly examine the drain of the appliance and if necessary, clean it. If the drain is blocked, defrosted water collects in the bottom of the appliance.

Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Please note that self-repair or non-professional repair can have safety consequences and might void the guarantee.
- The following spare parts will be available for 7 years after the model has been discontinued: thermostats, temperature sensors, printed circuit boards, light sources, door handles, door hinges, trays and baskets. Please note that some of these spare parts are only available to professional repairers, and that not all spare parts are relevant for all models.
- Door gaskets will be available for 10 years after the model has been discontinued.

Disposal

WARNING! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.

- Remove the door to prevent children and pets to be closed inside of the appliance.

- The refrigerant circuit and the insulation materials of this appliance are ozone-friendly.

- The insulation foam contains flammable gas. Contact your municipal authority for information on how to discard the appliance correctly.

- Do not cause damage to the part of the cooling unit that is near the heat exchanger.

INSTALLATION

WARNING! Refer to Safety chapters.

WARNING! Refer to installation instruction document to install your appliance.

WARNING! Fix the appliance in accordance with installation instruction document to avoid a risk of instability of the appliance.

Dimensions

Overall dimensions1
H1 mm 1021
W1 mm 548
D1 mm 549

^1 the height, width and depth of the appliance without the handle and feet

Space required in use2
H2 (A+B) mm 1066
W2 mm 548
D2 mm 551
A mm 1030

Space required in use ^2

B mm 36

^2 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air

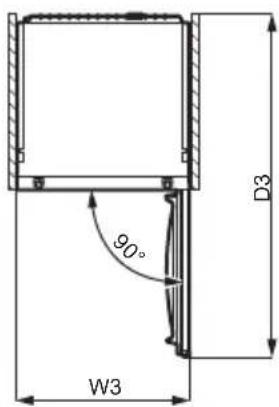

Overall space required in use ^3

H3 (A+B) mm 1066

W3 mm 548

D3 mm 1071

^3 the height, width and depth of the appliance including the handle, plus the space necessary for free circulation of the cooling air, plus the space necessary to allow door opening to the minimum angle permitting removal of all internal equipment

Location

To ensure appliance's best functionality, you should not install the appliance in the nearby of the heat source (oven, stoves, radiators, cookers or hobs) or in a place with direct sunlight. Make sure that air can circulate freely around the back of the cabinet.

This appliance should be installed in a dry, well ventilated indoor position.

This appliance is intended to be used at ambient temperature ranging from 10^ C to 38^ C.

The correct operation of the appliance can only be guaranteed within the specified temperature range.

If you have any doubts regarding where to install the appliance, please turn to the vendor, to our customer service or to the nearest Authorised Service Centre.

It must be possible to disconnect the appliance from the mains power supply. The plug must therefore be easily accessible after installation.

Electrical connection

• Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.
• The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.
  • The manufacturer declines all responsibility if the above safety precautions are not observed.
• This appliance complies with the E.E.C. Directives.

Ventilation requirements

The airflow behind the appliance must be sufficient.

CAUTION! Refer to the installation instructions for the installation.

Door reversibility

Please refer to the separate document with instructions on installation and door reversal.

CAUTION! At every stage of reversing the door protect the floor from scratching with a durable material.

CONTROL PANEL

Switching on

1. Insert the plug into the wall socket.
2. Turn the temperature regulator clockwise to a medium setting.

Switching off

To turn off the appliance, turn the temperature regulator to the "O" position.

Temperature regulation

The temperature is regulated automatically. However, you can set a temperature inside the appliance yourself.

Choose the setting keeping in mind that the temperature inside the appliance depends on:

To operate the appliance:

1. Turn the temperature regulator clockwise to obtain a lower temperature inside the appliance.
2. Turn the temperature regulator counterclockwise to obtain a higher temperature inside the appliance.

DAILY USE

CAUTION! This refrigerating appliance is not suitable for freezing foodstuffs.

Positioning the door shelves

To permit storage of food packages of various sizes, the door shelves can be placed at different heights.

1. Gradually pull the shelf up until it comes free.
2. Reposition as required.

Technical line drawing of a mechanical component with an upward arrow indicating force or motion (no text or symbols)

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.

Pure technical line drawing of a mechanical assembly with no text or symbols

Do not move the glass shelf above the vegetable drawer to ensure correct air circulation.

Vegetable drawer

There is a special drawer in the bottom part of the appliance suitable for storage of fruits and vegetables.

HINTS AND TIPS

Hints for energy saving

• Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance and shelves evenly distributed. Position of the door bins does not affect energy consumption.
• Do not open the door frequently or leave it open longer than necessary.
• Do not set too high temperature to save energy unless it is required by the characteristics of the food.
• If the ambient temperature is high and the temperature control is set to low temperature and the appliance is fully loaded, the compressor may run continuously, causing frost or ice formation on the evaporator. In this case, set the temperature control toward higher temperature to allow automatic defrosting and to save energy this way.
• Ensure a good ventilation. Do not cover the ventilation grilles or holes.

Temperature indicator

For proper storage of food the refrigerator is equipped with the temperature indicator. The symbol on the side wall of the appliance indicates the coldest area in the refrigerator.

If OK is displayed (A), put fresh food into area indicated by symbol, if not (B), wait at least 12 hours and check if it is OK (A).

If it is still not OK (B), adjust the setting control to a colder setting.

Hints for fresh food refrigeration

• The medium temperature setting ensures good preservation of fresh food.
  Higher temperature setting inside the appliance may lead to shorter shelf life of food.
• Cover the food with packaging to preserve its freshness and aroma.
  • Always use closed containers for liquids and for food, to avoid flavours or odours in the compartment.
  • To avoid the cross-contamination between cooked and raw food, cover the cooked food and separate it from the raw one.
• It is recommended to defrost the food inside the fridge.
• Do not insert hot food inside the appliance. Make sure it has cooled down at room temperature before inserting it.

- To prevent food waste the new stock of food should always be placed behind the old one.

Hints for food refrigeration

• Fresh food compartment is the one marked (on the rating plate) with 📋.
• Meat (all types): wrap in a suitable packaging and place it on the glass shelf above the vegetable drawer. Store meat for at most 1-2 days.
• Fruit and vegetables: clean thoroughly (eliminate the soil) and place in a special drawer (vegetable drawer).
• It is advisable not to keep the exotic fruits like bananas, mangos, papayas etc. in the refrigerator.

CARE AND CLEANING

WARNING! Refer to Safety chapters.

Cleaning the interior

Before using the appliance for the first time, the interior and all internal accessories should be washed with lukewarm water and some neutral soap to remove the typical smell of a brand-new product, then dried thoroughly.

CAUTION! Do not use detergents, abrasive powders, chlorine or oil-based cleaners as they will damage the finish.

CAUTION! The accessories and parts of the appliance are not suitable for washing in a dishwasher.

Periodic cleaning

The equipment has to be cleaned regularly:

1. Clean the inside and accessories with lukewarm water and some neutral soap.

• Vegetables like tomatoes, potatoes, onions, and garlic should not be kept in the refrigerator.
- Butter and cheese: place in an airtight container or wrap in an aluminium foil or a polythene bag to exclude as much air as possible.
- Bottles: close them with a cap and place them on the door bottle shelf, or (if available) on the bottle rack.
• Always refer to the expiry date of the products to know how long to keep them.

1. Regularly check the door seals and wipe them clean to ensure they are clean and free from debris.
2. Rinse and dry thoroughly.

Defrosting of the refrigerator

Frost is automatically eliminated from the evaporator of the refrigerator compartment during normal use. The defrost water drains out through a trough into a special container at the back of the appliance, over the motor compressor, where it evaporates.

It is important to periodically clean the defrost water drain hole in the middle of the refrigerator compartment channel to prevent the water overflowing and dripping onto the food inside.

For this purpose use the tube cleaner provided with the appliance.

Diagram showing a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Period of non-operation

TROUBLESHOOTING

WARNING! Refer to Safety chapters.

What to do if...

Problem Possible cause Solution
The appliance does not operate.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.	Connect the mains plug to the mains socket correctly.
There is no voltage in the mains socket.	Connect a different electrical appliance to the mains socket. Contact a qualified electrician.
The appliance is noisy. The appliance is not supported properly.	Check if the appliance stands stable.
The compressor operates continually.	Temperature is set incorrectly.	Refer to "Control Panel" chapter.
Many food products were put in at the same time.	Wait a few hours and then check the temperature again.
The room temperature is too high.	Refer to "Installation" chapter.
Food products placed in the appliance were too warm.	Allow food products to cool to room temperature before storing.
The door is not closed cor-rectly.		Refer to "Closing the door" section.
Door is misaligned or interferes with ventilation grill.	The appliance is not level-led.	Refer to installation instruc-tions.
Door does not open easily. You attempted to re-open the door immediately after closing.		Wait a few seconds between closing and re-opening of the door.
The lamp does not work. The lamp is in stand-by mode.		Close and open the door.
	The lamp is defective. Refer to "Replacing the lamp" section.
There is too much frost and ice.	The door is not closed cor-rectly.	Refer to "Closing the door" section.
The gasket is deformed or dirty.		Refer to "Closing the door" section.
Food products are not wrap-ped properly.		Wrap the food products bet-ter.
Temperature is set incor-rectly.		Refer to "Control Panel" chapter.
Appliance is fully loaded and is set to the lowest tempera-ture.		Set a higher temperature. Refer to "Control Panel" chapter.
Temperature set in the ap-pliance is too low and the ambient temperature is too high.		Set a higher temperature. Refer to "Control Panel" chapter.
Water flows on the rear plate of the refrigerator.	During the automatic de-frosting process, frost melts on the rear plate.	This is correct.
There is too much condensed water on the rear wall of the refrigerator.	Door was opened too fre-quently.	Open the door only when necessary.
Door was not closed com-pletely.		Make sure the door is closed completely.
Stored food was not wrap-ped.		Wrap food in suitable pack-aging before storing it in the appliance.
Water flows inside the refrigerator.	Food products prevent the water from flowing into the water collector.	Make sure that food products do not touch the rear plate.
The water outlet is clogged.	Clean the water outlet.
Water flows on the floor. The	melting water outlet is not connected to the evaporative tray above the compressor.	Attach the melting water outlet to the evaporative tray.
The temperature in the appliance is too low/too high.	The temperature is not set correctly.	Set a higher/lower temperature.
The door is not closed cor-rectly.	Correctly.	Refer to "Closing the door" section.
The food products' tempera-ture is too high.		Let the food products temperature decrease to room temperature before storage.
Many food products are	stored at the same time.	Store less food products at the same time.
The door has been opened	often.	Open the door only if necessary.
	There is no cold air circulation in the appliance.	Make sure that there is cold air circulation in the appli-ance. Refer to "Hints and Tips" chapter.

If the advice does not lead to the desired result, call the nearest Authorized Service Centre.

Replacing the lamp

The appliance is equipped with a long-life LED interior light.

It is strongly recommended to use original spare parts only.

Use LED bulbs (E14 base) only. The maximum power is shown on the lamp unit.

CAUTION! Disconnect the plug from the mains socket.

1. Using a screwdriver, remove the screw from the lamp cover.
2. Detach the lamp cover in the direction of the arrows.

Illustration of a hand using a screwdriver to apply a screwdriver to a metal bracket (no text or symbols present)

1. Replace the bulb with the one that has identical characteristics and is specifically designed for household appliances.
2. Reassemble the lamp cover.

3. Tighten the screw to the lamp cover.

4. Connect the plug to the mains socket.

5. Open the door.

Make sure that the light switches on.

Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to installation instructions.

3. If necessary, replace the defective door gaskets. Contact the Authorised Service Centre.

NOISES

TECHNICAL DATA

The technical information is situated in the rating plate on the internal side of the appliance and on the energy label.

The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance.

It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance.

See the link www.theenergylabel.eu for detailed information about the energy label.

INFORMATION FOR TEST INSTITUTES

Installation and preparation of the appliance for any EcoDesign verification shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances

shall be as stated in this User Manual at Chapter 3. Please contact the manufacturer for any other further information, including loading plans.

ENVIRONMENTAL CONCERNS

Recycle materials with the symbol Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. Do

not dispose of appliances marked with the symbol ☒ with the household waste. Return the product to your local recycling facility or contact your municipal office.

INNHOLD

Technical line drawing of a mechanical assembly with a central upward arrow (no text or symbols)

Flyttbare hyller

Pure technical line drawing of a mechanical assembly with no text or symbols

Tips for strømsparing

Illustration of a hand holding a tool inside a circular frame with rotational arrows, no text or symbols present.

Perioder uten bruk

Illustration of a hand using a screwdriver to adjust a screwdriver on a metal bracket (no text or symbols)
