Product Type	Refrigerator
Brand	Scancool
Model	XS 802 E
Dimensions (Height x Width x Depth)	85 cm x 50 cm x 55 cm
Weight	20 kg
Power Supply	220-240 V, 50 Hz
Energy Class	F
Annual Energy Consumption	180 kWh
Climate Class	N-ST
Noise Level	40 dB
Net Refrigerator Volume	90 L
Defrost Type	Manual
Temperature Control	Mechanical thermostat
Number of Shelves	3
Door Reversible	Yes
Refrigerant	R600a
Compressor Type	Hermetic
Lamp Type	LED
Egg Tray Included	Yes
Ice Cube Tray Included	Yes
Installation Type	Freestanding

Frequently Asked Questions - XS 802 E Scancool

How do I set the temperature on my Scancool XS 802 E fridge?

Turn the thermostat knob inside the fridge. Position 1 is warmest, position 7 is coldest. The recommended setting is around 3-4 for normal use.

Why is my fridge not cooling properly?

Check that the temperature is set correctly, the door seals are clean and intact, and the condenser coils at the back are dust-free. Also ensure there is enough space for air circulation around the appliance.

How do I defrost the freezer compartment?

Unplug the fridge, remove all food, and leave the door open. Place towels to absorb melting water. Do not use sharp tools to remove ice. Once defrosted, clean and dry before turning back on.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the user manual for step-by-step instructions. You will need a screwdriver and possibly a spanner. The process involves moving hinges and door stops to the opposite side.

What is the energy efficiency class of this fridge?

The Scancool XS 802 E is rated energy class F under the new EU energy label. It consumes approximately 180 kWh per year.

How do I clean the fridge interior?

Unplug the fridge and remove all food and shelves. Wash the interior with a mild detergent and warm water. Rinse and dry thoroughly. Avoid abrasive cleaners. Clean the gasket with a damp cloth.

Why is there water pooling at the bottom of the fridge?

This is usually due to a blocked drain hole. Clean the drain hole at the back of the fridge using a pipe cleaner or cotton bud. Ensure the drain tray is not overfilled.

What should I do if the fridge is making unusual noises?

Normal sounds include gurgling, clicking, and humming. If you hear loud rattling or hissing, check that the fridge is level, the back panel is secure, and that the compressor is not vibrating against the wall. Contact service if persists.

How much space should I leave around the fridge for ventilation?

Leave at least 10 cm (4 inches) of clearance at the rear, 5 cm on the sides, and 10 cm above the appliance to ensure proper airflow and efficient operation.

Can I store hot food directly in the fridge?

No, allow hot food to cool to room temperature before placing it in the fridge to avoid raising the internal temperature and overworking the compressor.

USER MANUAL XS 802 E Scancool

- bed and breakfast-type miljøer;

Important safety instructions

- Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- Please according to local regulations regarding disposal of the appliance for its flammable blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

- WARNING – Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

- WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer

- WARNING – Do not damage the refrigerant circuit.

- WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.

- Warning: Risk of fire / flammable materials, taking care to avoid causing a fire by igniting flammable material.

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

- This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- Catering and similar non-retail applications.

- The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

-Warning: Risk of fire / flammable materials, taking care to avoid causing a fire by igniting flammable material.

Warning: Risk of fire / flammable materials

Transportation and Placement

△When transporting the freezer showcase from one place to another, the inclination of the cabinet should not exceed 45 degrees, for prevention against compressor or system damage.

Before use, remove all the packing material. The back side of the refrigerator should be placed to face to the wall and more than 20cm away from the wall, both flank sides more than 20cm. Please prevent people touch hazardous components of the back.

The freezer should be put in well-ventilated, dry place. Don't use it under direct sunshine. The freezer should be kept away from water sink, heat source and any volatile, corrosive material.

If the equipment cannot be used anymore, please do not throw it away freely, it is necessary to be sent to a qualified organization for further professional disposal.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Power source and test-running

Single-phase power supply, 50Hz, voltage range 220\~240V. If the voltage is unstable, please install a voltage stabilizer with capacity above 1000W.

Avoid turning on and off the power too frequently. If the power is turned off, wait an interval of 5 minutes before turning it on again.

When the freezer will be out of use for a long time, disconnect the power first, then clean it. Please examine the circuit whether it is excellent before reuse.

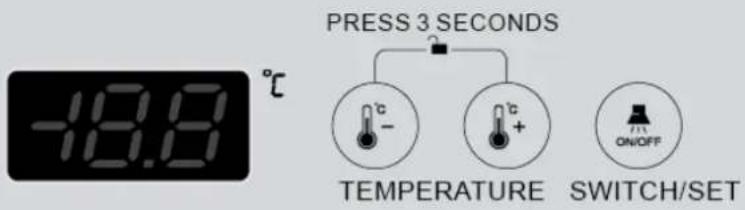

Operation of the Temperature

When screen shows "E0", This means problem of the temperature sensor.

The screen shows the temperature inside. When compressor runs, the mark “*” shows on the screen.

When compressor stops or the freezer make auto defrosting the mark “*” flashed.

1.Normal temperature setting.

1.1 Press the key “temperature -” and “temperature +” together for 3 seconds, the screen shows “ST”, press the key “switch/set”, the screen shows the setting temperature.

1.2 Press the key "temperature -" to decrease the temperature, press the key "temperature +" to increase

the temperature.Temperature range is +10 degree to -18 degree. Press the key “switch/set” to confirm the temperature needed. The system would quit without any further operation within 10 seconds.

1.3 Press the key "switch/set" separately to control the LED light inside.

2. Parameter setting

2.1 Press the key "temperature +" and "switch/set" together for 3 seconds, the screen shows "PO"
2.2 Press the key “switch/set” enter the password setting.
2.3 Press the key “temperature +” set the number as :55, then enter into the parameter setting.
2.4 Press the key “temperature +” and “temperature -” to select the parameter.
2.5 Press the key "switch/set" to confirm the parameter series.
2.6 Press the key “temperature +” and “temperature -” to select the wanted numbers
2.7 Press the key "switch/set" to save the data, the screen shows the parameter series
2.8 Repeat 2.4\~2.7 to set other parameters.
2.9 Press the key “switch/set” over 3 seconds, save the setting data and quit the setting system.

3.1 Temperature sensor

Parameter	description	min	max		default
/0	Temperature sensor	1	15	-	6
/1	Temperature sensor offset	-5.0	5.0	°C	0
/2	Defrost sensor offset	-5.0	5.0	°C	0
/P	Number set	0	1	-	1

3.2 Temperature setting

Parameter	description	min	max		default
St	Temperature set	r1	r2	°C	-18
r1	set min temperature	-40	r2	°C	8
r2	set max temperature	r1	85	°C	-24
r3	Work pattern	0	1	-	0
rd	temperature difference	0.1	10.0	°C	2.0

Compressor protection parameter

Parameter	description	min	max		default
c0	Compressor running time-lapse after plug in	0	99	Min	0
c1	Min time of compressor stops	0	99	Min	10
c3	Max time of compressor running	0	10	Hour	5
c4	Compressor work time after sensor problem	0	99	Min	40
c5	Compressor stop time after sensor problem	1	99	Min	10
ct	Compressor problem judge time	1	6	Hour	5
c2	Compressor problem stop time	0	199	Min	30
cu	Compressor problem judged temperature difference	0	10.0	°C	0.5
Cc	Plug in forced running time	0	99	Min	5

3.4 Defrosting

Parameter	description	min	max		default
d0	Defrost pattern	0	1	-	1
d1	defrost circle	0	199	Hour	14
dp	Max time for defrost	1	99	Min	35
d2	Compressor stop time after defrost starts	0	60	Min	5
d6	Defrost shows	0	2	-	1
d7	Temperature after defrost	0	50	oC	30
dd	Water flow time	0	15	Min	15
d8	Higher temperature alarm shield time after defrost	0	99	Min	30

3.5 Alarm codes

Alarm codes	description
E0	Temperature sensor error
E1	Defrost sensor error

Food storage

There must be space between the foods stored in the cabinet, between the foods and the inner surface of the cabinet, so as to keep good ventilation of cold air and freeze evenly. Do not put in any bottled or canned beverage with freezing point above the temperature in the cabinet when it is below zero.

For foods that should be moisture-free or lose water easily, wrap them up with hermetical food bags or fresh films before putting in the cabinet for the sake of avoiding smell-mixing and reducing frosting.

Storage of volatile and combustible gases, liquids such as strong alkalies, strong acids, petrol, etc. are forbidden.

Maintenance

The freezer should be cleaned regularly. When cleaning, turn off the power, take out the foods in the cabinet, clean the inside using water or a little neutral detergent.

Do not use boiling water, acid, chemical diluents, petrol and oil, or dirt- removing powder.

Dry it after cleaning.

Use light soap water when cleaning the door seal, apply a little of talcum powder on it after natural drying to extend its service life.

Use soft cloth with water or a little detergent to clean the out surface. Note, keeping the power supply and lower part of connect wires away from water to avoid electricity leakage.

Except common breakdowns, those who are not service technician should not take apart and repair the freezer on their own so as to avoid worsening the trouble. Unauthorized repair of electrical part such as compressor, temperature controller is forbidden.

Defrosting

Defrost for better freezing efficiency when the frost film in the cabinet is 4-5mm thick.

When defrosting, turn off the power, take out the frozen foods, open the door for warming and melting. Use soft cloth to absorb water and clean it up.

Do not use sharp metal tools such as steel brush to clean the frost film when defrosting so as to avoid evaporator damage.

Trouble shooting

Breakdown	Case	Removal method
The indicator is not on.The compressor doses not start.	The plug isn’t connected to the socket really.	reinsert it.
	no power	Connect the socket with power.
The indicator is on ,but the com- pressor doesn’t work and buzzes only	The power voltage is<187V.	Put a power-regulator more than 1000W power together.
The compressor stops a minute after start, and restart after a few minutes, and so repeatedly.	The power voltage is>242V.
The compressor works normally,but the temperature in the cabinet lowers too slowly.	The door is opened too frequently.	Reduce open times.
	The food in the cabinet is too much, and placed improperly.	Place foods properly keep place between them for ventilation of cold air.
	The frost film is too thick.	Take out foods and defrost.
	The surface of the condenser is too dirty.	Stop and clean the condenser.
	The door seals badly.	Adjust the door seal.
The noise is too loud	The freezer is placed unstably.	Place it stably.
	The fixing of the freezer is loose.	Tighten the fixing.
	there’s contact between pipes.	Separate them.

The following are not faults:

When the freezer is working or after is stops for a while, the refrigerant in the pipes is cycling and gives out "running water" sounds.

The surface temperature of the compressor may be up 70°C\~80°C when it is working.

The back side of step freezer gives out heat.

In rainy season, the outer surface of the cabinet may have dew, which makes no defects on normal use. Just dry it with a piece of cloth.

Warranty Information

The manufacturer provides warranty in accordance with the legislation of the customer's own country of residence, with a minimum of 1 year (Germany: 2 years), starting from the date on which the appliance is sold to the end user.

The warranty only covers defects in material or workmanship.

The repairs under warranty may only be carried out by an authorized service centre. When making a claim under the warranty, the original bill of purchase (with purchase date) must be submitted.

The warranty will not apply in cases of:

• Normal wear and tear
• Incorrect use, e.g. overloading of the appliance, use of non-approved accessories
• Use of force, damage caused by external influences
• Damage caused by non-observance of the user manual, e.g. connection to an unsuitable mains supply or non-compliance with the installation instructions
• Partially or completely dismantled appliances

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: XS 602 E

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	366765
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2024 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: XS 802 E

Aftersales service station list:

Address	Scandomestic A/S
Contact Number	7242 5571
Website	Scandomestic.dk
QR code	347935
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;	Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;	8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2024 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)	www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	XS 602 E
Name and address of the manufacturer or his authorised representative:	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Ice Cream FreezerBrand: ScancoolColour: WhiteModel name: XS 602 E
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	ISO 23953-1:2015, ISO 23953-2:2015, 2014/30/EU, EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008, EN 61000-3-2:2014, EN 61000-3-3: 2013, MD 2006/42/EC, EN 60335-1:2012+A11:2014, EN 60335-2-89:2010, EN 62233:2008, (EU) 2017/1369, (EU) No. 2019/2018, (EU) No. 2019/2024, 2011/65/EU, 2002/96/EC, 2014/35/EC, 2014/30/EU
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:	RoHS 2011/65/EU
Additional information:	The appliance is intended exclusively for storing ice and packaged food

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):	XS 802 E
Name and address of the manufacturer or his authorised representative:	Scandomestic A/STLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):	Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Display FreezerBrand: ScanCoolColour: WhiteModel name: XS 802 E	[YYYYK]
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:	EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:	ISO 23953-1:2015, ISO 23953-2:2015, 2014/30/EU, EN55014-1:2017, EN 61000-3-2:2014, EN61000-3-2:2019, EN61000-3-3:2013, EN55014-2:2015, MD 2006/42/EC, EN60335-1:2012+A11:2014+A13:2017, EN60335-2-89:2010+A1:2016+A2:2017, EN 62233:2008, EN 55014-1:2006+A1:2009+A2:2011, EN 55014-2:1997+A1:2001+A2:2008, 2011/65/EU, 2002/96/EC, 2014/65/EU, (EU) 2017/1369, (EU) No. 2019/2018, (EU) No. 2019/2024
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:	RoHS 2011/65/EU
Additional information:	The appliance is intended exclusively for storing ice and packaged food
