Brand Scancool
Model SD 510 E
Product Type Chest Freezer
Net Capacity 510 Litres
Freezing Capacity 28 kg/24h
Energy Class F
Annual Energy Consumption 350 kWh
Climatic Class SN-T
Noise Level 43 dB(A)
Dimensions (W x D x H) 1650 x 740 x 850 mm
Net Weight 55 kg
Power Supply 230 V ~ 50 Hz
Power Consumption 120 W
Refrigerant R600a
Temperature Range -18°C to -24°C
Control Type Mechanical Thermostat
Defrost Type Manual
Interior Light No
Lockable Lid Yes
Baskets Included 2
Quick Freeze Function Yes
Adjustable Feet Yes
Spare Parts Availability 7 years

Frequently Asked Questions - SD 510 E Scancool

How do I set the temperature on my Scancool SD 510 E freezer?
The temperature is controlled by a mechanical thermostat dial inside the freezer. Turn the dial to adjust between 1 (warmest) and 7 (coldest). The recommended setting for frozen food storage is 3-4.
How to defrost the SD 510 E freezer?
Defrost manually when ice thickness exceeds 5-10 mm. Unplug the freezer, remove food, and leave the lid open. Place towels to absorb meltwater. Do not use sharp tools to scrape ice. Clean and dry before restarting.
What is the energy consumption of this freezer?
The Scancool SD 510 E has an annual energy consumption of approximately 350 kWh, placing it in energy class F. Actual consumption depends on usage and ambient temperature.
Is the freezer lockable?
Yes, the lid features a lock to secure contents. A key is provided with the unit. Keep the key in a safe place away from children.
What does the quick freeze function do?
The quick freeze function lowers the temperature rapidly to freeze fresh food faster, preserving quality. Activate it a few hours before adding large amounts of fresh food. Remember to switch it off after 24 hours.
How much food can I freeze per day?
The SD 510 E can freeze up to 28 kg of fresh food per 24 hours. Do not exceed this capacity to maintain proper freezing performance.
Why is my freezer making noise?
Normal operating sounds include a humming compressor and occasional clicks from the thermostat. If you hear unusual banging or hissing, check that the freezer is level and that nothing is vibrating against the cabinet.
How do I clean the freezer?
Unplug the freezer and remove all food. Wash the interior with a mild detergent and warm water. Rinse and dry thoroughly. Do not use abrasive cleaners or sharp objects. Clean the condenser coils at the back every few months.
What do the climatic class letters mean?
The SD 510 E is rated SN-T, meaning it can operate in ambient temperatures from 10°C to 43°C, suitable for most indoor environments. Avoid placing it in unheated rooms or direct sunlight.
How long is the warranty and where can I get spare parts?
Warranty is typically 2 years for domestic use. Spare parts are available from authorised service centres for up to 7 years after purchase. Check the Scancool website or contact customer support.

User questions about SD 510 E Scancool

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Freezer in PDF format for free! Find your manual SD 510 E - Scancool and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SD 510 E by Scancool.

USER MANUAL SD 510 E Scancool

SD 310 E/SD 410 E/SD 510 E

  1. Glasdør

  2. Kurv

  3. Ledning

  4. Kontrolpanel

  5. Hjul

  6. Termometer (valgfrit)

SIKKERHED FOR KUMMEFRYSEREN

natural_image Simple line drawing of a trash bin with no text or symbols

Read the operating instructions before power on for the first times as they contain important information on its safe and proper use, installation, and care. Please keep the Operating Instructions in a safe place for future reference. Moreover, please pass them on to possible new owners of the appliance.

STANDARDS

Safety

This appliance is to be safe to transport, store, operate, maintain, and dispose of. They are to meet all relevant and compulsory safety standards in force at the market they are intended e.g.

Europe EN 60335 - 1, EN 60335 - 2-89

IEC countries IEC 60335 - 1, IEC 60335 - 2 - 89

RoHs / WEEE

This appliance meets RoHs and WEEE directives.

Climate rating acc to IEC/EN 60335 - 2 - 89

The climate class alpha-numeric characters mean the test room climate class of the appliance.

Climate ratingTest room temperature
0,1,2,3,4,6,8 32^ ± 2^
5,7 43^ ± 2^

The climate rating is indicated on the type plate.

FOR THE ICE-CREAM FREEZERS:

Model: SD 310 E/SD 410 E/SD 510 E

Climate class acc to EN 16901

Test room Climate classMin temperature and relative humidityMax temperature and relative humidity
A16°C/80%30°C/55%
B16°C/80%35°C/75%
C16°C/80%40°C/40%

The climate class is indicated on the type plate.

This appliance is intended to operate in climates where the temperature and the humidity range from 16°C/80%RH to 35°C/75%RH (climate class B).

Temperature class acc to EN 16901

ClassWarmest M-package temperature colder or equalWarmest M-package maximum temperature rise allowed/k
C1-182
C2-72

The temperature class is indicated on the type plate.

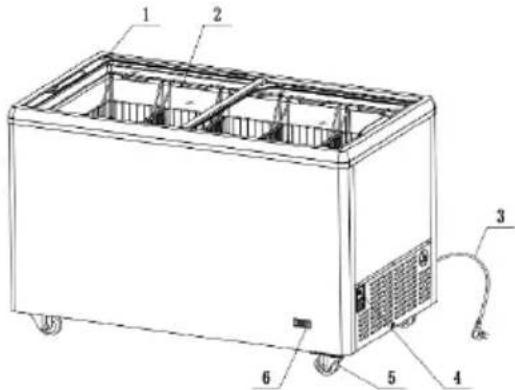

PARTS & FEATURES

Technical diagram of a rectangular industrial machine with numbered components and labeled parts

SD 310 E/SD 410 E/SD 510 E

  1. Glass door
  2. Basket
  3. Wire
  4. Control panel
  5. Castor
  6. Thermometer (optional)

CHEST FREEZER SAFETY

Your safety and the safety of other are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the Safety Alert Symbol. This symbol alerts you to potential hazards that can kill or injure you and others. All safety messages will follow the Safety.

Alert Symbol and either the words" DANGER", "WARNING" or "CAUTION".

DANGER

Danger means that failure to heed this safety statement may result in severe personal injury or death.

WARNING

Warning means that failure to heed this safety statement may result in extensive product damage, serious personal injury, or death.

CAUTION

Caution means that failure to heed this safety statement may result in minor or moderate personal injury, or property or equipment damage.

All safety messages will alert you to what the potential hazard is, tell you how to reduce the chance of injury, and let you know what can happen if the instructions are not followed.

IMPORTANT

SAFEGUARDS

Before the chest freezer is used, it must be properly positioned and installed as described in this manual, so read the manual carefully. To reduce the risk of fire, electrical shock or injury when using the chest freezer, follow basic precautions, including the following:

DANGER

  • This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
    • Children should be supervised to ensure that they do not play with the appliance.
  • This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and

understand the hazards involved.

  • Children shall not play with the appliance.
  • Cleaning and user maintenance shall not be made by children without supervision.
  • DO NOT allow children to play with the packaging, and destroy plastic bags safely
  • DANGER or WARNING: Risk of child entrapment: Child entrapment and suffocation are not problems of the past. Junked or abandoned freezers are still dangerous, even if they will “just sit in the garage a few days.”
  • Before you throw away your old freezer: Take off the doors. Leave the shelves in place so that children may not easily climb inside.
  • Please according to local regulation disposal of the appliance for its flammable refrigerant and blowing gas.
  • The freezer must be connected with earth correctly, never with the heating pipe and coal gas pipe.
  • The freezer shall be positioned so that the plug is accessible.
  • If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.
  • Do not attempt to repair or replace any part of your chest freezer unless it is specifically recommended in this material. All other servicing should be referred to a qualified technician.
  • The chest freezer should not be located next to ovens, grills, or other sources of high heat.
  • Keep clear of obstruction all ventilation openings, in the appliance enclosure or in the built-in.
  • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
  • Do not damage the refrigerant circuit.
  • Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
  • Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is disconnected.
  • Do not connect or disconnect the electric plug when your hands are wet.
  • Do not store or use gasoline or any other flammable vapors and liquids in the vicinity of this or any other freezer. Never clean freezer parts with flammable fluids. The fumes can create a fire hazard or explosion.
  • The power supply of chest freezer is AC220V/50Hz. If the voltage is unstable, please choose the suitable automatic voltage regulator.
  • Connection the power to check the freezer before using, the freezer can be used until the temperature decreases obviously after 30 minutes.
  • You should adjust the temperature control according to the requested temperature and quantity of the stored food and the environmental temperature.
  • Before putting the stuff into the freezer please adjust the temperature control to the lowest point and let it work till the

temperature of inner cabinet decreases to -18^ and then putting the stuff in, after 12 hours adjust the temperature control to the normal point.

- Never put hot food in the freezer directly only after it has been cooled naturally outside.

- The stuff should be put into the freezer partially, each lot will not be more than the figure which is equal to the capacity(L) divide by 20.

- Not full the freezer and make it crowded, big meat should be divided into several small parts. There should be reasonable space between the foods for better freezing

- If power cut off is needed, you should wait for at least 5 minutes before turning on again to avoid damage to the compressor.

- The stuff stored should be packed with plastic bag well to avoid smell-mixed and moisture-lost and reduce the frost at the small time.

- Beer, beverage, fresh flower, medicine, and injections cannot be put into the freezer.

- Please make the temperature control to the lowest point if you want to store ice cream or other uneasy-frozen food.

- Do not use extension cords.

- Power cord should not be removed or altered in any way.

- DO NOT use jet/pressure washers to clean this appliance.

- We have a policy of continuous improvement on our products and reserve the right to change materials and specifications without notice. To confirm the specific parameters, please accord to the rated label on the product.

- Shall, when the product scrap/recovered by professional scrap/recycling locations to deal with.

Flammable Refrigerant Warnings

CAUTION FLAMMABLE

REFRIGERANT

- DANGER – Risk Of Fire Or Explosion. Flammable Refrigerant Used. To Be Repaired Only By Trained Service Personnel. Do Not Puncture Refrigerant Tubing.

- WARNING – Keep clear of obstruction all ventilation openings in the appliance enclosure or in the structure for building-in.

- WARNING – Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- WARNING – Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- CAUTION – Risk of Fire Or Explosion. Flammable Refrigerant Used. Consult Repair Manual/Owner's Guide Before Attempting to Install or Service This Product. All Safety Precautions Must be Followed

- CAUTION – Risk of Fire Or Explosion. Dispose Of Properly In Accordance With Local Regulations. Flammable Refrigerant Used.

- CAUTION – Risk of Fire Or Explosion Due To Puncture Of Refrigerant Tubing; Follow Handling Instructions Carefully. Flammable Refrigerant Used.

TRANSPORTATION AND

INSTALLATION INSTRUCTIONS

TRANSPORTATION:

  1. When you transport the freezer, the angle between the compartment body and the ground should be no more than 45^ and you should never place the freezer up-side down.
  2. Do not use any of the external part as loading points, for example, the condenser on the back, the door.

INSTALLATION:

  1. When the freezer is installed or used, all the package (including board and foam plastic) should be got rid of.
  2. Keeping the freezer stable to avoid vibration and noise.
  3. The freezer should be installed in the place with good ventilation, a space of at least 10cm should be allowed between the surrounding walls and the cabinet wall for air condition.

  4. It should be placed far from heating resource and not under direct sunshine to avoid decrease of the efficiency of refrigeration.

  5. Install the freezer in a dry place so as to prevent rust on the compartment body, which may affect the electric insulation.

- WARNING: When positioning the appliance ensure the supply cord is not trapped or damaged.

- WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

The power supply should always be in accordance with the rating plate on the back of the freezer; here you can read the voltage (V) and frequency (Hz). The power supply must always be in accordance with the law and regulation of the country with regards to electrical safety. If you are in doubt ask your supplier.

STARTING UP

If the compressor does not start when the freezer has been plugged in, then the power supply of the unit is not in order. Check if there is electricity running from the power socket to the plug or if the fuse is blown.

THE FUNCTION OF CONTROL PANEL:

A 7 01 1 5 3 B C Power On - ○ LED Switch

A: Nick
B: Green Light
C: LED Switch (Optional)

  1. The figure on the temperature control 1\~7 only means the temperature level from high to low, not means the specific temperature.
  2. The green light is a power indicator, when it is on, the power is connected.
  3. We need to use a special tool (for example, a flat-blade screwdriver) to turn the knob till the nick pointing to a specific figure (1\~7).
  4. Turn the knob clockwise, the temperature inside will go down, turn the knob

to the other direction, the temperature will go up.

  1. When you turn the knob anticlockwise to "0", the freezer will not be supplied power.
  2. We recommend the nick pointing to the 6 or 5, to ensure the food inside cabinet are frozen effectively.

Danger: Do not turn the knob from "7" to "0" or "0" to "7"!

STORAGE:

  1. The appliance is suitable for storing ice cream and ready-frozen foods.
  2. It must not be filled higher than the stacking mark on the inside of the freezer.
  3. If there is no load line sticker, please take the top of placed basket as standard.

DEFROST:

  1. Defrost when the frost thickness on the wall of the cabinet reaches 5mm to optimize the freezing capacity.
  2. Turn the temperature control to the lowest point for 6 hours before defrosting.
  3. Cut off the power and take out the food, use the defrost removal, do not apply sharp tools.
  4. After defrosting, clean the wall with dry cloth, and then power on.

THE FOLLOWING PHENOMENA ARE NORMAL:

  1. There will be sound of flowing water when the refrigerant is running.
  2. The frozen food do not melt even if a long time power off.
  3. When the environment humidity is too high, there will be dew condensed on the surface of the freezer.
  4. When the machine is running, the condenser and compressor will be hot.

INSTRUCTION OF THE LOCK

A B C D E

A: Glass door

B: Key cylinder

C: Key

D: Lockhole

E: Glass door

  1. You can lock the freezer: First step you put the key and key cylinder into lock-hole; The second step you turn the key rotate 90° CW; Then you put out the key.
  2. You can unlock the freezer: First step you turn the key rotate 90° CCW; The second step you put out the key and key cylinder from lockhole.

REMARK: The lock is one of the options your product may be haven't.

CARE AND

MAINTENANCE

MAINTENANCE AND CLEANNESS

Cleaning should be done when needed, to insure good performance with the minimum amount of energy consumption. If the freezer is used in a dirty environment, it should be cleaned more frequently.

  1. Do not open the door frequently and too long to save energy.

  2. Never leave heavy or hot stuff on the top of the freezer to avoid deforming.

  3. Cut off the power before cleaning.
  4. To clean the freezer, please use soft cloth dampened in some moderate detergent and hot water.
  5. Use warm water to clean oil or fruit juice stain on the magnetic gasket in order to keep its elasticity. Apply some talcum powder to it to prolong its service life.
  6. Clean ventilation grills from dust by a soft brush or an air cleaner only once a week.
  7. The showcase should not be left unused for a long time, to stop using the showcase, disconnect the main power first, then clean the inside and leave the door open for 2-3 days to dry.

Storing the appliance after shutting down

NOTICE Unsuitable room temperature during storage damage to property ensure that the room temperature is between -10 °C and +50°C.

Correct Disposal of this product

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

Scancool SD 510 E - Correct Disposal of this product - 1

natural_image Simple line drawing of a trash bin with crossed lines indicating no waste or restriction (no text or symbols)

Scancool SD 510 E - Correct Disposal of this product - 2

TECHNICAL DATA and PROBLEMS

TECHNICAL DATA:

Model SD 310 E

Voltage/Frequency …… 220-240V/50Hz

Effective Volume (L) 223

Net weight (kg) 60

Overall dimensions (mm) 1000*694*830

Maximum load weight of basket (kg) · 20

Model SD 410 E

Voltage/Frequency …… 220-240V/50Hz

Effective Volume (L) 293

Net weight (kg) 71

Overall dimensions (mm) 1240*694*830

Maximum load weight of basket (kg) · 20

Model SD 510 E

Voltage/Frequency …… 220-240V/50Hz

Effective Volume (L) 373

Net weight (kg) 80

Overall dimensions (mm) 1510*694*830

Maximum load weight of basket (kg) · 20

REMARK: The fuse trip current of the appliance is between 10 and 16A. The A-weighted emission sound pressure level is below 70 dB(A).

TROUBLESREASONSOLUTION
Unfreezing*Temperature control is on the highest temperature point (1 point)Adjust temperature control
*Plug and outlet not connected wellMake the two connect well
*Fuse broken offChange the fuse
Compressor cannot stop working*Temperature control is on the lowest temperature point (7 point)Adjust temperature control
*Too much stuff stored in one timeReduce the quantity
*Thick frostDefrost
*Too much times of door-openingReduce the times of door-opening
*Too near the wallFar from the wall
*Near the hot source or sunChange the place
Too warm*Temperature control is on the highest temperature point (1 point)Adjust temperature control
*Too much stuff stored in one timeReduce the quantity
*Too much times of door-openingReduce the times of door-opening
*Near the hot source or sunChange the place
Too cold*Temperature control is on the lowest temperature point (7 point)Adjust temperature control
Big noise or Violent vibration*Ground is not flatChange the place
*Refrigerating tubes connectedSeparate them
Water on the floor*The condensation water on the lids drops down from the drain pipe to the floorPour out the water from the water collector
Water condensation on the lids*The environment humidity is too highDry the lids with soft cloth
Excessive ice formation in cabinet*Too much times of door-openingReduce the times of door-opening
*The door is not closedClose the door
*The condensation water on the lids drop insideDredge the drain pipe with wire; Defrost
The lighting does not work*Plug and outlet not connected wellMake they two connect well
*The lighting switch turn offThe lighting switch turn on

TROUBLE SHOOTING

REMARK: If you cannot solve the troubles according to the above-mentioned ways, please contact the after-sale service, do not handle it yourself.

Declaration of conformity

The appliance complies with the relevant safety regulations and EU Directives 2014/30/EU and 2006/42/EC.

Gebrauchs

Anweisung

SD 310 E/SD 410 E/SD 510 E

1.Glastür
2. Korb
3. Kabel
4. Bedienfeld
5. Rolle

  1. Thermometer (optional)
natural_image Simple line drawing of a trash bin with no text or symbols

Technical diagram of a rectangular industrial machine with numbered components and labeled parts

SD 310 E/SD 410 E/SD 510 E

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SD 310 E

Aftersales service station list:

AddressScandomestic A/S
Contact Number7242 5571
WebsiteScandomestic.dk
QR code882731
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SD 410 E

Aftersales service station list:

AddressScandomestic A/S
Contact Number7242 5571
WebsiteScandomestic.dk
QR code882746
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

Access to professional repair, such as internet webpages, addresses, contact details.

Model no: SD 510 E

Aftersales service station list:

AddressScandomestic A/S
Contact Number7242 5571
WebsiteScandomestic.dk
QR code882755
Relevant information for ordering spare parts, directly or through other channels provided by the manufacturer, importer or authorised representative;Scandomestic A/S
The minimum period during which spare parts, necessary for the repair of the appliance, are available;8 years
Instruction on how to find the model information in the product database, as defined in Regulation (EU) 2019/2019 by means of a weblink that links to the model information as stored in the product database or a link to the product database and information on how to find the model identifier on the product.)www.scandomestic.dk

Note: The address or contact phone number of the service site is subject to change without prior notice. Please confirm whether the service station is a directly affiliated one of our company when requiring services.

DE

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):SD 310 E
Name and address of the manufacturer or his authorised representative:Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Commercial boxBrand: ScancoolColour: WhiteModel name: SD 310 EScancool SD 510 E - EU DECLARATION OF CONFORMITY - 1
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:EMC directive 2014/30/EU EN 55014-1:2017, EN 55014-2:2015: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 62233:2008, EN 16901:2016, Regulation (EU) 2019/2018 (MD) 2006/42/EC, RoHS 2011/65/EU
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:RoHS
Additional information:Commercial freezer

Scancool SD 510 E - EU DECLARATION OF CONFORMITY - 2

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):SD 410 E
Name and address of the manufacturer or his authorised representative:Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Commercial boxBrand: ScancoolColour: WhiteModel name: SD 410 EScancool SD 510 E - EU DECLARATION OF CONFORMITY - 1
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:EMC directive 2014/30/EU EN 55014-1:2017, EN 55014-2:2015: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 62233:2008, EN 16901:2016, Regulation (EU) 2019/2018 (MD) 2006/42/EC, RoHS 2011/65/EU
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:RoHS
Additional information:Commercial freezer

Scancool SD 510 E - EU DECLARATION OF CONFORMITY - 2

EU DECLARATION OF CONFORMITY

Ref. Ares In accordance with EN ISO 17050-1:2004

Model number (unique identification of the product):SD 510 E
Name and address of the manufacturer or his authorised representative:Scandomestic A/SLinåvej 208600 SilkeborgDenmark
This declaration of conformity is issued under the sole responsibility of the manufacturer (or installer):Scandomestic A/SLinåvej 208600 SilkeborgDenmark
Object of the declaration (identification of product allowing traceability. It may include a colour image of sufficient clarity to enable the identification of the product, where appropriate.)Product: Commercial boxBrand: ScancoolColour: WhiteModel name: SD 510 EScancool SD 510 E - EU DECLARATION OF CONFORMITY - 1
The object of the declaration described in point 4 is in conformity with the relevant Union harmonisation legislation:EN 61000-3-2
References to the relevant harmonised standards used, or references to the specifications in relation to which conformity is declared:EMC directive 2014/30/EU EN 55014-1:2017, EN 55014-2:2015: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 60335-1:2012 + AC:2014 + A11:2014 + A13:2017 + A1:2019 + A14:2019 + A2:2019, EN 60335-2-89:2010 + A1:2016 + A2:2017, EN 62233:2008, EN 16901:2016, Regulation (EU) 2019/2018 (MD) 2006/42/EC, RoHS 2011/65/EU
Where applicable: the notified body ... (name, number)... performed ... (description of intervention)... and issued the certificate:RoHS
Additional information:Commercial freezer
Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : Scancool

Model : SD 510 E

Category : Freezer
