Notice OPTOMA ZX210ST - page 1
1 / 120
Pick your language and provide your email: we'll send you a specifically translated version.
Product type Projector
Brand OPTOMA
Model ZX210ST
Display technology DLP
Native resolution WXGA (1280 x 800)
Brightness 3500 ANSI lumens
Contrast ratio 20,000:1
Lamp life Up to 10,000 hours (eco mode)
Projected image size 30 to 300 inches
Keystone correction Vertical and horizontal
Built-in speaker Yes, 10W
3D compatibility Yes (DLP Link)
Weight 2.8 kg
Dimensions (W x D x H) 30 x 22 x 10 cm
Power supply 100-240 V, 50/60 Hz
Power consumption 250 W (max)
Maintenance and cleaning Clean the air filter every 6 months
Security Integrated Kensington lock
Spare parts available Lamp, air filter
Repairability index 8/10
Warranty 2 years

Frequently Asked Questions - ZX210ST OPTOMA

How to clean the projector's air filter?
Turn off the projector and unplug it. Open the filter compartment (usually located on the side). Remove the filter and gently vacuum the dust using a vacuum cleaner. Do not wash the filter with water. Put it back in place and close the compartment.
How often should the projector lamp be replaced?
Typical lamp life is 10,000 hours in eco mode. Replace the lamp when the image becomes dim or the lamp indicator flashes. Use a certified OPTOMA replacement lamp.
What to do if the projected image is blurry?
Adjust the focus using the focus ring on the lens. Also check that the projector is at the correct distance from the screen and that the source resolution matches the native resolution (1280x800).
How to connect an HDMI device to the projector?
Use a standard HDMI cable. Plug it into the HDMI input of the projector and the HDMI output of your device (computer, Blu-ray player, etc.). Select the HDMI source via the projector's input menu.
The projector does not turn on, what to do?
Check that the power cord is properly plugged in and that the electrical outlet works. Make sure the lamp cover is securely closed. If the power indicator is flashing, refer to the error code section in the manual.
Can I use the projector with a standard white screen?
Yes, any white screen or light, flat surface works. For better image quality, use a special projection screen.
How to activate 3D mode on the projector?
Make sure the 3D source is compatible (e.g., 3D Blu-ray player). Set the projector to 3D mode via the OSD menu. Wear active DLP Link 3D glasses. Adjust synchronization if necessary.
What is the minimum projection distance for a 100-inch image?
For a short-throw projector like the ZX210ST, a distance of approximately 1.2 meters is required to achieve a 100-inch diagonal image. Refer to the distance chart in the manual for specific sizes.
How to reset to factory settings?
Access the OSD menu, go to 'Settings' or 'Configuration', then select 'Reset to factory settings'. Confirm the operation. The projector will restart with default settings.
The projector makes an abnormal noise, what to check?
Excessive noise may come from the fan or the lamp. Check that the air filter is not clogged. If the noise persists, contact OPTOMA after-sales service.

User questions about ZX210ST OPTOMA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Projector in PDF format for free! Find your manual ZX210ST - OPTOMA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ZX210ST by OPTOMA.

USER MANUAL ZX210ST OPTOMA

natural_image Illustration of a generic projector with a screen and lens, no text or symbols visible.
natural_image Illustration of a projector with a screen and lens (no text or symbols)

Projecteur

OPTOMA ZX210ST - 1

natural_image Line drawing of a coiled electrical outlet with two leads (no text or symbols)
natural_image Pure electrical circuit lines without any symbols

Câble VGA

OPTOMA ZX210ST - 2
2 piles AAA

OPTOMA ZX210ST - 3
Télécommande IR

OPTOMA ZX210ST - 4

natural_image Simple concentric circle diagram with no text or symbols

Diagram of a projector module showing connections to a power outlet, switch, and ports with labeled parts 1, 2, and 3.

OPTOMA ZX210ST - 6

(*) Accessoire en option

OPTOMA ZX210ST - 7

(*) Accessoire en option

natural_image Illustration of a projector with a lens and control panel (no text or symbols)
natural_image Pure electrical socket diagram with three numbered pins, no text or symbols present

OPTOMA ZX210ST - 8

Projector Return (Pass): P

Projector Return (Fail): F

XX=01-99, projector's ID,

XX=00 is for all projectors

SEND to projector

232 ASCII CodeHEX CodeFunctionDescription
~XX00 17E 30 30 30 30 20 31 0DPower ON
~XX00 07E 30 30 30 30 20 30 0DPower OFF(0/2 for backward compatible)~nnnn = ~0000 (a=7E 30 30 30 30)~9999 (a=7E 39 39 39 39)
~XX00 1 ~nnnn7E 30 30 30 30 20 31 20 a 0DPower ON with Password
~XX01 17E 30 30 30 31 20 31 0DRe-sync
~XX02 17E 30 30 30 32 20 31 0DAV Mute On
~XX02 07E 30 30 30 32 20 30 0DOff (0/2 for backward compatible)
~XX03 17E 30 30 30 33 20 31 0DMute On
~XX03 07E 30 30 30 33 20 30 0DOff (0/2 for backward compatible)
~XX04 17E 30 30 30 34 20 31 0DFreeze
~XX04 07E 30 30 30 34 20 30 0DUnfreeze(0/2 for backward compatible)
~XX05 17E 30 30 30 35 20 31 0DZoom Plus
~XX06 17E 30 30 30 36 20 31 0DZoom Minus
~XX07 17E 30 30 30 37 20 31 0DUp (Pan under zoom)
~XX08 17E 30 30 30 38 20 31 0DDown (Pan under zoom)
~XX09 17E 30 30 30 39 20 31 0DLeft (Pan under zoom)
~XX10 17E 30 30 31 30 20 31 0DRight (Pan under zoom)
~XX12 17E 30 30 31 32 20 31 0DDirect SoirceHDMI
~XX12 57E 30 30 31 32 20 35 0DVGA
~XX12 87E 30 30 31 32 20 38 0DVGA Component
~XX12 97E 30 30 31 32 20 39 0DS-Video
~XX12 107E 30 30 31 32 20 31 30 0DVideo
~XX12 177E 30 30 31 32 20 31 37 0DFlash Drive
~XX12 187E 30 30 31 32 20 31 38 0DNetwork Display
~XX12 197E 30 30 31 32 20 31 39 0DUSB Display
Display Mode
~XX20 07E 30 30 32 30 20 30 0DNone
~XX20 17E 30 30 32 30 20 31 0DPresentation
~XX20 27E 30 30 32 30 20 32 0DBright
~XX20 37E 30 30 32 30 20 33 0DMovie
~XX20 47E 30 30 32 30 20 34 0DsRGB
~XX20 57E 30 30 32 30 20 35 0DUser
~XX20 77E 30 30 32 30 20 37 0DBlackboard
~XX20 87E 30 30 32 30 20 38 0DClassroom
~XX20 97E 30 30 32 30 20 39 0D3D
~XX21 n7E 30 30 32 31 20 a 0DBrightnessn = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX22 n7E 30 30 32 32 20 a 0DContrastn = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX23 n7E 30 30 32 33 20 a 0DSharpnessn = 1 (a=31) ~ 15 (a=31 35)
~XX24 n7E 30 30 32 34 20 a 0DColor SettingsRed Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n7E 30 30 32 35 20 a 0DGreen Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n7E 30 30 32 36 20 a 0DBlue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n7E 30 30 32 37 20 a 0DRed Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n7E 30 30 32 38 20 a 0DGreen Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n7E 30 30 32 39 20 a 0DBlue Biasn = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX30 n7E 30 30 33 30 20 a 0DCyann = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX31 n7E 30 30 33 31 20 a 0DYellown = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX32 n7E 30 30 33 32 20 a 0DMagentan = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 17E 30 30 33 33 20 31 0DReset
~XX34 n7E 30 30 33 34 20 a 0DBrilliantColorTMn = 0 (a=30) ~ 10 (a=31 30)
~XX35 17E 30 30 33 35 20 31 0DDegammaFilm
~XX35 27E 30 30 33 35 20 32 0DVideo
~XX35 37E 30 30 33 35 20 33 0DGraphics
~XX35 47E 30 30 33 35 20 34 0DPC
~XX36 17E 30 30 33 36 20 31 0DColor Temp.Warm
~XX36 27E 30 30 33 36 20 32 0DMedium
~XX36 37E 30 30 33 36 20 33 0DCold
~XX37 17E 30 30 33 37 20 31 0DColor SpaceAuto
~XX37 27E 30 30 33 37 20 32 0DRGB
~XX37 37E 30 30 33 37 20 33 0DYUV
~XX45 n7E 30 30 34 34 20 a 0DColor (Saturation)n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX44 n7E 30 30 34 35 20 a 0DTintn = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX39 27E 30 30 33 39 20 32 0DInput Source FilterDVI-D
~XX39 57E 30 30 33 39 20 35 0DVGA
~XX39 87E 30 30 33 39 20 38 0DVGA Component
~XX39 97E 30 30 33 39 20 39 0DS-Video
~XX39 107E 30 30 33 39 20 31 30 0DVideo
~XX39 17E 30 30 33 39 20 31 0DHDMI
~XX39 127E 30 30 33 39 20 31 32 0DFlah Drive
~XX39 137E 30 30 33 39 20 31 33 0DNetwork Display
~XX39 147E 30 30 33 39 20 31 34 0DUSB Display
~XX60 17E 30 30 36 30 20 31 0DFormat4:3
~XX60 27E 30 30 36 30 20 32 0D16:9-I
~XX60 37E 30 30 36 30 20 33 0D16:9-II/16:10(ZW210ST)
~XX60 57E 30 30 36 30 20 35 0DLBX
~XX60 67E 30 30 36 30 20 36 0DNative
~XX60 77E 30 30 36 30 20 37 0DAuto
~XX61 n7E 30 30 36 31 20 a 0DEdge maskn = 0 (a=30) ~ 10 (a=31 30)
~XX62 n7E 30 30 36 32 20 a 0DZoomn = -5 (a=2D 35) ~ 25 (a=32 35)
~XX63 n7E 30 30 36 33 20 a 0DH Image Shiftn = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX64 n7E 30 30 36 34 20 a 0DV Image Shiftn = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX66 n7E 30 30 36 36 20 a 0DV Keystonen = -40 (a=2D 34 30) ~ 40 (a=34 30)
~XX230 17E 30 30 32 33 30 20 31 0D3D ModeDLP-Link
~XX230 37E 30 30 32 33 30 20 31 0DIR
~XX230 0/27E 30 30 32 33 30 20 30 0DOff
~XX231 17E 30 30 32 33 31 20 31 0D3D Sync InvertOn
~XX231 07E 30 30 32 33 31 20 30 0D3D Sync InvertOff
~XX70 17E 30 30 37 30 20 31 0DLanguageEnglish
~XX70 27E 30 30 37 30 20 32 0DGerman
~XX70 37E 30 30 37 30 20 33 0DFrench
~XX70 47E 30 30 37 30 20 34 0DItalian
~XX70 57E 30 30 37 30 20 35 0DSpanish
~XX70 67E 30 30 37 30 20 36 0DPortuguese
~XX70 77E 30 30 37 30 20 37 0DPolish
~XX70 87E 30 30 37 30 20 38 0DDutch
~XX70 97E 30 30 37 30 20 39 0DSwedish
~XX70 107E 30 30 37 30 20 31 30 0DNorwegian/Danish
~XX70 117E 30 30 37 30 20 31 31 0DFinnish
~XX70 127E 30 30 37 30 20 31 32 0DGreek
~XX70 137E 30 30 37 30 20 31 33 0DTraditional Chinese
~XX70 147E 30 30 37 30 20 31 34 0DSimplified Chinese
~XX70 157E 30 30 37 30 20 31 35 0DJapanese
~XX70 167E 30 30 37 30 20 31 36 0DKorean
~XX70 177E 30 30 37 30 20 31 37 0DRussian
~XX70 187E 30 30 37 30 20 31 38 0DHungarian
~XX70 197E 30 30 37 30 20 31 39 0DCzechoslovak
~XX70 207E 30 30 37 30 20 32 30 0DArabic
~XX70 217E 30 30 37 30 20 32 31 0DThai
~XX70 227E 30 30 37 30 20 32 32 0DTurkish
~XX70 237E 30 30 37 30 20 32 33 0DFarsi
~XX70 257E 30 30 37 30 20 32 35 0DVietnamese
~XX71 17E 30 30 37 31 20 31 0DProjectionFront-Desktop
~XX71 27E 30 30 37 31 20 32 0DRear-Desktop
~XX71 37E 30 30 37 31 20 33 0DFront-Ceiling
~XX71 47E 30 30 37 31 20 34 0DRear-Ceiling
~XX72 17E 30 30 37 32 20 31 0DMenu LocationTop Left
~XX72 27E 30 30 37 32 20 32 0DTop Right
~XX72 37E 30 30 37 32 20 33 0DCentre
~XX72 47E 30 30 37 32 20 34 0DBottom Left
~XX72 57E 30 30 37 32 20 35 0DBottom Right
(ZW210ST only)
~XX90 17E 30 30 39 31 20 31 0DScreen Type16:10
~XX90 07E 30 30 39 31 20 30 0D16:9
~XX73 n7E 30 30 37 33 20 a 0DSignalFrequencyn = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX91 n7E 30 30 39 31 20 a 0DAutomaticn = 0 disable; n = 1 enable
~XX74 n7E 30 30 37 34 20 a 0DPhasen = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n7E 30 30 37 35 20 a 0DH. Positionn = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n7E 30 30 37 36 20 a 0DV. Positionn = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX77 n7E 30 30 37 37 20 aabbcc 0DMonth/Day/HourSecuritySecurity Timer
n = mm/dd/hhmm= 00 (aa=30 30) ~ 12 (aa=31 32)dd = 00 (bb=30 30) ~ 30 (bb=33 30)hh= 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 17E 30 30 37 38 20 31 0DSecurity SettingsEnable
~XX78 07E 30 30 37 38 20 32 0DDisable(0/2 for backward compatible)
~XX79 n7E 30 30 37 39 20 a 0DProjector IDn = 00 (a=30 30) ~ 99 (a=39 39)
~XX80 17E 30 30 38 30 20 31 0DMuteOn
~XX80 07E 30 30 38 30 20 30 0DOff (0/2 for backward compatible)
~XX81 n7E 30 30 38 31 20 a 0DVolumen = 0 (a=30) ~ 10 (a=31 30)
~XX82 17E 30 30 38 32 20 31 0DLogoOptoma
~XX82 27E 30 30 38 32 20 32 0DUser
~XX82 37E 30 30 38 32 20 33 0DNeutral
~XX83 17E 30 30 38 33 20 31 0DLogo Capture(Option)
~XX88 07E 30 30 38 38 20 30 0DClosed CaptioningOff
~XX88 17E 30 30 38 38 20 31 0Dcc1
~XX88 27E 30 30 38 38 20 32 0Dcc2
~XX100 17E 30 30 31 30 30 20 31 0DSource LockOn
~XX100 07E 30 30 31 30 30 20 30 0DOff (0/2 for backward compatible)
~XX100 37E 30 30 31 30 30 20 33 0DNext Source
~XX101 17E 30 30 31 30 31 20 31 0DHigh AltitudeOn
~XX101 07E 30 30 31 30 31 20 30 0DOff (0/2 for backward compatible)
~XX102 17E 30 30 31 30 32 20 31 0DInformation HideOn
~XX102 07E 30 30 31 30 32 20 30 0DOff (0/2 for backward compatible)
~XX103 17E 30 30 31 30 33 20 31 0DKeypad LockOn
~XX103 07E 30 30 31 30 33 20 30 0DOff (0/2 for backward compatible)
~XX104 17E 30 30 31 30 34 20 31 0DBackground ColorBlue
~XX104 27E 30 30 31 30 34 20 32 0DBlack
~XX104 37E 30 30 31 30 34 20 33 0DRed
~XX104 47E 30 30 31 30 34 20 34 0DGreen
~XX104 57E 30 30 31 30 34 20 35 0DWhite
~XX105 17E 30 30 31 30 35 20 31 0DAdvancedDirect Power On On
~XX105 07E 30 30 31 30 35 20 30 0DOff (0/2 for backward compatible)
~XX106 n7E 30 30 31 30 36 20 a 0DAuto Power Off (min) n = 0 (a=30)
~180 (a=31 38 30) step:5
~XX107 nstep:57E 30 30 31 30 37 20 a 0DSleep Timer (min)n = 0 (a=30) ~ 995 (a=39 39 39)
~XX114 17E 30 30 31 31 34 20 31 0DEco Standby(1W)On
~XX114 07E 30 30 31 31 34 20 30 0DOff (0/2 for backward compatible)
~XX110 17E 30 30 31 31 30 20 31 0DBrightness ModeBright
~XX110 07E 30 30 31 31 30 20 30 0DEco. (0/2 for backward compatible)
~XX110 37E 30 30 31 31 30 20 33 0DEco+
~XX112 17E 30 30 31 31 32 20 31 0DResetYes

\~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert
\~XX210ST n 7E 30 30 32 30 30 20 n 0D Display message on the OSD

n: 1-30 characters

SEND to emulate Remote

~XX140 17E 30 30 31 34 30 20 31 0DPower
~XX140 107E 30 30 31 34 30 20 31 30 0DUp/Page +
~XX140 117E 30 30 31 34 30 20 31 31 0DLeft/Source
~XX140 127E 30 30 31 34 30 20 31 32 0DEnter (for projection MENU)
~XX140 137E 30 30 31 34 30 20 31 33 0DRight/Re-SYNC
~XX140 147E 30 30 31 34 30 20 31 34 0DDown/Page -
~XX140 157E 30 30 31 34 30 20 31 35 0DKeystone +
~XX140 167E 30 30 31 34 30 20 31 36 0DKeystone -
~XX140 177E 30 30 31 34 30 20 31 37
0DVolume -
~XX140 187E 30 30 31 34 30 20 31 38
0DVolume +
~XX140 197E 30 30 31 34 30 20 31 39 0DBrightness (1)
~XX140 217E 30 30 31 34 30 20 32 31 0D3D(3)
~XX140 207E 30 30 31 34 30 20 32 30 0DMenu (2)
~XX140 227E 30 30 31 34 30 20 32 32 0DContrast (4)
~XX140 237E 30 30 31 34 30 20 32 33 0DFreeze (5)
~XX140 247E 30 30 31 34 30 20 32 34
0DAV Mute (6)
~XX140 257E 30 30 31 34 30 20 32 35 0DS-Video (7)
~XX140 267E 30 30 31 34 30 20 32 36 0DVGA (8)
~XX140 277E 30 30 31 34 30 20 32 37 0DVideo (9)

SEND from projector automatically

232 ASCII CodeHEX CodeFunctionProjector ReturnDescription
when Standby/Warming/Cooling/Out of Range/Light fail/Standby/Warming/Cooling/Out of Range/Light fail/Fan Lock/Over Temperature/Cover OpenINFOnn : 0/1/2/3/4/6/7/8/9 =Fan Lock/Over Temperature/Cover Open

READ from projector

232 ASCII CodeHEX CodeFunctionProjector ReturnDescription
~XX121 17E 30 30 31 32 31 20 31 0DInput Source CommandsOKnn : 0/1/2/3/4/13/14/15 =
None/VGA/S-Video/Video/HDMI/Flash drive/Network Display/USB Display
~XX122 17E 30 30 31 32 32 20 31 0DSoftware VersionOKddddddd: FW version
~XX123 17E 30 30 31 32 33 20 31 0DDisplay ModeOKnn : 0/1/2/3/4/5/7/8/9/
None/Presentation/Bright/Movie/sRGB/User/Blackboard/Classroom/3D
~XX124 17E 30 30 31 32 34 20 31 0DPower StateOKnn : 0/1 = Off/On
~XX125 17E 30 30 31 32 35 20 31 0DBrightnessOKn
~XX126 17E 30 30 31 32 36 20 31 0DContrastOKn
~XX127 17E 30 30 31 32 37 20 31 0D Aspect RatioOKn
(ZW210ST) n: 0/1/2/3/4 = 4:3/16:9 or 16:10 */LBX/Native/AUTO
(ZX210ST) n: 0/1/2/3/4 = 4:3/16:9-I/16:9-II/Native/AUTO*16:9 or 16:10 depend on Screen Type setting
~XX128 17E 30 30 31 32 38 20 31 0DColor TemperatureOKnn : 0/1/2 = Warm/Medium/Cold
~XX129 17E 30 30 31 32 39 20 31 0DProjection ModeOKnn : 0/1/2/3 = Front-Desktop/
Rear-Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 17E 30 30 31 35 30 20 31 0DInformationOKabbbbccdddde
a : 0/1 = Off/On
bbbbb: Light source Hour
cc: source 00/01/02/03/04 =
None/VGA1/S-Video/Video/HDMIdddd: FW version
e : Display mode : 0/1/2/3/4/5/7/8/9
=None/Presentation/Bright/Movie/sRGB/User/
~XX151 17E 30 30 31 35 31 20 31 0DModel nameOKnn:1/2 =ZX210ST/ZW210ST
~XX108 17E 30 30 31 30 38 20 31 0DLight Source HoursOKbbbbbbbbbb: Light Source Hour

*When Power mode is Eco, the command of Information(\~XX150 1) will only return OK000000000000 due to MCU memory limitation.
*The command for "Flash Drive", "Network Display" and USB Display" for Short Throw Models only.

natural_image Technical line drawing of a projector housing with a cylindrical support and mounting base (no text or symbols)

42 Caxton Way, The Watford Business Park

Watford, Hertfordshire,

WD18 8QZ, UK

www.optoma.eu

service@tsc-europe.com

France

Bâtiment E

81-83 avenue Edouard Vaillant

92100 Boulogne Billancourt, France

OPTOMA ZX210ST - France - 1

+33 1 41 46 12 20

OPTOMA ZX210ST - France - 2

+33 1 41 46 94 35

OPTOMA ZX210ST - France - 3

savoptoma@optoma.fr

Espagne

C/ José Hierro,36 Of. 1C

28522 Rivas VaciaMadrid,

Espagne

OPTOMA ZX210ST - Espagne - 1

+34 91 499 06 06

OPTOMA ZX210ST - Espagne - 2

+34 91 670 08 32

Allemagne

Wiesenstrasse 21 W

D40549 Düsseldorf,

Allemagne

OPTOMA ZX210ST - Allemagne - 1

+49 (0) 211 506 6670

OPTOMA ZX210ST - Allemagne - 2

+49 (0) 211 506 66799

OPTOMA ZX210ST - Allemagne - 3

info@optoma.de

Scandinavie

Lerpeveien 25

3040 Drammen

Norvège

OPTOMA ZX210ST - Scandinavie - 1

+47 32 98 89 90

OPTOMA ZX210ST - Scandinavie - 2

+47 32 98 89 99

OPTOMA ZX210ST - Scandinavie - 3

info@optoma.no

PO.BOX 9515

3038 Drammen

Norvège

Amérique latine

715 Sycamore Drive

Milpitas, CA 95035, USA

www.optoma.com.br

OPTOMA ZX210ST - Amérique latine - 1

408-383-3700

OPTOMA ZX210ST - Amérique latine - 2

408-383-3702

www.optoma.com.mx

Corée

WOOMI TECH.CO.,LTD.

4F, Minu Bldg.33-14, Kangnam-Ku,

seoul,135-815, KOREA

OPTOMA ZX210ST - Corée - 1

+82+2+34430004

OPTOMA ZX210ST - Corée - 2

+82+2+34430005

Japon

東京都足立区綾瀬3-25-18

株式会社オーエスエム

www.os-worldwide.com

Taiwan

5F., No. 108, Minchiuan Rd.

Shindian City,

Taipei Taiwan 231, R.O.C.

www.optoma.com.tw

OPTOMA ZX210ST - Taiwan - 1

+886-2-2218-2360

OPTOMA ZX210ST - Taiwan - 2

+886-2-2218-2313

OPTOMA ZX210ST - Taiwan - 3

services@optoma.com.tw

asia.optoma.com

Hong Kong

Unit A, 27/F Dragon Centre,

79 Wing Hong Street,

Cheung Sha Wan,

Kowloon, Hong Kong

OPTOMA ZX210ST - Hong Kong - 1

+852-2396-8968

OPTOMA ZX210ST - Hong Kong - 2

+852-2370-1222

www.optoma.com.hk

Chine

5F, No. 1205, Kaixuan Rd.,

Changning District

Shanghai, 200052, China

OPTOMA ZX210ST - Chine - 1

+86-21-62947376

OPTOMA ZX210ST - Chine - 2

+86-21-62947375

www.optoma.com.cn

CLASS 1 LASER PRODUCT

natural_image Illustration of a projector with a screen and lens, no text or symbols present

ADMIN | Config....35

ADMIN | Crestron RoomView .....39

natural_image View looking up at a dense bamboo grove with sunlight filtering through the branches (no text or symbols visible)
Show Login Code
Web Admin...
Search Server...
Projection Quality
Projection Source
Send Audio to Display
Connection Profile
Auto WiFi Connect
Auto Power Manager
Hide UI
Advanced Screen Capture
Make OPS Token...
Copy Application to Desktop...
About
Exit

USB Auto Setup Wizard USB Auto Setup Wizard This wizard helps you set up an USB Token which you can perform Plug and Show through this USB Token. To continue, click Next. < Back Next > Cancel USB Auto Setup Wizard Plug your flash drive into any USB port on the computer, and wait for the drive letter to appense below. Flash/Drive: F:\...\All < Back Next > Cancel USB Auto Setup Wizard The wizard completed successfully < Back Finish

ADMIN | Crestron RoomView

ou

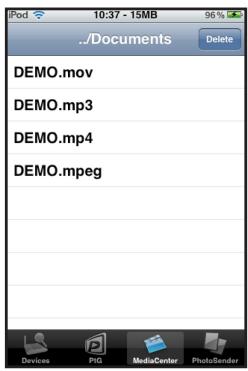

Pod 10:37 - 15MB 96% ./Documents Delete DEMO.mov DEMO.mp3 DEMO.mp4 DEMO.mpeg Devices PIG MediaCenter PhotoSender

ou

Pod 10:37 - 15MB 96% ../Documents Delete DEMO-1.jpg DEMO-2.jpg

Affichage réseau

ou

Carrier 2:39 PM Documents music.mp3 Devices PIG MediaCenter PhotoSender

ou

Carrier 10:28 AM Documents 353727.jpg Devices PIG MediaCenter PhotoSender

Tools Install FREE MobiShow AWINDING My review Let others know what you think of this application. Role it! Description You need a MobiShow compatible device to use the application. Please go to the following URL:

ou

MobiShow Prev Play Next RotateL RotateR Open

ou

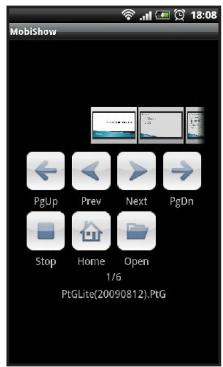

MobiShow PgUp Prev Next PgDn Stop Home Open 1/5 PtGLite(20090812); PtG

No SIM 下午3:59 60% Search Info WiFi Doc AWIND No Reviews INSTALLED Documents with WiFi network. An iPhone version client software for the WiFi-Doc device. WiFi-Doc is a device providing an easy-to-setup, efficient and cost-effective wireless solution to transmit your office documents contents in iPhone to TV. WiFi-Doc current supports power point, excel, word, pdf and even txt format files. By connecting an iPhone to a WiFi-Doc device via WiFi, you can share documents content on TV via the Mobishow device--all wireless! Featured Categories Top 25 Search Updates

Manual assistant
Powered by Anthropic
Waiting for your message
Product information

Brand : OPTOMA

Model : ZX210ST

Category : Projector
