ZW506 - Projector OPTOMA - Free user manual and instructions

Product type	DLP projector
Brand	OPTOMA
Model	ZW506
Native resolution	WXGA (1280 x 800)
Brightness	5000 ANSI lumens
Contrast ratio	5000:1
Display technology	DLP 0.65"
Keystone correction	Vertical and horizontal (±30°)
Projection distance	1.0 – 10.0 m
Dimensions (W x D x H)	424 x 330 x 138 mm
Weight	6.5 kg
Power consumption	460 W (standby: <0.5 W)
Power supply	Mains 100-240 V AC, 50/60 Hz
Lamp type	UHP 370 W lamp
Lamp life	3000 hours (normal mode), 4000 hours (economy mode)
Maintenance and cleaning	Clean air filter every 500 hours; replace lamp after use
Security	Kensington lock, security password
Spare parts and repairability	Replacement lamp available, replaceable air filter
General information	2-year manufacturer warranty; OPTOMA technical support

Frequently Asked Questions - ZW506 OPTOMA

How to replace the lamp on the OPTOMA ZW506 projector?

Turn off the projector and unplug it. Allow to cool for 30 minutes. Open the lamp compartment (located under the device), remove the old lamp by unscrewing the screws, insert the new lamp (ref. OPTOMA SP.93G01GC01) and screw back. Close the compartment and reconnect the device.

The projector turns off automatically: what to do?

Check the device temperature: ensure air intakes are not blocked and the air filter is clean. If the problem persists, the lamp may be at end of life or the temperature sensor is defective. Refer to the Troubleshooting section of the manual.

How to clean the air filter of the ZW506?

Turn off the projector and unplug it. Locate the air filter on the side or rear. Remove it and dust it with a vacuum cleaner or with warm soapy water (dry it completely before reinstalling). Replace the filter after complete drying.

What is the native resolution of the OPTOMA ZW506 projector?

The native resolution is WXGA (1280 x 800 pixels), suitable for widescreen presentations.

Can I connect my laptop via HDMI?

Yes, the ZW506 has an HDMI 1.4 input (compatible with most laptops) as well as a VGA input and a USB-A port for file presentation.

How to adjust image size without moving the projector?

Use the zoom ring on the lens (1.6x optical zoom). Additionally, you can use automatic or manual keystone correction to straighten the image.

What is the lamp life and where to buy a replacement lamp?

The lamp lasts about 3000 hours in normal mode and 4000 hours in economy mode. Purchase a replacement lamp OPTOMA SP.93G01GC01 from authorized dealers or on the OPTOMA website.

The projector displays 'No signal': what to check?

Check that the source cable (HDMI, VGA) is properly connected. Ensure the source is turned on and that the selected input corresponds (press Source on the remote). Try another cable or source.

How to reset the lamp counter?

After replacing the lamp, go to the OSD menu: Configuration > Lamp reset. Confirm the reset to clear the replacement alert.

What image modes are available?

The projector offers several preset modes: Presentation, Cinema, Game, sRGB, Blackboard. You can also customize settings via the Image menu.

USER MANUAL ZW506 OPTOMA

Line drawing of a projector with ventilation slots and control panel (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019. IEC 60825-1:2014 等級1雷射產品RG2危險等級 IEC 60825-1:2014 1类激光产品RG2危险等级

This Class B digital apparatus complies with Canadian ICES-003.

Illustration of a projector with projection screen and front panel, labeled 'Projecteur' below (no other text or symbols)

Diagram of a cable VGA connector with two connectors and wiring (no text or symbols on the diagram itself)

Remarque :

Line drawing of a person sitting in a chair watching TV, with no text or symbols present.

Line drawing of a person sitting in a chair facing a projector mounted on a wall, no text or symbols present

Line drawing of a person sitting in a chair watching a projector screen (no text or symbols)

Illustration of a person sitting in a chair viewing a projector mounted on a wall, with no visible text or symbols.

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

Page principale

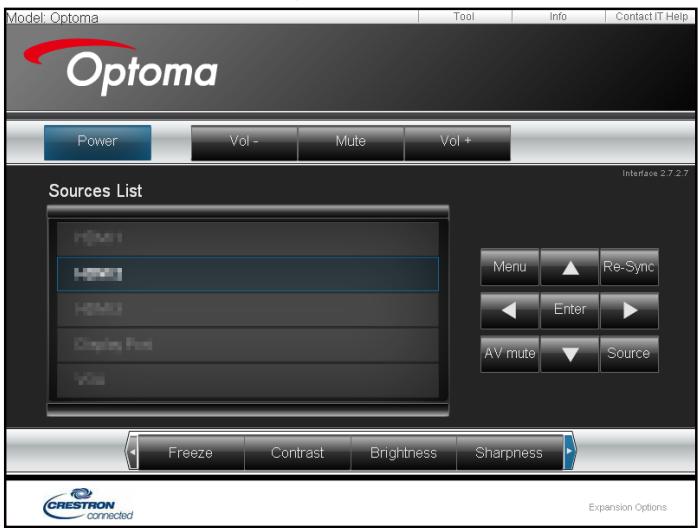

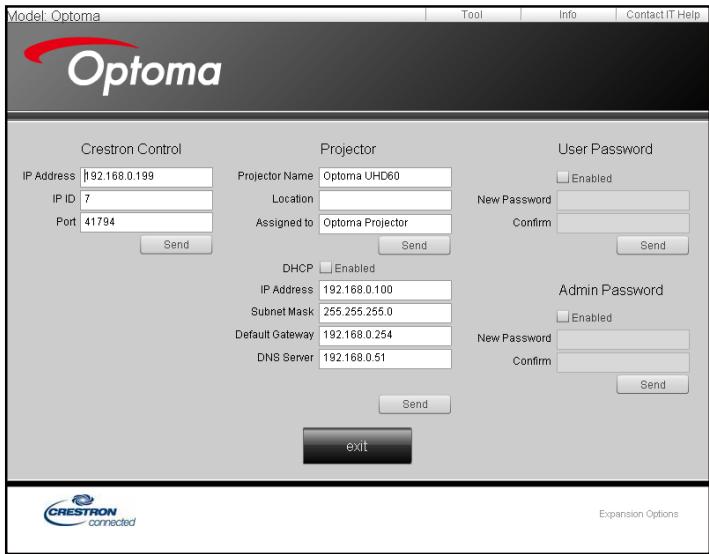

Page Outils

UTILISER LE PROJECTEUR

INFORMATIONS SUPPLÉMENTAIRES
