Product type	DLP laser projector
Native resolution	WXGA (1280 x 800)
Brightness	5,000 ANSI lumens
Contrast	300,000:1
Light source	Phosphor laser, lifespan 20,000 hours
Throw ratio	1.36 – 2.18:1
Image size	30 – 300 inches
Keystone correction	Vertical ±30°, horizontal ±30°
Zoom	1.6x motorized
Video inputs	2x HDMI, 1x VGA, 1x Composite, 1x S-Video
Control ports	RS-232, USB-A, RJ45
Power supply	100-240 V AC, 50/60 Hz
Power consumption	350 W (normal mode), < 0.5 W standby
Dimensions (W x D x H)	337 x 265 x 108 mm
Weight	5.5 kg
Noise level	28 dB (eco mode)
Built-in speaker	1 x 15 W
Network functions	Remote control, firmware update
Filter cleaning	Accessible air filter, clean every 500 hours
Security	Kensington lock, user password
Spare parts and repairability	Laser lamp non-replaceable, filter and fan available

Frequently Asked Questions - ZW500T OPTOMA

How to clean the air filter of the ZW500T projector?

Turn off the projector, unplug it, open the filter cover on the side, remove the filter and vacuum it or wash it with warm soapy water. Dry completely before reinstalling. Perform this operation every 500 hours of use.

What is the lifespan of the laser source of the ZW500T?

The phosphor laser source has a nominal lifespan of 20,000 hours in normal mode, which reduces maintenance costs compared to traditional lamps.

Can I connect my smartphone directly to the projector?

Yes, via a wired HDMI adapter or wireless (optional). The projector has HDMI ports that accept signals from smartphones compatible with an MHL adapter or wirelessly via an HDMI dongle.

How to adjust the image if it is distorted (keystone)?

Use automatic or manual keystone correction in the 'Display' menu. You can adjust vertical and horizontal with the +/- keys on the control panel or remote control.

What is the actual brightness of the projector in eco mode?

In eco mode, brightness drops to approximately 3,500 lumens to reduce noise and power consumption. Normal mode provides 5,000 lumens.

Does the ZW500T projector support 3D?

Yes, it supports DLP Link 3D via HDMI. You need to use active DLP 3D glasses (not included) and enable 3D mode in the settings.

How to reset a forgotten user password?

Contact Optoma support with the projector serial number. You can also try the default combination: press and hold the 'Menu' and 'Source' keys for 10 seconds (depending on version).

Can I use the projector without the air filter?

No, the air filter is essential to prevent overheating and internal damage. Always use the projector with the filter in place and clean it regularly.

What is the projection distance for a 100-inch image?

With a throw ratio of 1.36:1 to 2.18:1, for a 100-inch diagonal image, the distance should be between 2.9 m and 4.7 m approximately.

Where to find spare parts for the ZW500T?

Spare parts (filter, fan, remote control) are available from authorized Optoma dealers or on the official website. The laser source is not replaceable separately.

USER MANUAL ZW500T OPTOMA

Line drawing of a rectangular electronic device with ventilation slots and a coiled cable (no text or symbols)

TABLE DES MATIÈRES

SÉCURITÉ ....3

COMPLIES WITH 21 CFR 1040.10 AND 1040.11 EXCEPT FOR DEVIATIONS PURSUANT TO LASER NOTICE No. 50, DATED JUNE 24, 2007. IEC/EN 60825-1:2007

LASER RADIATION DO NOT STARE INTO BEAM CLASS 2 LASER PRODUCT WAVE LENGTH: 450-460 nm / MAX OUTPUT: 15.9 mW / PULSE DURATION: 1.25 ms IEC 60825-1:2014 CLASS 1 LASER PRODUCT / RISK GROUP 2 Possibly hazardous optical radiation emitted from this product. Do not stare into the beam, May be harmful to the eyes.

IEC 60825-1:2007 2类激光产品

激光辐射 不要凝视激光束2类激光產品。

Diagram of a cable VGA connector with coiled cable and connectors (no text or symbols on the diagram itself)

Technical line drawing of a mechanical device with circular components and mounting base (no text or symbols)

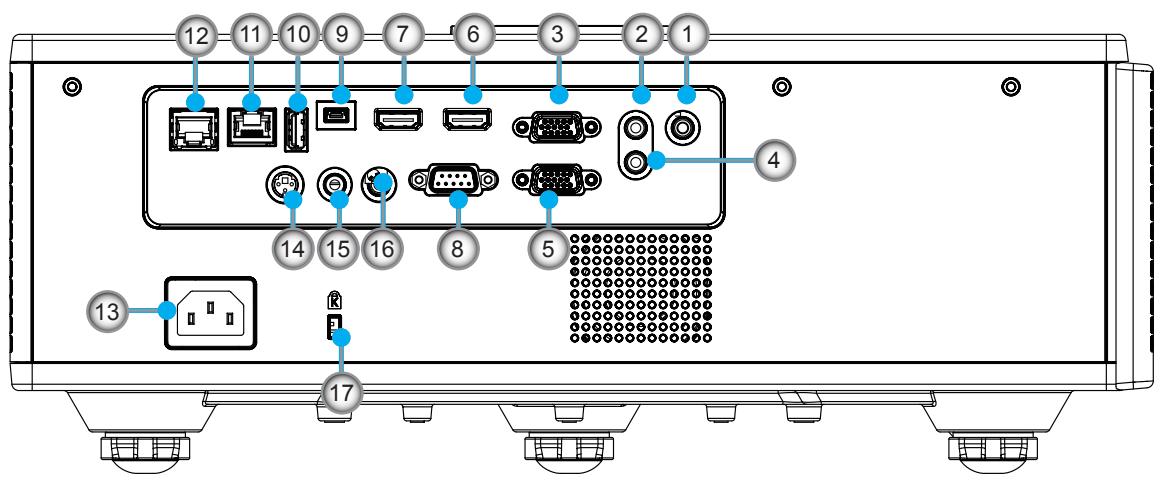

Non	Item
5.	Câble Microphone
6.	Câble RJ-45 (Câble Cat5)
7.	Jack 12 V DC

Remarque :
