KX-TGA806FX - Telephone PANASONIC - Free user manual and instructions

Product Type	DECT Cordless Phone Handset
Brand	Panasonic
Model	KX-TGA806FX
Dimensions (H x W x D)	Approx. 168 mm x 48 mm x 29 mm
Weight	Approx. 130 g (including battery)
Power Supply	Ni-MH rechargeable battery (rated 2.4 V, 650 mAh)
Standby Time	Up to 200 hours
Talk Time	Up to 18 hours
Display	Backlit LCD, 1.8 inch, white/amber
Phonebook Memory	Up to 100 names and numbers
Caller ID	Yes, with call waiting
Speakerphone	Yes, hands-free
Ringer Tones	Polyphonic and melody
Intercom	Yes, between handsets
Call Block	Up to 250 numbers
Maintenance	Clean with a soft, dry cloth; avoid liquids
Safety	Use only specified battery; do not immerse in water
Spare Parts & Reparability	Battery available; repair by qualified technician
General Information	DECT 6.0; range up to 50 m indoors, 300 m outdoors

Frequently Asked Questions - KX-TGA806FX PANASONIC

How do I register the handset to the base unit?

Place the handset on the base unit and press the REGISTRATION button on the base. The handset will automatically register within a few seconds.

Why is the handset battery not charging?

Ensure the handset is correctly placed on the charger with the contacts aligned. Try cleaning the contacts with a dry cloth. If the issue persists, replace the battery.

How can I increase the ringer volume?

Press the VOL up button on the side of the handset during standby mode. You can also adjust ringer volume in the menu under Sound Settings.

Can I use the handset with multiple base units?

Yes, the KX-TGA806FX can be registered with up to 4 base units. Each base must be registered separately via the base registration procedure.

How do I set the date and time?

Go to Menu > Settings > Date/Time. Enter the current date and time using the keypad, then press SAVE.

What is the range of the phone?

The phone operates on DECT 6.0 technology with a typical range of up to 50 meters indoors and 300 meters outdoors in open areas.

How do I block unwanted calls?

Press Menu > Call Block > Add. Enter the number to block and press SAVE. You can block up to 250 numbers.

Why is the handset not connecting to the base?

Make sure the base unit is powered on and the handset is within range. Try re-registering the handset. If the issue continues, reset both base and handset.

Can I transfer calls between handsets?

Yes, during a call press INTERCOM and select the target handset. The external call will be transferred when the other handset answers.

How to clean the phone properly?

Use a soft, dry cloth to wipe the handset and base. Do not use water, chemical cleaners, or abrasive materials as they may damage the device.

USER MANUAL KX-TGA806FX PANASONIC

TGA661FX(fx).book Page 1 Thursday, February 24, 2011 9:03 AM

Panasonic®

Installation Manual

Telepítési útmutató

Additional Digital Cordless Handset

Line drawing of a mobile phone with a stand (no text or symbols)

KX-TGA661

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 2 Thursday, February 24, 2011 9:03 AM

TGA661FX_cover.fm Page 3 Friday, February 25, 2011 10:51 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

3

TGA661FX(fx).book Page 4 Thursday, February 24, 2011 9:03 AM

English

PLEASE READ BEFORE USE AND SAVE

This unit is an additional handset compatible with the following series of Panasonic Digital Cordless Phone:

- KX-TG6611/KX-TG6621 (KX-TGA661)

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

You must register this handset with your base unit before it can be used. This installation manual describes only the steps needed to register and begin using the handset. Please read the base unit's operating instructions for further details.

Supplied accessories

Charger......1AC adaptor/PNLV226CE ...... 1	Rechargeable batteries*1......2
Belt clip (KX-TGA806/KX-TGA860)......1	Handset cover*2......1

*1 Please read the base unit's operating instructions for replacement battery information.

*2 The handset cover comes attached to the handset.

Note:

- Please read the base unit's operating instructions for additional/replacement accessories.

- Please read "General information" of the base unit's operating instructions for information regarding R&TTE Directive.

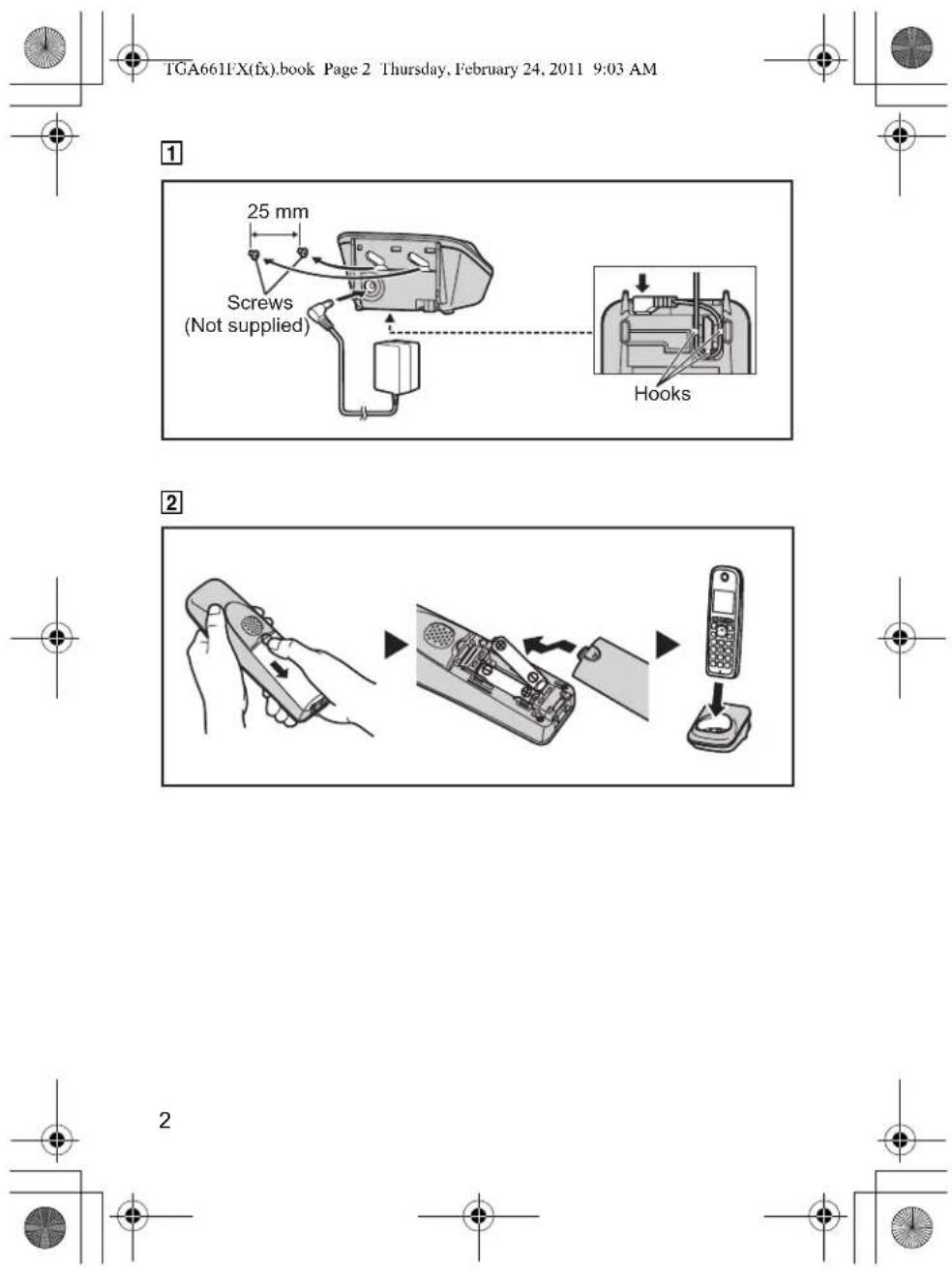

Connection/Wall mounting (page 2: 1)

• Use only the supplied Panasonic AC adaptor PNLV226CE.
• The AC adaptor must remain connected at all times. (It is normal for the adaptor to feel warm during use.)
• Make sure that the wall and the fixing method are strong enough to support the weight of the unit. (KX-TGA661/KX-TGA806)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

4

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 5 Thursday, February 24, 2011 9:03 AM

Battery installation/Battery charging (page 2: 2)

When the language selection is displayed after installing the batteries for the first time, you can select your desired language.

[◆]: Select your desired language. → OK → [→]

Important:

• Use the supplied rechargeable batteries. For replacement, we recommend using the Panasonic rechargeable batteries noted in the base unit's operating instructions.
• Wipe the battery ends (⊕, ⊖) with a dry cloth.
• Avoid touching the battery ends (⊕, ⊖) or the unit contacts.
• Confirm correct polarities (⊕, ⊖).
  • USE ONLY Ni-MH batteries AAA (R03) size.
• Do NOT use Alkaline/Manganese/Ni-Cd batteries.

Place the handset on the charger for about 7 hours before initial use.

Note:

• The handset display may show "Please wait for 1 minute." when the handset is placed on the charger if it is not registered to the base unit.
• If the batteries are fully charged, but the operating time seems to be shorter, clean the battery ends (⊕, ⊖) and the charge contacts with a dry cloth and charge again.

Display language

16 display languages are available.

You can select "Deut'sch", Zhgl'sh, "Magyar Polski "Slověnčina", "Češtiha Hřvatški Slovenščina Besti "Lietu'viškai", "Latviešu", "Română Býllarckni Srpski "Македрәски", Shqip

1 / (middle soft key) # 1 1 0

2 [◆]: Select your desired language.→ OK → [✗○]

5

TGA661FX(fx).book Page 6 Thursday, February 24, 2011 9:03 AM

Registering the handset to the base unit

Ensure that the handset is switched on. If it is not on, press and hold [✗] for few seconds to turn the handset on.

1 Handset:

Lift the handset and press [→].

2 Base unit:

Proceed with the operation for your model.

■ KX-TG6611/KX-TG8051/KX-TG8611

Press and hold [•••] for about 5 seconds. (No registration tone)

■ KX-TG6621/KX-TG8061

Press and hold [•••] for about 5 seconds, until the registration tone sounds.

- If all registered handsets start ringing, press [••] again to stop, then repeat this step.

3 Handset:

Place the handset on the base unit or charger.

Continue the operation even when the handset display shows

"Please wait for 1 minute."

4 With the handset still on the base unit or charger, wait until a confirmation tone sounds and Y is displayed.

Note:

• If an error tone sounds, or if Y is displayed, register the handset according to the base unit's operating instructions.
• The KX-TG6611/KX-TG8051/KX-TG8611 does not feature an answering system.
• Answering system features are available only when this handset is registered to the KX-TG6621/KX-TG8061.

For your safety

To prevent severe injury and loss of life/property, read this section carefully before using the product to ensure proper and safe operation of your product.

WARNING

Power connection

• Completely insert the AC adaptor/power plug into the power outlet. Failure to do so may cause electric shock and/or excessive heat resulting in a fire.
• Regularly remove any dust, etc. from the AC adaptor/power plug by pulling it from the power outlet, then wiping with a dry cloth. Accumulated dust may cause an insulation defect from moisture, etc. resulting in a fire.

6

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 7 Thursday, February 24, 2011 9:03 AM

- Unplug the product from power outlets if it emits smoke, an abnormal smell, or makes an unusual noise. These conditions can cause fire or electric shock. Confirm that smoke has stopped emitting and contact an authorised service centre.

Installation

• To prevent the risk of fire or electrical shock, do not expose the product to rain or any type of moisture.
• Do not place or use this product near automatically controlled devices such as automatic doors and fire alarms. Radio waves emitted from this product may cause such devices to malfunction resulting in an accident.

Operating safeguards

- The use of excessive sound volume through earphones, headphones, or headsets may cause hearing loss. (KX-TGA806/KX-TGA860)

CAUTION

Installation and location

- The AC adaptor is used as the main disconnect device. Ensure that the AC outlet is installed near the product and is easily accessible.

Battery

• We recommend using the supplied batteries or additional/replacement batteries noted in the base unit's operating instructions for replacement battery information. USE ONLY rechargeable Ni-MH batteries AAA (R03) size
• Do not mix old and new batteries.
• Do not open or mutilate the batteries. Released electrolyte from the batteries is corrosive and may cause burns or injury to the eyes or skin. The electrolyte is toxic and may be harmful if swallowed.
• Exercise care when handling the batteries. Do not allow conductive materials such as rings, bracelets, or keys to touch the batteries, otherwise a short circuit may cause the batteries and/or the conductive material to overheat and cause burns.
• Charge the batteries provided with or identified for use with this product only, in accordance with the instructions and limitations specified in this manual.
• Only use a compatible base unit (or charger) to charge the batteries. Do not tamper with the base unit (or charger). Failure to follow these instructions may cause the batteries to swell or explode.

Other information

• Operating the product near electrical appliances may cause interference. Move away from the electrical appliances.
• Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions.

Routine care

• Wipe the outer surface of the product with a soft moist cloth.
• Do not use benzine, thinner, or any abrasive powder.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

7

TGA661FX(fx).book Page 8 Thursday, February 24, 2011 9:03 AM

Notice for product disposal, transfer, or return

- This product can store your private/confidential information. To protect your privacy/confidentiality, we recommend that you erase information such as phonebook or caller list entries from the memory before you dispose of, transfer, or return the product.

Information for Users on Collection and Disposal of Old Equipment and used

Batteries

These symbols (①, ②, ③) on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national

legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols (①, ②, ③) are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol

This symbol (②) might be used in combination with a chemical symbol (③). In this case it complies with the requirement set by the Directive for the chemical involved.

8

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX_Magyar.fm Page 9 Friday, February 25, 2011 10:46 AM

Magyar

KÉRJÜK, HASZNÁLAT ELÖTT OLVASSA EL, ÉS ŐRIZZE MEG

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

9

TGA661FX_Magyar.fm Page 10 Friday, February 25, 2011 10:46 AM

Pure geometric diagram with intersecting lines and shapes, no text or symbols present

TGA661FX(fx).book Page 11 Thursday, February 24, 2011 9:03 AM

■ KX-TG6621/KX-TG8061

Pure geometric lines and crosshair symbols without any text or labels

TGA661FX(fx).book Page 12 Thursday, February 24, 2011 9:03 AM

FIGYELEM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 13 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

További információk

Pure geometric lines and shapes without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 14 Thursday, February 24, 2011 9:03 AM

TGA661FX(fx).book Page 15 Thursday, February 24, 2011 9:03 AM

Polski

PRZECZYTAJ PRZED ROZPOCZĘCIEM UŻYTKOWANIA I ZACHOWAJ NA PRŻYSZŁOŚĆ

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 16 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 17 Thursday, February 24, 2011 9:03 AM

1 Słuchawka:

■ KX-TG6621/KX-TG8061

TGA661FX(fx).book Page 18 Thursday, February 24, 2011 9:03 AM

Instalacja

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 19 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

19

TGA661FX(fx).book Page 20 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Slovenčina

PRED POUŽÍVANÍM SI PREČÍTAJTE TIETO INFORMÁCIE A USCHOVAJTE SI ICH

Toto zariadenie je doplnkovou prenosnou jednotkou kompatibilnou

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 21 Thursday, February 24, 2011 9:03 AM

TGA661FX(fx).book Page 22 Thursday, February 24, 2011 9:03 AM

■ KX-TG6621/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 23 Thursday, February 24, 2011 9:03 AM

Pure geometric lines and shapes without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 24 Thursday, February 24, 2011 9:03 AM

Bežná starostlivost'

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 25 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Čeština

PŘED POUŽITÍM SI PŘEČTĚTE A ULOŽTE

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric lines and shapes without any text, numbers, or symbols

25

TGA661FX(fx).book Page 26 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 27 Thursday, February 24, 2011 9:03 AM

2 Základna:

■ KX-TG6621/KX-TG8061

TGA661FX(fx).book Page 28 Thursday, February 24, 2011 9:03 AM

Instalace

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 29 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

29

TGA661FX(fx).book Page 30 Thursday, February 24, 2011 9:03 AM

Hrvatski

MOLIMO PROČITAJTE PRIJE UPOTREBE I SPREMITE

Ovaj uređaj je dodatna slušalica kompatibilna sa sljedećom serijom

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 31 Thursday, February 24, 2011 9:03 AM

Umetanje baterija/punjenje baterija (stranica 2: 2)

Kad se prilikom prvog umetanja baterija prikaže odabir jezika, možete odabrati željeni jezik.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

31

TGA661FX(fx).book Page 32 Thursday, February 24, 2011 9:03 AM

Registriranje slušalice na baznu stanicu

■ KX-TG6621/KX-TG8061

Pritisnite i zadržite [•••] otprilike 5 sekundi sve dok se ne začuje registracijski ton.

- Ako zazvone sve registrirane slušalice, ponovno pritisnite [•••] da zaustavite zvonjenje, potom ponovite ovaj korak.

3 Slušalica:

Postavite slušalicu na baznu stanicu ili punjač.

- Nastavite s ovim postupkom čak i kad se na slušalici prikaže "Pričekajte 1 minutu."

4 Dok je slušalica na baznoj stanici ili punjaču, pričekajte da se pojavi ton za potvrdu i prikaže se ♦.

Napomena:

• Ako se pojavi ton pogreške ili ako se prikaže ¥, registrirajte slušalicu prema uputama za rukovanje baznom stanicom.
• Na modelu KX-TG6611/KX-TG8051/KX-TG8611 ne postoji telefonska tajnica.
• Značajke telefonske tajnice dostupne su samo kad je ova slušalica registrirana na KX-TG6621/KX-TG8061.

Za Vašu sigurnost

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 33 Thursday, February 24, 2011 9:03 AM

- Izvucite uređaj iz utičnice ako se pojavi dim, neuobičajen miris ili neobičan zvuk. Ovi uvjeti mogu izazvati požar ili strujni udar. Potvrdite da više nema dima i obratite se ovlaštenom servisnom centru.

Instalacija

• Kako biste spriječili požar ili strujni udar, ne izlažite proizvod kiši ili vlazi.
• Ne postavljajte ni ne koristite ovaj proizvod u blizini uređaja s automatskim upravljanjem, poput automatskih vratiju i protupožarnih alarma. Radijski valovi koje odašilje ovaj proizvod mogu prouzročiti kvarove na takvim uređajima, što može dovesti do nesreće.

Mjere zaštite

- Pretjerana glasnoća zvuka iz ušnih, standardnih ili naglavnih slušalica može prouzročiti oštećenje sluha. (KX-TGA806/KX-TGA860)

OPREZ

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 34 Thursday, February 24, 2011 9:03 AM

TGA661FX(fx).book Page 35 Thursday, February 24, 2011 9:03 AM

Slovenščina

PRED UPORABO NAVODILA PREBERITE IN JIH SHRANITE

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 36 Thursday, February 24, 2011 9:03 AM

Namestitev baterije/Polnjenje baterije (stran 2: 2)

Pure geometric diagram with intersecting lines and a central circle, no text or symbols present

TGA661FX(fx).book Page 37 Thursday, February 24, 2011 9:03 AM

Registriranje slušalke na osnovno enoto

■ KX-TG6621/KX-TG8061

TGA661FX(fx).book Page 38 Thursday, February 24, 2011 9:03 AM

Namestitev

Pure geometric diagram with intersecting lines and circles, no text or symbols present

38

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 39 Thursday, February 24, 2011 9:03 AM

Informacije za uporabnike glede zbiranja in odstranjevanja starih naprav in rabljenih baterij

Pure geometric diagram with intersecting lines and circles, no text or symbols present

39

TGA661FX(fx).book Page 40 Thursday, February 24, 2011 9:03 AM

Română

VĂ RUGĂM SĂ CITIȚI ÎNAINTE DE A UTILIZA ȘI SALVA

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric lines and shapes without any text, numbers, or symbols

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 41 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

41

TGA661FX(fx).book Page 42 Thursday, February 24, 2011 9:03 AM

■ KX-TG6621/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 43 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 44 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 45 Thursday, February 24, 2011 9:03 AM

Български

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 46 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

46

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 47 Thursday, February 24, 2011 9:03 AM

■ KX-TG6621/KX-TG8061

TGA661FX(fx).book Page 48 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 49 Thursday, February 24, 2011 9:03 AM

Pure geometric lines and shapes without any text, numbers, or symbols

49

TGA661FX(fx).book Page 50 Thursday, February 24, 2011 9:03 AM

Srpski

MOLIMO VAS DA PRE UPOTREBE PROČITATE I SAČUVATE OVAJ PRIRUČNIK

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pre upotrebe, slušalicu morate registrovati u baznoj jedinici. U ovom priručniku za instalaciju opisani su samo koraci neophodni za registrovanje i početak upotrebe slušalice. Molimo vas da detaljnije informacije potražite u uputstvu za upotrebu bazne jedinice.

Isporučena dodatna oprema

Punjač......1Adapter za naizmeničnu struju/PNLV226CE......1	Punjive baterije*1......2
Kopča na pojasu (KX-TGA806/KX-TGA860)......1	Poklopac slušalice*2......1

*1 Molimo vas da informacije o načinu zamene baterija potražite u uputstvu za upotrebu bazne jedinice.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 51 Thursday, February 24, 2011 9:03 AM

Instalacija baterija/punjenje baterija (strana 2: 2)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

51

TGA661FX(fx).book Page 52 Thursday, February 24, 2011 9:03 AM

■ KX-TG6621/KX-TG8061

Pritisnite i držite [•••] oko 5 sekundi, dok se iz slušalice ne začuje zvučni signal registracije.

- Ako sve registrovane slušalice počnu da zvone, pritisnite [•••] ponovo kako bi prestale a zatim ponovite ovaj korak.

3 Slušalica:

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 53 Thursday, February 24, 2011 9:03 AM

- Isključite uređaj iz izvora napajanja ako iz njega počne da izbija dim ili neuobičajen miris, ili ako se iz njega začuju neobični zvukovi. Pod ovakvim uslovima može doći do požara ili električnog udara. Kada se uverite da uređaj više ne emituje dim, obratite se ovlašćenom servisnom centru.

Instalacija

• Da biste sprečili rizik od požara ili električnog udara, ovaj proizvod nemojte izlagati kiši ili bilo kojoj vrsti vlage.
• Ovaj proizvod nemojte postavljati, niti ga koristiti u blizini automatski kontrolisanih uređaja, kao što su automatska vrata ili protivpožarni alarmi. Radio talasi koje ovaj proizvod emituje mogu prouzrokovati kvar pomenutih uređaja i dovesti do nezgode.

Radni štitnici

- Upotreba prekomerne jačine zvuka u ušnim, standardnim ili naglavnim slušalicama može dovesti do gubitka sluha. (KX-TGA806/KX-TGA860)

PAŽNJA

Mesto ugradnje

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 54 Thursday, February 24, 2011 9:03 AM

• Nemojte koristiti benzin, razređivač, niti ma koju vrstu abrazivnog praška.
  Napomena u vezi sa odlaganjem, transportom ili povraćajem proizvoda
• U ovom proizvodu mogu biti sačuvani vaši privatni/poverljivi podaci. Da biste sačuvali svoju privatnost/tajnost, preporučujemo vam da iz memorije izbrišete informacije poput fejonskog imenika ili liste poziva, pre nego što ovaj proizvod odbacite, transportujete, ili ga vratite prodavcu.

Informacija za korisnike u vezi sa prikupljanjem i odlaganjem zastarele opreme i iskorišćenih baterija

Ovi simboli (①, ②, ③) na proizvodima, ambalaži i/ili pratećoj dokumentaciji, ukazuju da se radi o električnim ili elektronskim uređajima koje, nakon što rešite da ih odbacile, ne bi trebalo mešati sa uobičajenim otpadom iz domaćinstva. Radi pravilnog tretmana, obnavljanja i reciklaže starih proizvoda i iskorišćenih baterija, molimo vas da ih odnesete do

najbližeg sabirnog centra, u skladu sa vašim nacionalnim propisima i direktivama broj 2002/96/EC i 2006/66/EC.

Pravilnim odlaganjem ovih proizvoda i baterija doprinećete očuvanju dragocenih resursa i sprečiti sve moguće negativne efekte na zdravlje ljudi i životnu sredinu koji bi, u suprotnom, mogli nastati usled neprikladnog rukovanja otpadom.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 55 Thursday, February 24, 2011 9:03 AM

Македонски

ПРОЧИТАЈТЕ ГО ПРЕД УПОТРЕБА И ЧУВАЈТЕ ГО

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 56 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 57 Thursday, February 24, 2011 9:03 AM

■ KX-TG6621/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 58 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 59 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

59

TGA661FX(fx).book Page 60 Thursday, February 24, 2011 9:03 AM

Shqip

JU LUTEMI LEXOJENI PËRPARA PËRDORIMIT DHE RUAJENI

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 61 Thursday, February 24, 2011 9:03 AM

TGA661FX(fx).book Page 62 Thursday, February 24, 2011 9:03 AM

■ KX-TG6621/KX-TG8061

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 63 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 64 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Kujdesi | zakontë

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 65 Thursday, February 24, 2011 9:03 AM

Bosanski

PROČITAJTE PRIJE UPOTREBE I SAČUVAJTE

Ovaj uređaj je dodatna slušalica kompatibilna sa slijedećim serijama digitalnih bežičnih telefona marke Panasonic:

- KX-TG6611/KX-TG6621 (KX-TGA661)

- KX-TG8051/KX-TG8061 (KX-TGA806)

- KX-TG8611 (KX-TGA860)

Prije nego je počnete koristiti, slušalicu morate registrirati u baznoj jedinici. Ovaj priručnik za instalaciju opisuje samo postupke vezane za registriranje i početak korištenja slušalice. Za detaljnije informacije pročitajte uputstvo za upotrebu bazne jedinice.

Priloženi pribor

Punjač......1Ispravljač naizmjenične struje/PNLV226CE......1	Punjive baterije*1......2
Kopča za kaiš (KX-TGA806/KX-TGA860)......1	Poklopac slušalice*2......1

*1 Za informacije o zamjeni baterija, pročitajte uputstvo za upotrebu bazne jedinice.
*2 Poklopac slušalice pričvršćen je na slušalicu.

Napomena:

• Za informacije o dodatnoj ili zamjenskoj pomoćnoj opremi, pročitajte uputstvo za upotrebu bazne jedinice.
• Za informacije u vezi s R&TTE direktivom pročitajte "Opće napomene" u uputama za upotrebu bazne jedinice.

Povezivanje/Montaža na zid (strana 2: 1)

• Koristite isključivo priloženi ispravljač naizmjenične struje Panasonic PNLV226CE.
• Ispravljač naizmjenične struje mora uvijek biti priključen. (Normalno je da se ispravljač zagrije tokom upotrebe.)
• Provjerite da li su zid i način pričvršćivanja dovoljno jaki da nose težinu uređaja. (KX-TGA661/KX-TGA806)

65

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 66 Thursday, February 24, 2011 9:03 AM

Umetanje baterija/Punjenje baterija (strana 2: 2)

Kada se prikaz za odabir jezika prikaže nakon prvog umetanja baterija, možete odabrati željeni jezik.

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 67 Thursday, February 24, 2011 9:03 AM

Pure geometric lines and crosshair symbols without any text or labels

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 68 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 69 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

69

TGA661FX(fx).book Page 70 Thursday, February 24, 2011 9:03 AM

Declaration of Conformity:

- Panasonic System Networks Co., Ltd. declares that this equipment is in compliance with the essential requirements and other relevant provisions of Radio & Telecommunications Terminal Equipment (R&TTE) Directive 1999/5/EC. Declarations of Conformity for the relevant Panasonic products described in this manual are available for download by visiting: http://www.doc.panasonic.de

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 71 Thursday, February 24, 2011 9:03 AM

Izjava o sukladnosti:

- Panasonic System Networks Co., Ltd. izjavljuje da je ovaj uređaj u u sukladnosti s osnovnim zahtjevima i drugim relevantnim propisima Direktive o radijskoj i telekomunikacijskoj terminalnoj opremi (R&TTE) 1999/5/EC. Izjave o sukladnosti za relevantne Panasonic proizvode opisane u ovim uputama mogu se preuzeti na sljedećoj adresi: http://www.doc.panasonic.de

Izjava o skladnosti:

Pure geometric lines and shapes without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

71

TGA661FX(fx).book Page 72 Thursday, February 24, 2011 9:03 AM

Pure geometric diagram with intersecting lines and circles, no text or symbols present

72

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 73 Thursday, February 24, 2011 9:03 AM

Izjava o sukladnosti od strane/Izjava o skladnosti/Формуляр на декларация за съответствие

Panasonic

Panasonic Systems Networks Co., Ltd.

142, 6-chome, Mincebana, Hamaia-ku, Fukosha 813-8531 Japan

Declaration of Conformity 017638 Document No. PCTP-100065-11

(Issuer's name & address)

Pattasonic System Networks Co., Ltd.

(Object of the deviation)

(Product) Digital Enhanced Cordless Telephone

Credit Narrow : Fairway

(Country of Origin) China

the object of the declaration described above is in conformity with the requirements of the following EU legislations and harmonized standards:

(Council Directive) 1998SEC < B>

(Council recommendation) 1998/1999

(Normunized Standards) EN 4099-1:2008+A11:2008, EN 301:406 V2...1 < C> EN 301:406 L/7 A.1, EN 301:405-6 V1.3.1

EN 501-4892, EN 501-4893, EN 501-4894, EN 501-4895, EN 501-4896, EN 501-4897, EN 501-4898, EN 501-4899, EN 501-489A, EN 501-489B, EN 501-489C, EN 501-489D, EN 501-489E, EN 501-489F, EN 501-489G, EN 501-489H, EN 501-489I, EN 501-489J, EN 501-489K, EN 501-489L, EN 501-489M, EN 501-489N, EN 501-489O, EN 501-489P, EN 501-489Q, EN 501-489R, EN 501-489S, EN 501-489T, EN 501-489U, EN 501-489V, EN 501-489W, EN 501-489X, EN 501-489Y, EN 501-489Z

(Council directive) 2008

Implementing Measures for E&P Directline: Commission Regulation (EC) No.2762009

The last two digits of the year in which the CE marking was affixed the first time. 30.

signed for and on behalf of

Authorised Representative in EU:

Panasonic Tasting Centre

Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, Germany

（一）本次股东大会的召集和召开程序

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

TGA661FX(fx).book Page 74 Thursday, February 24, 2011 9:03 AM

Izjava o sukladnosti od strane/Izjava o skladnosti/Формуляр на декларация за съответствие

Panasonic

Pure geometric diagram with intersecting lines and circles, no text or symbols present

TGA661FX(fx).book Page 75 Thursday, February 24, 2011 9:03 AM

Sales department/Értékesítési osztály/Dział sprzedaży/Obchodné zastúpenie/Obchodní zastoupení/Odjel prodaje/Prodajni oddelek/Departamentul de vânzári/Отдел „Продажби“/Odeljenje prodaje/Oддел за продажба/Departamenti i shitjeve/Prodajni odjel

■ Magyarország

Panasonic Marketing Europe GmbH

South-East Europe Fióktelep

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure geometric diagram with intersecting lines and circles, no text or symbols present

75

TGA661FX(fx).book Page 76 Thursday, February 24, 2011 9:03 AM

■ Česká republika

Bucureşti, 062204, Romania

Telefon: [phone]

Fax: [phone]

e-mail: [e-mail]

web: www.panasonic.ro

76

TGA661FX(fx).book Page 77 Thursday, February 24, 2011 9:03 AM

(For Czech and Slovakia)

This cordless telephone is possible to use according to General licence No.: VO-R/8/08.2005-23 (for Czech), VPR-7/2001 (for Slovakia).

(Pro Českou republiku a Slovensko)

Pure geometric diagram with intersecting lines and circles, no text or symbols present

Pure electrical circuit lines without any symbols

77

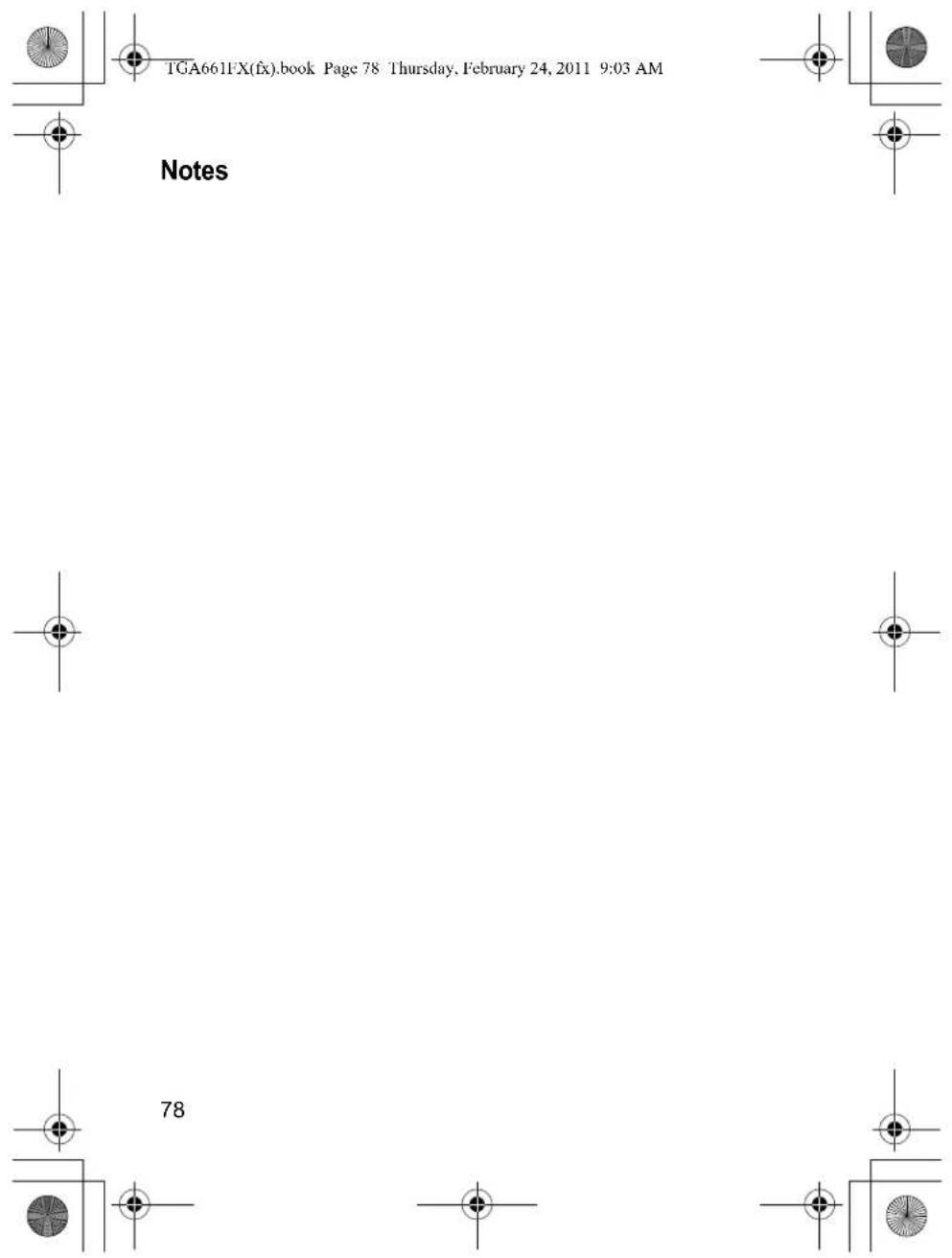

TGA661FX(fx).book Page 78 Thursday, February 24, 2011 9:03 AM

TGA661FX(fx).book Page 79 Thursday, February 24, 2011 9:03 AM

TGA661FX(fx).book Page 80 Thursday, February 24, 2011 9:03 AM

KX-TGA661FX/KX-TGA806FX:

C€0470

• The release of KX-TGA860FX is scheduled for summer 2011.
• A KX-TGA860FX típusú készülék várhatóan 2011. nyarán kerül a boltokba.
• Wprowadzenie modelu KX-TGA860FX zaplanowano na lato 2011
- Model KX-TGA860FX sa plánuje uviesť do predaja v roku 2011 v lete.
• Uvedení modelu KX-TGA860FX je plánováno na léto 2011
- Pojavljivanje modela KX-TGA860FX na tržištu planirano je za 2011.
- Objava KX-TGA860FX je predvidena za poletje 2011.
• Lansarea modelului KX-TGA860FX este programată pentru vara lui 2011.
• Пускането на пазара на КХ-ТGA860FX е насрочено за лятото на 2011 г
- Pojavljivanje modela KX-TGA860FX na tržištu planirano je na leto 2011. godine.
- Пуштањето на КХ-ТGA860FX е планирано за лето 2011.
- Publikimi i KX-TGA860FX është planifikuar për verën e 2011-ës.
- Pojavljivanje KX-TGA860FX na tržištu je planirano za ljeto 2011.

Panasonic System Networks Co., Ltd.

1-62, 4-chome, Minoshima, Hakata-ku, Fukuoka 812-8531, Japan

© Panasonic System Networks Co., Ltd. 2011

*TGA661FX*

PNQX3286ZA TC0311YK0 (A)

FX-2/2

Pure geometric diagram with intersecting lines and circles, no text or symbols present
