| Product Type | Roof Box |
| Brand | G3 |
| Model | Spark 520 |
| Capacity | 520 liters |
| External Dimensions (L x W x H) | 190 x 85 x 45 cm |
| Weight | 18 kg |
| Material | ABS Plastic |
| Color | Black |
| Locking System | Central locking with key |
| Mounting Type | Roof bars |
| Maximum Load | 75 kg |
| Aerodynamic Design | Yes |
| Warranty | 2 years |
| Maintenance & Cleaning | Clean with mild soap and water |
| Safety Certification | TÜV certified |
| Spare Parts Available | Keys, locks, mounting hardware |
Frequently Asked Questions - Spark 520 G3
What is the weight capacity of the G3 Spark 520 roof box?
The maximum load capacity is 75 kg, including the weight of items placed inside.
How do I install the roof box on my car?
Mount the roof box onto your vehicle's roof bars using the provided clamps. Ensure the box is centered and tighten the clamps securely. Always check the mounting instructions in the manual.
Does the roof box affect fuel economy?
Yes, adding a roof box increases aerodynamic drag, which can raise fuel consumption by 10-20% at highway speeds. Driving with an empty box removed is recommended.
Is the G3 Spark 520 lockable?
Yes, it features a central locking system with a key. Always lock the box before driving to prevent theft and accidental opening.
Can I use the roof box in winter?
Yes, but ensure the box is not overloaded with snow or ice. The box material is durable, but avoid driving through automatic car washes with extreme brushes.
How do I clean and maintain the roof box?
Clean with mild soap and water. Avoid abrasive cleaners. Regularly check the locks and hinges for smooth operation. Store in a dry place when not in use.
What dimensions does the roof box have?
The external dimensions are approximately 190 cm length, 85 cm width, and 45 cm height. Always measure your vehicle's roof bars to ensure proper fit.
Is the roof box compatible with all roof bars?
It is designed to fit most standard roof bars. However, check the cross-section shape (round, square, or aerodynamic) and adjust the clamps accordingly. Consider purchasing adapter kits if needed.
Can I open the roof box from both sides?
The G3 Spark 520 typically opens from one side (rear). Check your specific model; some versions may have dual-side opening. Refer to the manual for exact operation.
What spare parts are available?
Spare parts include replacement keys, locks, and mounting clamps. Contact G3 customer service or authorized dealers for ordering.
User questions about Spark 520 G3
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Roof box in PDF format for free! Find your manual Spark 520 - G3 and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Spark 520 by G3.
USER MANUAL Spark 520 G3
FIXING KIT - 1 (cod. K9.009)
-1-
piega
piega
| DUAL SIDE | |||
| SPARK 320 | 7 kg / 15.43 lbs 50 kg / 110.23 lbs | ||
| SPARK 400 | 10 kg / 22.04 lbs 75 kg / 165.34 lbs | • | |
| SPARK 420 | 12 kg / 26.45 lbs 75 kg / 165.34 lbs | • | |
| SPARK 480 | 13 kg / 28.66 lbs 75 kg / 165.34 lbs | • | |
| SPARK 520 all versions | 16.4 kg / 36.15 lbs 75 kg / 165.34 lbs | • | |
| SPARK.ECO 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| SPARK.ECO 400 | 10 kg / 22.04 lbs 75 kg / 165.34 lbs | ||
| SPARK.ECO 480 | 13 kg / 28.66 lbs 75 kg / 165.34 lbs | ||
| SPARK.ECO 520 | 16 kg / 35.27 lbs 75 kg / 165.34 lbs | ||
| ABSOLUTE 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| ABSOLUTE 400 | 11 kg / 24.25 lbs 75 kg / 165.34 lbs | • | |
| ABSOLUTE 480 | 13 kg / 28.66 lbs 75 kg / 165.34 lbs | • | |
| ALL-TIME 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| ALL-TIME 400 | 11 kg / 24.25 lbs 75 kg / 165.34 lbs | ||
| ALL-TIME 480 | 13 kg / 28.66 lbs 75 kg / 165.34 lbs | ||
| REEF 270 | 6.5 kg / 14.33 lbs 50 kg / 110.23 lbs | ||
| REEF 390 | 10.5 kg / 23.14 lbs 75 kg / 165.34 lbs | • | |
| REEF 580 | 16 kg / 35.27 lbs 75 kg / 165.34 lbs | • | |
| HELIOS 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| HELIOS 400 all versions | 10 kg / 22.04 lbs 75 kg / 165.34 lbs | • | |
| HELIOS 480 all versions | 13 kg / 28.66 lbs 75 kg / 165.34 lbs | • | |
| KRONO 320 all versions | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| KRONO 400 | 10 kg / 22.04 lbs 75 kg / 165.34 lbs | ||
| KRONO 480 | 13 kg / 28.66 lbs 75 kg / 165.34 lbs | ||
| ARJES 280 | 9 kg / 19.84 lbs 50 kg / 110.23 lbs | ||
| ARJES 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| ARJES 480 | 13.5 kg / 29.76 lbs 75 kg / 165.34 lbs | • | |
| HYDRA 280 | 9 kg / 19.84 lbs 50 kg / 110.23 lbs | ||
| HYDRA 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| HYDRA 480 | 13.5 kg / 29.76 lbs 75 kg / 165.34 lbs | ||
| PEGASO 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| PEGASO 340 | 10 kg / 22.04 lbs 75 kg / 165.34 lbs | • | |
| PEGASO 450 | 13.5 kg / 29.76 lbs 75 kg / 165.34 lbs | • | |
| SIRIO 320 | 7.5 kg / 16.53 lbs 50 kg / 110.23 lbs | ||
| SIRIO 340 | 10 kg / 22.04 lbs 75 kg / 165.34 lbs | ||
| SIRIO 450 | 13.5 kg / 29.76 lbs 75 kg / 165.34 lbs | ||
| CARGO 3 | 10.5 kg / 23.14 lbs 75 kg / 165.34 lbs | ||
| CARGO 4 | 11 kg / 24.25 lbs 75 kg / 165.34 lbs | ||
| CARGO 5 | 12.5 kg / 27.55 lbs 75 kg / 165.34 lbs | ||
| CARGO 6 | 16 kg / 35.27 lbs 75 kg / 165.34 lbs |
-2-
piega
3

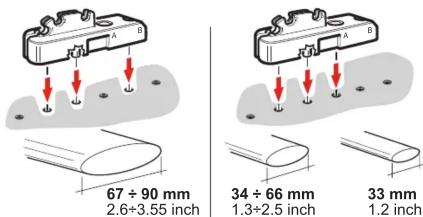

4A
FIXING KIT - 1
-3
piega
4B
FIXING KIT - 2
piega
