Product Type	Bag vacuum cleaner
Brand	Hyundai
Model	VC 004 B
Input Power	1200 W
Power Supply	230 V ~ 50 Hz
Dust Bag Volume	2 L
Net Weight	4.3 kg
Dimensions (W x D x H)	32 x 20.5 x 23.5 cm
Cord Length	8 m (radius)
Motor Protection Filter	Washable and reusable
Outlet Air Filter	Washable and reusable
Filtration System	Motor protection filter + outlet air filter
Suction Power Control	Electronic regulation via knob on handle and on body
Dust Bag Full Indicator	Yes
Cord Rewind	Automatic with foot pedal
Motor Thermostat	Automatic shutdown on overheating
Accessories Included	Universal floor nozzle with telescopic brush, crevice nozzle, brush, metal telescopic tube
Nozzle Features	Floor nozzle with 360° joint and brush switch for carpets/hard floors
Safety Features	Do not immerse in water; keep away from children; use original parts only
Usage Environment	Household, indoor only

Frequently Asked Questions - VC 004 B HYUNDAI

How do I change the dust bag in my Hyundai VC 004 B vacuum cleaner?

Open the front cover, remove the dust filter bag holder (dust bag not included), clean or replace the cloth/paper bag, reinsert the holder, and close the cover until it clicks.

Why is my vacuum cleaner not working?

Check if the plug is properly inserted and the power socket works. Ensure the thermostat hasn't tripped (overheating protection). Also verify the dust bag is correctly positioned and the front cover is closed.

How do I clean the motor protection filter?

Remove the dust bag, take out the inlet air filter piece (Fig. 4), rinse under cold water, gently pat dry, and let it air dry in the shade before reinstalling.

How do I clean the outlet air filter?

Open the exhaust grille at the rear (Fig. 5), remove the filter (Fig. 6), rinse under cold water, allow to dry completely, then reinsert and close the grille.

What should I do if the suction power is weak?

Check if the secondary valve is closed, inspect the hose and nozzles for blockages, and ensure filters are properly installed and not clogged. Replace the dust bag if full.

How do I rewind the power cord?

Press the cord rewind foot switch (P7). If the cord is tangled, gently untangle it, pull out 1-2 meters, then press the button again.

What accessories come with the Hyundai VC 004 B?

The vacuum includes a universal floor nozzle with telescopic brush, a crevice nozzle, a brush, and a metal telescopic tube.

Can I use the vacuum cleaner to pick up water or wet debris?

No, do not vacuum wet or moist materials. Moisture can damage the motor and voids the warranty. This vacuum is for dry use only.

How do I adjust the suction power?

Use the sliding control on the handle to regulate suction. Additionally, the power control knob (P9) on the body offers low, medium, and high settings for different floor types.

What is the motor thermostat protection?

If the vacuum overheats, the thermostat automatically shuts it off. Unplug, allow to cool for 45 minutes, check and clean filters/bag, then restart.

USER MANUAL VC 004 B HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

PODLAHOVÝ VYSAVAČ / PODLAHOVÝ VYSÁVAČ ODKURZACZ PODŁOGOWY / VACUUM CLEANER HÁZTARTÁSI PORSZÍVÓ

CE

CZ I. VŠEOBECNÉ BEZPEČNOSTNÍ POKYNY 3

II. POPIS OVLÁDACÍCH PRVKŮ 5

III. POKYNY K POUŽITÍ 6

IV. OVLÁDÁNÍ 7

V. ČIŠTENÍ A ÚDRŽBA 8

VI. ODSTRAŇOVÁNÍ PORUCH 10

VII. TECHNICKÁ SPECIFIKACE 12

VIII. LEGISLATIVA A EKOLOGIE 12

SK I. BEZPEČNOSTNÉ POKYNY 13

II. POPIS OVLÁDACÍCH PRVKŮ 15

III. POKYNY K POUŽITIU 17

IV. OVLÁDANIE 18

V. ČISTENIE A ÚDRŽBA 19

VI. ODSTRAŇOVANIE PORÚCH 20

VII. TECHNICKÁ ŠPECIFIKÁCIE 21

VIII. LEGISLATÍVA A EKOLÓGIA 21

PL I. OGÓLNE INSTRUKCJE BEZPIECZEŃSTWA 23

II. OPIS ELEMENTÓW ODKURZACZA 25

III. INSTRUKCJA OBSŁUGI 28

IV. DZIAŁANIE 28

V. CZYSZCZENIE I KONSERWACJA 29

VI. USUWANIE USTEREK 31

VII. SPECYFIKACJA TECHNICZNA 32

VIII. PRAWODAWSTWO I EKOLOGIA 32

EN I. GENERAL SAFETY INSTRUCTIONS 33

II. DESCRIPTION OF THE CONTROLS 35

III. INSTRUCTIN FOR USE 37

IV. OPERATION 38

V. CLEANING AND MAINTENANCE 39

VI. TROUBLE-SHOOTING 40

VII. TECHNICAL SPECIFICATIONS 41

VIII. LEGISLATIVE & ECOLOGY 41

HU I. ÁLTALÁNOS BIZTONSÁGI UTASÍTÁSOK 43

II. A KÉSZÜLÉK ELEMEINEK LEÍRÁSA 45

Odpojení hadice

IV. OVLÁDÁNÍ

Regulace výkonu

Obr. 1 Obr. 2

Obr. 4

Výstupní filtr

Obr. 5 Obr. 6

VI. ODSTRAŇOVÁNÍ PORUCH

Odpojenie hadice

Regulácia výkonu

Obr.1 Obr.2

Obr.4

Výstupní filtr

Obr.5 Obr.6

VI. ODSTRAŇOVANIE PORÚCH

Ssawka szczotkowa

Odłączanie węża

Regulacja mocy

Obr. 1 Obr. 2

Rys. 4

Rys.5 Rys.6

VI. USUWANIE USTEREK

VIII. PRAWODAWSTWO I EKOLOGIA

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. GENERAL SAFETY INSTRUCTIONS

• Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
• Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.
• After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.
• The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• Do not put the suction nozzle or the tube end or accessories close to eyes and ears and do not insert them into body orifices!
• Never use the vacuum cleaner with wet hands or feet!

- When you vacuum a staircase, never leave the vacuum cleaner higher than you stand yourself!

- Never leave the product unattended when in operation!

- Never immerse the vacuum cleaner into water (even its parts)!

- Never vacuum without a properly inserted filtration system and micro-filters.

- It is not allowed to modify the surface of the appliance in any way (e.g. using a selfadhesive wallpaper, foils, etc.)!

- Do not place any objects on the appliance.

- If the appliance was stored in lower temperatures, acclimatize it first.

- Before you start using the vacuum cleaner, please check that all the locking mechanisms are in the right position.

- Do not vacuum wet or moist floor coverings, do not use the vacuum cleaner for outdoor areas! When moisture gets into the aggregate, there is a risk of its damage and disabling it. This defect is not covered by the warranty.

- Vacuum cleaning of some carpet types may result in generating static electricity. No static electricity discharge is dangerous to health.

- Do not vacuum sharp objects (e.g. glass, shatter), hot, flammable, explosive items (e.g. ash, hot cigarette butts, gasoline, thinners and aerosol vapours) or greases (e.g. fats, oils), caustic agents (e.g. acids, solvents). Vacuuming these objects may lead to damage of the dust filters or the vacuum cleaner.

- Do not put fingers or other things to input and output vents of the appliance. If the vents/elements for air flow are clogged (e.g. the hose), turn the appliance off and remove the clogging.

- When handling, do not pull the hose applying excessive force and avoid rough handling of the vacuum cleaner!

– The vacuum cleaner is not suitable for vacuuming substances that can harm human health.

- Pores of the dust filter may be clogged when vacuum cleaning very fine dust. Thus, air permeability will be reduced and the suction performance will decrease. In this case the dust filter must be changed and clean micro-filters, even if the dust filter is not full yet. Do not use the vacuum cleaner to vacuum dirt produced during/after construction such as plasterboard dust, fine sand, cement, dust from construction, parts of plaster etc. If this dirt / loose construction materials / loose construction materials into the aggregate, it poses a danger of damage. The warranty repair does not cover this.

- Never leave the vacuum cleaner exposed to weather conditions (rain, frost, direct sun radiation, etc.).

- The power cord is marked with colour codes. The yellow strip indicates the ideal cord length, the red strip indicates the maximum cord length. Do not apply force to unwind the cord beyond the red mark.

- Do not run over the power supply cord when using the vacuum cleaner and do not unplug it from the socket by pulling the power cord.

- When winding the cord, hold the plug to prevent lashing of the cord around and to prevent possible injury.

- The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.

- If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.

- Check the condition of the power cord of the appliance regularly.

- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.

- Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

- The pictures are only illustrative, the supplied accessory and cleaner may differ.

- All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.

- The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with. Failure to replace or maintain all filters regularly according to the instructions and also using non-original filters, the properties of which resulted in failure or damage of the vacuum cleaner, is also understood to be improper use of the appliance.

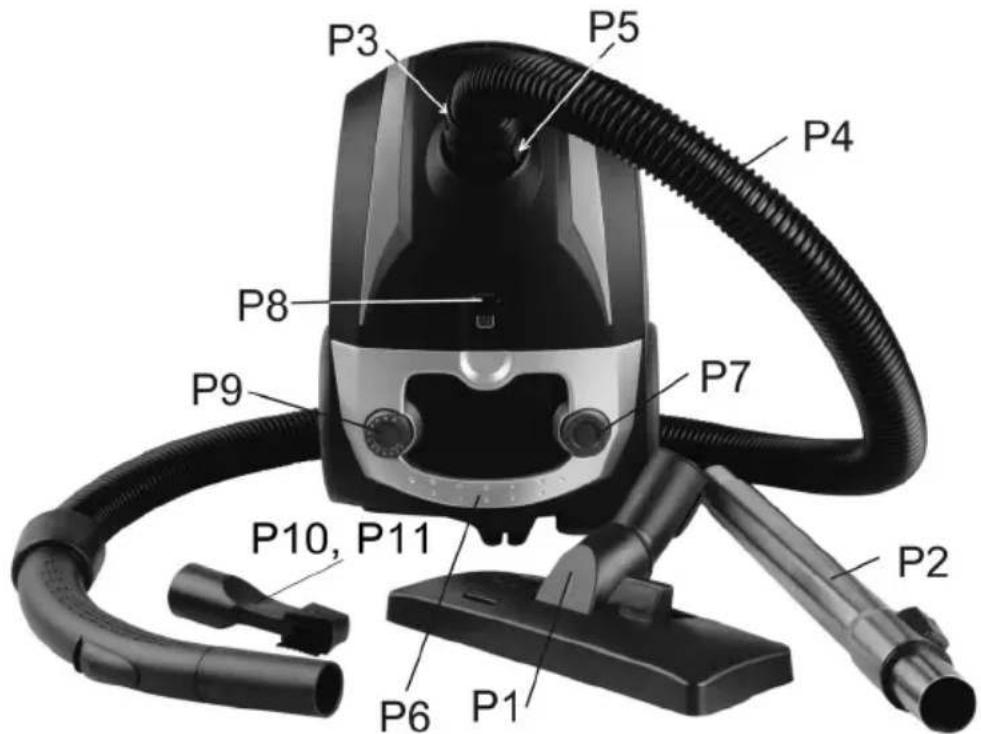

II. DESCRIPTION OF THE CONTROLS

P1 Floor nozzle

P2 Telescopic tube

P3 Suction hose connection

P4 Suction hose

P5 Hose grip button

P6 Carrying handle

P7 Cord rewind foot switch

P8 Full dust bag indicator

P9 ON/OFF switch power control + power control

P10 Brush

P11 Crevice nozzle

ACCESSORIES

Your vacuum cleaner comes equipped with three attachments intended for different applications. Each individual attachment can either be fitted onto the telescopic tube or directly onto the handle of the suction hose, as required.

Floor nozzle

You will probably work most frequently with the floor nozzle. This is suitable for cleaning wide areas. The floor nozzle is fitted with a practical 360° joint. This ensures that you can reach easily into any corner.

- Clean carpets and wall-to-wall carpets without using the brush. Press the tip switch marked with the carpet symbol and the brush is raised.

- Smooth floors such as PVC, parquet or tiles are best cleaned and cared for suing the brush. To do so press the tip switch with the symbol for smooth floors and the brush will come out.

Brush and crevice nozzle

Brush nozzle can use this to clean the dust from books or sensitive objects such as picture frames etc.

Nozzle crevice is suitable for sucking clean the folds in cloth, joint cracks and corners or niches that cannot be reached with the floor nozzle.

III. INSTRUCTIN FOR USE

Fitting the Flexible Hose

Insert the flexible hose into the hose socket on the front of the appliance. Press the flexible hose into the hose socket until the hose clicks into place.

Removing the FlexibleHose

To remove the flexible hose, press the locking buttons on the base of either side of the flexible hose to release the lock. Pull the flexible hose out of the hose socket.

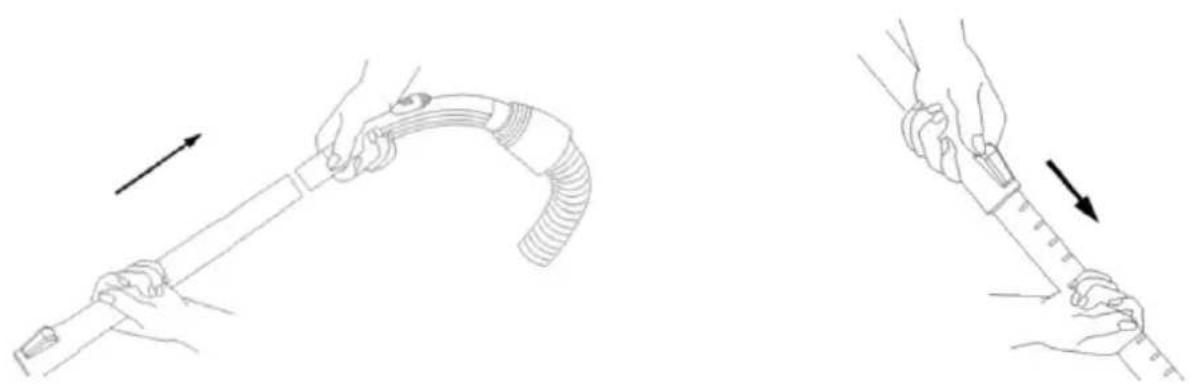

Fitting the Telescopic Tubes and Accessories

Attach the telescopic tubes to the curved handle of the flexible hose. To extend the tubes, push on the button at the centre join and pull the inner tube outward.

Attach the preferred cleaning accessory to the end of the telescopic tube.

Removing the Telescopic Tubes and Accessories

To remove the telescope tube and accessories, hold each piece tightly and pull firmly apart.

IV. OPERATION

Unwind the length of power cord required, then position the power cord so that it is not likely to be walked on or pinched by things placed on or against it, finally insert the plug into the power socket. A YELLOW mark on the power cord indicates the maximal cable length. Do no extend the power cord beyond the RED mark. To retract the cord, press the cord rewinder button P7.

ON / OFF Switch

1) Press the On/Off Switch button (P9) to switch the appliance ON.

2) To stop the machine, press the button P9 again.

Suction control

Adjust the Suction control knob on the curved handle to control the suction. The suction will be reduced with a larger air opening.

Suction power

The suction power can also be regulated through power control knob P9.

Low vacuum power: For curtains and delicate fabrics

Medium vacuum power: For long-pile velour carpets and textile flooring

High vacuum power: For sturdy rugs and floors etc

After vacuum cleaning

Switch off the device when you have finished cleaning:

1) To do this press the foot button P9 on the device with your foot or by hand.

2) After this pull the mains plug from the socket.

3) To roll in the cable press foot pedal and hold it in position. The cable will be rolled back automatically onto the installed cable drum and disappear completely into the device up to the plug.

4) The floor nozzle can be kept attached to the vacuum cleaner for ease of storage after use.

Motor thermostat

This motor is equipped with a motor protective thermostat. If for some reason the vacuum cleaner should overheat, the thermostat will automatically turn the unit off. Should this occur unplug the vacuum cleaner from the wall outlet and turn off switch. Change the dust bag or filter. Allow the unit to cool for approximately 45 minutes. To restart, replug into wall outlet and turn switch back on.

V. CLEANING AND MAINTENANCE

Always remove the power plug from the wall outlet before carrying out any maintenance. If the suction power of your machine is getting lower, you must change the dust bag and clean the filter. To do so, please follow the instruction below.

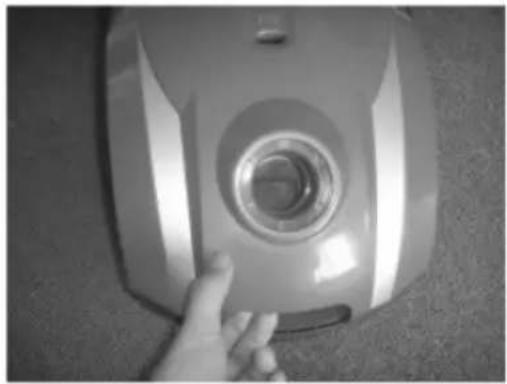

1) Open the front cover fig. 1.

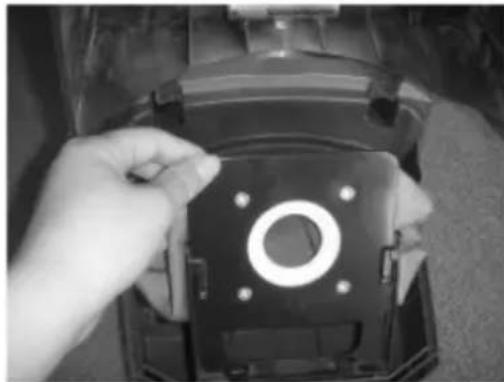

2) Remove the dust filter bag holder fig. 2 (the accessorie=dust filter bag its not included in box with this product, it is possible to buy).
3) Clean the cloth bag or change new bust filter bag.

Fig. 1

Fig. 2

• When you use dust-filter bag (cloth). Draw out plastic holder. Open the dust bag and clean dust (for sanitary reasons we recommend emptying the dust filter bag outside housing premises). Then insert plastic holder into bag opening fig. 3.
• If the case you use a paper dust bag, dispose of the paper dust bag with common municipal waste. Push the new paper dust bag into the plastic holder and secure by slight pushing. Close the vacuum cleaner lid by snapping it shut. You will hear a clicking sound.

Fig. 3

Motor protection filter

The motor protection filter cleans the air that is sucked in before it enters the motor. The air is cleaned of fine dusts, mites, bacteria and viruses. This prevents dirt or dust particles from getting into the motor or the surrounding air.

1) Take out the dust filter bag
2) Take out enter air filter piece fig. 4.

3) Pressing and washing the filter. Pat it gently and remove water. Dry it in the shade Replace it in.

Fig. 4

Cleaning the outlet air filter

The outlet air filter cleans the air a final time before it leaves the vacuum cleaner. You can clean the outlet air filter as follows:

1) Switch off the vacuum cleaner and disconnect the plug from the mains. To do this always pull on the plug and not on the cable.

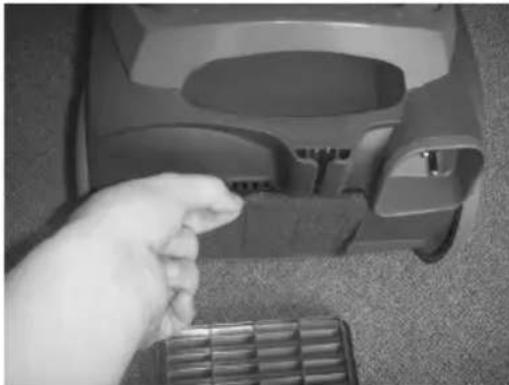

2) Open the exhaust air grill Fig. 5 (this is at the rear of the vacuum cleaner).

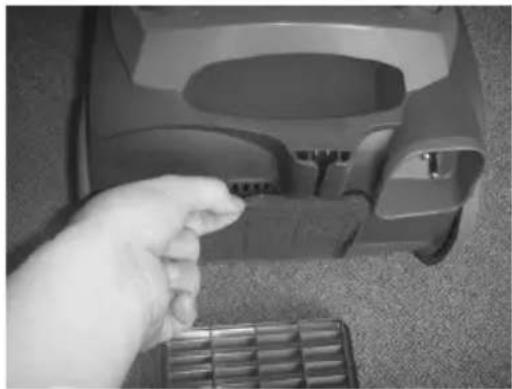

3) The air filter is visible when the grill has been opened Fig. 6.
4) Rinse the filter under cold running water and allow dry.
5) Put the outlet air filter back into place (or replace with a new one) and place in the grill.
6) Close the outlet air filter grill.

Fig. 5 Fig. 6

VI. TROUBLE-SHOOTING

Faults can occur on all electrical equipment. This must not necessarily be due to a defect in the device itself. So check first with table if the fault can be dealt with.

Problem Possible causes Solutions / tips
Weak suction	The secondary valve is open.	Close the secondary valve
	An object is blocking the suction pipe	Check the suction tube, the handle area, suction pipe and the nozzle in use for blockages.
	Filters are not fitted properly or are blocked	Fit a new filter
Device does not work.	Device is not properly plugged into the mains	Check that the mains plug has been inserted properly.Also check whether the power socket is in order (e.g. use an electric torch). Check the fusels!Automatic fuses in the fuse box
	Thermostat automatic turned off the unit	Follow instructions on page 38, section Motor thermostat
Don’t close front cover	Isn’t the filter bag placed in the body. Isn’t the sitting corrected	Please replace correctly the filter bag
The cord can not be retrated	Isn’t the core tangled?	After unfastening tangled cord.Pull out the by 1 or 2 meter and push button to wind it again.

VII. TECHNICAL SPECIFICATIONS

• Bag vacuum cleaner
  • Power efficient ECO motor
  • Energy-efficient high suction power motor
• Dust bag volume 2 l
  • Electronic regulation of suction power
• Dust bag full indicator
• Simple operation and easy maintenance

• 8 m radius
  • Automatic cable reel

• Accessories: universal floor nozzle with telescopic brush, crevice nozzle, brush, metal telescopic tube

• Input 1200 W
  • Power supply: 230 V \~ 50 Hz
  • Size: 32 x 20.5 x 23.5 cm
• Weight netto 4.3 kg

Input in off mode is 0.00 W.

VIII. LEGISLATIVE & ECOLOGY

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tention.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

HOUSEHOLD USE ONLY.

DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Ábra. 1 Ábra. 2

Ábra. 4

Kimeneti szűrő

Ábra. 5

Ábra. 6

VI. HIBAELHÁRÍTÁS

Licensed by Hyundai Corporation, Korea.
