VC 006 - Vacuum Cleaner HYUNDAI - Free user manual and instructions

Product Type	Cylinder Vacuum Cleaner
Brand	Hyundai
Model	VC 006
Power Consumption	2000 W
Dust Capacity	2 L
Filter Type	HEPA 13 Washable
Bagless	Yes
Cord Length	6 m
Operating Radius	8 m
Noise Level	78 dB(A)
Weight	5.5 kg
Dimensions (L x W x H)	350 x 250 x 250 mm
Suction Power	300 AW
Accessories Included	Crevice tool, dusting brush, upholstery nozzle
Motor Protection	Thermal cut-off
Overheat Protection	Yes
Filter Cleaning	Rinse with water every 3 months
Dust Bin Cleaning	Empty after each use

Frequently Asked Questions - VC 006 HYUNDAI

How do I clean the HEPA filter on the Hyundai VC 006?

Turn off and unplug the vacuum. Remove the dust bin and take out the filter. Rinse it under lukewarm water until clean. Let it dry completely for 24 hours before reinstalling. Do not use detergents or brush the filter.

What is the dust capacity of the VC 006?

The dust bin has a capacity of 2 liters. For optimal performance, empty it after each use or when it reaches the MAX line.

How do I replace the dust bag?

The Hyundai VC 006 is a bagless model, so no dust bags are needed. Simply empty the transparent dust bin.

Why is the vacuum cleaner losing suction?

Common causes: a full dust bin, clogged filter, or blockage in the hose. Empty the bin, clean the filter, and check the hose for obstructions.

Can I use the vacuum on hardwood floors?

Yes, the VC 006 is suitable for hardwood floors. Use the appropriate floor setting or hard floor nozzle to avoid scratches.

What does the thermal cut-off do?

The thermal cut-off automatically shuts off the motor if it overheats, preventing damage. If this happens, turn off the vacuum, unplug it, and let it cool for at least 30 minutes before restarting.

How often should I wash the pre-motor filter?

The pre-motor filter should be washed every 3 months or when it appears dirty. Allow it to air dry completely before reinstalling.

What accessories come with the VC 006?

The package includes a crevice tool for tight spaces, a dusting brush for delicate surfaces, and an upholstery nozzle for furniture.

Is the Hyundai VC 006 bagless?

Yes, it is bagless with a transparent dust bin, making it easy to see when it needs emptying.

Where can I find replacement parts for the VC 006?

Replacement parts such as filters, brushes, and hoses can be ordered from Hyundai's official website or authorized service centers. Use the model number VC 006 to find compatible parts.

USER MANUAL VC 006 HYUNDAI

Exterior view of a Hyundai V5.80K vacuum cleaner with attached brush (no text or symbols visible)

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

PODLAHOVÝ VYSAVAČ / PODLAHOVÝ VYSÁVAČ ODKURZACZ PODŁOGOWY / VACUUM CLEANER HÁZTARTÁSI PORSZÍVÓ

CE

CZ I. VŠEOBECNÉ BEZPEČNOSTNÍ POKYNY 3

II. POPIS OVLÁDACÍCH PRVKŮ 5

III. POKYNY K POUŽITÍ 6

IV. OVLÁDÁNÍ 7

V. ČIŠTENÍ A ÚDRŽBA 8

VI. ODSTRAŇOVÁNÍ PORUCH 9

VII. TECHNICKÁ SPECIFIKACE 10

VIII. LEGISLATIVA A EKOLOGIE 10

SK I. BEZPEČNOSTNÉ POKYNY 12

II. POPIS OVLÁDACÍCH PRVKŮ 14

III. POKYNY K POUŽITIU 16

IV. OVLÁDANIE 16

V. ČISTENIE A ÚDRŽBA 17

VI. ODSTRAŇOVANIE PORÚCH 19

VII. TECHNICKÁ ŠPECIFIKÁCIE 20

VIII. LEGISLATÍVA A EKOLÓGIA 20

PL I. OGÓLNE INSTRUKCJE BEZPIECZEŃSTWA 22

II. OPIS ELEMENTÓW ODKURZACZA 24

III. INSTRUKCJA OBSŁUGI 27

IV. DZIAŁANIE 27

V. CZYSZCZENIE I KONSERWACJA 28

VI. USUWANIE USTEREK 29

VII. SPECYFIKACJA TECHNICZNA 30

VIII. PRAWODAWSTWO I EKOLOGIA 30

EN I. GENERAL SAFETY INSTRUCTIONS 31

II. DESCRIPTION OF THE CONTROLS 33

III. INSTRUCTIN FOR USE 34

IV. OPERATION 35

V. CLEANING AND MAINTENANCE 36

VI. TROUBLE-SHOOTING 38

VII. TECHNICAL SPECIFICATIONS 38

VIII. LEGISLATIVE & ECOLOGY 39

HU I. ÁLTALÁNOS BIZTONSÁGI UTASÍTÁSOK 40

II. A KÉSZÜLÉK ELEMEINEK LEÍRÁSA 42

Line drawing of a mechanical component with a handle and base (no text or symbols)

Diagram of a mechanical or architectural component with a tool and base, no visible text or symbols

Diagram showing a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Close-up of a hand inserting a plastic hose into a car air vent (no text or symbols visible)

Odpojení hadice

Line drawing of hands holding a flexible hose with a curved tube, no text or symbols present

Diagram of a mechanical device with an arrow indicating assembly or transformation (no text or symbols present)

Line drawing of a hand holding a flexible hose with a black arrow indicating direction (no text or symbols)

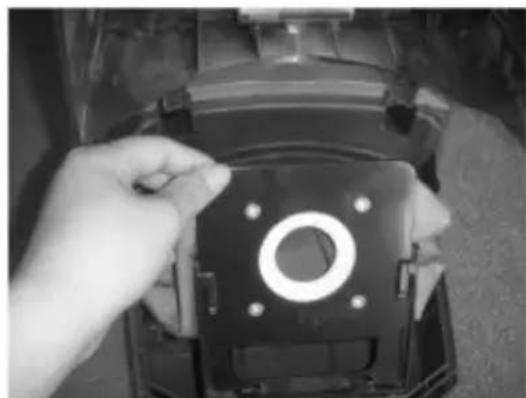

Po vysávání

Po skončení práce:

Hand pointing at a circular device with a lens on a textured surface (no visible text or symbols)

Close-up of a hand adjusting a circular mechanical component with mounting holes (no visible text or symbols)

Obr.1 Obr.2

Motorový filtr

Close-up of a hand placing a component into a transparent plastic enclosure (no visible text or symbols)

Obr. 3

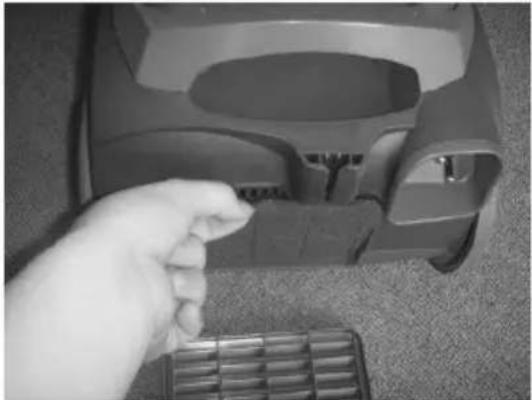

Výstupní filtr

Hand inserting a grating into a device component (no visible text or symbols)

Hand placing a button on a car seat cover, with a keyboard partially visible (no text or symbols)

Obr.4 Obr.5

VI. ODSTRAŇOVÁNÍ PORUCH

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Line drawing of a mechanical component with a handle and base (no text or symbols)

- Čistenie kobercov bez použitie kefy. Zošliapnite klapku so symbolom koberce a dôjde k zasunutiu kefy.

Diagram of a mechanical or architectural component with no visible text or symbols

Diagram showing a tool interacting with a grid-patterned surface, no text or symbols present

Close-up of a hand inserting a plastic hose into a car air vent (no text or symbols visible)

Odpojenie hadice

Line drawing of hands holding a flexible hose with a curved tube, no text or symbols present

Diagram of a vacuum cleaner with a lever and handle, showing motion direction (no text or symbols)

Line drawing of a hand holding a flexible hose with a black arrow indicating direction (no text or symbols)

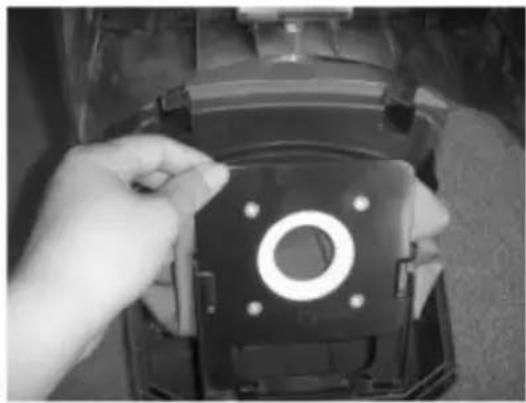

Po vysávaní

Po skončení práce:

Hand holding a circular device with a central lens, placed on a textured surface (no visible text or symbols)

Close-up of a hand adjusting a black mechanical component with a circular bolt, no visible text or symbols

Obr.1 Obr.2

Motorový filter

Hand placing a component into a transparent plastic container (no visible text or symbols)

Obr.3

Výstupní filtr

Hand placing a ventilation grille into a car air vent (no text or symbols visible)

Hand holding a small object next to a car headrest, placed on carpet (no visible text or symbols)

Obr.4 Obr.5

VI. ODSTRAŇOVANIE PORÚCH

Line drawing of a mechanical component with a handle and base (no text or symbols)

Diagram of a foot stepping on a wooden plank with a tool, showing no text or symbols

Diagram showing a hand using a tool to press or install a component on a grid-patterned surface (no text or symbols)

Ssawka szczotkowa

Close-up of a hand inserting a plastic hose into a vacuum cleaner's air vent (no text or symbols visible)

Odłączanie węża

Line drawing of hands holding a flexible hose with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing an arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a flexible hose with a black arrow indicating direction (no text or symbols)

Po odkurzaniu

Hand holding a white cylindrical device with a circular lens, placed on a textured surface (no visible text or symbols)

Close-up of a hand adjusting a circular mechanical component with mounting holes (no visible text or symbols)

Obr.1 Obr.2

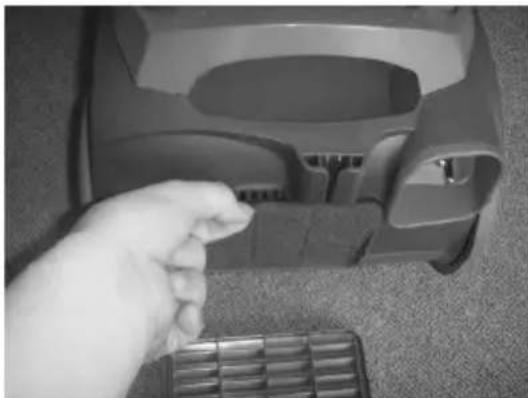

Filtr silnikowy

Close-up of a hand placing a component into a transparent plastic enclosure (no visible text or symbols)

Rys. 3

Close-up of a hand inserting a grating into a small electronic device (no visible text or symbols)

Hand placing a small object into a car seat cover (no visible text or symbols)

Rys.4 Rys.5

VI. USUWANIE USTEREK

VIII. PRAWODAWSTWO I EKOLOGIA

Symbol of a trash bin with crossed lines and a solid black rectangle below (no text or labels)

Producent: Hyundai Corporation, Seoul, Korea

Importer: DIGISON Polska sp. z o.o., ul. Krzemieniecka 46, Wrocław 54 613 Poland

OSTRZEŻENIE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. GENERAL SAFETY INSTRUCTIONS

- Before the first use, read the instructions for use carefully, look at the picture and store the instructions for use for the future. Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.

- Check whether the data on the type label correspond with the voltage in your socket. The power cord plug has to be connected to the properly connected and grounded socket according to the national standard.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its power cord.

- If the power cord of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.

- Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!

- Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.

- Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell to water. In this case take the appliance to a special service to check its safety and proper function.

- After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.

- The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!

- Do not put the suction nozzle or the tube end or accessories close to eyes and ears and do not insert them into body orifices!

• Never use the vacuum cleaner with wet hands or feet!
• When you vacuum a staircase, never leave the vacuum cleaner higher than you stand yourself!
• Never leave the product unattended when in operation!
• Never immerse the vacuum cleaner into water (even its parts)!
• Never vacuum without a properly inserted filtration system and micro-filters.
• It is not allowed to modify the surface of the appliance in any way (e.g. using a selfadhesive wallpaper, foils, etc.)!
• Do not place any objects on the appliance.
• If the appliance was stored in lower temperatures, acclimatize it first.
• Before you start using the vacuum cleaner, please check that all the locking mechanisms are in the right position.
• Do not vacuum wet or moist floor coverings, do not use the vacuum cleaner for outdoor areas! When moisture gets into the aggregate, there is a risk of its damage and disabling it. This defect is not covered by the warranty.
• Vacuum cleaning of some carpet types may result in generating static electricity. No static electricity discharge is dangerous to health.
• Do not vacuum sharp objects (e.g. glass, shatter), hot, flammable, explosive items (e.g. ash, hot cigarette butts, gasoline, thinners and aerosol vapours) or greases (e.g. fats, oils), caustic agents (e.g. acids, solvents). Vacuuming these objects may lead to damage of the dust filters or the vacuum cleaner.
• Do not put fingers or other things to input and output vents of the appliance. If the vents/elements for air flow are clogged (e.g. the hose), turn the appliance off and remove the clogging.
• When handling, do not pull the hose applying excessive force and avoid rough handling of the vacuum cleaner!
• The vacuum cleaner is not suitable for vacuuming substances that can harm human health.
• Pores of the dust filter may be clogged when vacuum cleaning very fine dust. Thus, air permeability will be reduced and the suction performance will decrease. In this case the dust filter must be changed and clean micro-filters, even if the dust filter is not full yet. Do not use the vacuum cleaner to vacuum dirt produced during/after construction such as plasterboard dust, fine sand, cement, dust from construction, parts of plaster etc. If this dirt / loose construction materials / loose construction materials into the aggregate, it poses a danger of damage. The warranty repair does not cover this.
• Never leave the vacuum cleaner exposed to weather conditions (rain, frost, direct sun radiation, etc.).
• The power cord is marked with colour codes. The yellow strip indicates the ideal cord length, the red strip indicates the maximum cord length. Do not apply force to unwind the cord beyond the red mark.
• Do not run over the power supply cord when using the vacuum cleaner and do not unplug it from the socket by pulling the power cord.
• When winding the cord, hold the plug to prevent lashing of the cord around and to prevent possible injury.
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Check the condition of the power cord of the appliance regularly.

• In order to ensure safety and proper function of the appliance, use only original spare parts and accessories approved by the manufacturer.

• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.

• The pictures are only illustrative, the supplied accessory and cleaner may differ.
• All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.
• The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with. Failure to replace or maintain all filters regularly according to the instructions and also using non-original filters, the properties of which resulted in failure or damage of the vacuum cleaner, is also understood to be improper use of the appliance.

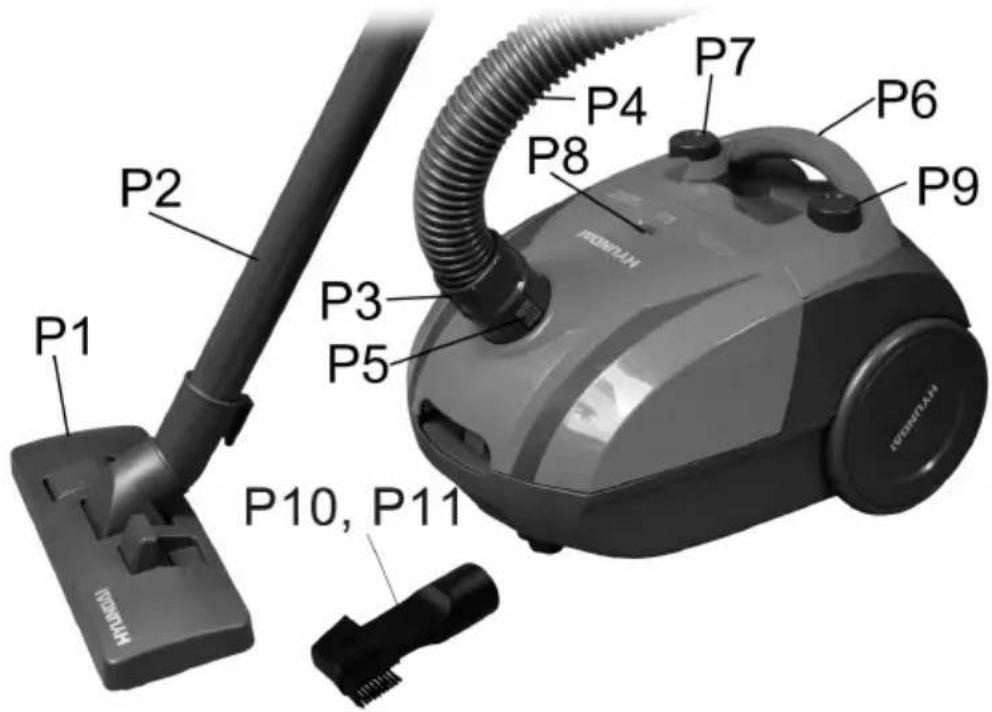

II. DESCRIPTION OF THE CONTROLS

P1 Floor nozzle
P2 Plastic tube
P3 Suction hose connection
P4 Suction hose
P5 Hose grip button
P6 Carrying handle
P7 Cord rewind foot switch
P8 Full dust bag indicator
P9 ON/OFF switch power control
P10 Brush
P11 Crevice nozzle

ACCESSORIES

Your vacuum cleaner comes equipped with three attachments intended for different applications. Each individual attachment can either be fitted onto the telescopic tube or directly onto the handle of the suction hose, as required.

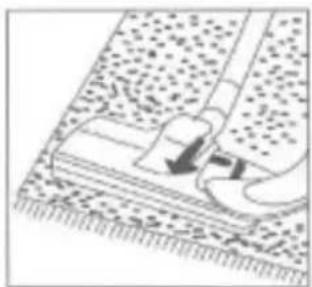

Floor nozzle

You will probably work most frequently with the floor nozzle. This is suitable for cleaning wide areas. The floor nozzle is fitted with a practical 360^ joint. This ensures that you can reach easily into any corner.

Line drawing of a mechanical component with a handle and base (no text or symbols)

for carpet floors

for smooth floors

- Clean carpets and wall-to-wall carpets without using the brush. Press the tip switch marked with the carpet symbol and the brush is raised.

Diagram showing a mechanical or architectural component with no visible text or symbols

- Smooth floors such as PVC, parquet or tiles are best cleaned and cared for suing the brush. To do so press the tip switch with the symbol for smooth floors and the brush will come out.

Diagram showing a hand using a tool to clean or store floor tiles on a grid-patterned surface (no text or symbols)

Brush and crevice nozzle

Brush nozzle can use this to clean the dust from books or sensitive objects such as picture frames etc.

Nozzle crevice is suitable for sucking clean the folds in cloth, joint cracks and corners or niches that cannot be reached with the floor nozzle.

III. INSTRUCTIN FOR USE

Fitting the Flexible Hose

Insert the flexible hose into the hose socket on the front of the appliance. Press the flexible hose into the hose socket until the hose clicks into place.

Close-up of a hand inserting a plastic hose into a car air vent (no text or symbols visible)

Removing the FlexibleHose

To remove the flexible hose, press the locking buttons on the base of either side of the flexible hose to release the lock. Pull the flexible hose out of the hose socket.

Fitting the Telescopic Tubes and Accessories

Attach the telescopic tubes to the curved handle of the flexible hose.

Line drawing of a hand holding a flexible hose with an arrow indicating direction (no text or symbols)

Attach the preferred cleaning accessory to the end of the telescopic tube.

Diagram of a mechanical device with a lever and handle, showing a process step (no text or symbols)

Removing the Telescopic Tubes and Accessories

To remove the telescope tube and accessories, hold each piece tightly and pull firmly apart.

IV. OPERATION

Unwind the length of power cord required, then position the power cord so that it is not likely to be walked on or pinched by things placed on or against it, finally insert the plug into the power socket. A YELLOW mark on the power cord indicates the maximal cable length. Do no extend the power cord beyond the RED mark. To retract the cord, press the cord rewinder button P7.

ON / OFF Switch

1) Press the On/Off Switch button (P9) to switch the appliance ON.
2) To stop the machine, press the button P9 again.

Suction control

Adjust the Suction control knob on the curved handle to control the suction. The suction will be reduced with a larger air opening.

Line drawing of a hand holding a flexible hose with a black arrow indicating force (no text or symbols)

After vacuum cleaning

Switch off the device when you have finished cleaning:

1) To do this press the foot button P9 on the device with your foot or by hand.
2) After this pull the mains plug from the socket.
3) To roll in the cable press foot pedal and hold it in position. The cable will be rolled back automatically onto the installed cable drum and disappear completely into the device up to the plug.
4) The floor nozzle can be kept attached to the vacuum cleaner for ease of storage after use.

Motor thermostat

This motor is equipped with a motor protective thermostat. If for some reason the vacuum cleaner should overheat, the thermostat will automatically turn the unit off. Should this occur unplug the vacuum cleaner from the wall outlet and turn off switch. Change the dust bag or filter. Allow the unit to cool for approximately 45 minutes. To restart, replug into wall outlet and turn switch back on.

V. CLEANING AND MAINTENANCE

Always remove the power plug from the wall outlet before carrying out any maintenance. If the suction power of your machine is getting lower, you must change the dust bag and clean the filter. To do so, please follow the instruction below.

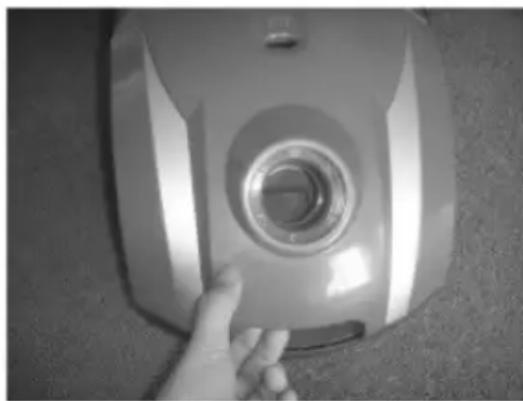

1) Open the front cover fig 1.
2) Remove the dust filter bag holder fig. 2.
3) Change new bust filter bag.

Hand holding a small white object with a circular lens on a textured surface (no visible text or symbols)

Close-up of a hand adjusting a circular mechanical component with mounting holes (no visible text or symbols)

Fig.1 Fig.2

Motor protection filter

The motor protection filter cleans the air that is sucked in before it enters the motor. The air is cleaned of fine dusts, mites, bacteria and viruses. This prevents dirt or dust particles from getting into the motor or the surrounding air.

1) Take out the dust filter bag
2) Take out enter air filter piece fig. 3.

3) Pressing and washing the filter Pat it gently and remove water, Dry it in the shade. Replace it in.

Hand placing a component into a transparent plastic enclosure (no visible text or symbols)

Fig. 3

Cleaning the outlet air filter

The outlet air filter cleans the air a final time before it leaves the vacuum cleaner.

You can clean the outlet air filter as follows:

1) Switch off the vacuum cleaner and disconnect the plug from the mains. To do this always pull on the plug and not on the cable.

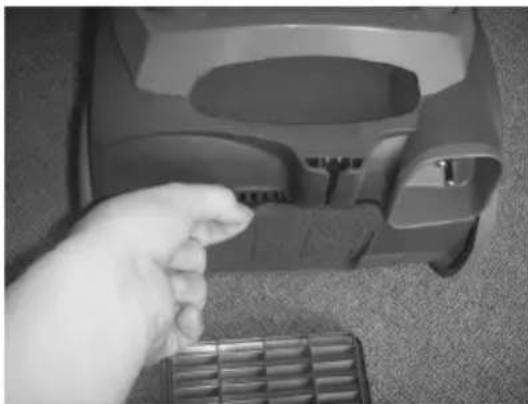

2) Open the exhaust air grill Fig. 4 (this is at the rear of the vacuum cleaner.)
3) The air filter is visible when the grill has been opened Fig.5.
4) Rinse the filter under cold running water and allow dry.
5) Put the outlet air filter back into place (or replace with a new one) and place in the grill.
6) Close the outlet air filter grill.

Close-up of a hand inserting a fan into a car air vent (no text or symbols visible)

Hand placing a component into a car seat cover (no visible text or symbols)

Fig.4 Fig.5

VI. TROUBLE-SHOOTING

Faults can occur on all electrical equipment. This must not necessarily be due to a defect in the device itself. So check first with table if the fault can be dealt with.

Problem Possible causes Solutions / tips
Weak suction	The secondary valve is open.	Close the secondary valve
	An object is blocking the suction pipe	Check the suction tube, the handle area, suction pipe and the nozzle in use for blockages.
	Filters are not fitted properly or are blocked	Fit a new filter
Device does not work.	Device is not properly plugged into the mains	Check that the mains plug has been inserted properly. Also check whether the power socket is in order (e.g. use an electric torch). Check the fusels! Automatic fuses in the fuse box
	Thermostat automatic turned off the unit	Follow instructions on page 36, section Motor thermostat
Don't close front cover	Isn't the filter bag placed in the body. Isn't the sitting corrected	Please replace correctly the filter bag
The cord can not be retrated	Isn't the core tangled?	After unfastening tangled cord. Pull out the by 1 or 2 meter and push button to wind it again.

VII. TECHNICAL SPECIFICATIONS

• Bag vacuum cleaner
  • Power efficient ECO motor
  • Energy-efficient high suction power motor
• Dust bag volume 2 l
• Dust bag full indicator
• Simple operation and easy maintenance
• 8 m radius
• Mechanical suction power regulator

• Automatic cable reel
- Input 1200 W
- Accessories: universal floor nozzle with telescopic brush, crevice nozzle, brush, plastic suction tube
• Power supply: 230 V \~ 50 Hz
• Size: 32 x 20,5 x 23,5 cm
- Weight netto 4 kg

Input in off mode is 0.00 W.

VIII. LEGISLATIVE & ECOLOGY

The product has received ES declaration of conformity according to Act as amended. The product matches the requirements of the below statutory order as amended.

– Committee Regulation No. 2006/95/ES as amended, setting the technical requirements of the electrical appliance as low.
– Committee Regulation No. 2004/108/ES as amended, setting the technical requirements of products in terms of their electromagnetic compatibility.

The manufacturer reserves the right to make insignificant changes to the standard design that do not affect the function.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

HOUSEHOLD USE ONLY.

DO NOT IMMERSE IN WATER OR OTHER LIQUIDS.

TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG

AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS,

CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Diagram of a foot stepping on a wooden plank with a tool, showing no text or symbols

Diagram of a hand using a tool to clean or store floor tiles on a grid-patterned surface (no text or symbols)

Close-up of a hand inserting a plastic hose into a car interior (no visible text or symbols)

Line drawing of a hand holding a flexible hose with an arrow indicating direction (no text or symbols)

Diagram of a mechanical device with a lever and handle, showing an arrow indicating motion (no text or symbols present)

Line drawing of a hand holding a flexible hose with a black arrow indicating direction (no text or symbols)

Porszívózás után

Hand holding a white cylindrical device with a circular lens, placed on a textured surface (no visible text or symbols)

Close-up of a hand adjusting a circular mechanical component with mounting holes (no visible text or symbols)

Ábra.1 Ábra.2

A motor szűrője

Hand placing a white object into a black plastic container with internal compartments (no visible text or symbols)

Ábra.3

Kimeneti szürő

Hand pointing at a car air vent on a textured surface (no visible text or symbols)

Hand holding a small electronic device with a keypad, placed on a textured surface (no visible text or symbols)

Ábra.4 Ábra.5

VI. HIBAELHÁRÍTÁS

* Indicative annual energy consumption (kWh per year) assuming that the vacuum cleaner is used 50 times in a year. Actual annual energy consumption will depend on how the appliance is used.

Note:

- Designations of classes are as follows: A, B, C, D, E, F and G. Class A means the highest class (most efficient), class G is the lowest class (least efficient).

- The parameters were determined on the basis of laboratory tests and calculations performed in accordance with Commission Delegated Regulation (EU) No 665/2013 supplementing Directive of the European Parliament and of the Council No 2010/30/EU.

HU

Licensed by Hyundai Corporation, Korea.
