Product Type	Cordless Stick Vacuum Cleaner (Handheld + Extension)
Brand	Hyundai
Model	VC 028
Dimensions (Handheld)	22 x 440 x 120 mm
Dimensions (With Extension Adapter & Floor Nozzle)	1187 x 185 x 288 mm
Weight (Handheld)	1.4 kg
Weight (With Holder & Nozzle)	2.8 kg
Power Source	Rechargeable Ni-MH Battery, 10 cells
Charger Input Voltage	As per type label (e.g., 100-240 V AC)
Charging Time (First Use)	12 hours
Charging Time (Regular)	9-11 hours
Runtime (Full Charge)	18-20 minutes (depending on use)
Dust Container Capacity	Approximately 0.5 L (estimated)
Filtration System	HEPA Filter + Filter Protector + Holder Filter
Floor Nozzle	With rotating brush (for low-pile carpets and hard floors)
Crevice Nozzle	Included for tight spaces
Protection Class	III (appliance), II (adapter)
Indoor Use Only	Yes (not for wet or outdoor use)
Filter Maintenance	Clean every 5th container emptying; replace twice a year
Battery Replacement	By authorized service; full discharge before removal
Spare Parts Available	HEPA filter, micro-filter, battery; check with retailer
Charging Stand Included	Yes (wall-mountable)
Warranty	Standard manufacturer warranty; void if safety warnings ignored

Frequently Asked Questions - VC 028 HYUNDAI

How long does the battery last on a full charge?

The battery provides approximately 18-20 minutes of runtime, depending on the vacuuming mode and surface.

How long does it take to fully charge the battery?

For the first use, charge for 12 hours. Subsequent charges require 9-11 hours for a full charge.

Can I use the vacuum cleaner while charging?

No, do not use the vacuum cleaner during charging. It must be placed in the stand and switched off.

How often should I clean the filters?

Clean the filters after approximately 5 times emptying the dust container. Replace them twice a year or if damaged.

Is the HEPA filter washable?

Yes, the HEPA filter can be rinsed under lukewarm running water. Let it dry completely before reinstalling. Do not use hot water or detergents.

What should I do if the suction power drops?

Check the dust container and empty if full. Clean the filters (HEPA and protector). Also check for blockages in the nozzle or hose. If still weak, recharge the battery.

Can I vacuum liquids or wet surfaces?

No, this vacuum cleaner is designed for dry use only. Vacuuming liquids can damage the appliance and void the warranty.

Can I vacuum pet hair?

The floor nozzle with rotating brush can pick up pet hair, but avoid using it on high-pile carpets. Hair may wrap around the brush; see manual for cleaning.

How do I empty the dust container?

Press the container lock button (A3), pull out the container, remove the HEPA filter and protector, then empty into a bin. For hygiene, do this outdoors.

Where can I purchase replacement filters or parts?

Replacement filters and accessories can be bought from authorized retailers or through the manufacturer's service network. Use only original parts.

USER MANUAL VC 028 HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATI ÚTMUTATÓ

Akumulator Ni–MH 10 ogniw (HYUVC028), 12 ogniw (HYUVC029)

VIII. PRAWODAWSTWO I EKOLOGIA

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. GENERAL SAFETY INSTRUCTIONS

• Consider the instructions for use as a part of the appliance and pass them on to any other user of the appliance.
• Check whether the data on the type label correspond with the voltage in your electric power socket.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children younger than 8 years must be kept out of reach of the appliance and its adaptor.
• If a vacuum cleaner can be equipped with a hand-held accessory with rotating parts a warning has to be given concerning entrapment.
• Never use the appliance if its adaptor or plug is damaged, if it does not work properly, if it fell down and was damaged. In this case take the appliance to a special service to check its safety and proper function.
• If the adaptor of the appliance is corrupted, it has to be replaced by the manufacturer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• Always unplug the appliance from power supply before assembly, disassembly or cleaning.
• Do not put the suction hole of the vacuum cleaner or the accessories close to your eyes and ears and do not insert them into any body orifices!
• Never use the vacuum cleaner nor touch the adaptor with wet hands or feet!
• The product is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• Vacuum cleaning of some carpet types may result in generating static electricity. No static electricity discharge is dangerous to health.
• Never leave the product unattended when in operation!
• Never immerse the charger, the battery and the motor part of the vacuum cleaner into water (even partially) and protect them against humidity!
• Never vacuum without a properly inserted filtration system and micro-filters.
• Before you start using the vacuum cleaner, please check that all the locking mechanisms are in the right position.
• Do not use the brush for treatment and cleaning animal hairs!
• Do not leave the floor nozzle with the rotation brush on in one place for too long! It could cause damage to the surface vacuumed!
• Install the holder, the vacuum cleaner and the appliance within sufficient distance from flammable objects (e.g. curtains, drapes, wood, etc.), heat sources (e.g. oven, stove, etc.) and wet surfaces (e.g. sinks, wash-basins, etc.).
• Avoid contact with the rotating brush when handling the vacuum cleaner (e.g. with loose clothes, hair, fingers, jewellery, bracelets etc.).

- Do not vacuum wet or moist floor coverings, do not use the vacuum cleaner for outdoor areas! When moisture gets into the aggregate, there is a risk of its damage and disabling it. This defect is not covered by the warranty.

- Do not vacuum sharp objects (e.g. glass, shatter), hot, flammable, explosive items (e.g. ash, hot cigarette butts, gasoline, thinners and aerosol vapours) or greases (e.g. fats, oils), caustic agents (e.g. acids, solvents). Vacuuming these objects may lead to damage of the dust filters or the vacuum cleaner.

- Do not put fingers or other things to input and output vents of the appliance. If the vents/elements for air flow are blocked (e.g. nozzle), turn the appliance off and remove the cause of blocking completely.

- The vacuum cleaner is not suitable for vacuuming substances that can harm human health.

- Make sure that the power cord of the charger does not hang freely over an edge of a working table where children could reach it.

- Plug the battery charger to a socket with alternate current only.

- For charging the battery of the vacuum cleaner, use only the specific charger.

- Before cleaning the charger, unplug it from the electric socket.

- Always switch off the vacuum cleaner when charging the battery and after the vacuum cleaner was used.

- When the battery is charged, the charger is hot which is a normal condition.

- Charge the battery at standard room temperature.

- Leaking of electrolyte from the battery is caused by overloading the vacuum cleaner or by using the vacuum cleaner at extremely hot temperature. If you are splashed with electrolyte, wash the affected place with water and soap and rinse it with lemon juice with vinegar. In eye contamination, rinse the affected eye for a couple of minutes with clean water and seek medical advice immediately. Use the charger in a room only.

- Do not through the battery into fire. There is a risk of explosion!

- Do not charge the battery if electrolyte is leaking from it. Do not expose the battery to temperatures exceeding 50°C . This will prevent damage of the battery.

- During normal operation, the accumulator batteries are not taken out. Take out the batteries only if the appliance is to be disposed (see par. VII. ENVIRONMENTAL PROTECTION).

- The appliance must be disconnected from the power adapter when removing the battery.

- Do not connect the contacts of the vacuum cleaner or the charger! If you do not use a vacuum cleaner, keep it away from metal objects, such as paperclips, coins, keys, nails, screws or other small metal objects that can cause short circuit of the battery connectors. Short circuit of the battery connectors can cause vacuum cleaner be turned on burn or fire.

- Pores of the filters may be blocked when vacuum cleaning very fine dust (e.g. fine sand, cement dust, plaster). Thus, air permeability will be reduced and the suction capacity will decrease. In this case, empty the container and clean the filters even though the dust container is not full yet. Do not use the vacuum cleaner to vacuum dirt produced during/after construction such as plasterboard dust, fine sand, cement, dust from construction, parts of plaster etc. If this dirt / loose construction materials / loose construction materials into the aggregate, it poses a danger of damage. The warranty repair does not cover this.

- Always switch off the vacuum cleaner first and disconnect the adaptor from power supply and only then empty the dust container, clean/replace micro-filters, clean the vacuum cleaner or its accessories.

- When taking the adaptor from the electric socket, never pull the power cord.

- Never leave the vacuum cleaner exposed to weather conditions (e.g. rain, frost, direct sun radiation, etc.).

- Never use (switch on) the vacuum cleaner if it is placed in the holder and it is being charged!

- If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.

- In order to ensure safety and proper function of the appliance, use only original spare parts and accessories that are approved by the manufacturer.

• Never use the appliance for any other purpose than for the intended one described in these instructions for use!
• All text in other languages and pictures shown on the packaging, or the product itself, are translated and explained at the end of this language mutation.
• WARNING: There is a risk of injury in case of incorrect use (not in accordance with the manual) of the appliance.
• The manufacturer is not responsible for damage caused by improper use of the appliance and the accessories and its warranty for the appliance does not apply in situations when the safety warnings above are not complied with. Failure to replace or maintain all filters regularly according to the instructions in Chapter IV., V. and also using non-original filters, the properties of which resulted in failure or damage of the vacuum cleaner, is also understood to be improper use of the appliance.

II. EQUIPMENT AND ACCESSORIES (Fig. 1)

A – vacuum cleaner

A1 - 0/I (ON/OFF) button A4 - handle

A2 – indicator light dust bin arrest A5 – crevice nozzle

A3 – container lock button A6 – crevice nozzle arrest button

B – dust container

B1 – HEPA filter B3 – filter protector

B2 - holder filter

C - extension adapter

C1 - 0/I (ON/OFF) switch button C4 - handle

C2 – vacuum cleaner lid lock button C5 – floor nozzle with rotation brush

C3 – handle lid lock buttons C6 – indicator light

D - support

D1 – power supply hub

D3 – suspension mould

D2 – indicators light

E - support F - power adaptor

E1 - lock button

III. VACUUM CLEANER PREPARATION

Remove all packing material, take out the vacuum cleaner and the accessories.

Assembling holder (i.e. charging base)

Insert support D to holder E by slight pushing to the maximum position (you will hear a snapping sound). To remove the support from the holder you have to push lock button E1 and then to pull the support out (Fig. 2).

Fastening of the holder to the wall (it applies to D)

Fasten the support D close enough to the electric socket using suitable bonding material. Make sure that there is no electric, telephone, plumbing fittings under the plaster at the place of mounting the holder. Then slide the vacuum cleaner A to the holder together with the accessories (B, C), (Fig. 3).

Assembling extension adapter

Straighten the handle of extension adapter C to the maximum working position (you will hear a snapping sound). For tilting the handle you have to push lock button C3 (Fig. 3).

Fixing vacuum cleaner into adapter

Put vacuum cleaner A to extension adapter C with the suction vent and then tilt the vacuum cleaner to the aperture to the maximum position (you will hear a snapping sound, Fig. 2). After taking the vacuum cleaner from the adapter you have to push lock button C2 and then to pull the vacuum cleaner out (Fig. 5).

Battery charging

Before the first use, the battery has to be charged for at least 12 hours. Plug battery charger F to the electric socket. Push the adapter connector into the slot D1 in the charging stand. (Fig. 4). The operation of charging of the accumulator is indicated by the "red" indicator D2. The indicator will turn green when the battery is fully charged. After about 9 to 11 hours, the battery is usually fully charged and it enables operation for about 18 to 20 minutes (depends on method of vacuuming). Turn the cleaner off before charging! In the case of everyday use, do not disconnect the battery charger from the electric socket. In this way the appliance will always be fully loaded. Battery overcharging is not possible. If you are not present for longer time (more than three days), remove the charger from the electric socket to save energy and remove the vacuum cleaner from the support.

CAUTION

• Do not charge the battery for more than 16 hours!
• If you charge the battery for the first time or after long storage, about 60% of its total capacity is charged. After repeated discharge and repeated recharge the battery is fully charged.
• After completing hard work or in hot environment, the battery may be too hot for charging. Let the battery cool down before charging.
• Do not use the vacuum cleaner during charging.
• For ensuring longer life of the battery we recommend full discharge and then full recharge of the battery four times a year.
• The vacuum cleaner can be charged only placed in the stand.

IV. USE OF VACUUM CLEANER (Fig. 7, 8)

According to the selected cleaning activity, use either the vacuum cleaner alone or assemble the vacuum cleaner with an extension adapter C and select accessory. The floor nozzle with a rotation brush C5 is intended for vacuuming carpets with low pile or smooth flooring. You can use crevice nozzle A5 for vacuuming places that are hard to access. In case of using the cleaner A without the body of the rod cleaner C, turn it on/off by pressing the switch A1. If you will be using the cleaner assembled, you can turn it on/off with the switch C1. When control light C6 is on, it signals operation of the rotation brush. Let the vacuum cleaner recharge as soon as its suction performance gets weaker.

CAUTION

- To turn off the vacuum cleaner, always use both switch buttons A1+C1 (i.e. position O). If the switch button C1 on the handle stays in position I (ON) and the switch button A1 on the body of the vacuum cleaner stays in position O (OFF) while inserting into an extension adapter, the vacuum cleaner will be turned on (fig. 7).

• The floor nozzle with the rotation brush is not intended for vacuuming impurities from carpets with high pile.
• f the rotation brush is blocked during operation (e.g. due to sucking in large foreign objects, due to winding carpet piles, threads or hair on them etc.) turn off the vacuum cleaner by switch A1 and C1. Then remove the cause of blocking or clean the rotation brush if necessary (see par. V. MAINTENANCE).

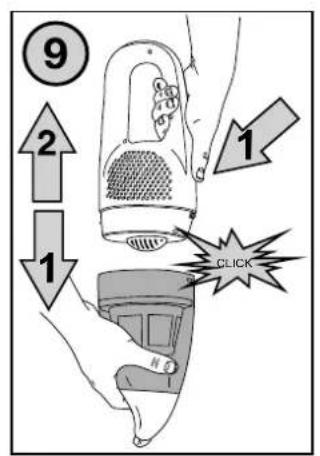

Emptying dust container (Fig. 9, 10, 11)

If you find out that the suction performance of the vacuum cleaner is reduced, make sure that the dust container is not full and if necessary, empty it. After pressing the dust bin arrest button A3, remove the container from the cleaner by pulling slightly. Pull out HEPA-filter B1 and filter protector B3 from the container, then place the container over a dustbin and empty it into common municipal waste. For sanitary reasons we recommend emptying the container outside residential premises.

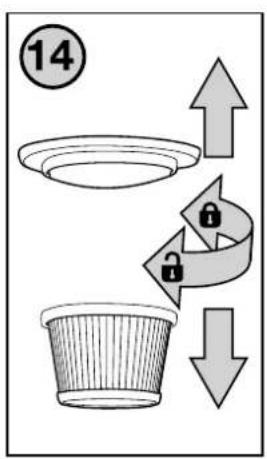

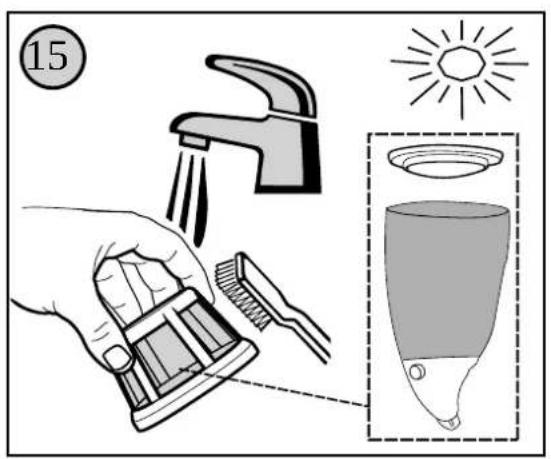

Cleaning dust container and cleaning filter (Fig. 12, 13, 14, 15)

After the container has been emptied about 5 times, we recommend complete cleaning of the suction system from the settled dust. Clean all parts (i.e. the container, HEPA-filter, filter protector and holder filter) unit can be cleaned by tilting off the dust container. Remove the individual parts in the following manner:

• Protector B2: in the clockwise direction to the maximum position and remove protector from holder
• HEPA filtr B1: in the clockwise direction to the maximum position and remove filtr from holder. Tap the dust out of the filter over a dustbin or to clean the filter through a blowing (we recommend the filter cleaning outside of living area for hygiene reasons). If the protection micro filter is very dirty, you can also rinse the pleated side of the Filter under lukewarm slow-running tap. Hold the filter in such a way that the pleated side points upwards and the water flows parallel to the pleats. Hold the filter at an angle so that the water washes away the dirt inside the pleats. Turn the filter 180° and let the water flow along the pleats in the opposite direction. Continue this process until the filter is lid.

Clean all parts (i.e. the container, filter protector and holder filter) in running lukewarm water (e.g. using a cloth or a fine brush) and let it dry completely. Reassemble individual parts in the opposite direction after it is completely dry.

CAUTION

• Never vacuum impurities without protective filters on.
• The maximum suction effect will be reached with a clean micro-filter and an empty container.
• Do not use any aggressive washing or cleaning agents or hot water to clean the micro-filter.
• The micro-filter is not intended for washing in a dishwasher!
• The dust container is not resistant to cleaning in a dishwasher!
• Cleaning the micro-filter will not restore its original colour, but it will restore its filtration properties.
• Neglecting the micro-filter cleaning may lead to breakdown of the vacuum cleaner!
• Make sure that the contact surfaces and the sealing elements are functional.
• We recommend replacing the micro-filter twice a year or when it cannot be cleaned properly or if it is damaged. You can buy spare micro-filters in the elektro shop chain.

V. MAINTENANCE

Unplug the battery charger from the appliance before any maintenance. Store the vacuum cleaner at a dry place, far enough from heat sources (e.g. fireplace, stove, heating element) and protect it against weather conditions (e.g. rain, sunshine). Treat the surface of the vacuum cleaner and the battery charger (only when disconnected from the electric socket) with a soft and wet cloth, do not use abrasive and aggressive cleaning agents! Never dry plastic moldings over a heat source (e.g. heater, electric/gas stove). It is normal that the surface colour changes over the time. But the change does not alter the surface properties in any way and the appliance is not subject to a complaint for this reason!

Floor nozzle with rotation brush (Fig. 16)

After any vacuuming it is recommended to check visually the brushes or collectors for possible impurities. If you find some impurities, remove them in the way specified below. Cut threads and hair with scissors and remove them. If hair or threads are twisted around the mounting of the drive shaft and if they cannot be removed in the way described above, the impurities have to be removed by dismantling the nozzles. Unscrew the bolt in the lower part and remove the cover. Bend the locking cog with a suitable tool (e.g. a flat screwdriver). Now you can remove the brush from its position and clean it. Insert the brush to the nozzle in the opposite direction and secure it properly with a lid.

Storage

Store the appliance thoroughly clean on a dry, dustless place out of reach of children and persons sui juris. Do not put the assembled rod vacuum cleaner on an uneven surface! The cleaner must be placed on a flat surface where there is no danger of knocking over.

VI. TROUBLESHOOTING

Problem Cause Solution
Motor won't start The battery is dischargedA1 / C1 button is not switched on		Recharge the batteryPush A1 / C1 button
The container cannot be fixed to the vacuum cleaner	The parts of the filtration system not inserted properly in the container	Check/correct insertion of the protector and the micro-filter in the container
Suction output is not sufficient	Dust container fullClogged filter protectorClogged micro-filterThe accessories are cloggedThe battery is discharged	Empty the containerClean the protectorClean or replace the micro-filterRemove blocking objectsRecharge the battery
Nozzle with rotation brush does not work	Rotation brush is blocked Remove blocking objects

Replacing battery

Remove the batteries from the appliance only when they are fully discharged (e.g. let the vacuum cleaner run until its motor stops). Screw out all bolts and open the vacuum cleaner. Gradually disconnect the lead-in wires and remove the batteries.

Replacement of parts that require intervention in the electric part of the appliance must be carried out by a specialized service! Failure to comply with the instructions of the manufacturer will lead to expiration of the right to warranty repair!

VII. TECHNICAL SPECIFICATIONS

Voltage (V) specified on the type label of the appliance

Input (W) specified on the type label of the appliance

Protection class of the appliance III.

Adapter Protection Class II.

Ni-MH battery 10 cells (HYUVC028), 12 cells (HYUVC029)

Weight of device 1.4 kg; 2.8 kg with a holder and a nozzle!

Weight of adaptor 0.2 /0.3 kg

Weight of the charging stand 1.1 kg

Size of the product (mm) 22 x 440 x 120 / 1187 x 185 x 288

VIII. LEGISLATIVE & ECOLOGY

The product has received ES declaration of conformity according to Act as amended.

The product matches the requirements of the below statutory order as amended.

• Committee Regulation No. 2006/95/ES as amended, setting the technical requirements of the electrical appliance as low.
• Committee Regulation No. 2004/108/ES as amended, setting the technical requirements of products in terms of their electromagnetic kompatibility.

The manufacturer reserves the right to make insignificant changes to the standard make that do not affect the function.

HOUSEHOLD USE ONLY. NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Handle lid lock buttons

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product. Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

We reserve the right to change technical specification.

Licensed by Hyundai Corporation, Korea.
