| Product Type | Freestanding Gas Cooker with Electric Oven |
| Brand | Mastercook |
| Model | KGE-3411ZX DYN |
| Dimensions (H x W x D) | 85 x 60 x 60 cm |
| Weight | Approx. 50 kg |
| Energy Supply | Gas (natural gas / LPG) + 230V ~ 50Hz Electric |
| Gas Burners Quantity | 4 (including rapid and triple-ring) |
| Burner Power Range | 1.0 kW - 3.8 kW |
| Oven Type | Electric static fan oven |
| Oven Capacity | 65 liters |
| Oven Functions | Convection, grill, bottom heat, light |
| Grill Power | 2.0 kW |
| Cleaning | Enamel interior, removable oven door for easy cleaning |
| Safety Features | Flame failure device on all gas burners, child lock, auto shut-off timer |
| Spare Parts Availability | Accessories and replacement parts available via Mastercook service centers |
| Reparability | Modular design, authorized service network |
| Energy Efficiency Class | A |
| Ignition | Automatic electric ignition |
| Oven Thermostat | Thermostat-controlled temperature 50-250°C |

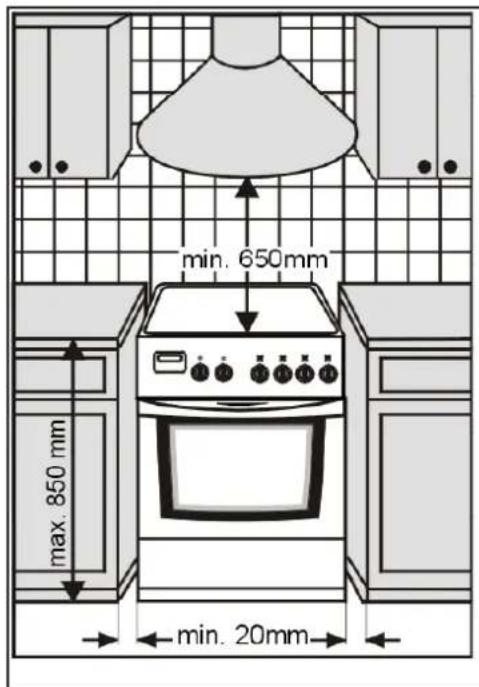

| Installation | Freestanding, requires gas connection and electrical socket |
Frequently Asked Questions - KGE-3411ZX DYN Mastercook
How do I ignite the gas burners?

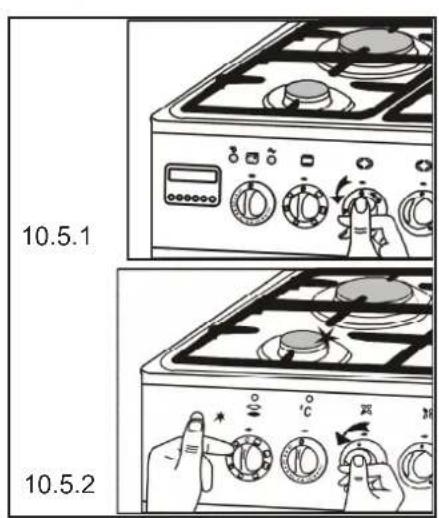

Turn the corresponding knob to the high flame symbol and press it while turning further. The automatic ignition will spark. Keep pressed for 5 seconds after ignition to engage the flame failure device.
What should I do if the oven does not heat up?
Check that the oven is set to a cooking function and temperature. Ensure the appliance is plugged in and the circuit breaker is on. If the problem persists, contact an authorized service center.
Can I use the oven with the grill function at the same time?
Yes, you can use the grill function normally. However, some models allow simultaneous use of convection and grill; check your manual for specific settings.
How do I clean the oven interior?
After the oven has cooled, remove oven shelves and side racks. Wipe the interior with a damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner. The enamel coating is easy to clean.
What type of gas can I use?
The cooker is factory set for natural gas. For LPG (butane/propane), you need to replace the injectors and adjust the minimum flame setting. Refer to the installation manual for conversion instructions.
Is the cooker compatible with a gas cylinder?
Yes, after conversion to LPG. Ensure you use a suitable regulator and follow local safety regulations. The gas inlet is located at the rear of the appliance.
How do I set the timer?
Turn the timer knob to the desired time (max 120 minutes). The oven will turn off automatically when the time expires. For some models, the timer only controls the oven, not the hob.
Why do the burners click continuously after ignition?

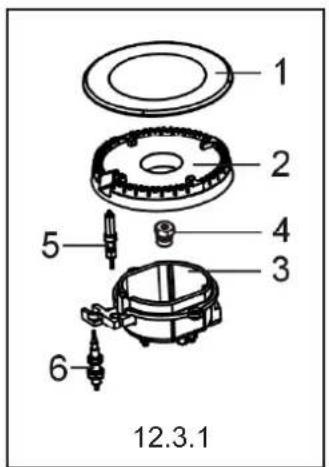

This may indicate that the flame failure sensor is not detecting a flame. Ensure the burner cap is properly seated and slots are clean. If clicking persists, the spark electrode may need cleaning.
How do I replace the oven light bulb?

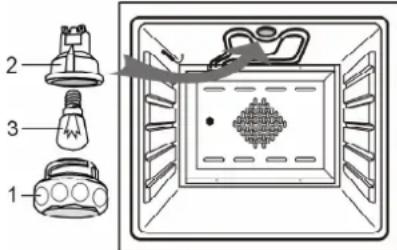

Disconnect the appliance from power. Remove the glass cover by turning it counterclockwise. Replace the bulb with a new 25W/300°C oven-rated bulb (E14 base). Reinstall the cover and restore power.
Where can I find spare parts?
Spare parts such as burner caps, knobs, oven shelves, and heating elements are available through Mastercook authorized dealers or online service portals. Provide your model number KGE-3411ZX DYN.
