Product Type	Tumble Dryer
Brand	Grundig
Model	GTN 37114 GP
Energy Class	A++
Drying Capacity	8 kg
Dimensions (H x W x D)	85 x 60 x 60 cm
Weight	50 kg
Power Supply	230 V, 10 A, 50 Hz
Annual Energy Consumption	235 kWh
Noise Level	65 dB(A)
Programs	Cotton, Synthetics, Delicates, Mix, Quick 30', Wool, Shirts, Jeans, Hygiene, Air Fluff
Display	LED Display
Delay Start	Yes, up to 24 hours
Child Lock	Yes
Anti-Crease	Yes
Overfill Protection	Yes
Filter Indicator	Yes
Water Tank Capacity	4.5 L
Repairability Index	7.5 / 10
Spare Parts Availability	Filter, belt, heating element, door seal, control board
User Manual Included	Yes, downloadable PDF

Frequently Asked Questions - GTN 37114 GP GRUNDIG

How do I install the tumble dryer?

Place the dryer on a stable, level surface. Remove the packaging and transport bolts. Connect the drain hose or empty the water tank regularly. Plug into a grounded outlet.

What is the maximum load capacity?

The maximum drying capacity is 8 kg for cotton and less for synthetics or delicates. Overloading may affect drying efficiency.

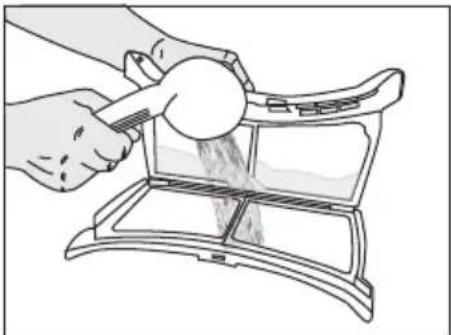

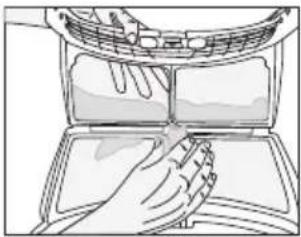

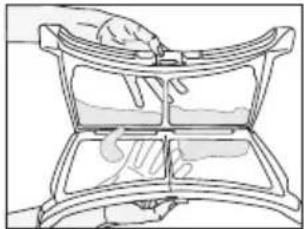

How do I clean the lint filter?

After each cycle, remove the lint filter from the door or top of the dryer, open it, and wipe off the lint. Rinse with water if needed and dry before replacing.

Why does the dryer stop before finishing?

Possible causes: overfilled water tank, clogged lint filter, overheating, or a blown fuse. Check the error code on the display and consult the manual.

Can I dry wool or delicate items?

Yes, use the Wool or Delicates program at low temperature. Do not overload and remove items promptly to avoid shrinkage.

How do I activate the child lock?

Press and hold the Child Lock button (usually for 3 seconds) until the symbol appears on the display. Repeat to deactivate.

What does the 'Filter' indicator mean?

The Filter indicator reminds you to clean the lint filter after each cycle. Ignoring may reduce airflow and prolong drying time.

How to use the delay start function?

Select a program, then press the Delay Start button to set a delay of 1 to 24 hours. The dryer will start automatically after the set time.

What spare parts are available for this model?

Common spare parts include lint filters, drive belts, heating elements, door seals, and control boards. Check the manual for part numbers.

How to troubleshoot if the dryer is not heating?

Check if the program is set to Air Fluff (no heat). If not, clean the lint filter and condenser. If still cold, the heating element or thermostat may be faulty; contact service.

USER MANUAL GTN 37114 GP GRUNDIG

1 Please read this user manual first!......3

2 Important instructions for safety and environment......4

2.1 General safety......4

2.1.1 Electrical safety 5

2.1.2 Product safety 6

2.2 Mounting over a washing machine....8

2.3 Intended use ......9

2.4 Child safety 9

2.5 Compliance with the WEEE regulation and disposing of the waste product ....10

2.6 Compliance with RoHS Directive: 10

2.7 Package information .....10

2.8 Technical Specifications...11

3 Your Dryer.... 12

3.1 Overview....12

3.2 Package Contents......13

4 Installation....14

4.1 Appropriate installation location 14

4.2 Removing the transportation safety assembly......14

4.3 Under counter installation 15

4.4 Connecting to the drain....15

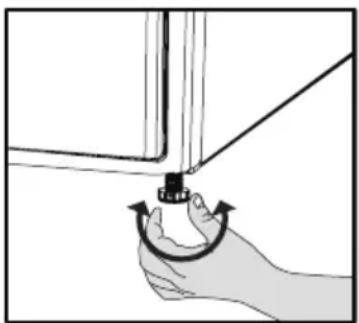

4.5 Adjusting the feet.....16

4.6 Electrical connection......16

4.7 Transportation of the product 16

4.8 Changing the illumination lamp....16

5 Preparation......17

5.1 Laundry suitable for drying in the machine....17

5.2 Laundry unsuitable for drying in the machine....17

5.3 Preparing clothes to be dried....17

5.4 Things to be done for energy saving....18

5.5 First use 18

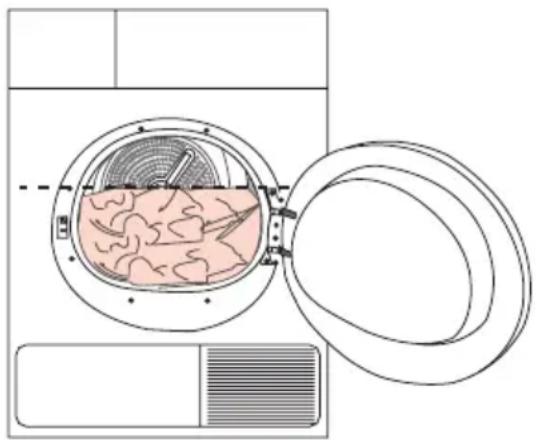

5.6 Correct load capacity......18

6 Selecting a program and operating your machine.....20

6.1 Control panel 20

6.2 Display Symbols ......20

6.3 Preparing the machine.....21

6.4 Programme selection.....21

6.5 Main programmes......21

6.6 Additional programmes .. 21

6.7Programme selection and consumption table ...... 23

6.8 Auxiliary functions......24

6.9 Warning symbols......24

6.10 Starting the programme 25

6.11 Child Lock 25

6.12 Changing the programme after it has started .....26

6.13 Canceling the programme27

6.14 End of programme ..... 27

7 Maintenance and cleaning . 28

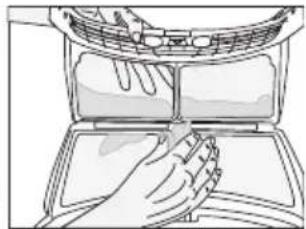

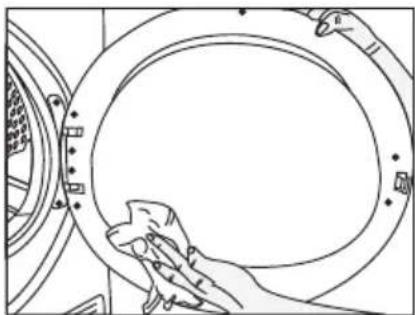

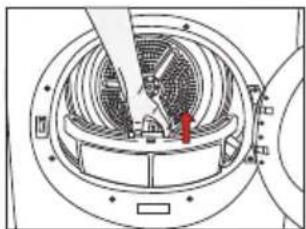

7.1 Lint Filter / Loading Door Inner Surface....28

7.2 Cleaning the sensors .....29

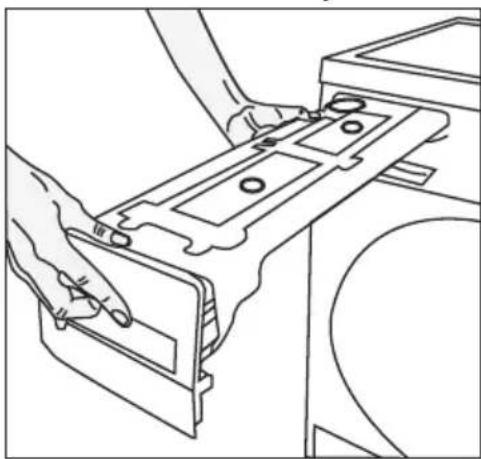

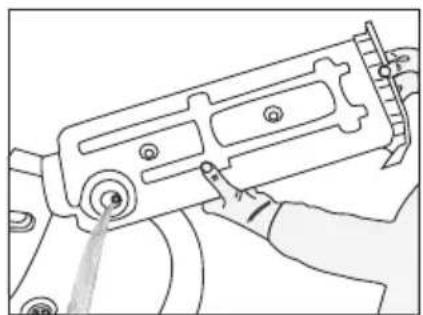

7.3 Draining the water tank ...29

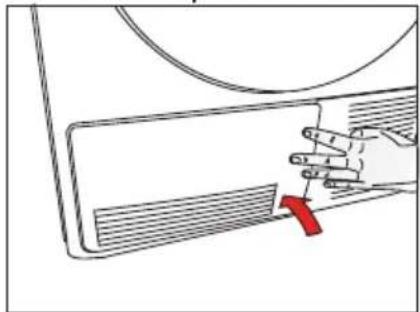

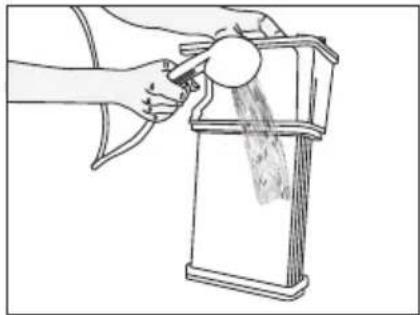

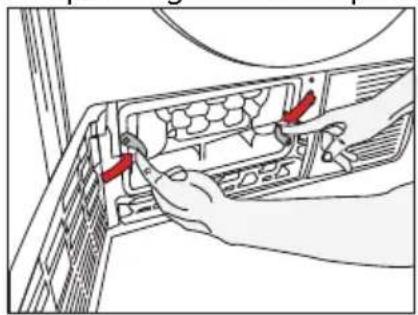

7.4 For the condenser;......30

8 Troubleshooting......31

1. Please read this user manual first!

Dear Customer,

Thank you for preferring an Grundig product. We hope that your product which has been manufactured with high quality and technology will give you the best results. We advise you to read through this manual and the other accompanying documentation carefully before using your product and keep it for future reference. If you transfer the product to someone else, give its manual as well. Pay attention to all details and warnings specified in the user manual and follow the instructions given therein.

Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.

Read the instructions.

Explanation of symbols

Throughout this user manual the following symbols are used:

	Important information or useful hints about usage.
	Warning for hazardous situations with regard to life and property.
	Warning against electric shock.
	Warning against hot surfaces.
	Warning against fire hazard.

Packaging of the product is made of recyclable materials pursuant to our national environment legislation.

Do not dispose of the packaging wastes with the domestic waste or other wastes, discard them to the dedicated collection points designated by the local authorities.

2. Important instructions for safety and environment

This section contains safety instructions that will help protect from risk of personal injury or property damage. Failure to follow these instructions shall void any warranty.

2.1 General safety

• The dryer can be used by children at and above 8 years old and by persons whose physical, sensory or mental capabilities were not fully developed or who lack experience and knowledge provided that they are supervised or trained on the safe usage of the product and the risks it brings out. Children should not play with the product. Cleaning and maintenance works should not be performed by children unless they are supervised by someone.
• Children of less than 3 years should be kept away unless continuously supervised.
• Adjustable feet should not be removed. The gap between the dryer and the floor should not be reduced with materials such as carpet, wood and tape. This will cause problems with the dryer.
• Always have the installation and repairing procedures carried out by the Authorized Service. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.
• Never wash the dryer by spraying or pouring water onto it! There is the risk of electric shock!

2.1.1 Electrical safety

	Electrical safety instructions should be followed while electrical connection is made during the installation.
	The appliance must not be supplied through an external switching device, such as a timer,or connected to a circuit that is regularly switched on and off by utility.

• Connect the dryer to a grounded outlet protected by a fuse at the value specified on the type label. Have the grounding installation performed by a qualified electrician. Our company shall not be liable for any damages that will arise when the dryer is used without grounding in accordance with the local regulations.
• The voltage and allowed fuse protection is stated on the type label plate.
• The voltage specified on the type label must be equal to your mains voltage.
• Unplug the dryer when it is not in use.
• Unplug the dryer from the mains during installation, maintenance, cleaning and repair works.
• Do not touch the plug with wet hands! Never unplug by pulling on the cable, always pull out by grabbing the plug.
• Do not use extension cords, multi-plugs or adaptors to connect the dryer to power supply in order to decrease the risk of fire and electric shock.
• Power cable plug must be easily accessible after installation.

	Damaged mains cable should be changed notifying the Authorized Service.
	If the dryer is faulty, it must not be operated unless it is repaired by an authorized service agent! There is the risk of electric shock!

2.1.2 Product safety

	Superheating of the clothes inside of the dryer can occur if you cancel the programme or in the event of a power failure whilst the dryer is running, this concentration of heat can cause self-combustion and fire so always activate the ventilation programme to cool down or quickly remove all laundry from the dryer in order to hang them up and dissipate the heat.
	Points to be taken into consideration for fire hazard:Below specified laundry or items must not be dried in the dryer considering fire hazard.Unwashed laundry itemsItems soiled with oil, acetone, alcohol, fuel oil, ke-rosene, stain removers, turpentine, paraffin or pa-raffin removers must be washed in hot water with plenty of detergent before being dried in the dryer.For this reason especially the items containing the above specified stains must be washed very well, to do this use adequate detergent and choose a high washing temperature.
	Below specified laundry or items must not be dried in the dryer due to the fire hazard:Garments or pillows bolstered with rubber foam (la-tex foam), shower bonnets, water resistant textiles, materials with rubber reinforcement and rubber foam pads.Clothing cleaned with industrial chemicals.Items such as lighter, match, coins, metal parts, needle etc. may damage the drum set or may lead to functional problems. Therefore check all the laundry that you will load into your dryer.Never stop your dryer before the programme completes. If you must do this, remove all laundry quickly and lay them out to dissipate the heat.

Clothes that are washed inadequately may ignite on their own and even may ignite after drying ends.

- You must provide enough ventilation in order to prevent gases exiting from devices operating with other types of fuels including the naked flame from accumulating in the room due to the back fire effect.

Underwear that contains metal reinforcements should not be dried in the dryer. Dryer may be damaged if metal reinforcements come loose and break off during drying.

Use softeners and similar products in accordance with the instructions of their manufacturers.

Always clean the lint filter before or after each loading. Never operate the dryer without the lint filter installed.

• Never attempt to repair the dryer by yourself. Do not perform any repair or replacement procedures on the product even if you know or have the ability to perform the required procedure unless it is clearly suggested in the operating instructions or the published service manual. Otherwise, you will be putting your life and others' lives in danger.
• There must not be a lockable, sliding or hinged door that may block the opening of the loading door in the place where your dryer is to be installed.
  • Install your dryer at places suitable for home use. (Bathroom, closed balcony, garage etc.)
• Make sure that pets do not enter the dryer. Check the inside of the dryer before operating it.
• Do not lean on the loading door of your dryer when it is open, otherwise it may fall over.
• The lint must not be allowed to accumulate around the tumble dryer

2.2 Mounting over a washing machine

• A fixing device should be used between the two machines when installing the dryer above a washing machine. The fitting device must be installed by the authorized service agent.
• Total weight of the washing machine and the dryer -with full load- when they are placed on top of each other reaches to approx. 180 kilograms. Place the products on a solid floor that has sufficient load carrying capacity!

Washing machine cannot be placed on the dryer. Pay attention to the above warnings during the installation on your washing machine.

Installation Table for Washing Machine and Dryer
Dryer Depth	Washing Machine Depth
	62 cm	60 cm 5	4 cm 5	0 cm 49	cm 45	cm 40 cm
54 cm	Can be stacked					Can be stacked	Cannot be stacked
60 cm	Can be stacked					Cannot be stacked

2.3 Intended use

• Dryer has been designed for domestic use. It is not suitable for commercial use and it must not be used out of its intended use.
• Use the dryer only for drying laundry that are marked accordingly.
• The manufacturer waives any responsibility arisen from incorrect usage or transportation.
• The service life of the dryer that you purchased is 10 years. During this period, original spare parts will be available to operate the dryer properly.

2.4 Child safety

• Packaging materials are dangerous for the children. Keep packaging materials away from children.
• Electrical products are dangerous for the children. Keep children away from the product when it is operating. Do not let them tamper with the dryer. Use the child-proof lock in order to prevent the children to tamper with the dryer.

Child-proof lock is on the control panel. (See Child lock)

- Keep loading door closed even when the dryer is not in use.

2.5 Compliance with the WEEE regulation and disposing of the waste product

Pure electrical circuit lines without any symbols

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Do not dispose of the waste product with normal domestic and other wastes at the end of its service life. Take it to the collection center for the recycling of electrical and electronic equipment. Please consult your local authorities to learn about these collection centers.

2.6 Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.7 Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

2.8 Technical Specifications

EN
Height (Min. / Max.) 84,6 cm / 86,6 cm*
Width 59,5 cm
Depth 53 cm
Capacity (max.) 7 kg**
Weight (net) 38,5 kg
Voltage	See type label***Rate
Model code

* Min. height: Height with adjustable feet are closed.

Max. height: Height with adjustable feet are opened maximum.

** Dry laundry weight before washing.

*** Type label is located behind the loading door.

	Technical specifications of the dryer are subject to specification without notice to improve the quality of the product.
	Figures in this manual are schematic and may not match the product exactly.
	Values stated on markers on the dryer or in the other published documentation accompanying with the dryer are obtained in laboratory in accordance with the relevant standards. Depending on operational and environmental conditions of the dryer, these values may vary.

3. Your Dryer

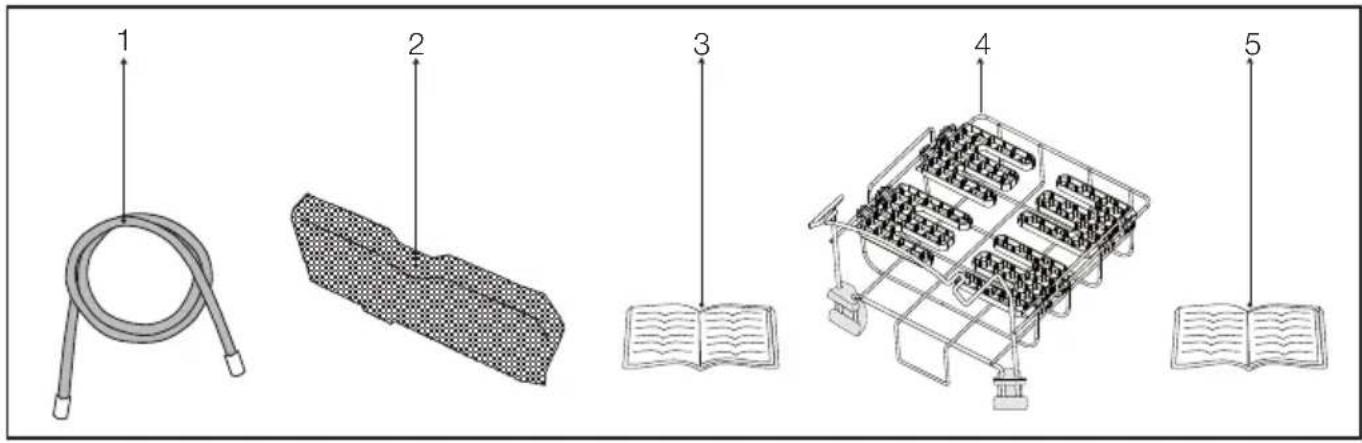

3.1 Package Contents

1. Water drain hose *
2. Filter drawer spare sponge*
3. User Manual
4. Drying basket*
5. Drying basket user manual*

*It can be supplied with your machine depending on its model.

4. Installation

Refer to the nearest Authorized Service Agent for installation of the product. To make the product ready for use, make sure that the electricity and water drainage systems are appropriate by reading the information/instructions given in the user manual before calling the Authorized Service Agent. If they are not, call a qualified technician and plumber to have any necessary arrangements carried out.

Preparation of the product's location as well as the electrical, clean water and waste water installations is under customer's responsibility.

CAUTION: Installation and electrical connections of the product must be performed by the Authorized Service Agent. Manufacturer shall not be held liable for damages that may arise from procedures carried out by unauthorized persons.

CAUTION: Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.

4.1 Appropriate installation location

• Install the product on a stable and level surface.
- Dryer is heavy. Do not move it by yourself.
- Operate your product in a well ventilated, dust-free environment.
- Do not block the air ducts in front of and under the product with materials such as long pile rugs, wooden blocks and bands.
- Do not install the product behind a door with a lock, sliding door or a hinged door which can strike the product.

- Once the product is installed, it should stay at the same place where its connections have been made. When installing the product, make sure that the rear wall of it does not touch anywhere (tap, socket, etc.). Also pay attention to select an installation location which you will not be required to change afterwards.

- Place the product at least 1.5 cm away from the edges of other furniture.

- The rear surface of the tumble dryer shall be placed against a wall.

CAUTION: Do not place the product on top of the power cord.

4.2 Removing the transportation safety assembly

CAUTION: Remove the transportation safety assembly before using the product for the first time.

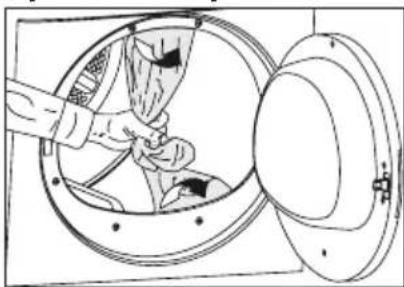

1. Open the loading door.
2. There is a nylon bag inside the drum that contains a piece of styrofoam. Hold it from its section marked with XX XX.
3. Pull the nylon towards yourself and remove the transportation safety assembly.

Diagram of a hand cleaning a circular mechanical component with a lid open (no text or symbols)

CAUTION: Check that no part of the transportation safety assembly remains inside the drum.

4.3 Under counter installation

- This product can be installed under a counter if the height of the counter is sufficient.

CAUTION: While using the under counter dryer, never operate the dryer without under counter installation part.

Dryer Depth 60 cm	54 cm
Stock number of under-bench installation part	2979700200	2973600200

- Leave at least 3 cm of space around the sides and the rear wall of the product when installing it under a counter or in a cupboard.

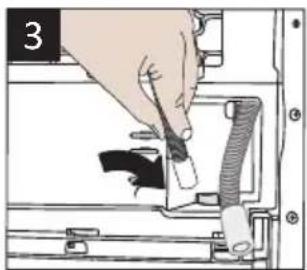

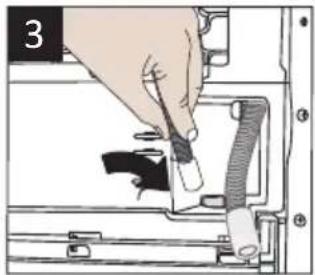

4.4 Connecting to the drain

In products equipped with condenser unit, water accumulates in the water tank during the drying cycle. You should drain accumulated water after each drying cycle.

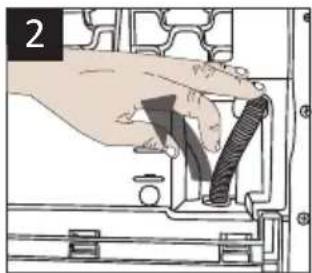

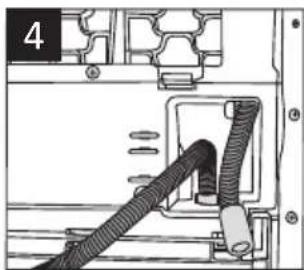

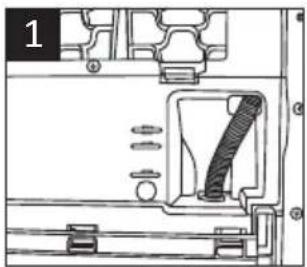

You can directly drain accumulated water through the water drain hose supplied with the product instead of periodically draining the water collected in the water tank.

Technical line drawing of a mechanical assembly with no visible text or symbols

Illustration of a hand inserting a cable into a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with hoses and connectors (no text or symbols)

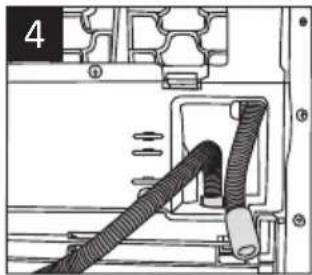

Connecting the water drain hose

1-2 Pull hose at the behind of the dryer by hand in order to disconnect it from where it is connected. Do not use any tools to remove the hose.

3 Connect one end of the drain hose supplied with the dryer to the connection point from where you removed the hose of the product in previous step.

4 Connect the other end of the drain hose directly to the wastewater drain or to the washbasin.

CAUTION: Hose must be fixed in every type of connection. Your house will be flooded if the hose comes loose during water discharge.

Attach the water drain hose to a height of maximum 80 cm.

Make sure that the water drain hose is not stepped on, twisted or bent between the drain and the machine.

4.5 Adjusting the feet

In order to ensure that the product operates more silently and vibration-free, it must stand level and balanced on its feet. Balance the machine by adjusting the feet.

Turn the feet to left or right until the machine stands level and firmly.

Illustration of a hand holding a small mechanical component with a curved arrow indicating rotation (no text or symbols)

CAUTION: Never unscrew the adjustable feet from their housings.

4.6 Electrical connection

For specific instructions for electrical connection required during installation (see 2.1.1 Electrical Safety)

4.7 Transportation of the product

1. Unplug the product before transporting it.
2. Remove the water drain (if any) and chimney connections.
3. Drain the water in the product completely.

4.8 Changing the illumination lamp

In case an illumination lamp is used in your laundry dryer

To change the Bulb/LED used for illumination of your tumble dryer, call your Authorized Service.

The lamp(s) used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to place laundry in the tumble dryer in a comfortable way. "The lamps used in this appliance have to withstand extreme physical conditions such as vibrations and temperatures above 50 °C."

5. Preparation

5.1 Laundry suitable for drying in the dryer

Always obey the instructions given on the garment tags. Dry only the laundry having a label stating that they are suitable for drying in a dryer and make sure that you select the appropriate programme.

LAUNDRY DRYING SYMBOLS
	Drying Symbols	Suitable for dryer	No Iron	Sensitive /Delicate dry	Do not dry with dryer	Do not dry	Do not dry-clean

	Drying Settings
		At any temperature	At high temperature	At medium temperature	At low temperature	Without heating	Hang to dry	Lay to dry	Hang wet to dry	Lay in shadow to dry	Dry-cleanable

	Iron -
IRON	Dry or Steam	Iron at high temperature	Iron at medium temperature	Iron at low temperature	Do not iron			Iron without steam
	Maximum temperature	200 °C 150	°C 110	°C

5.2 Laundry not suitable for drying in the dryer

Delicate embroidered fabrics, woolen, silk garments, delicate and valuable fabrics, airtight items and tulle curtains are not suitable for machine drying.

5.3 Preparing laundry for drying

• Laundry may be tangled with each other after washing. Separate the laundry items before placing them into the dryer.
• Dry garments having metal accessories such as zippers, inside out.
• Fasten the zippers, hooks and buckles and button sheets.

5.4 Things to be done for energy saving

Following information will help you use the dryer in an ecological and energy-efficient manner.

• Spin your laundry at the highest speed possible when washing them. Thus, the drying time is shortened and energy consumption is reduced.
• Sort out the laundry depending on their type and thickness. Dry the same type of laundry together. For example thin kitchen towels and table clothes dries earlier than thick bathroom towels.

• Follow the instructions in the user manual for programme selection.

• Do not open the loading door of the machine during drying unless necessary. If you must certainly open the loading door, do not to keep it open for a long time.

• Do not add wet laundry while the dryer is in operation
• Clean the lint filter before or after each drying cycle. (See 7.1 Filter Cartridge / Door Inner Surface)

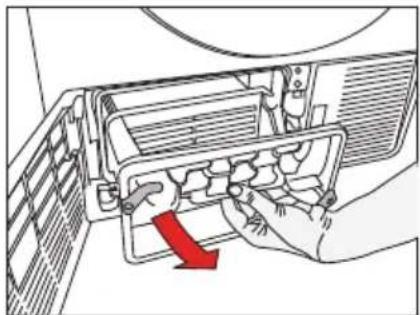

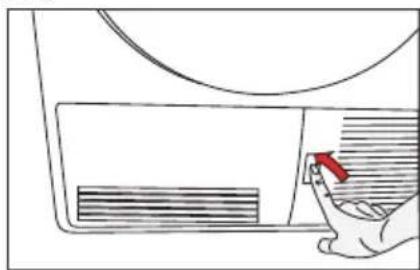

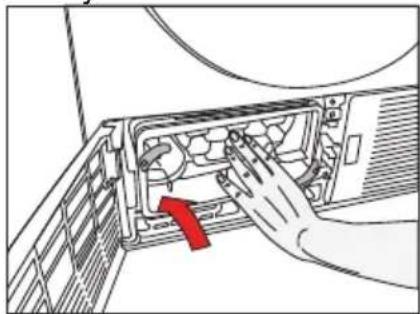

• Clean the condenser regularly at least once every month or after every 30 drying cycles. (See 7.4 For the condenser;)
• Ventilate the room, where the dryer is located, well during drying.

5.5 Correct load capacity

Follow the instructions in the "Programme selection and consumption table". Do not load more than the capacity values stated in the table.

Diagram of a liver with internal organs inside a washing machine (no text or labels)

It is not recommended to load the dryer with laundry exceeding the level indicated in the figure.

Drying performance will degrade when the machine is overloaded. Furthermore, dryer and the laundry can get damaged.

Following weights are given as examples:

Laundry	Approximate weights (g)*
Cotton quit covers (double)	1500
Cotton quit covers (single)	1000
Bed sheets (double)	500
Bed sheets (single)	350
Large tablecloths 700
Small tablecloths 250
Tea napkins 100
Bath towels 700
Hand towels 350
Blouses 150
Cotton shirts 300
Shirts 250
Cotton dresses 500
Dresses 350
Jeans 700
Handkerchiefs (10 pieces)	100
T-Shirts 125

* Dry laundry weight before washing.

6. Selecting a program and operating your machine

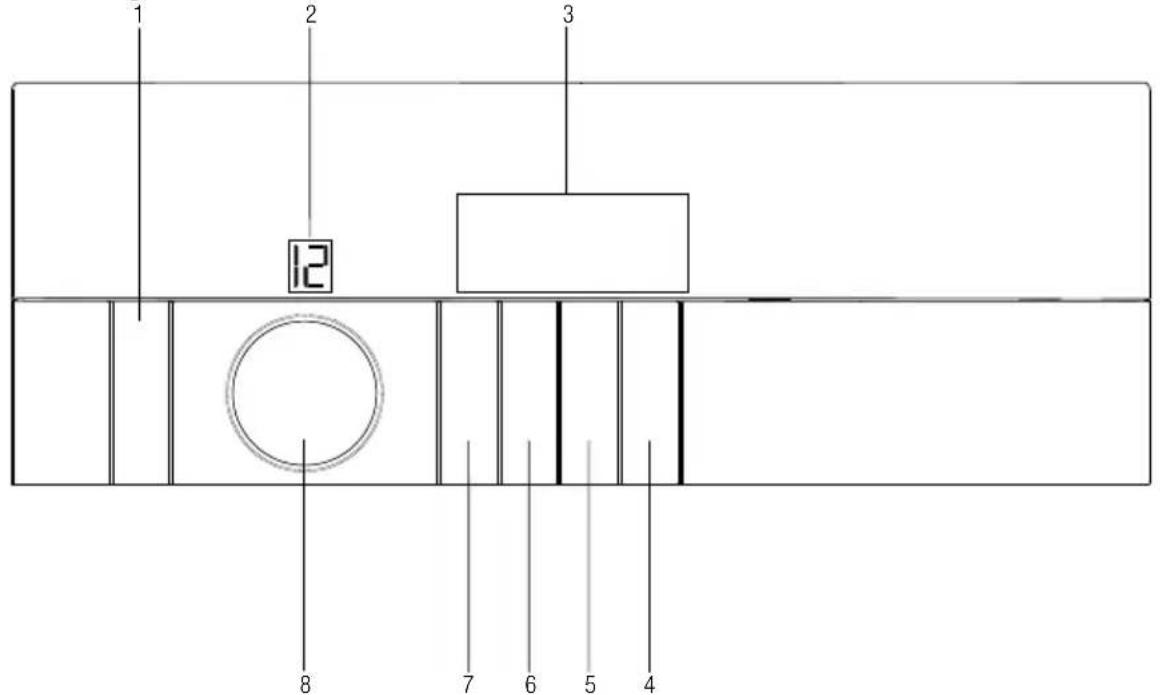

6.1 Control panel

1. On/Off/Cancel button
2. Program number indicator
3. Display
4. Start/Pause button
5. Time delaying selection button
6. Audio warning level button/child-proof lock
7. Timer programmes selection button
8. Program knob

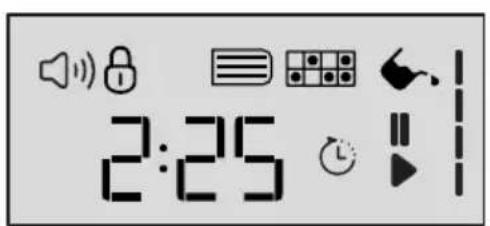

6.2 Display Symbols

Remaining time indicator*

Filter Drawer Cleaning warning symbol

Filter cleaning warning symbol

Audio warning Symbol

Child Lock warning symbol

Water Tank warning symbol

End Time Symbol

Start / Pause symbol

Programme progress bar

*Time that appears on display indicates the remaining time until the end of the programme and changes according to the dampness level of the laundry and model of the dryer.

6.3 Preparing the machine

1. Plug in the machine.
2. Place the laundry in the machine.
3. Press the on/off/cancel button for 1 second (long).
4. When your machine is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons).

Pressing the On/Off/Cancel button does not mean that the programme has started. Press Start / Pause button to start the program.

6.4 Programme selection

1. Decide the appropriate programme from the table below which includes drying levels.

2. Select the desired programme with the Programme Selection knob.

Extra Dry	Only the cotton laundry is dried at normal temperature. Thick and multi layered laundry (towels, linens, jeans and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.
Cupboard Dry	Normal laundry (tablecloths, underwear and etc.) are dried in a way that they do not require ironing before being placed in the wardrobe.

Cupoard Dry Plus	Normal laundry (E.g.: tablecloths, underwear) are dried in a way that they do not require ironing before placing in the wardrobe. However, they are dried more when compared to the Wardrobe Dry option.
Iron Dry	Normal laundry (shirts, dresses and etc.) are dried ready to be ironed.

For further programme details, see, "Programme selection and consumption table".

6.5 Main programmes

Depending on the fabric type, the following main programmes are available:

- Cottons

Dry durable laundry with this programme. Dries at normal temperature. It is recommended to use for your cotton items (bed sheets, quilt covers, towels, bathrobes, etc.).

- Synthetics

Dry less durable laundry with this programme. Recommended for synthetics.

6.6 Additional programmes

For special cases, following additional programmes are available in the machine.

Additional programs may differ according to the features of your machine.

- Mini 40

You can use this programme to dry your cotton laundry that you have spun at high speeds in your washing machine. This programme dries 2 kg cotton laundry (3 Shirts / 5 T-shirts) in 40 minutes.

To obtain better results from your dryer, your laundry must be washed at suitable programmes and spun at the recommended spin speeds in the washing machine.

- Shirts

This programme dries the shirts more sensitively and creases them less and thus, helps to iron them more easily.

There may be a little moisture on the shirts at the end of the programme. We recommend you not to leave the shirts in the dryer.

- Jeans

Use this programme to dry your jeans that are spun at high speeds in the washing machine.

- Mixed

Use this programme to dry non-pigmenting synthetic and cotton laundry items together.

- Sportswear

Use this programme to dry together the synthetic and cotton laundry items and the laundry items made of mixed fabrics.

• Daily

This programme is used to dry cottons and synthetics daily, and lasts for 72 minutes.

- Shirt 15'

Use this programme to make 2 shirts ready for ironing in 15 minutes.

- Delicates

You can dry your highly delicate laundry (silk blouses, fine underwear, etc.) that are suitable for drying or laundry which is advised to be hand-washed at a lower temperature.

It is recommended to use a cloth bag to avoid certain delicate garments and laundry from getting creased or damaged. Take your laundry immediately out of the dryer and hang them after the programme ends in order to prevent them being creased.

- Refresh

Only ventilation is performed for 10 minutes without blowing hot air. You can air the clothes that have been kept at closed environments for a long time and deodorize unpleasant odors thanks to this programme.

- Timer programmes

You can select one of the 10 min., 20 min., 30 min., 40 min., 50 min., 60 min., 80 min., 100 min., 120 min., 140 min. and 160 min. timer programmes to achieve the desired final drying level at low temperatures.

With this programme, the machine dries for the time selected regardless of the dryness level.

6.7 Programme selection and consumption table

EN
Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Drying time (minutes)
Cottons / Coloreds
	Extra dry 7 1000 % 60 141
	Cupboard dry 7 / 3,5 1000 % 60 129 / 72
	Iron dry 7 1000 % 60 110
Shirts 15' 0.5 1200 % 60 15
Mixed 4 1000 % 60 90
Jeans 4 1200 % 50 95
Sport 4 1000 % 60 100
Daily 4 1200 % 50 72
Delicates		2	600	% 40	45
Shirts		1.5 1200 % 50 40
Mini 40'		2	1200	% 50	40
Synthetics
	Cupboard dry	3.5	800	% 40	55
	Iron dry	3.5	800	% 40	43
Energy consumption values
Programs		Capacity (kg)	Spin speed in washing machine (rpm)	Approximate amount of remaining humidity	Energy consumption value kWh
Cottons linen Ready to wear*		7 / 3,5	1000	% 60	4,15 / 2,34
Cottons Ready to iron		7	1000	% 60	3,40
Synthetics Ready to wear		3.5	800	% 40	1,42
Power consumption of the off-mode for the standart cotton programme at full load, PO (W)					0,5
Power consumption of the left-on mode for the standart cotton programme at full load, PL (W)					1,0

„Cotton cupboard dry programme“ used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton.

* : Energy Label standard programme (EN 61121:2012)

All values given in the table have been determined according to EN 61121:2012 Standard. These values may deviate from the values in the table according to the laundry type, laundry spin speed, environmental conditions and voltage fluctuations.

6.8 Auxiliary functions

Audio Warning

The machine will give an audio warning when the programme comes to an end. Use the Audio Warning Level button to adjust the sound level.

You can change the sound level either before the programme starts or while the programme is in progress.

Anti-creasing

A 2-hour anti creasing program to prevent laundry from creasing will be activated if you do not take the laundry out after the program has come to an end. This programme rotates the laundry in 10-minute intervals to prevent creasing.

6.9 Warning symbols

Warning symbols may differ according to the model of your machine.

Lint filter cleaning

When the programme is completed, a warning symbol will appear to remind that the filter needs to be cleaned.

If the Filter Cleaning symbol flashes continuously, refer to "Troubleshooting" section.

For further programme details, see, "Programme selection and consumption table".

Water tank

When the programme is completed, a warning symbol will appear to remind that the water tank needs to be drained.

If the water tank becomes full while the programme is running, the warning symbol will start to flash and machine will pause. Drain the water in the water tank and press Start / Pause button to resume the programme. The warning symbol turns off and the programme resumes operating.

Cleaning the condenser

Warning symbol flashes with certain intervals to remind that the condenser needs to be cleaned.

End Time Setting

End Time Setting function allows you to delay the ending time of the programme up to 24 hours.

1. Open the loading door and put the laundry in.
2. Select the drying programme, spin speed and, if required, the auxiliary functions.
3. Press End Time Setting selection button to set the desired End Time Setting symbol lights up on the display.(When the button is pressed and hold, End Time proceeds uninterruptedly).
4. Press Start/Pause button. End Time Setting starts to count down. The ":" in the middle of the displayed End Time Setting will start to flash.

Additional laundry may be loaded / taken out during the End Time period. At the end of the End Time countdown process, End Time symbol disappears, drying process starts and the programme duration is displayed. The time on the display is the total of normal drying time and delay time.

Changing the Delay Time

If you want to change the time during countdown:

1. Press On/Off/Cancel button for 3 seconds to cancel the programme. Restart the machine and repeat the End Time procedure for the desired time.

2. When your machine is operated for the first time, it starts with the declaration programme (wardrobe dryness for cottons).

Canceling End Time function

If you want to cancel the Time Delay countdown and start the programme immediately:

1. Press On/Off/Cancel button for 3 seconds to cancel the programme.
2. Press On/Off/Cancel button to start the programme you have previously selected.

6.10 Starting the programme Press Start/Pause button to start the program.

Start symbol will light up to indicate that the programme has started and “:” symbol in the middle of the remaining time will keep flashing.

6.11 Child Lock

Machine is equipped with a Childproof Lock which prevents interfering with the current programme flow by pressing any button. All buttons except the On/Off/Cancel button on the control panel are deactivated when the Child-proof Lock is active.

In order to activate the Child Lock, press Audio Warning and Child Lock button for 3 seconds.

To start a new programme after the current programme is over or to interrupt the current programme, the Child Lock should be deactivated. Press the same button for 3 seconds again to deactivate the Child Lock.

Lock symbol will appear on the display when the Childproof Lock is activated.

Child Lock is deactivated when the machine is switched off and on with On/Off/Cancel button.

• When the Child-proof Lock is activated:
• Display symbols will not change even if the position of Programme Selection knob is changed while the machine is running or in halt.

6.12 Changing the programme after it has started

After the machine starts, you can change the selected programme and dry your laundry in a different programme.

1. If you want to select Extra Dry programme instead of Iron Dry programme, press and hold the Start/Pause button for 1 second to stop the programme.
2. Select Extra Dry programme by turning the Programme Selection knob.
3. Press the Start/Pause button to start the program.

Adding / removing laundry in Pause mode

In order to add or take out laundry after the drying programme has started:

1. Press Start/Pause button to switch the machine to Pause mode. Drying process will stop.

2. While in Pause mode, open the loading door, add or take out laundry and close the loading door.

3. Press the Start/Pause button to start the program.

Any laundry added after the drying process has started may cause the clothes that are already dried in the machine intermingle with wet clothes and the result will be wet laundry after the drying process is over.

You may repeat laundry adding or removing process as many times as you desire during drying. However, this process will increase the programme time and energy consumption since the drying process will be interrupted repeatedly. Therefore, it is recommended to add laundry before the drying programme has started.

If you select a new programme by turning the Programme Selection knob while your machine is in Pause mode, then the current program is aborted and new programme information is displayed.

CAUTION: Do not touch the inner surface of the drum when adding or taking out laundry while a programme is running. Surfaces of the drum are hot.

6.13 Canceling the programme

If you want to stop drying and cancel the programme for any reason after the machine has started to run, press and hold the On/Off/Cancel button for 3 seconds.

CAUTION: As the inside of the machine will be excessively hot when you cancel the program while the machine is running, activate the ventilation program to cool it down.

6.14 End of programme

Lint Filter Cleaning and Water Tank warning symbols light up in the programme follow-up indicator when the programme comes to an end. The loading door can be opened and the machine becomes ready for a second cycle.

Press On/Off/Cancel button to switch off the machine.

2-hour Anti-creasing program will be activated if the laundry is not taken out after the program has come to an end.

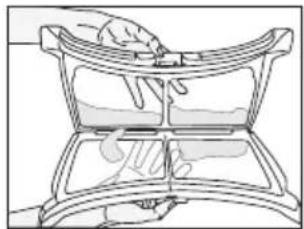

Clean the lint filter after each drying. (See "Lint Filter and Loading Door Inner Surface")

Drain the water tank after each drying cycle. (See "Draining the water tank")

7. Maintenance and cleaning

Service life of the product extends and frequently faced problems decrease if cleaned at regular intervals.

CAUTION: Unplug the product from the mains during any maintenance and cleaning works (control panel, body, etc.).

7.1 Lint Filter / Loading Door Inner Surface

Lint and fiber released from the laundry to the air during the drying cycle are collected in the Lint Filter.

	Such fiber and lint are generally formed during wearing and washing.
	CAUTION: Always clean the lint filter and the inner surfaces of the loading door after each drying process.
	You can clean the lint filter housing with a vacuum cleaner.

To clean the lint filter:

1. Open the loading door.
2. Remove the lint filter by pulling it up and open the lint filter.
3. Clean lint, fiber, and cotton raveling by hand or with a soft piece of cloth.
4. Close the lint filter and place it back into its housing.

Technical diagram of a mechanical device with internal fan and mounting bracket (no text or symbols)

Illustration of hands holding a grid device with red arrows indicating movement or force (no text or symbols)

Line drawing of a hand placing a component into a multi-layered container (no text or symbols)

Illustration of hands cleaning a kitchen appliance with a tray and lid (no text or symbols)

A layer can build up on the filter pores that can cause clogging of the filter after using the machine for a while. Wash the lint filter with warm water to remove the layer that builds up on the lint filter surface. Dry the lint filter completely before reinstalling it.

Line drawing of a hand using a tool to clean or wash material inside a container (no text or symbols)

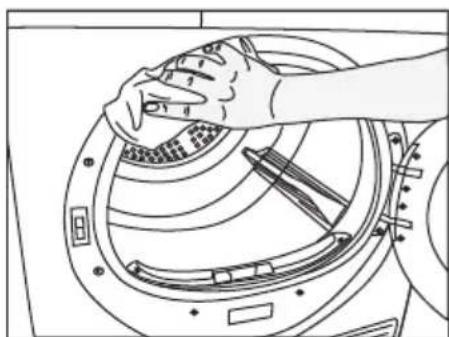

Clean the entire inner surface of the loading door and loading door gasket.

Line drawing of a hand cleaning a circular mechanical component (no text or symbols)

Line drawing of a hand using a tool to clean or adjust the interior of a washing machine (no text or symbols present)

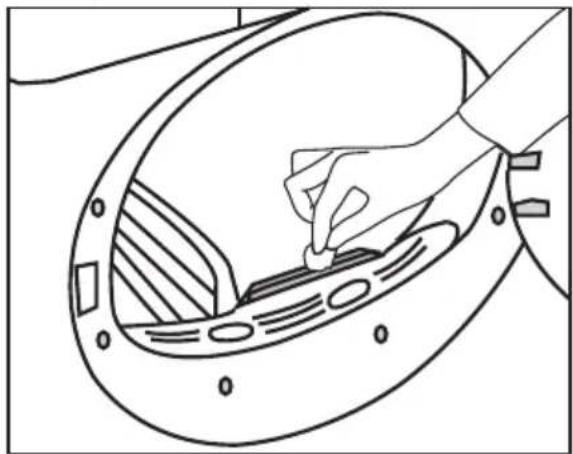

7.2 Cleaning the sensors

There are dampness sensors in the machine that detect whether the laundry is dry or not.

To clean the sensors:

1. Open the loading door of the machine.
2. Allow the machine to cool down if it is still hot due to the drying process.
3. Wipe the metal surfaces of the sensor with a soft cloth, dampened with vinegar and dry them.

Clean metal surfaces of the sensors 4 times a year.

Do not use metal tools when cleaning metal surfaces of the sensors.

CAUTION: Never use solvents, cleaning agents or similar substances for cleaning due to the risk of fire and explosion!

Line drawing of a hand placing a small object into a circular mechanical component (no text or symbols)

7.3 Draining the water tank

Dampness of the laundry is removed and condensed during drying process and the water that arise accumulates in the water tank. Drain the water tank after each drying cycle.

CAUTION: Condensed water is not drinkable!

CAUTION: Never remove the water tank when the program is running!

If you forget to drain the water tank, the machine will stop during the subsequent drying cycles when the water tank is full and the Water Tank warning symbol will flash. If this is the case, drain the water tank and press Start / Pause button to resume the drying cycle.

To drain the water tank:

1. Pull the drawer and remove the water tank carefully.

Line drawing of hands installing or adjusting a mechanical component with a tray (no text or symbols)

1. Drain the water in the tank.

Line drawing of a hand operating a mechanical device with a circular button (no text or symbols)

1. If there is lint accumulation in the funnel of the water tank, clean it under running water.
2. Place the water tank into its seat.

7.4 For the condenser;

Hot and humid air in the condenser is cooled with the cold air from the room. Thus, the humid air circulating in your dryer is condensed and then pumped into the tank.

Clean the condenser after every 30 drying cycles or once a month.

To clean the condenser:

1. If a drying process has been carried out, open the door of the machine and wait until it cools down.

Hand holding a red arrow pointing to a window or door panel (no text or symbols visible)

1. Unlock the 2 condenser locks after opening the kick plate.

Illustration of a hand inserting a component into a rack, with red arrows indicating direction (no text or symbols present)

1. Pull out the condenser.

Diagram of a hand inserting a component into a computer drive (no text or symbols visible)

1. Clean the condenser by applying pressurized water with a shower armature and wait until the water drains.

Line drawing of a hand pouring liquid into a container (no text or symbols)

1. Place the condenser in its housing. Fasten the 2 locks and make sure that they are seated securely.

Diagram of a computer monitor with a hand inserting a component, showing no text or symbols.

1. Close the kick plate cover.

Line drawing of a hand holding a tool near a rectangular panel with a red arrow pointing to it (no text or symbols)

8. Troubleshooting

Drying process takes too much time.

• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Condenser may be clogged. >>> Clean the Condenser.
• Ventilation grids on the front side of the machine are blocked. >>> Remove the objects (if any) that block ventilation in front of the ventilation grids.
• Ventilation may not be sufficient since the room where the machine is installed is very small. >>> Open the door and window of the room to avoid the room temperature increase too much.
• Lime deposit has built up on the dampness sensor. >>> Clean the dampness sensor.
• Excessive laundry might have been loaded in. >>> Do not load the dryer in excess.
• Laundry might not be spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Laundry comes out wet at the end of drying.

After drying, the hot clothes feel damper than their actual dampness level.

• A programme suitable for the laundry type might have not been used.>>> Check the garment tag and select a programme suitable for the fabric type or use the timer programmes additionally.
• Pores of the lint filter are clogged. >>> Wash the lint filter with warm water.
• Condenser may be clogged. >>> Clean the Condenser.
• Excessive laundry might have been loaded in. >>> Do not load the dryer in excess.
• Laundry might not be spun sufficiently. >>> Spin your laundry at a higher speed in your washing machine.

Dryer does not switch on or the programme does not start. Dryer does not start when it is set.

• It might have not been plugged in. >>> Make sure that the machine is plugged in.
• The loading door is ajar. >>> Make sure that the loading door is closed securely.
• Programme is not selected or the Start / Pause button is not pressed.

  Make sure that the programme is selected and the machine is not in Pause mode.

• "Childproof lock" might have been activated. >>> Deactivate the Childproof Lock.

Programme is interrupted without any cause.

The loading door might not be closed securely. >>> Make sure that the loading door is closed securely.A power failure might have occurred. >>> Press Start / Pause button to start the program.Water tank may be full. >>> Drain the water tank.

Laundry has shrunk, become felted or deteriorated.

A programme suitable for the laundry type might have not been used. >>> Check the garment tag and select a programme suitable for the fabric type.

Drum lighting does not turn on. (On models with lamp)

Dryer might not be switched on with the On / Off / Cancel button. >>> Make sure that the dryer is switched on.Bulb may have blown. >>> Call Authorized Service Agent to have the lamp replaced.

Filter Cleaning warning symbol light is on.

Lint filter is not cleaned. >>> Clean the lint filter.

Lint Filter Cleaning symbol is flashing.

Filter housing is clogged with lints. >>> Clean the lint filter housing.A deposit has built up on the lint filter pores that may cause clogging. >>> Wash the lint filter with warm water.Condenser may be clogged. >>> Clean the Condenser.

Water leaks from the loading door

Lint has accumulated on the inner surfaces of the loading door and on the surfaces of the loading door gasket. >>> Clean the inner surfaces of the loading door and the surfaces of the loading door gasket.

Loading door opens spontaneously.

The loading door might not be closed securely. >>> Push the loading door to close until you hear a locking sound.

Water Tank warning symbol is on/flashing.

Water tank may be full. >>> Drain the water tank.Water draining hose might be bent. >>> If the product is connected directly to a wastewater drain, check the water drain hose.

Condenser cleaning warning symbol is flashing.

Condenser might have not been cleaned. >>> Clean the Condenser.

CAUTION: If you cannot eliminate the problem although you follow the instructions in this section, consult your dealer or the Authorized Service Agent. Never try to repair a nonfunctional product yourself.

PRODUCT FICHE
Complying Commission Delegated Regulation (EU) No 392/2012
Supplier name or trademark		Grundig
Model name		GTN37114GP / GTN37114G
Rated capacity (kg)		7
Type of Tumble Dryer	Air Vented	-
	Condenser	●
Energy efficiency class(1)		B
Annual Energy Consumption (kWh)(2)		503
Type of Control	Automatic	●
	Non-automatic	-
Energy consumption of the standard cotton programme at full load (kWh)		4,15
Energy consumption of the standard cotton programme at partial load (kWh)		2,34
Power consumption of the off-mode for the standart cotton programme at full load, P_0 (W)		0,5
Power consumption of the left-on mode for the standart cotton programme at full load, P_L (W)		1,0
The duration of the left on mode (min)		30
Standard cotton programme(3)
Programme time of the standard cotton programme at full load, T_dry (min)		129
Programme time of the standard cotton programme at partial load, T_dry1/2 (min)		72
Weighted programme time of the standard cotton programme at full and partial load ( T_t )		96
Condensation efficiency class(4)		B
Average condensation efficiency of the standard cotton programme at full load, C_cry		89%
Average condensation efficiency of the standard cotton programme at partial load, C_dry1/2		89%
Weighted condensation efficiency of the standard cotton programme at full load and partial load, C_t		89%
Sound power level for the standard cotton programme at full load(5)		65
Built-in		-

•: Yes - : No

(1) Scale from A+++ (most efficient) to D (least efficient)
(2) Energy consumption based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.
(3) "Cotton cupboard dry programme" used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, that this programme is suitable for drying normal wet cotton laundry and that it is the most efficient programme in terms of energy consumption for cotton
(4) Scale from G (lest efficient) to A (most efficient)
(5) Weighted average value — L_WA expressed in dB(A) re 1 pW

USCĂTOR

MANUAL DE UTILIZARE

RO

CUPRINS

Simple line drawing of an open book with no text or symbols visible

Pure electrical circuit lines without any symbols

Line drawing of a hand inserting a component into a circular device (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Technical diagram of a mechanical assembly with coiled tubing and numbered components (no text or symbols)

Hand holding a mechanical component with a curved arrow indicating rotation (no text or symbols)

Diagram of a washing machine with internal tissue and lid, showing no text or symbols

6.4 Selectare program

Technical diagram of a circular device with internal fan and ventilation slots, showing no text or symbols

Illustration of hands holding a grid-like object with red arrows indicating movement or force (no text or symbols)

Line drawing of a hand placing a component into a curved container (no text or symbols)

Illustration of hands cleaning a refrigerator with a tray (no text or symbols)

Illustration of hands using a tool to clean or prepare food items on a tray (no text or symbols visible)

Line drawing of hands cleaning a circular mechanical component (no text or symbols)

Line drawing of hands installing or adjusting a circular component with a tool (no text or symbols visible)

Line drawing of a hand placing a small object into a circular mechanical component (no text or symbols)

Line drawing of hands installing or adjusting a mechanical component with a tray (no text or symbols)

Line drawing of a hand holding a mechanical device with a tool inserted (no text or symbols)

Hand placing a red arrow on a surface next to a rectangular object (no text or symbols visible)

Illustration of hands installing or adjusting a computer keyboard (no text or symbols visible)

Diagram of a hand inserting a device into a rack, showing internal components and a red arrow indicating direction (no text or symbols present)

Line drawing of a hand using a tool to lift a cylindrical object into a rectangular container (no text or symbols)

Illustration of a computer tower internal structure with a hand interacting with the panel (no text or symbols visible)

Illustration of a hand pressing down on a computer monitor with a red arrow pointing to the button (no text or symbols present)

8. Depanare

Hot laundry unloaded at the end of drying feel wetter than they really are.
