G81H - Tablet iGET - Free user manual and instructions

Type	Tablet
Brand	iGET
Model	G81H
Display Size	10.1 inches
Resolution	1280 x 800 pixels
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	32 GB
Expandable Storage	microSD up to 128 GB
Operating System	Android
Battery	5000 mAh
Connectivity	Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Camera	Front 2 MP, Rear 5 MP
Dimensions	240 x 150 x 8 mm
Weight	500 g
Power	DC 5V 2A
Sensors	G-sensor
Audio	3.5mm jack, built-in speaker
Package Contents	Tablet, USB cable, charger, manual
Color	Black

Frequently Asked Questions - G81H iGET

How to turn on the iGET G81H tablet?

Press and hold the power button located on the side for about 3 seconds until the screen lights up.

How to insert a microSD card?

Locate the microSD card slot on the side of the tablet. Gently push the card with the gold contacts facing down until it clicks into place.

How to perform a factory reset?

Go to Settings > Backup & reset > Factory data reset. Confirm and wait for the tablet to restart.

Why is the battery draining quickly?

Reduce screen brightness, close unused apps, disable Wi-Fi or Bluetooth when not needed, and check for power-hungry apps in Settings > Battery.

How to connect to Wi-Fi?

Go to Settings > Wi-Fi, toggle it on, select your network, and enter the password.

How to update the software?

Navigate to Settings > About tablet > System updates. If an update is available, follow the on-screen instructions.

How to take a screenshot?

Press and hold the power button and volume down button simultaneously for 2 seconds. The screenshot will be saved in the gallery.

The tablet does not charge. What should I do?

Check the USB cable and charger for damage. Try a different charger. Ensure the charging port is clean and free of debris.

How to clean the screen?

Use a soft, lint-free cloth slightly dampened with water. Do not use harsh chemicals or abrasive materials.

Where can I find the user manual?

The user manual is available for free download in PDF format on notice-facile.com. Search for iGET G81H.

USER MANUAL G81H iGET

User guide can be found on our website in PDF format.

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Simple line drawing of a trash bin with two crossed lines indicating no waste or discharge (no text or symbols)

Power - ovládacie tlačidlo na zapnutie/vypnutie/uspanie tabletu.

Headphone - otvor na pripojenie slúchadiel.

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

Cover of Micro SD slot and SIM slot

Headphone

Micro USB

Volume Power

Aerial view of a large suspension bridge spanning a wide river under a clear sky, with no visible text or symbols.

1. Do not place heavy or sharp objects on the LCD / tablet and do not press your fingers onto screen (touchscreen) so as not to damage the touch layer or screen.

2. Do not expose your LCD / tablet to direct sunlight and heat radiation and do not cover it.

3. Do not use the tablet in the environment with higher or lower temperature than the recommended one: 10^ C - 40^ C.

4. Do not expose the tablet to dusty and humid environments over 85% including rain and liquids.

5. Do not use any corrosive cleaning agents for cleaning the LCD and tablet.

6. Do not expose the table to strong magnetic or electronic interferences.

7. Do not use other power adapters than those that are the part of the tablet. The supplied power source can only be connected to the electrical system, whose voltage corresponds to the source nameplate (220 V \~ 240 V, 50 Hz ± 1 Hz).

8. Keep the power adapter out of places with lower combustion and on the parts of human body, because the adapter is getting hot and can cause an injury. Keeps always the entire process of device charging under control, so that to avoid personal injury and property damage due to fire or electric breakdown from the outlet.

9. Do not use the tablet while eating or drinking.

10. The tablet should not be used in activities that need special attention and caution, and place greater demands on visual perception during activities.

11. The tablet should not be used when walking, cycling, driving or during other means of transport, and when operating any mechanism or equipment.

12. When using a headset with the tablet, it is recommended to not set a high volume because the user will no longer completely perceive the surrounding environment and all possible risks.

13. Keep out of the reach of children.

14. If the tablet was for some time in the environment with a lower temperature than 10^ C, leave this tablet off in a room at temperature 10 - 40^ C for more than two hours. Only then you can switch it on.

15. Set up the claim for warranty repair of device at your dealer. If you have technical questions or problems, contact your dealer.

16. For household use: The given symbol (crossed-out wheeled bin) on the product or at accompanying

documents means that used electrical and electronic products should not be disposed of with household waste. To ensure proper disposal of the product, hand it over to a designated collection point, where it will be accepted free of charge. The correct disposal of this product will help to save valuable natural resources and prevent any potential negative impacts on the environment and human health, which could otherwise be caused by inappropriate disposal of wastes. For more details, please, contact your local authorities or the nearest collection point. The improper disposal of this waste can be penalized in accordance with national regulations. Information for users to disposal of electrical and electronic devices (corporate and business use): For proper disposal of electrical and electronic devices, ask for details from your dealer or distributor. Information for users to disposal of electrical and electronic devices in other countries outside EU: The above -mentioned symbol (crossed-out wheeled bin) is valid only in the

Simple line drawing of a trash bin crossed out by two diagonal lines (no text or symbols)

countries of EU. For proper disposal of electrical and electronic devices, ask for details from your authorities or dealer. All is expressed by the symbol of crossed-out wheeled bin on product, packaging or in printed materials.

1. Do not increase a volume to the extent causing the hearing damage.

2. Charge the batteries only when they are exhausted (shown with a red icon in the interface) or they are charged to 10 - 15% and when the device is off.

3. Not designed for use near water, e.g. next to a bath-tub, basin, sink, kitchen sink, in a wet basement or near a swimming pool.

4. Update your tablet as soon as a new version of software (Android) is available).

5. The buyer is obliged to provide a serial number on the warranty card as well as in the delivery note and the proof of purchase. In this context, the buyer acknowledges that unless the serial number of goods is not marked on the proof of purchase, delivery note and in the warranty card and therefore it cannot be possible to compare this serial number marked on goods and its protective packaging with the serial number stated in the warranty card, delivery note and the proof of purchase and thus to verify that the goods runs from the seller, the service center is competent to claim such a goods automatically and reject it immediately. The buyer must instruct all persons to whom the goods would be subsequently sold. Product complaints do with your dealer if you are not on the web www.iget.eu indicated otherwise.

XVII. Other Precautions

Follow the rules for working with electrical devices and plug the power supply cord only to the corresponding electrical outlets. The user is not competent to dismantle the device or replace any part of it. When opening or removing the covers the risk of electric shock is threatening. The incorrect reassembly may also lead to your injury by electric shock. In case of necessary service intervention contact exclusively qualified service technicians. Any opening of the tablet or its modification has resulted in the loss of warranty and the manufacturer/distributor is not then liable for any consequences.

Declaration of Conformity:

Company INTELEK spol. s.r.o. hereby declares that all SMART G81H (EC818) devices are in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available on this website www.iget.eu.

The warranty period of the product is 24 months, unless stated otherwise.

This device can be used in the following countries:

AT	BE	CY	CZ	DK	EE	FI	MT	NL	PL	PT	SK
SI	ES	DE	GR	HU	IE	IT	LV	LT	GB	IS	LI
NO	CH	BG	HR	RU	RO	FR	SE	LU	TR

Restrictions on WiFi use:

Italy - The conditions for using the WiFi network are described in the so-called Electronic Communications Code

Norway - The 2.4 GHz limitation applies only to the area 20 km from colony of Ny-Ålesund.

When using a radio device in the 5150-5350 MHz frequency range, use is limited to indoor spaces only.

RoHS:

The components used in the device meet the requirements on the restriction of hazardous substances in electrical and electronic devices in accordance with Directive 2011/65/EU. The RoHS declaration can be downloaded from www.iget.eu.

Operation of radio equipment:

CZ: This radio equipment can be operated in the

Czech Republic under the General Authorizations

VO-R / 1 / 05.2017-2 and VO-R / 12 / 09.2010-12.

SK: This radio equipment can be operated under General Authorizations VPR - 07/2014, VPR - 02/2017 and VPR - 35/2012.

Maximum EIRP:

Max. 2W.

Frequency range:

GMS: 900/1800 MHz,

WCDMA: 900/2100 MHz,

2.4G WiFi (20 MHz): 2412 - 2472 MHz,

2.4G WiFi (40 MHz): 2422 - 2462 MHz.

XVIII. Maintenance of Display

Use a soft cloth, preferably with a microfiber to wipe the tablet and prevent screen scratches. Do not wipe the touchscreen by hands. Never clean the touchscreen with aggressive cleaners and sprays. If you spill the tablet by water turn it off immediately. Dry the entire tablet carefully using absorbent paper or a soft cloth and leave it dry for several hours. To dry do not use a hair dryer, a high temperature could damage it.

XIX. Description of Tablet

19.1 Tablet iGET SMART G81H

Cover of Micro SD slot and SIM slot

Power - control button for ON/OFF/SLEEP
Headphone - headphone jack.

microUSB - jack for connecting USB devices using microUSB-USB reduction and also for power supply.

Volume - control button for sound up/down.

microSD slot and SIM slot - jack for connecting microSD card and SIM card

Technical parameters:

Operating system		Android^TM 7.0 or latest
Language		ENG, CZ, SK and others
Processor		MTK8321 Quad-Core Cortex^TM A7 @ 1.3 GHz
Memory		2 GB DDR3
Internal memory		16 GB Nand-Flash
Display	Size:	8" IPS LCD
	Definition:	1280*800
Wi-fi:		802.11b/g/n
Bluetooth		BT 4.0
GNSS		GPS
Sound		Built-in speaker
		Built-in microphone
Camera		Front 0.3 MPx, rear 2.0 MPix
G sensor		Supported
External slots		1*microSD card (support up to 64 GB microSD)
		1*stereo headphones (3,5")
		1*microUSB 2.0 port
2G/3G		Supported
Color		Black/grey
Battery		4 000 mAh, 3.7 V high polymer lithium battery
Power adapter		microUSB 5V, 1.5 A

Android, Google Play and other marks are trademarks of Google Inc.

Individual technical parameters, the description of the tablet and the design may differ depending on the different versions of the tablet and Android updates. Precise specifications and other information can be found on website www.iget.eu. Misprints reserved.

XX. First Quick Setting

Settings:

1. Setting of language + keyboard

Settings - Language & input - Language – English

2. Wi-Fi setting

Settings – Wi-Fi – click on Off – Wi-Fi is turned on – choose demanded network - type your password – click on – Connect

3. Setting of Google account

Settings - Accounts - + Add account – Google according to:

a) I have Google account (e-mail)

Select Enter my email – click on Next – Fill up Gmail – click on Next – fill up the password to Google account – click on Next - wait for login to your account

b) I do not have Google account (e-mail)

Select or create new account – click on Next - fill up Name and Surname – click on Next – type your phone number – click on Next – click on VALIDATE – enter the code coming to your mobile phone – click on Next – enter your user name – click on Next – type the password on the first line and subsequently on the second line – click on Next – wait for confirmation code and type it again – click on Next – then click again Next to I AGREE – wait until the account is created – you can or need not to enter the information about your debit or credit card – click on Next – the account is created and now you can login to the Play Store

4. Setting the installation of applications from USB flash drive

Settings - Security - Unknown sources – Enable (must be ticked)

5. Installation of applications

- from Google Play (with created and registered Google account/e-mail)

- Applications downloaded on a USB flash drive (nazev.apk)

6. Deleting of applications

- Hold the application on the desktop for ca. 1 second, then you will see a cross on the top. Using your finger bring the application to the cross (application and cross become red)

Basic operation of the tablet:

1) button Lock on

- long pressing the button on the top of the tablet

2) button for Sleep

- short pressing the button to lock on

3) button for Waking up (LCD off)

- short pressing of button to lock on + unlock by pulling across display

4) button for Unlock

- long pressing of button to lock on + unlock by pulling across display

Installation of SD card and SIM card:

The tablet must be off when the card is inserted and pulled out. First it is necessary to remove the plastic slot protection. In the upper right corner there is a visible recess; put a fingernail into the recess and push gently offward, so that the plastic part is released from the legs.. Remove the plastic part carefully to avoid damage to the antenna located inside. Now you can insert an expansion microSD card and SIM card into the slot. Avoid frequent opening of the plastic part, because it can damage the plastic legs and Wi-Fi antenna.

Before first use leave the tablet at least 15 minutes to charge, otherwise the tablet may not start.

Simple line drawing of a trash bin with two crossed lines indicating no waste or prohibition (no text or symbols)

Cover of Micro SD slot and SIM slot

Volume Power

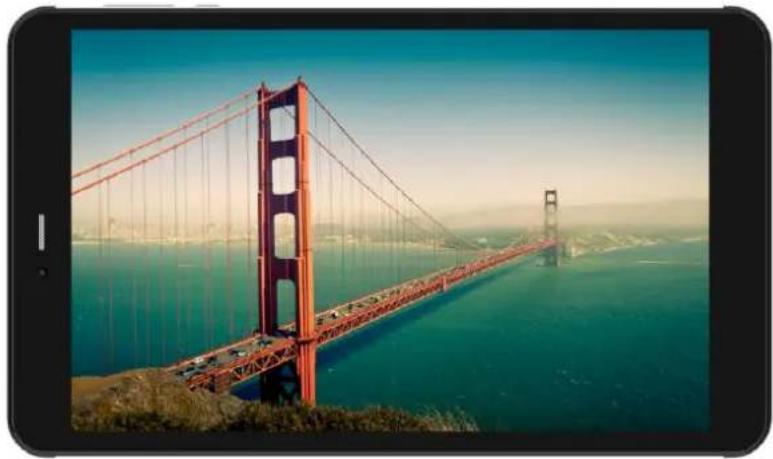

Digital tablet displaying a scenic view of the Golden Gate Bridge spanning a turquoise sea under a clear sky (no text or symbols visible)

Simple line drawing of a trash bin crossed out by two diagonal lines (no text or symbols)

Cover of Micro SD slot and SIM slot

Headphone

Micro USB

Volume Power

Aerial view of a large suspension bridge spanning a wide river, with no visible text or symbols.

Serial / Batch number: (S/N)

Date of sale:

Warranty

Sale document number:

Seal of the store:

Information for Customers about Warranty Terms and Conditions:

Warranty shall apply to defects of purchased product, found during its warranty period.

When purchasing a particular product, please consider carefully what properties and functions you expect your product to have. The fact that purchased product shall not satisfy your later requirements shall not give any reason for complaint. Please, prior to the first use of this product read carefully its operating instructions and follow these instructions consistently.

We recommend you to keep original product packing during the warranty period for possible transport of the product in such a way so as to prevent any product damage during its transport and handling.

For the purpose of due application of any complaint about the product we recommend you to ask Seller to fill-in and confirm this Warranty Card including identification of serial number of purchased product, which shall comply with the serial number specified both in the document proving product purchase and delivery note and purchased product.

In this connection Customer hereby takes into account that unless this Warranty Card specifies serial number of purchased product, i.e., comparison of such serial number identified in the product with the serial number identified in this Warranty Card and document of product purchase/or delivery note shall not allow to confirm that particular product has come from Seller, in case of any doubts about the origin of such particular product Seller shall be entitled to automatically and without any other acts to reject the complaint of such goods.

Warranty shall not apply to:

• product damage suffered by unqualified installation of firmware or its modification;
• product damage by static electricity;
• product use for any other purposes than designed, described in attached operating instructions;
• damage to warranty seal of the producer, attached to the product;
• product damage inconsistent with the operating instructions, technical standards or safety regulations valid in the country where was the product sold;

- product damage resulting from normal wear and tear;

- discharged batteries, decrease in battery capacity caused by its wear and tear;

- product defects caused by the use in dusty, polluted or in any other way dissatisfactory environment pursuant to attached operating instructions.

Wear and tear of the product and its components caused by their common use (discharged batteries, decreased capacity of accumulator, wear and tear of mechanical or displaying components, wear and tear of supply cables, headphones etc.) shall be subject neither to defect warranty nor quality warranty in the moment of take-over.

Furthermore, complaints about product parameters, not included in the operating instructions or in any commercial-technical documentation of Seller, related to the product, shall not be subject to quality warranty in the moment of take-over.

Proof of product purchase, or delivery note, shall constitute an integral part of this Warranty Card.
