S518WL - Video projector DELL - Free user manual and instructions

Product Type	Video Projector (DLP)
Brand	Dell
Model	S518WL (Dell Professional Projector S518WL)

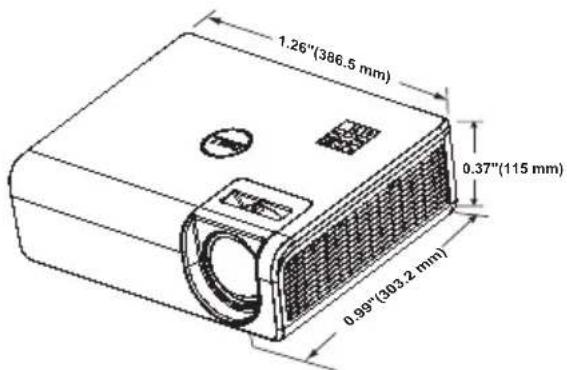

Dimensions (W x D x H)	386.5 x 303.2 x 115 mm (1.26 x 0.99 x 0.37 inches)
Weight	< 5.5 kg (< 12 lb)
Power Supply	AC 100-240 V, 50/60 Hz with PFC
Power Consumption (Normal)	255 W ± 10% @ 110 Vac
Power Consumption (Eco)	135 W ± 10% @ 110 Vac
Standby Power	< 0.5 W
Brightness	3200 ANSI Lumens (Max)
Contrast Ratio	1800:1 Typical (Full On/Off); 20000:1 High Contrast
Native Resolution	1280 x 800 (WXGA)
Aspect Ratio	16:9
Displayable Colors	1.07 billion colors
Projection Lens	F/2.7, f=7.51 mm, Fixed
Throw Ratio	0.52
Offset Ratio	115% ± 5%
Projection Screen Size (Diagonal)	70 to 100 inches
Projection Distance	0.78 to 1.12 m (2.55 to 3.67 ft)
Keystone Correction	±15 degrees
Light Source Life	Up to 20,000 hours (Normal mode)
Laser Class	Class 1 Laser Product (RG1 per IEC 60825-1:2014)
Audio	2 x 10 W RMS speakers
Noise Level	36 dB(A) (Normal), 32 dB(A) (Eco)
Connectivity	VGA In/Out, Composite Video, 2x HDMI 1.4, RJ45, RS232, USB-A (Power + Media/WiFi), mini USB (firmware), Audio In (3.5mm + RCA), Audio Out (3.5mm)
Network Display	Wired LAN, optional wireless dongle
USB Media Playback	Yes (via USB Storage or Internal Memory)
Office Viewer	Supports PDF, Word, Excel, PowerPoint (limited versions)
Maintenance	Replace remote battery (CR2032); clean lens with soft cloth (no alcohol)
Safety	Do not look into lens; ensure ventilation; operate at 5-40°C
Operating Temperature	5°C to 40°C (41°F to 104°F)
Storage Temperature	0°C to 60°C (32°F to 140°F)

Frequently Asked Questions - S518WL DELL

What should I do if no image appears on the screen?

Ensure the correct input source is selected in the INPUT SOURCE menu. Verify the external graphics port is enabled (for Dell laptops, press Fn+F8). Check all cable connections and that connector pins are not bent. Use the Test Pattern in the OSD menu under Advanced Settings > Projector Settings to verify proper display.

How can I adjust the projected image size?

The S518WL has a fixed lens with a throw ratio of 0.52. To change image size, move the projector closer to or farther from the screen (recommended distance: 0.78 to 1.12 m for 70-100 inch diagonal). Use the rear tilt adjustment wheel to fine-tune the projection angle and the keystone correction (±15°) in the OSD to correct image shape.

Can I connect my smartphone wirelessly?

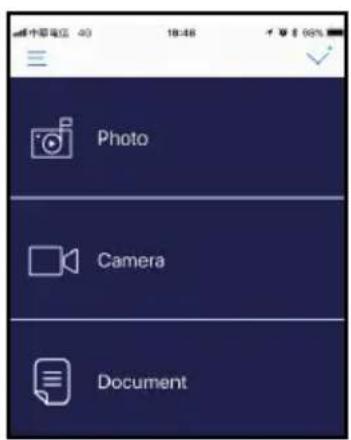

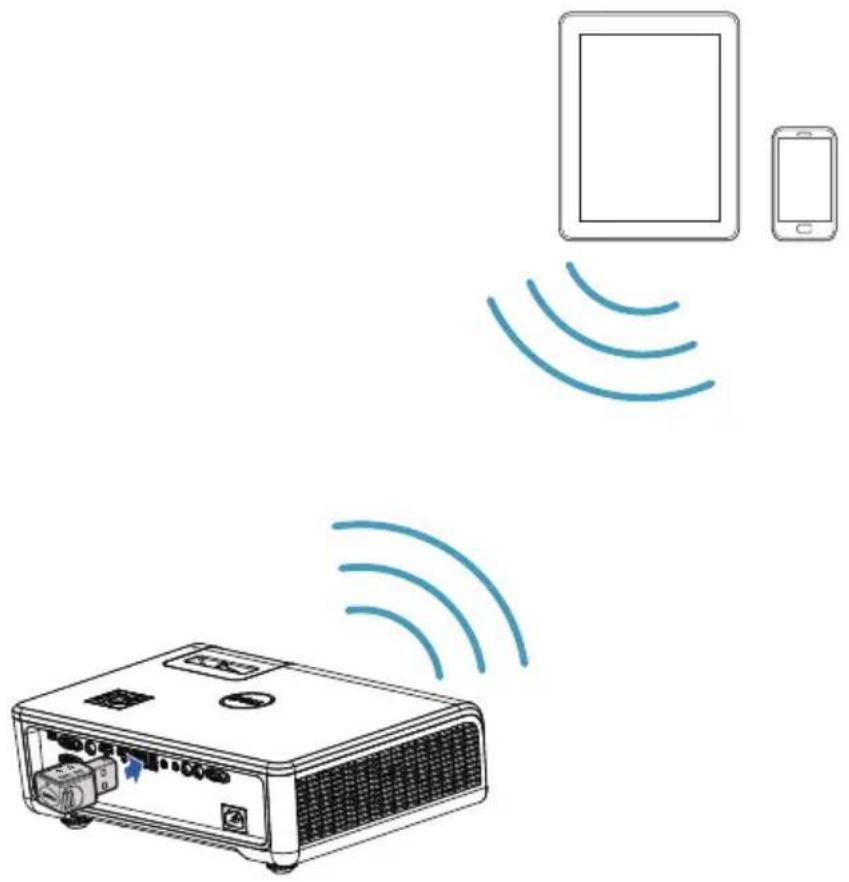

Yes, with an optional wireless dongle (sold separately). Install the EZCast Pro app on your Android or iOS device. Connect the dongle to the USB-A port on the projector, select Network source, find the projector's SSID in your device's Wi-Fi menu, enter the PSK displayed, and launch the app to cast content.

How do I use the USB media playback feature?

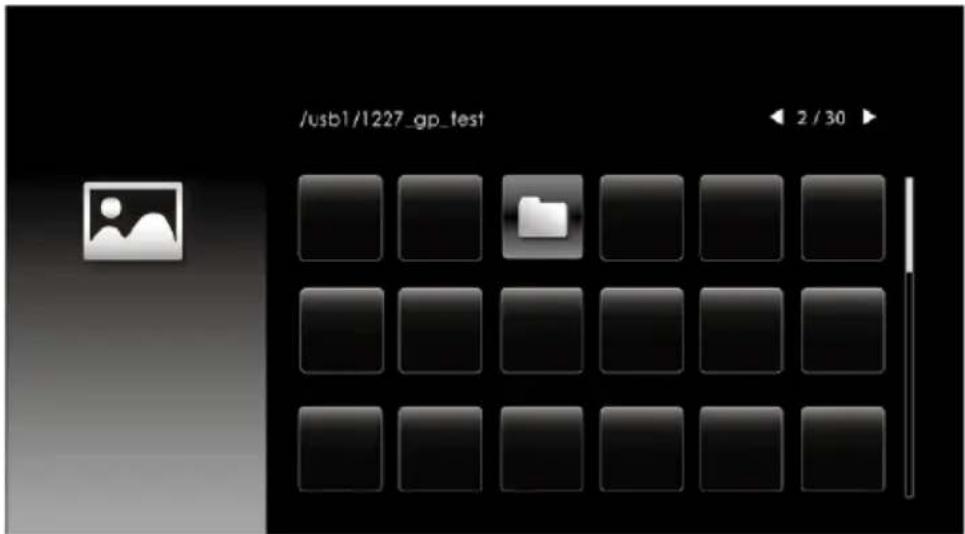

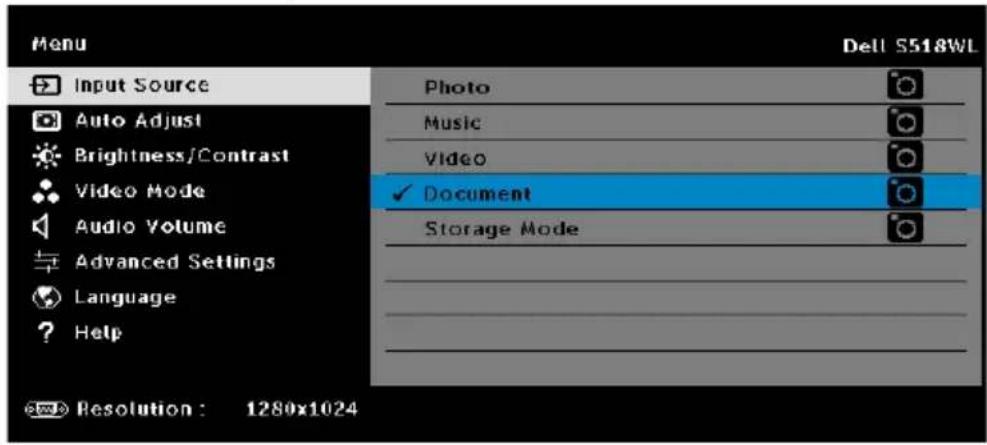

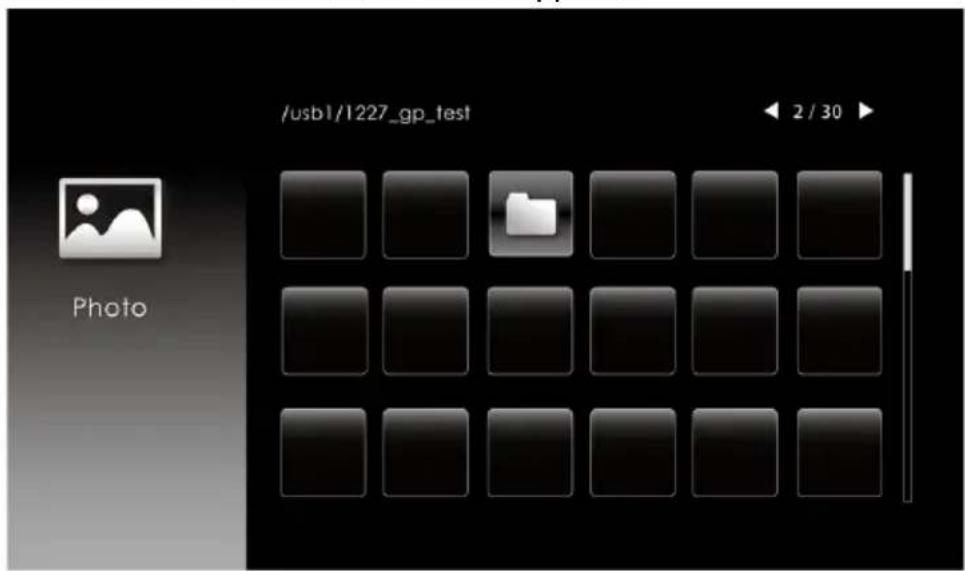

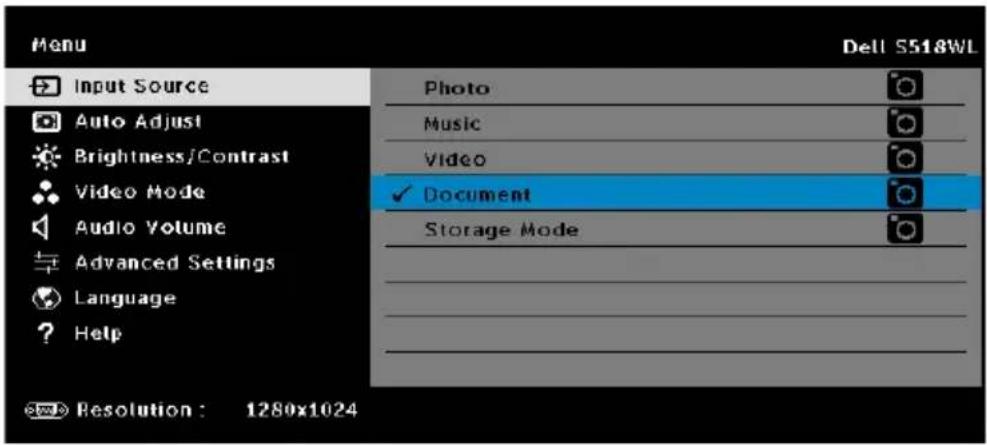

Insert a USB flash drive into the USB-A port. Press Menu, go to Input Source, and select USB Viewer. You can then browse and play Video, Music, Photo, or Document files (supports PDF, Word, Excel, PowerPoint). Use the remote or control panel buttons to navigate and control playback.

What does the TEMP light indicate?

The TEMP light (amber) indicates projector overheating. If solid amber, the projector has overheated and will shut down. Let it cool, ensure vents are not blocked, and ambient temperature is below 40°C. If blinking amber, a fan failure has occurred; try pressing and holding the Power button for 10 seconds to reset, then power on after 5 minutes.

How do I replace the remote control battery?

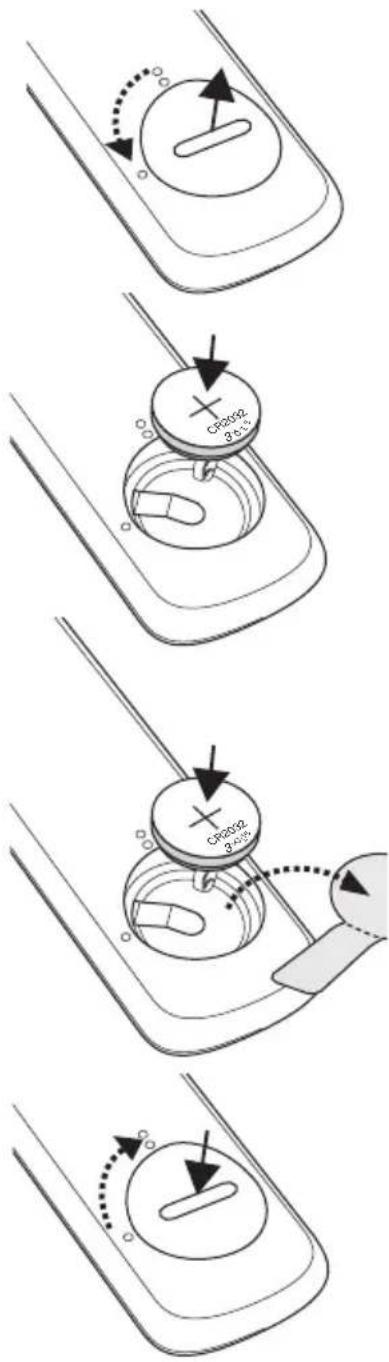

Rotate the battery lid counterclockwise to remove it. Insert one CR2032 coin cell battery with correct polarity (+ side up). Replace the lid and rotate clockwise to lock. If the remote is new, remove the plastic sheet between battery and contact first.

Why is the projected image reversed?

Go to the OSD menu, select Advanced Settings > Projector Settings, and adjust the Projector Mode. Options include Front, Rear, Ceiling Front, and Ceiling Rear depending on your installation orientation.

Can I use the projector for office presentations without a computer?

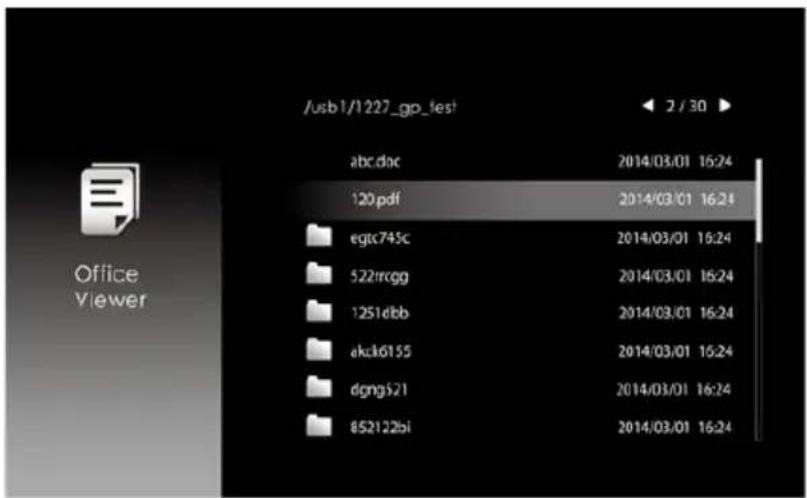

Yes. Copy files (PDF, Word, Excel, PowerPoint) to a USB flash drive or the projector's internal memory using a USB-A to USB-A cable. Then select USB Viewer or Internal Memory from the Input Source menu and choose the Document option to display files directly.

What is the maximum resolution supported via HDMI?

The projector supports up to 2160p (24/25/60 Hz) via HDMI input. However, the native resolution is 1280 x 800 (WXGA). For optimal image quality, use a source resolution matching the native panel.

How do I clean the projector lens?

Use a soft, dry cloth to gently wipe the lens. Do not use alcohol or any liquid cleaners as they may damage the lens coating. Avoid touching the lens with fingers.

USER MANUAL S518WL DELL

Dell Professional Projector S518WL User's Guide

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of your projector

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

Information in this document is subject to change without notice. © 2017 Dell Inc. All rights reserved.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; DLP and DLP logo are trademarks of TEXAS INSTRUMENTS INCORPORATED; Microsoft and Windows are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and trade names other than its own.

Model: Dell Professional Projector S518WL

October 2017 Rev. A01

Contents

1 About Your Dell Projector 4

Projector Box Contents. 4

Projector Top and Bottom View 5

Projector Connections 6

Remote Control 9

2 Adjusting Projector Image 12

Adjusting Projected Zoom 12

Adjusting Projector Position 13

Adjusting Image Corners. 15

Adjusting Image Size 16

3 Using Your Projector 18

Using Network Display 18

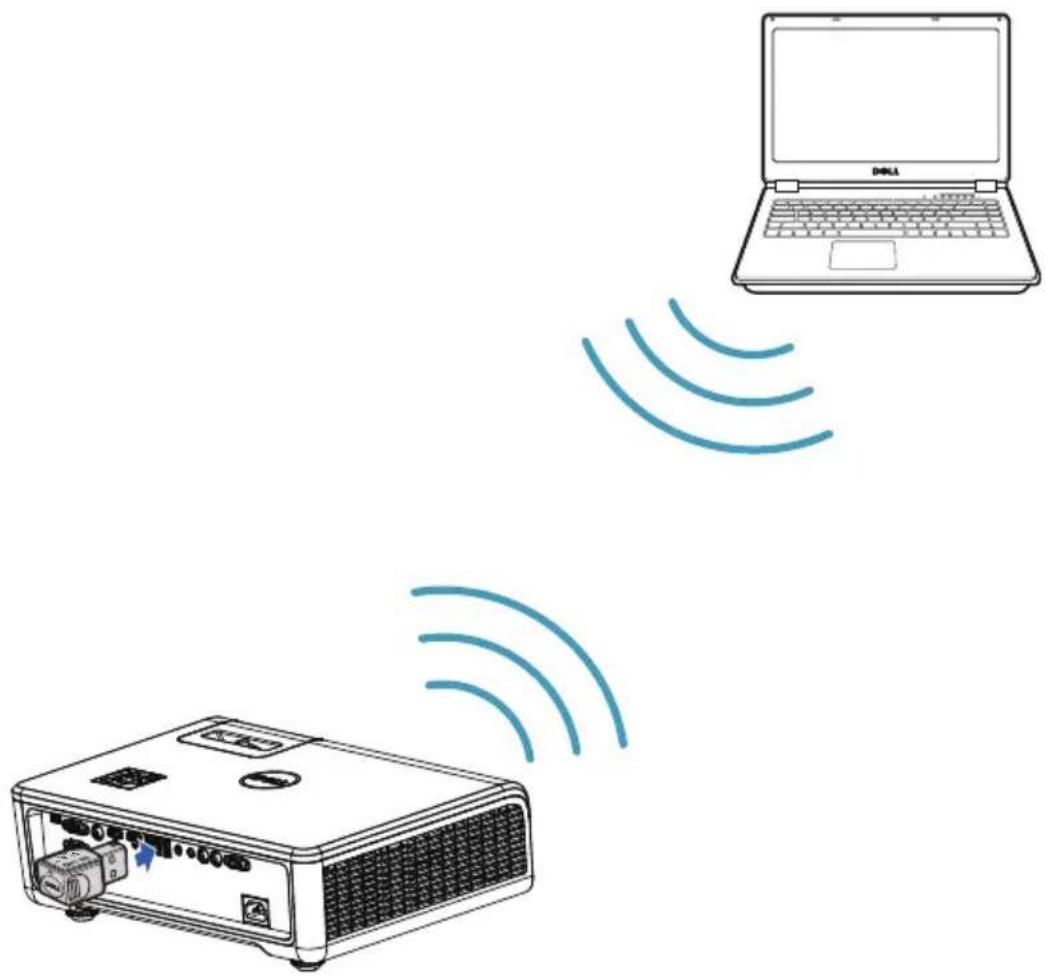

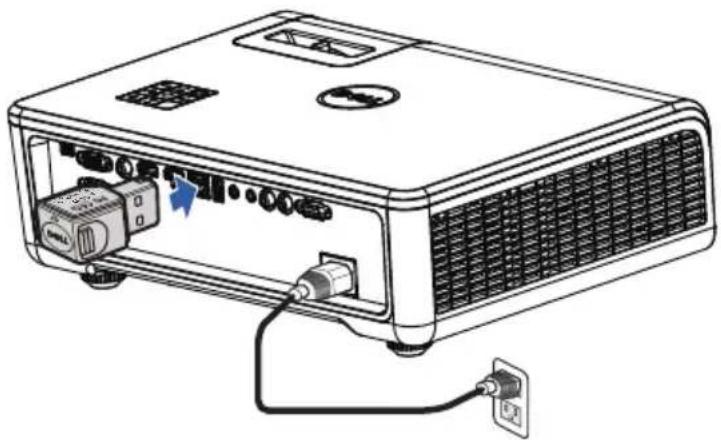

Connecting a Computer Using Optional Wireless

Dongle 22

Using PC-Free Presentation 40

4 Troubleshooting 55

Troubleshooting Tips 55

Guiding Signals 58

5 Maintenance 59

Replacing the Remote Control Battery 59

6 Specifications 60

Compatibility Mode (Digital / Analog) 63

7 Additional Information 65

8 Contacting Dell 66

1

About Your Dell Projector

Your projector comes with all the items shown below. Ensure that you have all the items, and contact Dell if anything is missing.

Projector Box Contents

Package Contents

Power cable VGA cable (VGA to VGA)

Line drawing of a bundle of cables with two connectors (no text or symbols)

Remote control (CR2032 x 2pcs)

Pure electrical connector diagram without any text, numbers, or symbols

1.2 m USB cable (USB-A to USB-A)

Line drawing of two USB connectors tied together (no text or symbols)

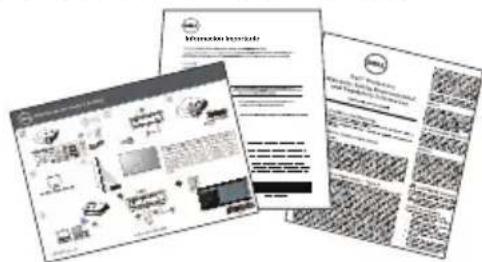

User's Guide and Documentation

Projector Top and Bottom View

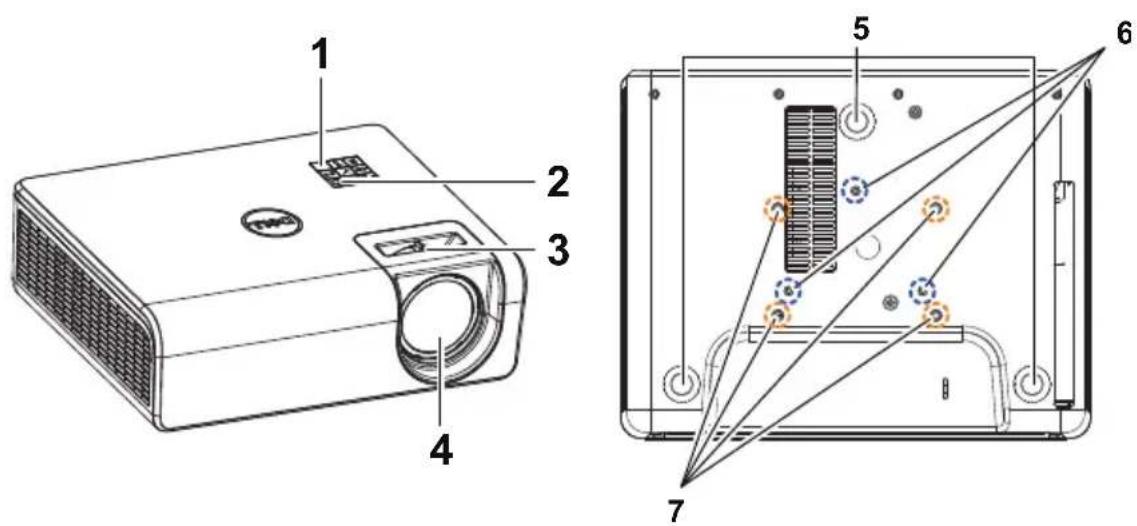

Top View Bottom View

1	I	R	r	e	c	e	i	v	e	r
2 Power button
3 Focus tab
4 Lens
5 Tilt adjustment wheel
6 Mounting holes for wall mount
7 Mounting holes for ceiling mount

NOTE: Wall mount screw hole M4 x 8 mm depth.

Wall mount dimensions:130mm X 88mm M4

Ceiling mount screw hole M3 x 8 mm depth.

Ceiling mount dimensions : 110mm X 82.3mm M3

Projector Connections

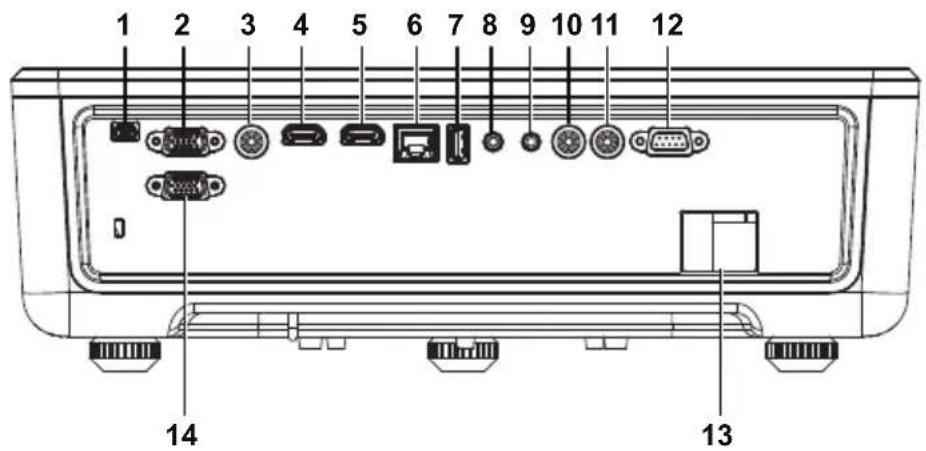

1 Mini USB (mini type B) connector for firmware upgrade	8 Audio input connector
2 VGA input 9 Audio output connector
3 Composite Video connector 10 Audio RCA (R) connector
4 HDMI-1 (1.4) connector 11 Audio RCA (L) connector
5 HDMI-2 (1.4) connector 12 RS232 connector
6 RJ45 connector 13 Power cord connector
7 USB Type A Power (+5V/ 1.8A) connector and also for media / wifi	14 VGA output

CAUTION: Before you begin any of the procedures in this section, follow the Safety Instructions as described on page 7.

CAUTION: Safety Instructions

1 Do not use the projector near appliances that generate a lot of heat.
2 Do not use the projector in areas where there is an excessive amount of dust. The dust may cause the system to fail and the projector will automatically shutdown.
3 Ensure that the projector is mounted in a well-ventilated area.
4 Do not block the ventilation slots and openings on the projector.
5 Ensure the projector operates between ambient temperatures 5^ C to 40^ C ( 41^ F to 104^ F).
6 Do not try to touch the ventilation outlet as it can become very hot after the projector has been turned on or immediately after it is turned off.
7 Do not look into the lens while the projector is on as it may cause injury to your eyes.
8 Do not place any objects near or in front of the projector or cover its lens while the projector is on as the heat may cause the object to melt or burn.
9 Do not use alcohol to wipe the lens.

NOTE:

• Do not attempt to ceiling mount the projector by yourself. It should be installed by a qualified technician.
• Recommended Projector Wall Mount Kit. For more information, see the Dell Support website at dell.com/support.
• For more information, see the Safety Information that shipped with your projector.
• The S518WL projector can only be used indoors.

WARNING: Laser Safety Notice

This product is classified as CLASS 1 LASER PRODUCT - RISK GROUP 1 according to IEC 60825-1 : 2014. Complies with FDA regulations 21 CFR 1040.10 and 1040.11 as a Risk Group 1 , LIP (Laser Illuminated Projector) as defined in IEC 62471:2006 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007.

• Failure to comply with the following could result in death or serious injury.
• This projector has a built-in Class 4 laser module. Never attempt to disassemble or modify the projector.
• Any operation or adjustment not specifically instructed in the User manual creates the risk of hazardous laser radiation exposure.
• Do not open or disassemble the projector as this may cause damage or exposure to laser radiation.
• Do not stare into beam when the projector is on. The bright light may result in permanent eye damage.
• When turning on the projector, make sure no one within projection range is looking into the lens.
• Follow the control, adjustment, or operation procedures to avoid damage or injury from exposure of laser radiation.
• The instructions for the assembly, operation, and maintenance include clear warnings concerning precautions to avoid possible exposure to hazardous laser radiation.

Remote Control

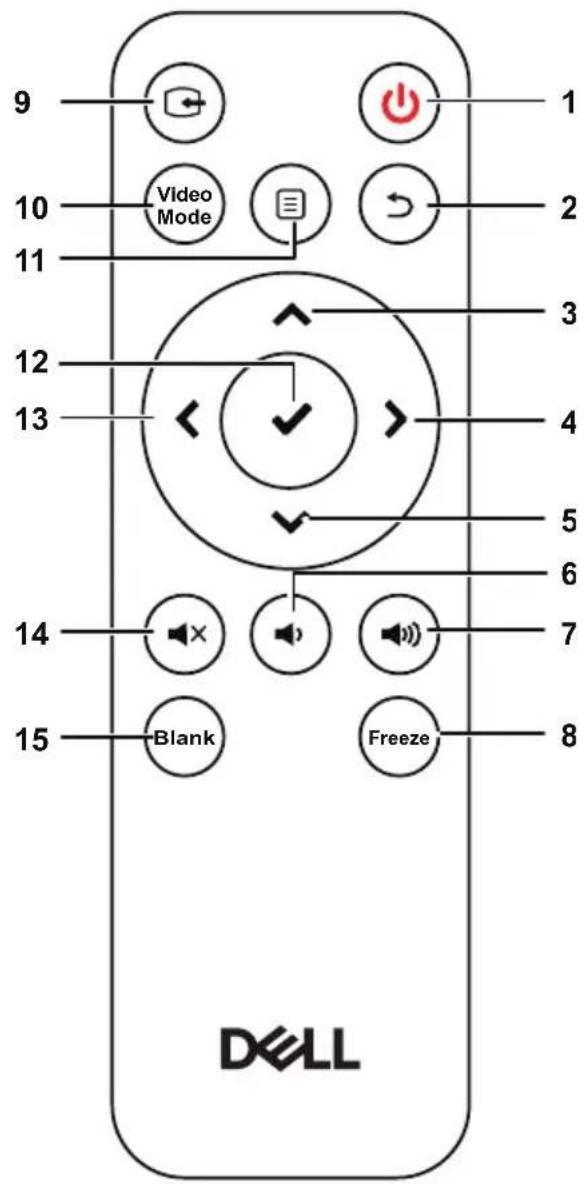

1 Power Turns the projector on or off.

2 Back Returns to the previous screen.

3 Up Press to navigate through the On-Screen Display (OSD) Menu items.

4 Right Press to navigate through the On-Screen Display (OSD) Menu items.

5 Down Press to navigate through the On-Screen Display (OSD) Menu items.

6 Volume down Press to decrease the volume.

7 Volume up Press to increase the volume.

8 Freeze Press to pause the screen image, then press"Freeze" again to resume normal projection.

9 Video in Press to switch between sources: HDMI 1,HDMI 2, Wireless/LAN Display, and USB Viewer.

10 Video mode The projector has preset configurations thatare optimized for displaying data (presentation slides) or video (movies, games, etc.).Press the Video Mode button to toggle between Presentation mode, Bright mode, Movie mode, sRGB, or Custom mode.Pressing the Video Mode button once will show the current display mode. Pressing the Video Mode button again will switch between modes.

11 Menu Press to activate the OSD.

12 Enter Press to confirm the selection.

13 Left Press to navigate through the On-Screen Display (OSD) Menu items.

14 Mute Press to mute or un-mute the projector speaker.

15 Blank Press to toggle between white/blank/resume the image.

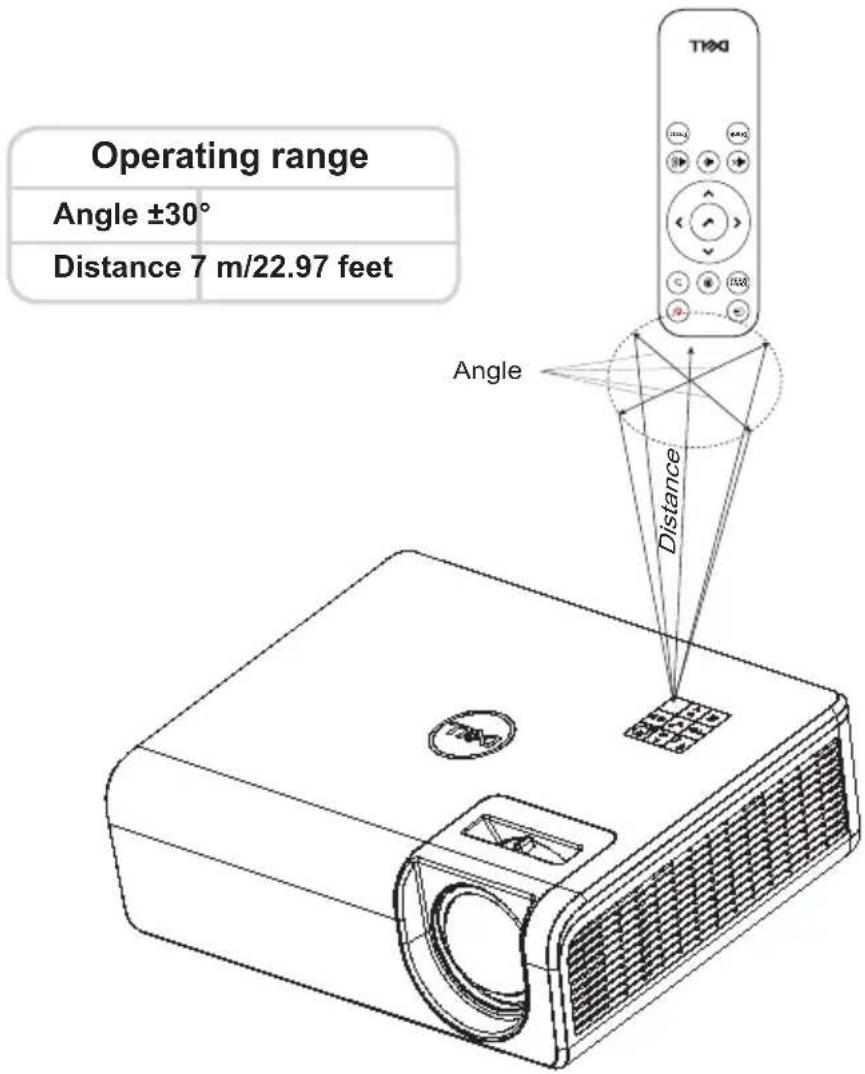

Remote Control Operating Range

NOTE: Actual operating range may slightly differ from the diagram. Weak batteries will also prevent the remote control from properly operating the projector.

2

Adjusting Projector Image

Adjusting Projected Zoom

Raising the Projector Height

1 Raise the projector to the desired display angle, and use the rear tilt adjustment wheel to fine-tune the display angle.

Lowering the Projector Height

1 To lower the projected image, use the front tilt adjustment wheel to fine-tune the display angle.

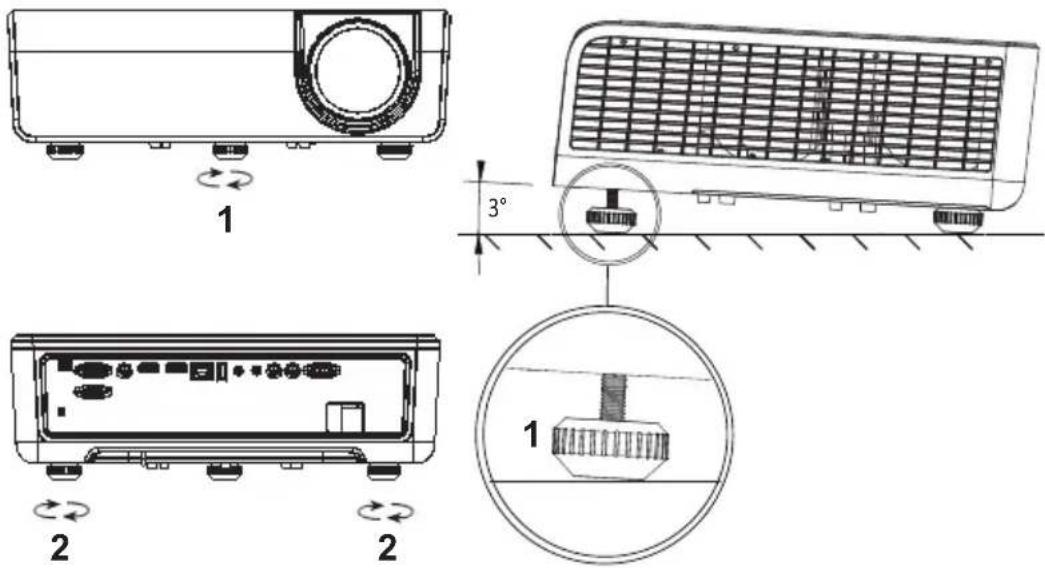

1 Front tilt adjustment wheel (Angle of tilt: 0 to 3 degrees)

2 Rear tilt adjustment wheel

Adjusting Projector Position

When you select a position for the projector, consider the size and shape of your screen, the location of your power outlets, and the distance between the projector and the rest of your equipment. Follow these general guidelines:

• When positioning the projector to the screen, it must be at least 31 inches (78.4 cm) from the projection screen.
• Position the projector to the required distance from the screen. The distance from the lens of the projector to the screen, the zoom setting, and the video format determine the size of the projected image.
• Lens throw ratio: 0.52

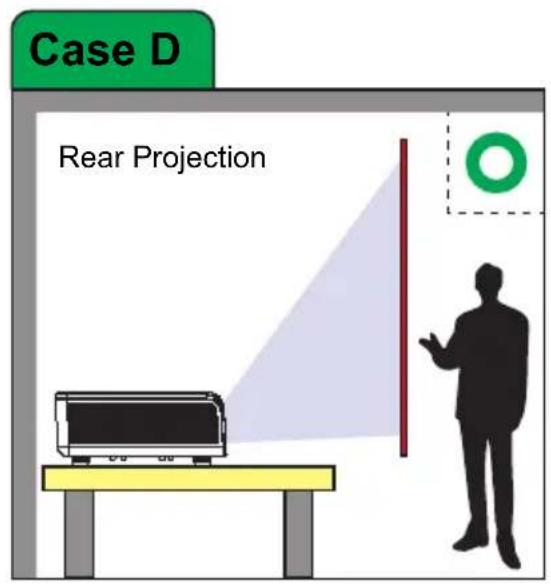

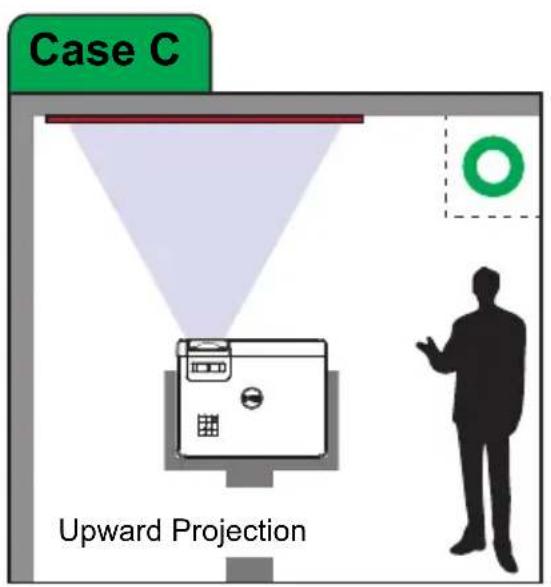

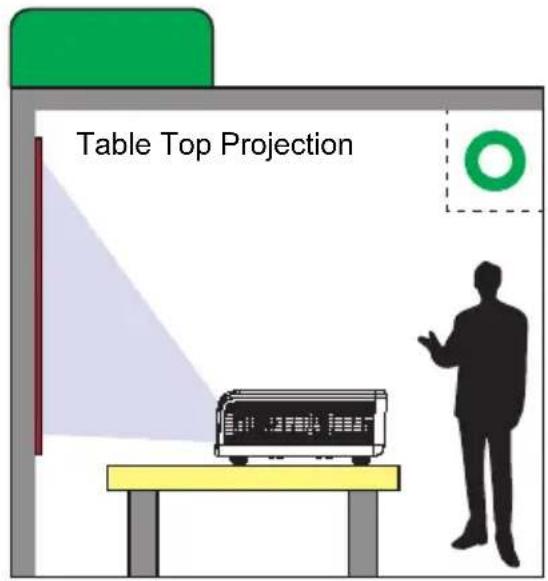

You can set up or install the S518WL in the following ways:

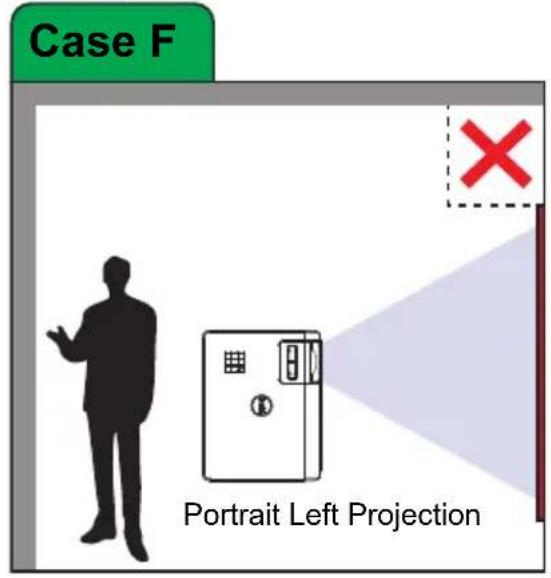

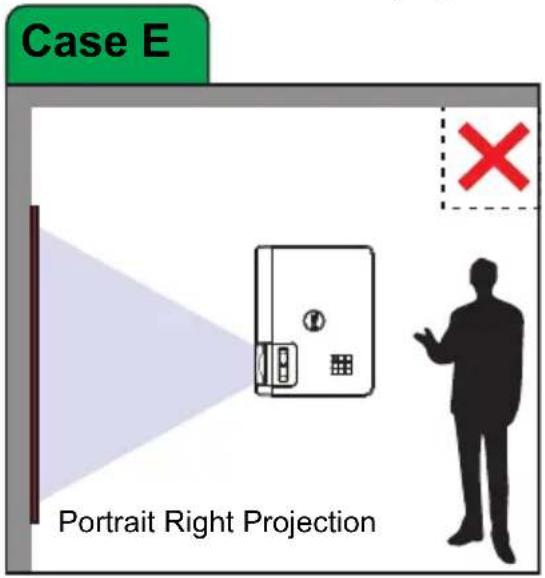

Do not install the S518WL projector in the following ways:

Adjusting Image Corners

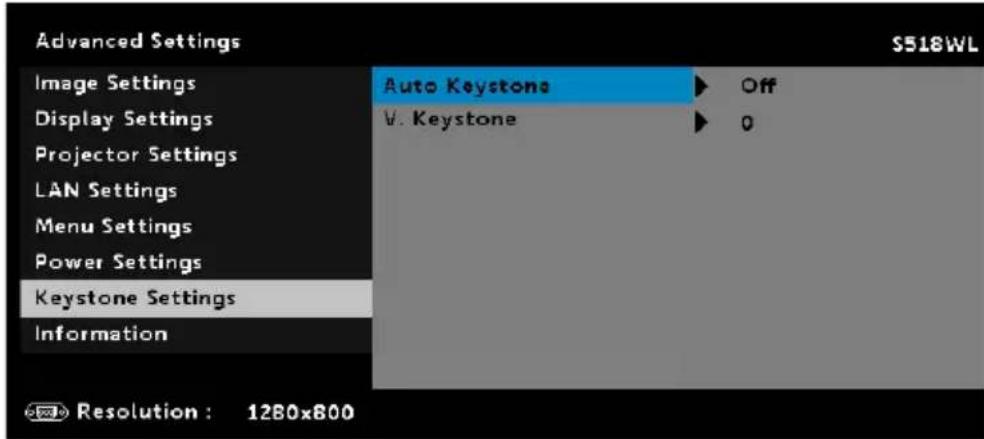

Use Keystone adjustment feature to get perfect, rectangular projected images.

Adjusting Image Size

Adjusting Image Shape

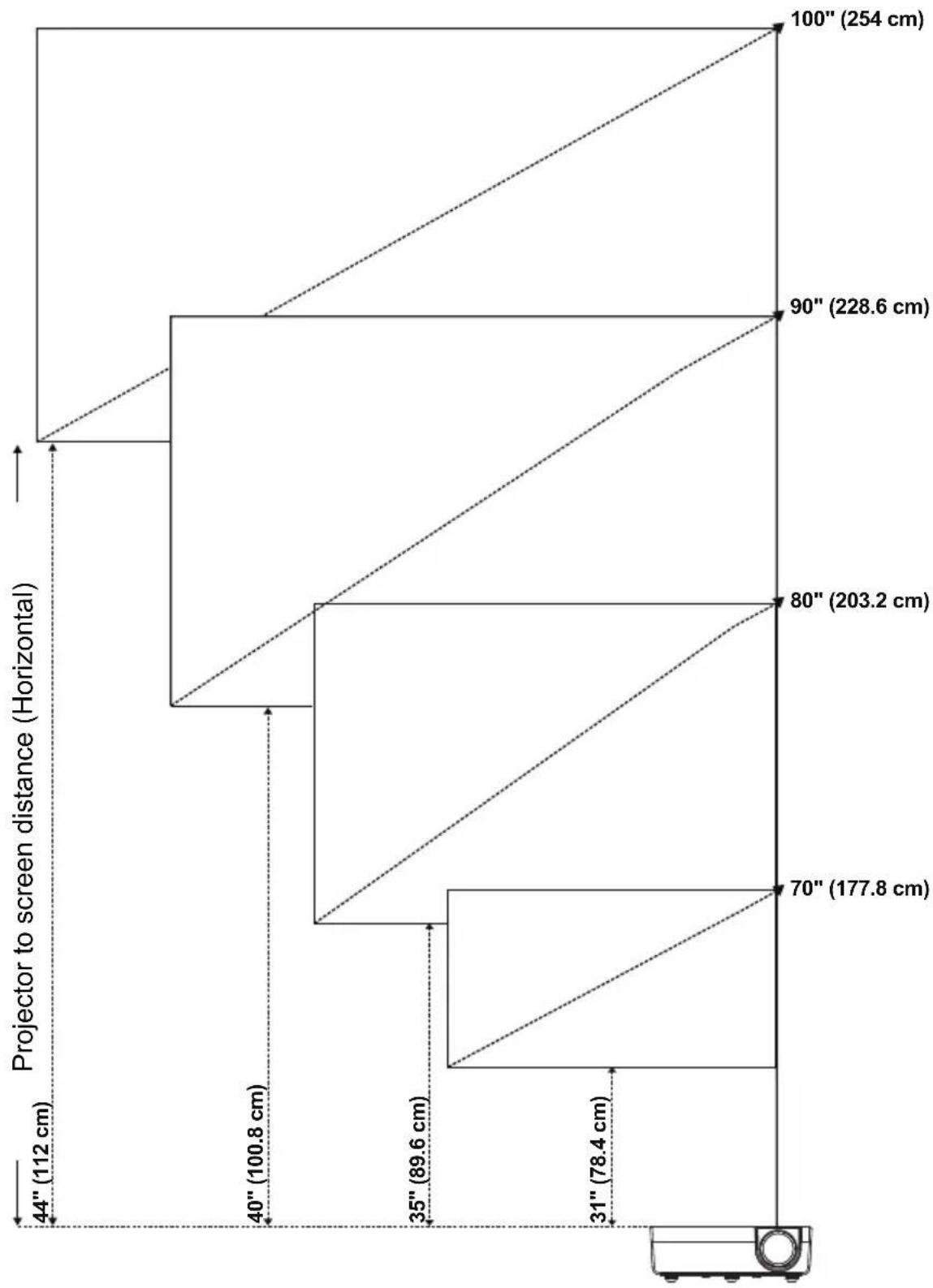

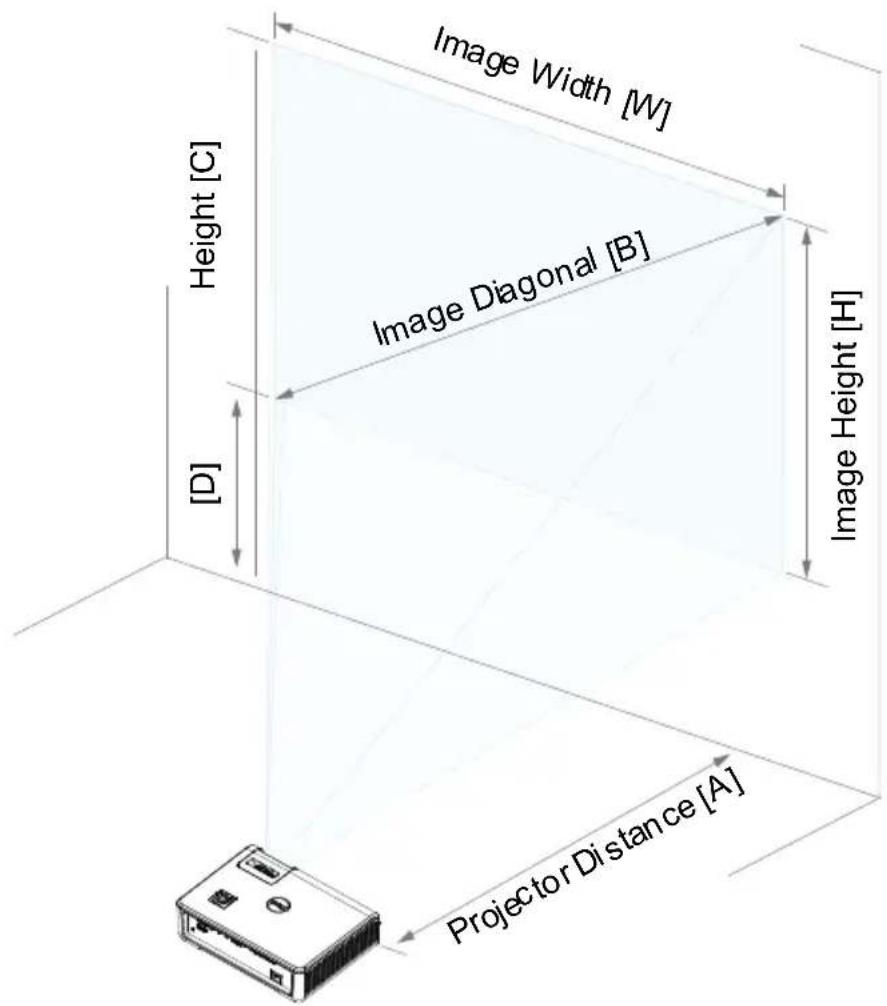

Screen Size W*H			A(Projection Distance)	D(Offset)
BDiagonal Length of image	W(Width)	H(Height)
inch cm inch cm inch cm inch cm inch cm
70 177.8 59 150.8 37 94.2 31 78.4 5.6 14.1
80 203.2 68 172.3 42 107.7 35 89.6 6.4 16.2
90 228.6 76 193.9 48 121.2 40 100.8 7.2 18.2
100 254.0 85 215.4 53 134.6 44		112.0 8.0 20.2
* This graph is for user reference only.* Offset Ratio: 115 +/- 5%

Using Network Display

Configure Your Projector for Network Display

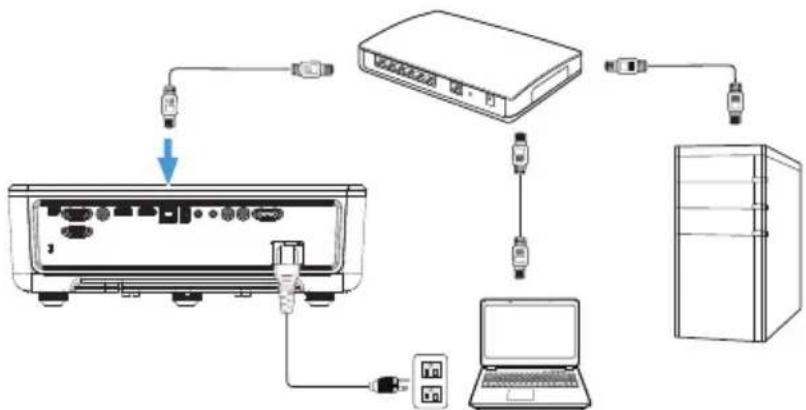

Connect Projector to the Network

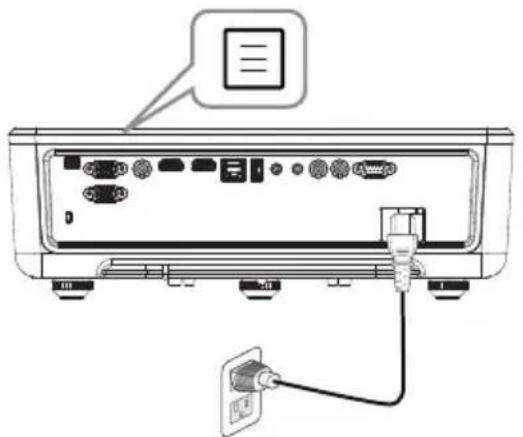

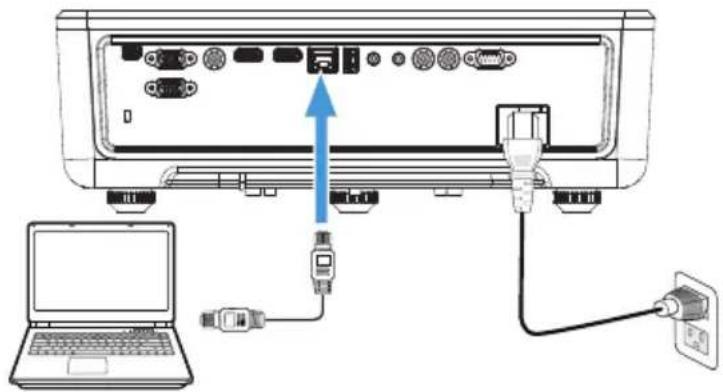

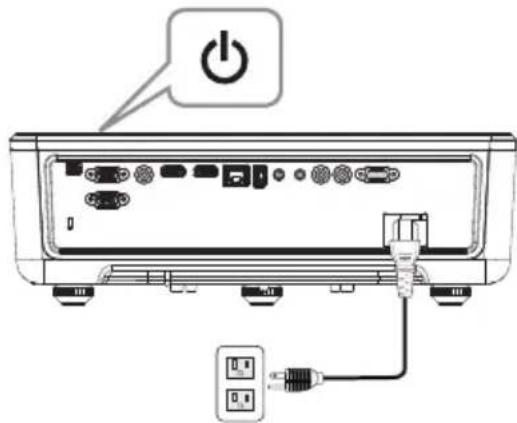

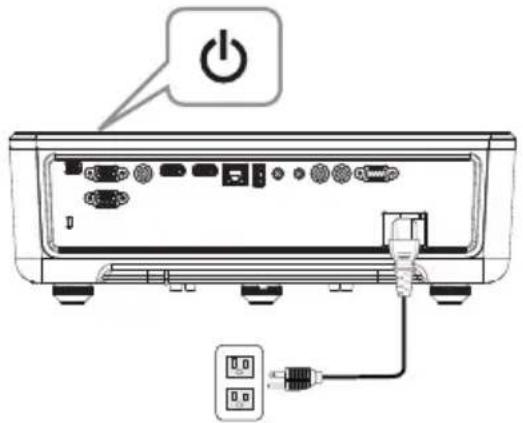

1 Connect the power cable and turn on the projector by pressing the power button.

2 Press the Menu button on your projector control panel or remote control.

Diagram of a computer monitor with ports and an attached power outlet (no text or symbols)

NOTE: Use select.

buttons to navigate and √to

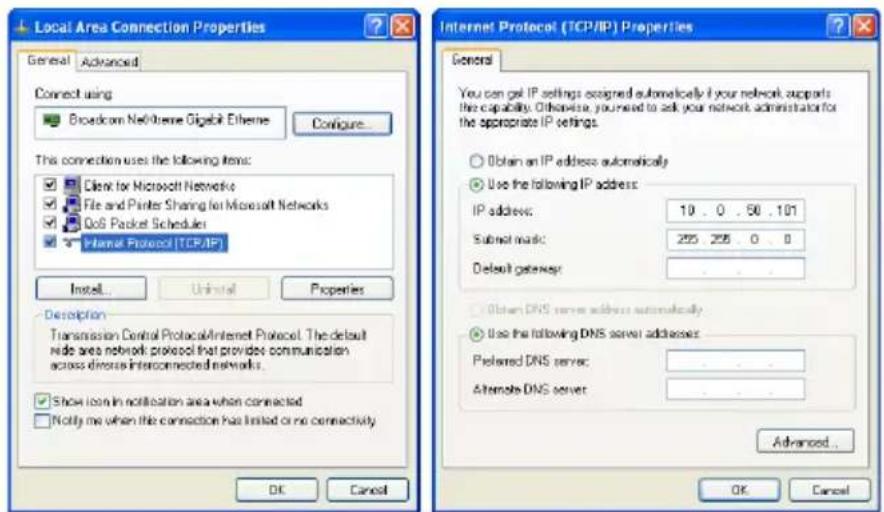

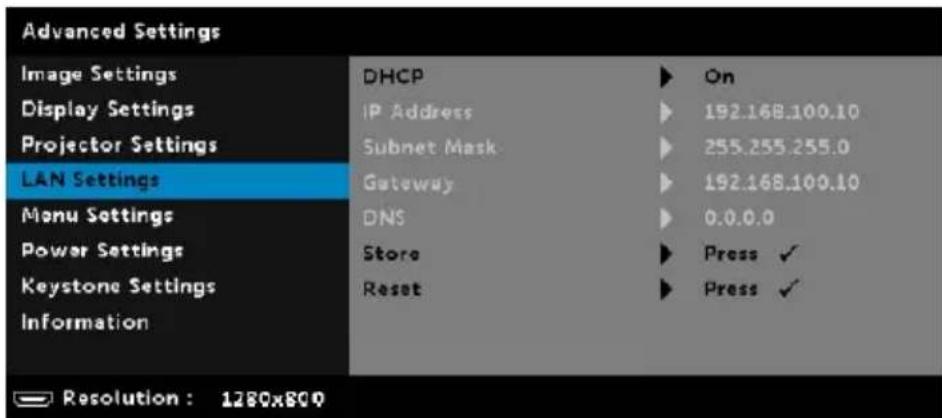

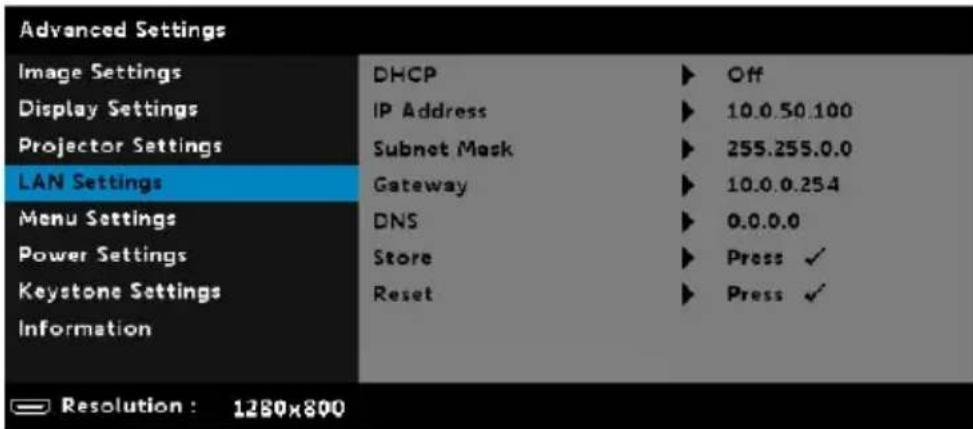

3 Ensure DHCP option is Off from LAN settings of Advanced Settings menu.

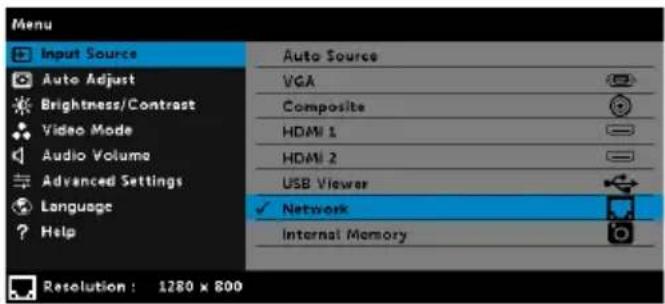

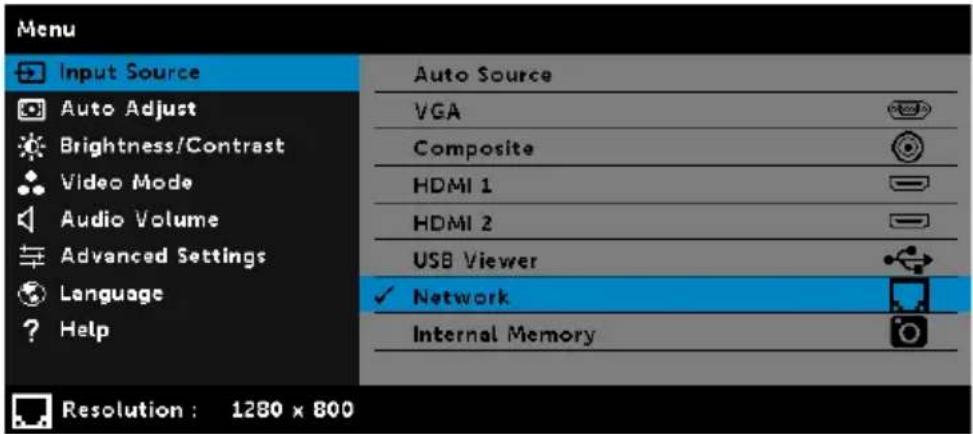

4 Access the Input Source menu, select Network source.

The Network Guide Screen shown below appears:

5 Do one of the following:

a If this is the first time you are connecting to the projector via wireless method, first open the web browser on your computer and enter the IP address 10.0.50.100. Continue to Step 6.

b If you have previously connected your computer to the projector via wireless method, please continue to Step 6.

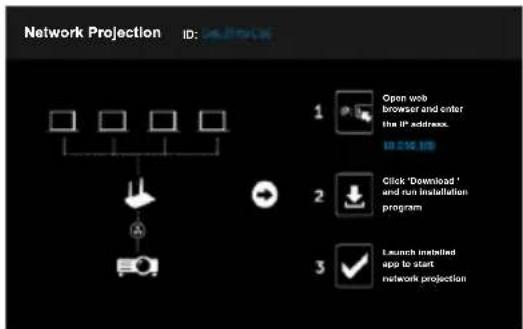

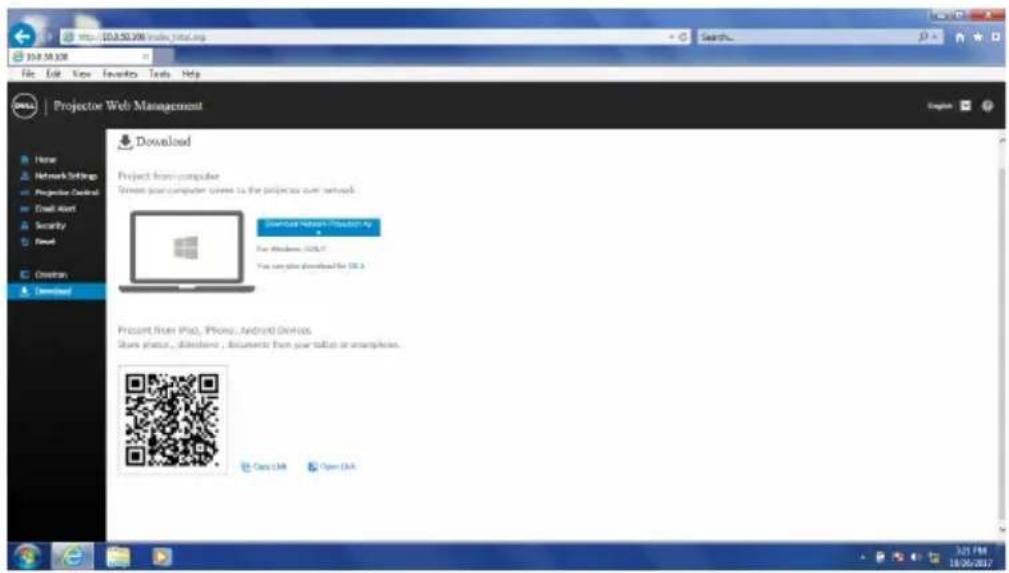

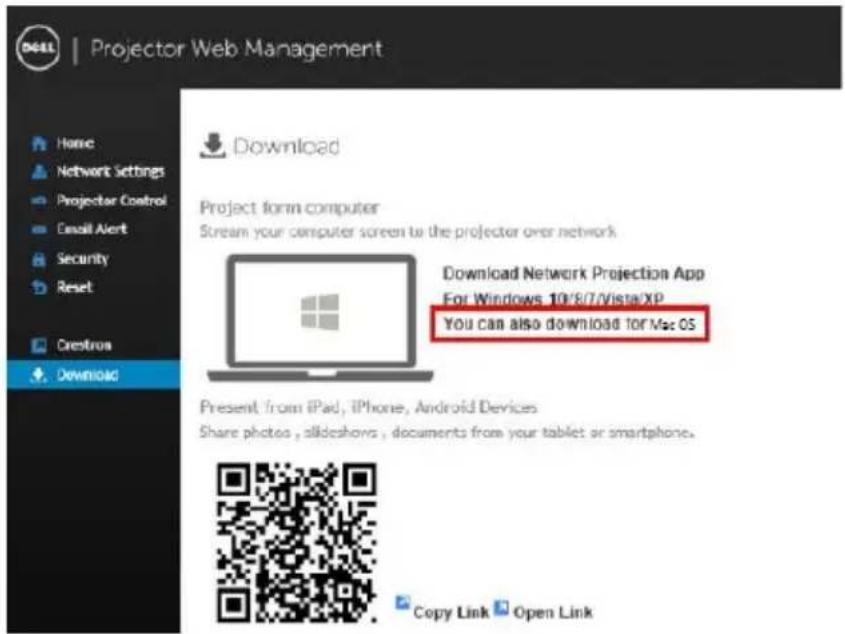

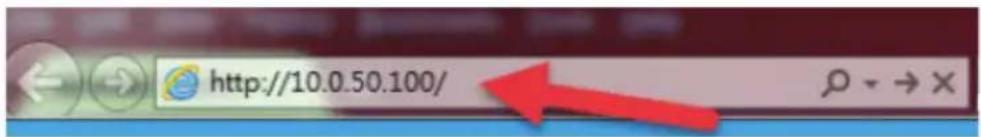

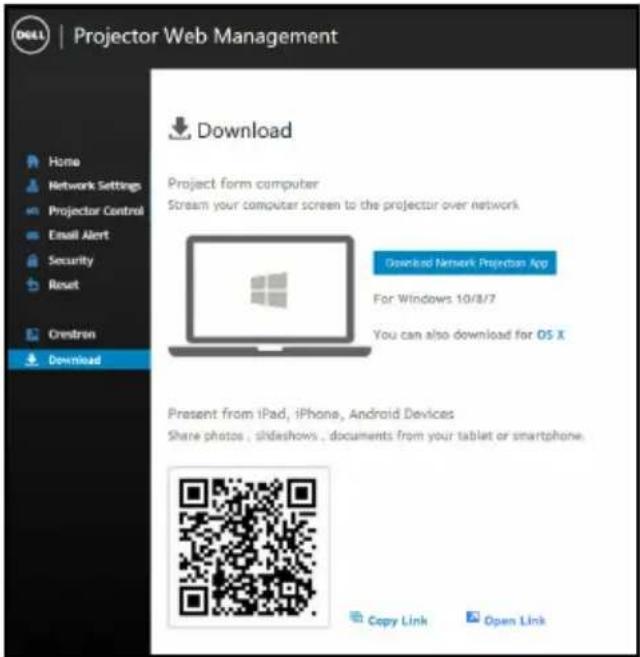

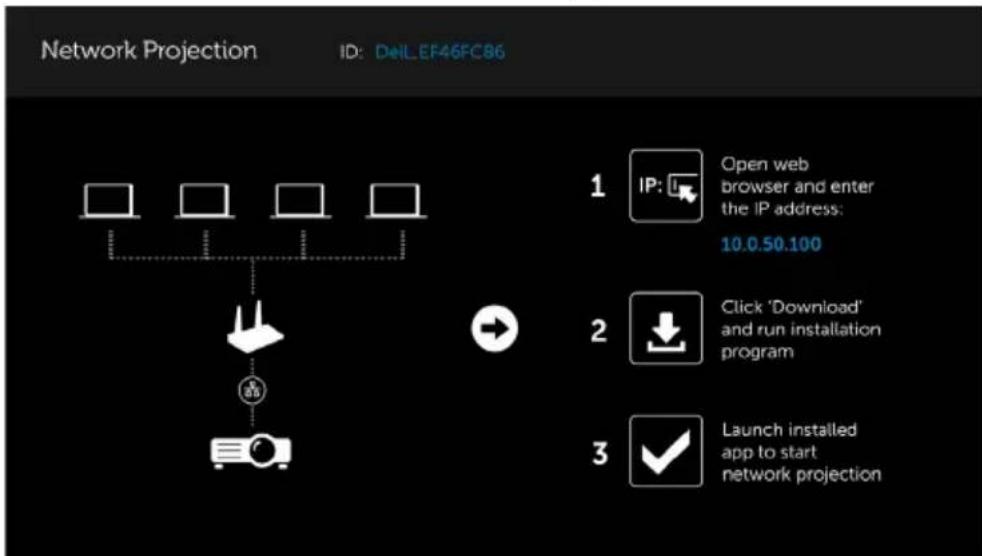

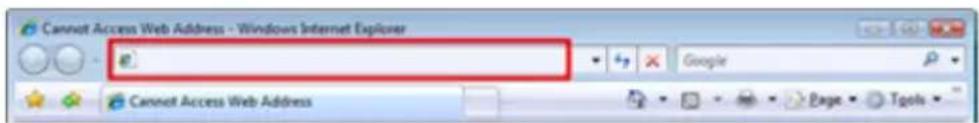

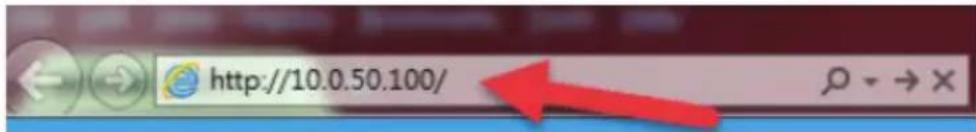

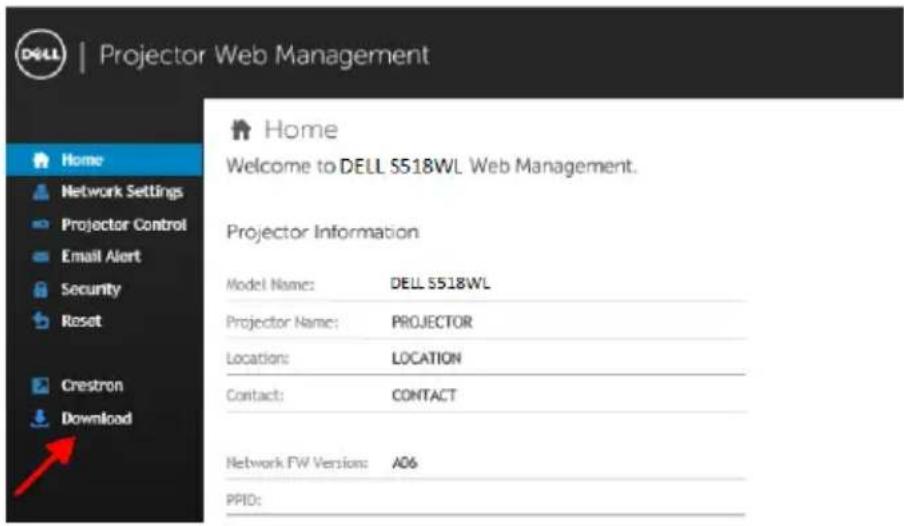

6 Follow the on-screen instruction to launch the web management page and download the app to start network projection.

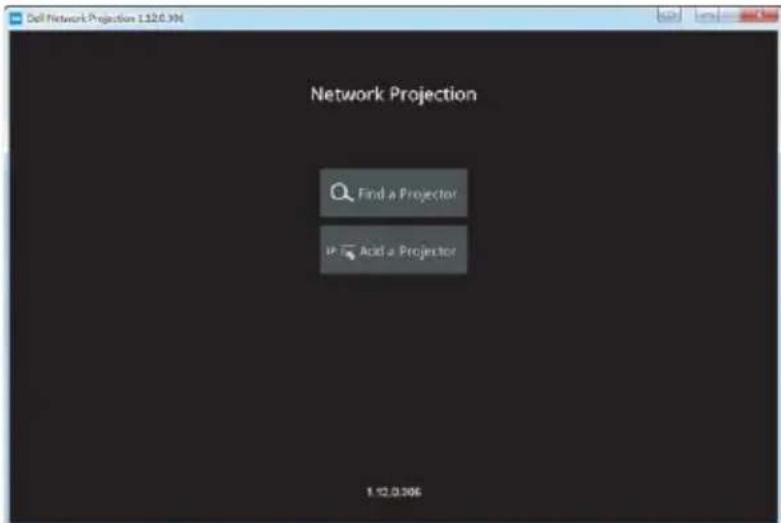

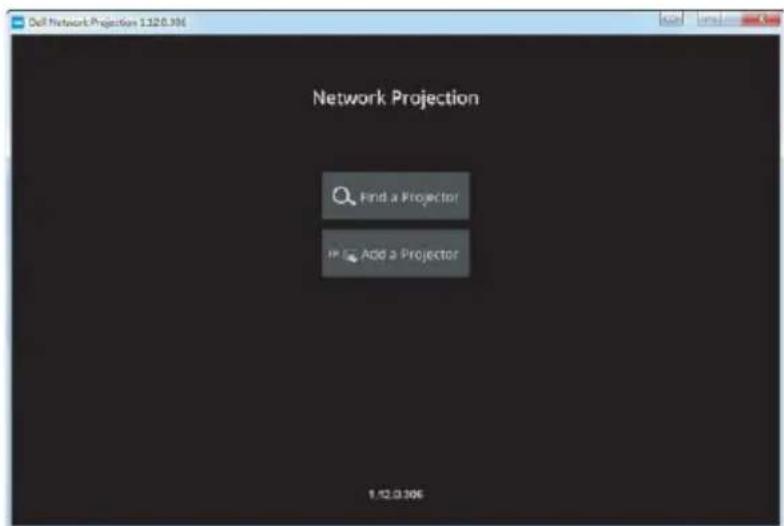

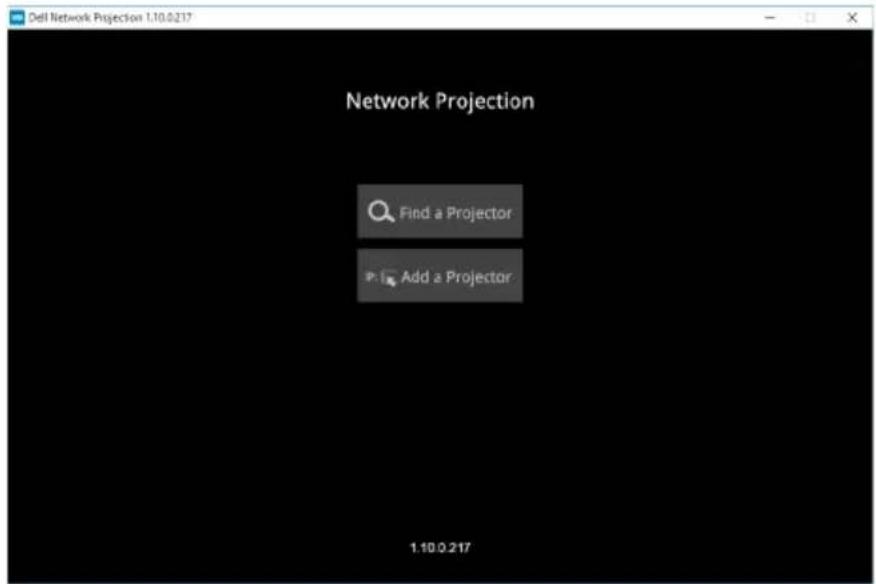

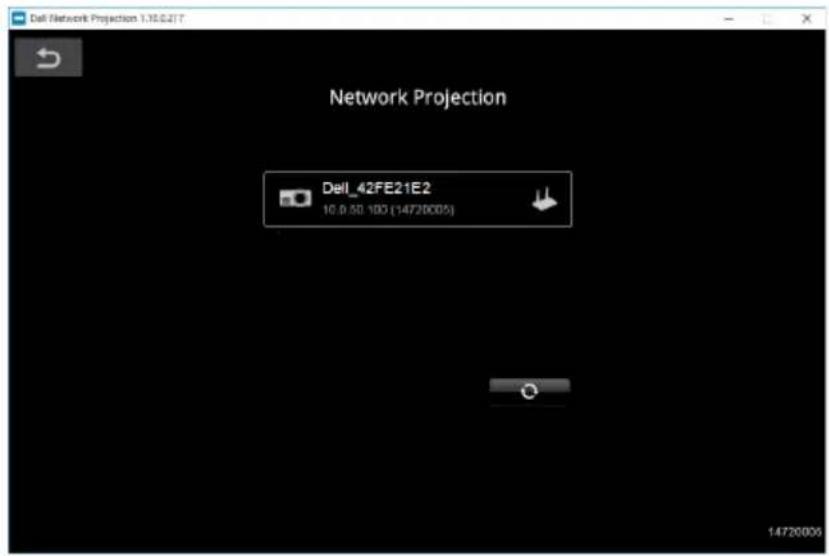

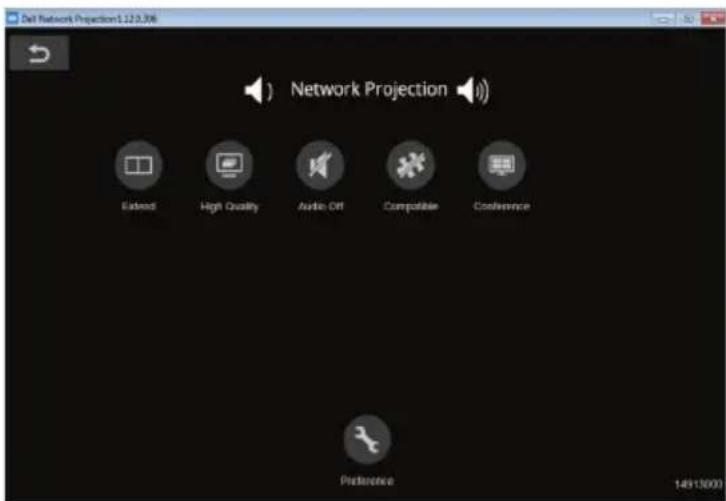

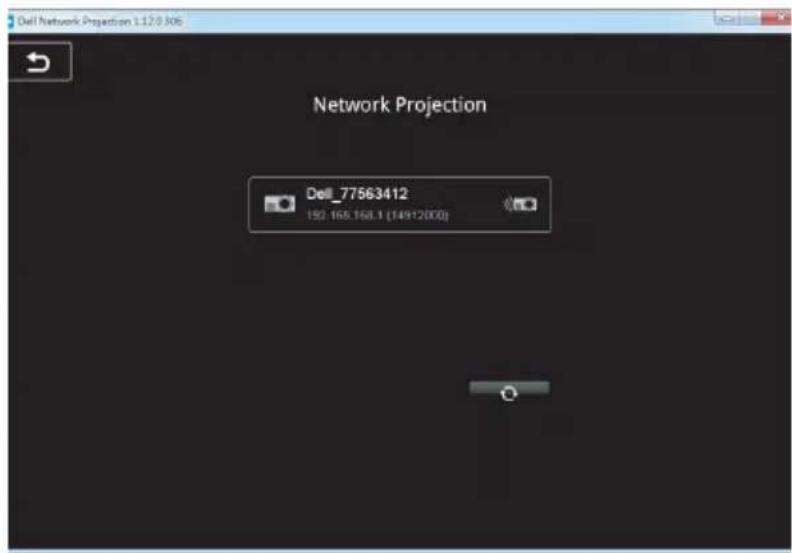

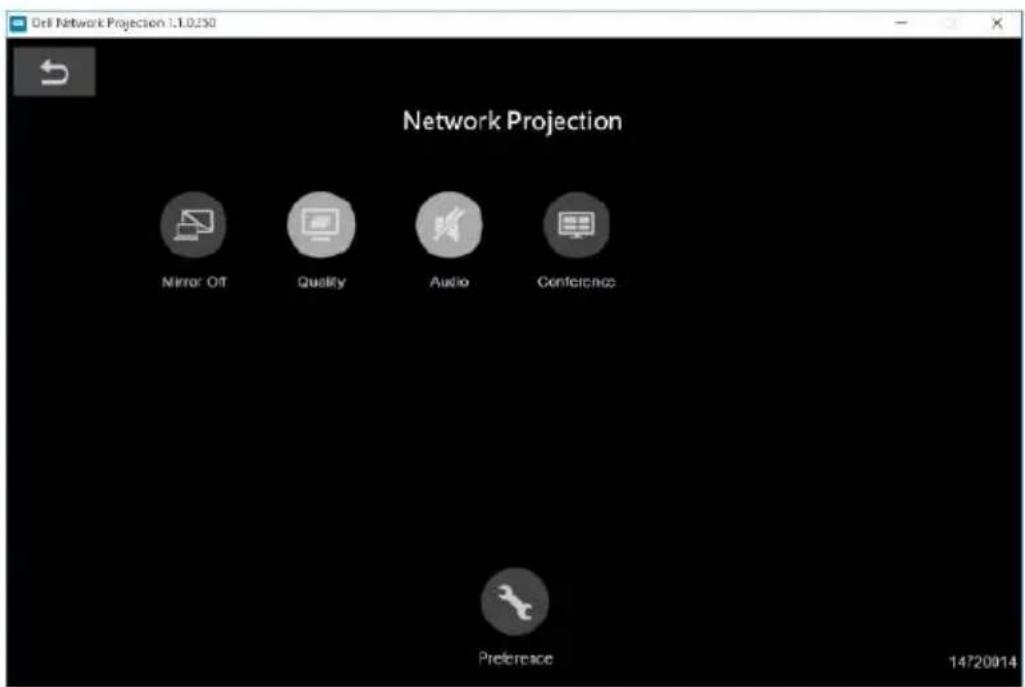

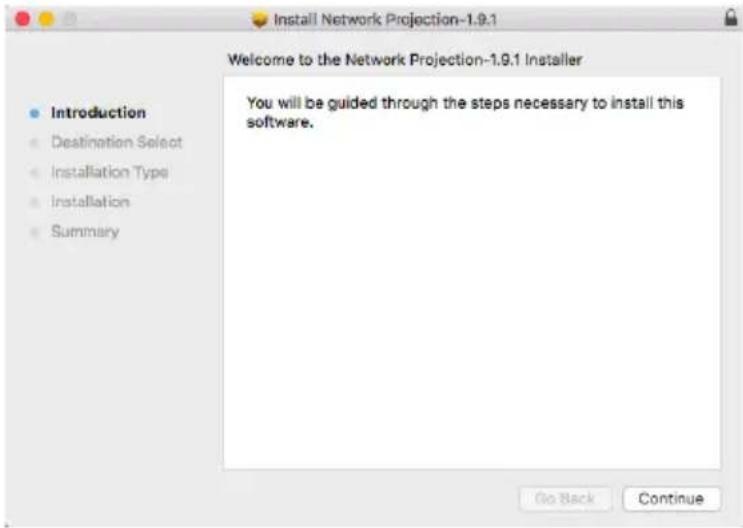

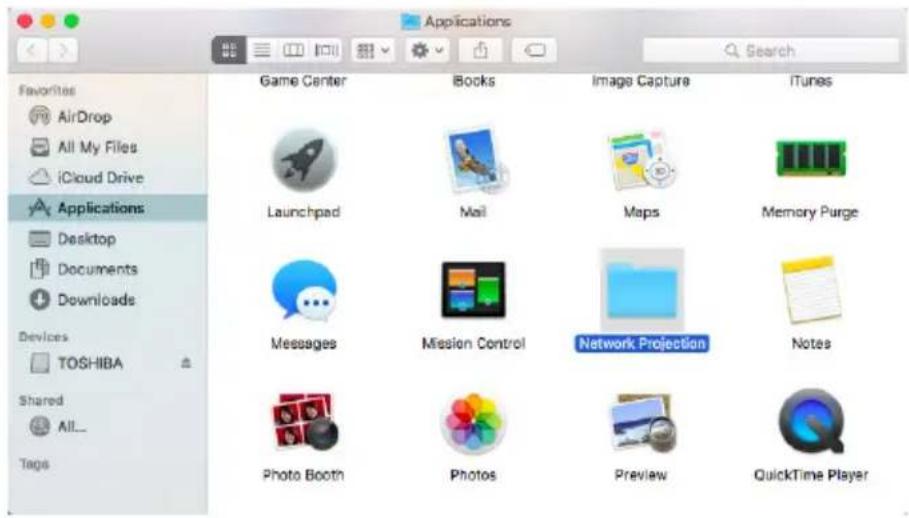

7 Open Dell Network Projection application on your computer.

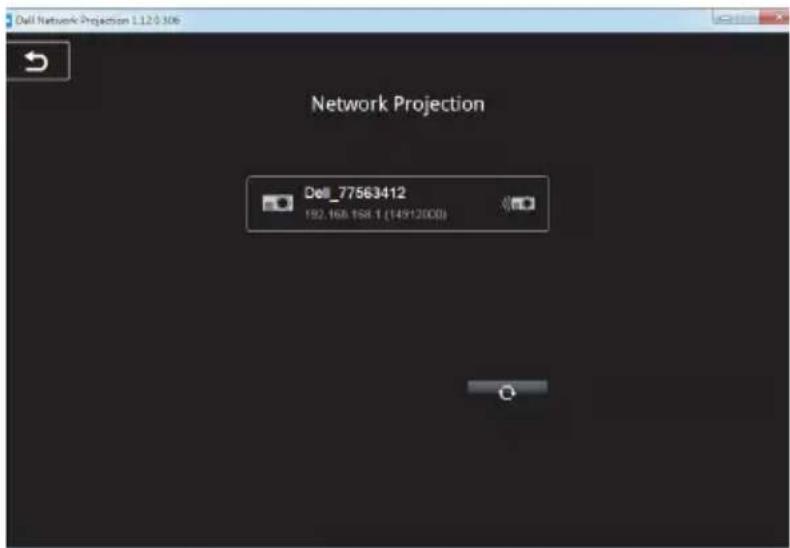

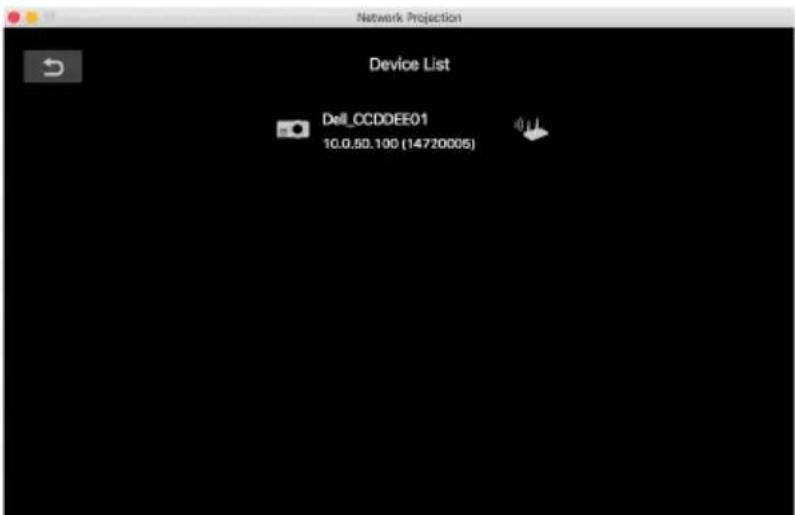

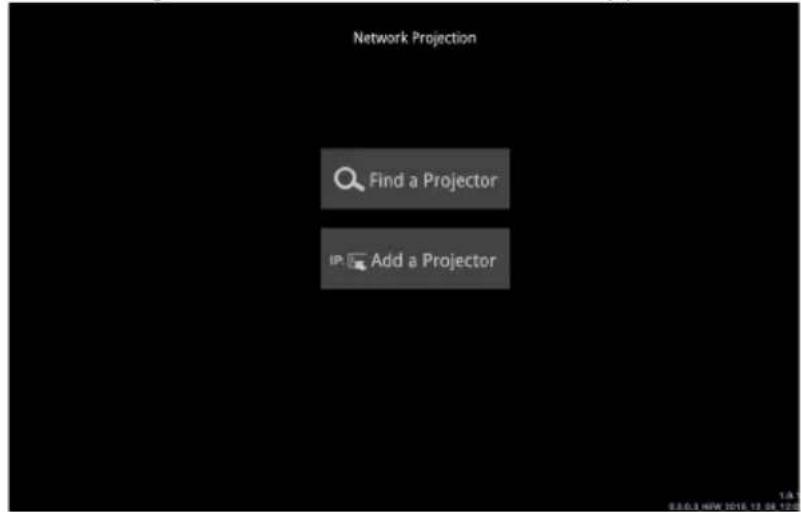

8 Find a Projector you connected with.

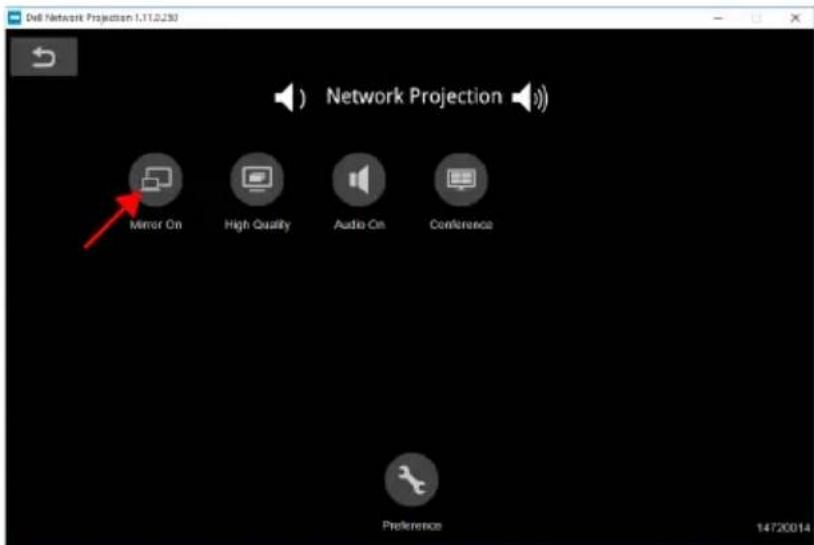

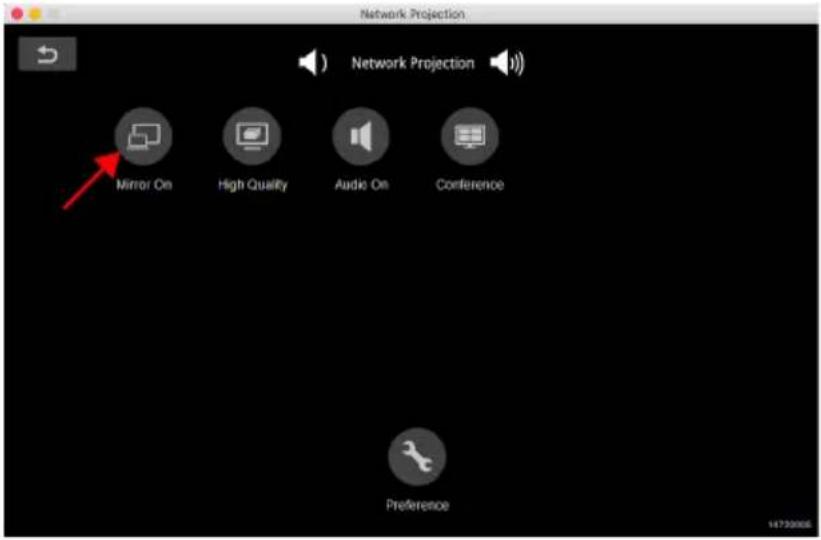

9 Select Extend to share your content.

NOTE: Your computer should be equipped with wireless functionality and properly configured to detect another wireless connection. Refer to your computer's documentation on how to configure a wireless connection.

NOTE: Your projector must be installed with a wireless dongle if you want to use the wireless display. The wireless dongle is not shipped with your projector. You can purchase it on the Dell website at www.dell.com.

Connecting a Computer Using Optional Wireless Dongle

Illustration of a projector connected to a laptop via wireless signal waves (no text or symbols)

1 Connect the wireless dongle to the USB-A port on the projector.

Line drawing of a portable projector with internal components and power outlet (no text or symbols)

2 Access the Input Source menu, select Network source.

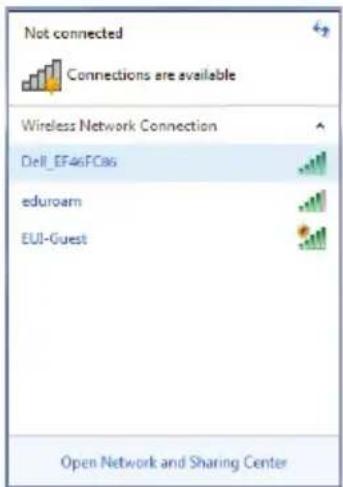

3 In your device's wireless menu, search for the projector by its ID. Then enter the PSK at the prompt to start sharing the same network with the projector.

4 Do one of the following:

a If this is the first time you are connecting to the projector via wireless method, first open the web browser on your computer and enter the IP address 10.0.50.100. Continue to Step 5.

b If you have previously connected your computer to the projector via wireless method, please continue to Step 6.

5 Follow the on-screen instruction to launch the web management page and download the app to start network projection.

6 Open Dell Network Projection application on your computer.

7 Find a Projector you connected with.

8 Select Extend to share your content.

NOTE: Your computer should be equipped with wireless functionality and properly configured to detect another wireless connection. Refer to your computer's documentation on how to configure a wireless connection.

NOTE: Your projector must be installed with a wireless dongle if you want to use the wireless display. The wireless dongle is not shipped with your projector. You can purchase it on the Dell website at www.dell.com.

Connecting to Smartphone or Tablet Using Optional Wireless Dongle

Illustration of a projector connected to a tablet and smartphone via wireless signals (no text or symbols)

1 Install application EZCast Pro on your android or iOS device. In your device's wireless menu, search for the projector by its ID. Then enter the PSK at the prompt to start sharing the same network with the projector.
2 Launch the EZCast Pro application then click the top-right button to choose the device you connected with.

NOTE: Dell S518WL supports EZView funtion. It is an application that transmits supported content from your Android or iOS devices wirelessly. For more Information, please visit the Dell Support site at dell.com/support.

Supported file formats are listed on page 40 in Multimedia File Type Support section.

Connect Projector Directly to the Computer

A.Direct cable connection

3 Connect the LAN cable to the projector and the computer.

B.Network switch

4 Connect the LAN cable to the projector and the computer via the network switch/hub.

5 DHCP of LAN Settings switches to On.

NOTE: If the DHCP setting is set to On, the IP sharing device will automatically assign a set of IP Address, Subnet Mask, and Gateway.

Install software on your PC/ Windows device

1 Open Local Area Connection Properties, and then enter the IP Address and Subnet Mask, click OK.

Steps: Start > Control Panel > Network and Internet > Network and Sharing Center > Change Adapter Setting > Local Area Connection

2 Open the Internet browser on your computer, and enter10.0.50.100 (default) in the browser's address bar. You will be directed to the Dell S518WL Web Management page.

3 The S518WL Web Management page opens. For first-time use, click Download.

4 At the Download page, click Download Network Projection App For Windows 10/8/7/Vista/XP and install to your computer.

NOTE: If you are unable to install the application because of inadequate rights on the computer, please contact your network administrator.

5 Click Run to proceed with the one-time installation of the software.

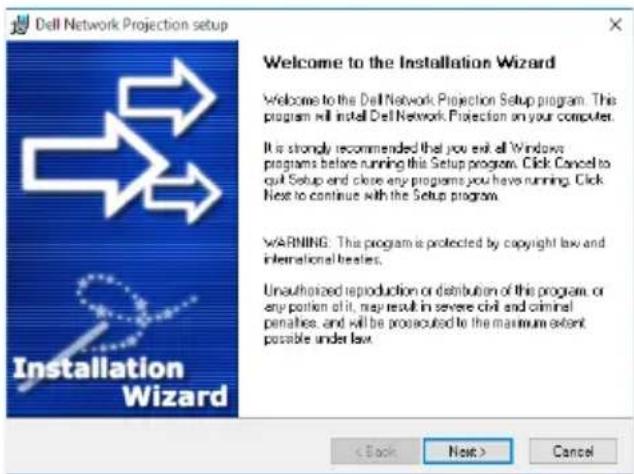

6 The installation software will launch. Follow the on-screen instructions to complete setup.

NOTE: Alternatively you can download the latest version of the Dell Network Projection application from dell.com/support

Installation instructions for Mac

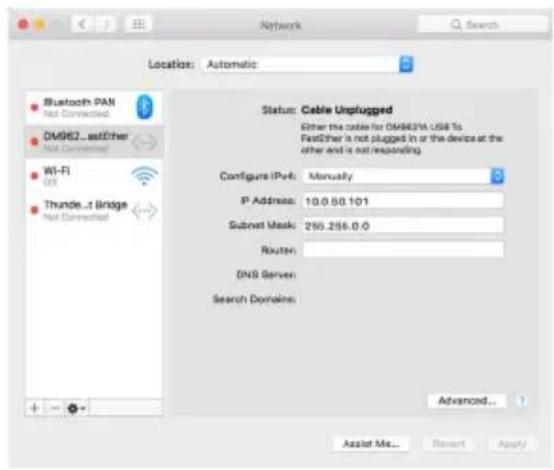

1 Open Local Area Connection Properties, and then enter the IP Address and Subnet Mask, click OK.

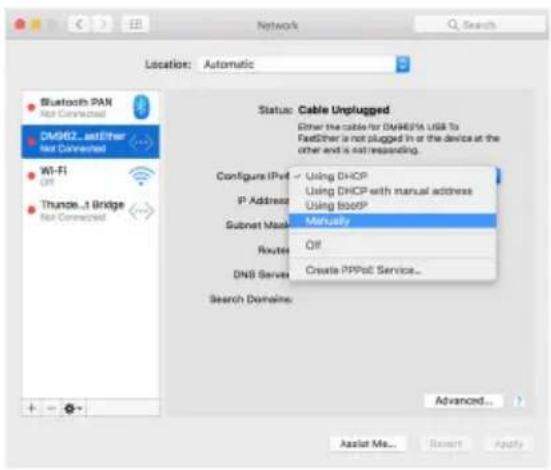

Steps: Go > Applications > System Preferences > Network

2 Open the Safari browser on your Mac computer, and enter 10.0.50.100 (default) in the browser's address bar. You will be directed to the Dell S518WL Web Management page.

3 The S518WL web management page opens. For first-time use, click Download.

4 At the Download page, click You can also download for Mac OS and install to your computer.

NOTE: If you are unable to install the application because of inadequate rights on the computer, please contact your network administrator.

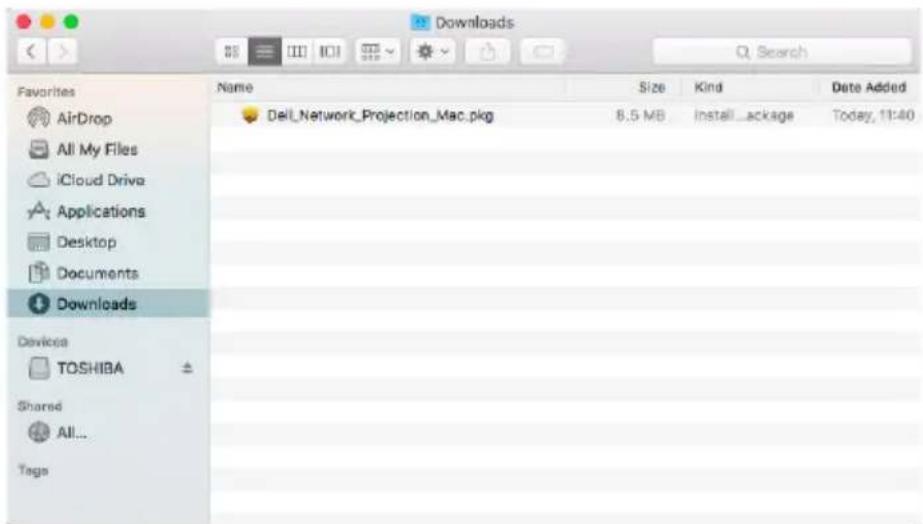

5 Running Dell_Network_Projection_Mac.pkg from Downloads folder.

6 The installation software will launch. Follow the on-screen instructions to complete setup.

Using the Dell Network Projection App (Windows)

Once the installation is completed, you can double-click icon on the desktop to start the application.

The Dell Network Projection Screen shown below appears:

1 At Dell Network Projection screen, click Find a Projector, and then select Dell_42FE21E1 (This is an example. The actual network name of your projector will differ from this example.). This is the name & code that will be projected, when your projector is set to the 'Network' source.

2 In order to start presenting, click on the first icon until "Mirror On" is shown.

Using the Dell Network Projection App (Mac)

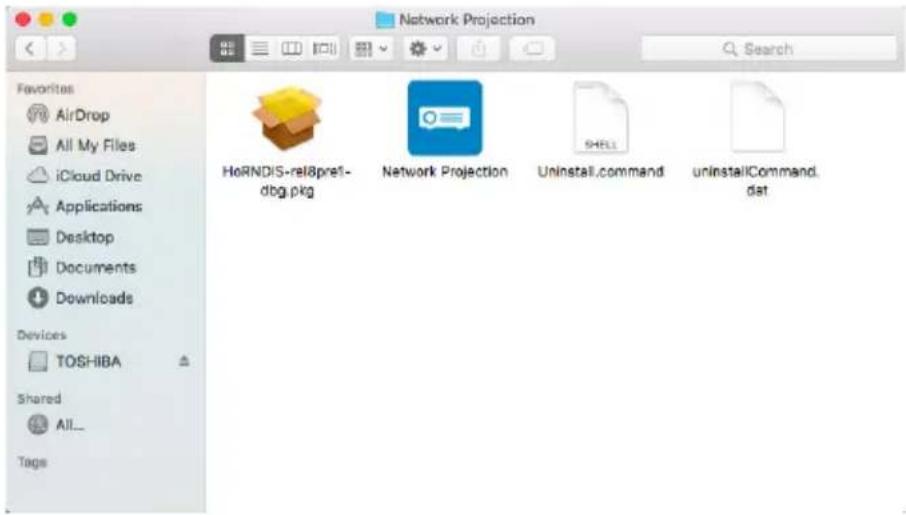

1 1.Go to Applications folder, and then open the Network Projection folder.

2 Run the Network Projection application from Network Projection folder.

The Dell Network Projection Screen shown below appears:

3 On the Dell Network Projection screen, click Find a Projector, and then select Dell_CCDDEE01 (This is an example. The actual network name of your projector will differ from this example.). This is the name & code that will be projected, when your projector is set to the 'Network' source.

4 In order to start presenting, click on the first icon until "Mirror On" is shown.

Split Screen

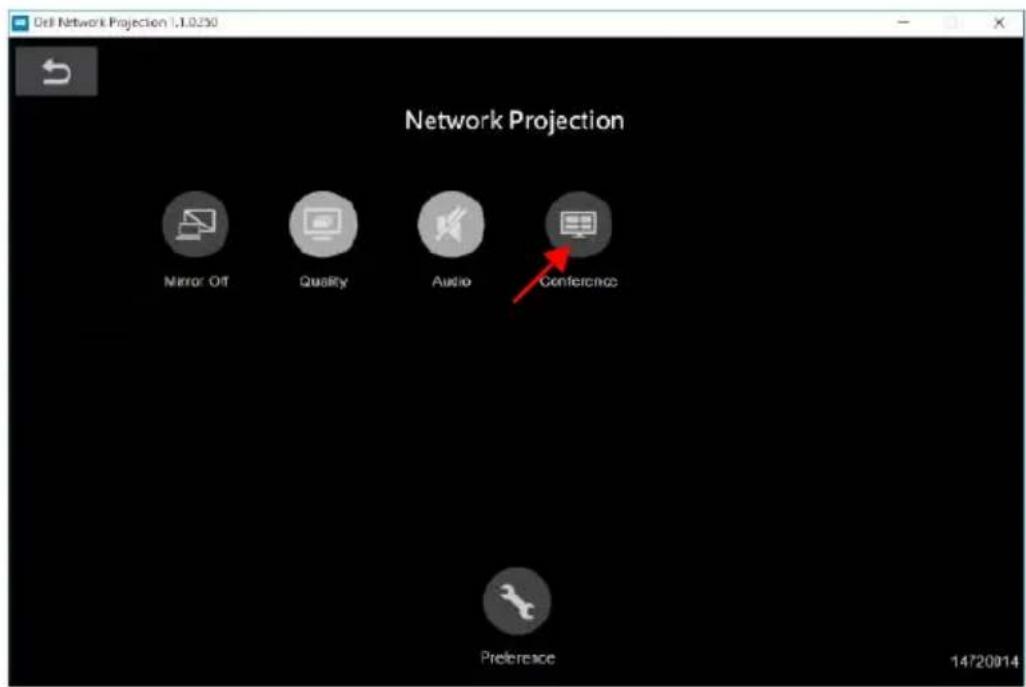

After the network projection connects, click Conference button to activate the split screen feature.

Understanding the Buttons

Item Description
Control Toolbar
	Mirror Off/On	Click to toggle network projection On/Off and screen extension.
	Quality Click to toggle High/Low quality.
	Audio Click to toggle audio On/Off.
	Conference Click to activate the conference control.
	Preference Click to activate the fast connection settings.

Using PC-Free Presentation

Multimedia File Type Support

Photos

Image Type Profile Color Space Size limitation
JPEG	Baseline	YUV400 8000 x 6000
		YUV420 8000 x 6000
		YUV422 8000 x 6000
		YUV440 8000 x 6000
		YUV444 8000 x 6000
	Progressive	YUV400	Width <= 10240 & Height <=6400
		YUV420
		YUV422
		YUV440
		YUV444
BMP No Limit No Limit No Limit

Audio

Audio Format Sample Rate (KHz) Bit Rate (Kbps)

MP1 8-48 8-320

MP2 8-48 8-320

MP3 8-48 8-320

WMA 22-48 5-320

Video

File Extensions	Audio / Video	Codec Profile/Level Support
.avi .mkv	Video H.264 Up to High Profile, Levels 1-4.1 (1080P 30fps 25Mbps)
	Audio MPEG-1Layer I, II
			ADPCM
.mov .mp4	Video H.264 Up to High Profile, Levels 1-4.1 (1080P 30fps 25Mbps)
	Audio PCM

Office Viewer File Type Support

The office viewer feature allows you to play the MS Excel, MS Word, MS PowerPoint, and PDF files.

File Format Support Version Pages/Lines Limitation Size			Limitation
Adobe PDF Up to 1000 pages (One file) Up to			75 MB
MS Word Word 97, 2000,2002, 2003			Up to100 MB
Word 2007,2010 (.docx)
MS Excel Excel 97,2000,2002, 2003	Row Limit: up to 595 / Column Limit:up to 256		Up to15 MB
Excel 2007,2010 (.xlsx)	Sheet: up to 100
Office XP Excel Note: Any one of three limitationsabove does not appear on one Excelfile simultaneously
MSPowerPoint	PowerPoint 97 Up to 1000 pages (One file) Up to		19 MB
	PowerPoint2000, 2002,2003
	PowerPoint2007, 2010(.pptx)
	Office XPPowerPoint

Setting up to present using External USB Storage

NOTE: A USB flash disk must be plugged into the projector if you want to use the USB media playback feature.

Follow these steps to display the Video, Audio, Photo, or PDF files on your projector:

1 Connect the power cable and turn on the projector by pressing the power button.

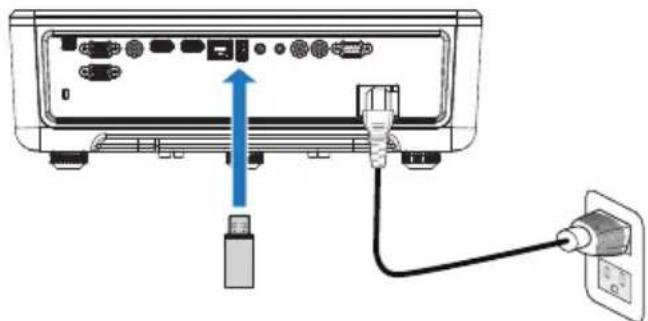

2 Plug in a USB flash disk to your projector.

Diagram of a computer monitor with ports and cables, showing an open port connected to a power outlet (no text or symbols present)

3 Press the Menu button on the control panel or remote control.

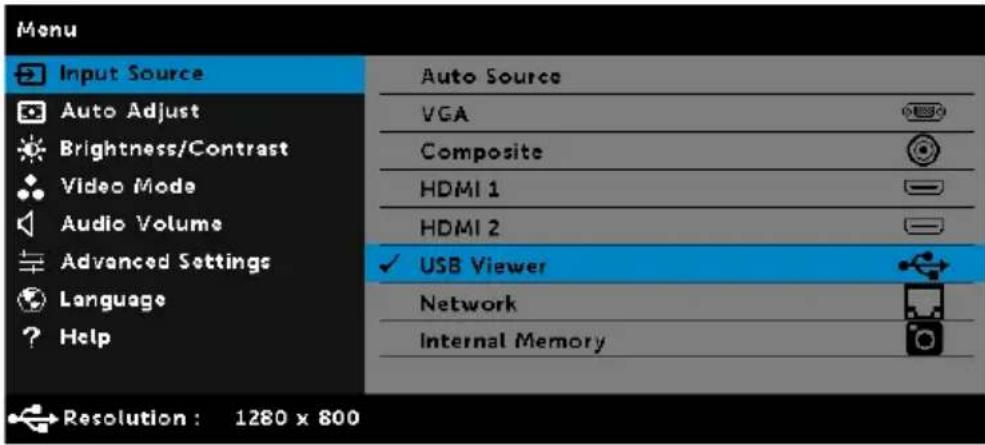

4 Access the Input Source menu, select USB Viewer source.

5 Go to USB Viewer menu:

a You can play Video, Music, or Photo files, or select Setting option to change multimedia settings.

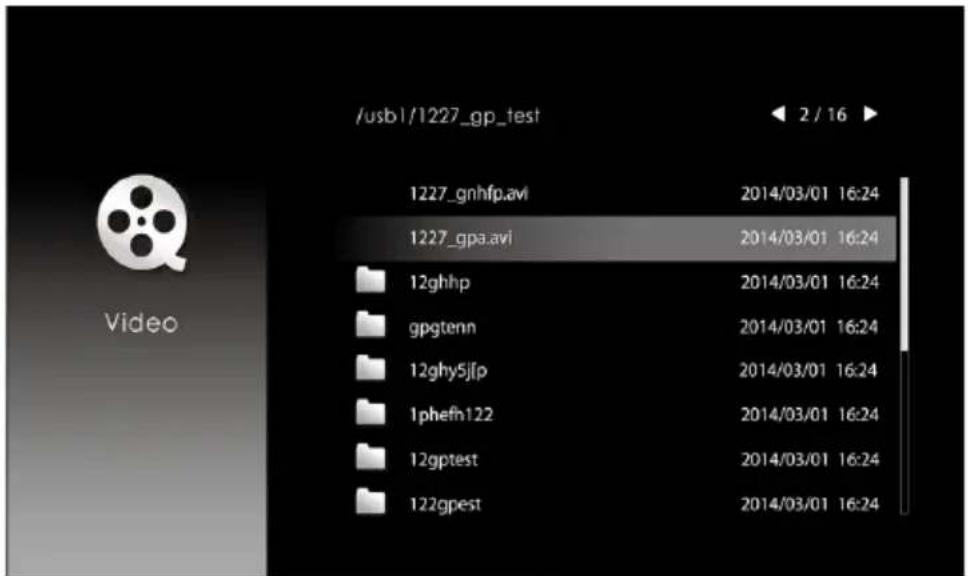

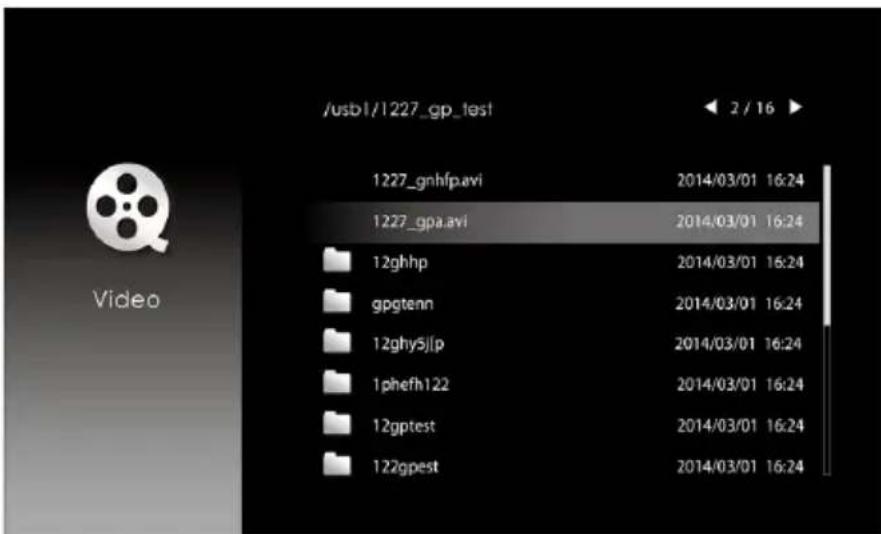

The Video Source Screen shown below appears:

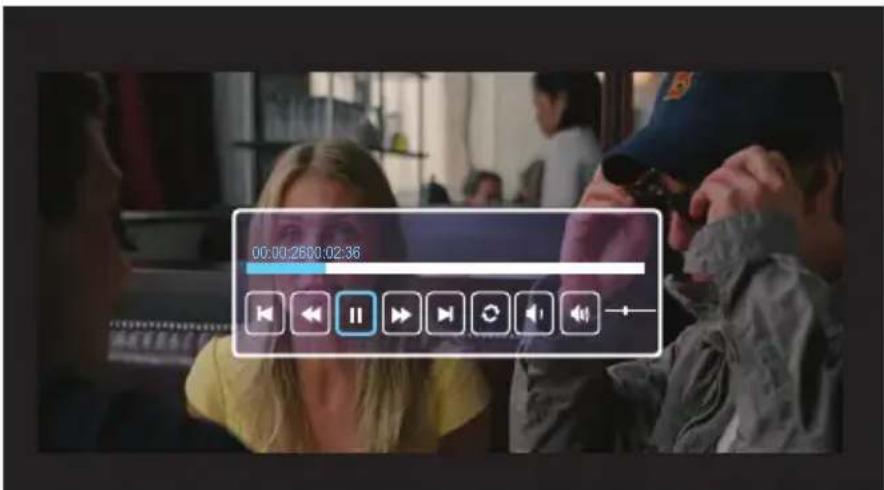

At the Video playback screen, press the button on the control panel or remote control to access the video playback control. Then you can use the following buttons on the screen to control video playback.

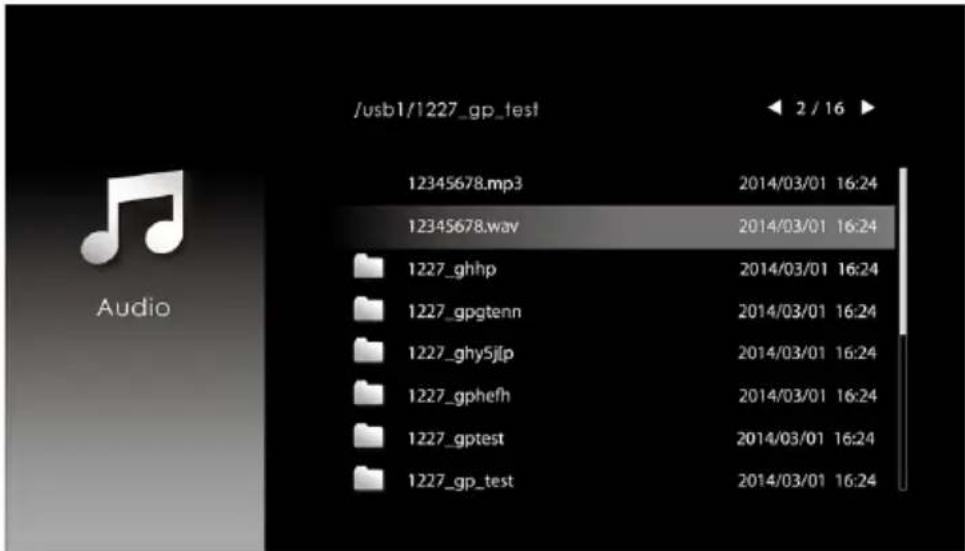

The Music Source Screen shown below appears:

At the Music playback screen, press the button on the control panel or remote control to access the music playback control. Then you can use the following buttons on the screen to control music playback.

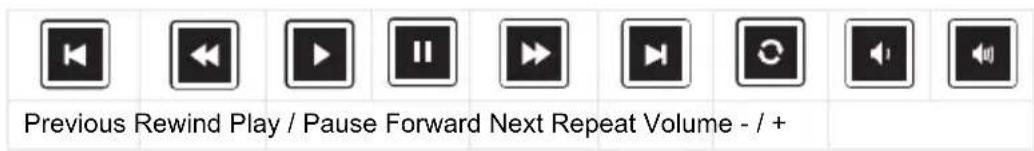

Previous Rewind Play / Pause Stop Forward Next Repeat Volume - / +

The Photo Source Screen shown below appears:

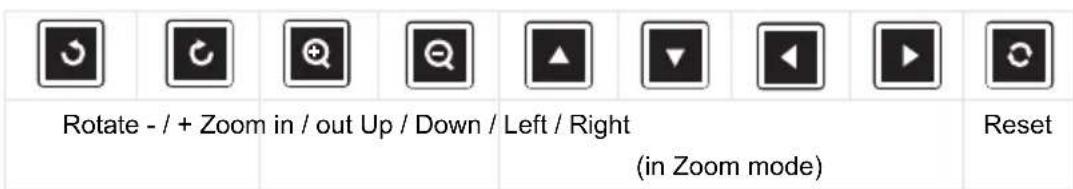

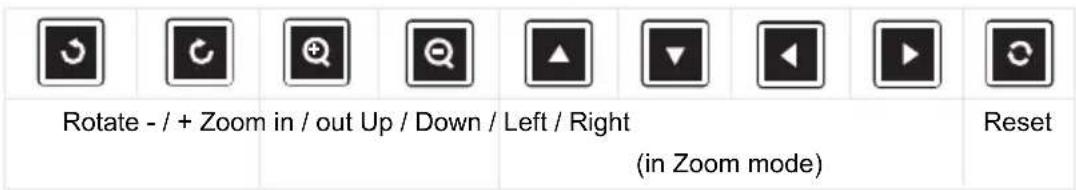

At the Photo playback screen, press the button on the control panel or remote control to access the photo playback control. Then you can use the following buttons on the screen to control photo playback.

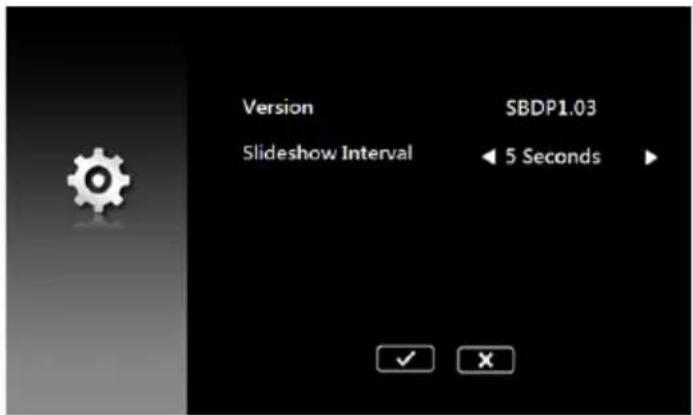

The Setting Source Screen shown below appears:

b You can also play MS Excel, MS Word, MS PowerPoint, or PDF files via Document option.

The Document Screen shown below appears:

Buttons Introduction ( In USB Viewer)

Button Up Down Left Right Enter Menu Return
Control Panel	Up Down Left and Source Menu (Hold 2 seconds)	Enter Return N/A
Remote Control	Up Down Left Right Enter Return Return

Office Viewer File Type Support

The office viewer feature allows you to play the MS Excel, MS Word, MS PowerPoint, and PDF files.

File Type Support Version Pages/Lines Limitation Size
		Limitation
Adobe PDF Up to 1000 pages (One file) Up to		75 MB
MS Word Word 97, 2000, 2002, 2003	Because office viewer does not load all pages of MS Word file at the same time, there are no obvious limitations of page and line.	Up to 100 MB
Word 2007, 2010 (.docx)
MS Excel Excel 97, 2000,2002, 2003		Row Limit: up to 595 / Column Limit: up to 256	Up to 15 MB
Office XP Excel Note: Any one of three limitations above cannot appear on one Excel file simultaneously
MS PowerPoint	PowerPoint 97 Up to 1000 pages (One file) Up to		19 MB
	PowerPoint 2000, 2002, 2003
	PowerPoint 2007, 2010 (.pptx)
	Office XP PowerPoint
	PowerPoint presentation-2003 and earlier*.pps)
	PowerPoint presentation-2007 and 2010(.ppsx)

Setting up to Present via Internal Memory

Follow these steps to playback the Photo, Video, or Music files on your projector:

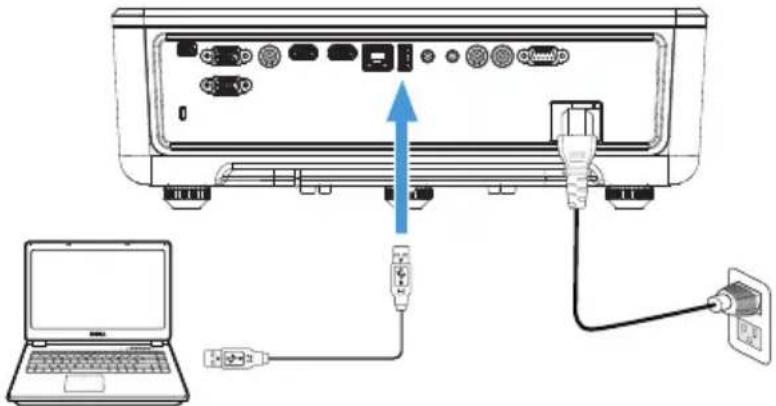

1 Connect power cable with AC adapter then using USB-A to USB-A cable to connect computer and projector. Power up the projector by pressing the power button.

Diagram showing connection between a laptop and a printer with USB cable, no text or symbols present

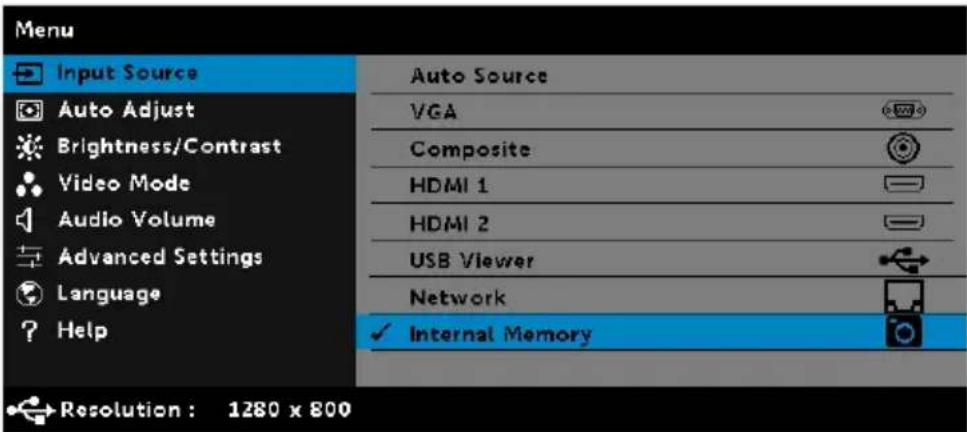

2 Access the Input Source menu, select the Internal Memory option, and press the button.

The Internal Memory Screen shown below appears:

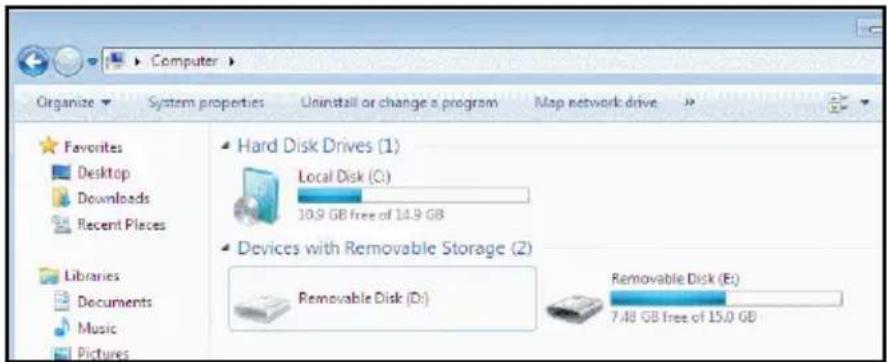

3 Select Storage Mode to access the internal memory as Removable Disk.

Simple line drawing of a laptop with a cable, no text or symbols present

4 To copy files to the projector's Internal Memory, first open a file explorer window. Go to Computer and locate a Removable Disk. This refers to the Internal Memory of the projector. You may copy files to the Internal Memory. This will allow you to project the files directly from the projector in the future, without needing a computer. For supported file types, please refer to page 22.

5 Select the multimedia files: Photo, Music, Video, or Document, and then press the button to start playing. Or select the Setup option to change multimedia settings.

The Photo Source Screen shown below appears:

Slideshow screen:

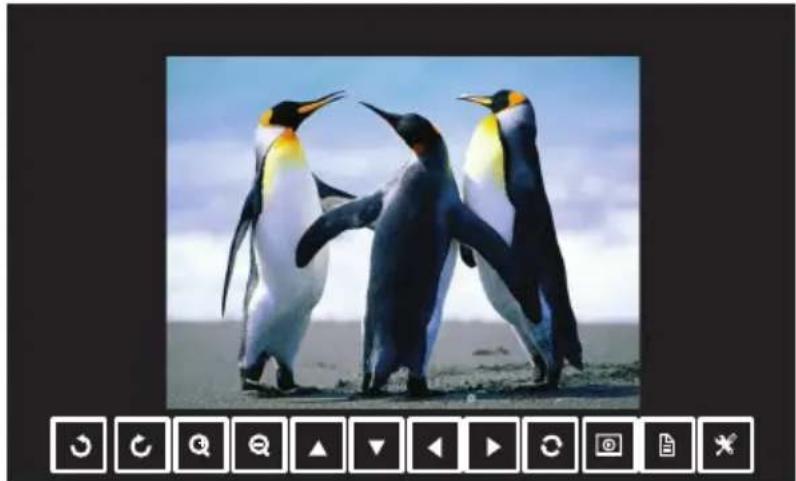

Three penguins standing on a sandy beach under a cloudy sky, with no visible text or symbols.

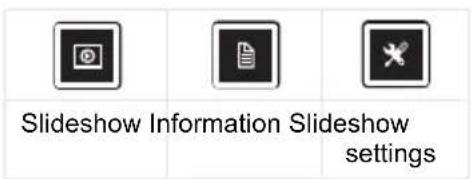

Press the √ button on the remote control or keypad to access the photo viewer control. Then you can use the following buttons on the screen to control photo viewer.

The Music Source Screen shown below appears:

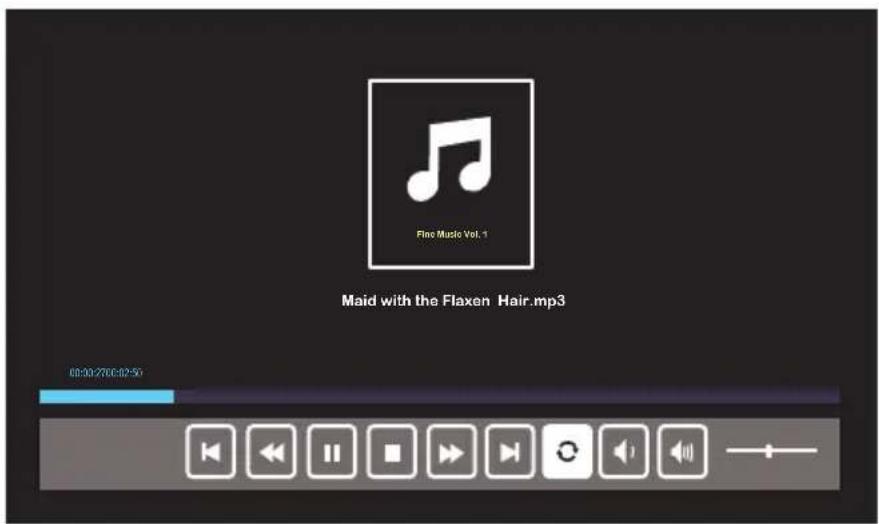

Music playback screen:

Press the √button on the remote control or keypad to access the music playback control. Then you can use the following buttons on the screen to control music playback.

Previous Rewind Play / Pause Stop Forward Next Repeat Volume - / +

The Video Source Screen shown below appears:

Video playback screen:

Press the √button on the remote control or keypad to access the video playback control. Then you can use the following buttons on the screen to control video playback.

Previous Rewind Play / Pause Forward Next Repeat Volume - / +

Troubleshooting Tips

If you experience problems with your projector, see the following troubleshooting tips. If your problem persists, please contact Dell.

Problem Possible Solution

No image appears on the screen

• Ensure that you have chosen the correct input source on the INPUT SOURCE menu.

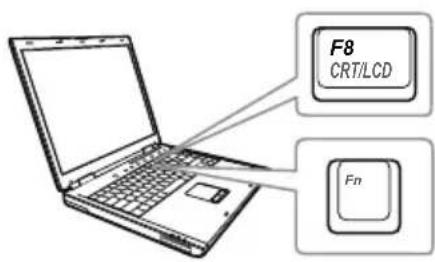

• Ensure the external graphics port is enabled. If you are using a Dell laptop computer, press (Fn8). For other computers, see your respective documentation. If images are not displayed properly, please upgrade the video driver of your computer. For Dell computers, see www.dell.com/support.
• Ensure that all the cables are securely connected. See "Adjusting Projector Image" on page 12.
• Ensure that the pins of the connectors are not bent or broken.
• Use the Test Pattern in the Projector Settings of the Advanced Settings menu. Ensure that the colors of the test pattern are correct.

Problem (continued) Possible Solution (continued)
Partial, scrolling, or incorrectly displayed image	If you are using a Dell laptop computer, set the resolution of the computer to WXGA (1280 x 800):aRight-click the unused portion of your Microsoft® Windows® desktop, click Properties, and then select Settings tab.bVerify that the setting is 1280 x 800 pixels for the external monitor port.cPress (Fn+F8).If you experience difficulty in changing resolutions, or if your monitor freezes, restart all the equipment and the projector.If you are not using a Dell laptop computer, see your documentation. If images are not displayed properly, please upgrade the video driver of your computer. For a Dell computer, see www.dell.com/support.
The screen does not display your presentation	If you are using a portable computer, press Fn (Fn+F8).
Image color is incorrect	·If the display receives the wrong signal output from the graphics card, please set the signal type to RGB in the OSD Image Settings of the Advanced Settings tab.·Use Test Pattern in the Projector Settings of the Advanced Settings menu. Ensure that the colors of the test pattern are correct.
Image is out of focus 1	Adjust the focus until the image is clear.Use Focus Adjust in the Projector Settings of the Advanced Settings menu.2 Ensure that the projection screen is within the required distance from the projector (2.55 ft (0.78 m) ~ 3.67 ft (1.12 m).
The image is stretched when displaying a 16:9 DVD	The projector automatically detects the input signal format. It will maintain the aspect ratio of the projected image according to the input signal format with an Original setting.If the image is still stretched, adjust the aspect ratio in the Display Settings of the Advanced Settings menu in the OSD.
Image is reversed Select	Projector Settings of the Advanced Settings from the OSD and adjust the projector mode.
TEMP light is solid amber The projector has overheated. The display automatically shuts down. Turn the display on again after the projector cools down. If the problem persists, please contact Dell.
TEMP light is blinking amber	If the projector fan fails, the projector will automatically shut down. Try to clear the projector mode by pressing and holding the Power button for 10 seconds. Please wait for about 5 minutes and try to power up again. If the problem persists, please contact Dell.
The remote control is not operating smoothly or works only within a limited range	The battery level might be low. If so, replace with new CR2032 battery.
LAN control support	Web Control functions were verified on IE9, IE10, and IE11. The other version may have compatibility problem.The Compatibility View setting should be disabled. Otherwise the web control page may have icon or content display abnormal issue.

Guiding Signals

Projector Status	Description	Control Buttons Indicator
		Power	TEMP (Amber)	LAMP (Amber)
Standby mode	Projector in Standby mode. Ready to power on.	White Flashing OFF OFF
Warming up mode	Projector takes some time to warm up and power on.	White OFF OFF
Laser Diode on	Projector in Normal mode, ready to display an image.Note: The OSD menu is not accessed.	White OFF OFF
Cooling mode	Projector is cooling to shutdown. White OFF OFF
Projector overheated	Air vents might be blocked or ambient temperature may be above 40°C. The projector automatically shuts down.Ensure that the air vents are not blocked and that the ambient temperature is within operational range. If the problem persists, please contact Dell.	OFF AMBER OFF
Fan breakdown	One of the fans has failed. The projector automatically shuts down. If the problem persists, please contact Dell.	OFF	AMBER Flashing	OFF
Laser Diode driver overheated	Air vents might be blocked or the Laser Diode driver has overheated.The projector will automatically shut down. Turn the display on again after the projector cools down. If the problem persists, please contact Dell.	AMBER AMBER OFF
Color Wheel breakdown	Color wheel cannot start. The projector has failed and the projector automatically shuts down. Unplug/plug the power cord and then turn on the projector. If this problem persists, please contact Dell.	White	AMBER Flashing	AMBER Flashing
Laser Diode failure	Laser Diode is defective.	OFF OFF AMBER
Fault - DC supply (+12V)	Power supply has been interrupted.The projector automatically shuts down. Unplug/plug the power cord and then turn on the projector. If this problem persists, please contact Dell.	AMBER Flashing AMBER AMBER

Replacing the Remote Control Battery

1 Rotate the battery lid counterclockwise to remove the battery cover.

2 Insert a CR2032 coin cell battery and align the polarity correctly according to the marking in the battery holder.

NOTE: When you use the remote control for the first time, there is a plastic sheet between the battery and its contact. Remove the sheet before use.

3 Rotate the battery lid clockwise to lock the battery cover.

Light Valve 0.65 WXGA S450 DMD, DarkChip3™

Brightness 3200 ANSI Lumens (Max.)

Contrast Ratio 1800:1 Typical (Full On/Full Off)

20000:1 High Contrast Ratio

Uniformity 80% Typical (Japan Standard - JBMA)

Number of Pixels 1280 x 800 (WXGA)

Aspect Ratio 16:9

Displayable Color 1.07 billion colors

Color Wheel Speed 2 X for Normal

Projection Lens F-Stop: F/2.7

Focal length, f=7.51 mm

No Manual Zoom Lens, Fixed

Throw ratio =0.52

Offset ratio: 115+/-5%

Projection Screen Size 70 \~ 100 inches (diagonal)

Projection Distance 2.55 \~ 3.67 ft (0.78 \~ 1.12 m)

Keysotne +/- 15 degree

Video Compatibility Component Video input via HDMI: 2160p

(24/25/60 Hz), 1080i (24/25/60 Hz), 720p (50/60

Hz), 576i/p, 480i/p

Power Supply

Universal AC 100-240 V 50-60 Hz with PFC input

Power Consumption

Normal mode: 255 W ± 10% @ 110 Vac

Eco mode: 135 W ± 10% @ 110 Vac

Standby mode: < 0.5 W

Network standby: < 2 W

NOTE: By default, the projector is set to enter power saving mode after 20 minutes of no activity.

Audio

2 speakers x 10 watt RMS

Noise Level Normal mode: 36 dB(A)

Eco mode: 32 dB(A)

Projector Weight < 12 lb (5.5 Kg)

Dimensions (W x D x H) 1.26 x 0.99 x 0.37 inches (386.5 x 303.2 x 115 mm)

Environmental Operating temperature: 5 °C - 40 °C (41 °F - 104 °F)

Humidity: 80% maximum

Storage temperature: 0 °C to 60 °C (32 °F to 140 °F)

Humidity: 90% maximum

Shipping temperature: -20 °C to 60 °C (-4 °F to 140 °F)

Humidity: 90% maximum

I/O Connectors Power: One AC power socket (3-pin - C14 inlet)

VGA input: One 15-pin D-sub connector (Blue), VGA In, for analog RGB/Component input signals.

VGA output: One 15-pin D-sub connector (Black) for VGA-A loop through.

Composite Video input: One Yellow RCA jack for CVBS signal.

HDMI 1.4 input: Two HDMI 1.4 connectors for HDMI 1.4 specification HDCP 2.2 compliant.

Analog Audio input: One 3.5 mm stereo mini phone jack (Blue) and One pair of RCA (Red/White)

Variable audio output: One 3.5 mm stereo mini phone jack (Green).

USB (mini type B) port: One mini type B connector for firmware upgrade.

USB Power (5V/1.8A): One USB Power (5V/1.8A) for power only

RS232 port: One 9-pin D-sub for RS232 communication.

RJ-45 port: One RJ-45 connector for build-in for network control and LAN display.

Light Source Up to 20,000 hours in Normal mode

Compatibility Mode (Digital / Analog)

Resolution	Refresh Rate (Hz)	H Sync Frequency (KHz)	Pixel Clock (MHz)
640 x 350	70.087	31.469	25.175
720 x 400	70.087	31.469	28.322
720 x 480	p60	59.940	31.469
720 x 576	p50	50.000	31.250
720 x 400	70.087	31.469	28.322
640 x 480	75.000	37.500	31.500
640 x 480	85.008	43.269	36.000
800 x 600	60.317	37.879	40.000
800 x 600	75.000	46.875	49.500
800 x 600	85.061	53.674	56.250
1280 x 720	p50	50.000	37.500
1280 x 270	p60	60.000	45.000
1920 x 1080	i50	50.000	28.125
1920 x 1080	i60	60.000	33.750
1280 x 720	59.855	44.772	74.500
1024 x 768	75.029	60.023	78.750
1280 x 800	59.810	49.702	83.500
1366 x 768	59.790	47.712	85.500
1152 x 864	75.000	67.500	108.000
1280 x 1024	60.020	63.981	108.000
1280 x 1024	75.025	79.976	135.000
1280 x 1024	85.024	91.146	157.000
1600 x 1200	60.000	75.000	162.000
1400 x 1050	59.978	65.317	121.750
1280 x 768	59.870	47.776	79.500
1360 x 768	60.015	47.712	85.500
1680 x 1050-R	59.883	64.674	119.000

1680 x 1050 59.954 65.290 146.250

1920 x 1200-R 60.000 74.038 154.000

1440 x 900 59.887 55.935 106.500

848 x 480 60.000 31.020 33.750

1920 x 1080 60.000 67.500 148.500

1366 x 768 59.790 47.712 85.500

1280 x 800 59.810 49.702x 83.500

7

Additional Information

For additional information on how to use your projector, please see the Dell Projectors User Guide at www.dell.com/support/manuals.

For customers in the United States, call 800-WWW-DELL (800-456-3355).

NOTE: If you do not have an active Internet connection, you can find contact information on your purchase invoice, packing slip, bill, or Dell product catalog.

Dell provides several online and telephone-based support and service options. Availability varies by country and product, and some services may not be available in your area. To contact Dell for sales, technical support, or customer service issues:

1 Visit go to www.dell.com/contactDell.
2 Select your country from the displayed list.
3 Select a Segment for Contact.
4 Select the appropriate service or support link based on your need.

Index

A

Adjusting the Projected Image Adjusting the Projector Height 12 lower the projector Front tilt adjustment wheel 12 Rear tilt adjustment wheel 12

C

Connection Ports Audio input connector 6 Audio output connector 6 Audio RCA (L) connector 6 Audio RCA (R) connector 6 Composite Video connector 6 HDMI-1 (1.4) connector 6 HDMI-2 (1.4) connector 6 Mini USB (mini type B) connector for firmware upgrade 6 Power cord connector 6 RJ45 connector 6 RS232 connector 6 USB Type A Power (+5V/1.8A) connector and also for media / wifi 6 VGA input 6 VGA output 6 Contact Dell 4

D

Dell contacting 65, 66

M

Main Unit 5 Focus tab 5 IR receiver 5 Lens 5 Mounting holes for ceiling mount 5 Mounting holes for wall mount 5 Power button 5 Tilt adjustment wheel 5

P

phone numbers 66

R

Remote Control 9

Replacing 59

s

Specifications Aspect Ratio 60 Audio 60

Brightness 60

Color Wheel Speed 60

Contrast Ratio 60

Dimensions 61

Displayable Color 60

Environmental 61

I/O Connectors 61

Light Valve 60

Noise Level 61

Number of Pixels 60

Power Consumption 60

Power Supply 60

Projection Distance 60

Projection Lens 60

Projection Screen Size 60

Projector Weight 61

Uniformity 60

Video Compatibility 60

support

contacting Dell 65, 66

T

telephone numbers 66
