CJR6X88TGAW - Uncategorized Panduit - Free user manual and instructions

Type	Modular Keystone Jack
Manufacturer	Panduit
Model	CJR6X88TGAW
Category	Uncategorized (Networking)
Application	Category 6A shielded jack for high-speed data networks
Color	White (AW)
Material	High-impact flame-retardant plastic
Dimensions	0.86 in x 0.86 in x 1.30 in (21.8 mm x 21.8 mm x 33.0 mm)
Weight	0.02 lb (9 g)
Operating Temperature	-40°F to 185°F (-40°C to 85°C)
Compliance	TIA/EIA-568-C.2, ISO 11801 Class EA
Termination	IDC (Insulation Displacement Contact) for 22-26 AWG solid/stranded
Shielding	Fully shielded (STP) with metal housing
Connector Type	8P8C (RJ45) modular
Wiring Scheme	T568A/T568B compatible
Performance	Supports 10GBase-T up to 100 meters
Ingress Protection	Not rated (indoor use)
Warranty	Limited lifetime warranty

Frequently Asked Questions - CJR6X88TGAW Panduit

What is the CJR6X88TGAW used for?

The CJR6X88TGAW is a Panduit modular keystone jack designed for high-performance network connections. It supports Category 6A standards and is ideal for use in structured cabling systems for data centers, offices, and industrial environments.

Is this jack compatible with standard patch panels?

Yes, the CJR6X88TGAW fits standard keystone openings (e.g., Panduit Mini-Com® patch panels and faceplates). It can be installed in any 0.86 x 0.86 inch cutout.

What wire gauge does this jack support?

The IDC terminals accept 22-26 AWG solid or stranded copper wire. Ensure proper termination tools (e.g., Panduit EGJT) are used for optimal performance.

Does the jack require a special tool for installation?

Yes, a punchdown tool is recommended for terminating wires into the IDC slots. Alternatively, Panduit offers a termination tool specifically designed for their jacks.

What is the color code for wiring?

The jack is labeled with both T568A and T568B wiring schemes. Follow the color code printed on the jack for consistency with your network infrastructure.

Is this jack shielded?

Yes, the CJR6X88TGAW includes a metal shielding housing for STP (Shielded Twisted Pair) applications. Proper grounding is required to maintain performance.

What is the maximum data speed supported?

The jack supports 10GBase-T (10 Gigabit Ethernet) up to 100 meters when used with appropriate Category 6A cabling.

Is it suitable for outdoor use?

No, this jack is rated for indoor use only. It does not have an IP (Ingress Protection) rating and should be protected from moisture and dust.

How do I clean this jack?

Use a dry, lint-free cloth to wipe the exterior. Do not use solvents or abrasive cleaners. Ensure the contacts are free of debris before use.

What warranty does Panduit provide?

Panduit offers a limited lifetime warranty against defects in materials and workmanship under normal use. Contact Panduit support for claim procedures.

USER MANUAL CJR6X88TGAW Panduit

For Technical Support: www.panduit.com/resources/install_maintain.asp

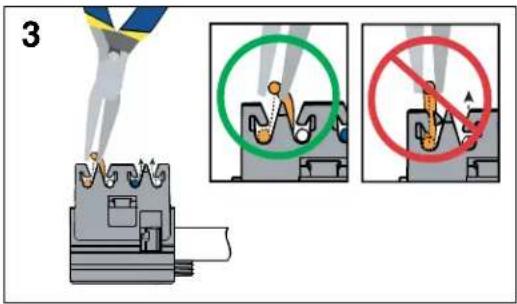

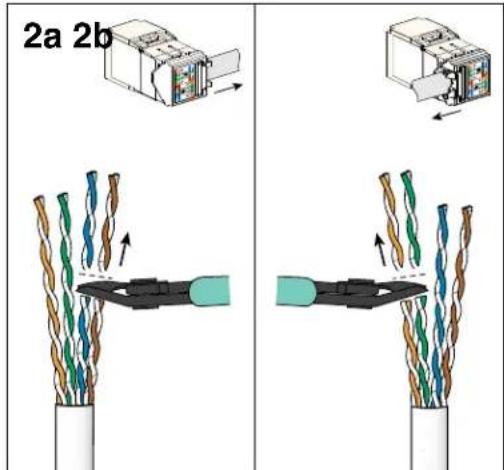

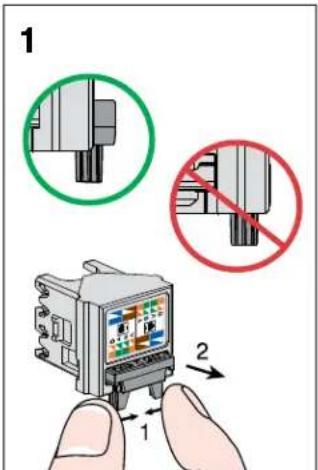

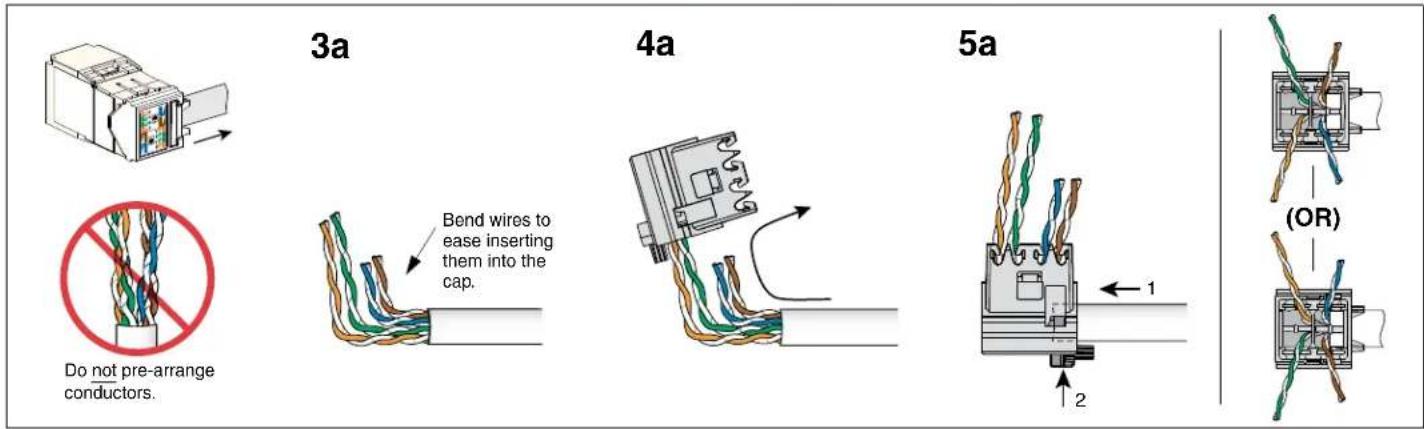

6a
T568B Wiring

Termination side

Label side

T568A Wiring

Termination side Label side

Pure electrical circuit lines without any symbols

(OR)

1.

Pure electrical circuit lines without any symbols

[Non-Text]

Pure electrical circuit lines without any symbols

(OR)

1.
   →

2.

Pure electrical circuit lines without any symbols

[Non-Text]

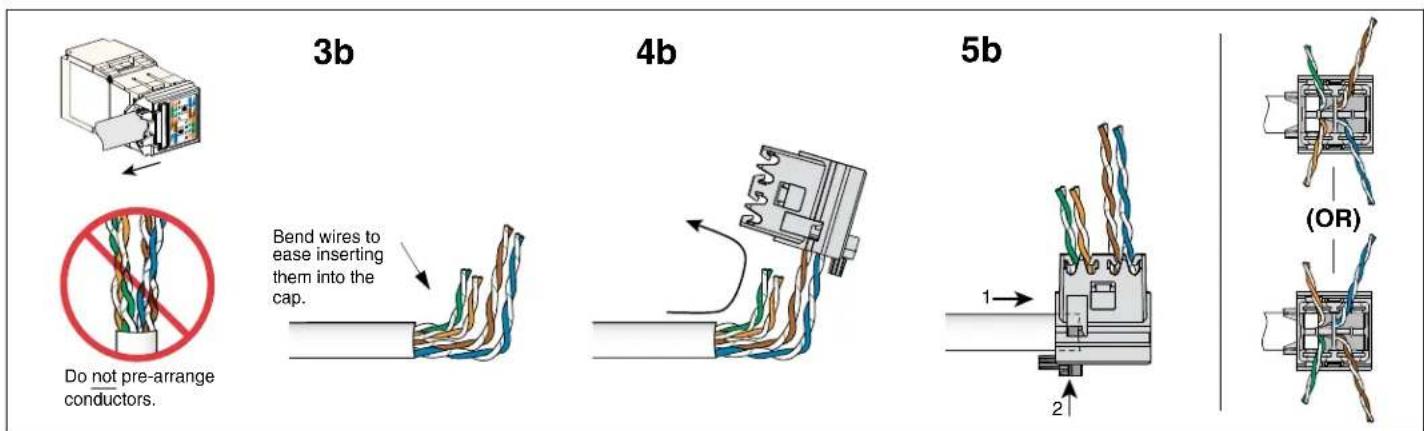

6b
T568B Wiring

Termination side

Label side

T568A Wiring

Termination side Label side

Pure electrical circuit lines without any symbols

(OR)
1.

1.2.
→

1.

2.

(OR)

1.2.

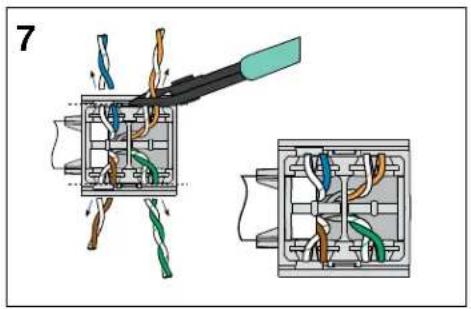

Diagram showing cable installation process with wire routing and connector (no text or symbols)

3D mechanical assembly diagram showing a green plastic housing and a small component being inserted into it (no text or symbols visible)

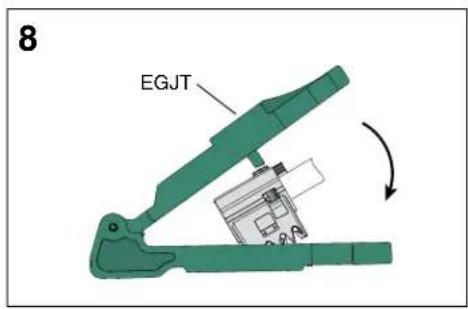

Green mechanical component with a white housing and a curved arrow indicating motion (no text or symbols)

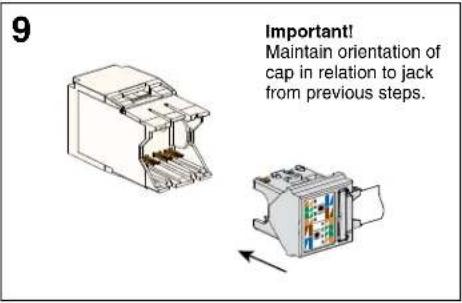

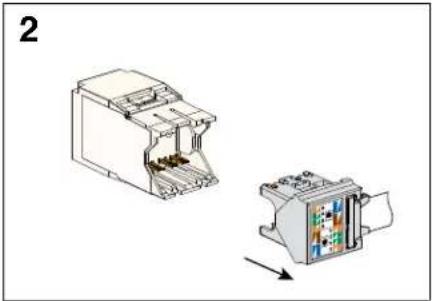

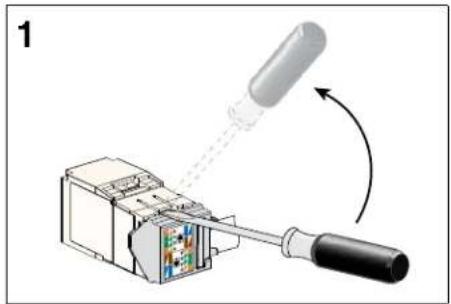

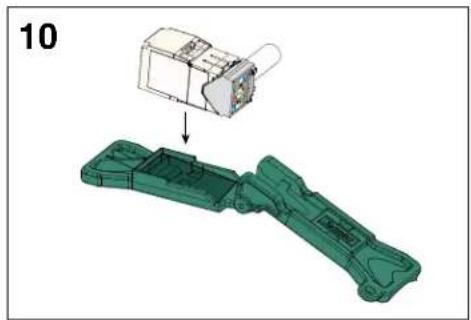

REMOVAL STEPS

Diagram of a device being inserted into a connector with a tool, showing internal components and an arrow indicating rotation (no text or symbols present)

Diagram showing two views of a RJ4 connector with internal color-coded pins, no text or symbols present

Notes:

1. For specified performance, follow TIA/EIA 568-C installation guidelines.
2. Jack Modules can terminate 22-26 AWG solid or stranded IWC data cable with 0.062" (1.57mm) maximum insulated conductor outside diameter.
3. Jack Modules may be re-terminated a minimum of 20 times.
4. For technical and performance information, consult Panduit Technical Support.

As with all Wiring Accessories, the following statements apply:

1. Never install communications wiring during a lightning storm.
2. Never install communications wiring in wet locations unless the jack is specifically designed for use in wet locations.
3. Never touch uninsulated communications wiring or terminals unless the communication line has been disconnected at the network interface.
4. Use caution when installing or modifying communication wiring.

For Instructions in Local Languages

and Technical Support:

www.panduit.com/resources/install_maintain.asp
