Product Type	Flashlight
Brand	Nitecore
Model	MT2C
Category	Flashlight
Light Source	CREE XM-L2 U2 LED
Max Output	1200 lumens
Beam Distance	250 meters
Peak Beam Intensity	16000 cd
Modes	5 modes: Turbo, High, Mid, Low, Strobe + SOS
Battery	1x 18650 Li-ion or 2x CR123A
Length	164 mm
Head Diameter	34 mm
Body Diameter	25.4 mm
Weight	86 g (without battery)
Switch	Tail switch (tactical)
Body Material	Aluminum alloy with HA III military grade hard anodized
Waterproof	IPX-8 (2 meters submersible)
Impact Resistance	1.5 meters
Included Accessories	Holster, Lanyard, Spare O-ring, Spare Switch
Maintenance	Clean contacts regularly, lubricate O-rings
Safety	Do not stare into beam, use caution with heat
Reparability	Spare parts available from Nitecore or authorized dealers
General	Compact tactical flashlight with anti-roll design, tailstand capability

Frequently Asked Questions - MT2C Nitecore

What battery does the Nitecore MT2C use?

The MT2C can use one 18650 Li-ion battery or two CR123A batteries. For optimal performance, a protected 18650 is recommended.

How many lumens does the MT2C output?

The maximum output is 1200 lumens in Turbo mode.

Is the MT2C waterproof?

Yes, it has an IPX-8 rating, meaning it can be submerged in water up to 2 meters.

How do I change modes?

Press the tail switch fully to turn on/off. Half-press or quick clicks cycle through modes: Turbo, High, Mid, Low, Strobe, SOS.

What is the beam distance?

The beam can reach up to 250 meters.

Does the MT2C have a strobe function?

Yes, it includes a strobe mode for tactical use.

What is the weight of the flashlight?

It weighs 86 grams without the battery.

Can I use rechargeable batteries?

Yes, 18650 Li-ion rechargeable batteries are supported.

Is a battery included?

Typically, the flashlight is sold without a battery, but some bundles may include one. Check the package.

How do I maintain the flashlight?

Regularly clean the threads and contacts, and lubricate O-rings to ensure smooth operation and waterproofing.

USER MANUAL MT2C Nitecore

The All-Round Flashlight Expert

MT2C User Manual

Features

• LED Premium CREE XP-G2 R5 LED
• Maximum output of up to 390 lumens
• High efficiency current circuit board
• Maximum runtime of up to 75 hours
- Two rapid switching modes suit various user requirements.
- User-defined mode allows for customized brightness levels and a multitude of functions
• Intelligent memory functions
- Anti-rolling design
- Reverse polarity protection
- Broad voltage drive circuit, compatible with rechargeable and non-rechargeable Li-ion batteries.
- Toughened ultra-clear mineral glass with anti-reflective coating
• Aluminum reflector ensures a smooth and powerful beam
• Aero grade aluminum alloy
• HA III Military grade hard anodized
- Detachable two-way anti-rolling clip
• Purpose-made rhombic knurling for better grip
- IPX-8 standard waterproof (submersible to two meters)

Dimensions

Length: 125mm (4.92")

Head Diameter: 25.4mm (1")

Tail Diameter: 25.4mm (1")

Weight: 76grams (2.68oz)(without battery)

Accessories

Clip, tactical ring. lanyard,

spare plastic cap, and spare O-ring

Battery Options

	SIZE	Nominal voltage	Compatible
Primary Lithium battery	CR123	3V	Y (Recommended)
18650 Rechargeable Li-ion battery	18650	3.7V	Y (Recommended)
Rechargeable Li-ion battery	RCR123	3.7V	Y

Brightness & Runtime

FL1 STANDARD	TURBO	HIGH	MID	LOW
	390 LUMENS	198 LUMENS	77 LUMENS	11 LUMENS
	3h45min	5h	15h	75h
	3h	4h15min	13h	60h
	168m (Beam Distance)
	7100cd (Peak Beam Intensity)
	1.5m (Impact Resistant)
	IPX-8, 2m (Waterproof AND Submersible)

NOTICE

Stated data has been measured according to the international flashlight testing standards ANSI/NEMA FL1 using a quality NITECORE 18650 (3.7V 2600mAh) battery or two SYSMAX CR123 (3V 1550mAh) batteries under laboratory conditions. The data may vary due to individual usage habits and environmental conditions.

NITECORE (SYSMAX) is a member of PLATO, participating in and helping to develop the ANSI FL1 standard of measurement. Product testing data is in accordance with these internationally recognized scientific standards.

Operation instructions

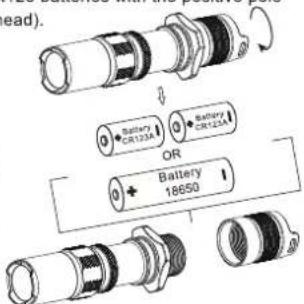

Battery installation (as the picture shows)

1. Unscrew the tail cap in a counter-clockwise direction.
2. Insert one 18650 battery or two CR123 batteries with the positive pole pointing forward (toward the light head).

WARNING

Ensure batteries are inserted with the positive (+) end pointing to the head. The MT2C will not operate with incorrectly inserted batteries.

Switching ON/OFF

Switch ON: Press the button on the tailcap until a "click" is heard.

Switch OFF: Press the button at the tailcap until a second time until a "click" is heard.

Mode Switching

The Nitecore MT2C has two modes: Turbo and user-defined. These two modes can be changed by simply tightening and loosening the flashlight head. Turbo provides 100% output while user-defined users contains five selectable sub-modes.

Turbo Mode

Turbo mode is accessed when the MT2C flashlight is switched ON and the head lightly tightened. While in this mode, momentary illumination can be achieved by switching off the flashlight and then half pressing and holding the switch. Momentary illumination can be used as a flashing signal indicator or apply to various tactical applications.

Note: After three minutes' using of turbo mode, the flashlight will lower its output automatically for preventing overheating, and efficiently ensure the battery runtime.

User-Defined Mode

User-defined mode is accessed by slightly loosening the flashlight head. In this mode, lightly and rapidly pressing the switch will cycle through brightness and other functions in the following order: "High-Mid-Low- SOS-Strobe". Pressing the switch all the way down will save and memorize a desired setting.

Tips: Make NITECORE MT2C your perfect multi-task flashlight. NITECORE MT2C flashlights essentially have two modes: Turbo mode (100% output) and custom mode. Turbo mode is accessed by tightening the flashlight head while any of one of the four customizable modes (strobe, low, medium and high) are selected by loosening the head and rapidly pressing the on/off switch to cycle through the modes. A given mode can be saved by simply turn off the light while in that mode. Real-world examples include: When used as a flashlight around the home, the head can be loosened and low level selected in custom mode, providing long runtimes at a lower light intensity. The same flashlight could then be taken out and used a law-enforcement duty light, with user-defined mode set in strobe, making it easy to alternate between turbo mode and strobe with a simple twist of the flashlight head.

Maintenance

Every 6 months, threads should be wiped with a clean cloth followed by a thin coating of silicon-based lubricant.

Warranty Service

All NITECORE® products are warranted for quality. DOA / defective products can be exchanged for replacement though a local distributor/dealer within the 14 days of purchase. After 14 days, all defective / malfunctioning NITECORE® products will be repaired free of charge for a period of 18 months from the date of purchase. After 18 months, a limited warranty applies, covering the cost of labor and maintenance, but not the cost of accessories or replacement parts. The warranty is nullified in all of the following situations:

1. The product(s) is/are broken down, reconstructed and/or modified by unauthorized parties.
2. The product(s) is/are damaged through improper use.
3. The product(s) is/are damaged by leakage of batteries.

For the latest information on NITECORE® products and services, please contact your national NITECORE® distributor or send an email to [e-mail]

Please follow our facebook for more info: NITECORE Flashlights

SYSMAX ind.

SYSMAX Industry Co., Ltd.

TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
Web: www.nitecore.com
Address: Rm1407-08, Glorious Tower, 850 East Dongfeng Road, Guangzhou, China 510600
