Duo Power MID703 - Tablet Manta - Free user manual and instructions

Product Type	Tablet
Display	7" HD Capacitive Touchscreen
Operating System	Android OS
Battery	Built-in polymer battery, rechargeable via DC 5V/2A
Connectivity	3G, GPS, Wi-Fi
Ports	Micro USB (data/charge), 3.5mm headphone jack, TF card slot (MicroSD)
Power Input	DC 5V/2A
Touch Panel	7" Capacitive, supports tap and drag gestures
Button Controls	Power, Volume +/-, Back, Home, Recent Applications (soft keys)
Memory Card Support	MicroSD card (TF card)
Audio Jack	3.5mm standard
Safety Precautions	Avoid high temperature, moisture, dust, and drops. Do not disassemble. Use only standard charger.
Cleaning	Do not use alcohol, thinner, or benzene. Use a soft dry cloth.
Water Resistance	Not waterproof
General Information	Specifications subject to change without notice. Refer to user manual for details.

Frequently Asked Questions - Duo Power MID703 Manta

How do I turn on or off the tablet?

To turn on, press and hold the Power button until the screen lights up. To turn off, press and hold the Power button, then tap 'OK' when the 'Power off' option appears. To lock/unlock the screen, short press the Power button.

How should I charge the tablet for the first time?

For the first two charges, charge for about 6 hours. After that, a full charge takes about 4 hours. Always use the provided standard adapter (DC 5V/2A). If the tablet is not used for a long time, charge it once a month.

How do I connect the tablet to a computer via USB?

Use a Micro USB cable to connect the tablet to your PC. When the USB icon appears in the status bar, drag it down and select 'USB connected', then tap 'Turn on USB storage' and confirm. Your PC will then recognize the tablet's storage.

How do I insert a memory card?

Insert a MicroSD card into the TF card slot located on the device. The card will be automatically detected. To safely remove it, go to Settings > Storage and tap 'Unmount SD card' before ejecting.

What should I do if the tablet freezes or crashes?

Use a small object (like a paperclip) to press the Reset button to force shutdown. Avoid using reset as a regular shutdown method; only do this if the tablet is unresponsive. Normal shutdown is preferred.

How do I uninstall applications?

Go to Settings > Application > Manage application. Select the app you want to remove and tap 'Uninstall'. Confirm the action to delete the app.

How do I adjust the volume?

Use the physical Volume + and Volume - buttons on the top of the tablet to increase or decrease the volume. You can also use the on-screen volume controls in the status bar.

How do I change the language?

Go to Settings > Language & input. Tap 'Language' and select your preferred language from the list. The device supports 54 languages, but the menu interface only displays 14.

What should I do if the tablet won't turn on?

First, check the battery level. Connect the charger and wait a few minutes, then try turning it on again. If it still doesn't start, contact the supplier. Make sure the battery is not completely drained.

How can I prolong battery life?

Avoid exposing the tablet to high temperatures and moisture. If not using it for an extended period, charge it to about 50% and store in a cool place. Recharge once a month to prevent battery damage.

USER MANUAL Duo Power MID703 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Tablet DUO POWER 3G/GPS 7" HD

MID703

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Használati útmutató

Návod k obsluze

Vartotojo instrukcija

INSTRUKCJA OBSŁUGI

Krok 2:

INSTRUKCJA OBSŁUGI

INSTRUKCJA OBSŁUGI

Dźwięk

INSTRUKCJA OBSŁUGI

Pamięć

INSTRUKCJA OBSŁUGI

INSTRUKCJA OBSŁUGI

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Pls make sure to reading the manual carefully before use the device.

Please don't be in high temperature, moisture or very dust place –

-Please don't be in high temperature, Especially in summer don't put the device in the car when Windows closed.

- Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.

Please choose the appropriate volume, Use headphones shoulds not – be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

A. The battery power ICONS shows have no power
B. The system automatically shut off, startup after power off soon
C. Operation buttons no response

When the device in the format or ongoing upload and download file, – please don't suddenly disconnect, This could cause application error.

-For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.

- Don't disassemble the product, don't use alcohol. Thinner or benzene to scrubbing products

- Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)

- Please don't using the Tablet PC when you in driving or walking down the street, USB just only be used for data transmission

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without prior notice. (This tablet is no waterproof function)

usEr's Manual

Remark! All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

Appearance and button

USER'S MANUAL

Touch panel

7" Capacitive touch panel: In The Operation, to click dragging on the touch panel

POWER

Startup: Long Press and hold the power button, the system will enter the main interface

Shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Clike" ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark!

1. When power is empty, system will shut down automatically.

2. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

BACK key – Short Press BACK button will return the last interface, long Press BACK button will return the main interface

Volume +, Volume-

The buttons on top Volume +, Volume-achieve changes in the volume.

Earphone jack

3.5 mm standard earphone jack

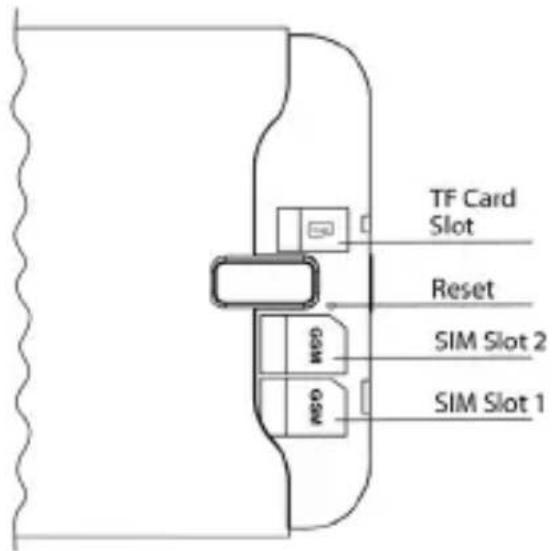

TF card – Slot for MicroSD card

Micro USB – you can use it to connect the computer for data transmission, charging and external connection USB flash drive

Reset – When the Tablet under the condition of the crash, use the small objects to short press RESET button, Tablet will force to shutdown.

Remark!

Unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, if no will easy to damage the machine system.

USER'S MANUAL

First use

Battery management and charge

Before first use, please set the device's battery is fully charged

Just need to connect the adaptor or USB interface, then you can charge

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark:

This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor, output: DC 5V/2A.

Remark:

1. If you long time don't to use this Tablet, in order to avoid power consumption caused damage, pls charge/ play the battery once a month.
2. After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.
3. Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

USER'S MANUAL

Connection with PC

USB connection

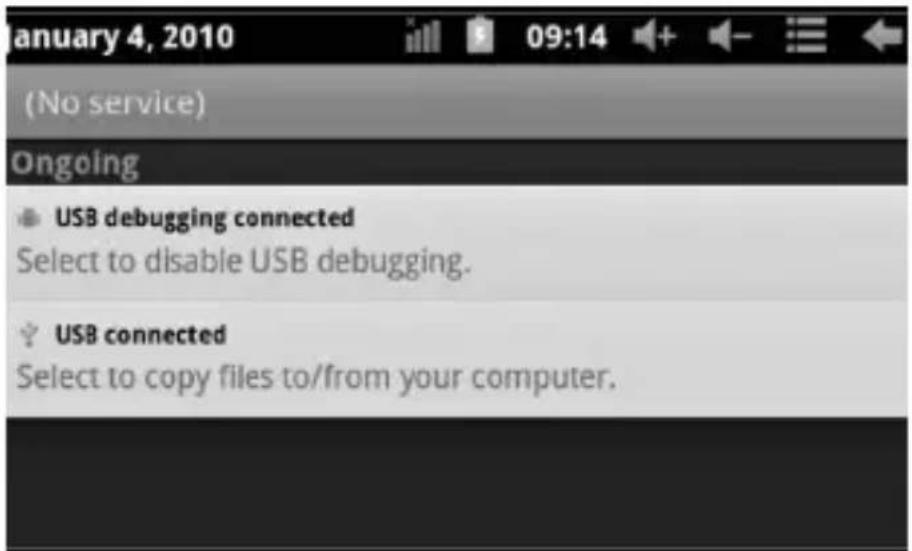

Using USB to connect the MID and PC, the default connection mode is a synchronous mode. You can see this USB icon and then drag the status bar to drop, appeared the following interface:

Step 1:

Step 2:

USER'S MANUAL

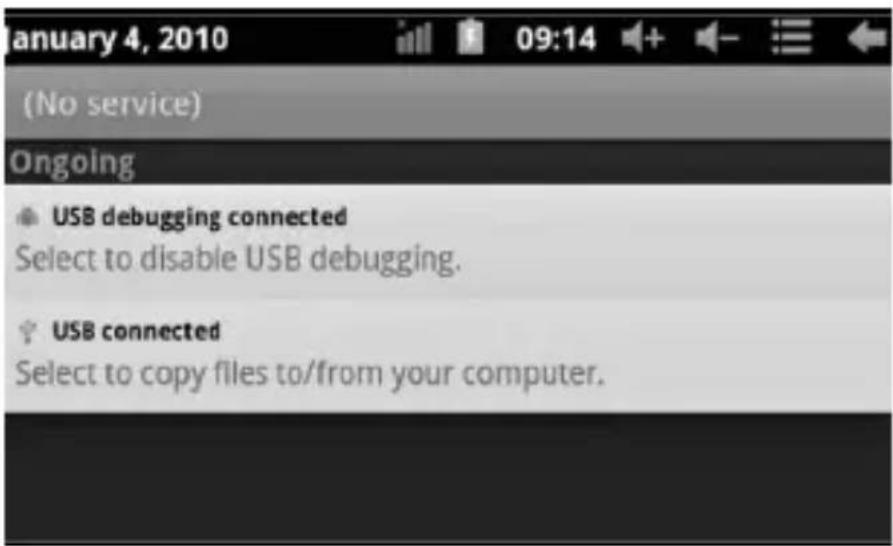

Step 3: According to the above photo, please choose USB connected. Then you can see the following interface:

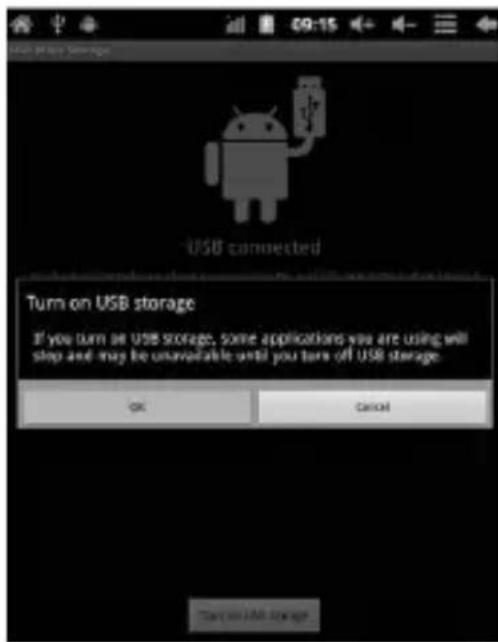

Step 4: Please press "turn on USB storage". Then you will find the following photos:

Please choose "OK". Then USB is connected. "USB is connected": means external memory (SD) loading is completed, and you can see the corresponding letter in the PC terminal.

Use USB cable to connect device to PC, device will pop up the USB connection window, click Turn on USB storage to connect to PC

USER'S MANUAL

Equipment operation interface

Main interface describe

After startup will enter the main interface

In the main interface, you can:

USER'S MANUAL

Management main interface software ICONS: long press the icons 3 second, after the icons will bigger, then you can drag anywhere in the interface.

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

Status bar describe

The status bar below of the screen

From left: BACK, HOME, recent applications. From Right: battery status, time, other icons.

Use touch panel

Device equipped with a 7"touch screen. Following the main touch screen area is described, and describes some of the tips for how to use the touch screen.

No matter which interface you are on the screen, can go back to main screen through pressing the soft key. The bottom right corner of the main screen.

Attention!

In different applications, by tapping the back soft key on the bottom right corner on the touch screen, you can return to its interface on the upfloor

In different applications, by tapping the menu key on the upper right corner of touch screen, the screen will appear the operation setting interface as follows,

Remark:

In the main interface, you can touch the icon to open the APPs

USER'S MANUAL

In different browser(file, music, video, pictures), You shift and drag the scroll bar, so that the file list can up or down to roll.

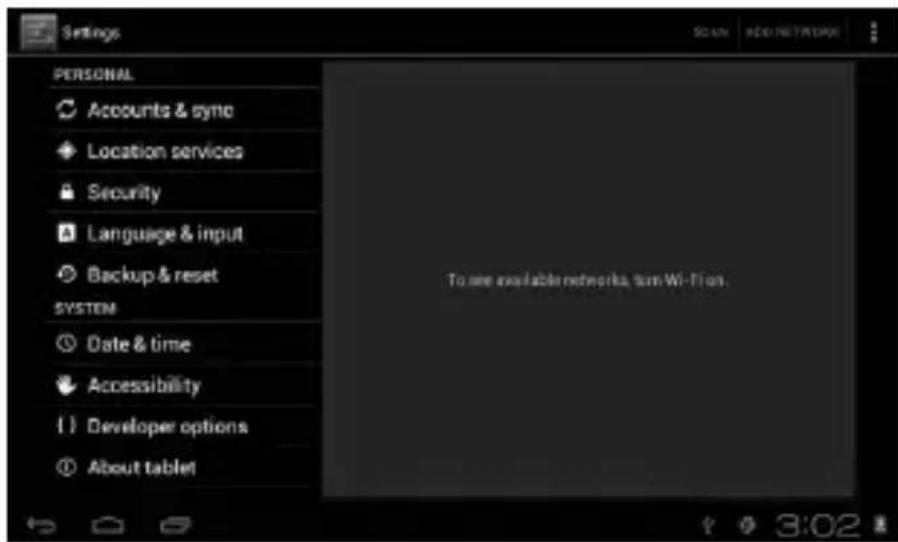

Equipment basic set

Setting: Click setting icons, Setting interface

USER'S MANUAL

Application

Manage applications

Unknown sources: Click "Unknown Sources", then click "OK" Manage application: manager and uninstall Application

Remark:

when you Firmware Upgrade, pls close the USB connect How to uninstall?

1. enter "Setting">"Application">"Manage application" And then there will be installed the program list
2. Click you want to uninstall icons, will enter the following interface
3. Click Uninstall, then you can delete the application

USER'S MANUAL

Backup & reset

Factory data reset

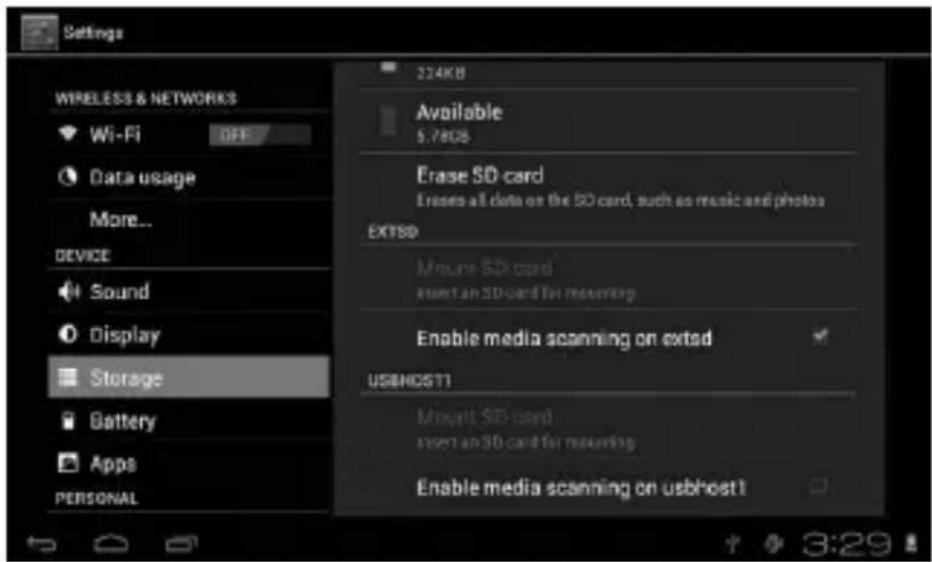

Storage

Remove TF card, view of the available storage space

USER'S MANUAL

Remark:

Please touch option" delete SD card", so that can safety to remove SD card

Language & input

Setting: (Language), text input and automatic error correction options;

Select Language: 54 kind of national languages are available

Remark: Android system can support 54 kind of language, now menu interface just support 14 language,

Android keyboard: Android keyboard setting

Sound on Key-press

Show suggestions: Display suggested words while typing

Auto-complete: Specebar and punctuation automatically insert highlighted word

USER'S MANUAL

Date & time

Set date, set time, Select time zone and select date format

About tablet

USER'S MANUAL

Problem solution

Device can't to open

1) Check the battery power
2) Connect adaptor first, then check again
3) After charging then can't to open, pls contact with the supplier

After startup the screen or the opening picture has been appeared, the device appear shutdown

1) Power is not enough, please charge

Headset can't hear the voice

1) Pls check the volume whether set to 0
2) Check the music file whether damaged. Try playing other music, if the file have damaged may lead to serious noise or hop sounds.

Can copy file or paly music and so on

1) Pls check between computer and device is correct connection
2) Check the memory storage space is already full
3) Check the USB cable is good or not
4) USB connection is disconnected
