Brand	Hyundai
Model	CRMB 1122
Product Type	Car Stereo / Autoradio
Form Factor	1 DIN (approx. 178 x 50 mm)
Weight	Approx. 1.0 kg
Power Supply	12 V DC (car battery)
Max Power Output	4 x 50 Watts
RMS Power Output	4 x 20 Watts
Supported Media	USB, SD card, AUX-in, FM/AM tuner
Audio Formats	MP3, WMA, WAV
Display	LCD with RGB illumination
Bluetooth	Yes (hands-free calling, audio streaming)
USB Port	Front USB (2.0)
SD Card Slot	Front SD/MMC slot
Auxiliary Input	3.5 mm stereo jack on front
Radio Bands	FM (87.5 - 108 MHz), AM (530 - 1710 kHz)
Preset Stations	18 FM + 12 AM
Equalizer	Preset EQ modes (Rock, Pop, Classic, etc.)
Remote Control	Yes, included wireless remote
Steering Wheel Control	Compatible (requires adapter)
Mounting	DIN sleeve and trim ring included
Cleaning	Wipe with a soft, dry cloth; avoid liquids
Operating Temperature	-20°C to 60°C
Languages	English, Spanish, French, German, etc.

Frequently Asked Questions - CRMB 1122 HYUNDAI

How do I pair my phone via Bluetooth?

Press the BT or MODE button until Bluetooth appears. On your phone, search for devices and select 'Hyundai CRMB 1122'. Use PIN 0000 if prompted.

Can I play music from a USB drive?

Yes, insert a USB drive (FAT32) with MP3/WMA files into the front USB port. The stereo will automatically play music from the drive.

How do I reset the radio?

Press the RESET button with a pointed object (e.g., a pen tip) on the front panel. This clears all settings and returns to factory defaults.

What is the maximum SD card capacity supported?

The stereo supports SD/SDHC cards up to 32 GB formatted in FAT32.

How do I set the clock?

Press and hold the DISP button until the time flashes. Use the volume knob or arrow buttons to adjust hours/minutes, then press DISP again to save.

Does it have a remote control?

Yes, a small wireless remote control is included. Point it at the front panel within a range of about 5 meters.

Can I connect an external amplifier?

Yes, the unit has preamp RCA outputs (front and rear) for connecting an external amplifier.

How do I adjust the sound?

Press the SEL button to cycle through Bass, Treble, Balance, Fader, and Loudness. Turn the volume knob to adjust each setting.

What should I do if the radio has no power?

First check the car's fuse for the radio circuit, ensure the wiring harness is properly connected, and verify the ignition switch position if required.

How do I clean the front panel?

Use a soft, lint-free cloth slightly dampened with water or a mild cleaner. Avoid abrasive materials, alcohol, or ammonia that can damage the display.

USER MANUAL CRMB 1122 HYUNDAI

Umístění

UMÍSTĚNÍ OVLÁDACÍCH PRVKŮ

1. TLAČÍTKO ZAPNUTÍ A VYPNUTÍ (PWR)
2. TLAČÍTKO VOLBY FUNKCÍ
3. ZVÝŠENÍ / SNÍŽENÍ HLASITOSTI
4. PŘEDNASTAVENÉ STANICE (1, 2, 3, 4, 5 a 6)
5. FUNKCE „AF“ (ALTERNATIVNÍ FREKVENCE)
6. FUNKCE „TA“ (DOPRAVNÍ HLÁŠENÍ)
7. FUNKCE „PTY“ (TYP PROGRAMU)
8. TLAČÍTKO DISPLEJE (DISP)
9. TLAČÍTKO REŽIMU (MODE)
10. TLAČÍTKO PÁSMA (BND)
    11., 12. TLAČÍTKO AUTOMATICKÉHO NEBO MANUÁLNÍHO LADĚNÍ (ZVYŠOVÁNÍ ▶ NEBO SNIŽOVÁNÍ ◀ FREKVENCE A PŘESKAKOVÁNÍ / PROHLEDÁVÁNÍ STOP NA CD)
11. TLAČÍTKO AUTOMATICKÉHO VYHLEDÁNÍ A NALADĚNÍ STANIC (A/PS)
12. LCD DISPLEJ
13. TLAČÍTKO PRO UVOLNĚNÍ ČELNÍHO PANELU ( )
14. OTVOR PRO CD
15. TLAČÍTKO VYSUNUTÍ CD ( ♠)
16. TLAČÍTKO PAUZY
17. TLAČÍTKO PŘEHRÁNÍ ZAČÁTKŮ VŠECH STOP (INT)
18. TLAČÍTKO OPAKOVÁNÍ (RPT)
19. TLAČÍTKO NÁHODNÉHO PŘEHRÁVÁNÍ (RDM)
    22., 23. TLAČÍTKO PŘESKOČENÍ STOP +10 nebo -10
20. RESETOVACÍ TLAČÍTKO
21. FUNKCE BLUETOOTH

Instalace

OPATŘENÍ PŘI INSTALACI

Poznámky:

KONEKTOR A

4. PAMĚT +12V
5. VÝSTUP AUTO-ANTÉNY
7. +12V (KE KLÍČI ZAPALOVÁNÍ)
8. UZEMNĚNÍ

1. SPORT, EDUCATE, DRAMA

1. SOCIAL, RELIGION, PHONE IN

CT = clock time (hodiny) FREQ = frequency (frekvence)

9. TLAČÍTKO MODE (Režim)

Umiestenie

UMIESTENIE OVLÁDACÍCH PRVKOV

1. TLAČIDLO ZAPNUTIA A VYPNUTIA (PWR)
2. TLAČIDLO VOLBY FUNKCIÍ
3. ZVÝŠENIE / ZNÍŽENIE HLASITOSTI
4. PREDNASTAVENÉ STANICE (1, 2, 3, 4, 5 a 6)
5. FUNKCIA „AF“ (ALTERNATÍVNE FREKVENCIE)
6. FUNKCIA „TA“ (DOPRAVNÉ HLÁSENIA)
7. FUNKCIA „PTY“ (TYP PROGRAMU)
8. TLAČIDLO DISPLEJA (DISP)
9. TLAČIDLO REŽIMU (MODE)
10. TLAČIDLO PÁSMA (BND)
11. 1. TLAČIDLO AUTOMATICKÉHO ALEBO MANUÁLNEHO LADENIA (ZVYŠOVANIE) ALEBO ZNIŽOVANIE FREKVENCIA A PRESKAKOVANIE / PREHL'ADÁVANIE STP NA CD)
12. TLAČIDLO AUTOMATICKÉHO VYHL'ADANIA A NALADENIA STANÍC (A/PS)
13. LCD DISPLEJ
14. TLAČIDLO PRE UVOL'NENIE ČELNÉHO PANELU ( )
15. OTVOR PRE CD
16. TLAČIDLO VYSUNUTIA CD ( )
17. TLAČIDLO PAUZY
18. TLAČIDLO PREHRANIA ZAČIATKOV VŠETKÝCH STÓP (INT)
19. TLAČIDLO OPAKOVANIA (RPT)
20. TLAČIDLO NÁHODNÉHO PREHRÁVANIA (RDM)
    22., 23. TLAČIDLO PRESKOČENIA STÔP +10 alebo -10
21. RESETOVACIE TLAČIDLO
22. FUNKCIA BLUETOOTH

Inštalácia

Poznámky:

FOUR LINE OUT

KONEKTOR A

4. PAMÄT +12V
5. VÝSTUP AUTO-ANTÉNY
7. +12V (KU KL'ÚČU ZAPAL'OVANIA)
8. UZEMNENIE

1. SPORT, EDUCATE, DRAMA

1. SOCIAL, RELIGION, PHONE IN

BLUETOOTH Car Stereo Compact Disc MP3/CD-RW/CD-R/CD Media Player with PLL FM Stereo Radio, Radio Data System with PTY Detachable Front Panel System

FEATURES

• BLUETOOTH Handfree System
• Caller ID Function
  • MP3/CD-RW/CD-R/CD Playback
• The best stations memory automatically memorizes the best (strongest) station in the order their strength (AS)
  • Electronic Volume, Bass, Treble, Fader and Balance control
• Precision electronic tuning with phase-lock loop (P.L.L.) Circuitry
• Programmable 18 preset memory tuning (6 each for FM1/FM2/FM3)
• Encoder Volume Control
• Loudness control Manual/Auto (Seek)/up and down tuning control
  • Band selector for FM1/FM2/FM3
• Display control (Frequency, Station Name, Program Type, Clock)
• Clock Function in RDS
• CD Repeat Function
  • CD and MP3 files on CD/CD-R/CD-RW player function
• Preamplified Line-out for external amplifier
• Detachable front panel protects against theft
• RDS Function:

PI (Program Identification)
PS (Program Service Name)
AF (List of Alternative Frequencies)
TA (Traffic Announcement)
PTY (Program Type)
TP (Traffic Program)

Content

FEATURES....42

Warnings 44

LOCATIONS OF CONTROLS 46

PRECAUTIONS....47

ISO CONNECTOR 49

1. POWER ON/OFF ....50

2. SELECT (SEL) 50

3. VOLUME KNOB 50

4. PRESET STATIONS (1, 2, 3, 4, 5, 6)....53

USING THE RDS FUNCTION....54

1. AF/REG function (ALTERNATIVE FREQUENCIES) 54

2. TA function (TRAFFIC ANNOUNCEMENT)....54

3. PTY function (PROGRAM TYPE)....54

4. DISPLAY (DISP)....54

5. MODE BUTTON (MODE)......55

6. BAND BUTTON (BND)......55

11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ▶ OR FREQ DOWN ◀)......55

1. AUTO SEEK SEARCH TUNING (AS/PS) 56

2. LCD DISPLAY 56

3. PANEL RELEASE BUTTON....56

CD CONTROL LOCATION OF PARTS 56

1. 1. SKIP TRACK/SEARCH BUTTON....56

2. CD SLOT ....56

3. CD EJECT BUTTON 56

4. PAUSE BUTTON....56

5. INTRO BUTTON (Preview all Tracks) 56

6. REPEAT BUTTON (RPT) 56

7. RANDOM BUTTON (RDM) 56

22, 23. 10 TRACK DOWN/UP SELECT: 56

1. Searching Track: 57

2. Searching File Name: 57

3. Searching Character: 57

4. RESET....58

5. Bluetooth function....58

PAIRING 59

ANSWER A CALL 59

ENDING A CALL....59

LAST NUMBER REDIAL....60

VOICE DIALING....60

Specification 60

Warnings

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of voltage inside the unit.

The reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

Invisible laser radiation when the unit is opened or interlocks defeated.

Avoid exposure to laser beam. User of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit must not be exposed to moisture or rain.

This unit should be positioned so that it is properly ventilated.

Do not expose this unit to direct sunlight or heat radiating sources.

Location

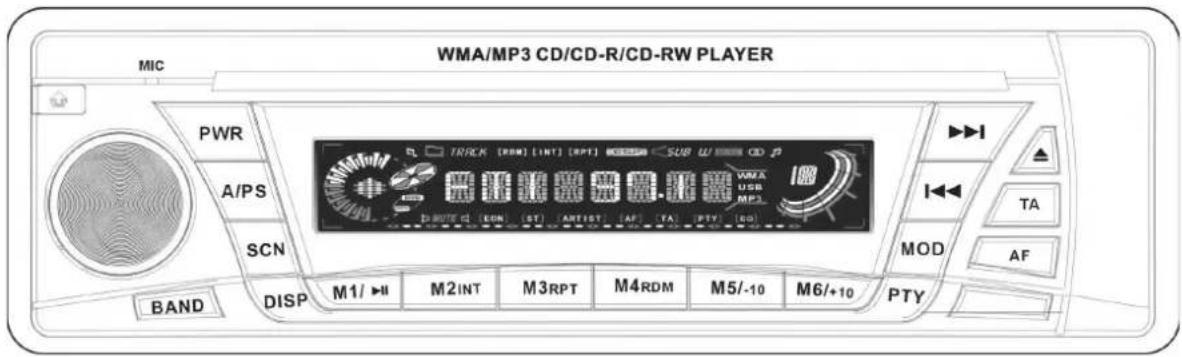

LOCATIONS OF CONTROLS

1. POWER ON/OFF
2. FUNCTION SELECT BUTTON
3. VOL UP/VOL DOWN
4. PRESET STATIONS (1, 2, 3, 4, 5, 6)
5. AF FUNCTION (ALTERNATIVE FREQUENCIES)
6. TA FUNCTION (TRAFFIC ANNOUNCEMENT)
7. PTY FUNCTION (PROGRAM TYPE)
8. DISPLAY BUTTON (CLK)
9. MODE BUTTON (MODE)
10. BAND BUTTON (BND)
    11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ◀ OR FREQ DOWN ▶ / CD TRACK/SEARCH BUTTON
11. AUTO SEEK SEARCH TUNING (AS/PS)
12. LCD DISPLAY
13. PANEL RELEASE BUTTON (☐)
14. CD SLOT
15. CD EJECTS BUTTON (▲)
16. PAUSE BUTTON
17. INTRO BUTTON (PREVIEW ALL TRACKS)(INT)
18. REPEAT BUTTON (RPT)
19. RANDOM BUTTON (RDM)
    22.23. -/+10 TRACK SEARCH DOWN/UP
20. RESET BUTTON
21. BLUETOOTH FUNCTION

Installation

PRECAUTIONS

Choose the mounting location carefully so that the unit will not interfere with the normal driving functions of the driver. Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight or hot air from the heater, or where it would be subject to dust, dirt or excessive vibration.

Use only the supplied mounting hardware for a safe and secure installation.

Be sure to remove the front panel before installing the unit.

Mounting angle adjustment

Adjust the mounting angle to less than 30.

MOUNTING EXAMPLE

Installation in the dashboard

Keep the release key in the safe place as you may need it in future to remove the unit from the car.

Installation

Detaching and attaching the front panel

The front panel of this unit can be detached in order to prevent the unit from being stolen.

DETACHING THE FRONT PANEL

Before detaching the front panel, be sure to press the PWR button to turn off the unit first. Then press the button and detach the panel by pulling it towards you as illustrated.

Note: Be sure not to drop the panel when detaching it from the unit.

ATTACHING THE FRONT PANEL

Make sure the front panel is the right way up when attaching it to the unit as it cannot be attached upside down. Bring side B of panel to side A of main unit. Inset the panel in and push until it clicks. Panel is attached.

Notes:

Do not press the front panel hard against the unit when attaching it. It can be easily attached by pressing it lightly against the unit.

When you carry the front panel with you, put it in the supplied front panel case.

Do not press hard or give excessive pressure to the display window of the front panel when attaching it to the unit.

Installation

ISO CONNECTOR

RCA Jack Line out (Front - Rear)

: Red (right) RR=REAR RIGHT FR=FRONT RIGHT

: White (left) RL=REAR LEFT FL=FRONT LEFT

CONNECTOR A

4. MEMORY +12V
5. AUTO ANTENNA OUTPUT
7. +12V (TO IGNITION KEY)
8. GROUND

The connector A no.7 must be connected by car ignition key in order to avoid that car battery becomes weak when the car will be not used for long period.

CONNECTOR B

1. REAR RIGHT SPEAKER (+)
2. REAR RIGHT SPEAKER (-)
3. FRONT RIGHT SPEAKER (+)
4. FRONT RIGHT SPEAKER (-)
5. FRONT LEFT SPEAKER (+)
6. FRONT LEFT SPEAKER (-)
7. REAR LEFT SPEAKER (+)
8. REAR LEFT SPEAKER (-)

Maintenance

FUSE REPLACEMENT

If the fuse blows, check the power connection and replace the fuse. If the fuse blows again after the replacement, there may be an internal malfunction. In this case, consult your nearest repairing center.

Warning

Use the specified amperage fuse for each lead. Use of a higher amperage fuse may cause serious damage.

Operation

OPERATING INSTRUCTIONS

1. POWER ON/OFF

By pressing this key (1), the unit is switched on and off.

This unit is turned on by pressing any key.

2. SELECT (SEL)

3. VOLUME KNOB

Rotate Volume up/down knob to control the VOLUME to select other functions, press the SEL (2) button shortly until the desired functions is shown on the display.

Figure 1 shows how control functions are selected using the SEL button.

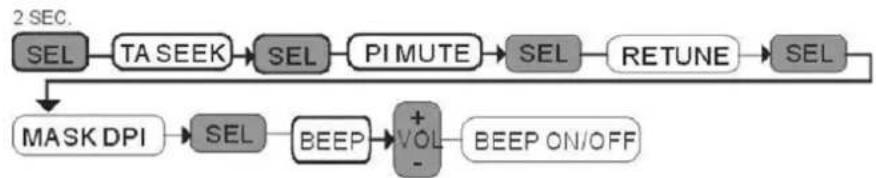

Fig. 1 Selection of sound control functions
1. VOLUME 2. SELECT3. BASS 4. TREBLE 5. BALANCE 6. FADER

To increase or decrease the volume by rotating the volume knob. These buttons can be used to adjust the BASS, TREBLE, BALANCE and FADER.

(1) TA SEEK/TA ALARM (2)

When press the SEL button (2) for more than 2 seconds it is activated as selecting mode of these function.

TA SEEK Mode or TA ALARM mode is selected by rotating the volume knob.

TA SEEK mode:

When newly turned station does not receive TA information for 5sec, the radio retunes to next station which has not the same station (PI) as the last station, but has the TA information. In TA seek mode, the current station can be changed to the completely different station because the unit searches TA station when the field strength of the current station is very weak, or the current station has no TA signal.

-TA ALARM mode:

Any automatic retune mode is not activated, just can be heard Beep sound.

Operation

(2) PI MUTE / PI SOUND (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(3) RETUNE L/S

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(4) MASK DPI (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

MASK DPI: masked only the AF which has different PI. MASK ALL: masked the AF which has different PI and NO RDS signal with field strength.

(5) BEEP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function .

(6) DSP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

Operation

(7) LOUDNESS CONTROLS (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

LOUD ON/OFF mode is selected by VOL UP and DOWN key. The bass and treble response will be boosted.

(8) ESP MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

(9) SEEK MODE (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

SEEK 1: When SEEK 1 mode is activated, AUTO SEEK SCAN is stopped when station is detected even user still push SEEK button.
SEEK 2: Auto Seek Scan is not stopped even station is detected if user push SEEK button. When release this SEEK button, then stop when station is detected.

Operation

(10)STEREO/MONO (2)

When press the SEL button for more than 2 seconds, it is activated as selecting mode of these function.

When FM stations are weak and are disturbed, listening can be improved by selecting MONO.

(11) VOL LAST/ADJ(2)

VOLUME LEVEL is determined when POWER ON.

LAST VOLUME:Final VOLUME LEVEL generates power before POWER OFF.

ADJUST VOLUME:VOLUME LEVEL selected by the user is produced.

4. PRESET STATIONS (1, 2, 3, 4, 5, 6)

(A) RADIO MODE:

When press short, these keys select a preset station directly. When press longer than 1 sec., current station is stored in preset memory bank. When PTY mode is selected, the PTY switch is shared as follows:

PTY music group---PTY speech group---OFF

MUSIC

1. POP M, ROCK M
2. EASY M, LIGHT M
3. CLASSICS, OTHER M
4. JAZZ, COUNTRY
5. NATION M, OLDIES
6. FOLK M

SPEECH

1. NEWS, AFFAIRS, INFO
2. SPORT, EDUCATE, DRAMA
3. CULTURE, SCIENCE, VARIED
4. WEATHER, FINANCE, CHILDREN
5. SOCIAL, RELIGION, PHONE IN
6. TRAVEL, LEISURE, DOCUMENT

USING THE RDS FUNCTION

What is RDS?

The RDS (Radio Data System) is a digital information system developed by the EBU (European Broadcast Union). Piggy-backed on normal FM broadcasts, RDS offers a variety of information services and automatic retuning functions for RDS-compatible car stereos. In 1988, RDS became available in the United Kingdom, France, West Germany, Ireland and Sweden. Test trans-missions are being conducted in many other European countries. It is expected that RDS will be available in most western European countries in the near future.

5. AF/REG function (ALTERNATIVE FREQUENCIES)

When press short, AF/REG switching mode is selected.

When AF/REG switching mode is selected, the radio checks the signal strength of the AF all the time. When press long, it is activated as regional mode ON/OFF.

-Regional mode ON:

AF switching or PI SEEK is implemented to the station which have all PI codes same as current station. REG segment is turned on in LCD display.

-Regional mode OFF

The regional code in the format of PI code is ignored when AF switching or PI SEEK is implemented.

6. TA function (TRAFFIC ANNOUNCEMENT)

When press short, it is activated as TA mode on or off.

When TA mode is on and traffic announcement is transmitted.

-When the unit is in CD/MP3 mode, it will switch to radio mode temporarily.

-If the volume level was under the threshold point, it will be raised to the threshold point.

-When TA station is received, A segment is turned on in LCD display.

7. PTY function (PROGRAM TYPE)

PTY MUSIC---PTY SPEECH---PTY OFF

While selecting PTY type, its selection is implemented by preset buttons as described in preset key. When PTY is selected, the radio starts to search corresponding PTY information, and stops if the corresponding PTY information is detected.

8. DISPLAY (DISP)

Selects radio frequency, clock display and PTY NONE.

To set the clock:

(1). with clock display selected, hold down the "DISP" button until clock display starts flashing.

(2). Rotate the volume knob to change minutes and hours.

(3). Press "DISP" button to start the clock.

When this key is pressed it is operated as the conversion of each display mode as follow.

Operation

1) Incase of receiving RDS station

TUNER MODE

PS---PTY---FREQ---CT

CD/MP3 PLAYER MODE

CDP---PS---PTY---FREQ---CT

2) In case of receiving NON RDS station

RADIO MODE

CLOCK---FREQ ---NO PTY

CD/MP3 PLAYER MODE

CDP---FREQ---CT---NO PTY

Each display time is several seconds, and come back to 1'st position after several seconds.

CT=clock time

FREQ=frequency

9. MODE BUTTON (MODE)

By pressing this key, user can select RADIO mode or CD/MP3 PLAYER mode.

10. BAND BUTTON (BND)

Each band is toggled cyclically by pressing this key FM1-FM2-FM3. When press

11.12. AUTOMATIC OR MANUAL TUNING (FREQ UP ▶ OR FREQ DOWN ◀)

(A) RADIO MODE

When press short, these keys are operated as MANUAL tuning mode.

When press longer than 1 sec., they are operated as SEEK tuning mode.

When press short, they are operated as TRACK UP/DOWN mode.

When press longer than 1 secretary, they are operated as CUE or REVIEW mode.

13. AUTO SEEK SEARCH TUNING (AS/PS)

By pressing shortly, the radio searches for each preset Station.

When field strength level is bigger than the threshold level of stop level, the radio is holding at that preset number for 5 secretaries.

With releasing mute, and then searches again. By pressing longer than 1sec and then 6 strongest stations are preset to the corresponding preset number.

When AS operation is finished, the radio executes the preset scan.

14. LCD DISPLAY

The liquid Crystal Display will display the current state of the unit.

Operation

15. PANEL RELEASE BUTTON

Press this button and the left-hand part of the panel will be released.

CD CONTROL LOCATION OF PARTS

11. 12. SKIP TRACK/SEARCH BUTTON

FORWARD AND REVERSE TRACK SEARCH

(or changing songs)

Press the SKIP button( TUN ▶ or TUN ◀ ) during play to go to the desired track(song).

TUN ◀ ...REVERSE TUN ▶ ...FORWARD

Press and hold the SKIP button (TUN ▶ or TUN ◀) during play to scan the disc at high speed. When the desired music section of the disc is found, release the button. Normal play will resume. When CD/MP3 play is finished, CD/MP3 mode automatically changes to FIRST TRACK.

16. CD SLOT

17. CD EJECT BUTTON

Press the EJECT button ( ) to remove the CD.

18. PAUSE BUTTON

During PLAY mode, press PAUSE button (▶ II) to PAUSE.

Press it again to resume play.

19. INTRO BUTTON (Preview all Tracks)

When this button (▶ II) is pressed, INT indication is displayed and the first several seconds of each track of the disc are played.

Press again to stop intro and listen to track.

20. REPEAT BUTTON (RPT)

When this button is pressed, RPT indication is displayed and play of the selected track will be continually repeated until the Track Repeat mode is cancelled by pressing RPT button again.

21. RANDOM BUTTON (RDM)

When this button is pressed, RDM indication is displayed and each track of the disc are played in random instead of normal progression. To cancel RANDOM mode, press RDM button again.

22, 23. 10 TRACK DOWN/UP SELECT:

(In case of MP3 files)

5: 10 TRACK DOWN 6: 10 TRACK UP

Operation

HOW TO SELECT MP3 FILES

1. Searching Track:

Press "AS/PS", then searching track is activated. Press "SEL", then the first digit is blinking.

With "VOL VOL "knob, select first digit you want. Press "SEL", then the first digit is fixed and second digit is blinking.

With "VOL VOL" knob, select 2' nd and 3' rd respectively. Then automatically the song you selected will start.

2. Searching File Name:

Press "AS/PS" twice, then file search is activated. Press "SEL", then the first directory is displayed.

With "VOL VOL " knob, you can select the directory you want. Press "SEL" again, then the directory is fixed and the first file name

With "VOL " knob, you can select the file you want is displayed. Press "SEL", Then The Song you selected will start.

3. Searching Character:

Press "AS/PS" 3 times, then character search mode is activated. Press enter "SEL" button, then "A" character is displayed.

With "VOL VOL" knob, you can select the letter you want. Press enter "SEL" key longer than 2 secretary. Then song which has same character you selected is displayed.

With "VOL " knob, you can select the song you want. Press enter "SEL" key, then the song you selected will start.

Operation

24. RESET

Reset button (24) is placed on the housing. The reset button is to be activated for the fol-

lowing:

Initial installation of the unit when all wiring is completed.

All the function button do not operate.

Error symbol on the display.

25. Bluetooth function

1: Bluetooth Multi-Function key

• Pairing
• Pick up call
• Ending call
• Redial
• Voice dialing

2. Microphone

3. Volume control

INTRODUCTION

The CRMB 1122 Bluetooth car CD/MP3 player not only provide the audio function but also hands-free Communication using cell phones. This user guide can help you to establishing a connection with your mobile phone, You need to have a phone with embedded Bluetooth capability. The phone can be tucked away in your pocket or in a bag while you handle incoming call and outgoing calls, and adjust the volume up or down using the button on the car CD player. This device utilizes Bluetooth wireless technology version V1.2 that supports Bluetooth Headset and/or Handsfree profile.

Operation

PAIRING

The Bluetooth device can store pairing info for 6 phones, please make sure the paired phones are not connecting to the device when pairing the new mobile phone.

Make sure that you have paired the device with your Bluetooth phone before you start to use it.

Step 1. check your mobile phone's user guide, then find out the location of the Bluetooth menu in your phone, and turn Bluetooth on.

Step 2. Perform “Bluetooth device discovery” on your mobile phone. It takes few seconds to search for and find other Bluetooth devices around you.

Step 3. Phone display will show “AUDIOBT” (or other words) as found and ask for your confirmation that you want to pair it, please confirm it, then Enter Passkey “1234”(default) when your phone prompts your, the phone will start pairing with CD player, then the phone will advise that pairing has been successful.

to normal status.

NOTE:

Most mobile phone show a Bluetooth linkage symbol on the display screen, once CRMB 1122 and phone have successfully been paired, you are ready to make and receive call.

ANSWER A CALL

When player is on (Play music or radio)

When a call is coming, the music will stop, Player display will show" Phone Number (Caller ID).", meanwhile the "do lu do lu,do lu do lu" up going melody will be played.

Auto answer: If the mobile phone set to auto answer under hands -free or headset mode, the call will automatically after few rings or depends upon your mobile phone setting.

Manual answer: Answer the call by simply push the “ ” once .it will have “do” sound, then start the conversation

When player is off (car is power on)

When call is coming, it will auto turn on the player, display will show "Phone No", meanwhile the "do lu do lu,do lu do lu" up going melody will be played.

Auto answer: If the mobile phone set to auto answer under hands -free or headset mode, the call will automatically after few rings or depends upon your mobile phone setting.

Manual answer: Answer the call by simply push the “” once, it will have a “do” sound, then start the conversation

ENDING A CALL

Simply push the “” once to ending a call, after few sec, it will back to the status before call. (For example, if the player is off before phone call, then after phone call it will turn off automatically.)

Operation

LAST NUMBER REDIAL

While car CD player is in standby condition (not in conversation), press Double click “, and your phone will redial the last number.

VOICE DIALING

Voice dialing function on your phone must be turned on and voice tag must When CRMB1122

car CD player is in standby condition (not in conversation), Simply push (1 sec) the “

"once, then CD player display will show "Dialing", then push again (1 sec), it will come out "do" sound, then will prompt

you to speak the voice tag that was previously stored in the phone's voice dial phone book.

VOLUME CONTROL

Volume control: you can adjustment of speaker volume higher or lower by turning the "Volume control wheel".

Notice:

Bluetooth device had built in DSP echo cancel technology, to minimize echo and background noise, but please still don't turning the volume too high since it might interrupt with microphone and cause some echo.

Specification

FM SECTION

Frequency range 87,5 - 108 MHz

Channel step 50 kHz

Intermediate frequency 10,7 MHz

Sensitivity 2μVat 30 dB S/N

Stereo separation >30 dB

Signal to noise radio >60 dB

CD/MP3 PLAYER SECTION

Signal to Noise Ratio > 60 db

Channel Separation > 50 db (1 kHz)

Frequency Response 20 Hz - 20 kHz

LINE-OUT

Output 2,0 V max.

Impedance 10 kΩ

GENERAL

Power Supply Voltage DC 12 Volts Negative Ground

Max Current Consumption 15 A

Max Output power 40W x 4 k.

NOTES:

We reserve the right to make technical changes without notice in the interest of improvement.

WARNING: Do not use this product near water, in wet areas to avoid fire or injury of electric current. Always turn off the product when you don't use it or before a revision. There aren't any parts in this appliance which are reparable by consumer. Always appeal to a qualified authorized service. The product is under a dangerous tension.

Disposal of used electrical & electronic equipment

The meaning of the symbol on the product, its accesory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. In the European Union and Other European countries which there are separate collection systems for used electrical and electronic product. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

HP Tronic Ústí nad Labem s.r.o. is registered by Asekol s.r.o. under number AK-051447.

HP Tronic Ústí nad Labem s.r.o. is registered by Sewa under number EZ 0000213.

Poznámky/Notes:

Poznámky/Notes:

HYUNDAI

CORPORATION

Seoul, Korea
