SW3010B - Washing machine SWAN - Free user manual and instructions
Find the device manual for free SW3010B SWAN in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Washing Machine |
| Brand | Swan |
| Model | SW3010B |
| Dimensions (H x W x D) | 850 x 595 x 520 mm |
| Net Weight | 65 kg |
| Power Supply | 220-240 V ~ 50 Hz, 10 A |
| Energy Efficiency Class | A++ |
| Washing Capacity | 7 kg |
| Maximum Spin Speed | 1200 rpm |
| Wash Programs | Cotton, Synthetics, Delicates, Wool, Quick 30', Rinse & Spin, Drum Clean |
| Water Consumption per Cycle | 50 L (approx.) |
| Noise Level (Wash/Spin) | 58 dB / 76 dB |
| Installation Type | Freestanding |
| Control Type | Electronic with LED display |
| Delay Start | Yes (up to 24 hours) |
| Child Lock | Yes |
| Reversible Door | No |
| Safety Features | Overflow protection, unbalanced load detection, overheating protection |
| Drum Material | Stainless steel |
| Annual Energy Consumption | 195 kWh (approx.) |
| Spare Parts Availability | 7 years from end of production |
| Repair Index (if applicable) | 7.5 / 10 |
Frequently Asked Questions - SW3010B SWAN
How do I install the Swan SW3010B washing machine?

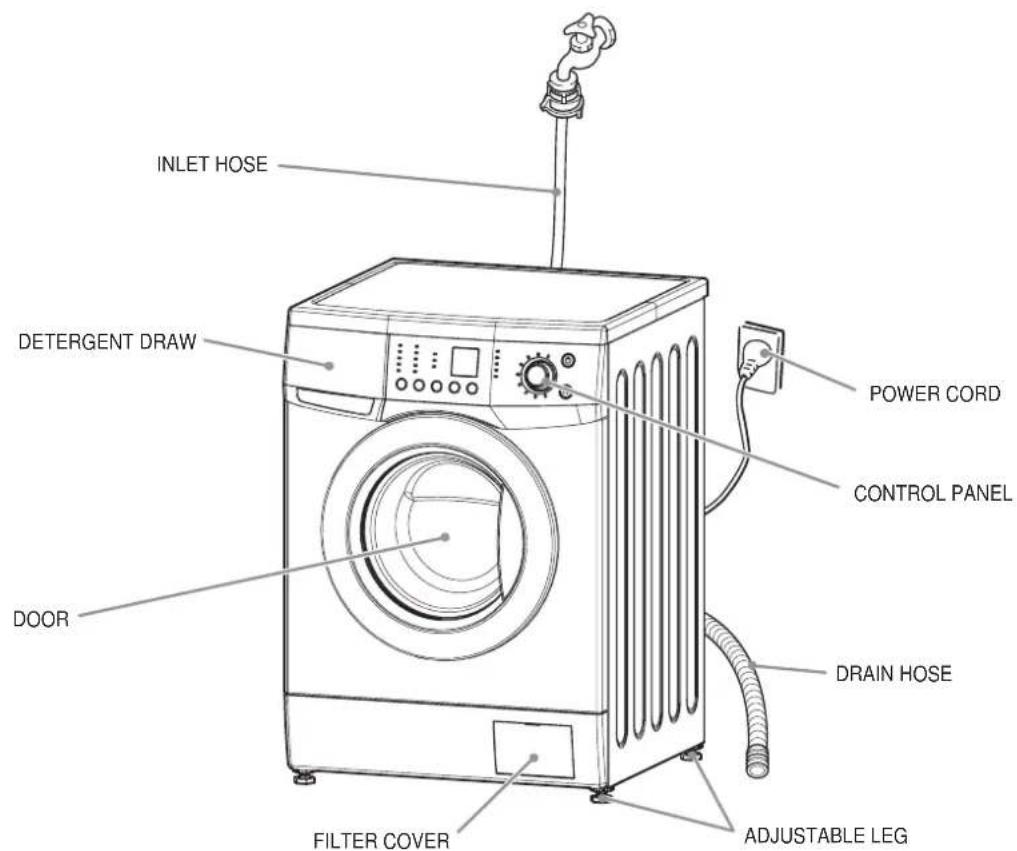

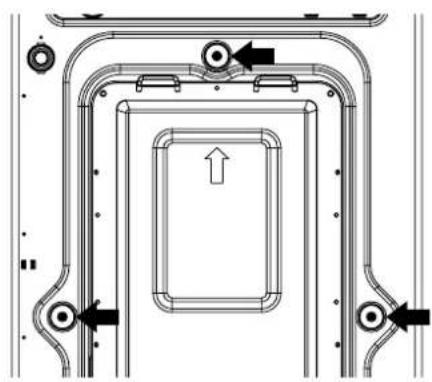

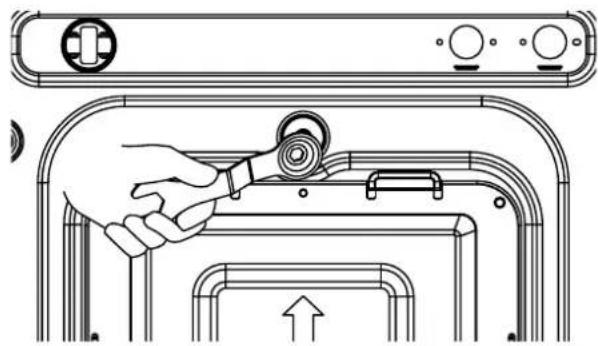

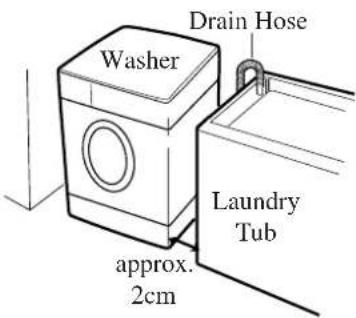

Ensure the machine is on a level surface. Remove all transit bolts before first use. Connect the water inlet hose to a cold water supply with a 3/4-inch thread. The drain hose should be secured into a standpipe or sink outlet. Plug into a grounded outlet (220-240V). Consult the user manual for detailed instructions.
What is the recommended detergent for this machine?
Use a low-suds detergent suitable for automatic washing machines. For best results, choose a detergent compatible with the water hardness in your area. For Cotton cycles, use a powder detergent; for Delicates or Wool, use a liquid detergent.
How do I clean the detergent drawer?
Remove the drawer by pressing the release lever. Soak it in warm water for 5 minutes, then rinse and scrub with an old toothbrush. Wipe the compartment with a damp cloth. Reinsert the drawer after drying. Clean monthly to prevent buildup.
What does the child lock do and how do I activate it?

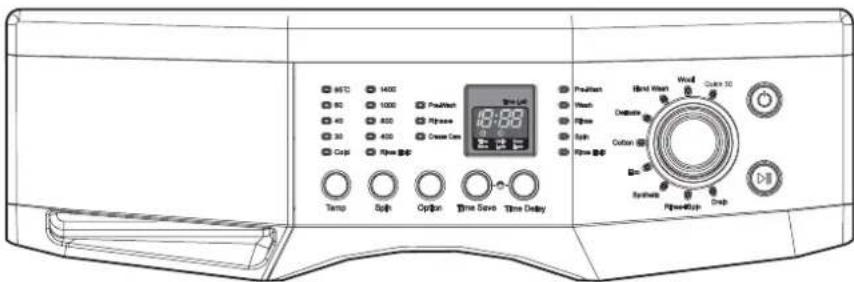

The Child Lock prevents accidental button presses during a cycle. To activate, press and hold the 'Temp' and 'Spin' buttons simultaneously for 3 seconds until the lock icon appears on the display. Repeat to deactivate.
My machine is vibrating excessively. What should I check?

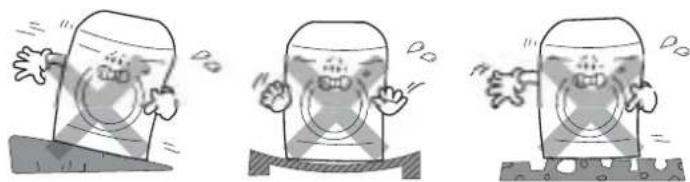

Ensure all transit bolts are removed. Check that the machine is level (adjust the feet). An unbalanced load can also cause vibration. Redistribute laundry evenly in the drum. Also, avoid washing heavy items like a single duvet.
How do I run a drum clean cycle?
Select the Drum Clean program from the cycle selector. Add a descaler or a cup of white vinegar into the detergent drawer. Run the cycle empty. This should be done every 2 months to prevent mold and odors.
What should I do if the machine displays an error code?
Common error codes: E01 (water supply issue), E02 (drain problem), E03 (drum overload). Check the corresponding parts (hoses, filters). If persisting, turn off the machine and consult the manual's troubleshooting section or contact customer support.
Can I wash a duvet in this machine?
Only if the duvet is machine-washable and its filling is suitable. Use a Synthetics or Bedding program with a gentle spin (max 800 rpm). Do not overload; a single duvet (200x200 cm) is usually fine. Ensure the drum is not packed tightly.
How often should I clean the filter?
The drain pump filter should be cleaned every 2 months. Turn off and unplug the machine. Open the filter cover at the bottom right, drain residual water using the hose, then unscrew and clean the filter. Remove any debris.
Is the door reversible?
No, the door hinge is fixed and cannot be reversed. Ensure installation allows the door to open fully with adequate clearance on the hinge side.
User questions about SW3010B SWAN
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Washing machine in PDF format for free! Find your manual SW3010B - SWAN and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. SW3010B by SWAN.
