Product Type	Freestanding Washing Machine
Brand	Hyundai
Model	WM 300
Installation Type	Freestanding
Loading Type	Front Load
Capacity (kg)	6 kg
Maximum Spin Speed (rpm)	1000 rpm
Energy Class	A++
Washing Programs	Cotton, Synthetic, Delicate, Quick, Wool, Handwash
Temperature Control	Cold - 90°C
Display Type	LED
Dimensions (H x W x D)	85 x 60 x 55 cm
Weight	62 kg
Power Supply	220-240 V, 50 Hz
Power Consumption (Wash)	2200 W
Water Consumption per Cycle	45 L
Noise Level (Wash/Spin)	56 dB / 76 dB
Safety Features	Child Lock, Overflow Protection, Unbalance Detection
Cleaning & Maintenance	Drum Clean Program, Filter Cleaning Recommended Monthly
Spare Parts Availability	Door seal, pump filter, belt, heating element (contact support)

Frequently Asked Questions - WM 300 HYUNDAI

How do I install the Hyundai WM 300 washing machine?

Ensure the machine is on a level surface. Connect the water inlet hose to a cold water tap with a 3/4 inch connector. Insert the drain hose into a standpipe or sink. Plug into a grounded outlet. Refer to the installation section of the manual for detailed steps.

What is the maximum capacity of the WM 300?

The Hyundai WM 300 has a maximum capacity of 6 kg for cotton programs. Do not overload to ensure effective washing and avoid damage.

How do I clean the filter?

Turn off and unplug the machine. Open the filter cover at the bottom front. Place a towel to catch water. Unscrew the filter counterclockwise, clean it under running water, and reinsert. Clean every 2-3 months.

Why is my WM 300 not spinning?

Check if a unbalanced load is causing the machine to redistribute. Ensure the drain hose is not kinked and the filter is clean. If the problem persists, the belt may be loose; contact service.

Can I wash delicate fabrics in this machine?

Yes, use the Delicate or Wool program with cold water and a gentle spin. Place delicates in a laundry bag for extra protection.

What does the error code E10 mean?

Error E10 indicates a water supply issue. Check that the water tap is fully open and the inlet hose is not kinked. Also, clean the inlet filter at the back of the machine.

How do I use the quick wash program?

Select the Quick program (15-30 minutes) for lightly soiled clothes. It uses less water and a faster cycle. Do not use for heavily stained items.

Is the Hyundai WM 300 energy efficient?

Yes, it is rated Energy Class A++, meaning it consumes less electricity than older models. Use eco programs for optimal savings.

How can I prevent bad odors in the drum?

Leave the door open after each wash to allow drying. Run a Drum Clean cycle monthly with a washing machine cleaner or vinegar to remove residue.

Where can I buy spare parts for the WM 300?

Contact Hyundai customer support or authorized service centers. Common parts like door seals, pumps, and belts are available online. Always use genuine parts.

USER MANUAL WM 300 HYUNDAI

NÁVOD K POUŽITÍ / NÁVOD NA POUŽITIE INSTRUKCJA OBSŁUGI / INSTRUCTION MANUAL HASZNÁLATÍ ÚTMUTATÓ

MINIPRAČKA / MINIPRAČKA MINIPRALKA / MINI WASHING MACHINE MINI MOSÓGÉP

CE

Dear customer, thank you for purchasing our product. Please read the operating instructions carefully before putting the appliance into operation and keep these instructions including the warranty, the receipt and, if possible, the box with the internal packing.

I. SAFETY WARNINGS

• This product can be used by children at the age of 8 years and older and people with reduced physical or mental abilities or lack of experience and knowledge if they are supervised or if they were instructed regarding use of the appliance in a safe way and if they understand possible risks. Children must not play with the appliance. User cleaning and maintenance must not be performed by children if they are younger than 8 year and unsupervised. Children younger than 8 years must be kept out of reach of the appliance and its power cord.
• Never use the appliance if its power cord or plug is damaged, if it does not work properly, if it fell down and was damaged or if it fell into water. In this case take the appliance to a special service to check its safety and proper function.
• Before replacing accessories or accessible parts, which move during operation, before assembly and disassembly, before cleaning or maintenance, turn off the appliance and disconnect it from the mains by pulling the power cord from the power socket!
  • Always unplug the appliance from power supply if you leave it unattended and before assembly, disassembly or cleaning.
• If the power cord of the appliance is corrupted, it has to be replaced by the producer, its service technician or a similarly qualified person so as to prevent dangerous situations.
• After finishing work and before cleaning, always switch off the appliance and disconnect it from power supply by taking the power cord connector out of the electric socket.
• The appliance is intended for home use and similar (in shops, offices and similar workplaces, in hotels, motels and other residential environments, in facilities providing accommodation with breakfast). It is not intended for commercial use!
• Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Prevent water from getting in contact with the control panel.
• Use the appliance in the working position only at places with no risk of turning over and in sufficient distance from heat sources (e.g. heater, stove, cooker, oven, grill), flammable objects (e.g. curtains, drapes, etc.).

• Use only original accessories.

• If water flows through the inlet hose, be sure that the inlet hose is properly fixed to the washer to prevent penetration of water inside the washer. Regularly check the inlet hose condition, and do not use it if damaged.

• The washing machine should be put in ventilate and dry place in the room, the ground should by syeady.
• In order to prevent the tub from being out of shape, please do not infunde water into the tub directly as the temperature of the water is higher than 50 °C
• Please do not wash the clothes with much alcohol, petrol, organic solvent, because these volatile materials mix with air will easy to arouse fire and explode.
• Do not put hot, heavy goods onto washing machine, in order to prevent plastics out of shape or parts from being damaged.
• The distance between pipeline and ground should be smaller than 15 cm, in order to drain off water conveniently.
• Do not spatter water onto the control panel or switch, so as not to get an electric shock.
• The maximum recommended volume of water for this type of washing machine is 16,5 litres (marked by a gauge line). After filling your washing machine with underwear please take notice about water level. Water level with underwear in non-working state should be about 15 cm below the edge of the washing machine.
• Make sure that the power cord is always dry and it is not damaged.
• Check the condition of the power cord of the appliance regularly.
• Never put the power cord on hot surfaces or do not let it hang over the edge of a table or a work top. Plugging or pulling the power cord e.g. by children can result in tilting over or drawing the appliance down and serious injury!
• The power cord must not be damaged with sharp or hot objects, open fire, it must not be sunk into water or bent over sharp edges.
• If you need to use an extension cord, it has to be uncorrupted and it has to comply with the valid standards.
• Use this appliance only for the purpose for which it was designed as specified in this user's manual. Never use the appliance for any other purpose.
• CAUTION – Do not use the appliance with a program, time switch or any other part that turns the appliance on automatically as there is a risk of fire if the appliance is not covered or placed properly.
• The producer is not responsible for damage caused by improper use of the appliance (e. g. fire, clothes damage) and its guarantee for the appliance does not apply to situations when the safety warnings above are not complied with.

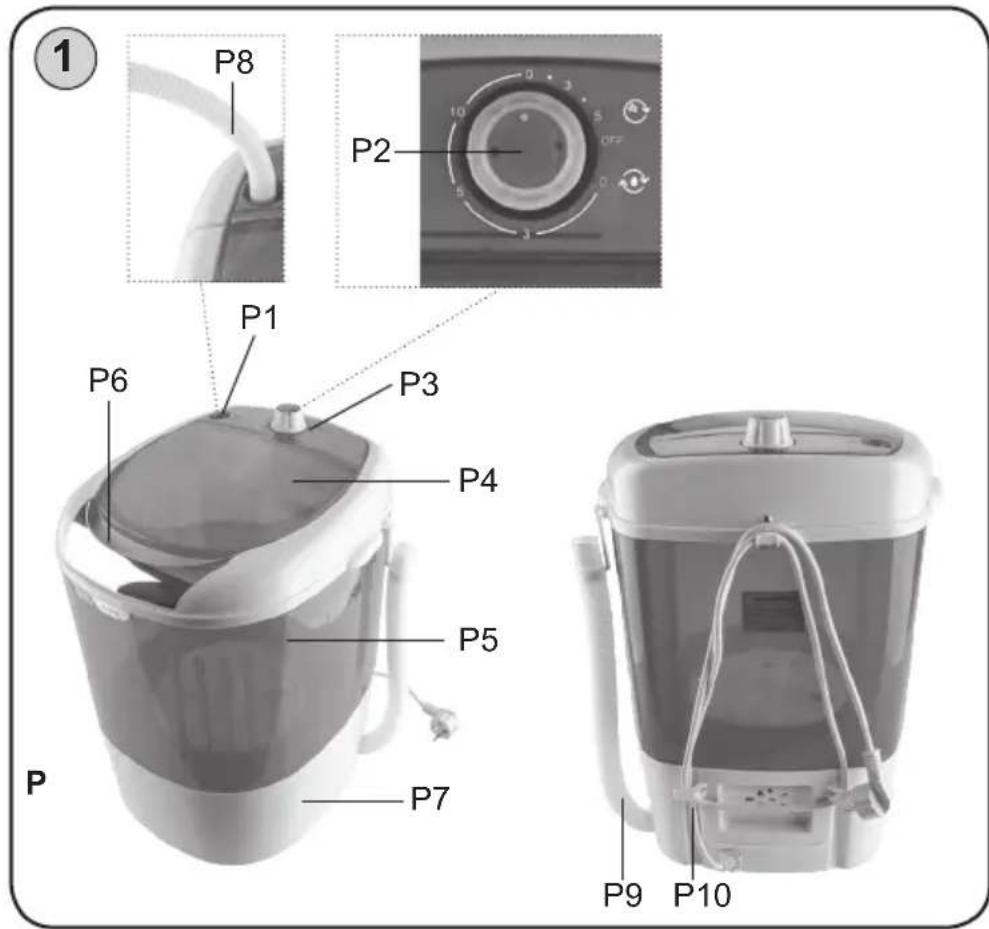

II. CONTROLS DESCRIPTION

P1 - inlet opening P6 - hander

P2 - timer P7 - pedestal

P3 - control panel P8 - inlet hose

P4 - waterproof cover P9 - discharge hose

P5 - washing tube P10 - power cord

III. INSTRUCTION FOR USE

Remove all packaging material, remove the appliance. Remove all adhesive foils, stickers or paper from the appliance.

PLACEMENT

• The washing machine should be put on the firm and steady ground, the maximal allowable slope is 2° , otherwise it should be adjusted.
• The distance between washing machine and wall should be greater than 5 cm, in order to avoid producing noise while operating.

PREPARATION BEFORE USE

• If there is no outlet change-over switch, outlet pipe must be hung up before use.
• Fill the washer tub with water.
• Connect inlet hose.
• The key, button and coin should be taken out from clothes.
• Insert the plug into a suitable socket

Notes:

• The tub can be filled with water using the inlet hose P8 or directly through the main hole after opening the lid P4.
• The washer capacity is 2.5kg of laundry at maximum.

WASHING

1) Open upper cover of washing machine, put clothes into the tub evenly.
2) Add appropriate detergent according to the quantity of clothes and dirty intensity.
3) Add appropriate water that should be under the high water level and above low water level (please observe MIN and MAX lines). Water temperature choose in accordance with your clothes. Washing machine has no water heating. The water will keep temperature you will fill up.
4) Close the lid, and set the washing time and mode by the timer. Then the washer will start operating.
5) Finish washing, put down outlet pipe to drain off water.

Notes:

• Two washing modes are available – “ fast (continual) washing, and ” cyclic washing.
• “fast (continual) washing mode is suitable for slightly soiled laundry. If this mode is used, we recommend using liquid detergents.
• “cyclic washing mode is suitable for more soiled laundry.
• In „④“ fast (continual) washing mode, the timer can be set to 0-5 minutes.
• In „ cyclic washing mode, the timer can be set to 0-10 minutes.

RINSING

1) Add water again after dirty water is drained off from the tub.
2) Rotate timer in clockwise way, rinsing for 2-3minutes.
3) Repeatedly rinsing for 1-2 minutes.

IV. MAINTENANCE

• Unplug oven and let cool.
• Wipe coverw and outer parts using a damp, clean dish cloth or sponge with a little mild dishwashing detergent.
• Do not clean with steel wool pads or abrasive materials.
  • Inner washing tube mop up to dry.

V. TROUBLESHOOTING

Fault Reason Removal method
Can not wash Power cut or the plug has not been inserted wel;	Check the power and insert the power plug
	Washing timer knob is put at „0“; the fuse is melt	Select“washing timer”
	Wave wheel is locked. Clean sundries.
Wash feebly The clothes exceed washing capacity	Reduce clothes
	Belt is too loose. Contact contact an authorized service for replace belt.
Can not drain off water Out	let pipe is twisted Put outlet pipe straight
	The support of outlet pipe is too high	Put outlet pipe down
	Outlet pipe is blocked. Clean sundries.
Unusual sound, shaking Th	there are some sundries between wave wheel and washing tube	Clean sundries
	Washing machine is placed unsteadily.	Put washing machine steadily.

VI. TECHNICAL DATA

Voltage (V) shown on the type label of the appliance

Input (W) shown on the type label of the appliance

Weight (kg) about 5.0

Protection class of the appliance I.

Size of the product (mm) 360 x 340 x 510

IInput in off mode is 0,00 W

VII. LEGISLATIVE & ECOLOGY

The manufacturer reserves the right to change the technical specifications and accessories for the respective models.

WARNING: DO NOT USE THIS PRODUCT NEAR WATER, IN WET AREAS TO AVOID FIRE OR INJURY OF ELECTRIC CURRENT. ALWAYS TURN OFF THE PRODUCT WHEN YOU DON'T USE IT OR BEFORE A REVISION. THERE AREN'T ANY PARTS IN THIS APPLIANCE WHICH ARE REPARABLE BY CONSUMER. ALWAYS APPEAL TO A QUALIFIED AUTHORIZED SERVICE. THE PRODUCT IS UNDER A DANGEROUS TENTION.

Old electrical appliances, used batteries and accumulators disposal

This symbol appearing on the product, on the product accessories or on the product packing means that the product must not be disposed as household waste. When the product/ battery durability is over, please, deliver the product or battery (if it is enclosed) to the respective collection point, where the electrical appliances or batteries will be recycled. The places, where the used electrical appliances are collected, exist in the European Union and in other European countries as well. By proper disposal of the product you can prevent possible negative impact on environment and human health, which

might otherwise occur as a consequence of improper manipulation with the product or battery/ accumulator. Recycling of materials contributes to protection of natural resources. Therefore, please, do not throw the old electrical appliances and batteries/ accumulators in the household waste. Information, where it is possible to leave the old electrical appliances for free, is provided at your local authority, at the store where you have bought the product.

Information, where you can leave the batteries and accumulators for free, is provided to you at the store, at your local authority.

HOUSEHOLD USE ONLY. CAUTION: DO NOT IMMERSE IN WATER OR OTHER LIQUIDS. TO AVOID DANGER OF SUFFOCATION, KEEP THIS PLASTIC BAG AWAY FROM BABIES AND CHILDREN. DO NOT USE THIS BAG IN CRIBS, BEDS, CARRIAGES OR PLAYPENS. THIS BAG IS NOT A TOY.

NOTICE

Licensed by Hyundai Corporation, Korea.
