Product Type	Microwave Oven
Brand	Philco
Model	PMD 2525 B
Capacity	25 Liters
Microwave Power	900 W
Grill Power	1100 W
Power Levels	6 Levels
Defrost Function	Yes, by weight
Auto Cook Programs	8 Programs
Turntable Diameter	28 cm
Display Type	LED Digital
Control Type	Push-button
Door Opening	Drop-down
Interior Light	Yes
Child Lock	Yes
Dimensions (W x D x H)	485 x 395 x 287 mm
Cavity Dimensions	320 x 320 x 220 mm
Weight (Net)	12.5 kg
Rated Voltage	230 V ~ 50 Hz
Rated Current	5.2 A
Energy Consumption (Microwave)	1350 W
Energy Consumption (Grill)	1600 W
Cleaning	Wipe with damp cloth
Repairability Index	7.5/10 (estimated)
Spare Parts Availability	5 years after purchase

Frequently Asked Questions - PMD 2525 B Philco

How do I set the clock on my Philco PMD 2525 B microwave?

Press the Clock button, then use the number pad to enter the time (24-hour format). Press Clock again to confirm.

What should I do if my microwave does not start?

Check that the door is fully closed and the child lock is not activated. Ensure the power cord is plugged in and the socket is working. If it still won't start, contact customer service.

Can I use metal containers in the microwave?

No, metal can cause sparks and damage the oven. Use microwave-safe glass, ceramic, or plastic containers.

How do I defrost food using the weight defrost function?

Press the Defrost button, then enter the weight of the food in grams using the number pad. The oven will automatically set the time and power.

Why is the turntable not rotating?

Ensure the turntable is properly seated on the support and the glass tray is centered. If it still doesn't rotate, check for obstructions or a broken coupling.

How do I clean the microwave interior?

Wipe with a damp cloth and mild detergent. For stubborn stains, place a bowl of water with lemon juice inside and microwave for 5 minutes to loosen dirt.

What is the maximum cooking time I can set?

The maximum cooking time is 99 minutes and 99 seconds for microwave mode, and 99 minutes for grill mode.

How do I use the grill function?

Press the Grill button once or twice to select grill only or combination mode. Set the cooking time using the number pad and press Start.

What does the 'auto cook' programs do?

The auto cook programs automatically set the power and time for common foods like popcorn, potato, pizza, etc. Press the Auto Cook button repeatedly to select the desired program.

Why does the microwave display 'E-0' error?

This error indicates a sensor or control board malfunction. Unplug the microwave for 30 seconds and plug it back in. If the error persists, contact a technician.

USER MANUAL PMD 2525 B Philco

Famous for Quality the World Over

Dear customer,

Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

CONTENTS

PART 1: SAFETY PRECAUTIONS ...... 2

• Important safety instructions....2
• Radio wave interference ....4
• Grounding instructions ....4

PART 2: PRODUCT DESCRIPTION....7

PART 3: INSTALLATION 8

• Turntable Installation....8
• Countertop Installation....8

PART 4: THE BASICS OF COOKING IN A MICROWAVE OVEN ...... 10

PART 5: OPERATING INSTRUCTIONS FOR THE MICROWAVE OVEN....12

PART 6: MAINTENANCE AND CLEANING....17

PART 7: TROUBLESHOOTING....18

PART 8: TECHNICAL SPECIFICATIONS....19

PART 1: SAFETY PRECAUTIONS

Recommendation:

Carefully read these instructions before installing and operating this microwave oven.

Write down the serial number found on the rating label of the oven in the space below. It is essential that you store this user's manual in a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can find out about the operation of the appliance and the relevant warnings.

SERIAL NUMBER:

1. Under no circumstances should you start the microwave oven with the door open as you could expose yourself to the effects of dangerous microwave energy radiation. It is important that you do not damage or modify the safety locks on the microwave oven door.
2. Do not block the front part of the microwave oven and the door with any object and make sure that dirt or remains of detergent do not accumulate on the oven seals.
3. Do not use the microwave oven if it is damaged. It is especially important that the door is properly shut and also inspect the following for damage:
   a. door (that it is not bent);
   b. door hinges and locks (damaged or loose);
   c. door seals and other seals.

The microwave oven may only be adjusted or repaired by an authorised service technician.

Important safety instructions

Adhere to all basic safety measures when using electrical appliances, including the following.

WARNING!

Adhere to the directives below to avoid the dangers of burns, injury by electrical shock, fire hazards, injuries or explosion caused by large amounts of microwave energy.

- This appliance may not be used by any persons (including children) with mental disabilities, weak strength or by inexperienced persons, unless they have been properly trained or schooled in

the safe use of the product, or unless they are properly supervised by a qualified person who is responsible for their safety. Children must be supervised to ensure that they do not play with the product.

WARNING!

To limit the risk of a fi re hazard, electric shock, injury or exposure to excessive amounts of microwave energy:

• Before using this appliance read all the instructions.
• Only use the appliance for the purposes for which it was designed and in the manner described in this user's manual. This oven is designed only to heat, cook or dry food. It is not designed for industrial or laboratory purposes. Do not use caustic chemicals on this appliance.
• Do not attempt to use the microwave oven with the door open. You could expose yourself to the effect of microwaves. Do not run the microwave oven when it is empty.
• Do not use this oven if the power cord or power plug is damaged, if it is not working correctly, if it is damaged or if it has been dropped on the floor. Any repair of the microwave oven or replacement of a damaged power cord may only be carried out by an authorised service centre or another similarly qualified person, as this will prevent causing a dangerous situation.
• WARNING: If the door or the door seal is damaged then the oven must not be used until repaired by an authorised service centre or qualified person.
• WARNING: It is dangerous for anybody other than an authorised service centre or qualified person to carry out any repairs or maintenance whatsoever that leads to the removal of any cover providing protection from microwave energy radiation.

- WARNING: The use of the oven by unsupervised children is only permitted when sufficient instructions were given, so that the child is able to use the oven in a safe manner and understands the danger resulting from incorrect use.

- To limit the risk of a fire hazard inside the oven, use only kitchen dishes suitable for use in microwave ovens. When heating meal in plastic or paper dishes, regularly check the oven to prevent it catching on fire.

- If you notice smoke, turn off the appliance and disconnect the power plug from the socket. Leave the oven door closed to prevent potential fire from spreading.

- If you are not using the oven do not leave paper materials, kitchen dishes or food inside.

- WARNING: Liquids or other meals must not be heated in closed containers, because they could explode.

• Heating of beverages in the microwave may cause a delayed boil and so you should be careful when handling containers and dishes.

- Do not fry food in the microwave oven. Hot oil may damage parts of the oven, dishes or may also cause skin burns.

- Eggs in their shells and whole hard boiled eggs must not be heated in the microwave oven because they could explode.

- Before cooking prick food with a thick peel, such as potatoes, pumpkins, apples and chestnuts.

- The content of baby bottles and baby food needs to be mixed or shaken before being served to the infant and the temperature needs to be checked to prevent burns.

- Kitchen dishes may become hot as a result of the heat transferred from the heated food. Sometimes it may be necessary to use protective gloves.

- IMPORTANT - kitchen dishes and utensils, which must not be used in the microwave oven:

- metal pans and crockery with metal handles or with metal decorations;

- clamps on plastic bags;

- dishes with melamine surface treatment;

- standard thermometers, which are used for measuring the temperature of meat etc.

- The rear surface of appliance shall be placed against a wall.

- The microwave oven shall not be placed in a cabinet unless it has been tested in a cabinet.

- The microwave oven is intended for heating food and beverages. Drying food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.

Radio wave interference

The use of the oven may cause interference to a radio, television or similar receivers. If interference occurs, it may be limited by the following measures:

1. keeping the door and the surface of the oven seals clean;
2. redirecting the radio or television signal reception antenna;
3. moving the microwave oven further away from the receiver;
4. connecting the microwave oven to a different power socket so that the microwave oven and the receiver do not share the same circuit.

Grounding instructions

This microwave oven must be grounded. The microwave oven is equipped with a power cord, which has a ground wire with a grounding power plug. The power plug must be connected to a mains socket outlet that is correctly installed and grounded. This reduces the risk of injury by electric shock if a short circuit occurs – in such a case the electric current goes through the earthing wire. We recommend that the microwave oven be connected to an independent electrical circuit. The use of high voltage is dangerous and may lead to a fire or another accident that can damage the microwave oven.

WARNING!

An incorrectly grounded power socket may present a danger of electric shock.

NOTE:

1. If you are uncertain about the grounding of your mains power socket, contact an authorised service centre or a qualified electrician.
2. Neither the manufacturer nor the vendor is responsible for damages to property and health if the microwave oven is connected incorrectly and not in accordance with the presented recommendations.

PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY

(a) Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
(c) WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

NOTE:

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

PART 2: PRODUCT DESCRIPTION

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity.

Your oven comes with the following accessories:

Glass tray 1

Turntable ring assembly 1

Instruction Manual 1

1. Control panel
2. Glass tray
3. Turntable ring assembly

4. Turntable shaft

5. Door assembly

6. Observation window
7. Safety interlock system

PART 3: INSTALLATION

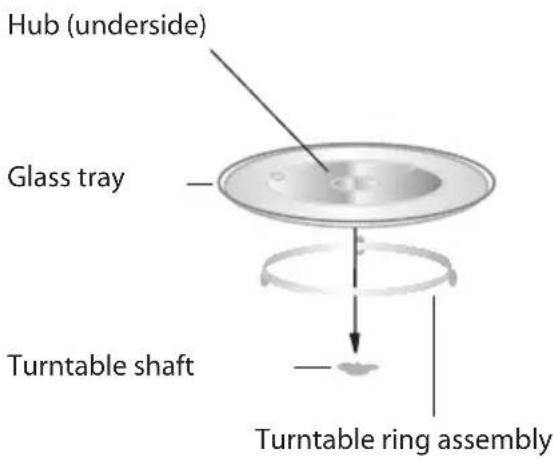

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center

Countertop Installation

Remove all packing material and accessories.

Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged.

Cabinet: Remove any protective film found on the microwave oven cabinet surface.

Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Installation

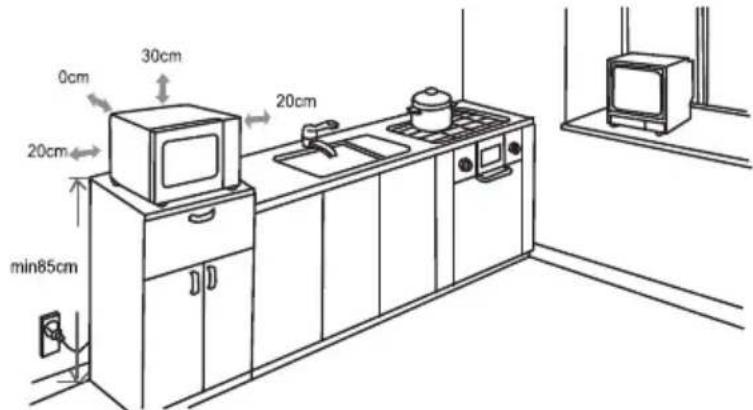

1. Select a level surface that provide enough open space for the intake and/or outlet vents.

(1) The minimum installation height is 85cm.
(2) The rear surface of appliance shall be placed against a wall.

Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls.

(3) Do not remove the legs from the bottom of the oven.
(4) Blocking the intake and/or outlet openings can damage the oven.
(5) Place the oven as far away from radios and TV as possible.

Operation of microwave oven may cause interference to your radio or TV reception.

1. Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

WARNING!

Do not install oven over a range cooktop or other heat-producing appliance. If installed near or over a heat source, the oven could be damaged and the warranty would be void.

The accessible surface may be hot during operation.

PART 4: THE BASICS OF COOKING IN A MICROWAVE OVEN

CAUTION

Personal Injury Hazard It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven." There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

1. Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Aluminum foil Shielding	only. Small smooth pieces can be used to cover thin parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too close to oven walls. The foil should be at least 1 inch (2.5cm) away from oven walls.
Browning dish Follow m	manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware Microwave	-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars Always remove	lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware Heat-resistant	oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags Fol	ow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe	only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap Microwave	safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave	ave-safe only (meat and candy thermometers).
Wax paper Use as a cover	to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood Wood will dry out when used in the microwave oven and may split or crack.

PART 5: OPERATING INSTRUCTIONS FOR THE MICROWAVE OVEN

Operation Instructions

1. Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1) Press Clock/ Kitchen Timer" once to select clock function, the hour fi gures will fl ash.

2) Turn "3" to adjust the hour figures, the input time should be within 0–23.

3) Press Clock/ Kitchen Timer", the minute figures will flash.

4) Turn "3" to adjust the minute figures, the input time should be within 0–59.

5) Press "Clock/ Kitchen Timer" to finish clock setting.":"will flash, and the time will light.

NOTE:

1) The clock will not work if it is not set when powered.

2) During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

2. Microwave Cooking

Press “Microwave” the LED will display “P100”. Press “Microwave” for times or turn “☐” to choose the power you want, and “P100”, “P80” “P50”, “P30” “P10” will display for each added press. Then press

"Start/+30Sec./Confirm" to confirm, and turn " 🔥" to set cooking time from 0:05 to 95:00. Press " Start/+30Sec./Confirm" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1) Press "Microwave" once, the screen display "P100".

2) Press Microwave "once again or turn" to choose 80% microwave power.

3) Press Start/+30Sec./Confirm" to confirm, and the screen displays "P 80".

4) Turn "3" to adjust the cooking time until the oven displays "20:00".

5) Press "Start/+30Sec./Confirm" to start cooking.

NOTE:

The step quantities for the adjustment time of the coding switch are as follow:

"Microwave" Pad instructions

Order Display Microwave Power
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%

3. Grill or Combi. Cooking

Press "Grill/Combi." the LED will display "G", and press "Grill/Combi." for times or turn the "to choose the power you want, and "G", "C-1" or "C-2" will display for each added press. Then press Start/+30Sec./Confirm

"to confirm, and turn " to set cooking time from 0:05 to 95:00. Press "Start/+30Sec./Confirm" again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1) Press "G" once the screen display "G".

2) Press "Grill/Combi." once again or turn "to choose combi. 1 mode.

3) Press "Start/+30Sec./Confirm" to confirm, and the screen displays "C-1".

4) Turn " [REDACTED] " to adjust the cooking time until the oven displays "10:00".

5) Press "Stato start cooking"

"Grill/Combi." Pad instructions

Order	Display	Microwave Power	Grill Power
1 G	0%	100%
2 C-1	55%	45%
3 C-2	36%	64%

NOTE: If half the grill time passes, the oven sounds twice, and this is normal.

In order to have a better effect of grilling food, you should turn the food over, close the door, and then press "Start/+30Sec./Confirm" to continue cooking. if no operation the oven will continue cooking.

4. Quick Start

1) In waiting state, Press "Start/+30Sec./Confirm" to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.

2) In microwave grill and combination cooking or time defrost state, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.

3) In waiting state, turn " [icon] " left to set cooking time with 100% microwave power, then press "StarstarSecokingirm

5. Defrost By Weight

1) Press "Weight Defrost" once, and the oven will display "dEF1".

3) Press Start-to-start/defrosting.

6. Defrost By Time

1) Press "Time Defrost" once, and the oven will display "dEF2".

3) Press Start/+30Sec./Confirm" to start defrosting. The defrost power is P30, and it will not be changed.

7. Kitchen Timer

(1) Press @lock/ Kitchen Timer" twice, LED will display 00:00.

(3) Press "Start to confirm setting.

(4) When the kitchen time is reached, clock indicator will go out. The buzzer will ring 5 times. If the clock be set (24-hour system), LED will display the current time.

NOTE:

The kitchen Time is different from 24-hour system, Kitchen Timer is a timer.

8. Auto Menu

1) Turn "A-1" right to choose the menu, and "A-1" to "A-10" will display.
2) Press Start to confirm
4) Press Start-to-start/cooking.

Example: If you want to use "Auto Menu" to cook fi sh for 350g.

1) Turn "clockwise till "A-4" display.
2) Press Start/+30Sec./Confirm" to confirm.

4) Press Start to start/ cooking.

The menu chart:

Menu Weight Display
A-1 Pizza	200 g 200
	400 g 400
A-2 Potato	200 g 200
	400 g 400
	600 g 600
A-3 Meat	250 g 250
	350 g 350
	450 g 450
A-4 Fish	250 g 250
	350 g 350
	450 g 450
A-5 Vegetable	200 g 200
	300g 300
	400 g 400
A-6 Beverage	1(about 120ml) 1
	2(about 240ml) 2
	3(about 360ml) 3
A-7 Pasta	50g(with 450 cold water) 50
	100g(with 800 cold water) 100
A-8 Popcorn	50 50
	100 100
A-9 Chicken	400 400
	800 800
	1200 1200
A-10 Reheat	200 200
	400 400
	600 600

9. Multi-section cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1) Press "Time Defrost" once, and the oven will display "dEF2".

2) Turn " " to select the defrost time till "5:00" display.

3) Press "Microwave" once, the screen display "P100".

4) Press "Microwave" once again or turn "to choose 80% microwave power.

5) Press "Start/+30Sec./Confirm" to confirm, and the screen displays "P 80".

6) Turn “” to adjust the cooking time till the oven displays “7:00”.

7) Press Start/+ to Start cooking, and buzzer will sound once for the rst section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking nish, buzzer sounds ve times.

1. Inquiring Function

(1) In states of microwave, grill and combination cooking, press “Microwave”, the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;

(2) In cooking state, press "Clock/ Kitchen Timer" to inquire the time and the time will display for 3 seconds.

1. Lock-out Function for Children

Lock: In waiting state, press “Stop/Clear” for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display “[::]”.

Lock quitting: In locked state, press “Stop/Clear” for 3 seconds, there will be a long “beep” denoting that the lock is released.

PART 6: MAINTENANCE AND CLEANING

Be sure to unplug the appliance from the power supply.

1. Clean the cavity of the oven after using with a slightly damp cloth.
2. Clean the accessories in the usual way in soapy water.
3. The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.
5. Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch:

Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes.

Wipe the oven clean using a soft, dry cloth.

PART 7: TROUBLESHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan.
Dim oven light It is normal.
Steam accumulating on door, hot air out of vents	In low power microwave cooking, oven light may become dim. It is normal.
Oven started accidentally with no food in.	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven can not be started. (1) Power cord	not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	(2) Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	(3) Trouble with outlet. Test outlet with other electrical appliances.
Oven does not heat. (4) Door not closed	well. Close door well.
Glass turntable makes noise when microwave oven operates	(5) Dirty roller rest and oven bottom.	Refer to "Maintenance of Microwave" to clean dirty parts.

PART 8: TECHNICAL SPECIFICATIONS

Model PMD 2525 B
Rated Voltage 230V~ 50Hz
Rated Input Power (Microwave) 1450 W
Rated Output Power (Microwave) 900 W
Rated Input Power (Grill) 1000 W
Oven Capacity 25 L
Turntable Diameter ∅ 315 mm
External Dimensions 513×414×307 mm
Net Weight Approx. 15.07 kg

NOTE:

All the here mentioned data is subject to change.

INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS

Dispose of packaging material at a public waste disposal site.

DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this product at your applicable collection point for the recycling of electrical & electronic equipment waste. Alternatively in some states of the European Union or other European states you may return your products to your local retailer when buying an equivalent new product. The correct disposal of this product will help save valuable natural resources and help in preventing the potential negative impact on the environment and human health, which could be caused as a result of improper liquidation of waste. Please ask your local authorities or the nearest waste collection centre for further details. The improper disposal of this type of waste may fall subject to national regulations for fines.

For business entities in the European Union

If you wish to dispose of an electrical or electronic device, request the necessary information from your seller or supplier.

Disposal in other countries outside the European Union

If you wish to dispose of this product, request the necessary information about the correct disposal method from local government departments or from your seller.

This product meets all the basic EU regulation requirements that relate to it.

Changes to the text, design and technical specifications may occur without prior notice and we reserve the right to make these changes.

MIKROVLNNÁ TROUBA

NÁVOD K OBSLUZE

PHILCO

Famous for Quality the World Over

Vážený zákazníku

Famous for Quality the World Over

Vážený zákazník
