VP-8220 - Vacuum Cleaner Concept - Free user manual and instructions

Type	Canister vacuum cleaner
Model	VP-8220
Brand	Concept
Dimensions (L x W x H)	420 x 280 x 230 mm
Weight	4.2 kg
Power consumption	800 W
Voltage	220-240 V, 50 Hz
Dust capacity	1.5 L (bag)
Filtration system	HEPA 10 filter
Noise level	76 dB
Cord length	5 m
Operating radius	8 m
Functions	Dry vacuuming, crevice tool, brush nozzle
Maintenance	Replace dust bag when full; clean HEPA filter regularly
Safety features	Overheat protection, automatic shut-off
Spare parts	Dust bags (type B), HEPA filter, foam filter
Reparability	User-replaceable filters and belt; motorby professional
Included accessories	Floor nozzle, crevice tool, brush, upholstery tool
Certifications	CE, RoHS
Environmental class	Energy class A

Frequently Asked Questions - VP-8220 Concept

How do I change the dust bag?

Open the front cover, remove the full bag, and insert a new dust bag type B. Ensure it clicks into place.

How often should I clean the HEPA filter?

Clean the HEPA filter every 3-6 months by tapping it gently or rinsing with water. Let it dry completely before reinserting.

The vacuum is not picking up properly. What should I check?

Check if the dust bag is full, the filter is clogged, or the nozzle/brush is blocked. Also inspect the hose for obstructions.

Can I use the vacuum without a dust bag?

No, the VP-8220 requires a dust bag for proper operation and to protect the motor. Using it without a bag may damage the machine.

What is the warranty period?

The Concept VP-8220 comes with a 2-year warranty against manufacturing defects.

How do I replace the belt?

Remove the bottom plate, take out the old belt, and loop a new drive belt around the motor shaft and brush roller. Reassemble.

The vacuum overheats and shuts off. What do I do?

Turn off and unplug the vacuum. Allow it to cool for at least 30 minutes. Check for blockages and ensure the dust bag and filters are clean.

Can a professional repair the motor?

Yes, but only a qualified technician should open the motor housing. Contact Concept service centers for motor repairs.

Is the vacuum suitable for pet hair?

Yes, the VP-8220 can handle pet hair, but regular cleaning of the brush roller and filters is recommended to prevent clogs.

Where can I buy spare parts?

Spare parts like dust bags, filters, and belts are available online via Concept’s official website or authorized retailers.

USER MANUAL VP-8220 Concept

Black and white photo of a vacuum cleaner with coiled tubing, no visible text or symbols on the device itself.

VP8220

CZ SK PL LVEN DE

PODĚKOVÁNÍ

Five black plastic clip components labeled A, B, C, D, and E (no text or symbols on the clips themselves)

NÁVOD K OBSLUZE - SESTAVOVÁNÍ VYSAVAČE

UPOZORNĚNÍ

Close-up of a black industrial vacuum cleaner with attached pipe fitting (no visible text or symbols)

(Obr. 1)

Close-up of a black mechanical component with a white arrow pointing to a small feature (no text or symbols visible)

Close-up of a mechanical component with grid pattern and upward arrow indicator (no text or symbols)

(Obr. 6)

ČIŠTĚNÍ A VÝMĚNA FILTRU VÝSTUPU VZDUCHU

3D rendered black square grid object with no visible text or symbols

důkladně (Obr. 7)

Black plastic clip accessories labeled A, B, C, D, E (no text or symbols on objects)

NÁVOD NA OBSLUHU - ZOSTAVOVOVANIE VYSÁVAČA

UPOZORNENIE

Close-up of a small vacuum cleaner with a coiled tube and ventilation slots (no visible text or symbols)

(Obr. 1)

Close-up of a mechanical component with a white arrow pointing to a section (no visible text or symbols)

e(Obr.2)

PRÍSLUŠENSTVO

1. Štrbinová hubica

Close-up of a mechanical component with grid pattern and upward arrow indicator (no text or symbols)

(Obr. 6)

ČISTENIE A VÝMENA FILTRA VÝSTUPU VZDUCHU

Five black plastic clip components labeled A, B, C, D, and E (no text or symbols on the clips themselves)

INSTRUKCJA OBSŁUGI – MONTAŻ ODKURZACZA

UWAGA

Close-up of a black industrial vacuum cleaner with attached pipe fitting (no visible text or symbols)

(Rys. 1)

Close-up of a black mechanical component with a white arrow pointing to a small part (no visible text or symbols)

Close-up of a black handheld device with white panels and buttons (no visible text or symbols)

WYMIANA WORKA NA KURZ

Close-up of a mechanical device with grid pattern and upward arrow indicator (no text or symbols)

(Rys. 6)

CZYSZCZENIE I WYMIANA FILTRA WYDMUCHU POWIETRZA

3D rendered object with grid pattern, no visible text or symbols

Black plastic clip accessories labeled A, B, C, D, E (no text or symbols on objects)

EKSPLUATĀCIJAS NORĀDĪJUMI – PUTEKŁU SŪCĒJA MONTĀŽA

BRĪDINĀJUMS!

Close-up of a black industrial vacuum cleaner with attached pipe fitting (no visible text or symbols)

(Att. 1)

Close-up of a mechanical component with a white arrow pointing to a small part (no visible text or symbols)

(Att. 2)

PIEDERUMI

1. Rievotais uzgalis

(Att. 3)

sūcēja vāku.

Close-up of a robotic vacuum cleaner with visible mechanical components and control buttons (no text or symbols)

(Att. 4)

Close-up of a mechanical component with a grid-patterned top structure and an arrow indicating direction (no visible text or symbols)

(Att. 5)

Close-up of a mechanical component with grid pattern and upward arrow indicator (no text or symbols)

(Att. 6)

IZPLÜDES GAISA FILTRA TİRİŞANA UN MAIŞA

3D rendering of a square grid object with no visible text or symbols

(Att. 7)

TRAUCĒJUMMEKLĒŠANA

Thank you for purchasing a Concept product. We hope you will be satisfied with our product throughout its service life.

Please study the entire Operating Manual carefully before you start using the product. Keep the manual in a safe place for future reference. Make sure that any persons handling the vacuum cleaner are also familiar with this Operating Manual..

Technical parameters
Voltage 220 – 240 V ~ 50 Hz
Power input	nom. 2000 W, max. 2200 W
Noise level	≤ 68 dB(A)
Suction power	26 kPa

IMPORTANT SAFETY PRECAUTIONS:

• Do not use this appliance in a way different from this manual.
- Remove all packaging and marketing materials from the appliance before you use it for the first time.
• Make sure that the connecting voltage corresponds to the values on the appliance type label.
- Do not leave the appliance unattended when turned on, or plugged into the electrical socket.
- Disconnect the appliance from the electrical socket when you are not using it.
- Never pull the supply cable when disconnecting the appliance from the electrical socket; pull the plug instead.
- Do not allow children or irresponsible people to handle the appliance. Use the appliance out of the reach of these people.
- Handicapped people, people with impaired faculties or mental capabilities, or people unfamiliar with the appliance operation are only allowed to use it when supervised by responsible, knowledgeable people.
- Be especially careful when there are children near the appliance.
• Do not allow the appliance to be used as a toy.
- Do not use the appliance outdoors or on wet surfaces, as there is a risk of electric shock in these places.
- Do not use any other accessories except those recommended by the manufacturer.
- Never use the appliance if the supply cable or plug has been damaged; have the defect repaired immediately by an authorised service centre.
• Never run over the supply cable with the floor attachment or the appliance itself.
- When the rotary brush is used, it may be dangerous to run the appliance over the supply cable.
- Do not pull or carry the appliance by the power supply cable.
- Keep the appliance away from any sources of heat, such as radiators, ovens, etc. Do not expose the appliance to direct sunlight and humidity.
• Do not touch the appliance with moist or wet hands.
- Do not insert any items into openings. Do not use the appliance if any opening is obstructed.
- When unplugging the appliance from the wall socket, first turn off the main switch, then pull the plug out of the electric voltage socket.
• Take extra care when using the appliance on stairs.
- When the appliance's suction inlet gets obstructed, turn the appliance off and remove any obstructing dirt before turning the appliance on again.
- Hold the supply cable while winding to avoid its uncontrolled movement.
- Before fixing any accessories, performing cleaning, or in the event of a defect, turn off the appliance and pull the plug out of the electrical socket.
- Unwind the necessary length of power supply cord before using the appliance. The ideal length of the power supply

cord is marked by a yellow dot on the cord. Do not unwind the power supply cord past the red mark.

• The appliance is intended for household use only, not for commercial use.
• Do not vacuum any burning items such as cigarettes, matches, or hot ash.
- Do not use the appliance in damp rooms, do not vacuum any wet items or liquids, flammable liquids (such as petrol), and do not use the appliance in places where these substances may be present.
- Never vacuum without using the dust collection bag and the appliance's filters. Before each use of the appliance, make sure the dust collection bag and the appliance's filters are mounted properly.
- Do not immerse the supply cable, the plug, or the appliance itself in water or any other liquid.
- Check the appliance and the supply cable regularly for any damage. Never turn the appliance on when damaged.
- Prior to cleaning and after using the appliance, turn it off, disconnect it from the electric voltage outlet, and let it cool down.
- Before vacuuming, remove large or sharp items from the surface you want to vacuum as these items may damage the dust collection bag or the appliance's filters.
• Do not use the appliance with dirty filters.
• Never repair the appliance yourself. Instead, contact an authorised service centre for repair.

Failure to follow the manufacturer's instructions may invalidate the warranty.

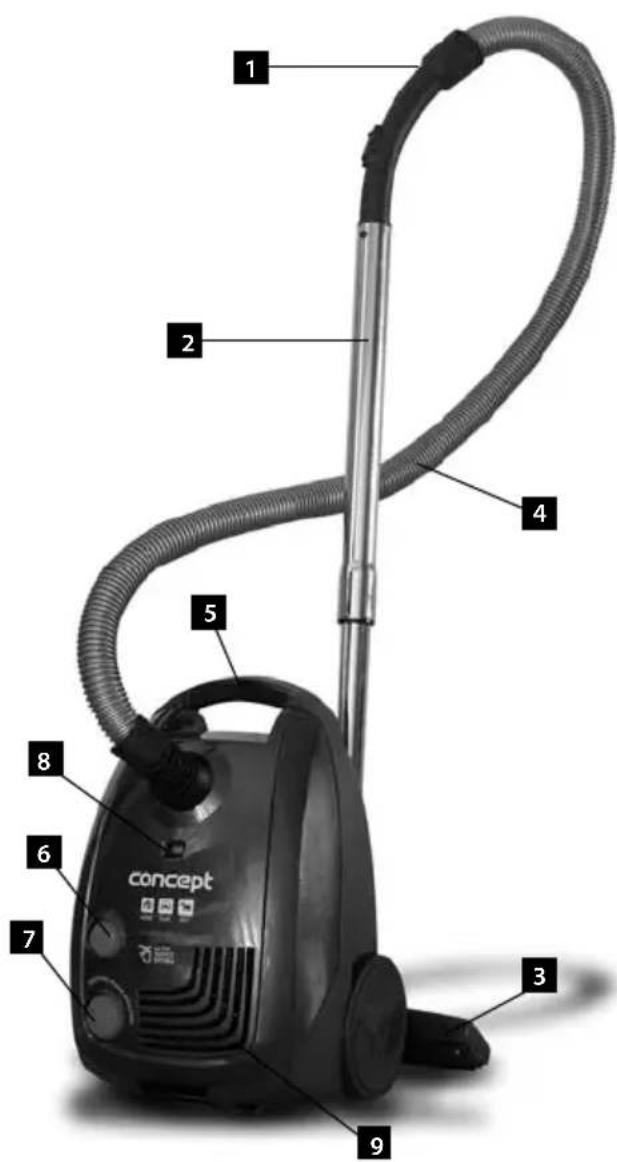

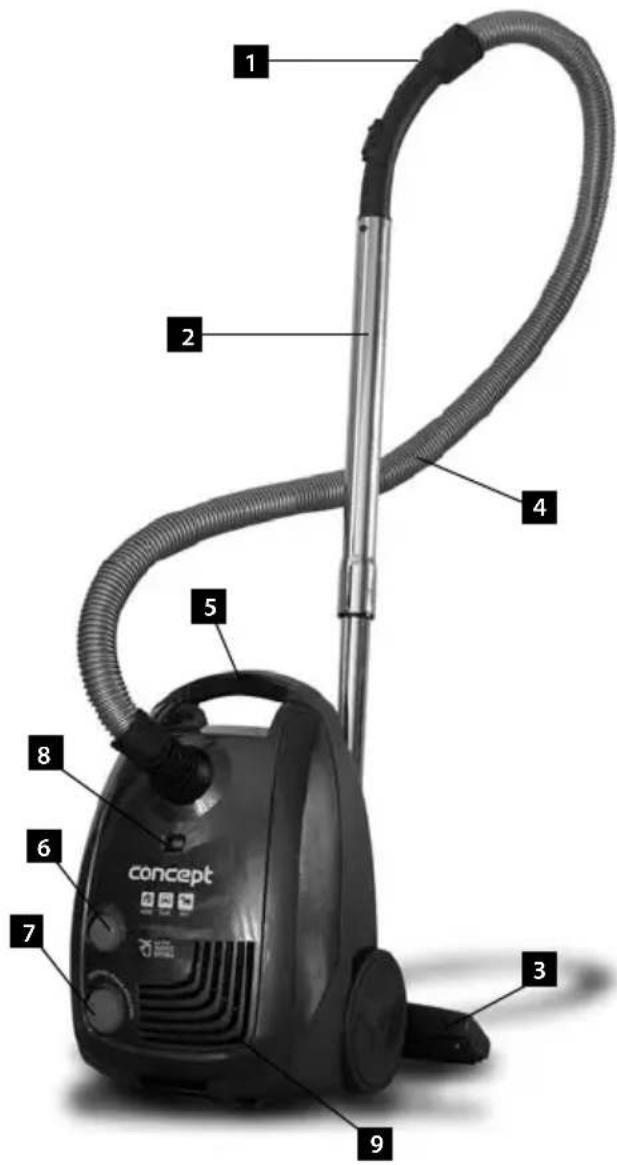

PRODUCT DESCRIPTION

1. Hose holder
2. Telescopic tube
3. Floor attachment
4. Flexible hose
5. Holder
6. Winding button
7. Switch button
8. Container content level indicator
9. Air discharge fi Iter

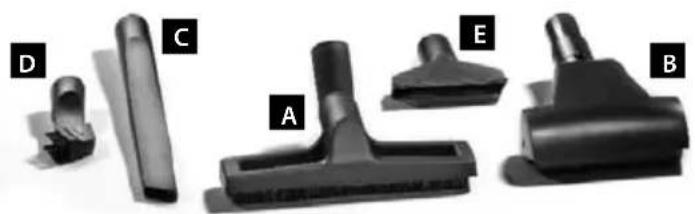

Accessories

A Nozzle for wooden floors
B Turbo brush
C Extra long Slotted nozzle
D Slotted nozzle with a brush
E Nozzle for upholstery

Five black plastic clip components labeled A, B, C, D, and E (no text or symbols on the clips themselves)

OPERATING MANUAL – ASSEMBLY OF THE VACUUM CLEANER

NOTE

Always disconnect the plug from the mains outlet prior to mounting or removing accessories!

1. Connecting the flexible hose to the appliance

Insert the flexible hose into the appliance's air suction inlet.

Continue pushing until you hear a clicking sound, which indicates that the correct position has been reached.

For removing the flexible hose, press both stopper buttons and remove the hose (Fig. 1).

The suction power can be controlled manually on the hose throttle.

When the slide throttle is closed, the air flow is stronger.

Slide throttle in open position - weaker air flow.

1. Attaching the telescopic tube to the hose adapter

Put the telescopic tube on the hose adapter and turn it slightly.

1. Extending the telescopic tube

Press the plastic latch and pull the smaller tube outwards.

1. Fixing the floor attachment to the telescopic tube

Insert the telescopic tube into the floor attachment and turn it slightly.

The flap (Fig. 2) is used for setting the floor attachment to brushing (for smooth floors), or to smooth vacuuming (for carpets).

(Fig. 1)

Close-up of a black mechanical component with a white arrow pointing to a small feature (no text or symbols visible)

(Fig. 2)

ACCESSORIES

1. Slot nozzle

The slot nozzle adapter is used for vacuum cleaning the places accessible with difficulty, such as radiators, slots, corners, pedestals, spaces between upholsteries, and others.

1. Upholstery nozzle with a detachable brush

This upholstery nozzle attachment is used for smaller upholstery areas. The detachable brush is used for vacuum cleaning shelves, books, furniture and others.

APPLIANCE USE

Before using the appliance, make sure that the filters and the dust collection bag are properly positioned and mounted. Unwind the supply cable length you need. The yellow mark on the supply cable indicates the optimum cable length. Do not unwind the supply cable beyond the red mark!

1. Insert the plug into the electric voltage socket.
2. Press the ON/OFF switch on the appliance.
3. Set up the suction power you need using the slide throttle.
4. After you have finished vacuum cleaning, switch the appliance off and disconnect it from the electric voltage socket.
5. For winding the supply cable up, press the wind button with one hand and hold the supply cable with the other hand to avoid its uncontrolled movement.

DUST RETENTION BAG FILL CHECK

When the dust retention bag fill indicator becomes red during operation, replace the full dust retention bag immediately.

If the dust retention bag fill indicator is still red after the the bag replacement, it may be due to several causes:

• Some of the air passages (hoses, telescopic tube, suction inlet, brush adapter, or other adapters) are obstructed;
• Motor filter is dirty;
• Air outlet filter is dirty.

Check each of these causes and remove any of them before you start using the appliance. Should you fail to find the fault, forward the appliance to the service centre nearest to you. Never use the appliance when the dust retention bag fill indicator is fully red as this may damage the motor beyond repair.

MAINTENANCE

You can clean the accessories and the appliance with a wet cloth. Never immerse the appliance

in water! Do not use any aggressive substances for cleaning, such abrasives!

DUST RETENTION BAG REPLACEMENT

1. Disconnect the appliance from the mains, pull the hose out of the suction inlet, and open the appliance's cover (Fig. 3).
2. Remove the full dust retention bag and dispose of it. Make sure it does not get

ripped open when handled.

1. Insert a new bag by sliding the pasteboard lamella into the bag holder, and insert the holder into the appliance (Fig. 4). The bag opening must be aligned with the hole in the appliance cover.
2. Only use the appliance when a dust collection bag has been inserted into it! If you forget to insert the dust collection bag, or you place it incorrectly, you will not be able to fully close the appliance cover.
3. Close the cover by pushing it until it clicks into the right position.

FILTER REPLACEMENT

• Filters should be cleaned or replaced when they are visibly dirty, or the appliance's suction power is reduced. Check the filters after every use of the appliance.
• In order not to damage the appliance, do not use it with incorrectly fixed filters.
• Before replacing the filters, disconnect the appliance from the socket.
• You can buy suitable types of filters from your dealer, or you can order them with the manufacturer.

MOTOR FILTER CLEANING AND REPLACEMENT

1. Disconnect the flexible hose and open the appliance cover.
2. Pull the dust collection bag out of its holder so that you can access the motor filter more easily.
3. Remove the motor filter (Fig. 6). You can clean the filter by tapping and shaking. If the filter is heavily soiled, you can wash it in lukewarm water and let it dry properly.
4. Insert the cleaned or new motor filter into the appliance and close the cover.

Top-down view of a robotic vacuum cleaner with visible mechanical components and control buttons (no text or symbols)

(Fig. 4)

Close-up of a mechanical component with a grid-patterned top and internal structure, no visible text or symbols

(Fig. 5)

Close-up of a mechanical component with grid pattern and upward arrow indicator (no text or symbols)

(Fig. 6)

CLEANING AND REPLACEMENT OF THE AIR OUTLET FILTER

Remove the air outlet filter. This type of vacuum cleaner is equipped with an H.E.P.A. filter in the outlet (Fig. 7), which is capable of catching even very fine dust particles. You can clean this filter by tapping and shaking, and then with a soft brush. After this operation is complete, you can clean a very dirty filter by washing and rubbing with a soft brush in lukewarm water without any cleaning agents added. It is important to let the wet parts dry thoroughly.

A wet filter would get damaged by vacuum cleaning! Do not use a hair dryer for drying!

Note: Wet cleaning may cause more wear and tear of the filter and, consequently, shorten its service life.

3D rendering of a square grid object with no visible text or symbols

(Fig. 7)

TROUBLESHOOTING

Problem Cause Solution
Motor does not run.	Plug inserted into the mains outlet incorrectly or insufficiently.	Check the plug connection.
	The mains outlet is not live.	Check for voltage, e.g. by connecting another appliance.
Motor has stopped operating.	Improper or insufficient air flow. Motor overheating fuse activated.	Disconnect the cable from the socket.Check and release the air suction and discharge holes; check the filter's cleanliness and/or replace the dust bag.Let the vacuum cleaner cool down.
Front cover cannot be closed	Dust bag inserted incorrectly. Check the dust filter installation.
Reduced suction power	Dust bag full or clogged. Replace the dust bag.
	Obstructed filter. Clean or replace the filter.
	Clogged nozzle, tube, or hose.	Check and clear the air passage on the suction and discharge sides.
Vacuum cleaner heats up	Slight heating of the vacuum cleaner is normal and cannot be considered a failure.

SERVICE

Any larger maintenance or repairs requiring intervention into the internal parts of the product shall only be performed by an authorized service

ENVIRONMENTAL PROTECTION

• Packaging materials and obsolete appliances should be recycled.
• The transport box may be disposed of as sorted waste.
• Polyethylene bags shall be handed over for recycling.

Appliance recycling at the end of its service life:

A symbol on the product or its packaging indicates that this product should not go into household waste. It must be taken to the collection point of an electric and electronic equipment recycling facility. By making sure this product is disposed of properly, you will help prevent the negative effects on the environment and human health that would otherwise result from inappropriate disposal of this product. You can learn more about recycling this product from your local authorities, a household waste disposal service or in the shop where you bought this product.

DANKSAGUNG

Black plastic clip accessories labeled A, B, C, D, E (no text or symbols on parts)

Close-up of a vacuum cleaner with attached pipe fitting (no visible text or symbols)

(Abb. 1)

Rohr

(Abb. 2)

ZUBEHÖR

1. Schlitzmundstück

Warranty Certificate

CZ

ZÁRUČNÍ PODMÍNKY

Model:
Production number:
Date of purchase:	Seal and signature of vendor:

The vendor is obliged to inform the consumer of the features and parameters of the product and fill in the Warranty Certificate fully and legibly on the day of purchase.

The Certificate is not valid without all the prescribed data correctly filled in!

In addition to the general guarantees on appliances now we also provide special vacuum cleaners warranty to motor for the additional 36 months to the statutory 24 month warranty under the terms as below.

The manufacturer (or importer) is responsible for the features of the product under the applicable technical standards and conditions for the warranty period.

The warranty period is 24 months from the date of purchase, unless stated otherwise by the manufacturer (or importer).

Under the warranty the consumer is entitled to the free, timely and duly executed remedy of faults (see below), or to receive a replacement of the defective part of the product, provided it is not disproportionate with regards to the nature of the fault. The right to replacement of the product or termination of the purchase contract can be exercised only if all the legal preconditions have been met, on the condition that the product was not excessively worn or damaged.

The validity of the guarantee is subject to:

• Observance of the instructions mentioned in the Operating Manual;
• A document proving payment including all the prerequisites, or a valid Warranty Certificate;

Any claims with regards to product liability shall be exercised by the consumer with the vendor where the product was purchased.

The right to repair can be exercised at the location where you purchased the product or at an authorized service centre; a list of the centres is included in the product package or you may find it on the website www.my-concept.com.

Notice for consumers

The consumer is obliged to keep the Warranty Certificate and cash voucher to demonstrate payment for the product. When exercising a claim on a product, it has to be cleaned and packed in order to prevent any damage during transport to an authorized centre. The manufacturer (or importer) reserves the right not to accept a product which is not cleaned duly. Additional cleaning of the product will be charged.

The manufacturer (or importer) reserves the right not to pay the cost of false claims and to require that the claiming party cover all the necessary costs related to the examination of the qualification and solution of the claim.

The right to free repair of the product, or refund, shall not be exercised in the following cases:

• The conditions of the installation, operation and handling of the product, mentioned in the Operating Manual, were not observed;
• The fault occurred due to mechanical, thermal or chemical damage, short circuit or overvoltage;
• The fault is due to the unauthorized intervention of a third party;
• The fault is due to force majeure;
• The fault is due to insufficient or undue maintenance in conflict with the Operating Manual, including faults caused by limescale and other sediments;
• Wear and tear of the product, or its part, caused by regular use;
• Change of the colour of heating surfaces, or scratched surfaces due to regular use;
• Changes of appearance and function due to sunshine, thermal radiation, or limescale and other sediments;
• Expired service life of some parts of the product, e.g. accumulators, bulbs etc.

The nature of the fault can be determined only by the manufacturer, importer, authorized centre, or authorized expert, not by the vendor or consumer.

The consumer shall have no claim to faulty spare parts replaced within a warranty repair.

In the case of termination of the purchase contract, the consumer is obliged to return the complete product, including the accessories and documents supplied.

There is no warranty related to promotional items supplied with the product, the price of which was not charged to the consumer.

The consumer has all the minimum rights under the applicable laws.

Note: Claims regarding products damaged during transport shall be governed by the complaint procedure of the freight forwarder.

Manufacturer:

Jindřich Valenta - ELKO Valenta, Vysokomýtská 1800, 565 01 Choceň, Czech Republic,

tel: [phone], fax: [phone], email: [e-mail], www.my-concept.com

Importer:

Jindřich Valenta - ELKO Valenta Czech Republic, Vysokomýtská 1800,

565 01 Choceň, Tel. [phone], Fax: [phone], www.my-concept.com

concept

CZ SEZNAM SERVISNÍCH MÍST

SK ZOZNAM SERVISNÝCH STREDISIEK

PL WYKAZ PUNKTÓW SERVISOVYCH

www.my-concept.com

concept

Česká republika

Jindřich Valenta – ELKO Valenta Czech Republic

Vysokomýtská 1800,565 01 Choceň

Tel. [phone], Fax: [phone]

www.my-concept.cz

ELKO Valenta – Slovakia, s.r.o.

Hurbanova 1563/23, 911 01 Trenčín

Tel.: [phone], Fax: [phone]

www.my-concept.sk

Elko Valenta Polska Sp. Z. o. o.
