Product Type	Microwave Oven with Grill
Brand	Infiniton
Model	MW-B25LS
Dimensions (H x W x D)	307 x 513 x 433 mm
Net Weight	15.94 kg
Capacity	25 L
Voltage	230 V ~ 50 Hz
Input Power (Microwave)	1450 W
Output Power (Microwave)	900 W
Grill Power	1000 W
Turntable Diameter	315 mm
Control Type	Two rotary knobs (power and timer)
Functions	Microwave, Grill, Combi 1/2/3, Defrost
Power Levels	Low (17%), Medium Low (30%), Medium (55%), Medium High (77%), High (100%)
Defrost	By weight (0.2-1.0 kg)
Safety Features	Child lock (supervision required for children), door interlock, auto shut-off
Cleaning	Wipe with damp cloth; lemon water steam cleaning for 10 min
Installation Clearances	Top: 30 cm, Sides: 20 cm, Rear: against wall, Min height: 85 cm
Door Type	Side-opening with safety interlock
EAN	8436546194033
Warranty	10 years spare parts availability

Frequently Asked Questions - MW-B25LS Infiniton

How do I clean the microwave cavity effectively?

For easy cleaning, place half a lemon in a bowl with 300 ml of water and heat at 100% power for 10 minutes. Then wipe the interior with a soft, dry cloth. Regularly clean the door frame and gasket with a damp cloth.

Can I use metal containers in this microwave?

No, metal containers, aluminum trays, and utensils with metal trim can cause arcing and damage the oven. Use only microwave-safe containers.

Why is my microwave not heating?

Ensure the door is closed tightly. If the problem persists, check if the fuse is blown or the circuit breaker tripped. If the power supply is fine, contact an authorized service center.

How does the defrost function work?

Turn the power knob to the defrost position (30% power). Then set the timer according to the weight of the food (0.2 to 1.0 kg). The microwave will automatically stop when the time is up.

What are the Combi cooking modes?

Combi modes combine microwave and grill: Combi 1 (80% grill, 20% microwave) for sausages, lamb; Combi 2 (70% grill, 30% microwave) for chicken pieces; Combi 3 (60% grill, 40% microwave) for whole chicken.

Can I use paper plates or plastic wrap?

Yes, but only microwave-safe paper plates for short-term heating, and plastic wrap should be microwave-safe and not touch the food. Avoid paper bags and plastic foam.

Why does steam build up on the door during cooking?

Steam from food can condense on the cooler door. This is normal. Most steam escapes through the vents, but some may accumulate. Wipe dry after use.

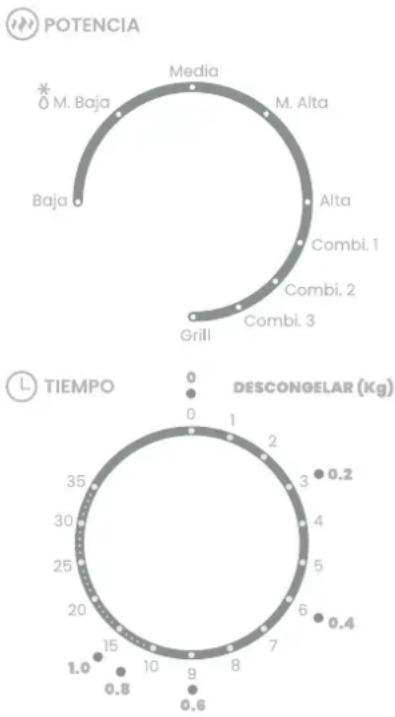

How do I set the cooking time and power?

Turn the power control knob to the desired level (e.g., High for reheating). Then turn the timer knob to the desired time. The microwave starts automatically. When time ends, it beeps and stops.

What should I do if the microwave stops working?

First, check if it's plugged in and the door is closed. If fuse/circuit breaker is fine, try another appliance. If still not working, call an authorized service. Do not attempt repairs yourself.

Is it safe to use if I have a pacemaker?

If your pacemaker complies with EC Directive 90/385/EEC and EN 45502-2-1/2-2, and you use non-metallic cookware, it is generally safe. Consult your doctor for confirmation.

USER MANUAL MW-B25LS Infiniton

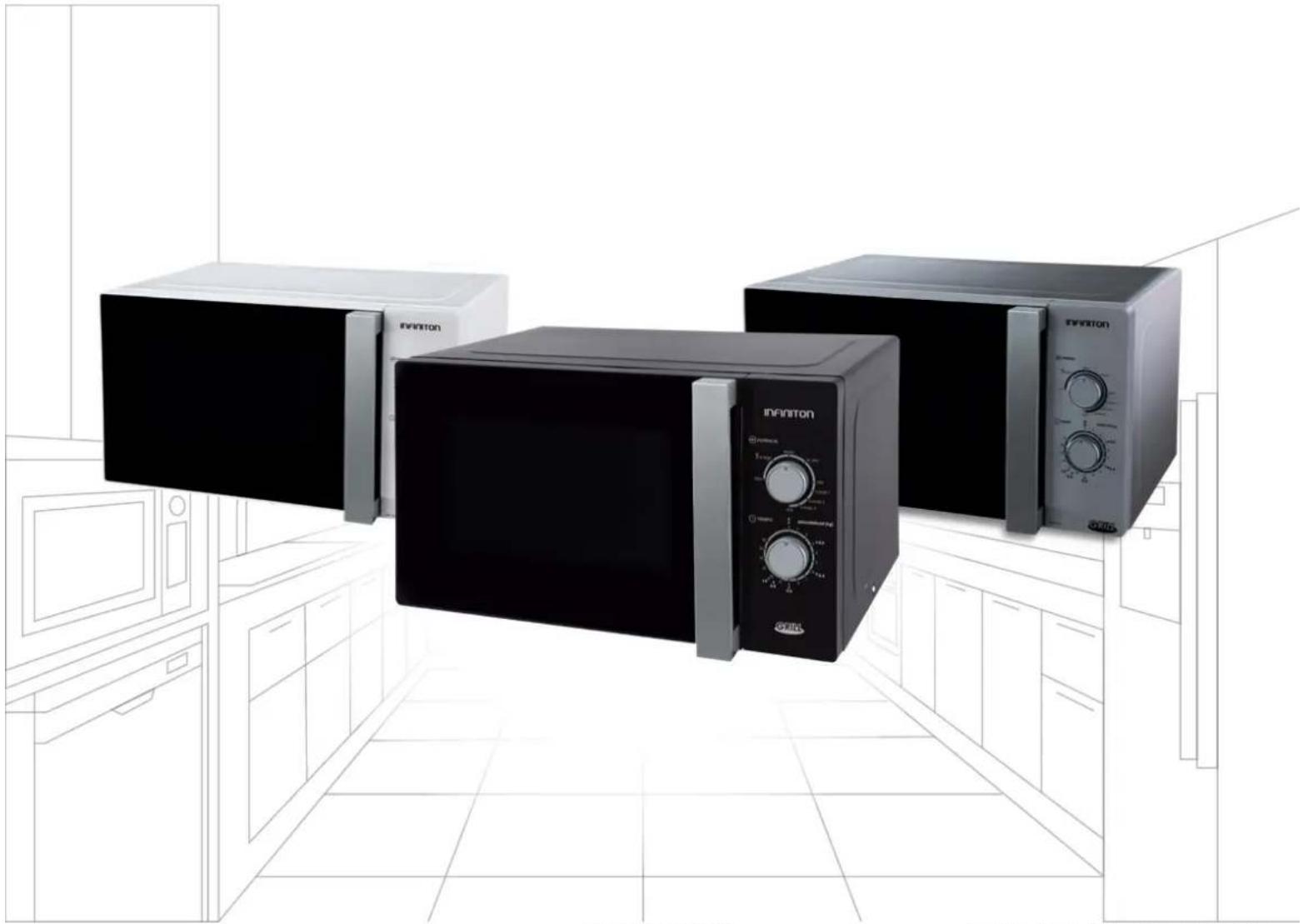

Illustration of three InNorton microwaves in a kitchen setting, no text or symbols present.

MW-B25LS

ean: 8436546194033

MW-2511CMW-1025M

ean: 8436546193272ean: 843

Índice

Español

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Illustration of three INFINTON microwaves in a kitchen setting, no text or symbols present

MW-B25LS

ean: 8436546194033

MW-2511CMW-1025M

ean: 8436546193272ean: 84;

Content	English
Safety instructions	19
Installation	24
Operation	25
Maintenance & cleaning	27
Troubleshooting	28

An oven is essential in our kitchen and we are not just talking about the physical space in our home, but also in our recipe book. An oven encourages creativity, healthier and more varied eating.

If we learn to really use it, our dishes will be tasty and nutritious and we will stop eating the same old food. It will bring the family back together around the table and, hey, there are few things as nice as eating together as a family.

An Infiniton oven offers so many benefits and we have a wide and varied range to help you find the one that really fits your new lifestyle.

Fun and easy recipes

If you're passionate about cooking and you're a foodie, you're in luck. All you need is imagination and good ingredients to make cooking at home a real pleasure. Cooking should not be demanding, but flexible and fun, not hours and hours with an apron. No more of that. Our ovens offer freedom and that means extra-smooth results in half the time.

Infiniton technology is at the service of your palate and your taste for healthy and versatile cooking.

From appetizers to open your mouth, to first and second courses, homemade desserts and healthy snacks and why not, dinners in the best company.

Cooking in record time so that you can spend that time doing what you love.

Everything tastes better in an Infiniton kitchen, that's why we put at your entire disposal our technology and design. And, of course, our wide range of ovens with different capacities and finishes. The ideal oven is waiting for you.

The key to moving to the good life is to embrace change. In essence, change makes life better and if health is in that equation the answer is always yes.

An oven allows you to plan your meals well, to always find something ready and available and, above all, to learn how to use the oven to cook your meals,

above all, you learn to use ingredients that suit your lifestyle, needs and pocket.

your wallet. An Infiniton oven means savings, no food waste.

Cooking should not be an obligation, it should be something that motivates us to eat better and lead a healthy lifestyle. Join the Infiniton challenge.

Remove all packing material and accessories. Examine the microwave for any damage, such as dents or a broken door. Do not install the microwave if it is damaged.

Cover: Remove any protective film from the surface of the microwave cover. Do not remove the light brown Mica cover that is attached to the oven cavity to protect the magnetron.

Read the contents of each section in the instruction manual for a detailed explanation of all the steps to be followed in order to

Read the contents of each section in the instruction manual for detailed instructions on how to operate your new microwave oven correctly.

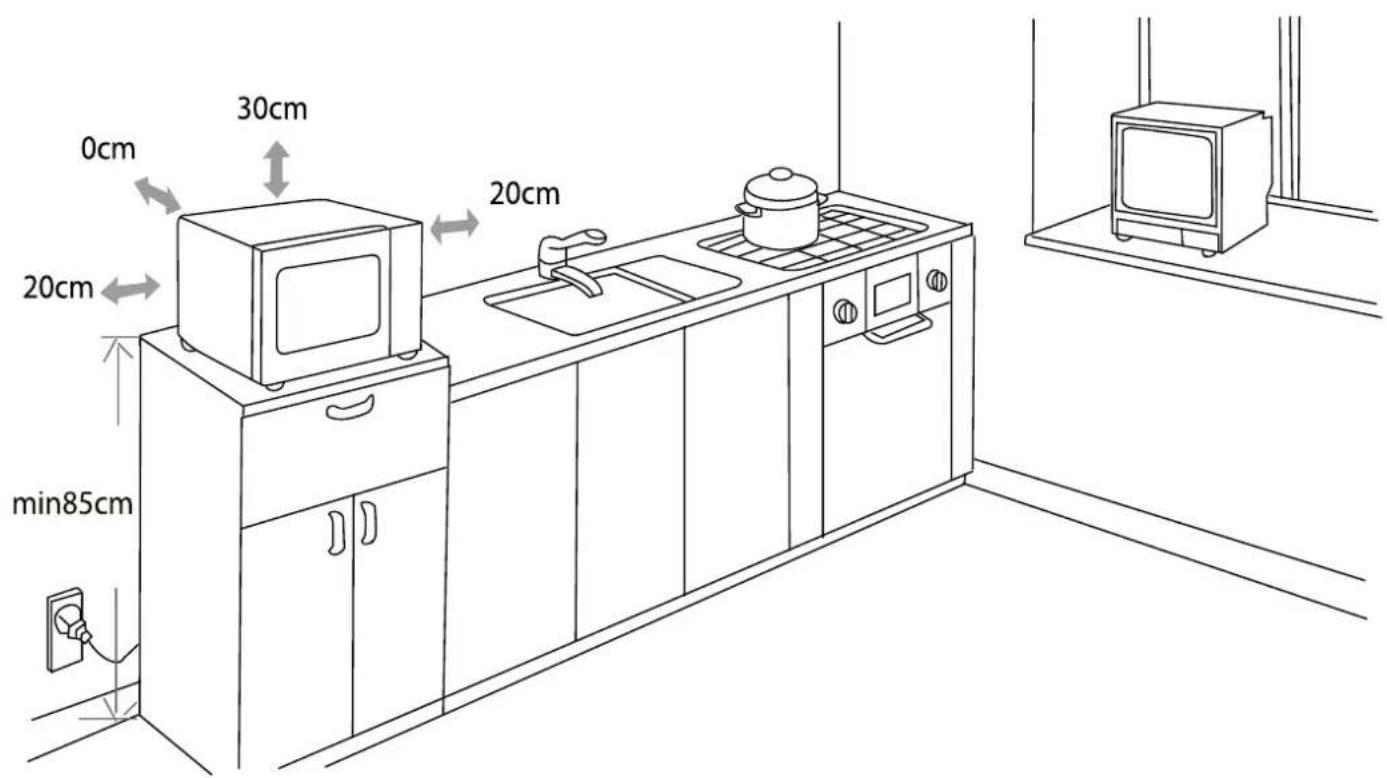

1. Select a level surface that provides sufficient open space for the inlet and/or outlet vents.

(1) The minimum installation height is 85 cm.
(2) The rear surface of the product must be placed against a wall. Allow a minimum clearance of 30 cm above the microwave, a minimum clearance of 20 cm is required between the oven and any adjacent wall.
(3) Do not remove the legs from the bottom of the microwave.
(4) Blocking the inlet and/or outlet openings may damage the microwave.
(5) Place the microwave as far away from radios and televisions as possible. Microwave operation may cause interference with your radio or television reception.

1. Plug the microwave into a standard household socket. Make sure that the voltage and frequency match those indicated on the rating label.

WARNING: Do not install the microwave on a hotplate or other heat-producing product. If installed near or over a heat source, the microwave may be damaged and the warranty will be void.

Surfaces may be hot during operation.

General security

For your safety and to ensure correct use, before installing and using the device for the first time, please read this user manual carefully, including its tips and warnings. To avoid unnecessary errors and accidents, it is important to ensure that all persons using the device are thoroughly familiar with its operation and safety features. Keep these instructions and ensure that they remain with the device if it is moved or sold, so that all those who use it throughout its lifetime are adequately informed about the use and safety of the device.

For the safety of life and property, observe the precautions in these user instructions, as the manufacturer is not liable for damage caused by omission.

Safety of children and vulnerable persons

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  • Children up to 8 years of age can charge and discharge this appliance.
• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are 8 years of age or older and supervised.
• Keep all containers away from children. There is a risk of suffocation.
• If you are discarding the appliance, pull the plug out of the socket, cut the power cord (as close to the appliance as possible) and remove the door to prevent children from getting an electric shock if it falls or closes.

Electrical connections

• Make sure that the power cord is not trapped by the appliance, as this could damage it.
• Connect the appliance to a grounded socket outlet protected by a fuse that complies with the values in the "Technical specifications" table.
• The installation of the earth connection must be carried out by a qualified electrician.
• Ensure that the machine is installed in accordance with local regulations.
• Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations..

WARNING!

Do not use multiple plugs or extension cords.

WARNING! The product must not have an external switching device, such as a timer or connected to a circuit that switches on and off regularly.

WARNING!

Do not disconnect the plug from the socket outlet if flammable gases are nearby.

WARNING!

Never pull out the plug with wet hands.

WARNING!

Always pull the plug, not the cable.

WARNING!

Always unplug the product when not in use.

If you have an active implanted medical device (e.g. pacemaker or defibrillator), check with your doctor that it complies with EC Council Directive 90/385/EEC of 20 June 1990 as well as EN 45502-2-1 and EN 45502-2-2 and that it has been selected, implanted and programmed in accordance with VDE-AR-E 2750-10.

If these requirements are met and both non-metallic cookware and containers with non-metallic handles are used, the use of this hotplate is harmless under normal conditions of use.

WARNING! Risk of electric shock

Disconnect the mains power supply before installing the hob. Failure to do so may result in death or electric shock. The electrical installation must be carried out by professional and qualified personnel.

- If the mains connection cable of this appliance is damaged, it must be replaced with a special connection cable which can be purchased either from the Service Centre or directly from the manufacturer.

- Do not cook on a cracked or broken cooktop. If the surface of the hob is broken or cracked, immediately switch off the appliance at the mains (wall switch) and contact a qualified technician.

- Failure to comply with this advice may result in electric shock or death.

- Installation and repair must always be carried out by the "AUTHORISED SERVICE". The manufacturer is not responsible for operations carried out by unauthorised persons.

- Read this instruction manual carefully. This is the only way to use the product safely and correctly.

- The oven must be used in accordance with the operating instructions.

- Accessible parts may become hot during use. Keep children away.

- WARNING: Fire hazard - do not place objects on the cooking surfaces.

- WARNING: The product becomes hot during use. Be careful not to touch the heating elements inside the oven.

- The setting conditions of this product are specified on the label (or on the rating plate).

- Accessible parts may be hot when the grill is in use. Keep small children away.

- WARNING: This product is designed for cooking. It must not be used for other purposes, such as heating.

- Do not use steam cleaners to clean the product.

- Make sure that the oven door is completely closed after putting food inside.

- NEVER try to put out the fire with water. Only turn off the product circuit and then cover the flame with a fire blanket or fire blanket.

- Avoid touching hot elements.

- CAUTION: Ensure that the cooking process is always supervised.

- This product may be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

- Children must not play with the product. Cleaning and maintenance must not be carried out by children without adult supervision.

• This product is intended for household use only.

- To avoid overheating, the product must not be installed behind a decorative cover.

- Turn off the product before removing the guards.

• After cleaning, install the guards according to the instructions.

- The cable fixing point must be protected.

- Do not cook food directly on the tray/grid. Place the food on the appropriate utensils before placing it in the oven.

WARNING: Liquids and other foods should not be heated in closed containers as they may explode.

- When heating food in plastic or paper containers, monitor the microwave for the possibility of ignition.

- Use only utensils suitable for use in microwave ovens.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed to smother any flames.

- Heating beverages in the microwave may delay boiling, so care should be taken when handling the container.

- The contents of bottles and jars should be stirred or shaken and the temperature should be checked before consumption to avoid burns.

- Eggs in the shell and whole hard-boiled eggs should not be microwaved as they may explode, even after microwave heating has been completed.

- The oven should be cleaned regularly and food deposits should be removed.

- Failure to maintain the oven in a clean condition could result in surface deterioration which could adversely affect the life of the appliance and possibly lead to a hazardous situation.

- The appliance must not be installed behind a decorative door to prevent overheating (This does not apply to appliances with a decorative door).

- Only use the temperature probe recommended for this oven (for ovens equipped with the possibility of using a temperature probe).

- The microwave oven must not be placed in a cupboard unless it has been tested in a cupboard.

- This appliance is designed for use in domestic and similar applications such as:

- staff kitchen areas in shops, offices and other work environments;

- by guests in hotels, motels and other residential type environments;

- cottages;

- bed and breakfast rooms.

- The microwave oven is designed to heat food and beverages. Drying of food or clothing and heating of heating pads, slippers, sponges, wet cloths and the like may cause risk of injury, ignition or fire.

- The use of metal food and beverage containers is not permitted during microwave cooking.

- The appliance must not be cleaned with a steam cleaner.

- The appliance is intended to be used as a stand-alone appliance.

- The rear surface of the appliance must be placed against a wall.

- The appliances are not designed to be operated by an external timer or a separate remote control system.

- The temperature of accessible surfaces may rise when the appliance is in operation.

WARNING: When the appliance is operated in combination mode, children should only use the oven under adult supervision due to the temperatures generated.

WARNING! Risk of injury

Pans can suddenly jump upwards due to the presence of liquid between the base of the pan and the cooking zone.

Always keep the cooking zone and the base of the pan dry.

Never place frozen containers on the cooking zone.

When cooking in a bain-marie, the glass and the cooking vessel may shatter due to overheating.

The bain-marie container must not directly touch the base of the pan containing water.

Use only heat-resistant cooking vessels.

An appliance with a broken or torn surface can cause injuries and cuts.

Do not use the appliance if it has a broken or torn surface.

WARNING! Risk of suffocation

• Children can put the packaging material over their heads or get caught in it and suffocate.
- Keep the packaging material out of the reach of children.
- Do not allow children to play with the packaging.
- If children find small parts, they may inhale or swallow them and suffocate.
- Keep small parts out of the reach of children.
- Do not allow children to play with small parts.
•
- Intended use
- This product is intended for household use. Commercial use of the product is not permitted.
- This product may only be used for cooking. It must not be used for other purposes, such as heating a room.
- This product must not be used to heat dishes under the grill, to dry clothes or towels by hanging them from the handle or for heating.
- The manufacturer assumes no responsibility for damage due to misuse or mishandling.
- The oven part can be used for defrosting, grilling, frying and roasting food.
- The service life of the product you have purchased is 10 years. This is the period during which the manufacturer supplies the spare parts necessary for the operation of this product as defined.

- Do not repair or replace any part of the appliance unless specifically recommended in the manual.

- Any other repairs must be carried out by a qualified technician.

- Do not place or drop heavy objects on your cooktop.

• Do not stand on your hob.

- Do not use pans with jagged edges or drag pans across the surface.

- Do not use scouring pads or other abrasive cleaning agents to clean the hob as they may scratch the hob surface.

- This appliance is intended for use in domestic and similar applications such as: -staff cooking areas in shops, offices and other work environments; -cottages; -by customers in hotels, motels and other residential type environments; -bed and breakfast type environments.

- Translated with www.DeepL.com/Translator (free version)

Service

- Any electrical work required to service the appliance must be carried out by a qualified electrician or competent person.

- This product must be serviced by an authorised Service Centre, and only original spare parts must be used.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

This symbol on the product or on its packaging indicates that this product must not be treated as household waste. Instead, it must be taken to the appropriate collection point for the recycling of electrical and electronic equipment.

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

For more detailed information about recycling of this product, please contact your local authorities, your household waste disposal service or the shop where you purchased the product.

Packing materials

Materials with the symbol 🙏 are recyclable. Dispose of the packaging in a suitable collection container for recycling.

Disposal of the device

1. Disconnect the plug from the socket.

2. Cut the power cord and discard it.

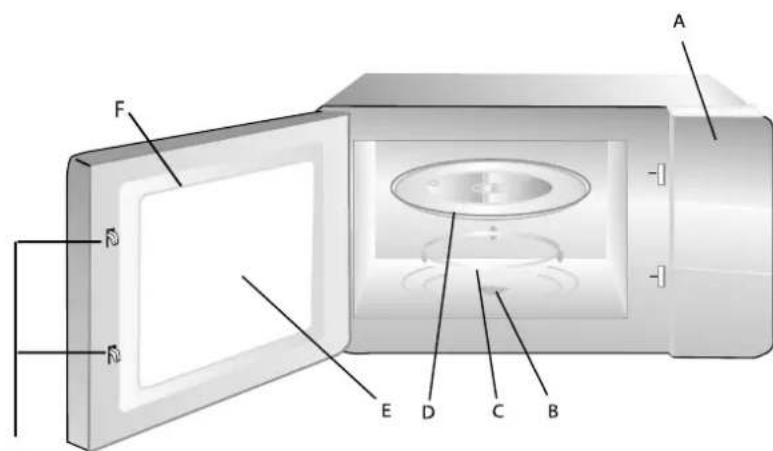

Product parts

G

A Control panel

B Rotating shaft

C Rotating ring assembly

D Glass tray

E Observation window

F Door assembly

G Safety locking system

GRILL (Exclusively for microwave oven series with grill) The microwave stops if the door is opened during operation.

Features

Product dimensions 513x433x307mm
Net weight (kg) 15.94Kg
Capacity (L) 25
Voltage 230V~50Hz
Input power (Microwave) 1450W
Power output (Microwave) 900W
GRILL Power 1000W
Plate diameter 315mm

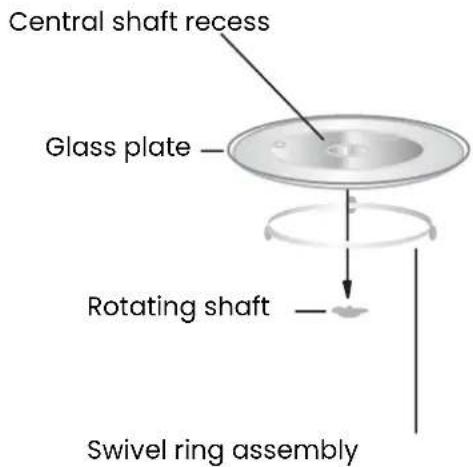

Installing the turntable

Never place the glass tray upside down.

The glass tray must always be in motion.

The glass tray and the rotating ring assembly must always be used for cooking.

All food and its containers must always be placed on the glass tray for cooking.

If the glass tray or the rotating ring assembly is broken or cracked, contact the nearest authorised service centre.

Control panel

The control panel shown below is for guidance only.

Please note what the control panel looks like on your device.

1. To adjust the cooking power, turn the power control knob to the desired level.
2. To set the cooking time, turn the timer knob to the desired time according to your food cooking guide.
3. The microwave oven will automatically start cooking once the power levels and time have been set.
4. Once the cooking time has elapsed, the unit will beep 'Dong' to stop.
5. If the unit is not in use, always set the time to '0'.

Function Power	% Appliance
BAJA 17% microondas	Maintaining the temperature of food, softening ice cream
M. BAJA DEFROST	30% microondas Defrosting
MED 55% microondas	Cooking creamy cakes, browning foods
M. ALTA 77% microondas	Rice, fish and seafood, biscuits, meat
ALTA 100% microondas	Reheating, boiling water, cooking fresh vegetables, chicken, duck, heating non-dairy beverages
COMBI 1 80%Grill	20%Micro. Sausage	Lamb, Skewers, Seafood, Steak
COMBI 2 70%Grill	30%Micro. Chicken pieces, Chicken breasts, Pork chops
COMBI 3 60%Grill	40%Micro. Whole chicken
GRILL	100%Grill	Baked bread, Slices

Important

Warning: When removing food from the microwave, make sure that the power to the microwave is turned off by setting the clock switch to the 0 (zero) position. Failure to do so, and operating the microwave without food in it, may result in overheating and damage to the magnetron.

Materials that can be used in the microwave

Utensils	Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacture r's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers	Microwave-safe only (meat and candy thermometers).
Wax paper	Use as a cover to prevent splattering and retain moisture.

Materials that may NOT be used in the microwave oven

Utensils	Remarks
Aluminum tray	May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties	May cause arcing and could cause a fire in the oven.
Paper bags	May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

Be sure to unplug the appliance from the mains.

1. Clean the oven cavity after use with a slightly damp cloth.
2. Clean the accessories in the usual way with soapy water.
3. The door frame and gasket and neighbouring parts should be carefully cleaned with a damp cloth when dirty.
4. Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass, as they may scratch the surface, which may cause the glass to break.

Cleaning Tip

To make it easier to clean the walls of the cavity that cooked food can touch:

Place half a lemon in a bowl, add 300ml of water and heat at 100% power in the microwave for 10 minutes.

microwave for 10 minutes. Wipe the oven with a soft, dry cloth.

Utensils

Refer to the instructions on "Materials that can be used in the microwave oven or should be avoided in the microwave oven". There may be certain non-metallic utensils that are not safe to use in the microwave oven. If in doubt, you can test the utensil in question by following the procedure below.

Utensil test:

1. Fill a microwave-safe container with 1 cup of cold water (250 ml) along with the utensil in question.
2. Cook at maximum power for 1 minute.
3. Touch the utensil carefully. If the utensil is hot, do not use it for microwave cooking.
4. Do not exceed the cooking time of 1 minute.

Risk of personal injury

It is dangerous for any person other than a specialist to perform any maintenance or repair operation involving the removal of a cover that protects from exposure to microwave energy.

You can solve the problems you may encounter with your product by checking the following points before calling for service.

PROBLEM POSSIBLE CAUSE SOLUTION
Microwave does not turn on	The mains cable is not properly plugged inFuse blown or circuit breaker trippedProblem with the power supply	Unplug it. Plug it in again after 10 seconds.Replace the fuse or reset the circuit breaker only (repair by our professional staff).Test the power supply with other appliances.
Microwave does not heat The door is not properly closed.		Close the door tightly.

The following situations listed below are not manufacturing defects and are treated as normal phenomena:

Microwave interferes with TV reception.

Radio and TV broadcasts may be interfered with when the microwave oven is in operation. This is similar to interference from small household appliances such as blenders, hoovers and fans.

Interior light is dim

When cooking on low power, the oven light may dim. It is normal

Steam builds up in the door. Hot air comes out of the vents

When cooking, steam may escape from the food. Most of it escapes from the air vents, but some may accumulate in a cooler place such as the oven door. This is normal.

The microwave is accidentally switched on without food in it.

There is no damage to the oven if it runs empty for a short period of time. However, it should be avoided.

INFINITON

MICRO-ONDAS

Illustration of three EFTA micrometers in a kitchen setting, no text or symbols present

MW-B25LS

ean: 8436546194033

MW-2511CMW-1025M

ean: 8436546193272ean: 8436

Conteúdo

Portuguese

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

¿Necesitas ayuda?

Silhouette of a person wearing a headset with a wrench icon (no text or symbols)

INFINITON

TÉRMINOS Y REGISTRO DE GARANTÍA
