Product Type	Electric Lawn Mower
Brand	Snow Joe
Model	MJ404E-360
Power Source	Electric Corded (120V)
Motor Power	10 A
Cutting Width	14 in (35.6 cm)
Cutting Height Range	1 - 3 in (2.5 - 7.6 cm)
Height Adjustment	Single lever, 5 positions
Grass Collection Bag	10 gal (37.9 L) capacity
Mulching Capability	Yes (mulch plug included)
Side Discharge	Optional (chute sold separately)
Weight	25 lb (11.3 kg)
Overall Dimensions (LxWxH)	30 x 14 x 15 in (76.2 x 35.6 x 38.1 cm)
Power Cord Length	50 ft (15.2 m)
Safety Features	Blade brake, safety switch, handle lock
Blade Type	Steel, replaceable
Wheel Material	Plastic, semi-pneumatic
Maintenance	Clean deck after use; sharpen blade annually; lubricate wheels
Repairability	Replaceable blade, motor brushes, and wheels
Warranty	2 years limited

Frequently Asked Questions - MJ404E-360 Snow Joe

How do I assemble the MJ404E-360 lawn mower?

Assembly typically involves attaching the handle with the included bolts and knobs, installing the grass bag, and connecting the power cord. Refer to the manual for step-by-step instructions. Ensure all parts are tightened before use.

How do I adjust the cutting height?

Use the single lever on the rear of the mower to adjust the cutting height. There are 5 positions ranging from 1 to 3 inches. Move the lever to the desired setting on both rear wheels for even adjustment.

Can I use an extension cord with this mower?

Yes, but only use a grounded extension cord rated for outdoor use with a minimum of 14 AWG wire gauge and a maximum length of 100 ft. Ensure the cord is in good condition and does not exceed the rated capacity.

How do I empty the grass collection bag?

Turn off the mower and disconnect the power cord. Lift the bag handle and pull the bag away from the mower. Open the flap to empty the clippings. Reattach securely before mowing again.

What should I do if the mower vibrates excessively?

Excessive vibration may indicate a loose or damaged blade. Disconnect power, check the blade for balance and tightness. Replace if bent or worn. Also check for debris stuck in the blade assembly.

How often should I sharpen the blade?

Sharpen the blade at least once per season or after every 25 hours of use. A dull blade tears grass, leading to brown tips. Remove the blade, sharpen with a file or grinder, and balance it before reinstallation.

Can the mower mulch leaves?

Yes, the mower can mulch leaves if the mulching plug is installed. The plug blocks the discharge chute, recirculating clippings for fine mulching. It works best with dry leaves and moderate mowing speeds.

How do I store the mower during winter?

Clean the mower thoroughly, remove the battery (if any) and store it indoors. Drain any fuel (if applicable) but for electric mowers simply coil the cord. Store in a dry, protected area. Lubricate moving parts.

What should I do if the motor does not start?

Check that the power cord is securely connected to the mower and a working outlet. Ensure the safety switch (blade brake handle) is engaged. Inspect the cord for damage. If it still won't start, contact Snow Joe customer service.

Is the blade replaceable?

Yes, the blade is replaceable. Order a replacement blade (model number SB-401) from Snow Joe. To replace, disconnect power, tilt the mower, remove the blade bolt, and replace with a new blade. Torque the bolt to 30 ft-lb.

USER MANUAL MJ404E-360 Snow Joe

All Operators Must Read These Instructions Before Use

Always follow these safety guidelines. Failure to do so may result in serious bodily injury or death.

General Safety WARNINGS!

When using this electric lawn mower, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury. These precautions include:

⚠ WARNING! Do not operate without the entire grass collection bag, discharge guard, rear flap, or other safety protective devices in place and in proper working order.

⚠ WARNING! The use of any other accessory or attachment might increase the risk of injury.

⚠ WARNING! To reduce the risk of injury, inspect the grass collection bag frequently and replace with recommended replacement if there are signs of wear or deterioration.

Before using the lawn mower, take the time to familiarize yourself with the controls, especially how to stop the lawn mower in an emergency. The only individuals who should use the lawn mower are those who have a thorough understanding of the instructions and who know how to operate the machine. Children should never be allowed access to the lawn mower.

Retain this manual for future reference and reread it at the start of each mowing season.

FOR DOUBLE-INSULATED LAWN MOWERS

1. Replacement parts – When servicing this unit, use only identical replacement parts. Replace or repair damaged cords immediately.
2. Polarized plug - Polarized appliance connections reduce the risk of electric shock. This lawn mower has a polarized plug (one blade is wider than the other) and will require the use of a polarized extension cord. There is only one way the lawn mower's plug will fit into a polarized extension cord. If the plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a

correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. There is only one way the plug will fit into a polarized wall outlet. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not change the equipment plug, extension cord receptacle, or extension cord plug in any way.

⚠ WARNING! Contact with moving parts may cause entanglement, dismemberment, or other serious bodily injury. Always keep body parts (i.e. hands, feet) a safe distance away from moving parts. Ensure all covers and guards are securely in place before use.

Hot surfaces (i.e. the motor) may ignite flammable or combustible items and cause a fire or explosion, which can result in serious bodily injury. Keep the lawn mower a safe distance away from flammable or combustible items until surfaces that are hot have completely cooled. Do not store the lawn mower near flammable or combustible items.

A damaged blade or worn blade nut may break off the lawn mower assembly and cause serious injury. Replace the damaged blade or blade nut before using the lawn mower.

FOR ALL LAWN MOWERS

1. Avoid dangerous conditions – Do not use the lawn mower in the rain or when the grass is damp or wet.
2. Keep children, bystanders, and pets away – Always keep children and spectators a safe distance away from the lawn mower during operation and as the machine cools.
3. Dress properly – Always wear personal safety gear (i.e. glasses, rubber gloves, protective footwear, and dust masks) and proper clothing when using the lawn mower. Loose clothing, long hair, or jewelry may get caught in the moving parts. Wear a protective covering to contain long hair.
4. Use the right appliance – Do not use the lawn mower for any applications other than those for which it was intended.
5. Do not force the lawn mower – It will perform better with less likelihood of personal or mechanical injury if it is used at the rate for which it was designed.
6. Do not overreach – Keep proper footing and balance at all times.
7. Stay alert – Always be alert and watch what you are doing. Use common sense. Do not operate the lawn

SAVE THESE INSTRUCTIONS

mower when you are tired or under the influence of alcohol or drugs.

1. Disconnect the lawn mower – Disconnect the lawn mower from the power supply when it is not in use, before servicing, when changing accessories, and when performing any other maintenance task.
2. Store idle lawn mower indoors – When not in use, the lawn mower should be stored indoors in a dry, locked place out of the reach of children.
3. Maintain the lawn mower with care – Keep cutting edges sharp and clean for best and safest performance.

Inspect the lawn mower cord periodically and if damage is found have it repaired by an authorized service facility. Extension cords should also be inspected periodically and immediately replaced if damaged. Keep handles dry, clean, and free from oil and grease.

1. Use personal protective equipment. Always wear eye protection – Protective equipment such as safety glasses, a dusk mask, non-skid safety shoes, a hard hat, and hearing protection, when used for appropriate conditions, will reduce the possibility of personal injuries.
2. Avoid unintentional starting – Ensure the switch is in the OFF position before connecting the power cord, or before picking up or carrying the tool. Carrying power tools with your finger on the switch or charging power tools with the switch ON can lead to accidents.
3. Remove any adjusting key or wrench before starting the power tool – A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
4. Keep cutting blades sharp and clean – Properly maintained cutting blades with sharp edges are less likely to bind and are easier to control.
5. Keep all parts of the body away from the cutting blade – Do not remove cut material or hold material to be cut when blade is moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the product may result in serious personal injury.
6. If the lawn mower strikes a foreign object, follow these steps:

i) Stop the lawn mower by releasing the On/Off switch lever.
ii) Disconnect the power cord.
iii) Inspect for damage.
iv) Repair any damage before restarting and operating the lawn mower.

1. Only use identical replacement blades and other genuine parts.
2. Keep guards in place and in proper working order.

Electrical Safety

1. Ground fault circuit interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s) to be used for the lawn mower. Receptacles are available having built-in GFCI protection and may be used for this measure of safety.
2. To reduce the risk of electric shock, this appliance has a polarized plug (i.e. one blade is wider than the other). Use this appliance only with a polarized, UL-listed (CSA certified in Canada) extension cord recommended for outdoor use. The appliance plug will fit into a polarized extension cord only one way.

If the appliance plug does not fit fully into the extension cord, reverse the plug. If the plug still does not fit, obtain a correct polarized extension cord. A polarized extension cord will require the use of a polarized wall outlet. The extension cord plug will fit into the polarized wall outlet only one way. If the plug does not fit fully into the wall outlet, reverse the plug. If the plug still does not fit, contact a qualified electrician to install the proper wall outlet. Do not modify the appliance plug, extension cord receptacle, or extension cord plug in any way.

1. To prevent electric shock, use only with an extension cord suitable for outdoor use, such as SW, SOW, STW, STOW, SJTW, or SJTOW.

Before use, check that the extension cord is in good condition. When using an extension cord, make sure to use one heavy enough to carry the current your product will draw. For lengths less than 50 feet, a No. 14 AWG extension cord should be used. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.

WARNING

Electric shock may cause SEVERE INJURY or DEATH. Heed these warnings:

• Do not allow any part of the lawn mower to make contact with water while it is in operation. If the appliance becomes wet while turned off, wipe dry before starting.
• Use only a UL-, CSA-, or ETL-rated extension cord for outdoor, all-weather use, such as the Snow Joe® + Sun Joe® SJTW-A 14-gauge 50-foot extension cord with lighted end (Model PJEXT50-B). Visit snowjoe.com to purchase this extension cord online or, to order by phone, call 1-866-SNOWJOE (1-866-766-9563).
• Do not use an extension cord over 100 ft (30 m).
• Do not touch the appliance or its plug with wet hands or while standing in water. Wearing rubber boots offers some protection.

EXTENSION CORD CHART

Extension Cord Length	Up to 50 ft (15 m)	+50 ft - 100 ft (+15 m - 30 m)
Wire Gauge (A.W.G.):	14 12

1. To prevent the appliance cord from disconnecting from the extension cord during operation, make a knot with the two cords as shown in Table 1.

Table 1. Method of Securing Extension Cord

(A) Tie cord as shown

Simple line drawing of a resistor connected in series with a loop (no text or symbols)

(B) Connect plug and receptacle

1. Do not abuse the cord. Never pull the lawn mower by the cord or yank the cord to disconnect it from the receptacle. Keep the cord away from heat, oil, and sharp edges.

Double-Insulated Appliances

In a double-insulated appliance, two systems of insulation are provided instead of grounding. No grounding means are provided on a double-insulated appliance, nor should a means for grounding be added to the appliance. Servicing a double-insulated appliance requires extreme care and knowledge of the system, and should be performed only by qualified service personnel at an authorized Snow Joe ^® + Sun Joe ^® dealer. Replacement parts for a double-insulated appliance must be identical to the parts they replace. A double-insulated appliance is marked with the words “Double Insulation” or “Double Insulated.” The symbol □square within a square may also be marked on the appliance.

BLE-INSULATED: GROUNDING NOT REQUIRED. WHEN SERVICING, USE ONLY IDENTICAL REPLACEMENT PARTS.

This electric lawn mower is double-insulated, eliminating the need for a separate grounding system. Use only identical replacement parts. Read the instructions before servicing double-insulated appliances. Use this lawn mower only as described in this manual.

IMPORTANT!

Safety Instructions for Walk-Behind Mowers

General Operation

• Read, understand, and follow all instructions on the machine and in the manual(s) before starting.
• Do not put hands or feet near or under the machine. Always stay clear of the discharge opening.
• Keep guards in place and in proper working order.

- Only responsible adults who are familiar with the instructions should be allowed to operate this machine.

- Clear the mowing area of foreign objects such as rocks, wire, toys, and other miscellaneous articles, which could be picked up and thrown by the blade. Stay behind the handle when the engine (motor) is running.

- Make sure that the mowing area is clear of bystanders before starting the machine. Stop the machine if anyone enters the area.

- Do not operate the machine while barefoot or while wearing sandals. Always wear substantial footwear.

- Always look down and behind before and while moving backward with the lawn mower.

- Never direct discharged material toward anyone. Avoid discharging material against a wall or other obstruction.

- Never leave a running machine unattended.

- Stop the engine (motor) and wait until the blade comes to a complete stop before cleaning the machine, removing the grass collection bag, changing accessories, or unclogging the discharge guard.

- Operate the machine only in daylight or in good artificial light.

- Do not operate the machine when you are tired or under the influence of alcohol or drugs.

- Never operate the lawn mower in wet grass. Always be sure of your footing; walk, never run, with the lawn mower.

- If the machine should start to vibrate abnormally, stop the engine (motor) and immediately check the machine to ascertain the cause. Vibration is generally a signal of trouble.

- Keep blades sharp.

- Keep hands and feet away from the cutting area.

• Always wear eye protection when operating the machine.

- Objects struck by the lawn mower blade can cause severe injuries. The mowing area should always be carefully examined and cleared of all objects prior to each mowing.

- Only use identical replacement blades.

Slope Operation

Slopes are major factors related to slip and fall accidents, which can result in severe injury. Operation on all slopes requires extra caution. If you feel uneasy on a slope, do not mow it.

• Mow across the face of slopes; never mow slopes following an up and down traverse. Exercise extreme caution when changing direction on a slope.
• Watch for holes, ruts, bumps, rocks, or other hidden objects. These may cause an unexpected slip or fall.
• Do not mow on wet grass or excessively steep slopes. Poor footing could cause a slip and fall accident.
• Do not mow near drop offs, ditches, or embankments. You could lose your footing or balance.

Children

Tragic accidents can occur if the operator is not alert to the presence of children. Children are often attracted to the machine and the mowing activity. Never assume that children will remain where you last saw them.

• Keep children out of the mowing area and under the watchful care of a responsible adult other than the operator.
• Stay alert and turn the lawn mower off if a child enters the area.
• Never let children operate the machine.
• Use extra care when approaching blind corners, shrubs, trees, or other objects that may block your view of a child.

Service

• Keep all nuts and bolts tight.
• Never tamper with safety devices. Regularly check to ensure these devices are in place and in proper working order.
• Keep the lawn mower free from grass, leaves, or other debris buildup.
• Never make any adjustments or repairs with the engine (motor) running. Always unplug electric lawn mowers before adjusting, cleaning, or repairing.
• Check the grass collection bag components and the discharge guard frequently and replace with manufacturer's recommended parts when necessary.
• Mower blades are sharp. Wrap the blade or wear gloves, and use extra caution when servicing them.
• Maintain or replace safety and instruction labels, as necessary.

Safety Symbols

The following table depicts and describes safety symbols that may appear on this product. Read, understand, and follow all instructions on the machine before attempting to assemble and operate.

Symbols SymbolsDescriptions Descriptions
	DANGER! Rotating blades. Keep hands and feet away.		Keep bystanders and children a safe distance away.
	Safety Alert. Caution.To reduce the risk of injury, user must read instruction manual.		Wear eye and hearing protection. For protection against injury, wear ear defenders and safety goggles.
	WARNING! Do not expose or operate the unit in rain or wet conditions. Keep dry.		Wear protective gloves and non-slip footwear when using the machine and handling debris.
	Slip on slope hazard - Use extra caution when mowing on slopes to prevent slip and fall accidents.		Severing of toes or fingers by rotary mower blade.
	Thrown objects and rotating blade can cause severe injury.		Keep bystanders a safe distance away from the work area.
	Blades continue to rotate after machine is switched off.		Disconnect the mains plug if the cord is damaged or entangled.
	Keep extension cord away from cutting blades.		Look behind when backing up with the lawn mower.

Know Your Electric Lawn Mower

Read the owner's manual and safety instructions carefully before operating the lawn mower. Compare the illustration below to the lawn mower in order to become familiar with the location of the various controls and adjustments. Save this manual for future reference.

1. Soft grip
2. On/Off switch lever
3. Extension cord restraint holder
4. Safety lock button
5. Switch box
6. Cable clip
7. Upper handle
8. Upper handle knob and bolt (2)
9. Appliance cord
10. Grass indicator window
11. Grass collection bag
12. Lower handle knob and bolt (2)
13. Rear wheel (2)

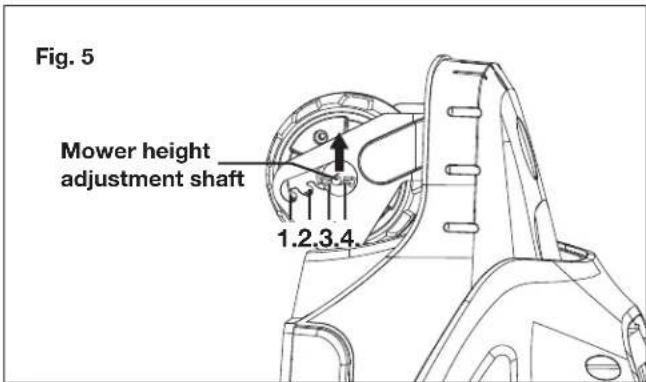

14. Mower height adjustment shaft (front)
15. Front wheel
16. Motor housing
17. Handle
18. Mower height adjustment lever (back)
19. Handle adjustment gear (2)
20. Ejector flap
21. Grass collection bag handle
22. Lower handle

Technical Data

Rated Voltage 120 V \~ 60 Hz

Power 12 A

No Load Speed 3100 ± 10% rpm

Rotor 14.2 in. (36 cm) steel blade

Cutting Width 14.2 in. (36 cm)

Cutting Height 1.2 in. to 2.4 in.

(30 mm to 60 mm)

Grass Collection Bag Capacity 9.2 gal (35 l)

Deck Width 15.7 in. (40 cm)

Weight 24.3 lbs (11 kg)

Unpacking

Carton Contents

• Electric lawn mower with lower handle
- Upper handle
• Upper handle knobs and bolts (2)
- Grass collection bag
- Grass collection bag handle
- Spanner wrench
- Manual and registration card

1. Carefully remove the lawn mower and check to see that all of the above items are supplied.

2. Inspect the product carefully to make sure no breakage or damage occurred during shipping. If you find damaged or missing parts, DO NOT return the unit to the store. Please call the Snow Joe ^® + Sun Joe ^® customer service department at 1-866-SNOWJOE (1-866-766-9563).

NOTE: Do not discard the shipping carton and packaging material until you are ready to use your new electric lawn mower. The packaging is made of recyclable materials. Properly dispose of these materials in accordance with local regulations.

IMPORTANT! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils, or small parts. These items can be swallowed and pose a suffocation risk!

Assembly

⚠ WARNING! Do not connect to the power supply until assembly is complete. Failure to comply could result in accidental starting and serious personal injury.

⚠ WARNING! Before performing any maintenance, make sure the tool is unplugged from the power supply. Failure to heed this warning could result in serious personal injury.

⚠ WARNING! The product must be fully assembled before operation. Do not use a product that is only partially assembled or assembled with damaged parts.

NOTE: Before using the lawn mower, follow these instructions to assemble the handle and the grass collection bag.

Handle Assembly

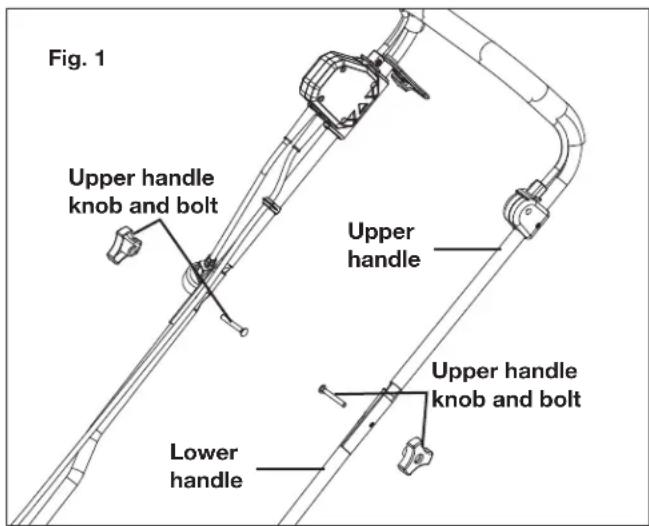

1. Place the upper handle over the upper ends of the lower handle. Align the holes. Use the two sets of upper handle knobs and bolts to secure (Fig. 1).

1. Clip the cable in the cable clips that are preassembled on the handle.

Grass Collection Bag Assembly + Fitting

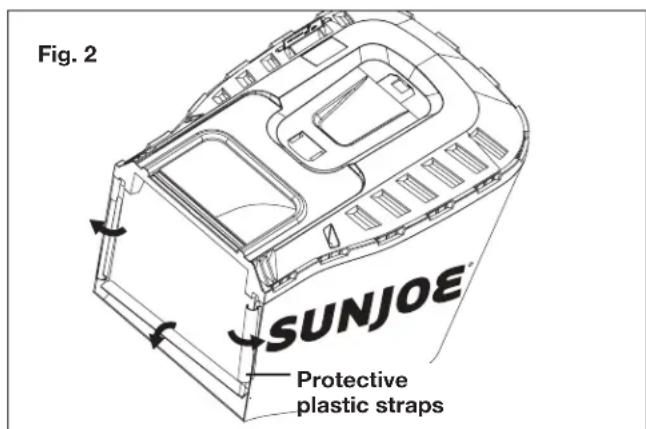

1. Clip the protective plastic straps onto the support rod of the grass collection bag (Fig. 2).

1. Insert the grass collection bag handle into the holes on the top of grass collection bag until it clicks in (Fig. 3).

1. Lift the ejector flap with one hand. With the other hand, hold the grass collection bag by the handle and hook it in from above (Fig. 4).

Operation

This lawn mower is intended for private residential use to cut grass in small lawns and gardens. This lawn mower is not intended to cut grass in public parks, playing fields, farms, or forests. Do not use this lawn mower for any application other than that for which it is intended.

Adjusting the Cutting Height

This electric lawn mower is equipped with a 4-position height adjustment system to tailor grass cutting heights from 1.2 in. to 2.4 in. (30 mm to 60 mm). To change the cutting height of the grass, follow the instructions below.

⚠ WARNING! Before making these adjustments, disconnect the power supply to the lawn mower and wait until the rotating blade has come to a complete standstill. Wearing gloves is recommended due to the close proximity of the cutting blade.

ALWAYS FOLLOW ALL SAFETY PRECAUTIONS AND RECOMMENDATIONS LISTED PREVIOUSLY IN THIS MANUAL.

1. Power off and unplug the lawn mower.
2. To adjust the cutting height in front, place the lawn mower on its side. Pull the mower height adjustment shaft to the outside of the original slot (Fig. 5).

1. Insert the shaft into the desired slot. Place the lawn mower back on to its wheels.

4-Position Height Adjustment:

(1) 1.2 in. (30 mm)
(2) 1.6 in. (41 mm)
(3) 2.0 in. (52 mm)
(4) 2.4 in. (63 mm)

1. To adjust the cutting height in back, Pull the mower height adjustment lever to the outside of the original slot (Fig. 6).

1. Insert the lever into the slot that matches the front height slot that the mower adjustment shaft is in.
2. Reconnect the power supply to the lawn mower and resume normal use.

⚠ WARNING! Make sure that the mower is set in the same height on the front wheel and the rear wheel to avoid uneven cut.

Adjusting the Handle

This lawn mower is equipped with an adjustable handle that can be set into multiple angle between 0^irc and 180^irc . The mostly used handle positions are marked below (Fig. 7):

To adjust the handle angle, follow the instruction below:

1. Power off and unplug the lawn mower.
2. Loosen the lower handle knobs on both sides, and rotate the handle assemble to your desired angle (Fig. 7).

NOTE: There's an indicator system located next to each of the two gears that helps to quick-set the handle. The indicator system marked the storage position, the hanging position, a high position and a low position. To quick-set the handle, align one of the arrows on the gear to the desired position indicator (Fig. 8).

1. Make sure that the gears of the handle angle adjustment system are snapped in, and then tighten the lower handle knobs (Fig. 8).

Starting + Stopping

Do not switch on the lawn mower until it has been completely assembled. Before switching on the unit, always check the appliance cord and the extension cord for signs of damage. Use only intact cords.

⚠ WARNING! Damaged cords pose a severe risk of injury. Replace damaged cords immediately.

⚠ WARNING! Before switching on the lawn mower, make sure that it is not in contact with any foreign objects. Keep your hands and feet a safe distance away from the rotating mower blade and the ejector opening. Failure to comply with these warnings can result in severe personal injury.

IMPORTANT: Do not start the lawn mower in tall grass.

1. Place the unit on a level lawn surface.
2. Push a loop of the extension cord through the slot on the extension cord restraint holder from the opposite side and around the cord restraint hook. Insert the appliance cord into the extension cord (Fig. 9).

NOTE: Do not plug the extension cord into the outlet until it had been secured with the extension cord restraint holder and connected to the lawn mower's appliance cord. Only use a UL-rated extension cord for outdoor, all-weather use. Do not use an extension cord over 100 ft (30 m). See Extension Cord Chart on page 2.

1. Place the bulk of the extension cord on the lawn closest to the starting point.
2. Before starting the lawn mower, hold the soft grip with both hands and tilt the handle downward to slightly raise the front of the lawn mower. This will reduce the risk of lawn damage during start-up (Fig. 10).

1. To start the lawn mower, press and hold the safety lock button while pulling the On/Off switch lever toward you. Once the machine powers on, release the safety lock button (Fig. 11).


1. Let the motor get up to speed, gently lowering the lawn mower down into the cutting position and start mowing (Fig. 12).


1. To stop the lawn mower, release the On/Off switch lever (Fig. 11).

Grass Collection Bag Volume Indicator

1. If the grass collection bag is empty or is not completely full with grass, the grass indicator window will remain open (due to the flow of air) or will flutter open and close as the grass accumulates in the bag (Fig. 13).
2. When the grass bag reaches its maximum capacity, the grass indicator window will remain closed (due to the restricted air flow). This signals that it is time to empty the bag (Fig. 13).

Mowing Tips

⚠ WARNING! Inspect the area prior to mowing and remove all the stones, sticks, wires, and other debris that might be thrown by the rotating blade.

NOTE: A sharp blade will greatly enhance the performance of the lawn mower, especially when cutting tall blades of grass.

• Be sure to check the blade periodically for signs of wear and sharpen it at least once per year.
• In order to prevent electric shock, do not operate the lawn mower in damp or wet conditions.
• Do not mow in a circle. Travel back and forth across the lawn following the path outlined below (Fig. 14).
• When cutting thick grass, reduce your walking speed in order to allow for a more effective cut and a proper discharge of the clippings. For a healthy lawn, always cut off one-third or less from the total length of the grass. The average lawn should be approximately 1.5 to 2 in. (3.8 cm to 5 cm) long during cool months, and more than 2 in. (5 cm) long during hot months. If there is growth, the lawn should be cut in the fall.

Fig. 14

• While mowing, make sure that the electric cable is always behind you and resting on the area of grass already cut.
• The lawn will look better if it is always cut to the same height and in alternate directions.
• When crossing any graveled area, release the On/Off switch lever to turn off the lawn mower. The stones can be picked up and thrown by the rotating blade.
• Set the lawn mower to the highest cutting height when mowing on uneven ground or in tall weeds.

⚠ WARNING! If you strike a foreign object, stop the motor and disconnect the power cord. Thoroughly inspect the lawn mower for any damage. Repair any damage before operating the lawn mower.

Overload Protection

The lawn mower has an internal cut off switch which will stop the operation of the motor temporarily if overloaded. This cut off switch will suddenly stop the motor from operating should the motor become too hot during the operation of the lawn mower.

1. Disconnect the lawn mower from the power supply and inspect blade for any obstructions.
2. Wait up to 2 minutes, or longer depending on ambient temperature and the operation being performed, before switching on the lawn mower and resuming normal operation.

⚠ WARNING! The mower blade will continue to rotate for a brief period after the unit has been switched off. Do not tilt or carry the unit while the motor is still running and do not touch the blade while it is still rotating. Failure to comply could result in severe personal injury.

Maintenance

⚠ WARNING! Before cleaning, repairing, or inspecting the lawn mower, disconnect the power supply to the unit and verify that all moving parts have come to a complete stop.

General

• Always keep the lawn mower clean and free of grass, dirt, or other debris.
- Keep the handles dry, clean, and free of oil and grease.
- After each cutting session, remove accumulated grass clippings and debris using either a dry cloth or handbrush. You may also clean the equipment with a damp cloth and some soft, non-abrasive soap. Do not use cleaning agents or harsh solvents as they may damage the equipment's plastic components. Make sure that no water penetrates the equipment's interior as intake of water can destroy the switch/plug mechanism and the electric motor.

- Do not clean the lawn mower with running water, particularly with high-pressure water.

- Check all nuts, bolts, and screws for proper tightness before each use.

- Frequently inspect the grass collection bag for signs of wear and replace immediately with a genuine Snow Joe® + Sun Joe® part if damage is found.

- Replace excessively worn or damaged parts immediately.

- To maximize your lawn mower's longevity, all screwed parts, including the wheels and axles, should be cleaned and lubricated. There are no parts inside the equipment which require additional maintenance or lubrication.

Blade Maintenance

IMPORTANT: The mower blade is sharp and can cause severe personal injury if handled incorrectly. Wrap the blade or wear protective gloves, and use extra caution when handling.

The steel blade is designed to provide a fine cut in long or tough grass. Deterioration in the quality of cut indicates blade wear or damage. Follow these steps to determine if the blade needs to be resharpened or replaced:

1. Disconnect the electrical supply to the lawn mower.
2. Turn the lawn mower on its side to expose the underside of the blade housing.
3. Check the blade.

a. If the blade is blunt or has minor wear, then resharpen. Please call Snow Joe® + Sun Joe® customer service for assistance at 1-866-SNOWJOE (1-866-766-9563).

b. If the blade shows signs of major wear or damage (i.e. gouged, bent), then replace. Please call Snow Joe® + Sun Joe® customer service for assistance at 1-866-SNOWJOE (1-866-766-9563).

⚠ WARNING! An excessively vibrating lawn mower indicates that the blade is not properly balanced or has become deformed from striking an object. In this case, the blade must be repaired or replaced. Please follow the proper maintenance procedures for blade care or call the Snow Joe® + Sun Joe® customer service center for assistance at 1-866-SNOWJOE (1-866-766-9563).

Blade Replacement

IMPORTANT: Only use original replacement parts specified for this lawn mower.

You can purchase a replacement blade (Model MJ404E-BLD) and other genuine replacement parts by ordering online at snowjoe.com or, to order by phone, contact Snow Joe® + Sun Joe® customer service at 1-866-SNOWJOE (1-866-766-9563). The use of parts that do not meet the original equipment specifications may lead to improper performance of the lawn mower, may compromise operator safety, and will void the manufacturer's warranty.

1. Disconnect the electrical supply to the lawn mower.
2. Turn the lawn mower on its side to expose the underside of the blade housing.
3. Wear heavy-duty gloves, or use a cloth to grip the blade.

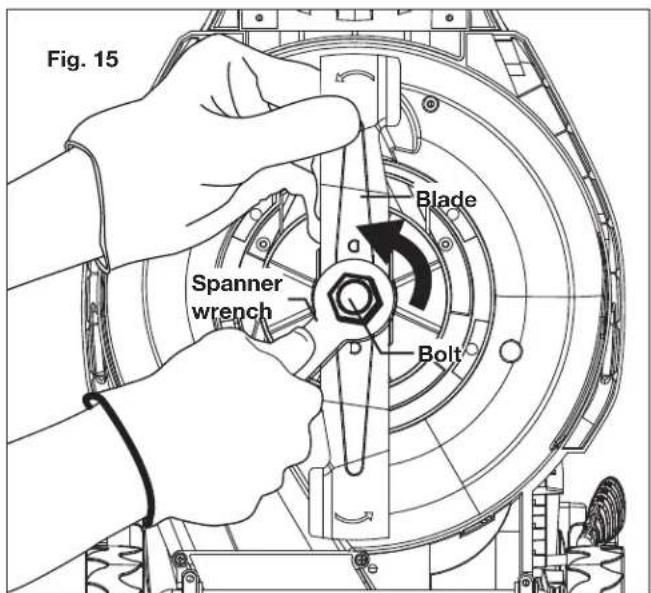

4. To remove the blade bolt, hold the blade firmly by one hand, and use the supplied spanner wrench to loosen the blade bolt by turning it counterclockwise (Fig. 15).

1. Fit the new blade, the washer and the bolt back on following the same steps in reverse order (Fig. 16).

Storage

Follow the steps below to prepare the lawn mower for storage:

1. Disconnect the power supply to the lawn mower.

2. Clean the lawn mower with a damp cloth or hand brush.

3. Inspect the lawn mower carefully for worn, loose, or damaged parts. Check connections and screws and tighten if necessary. Pay special attention to the mower blade and replace/sharpen if it shows signs of wear. Refer to the Maintenance section.

4. Store the lawn mower indoors in a dry, clean, and cool area out of the reach of children. Do not store the unit next to corrosive materials, such as fertilizer and rock salt.

5. Wipe the extension cord to remove any foreign substances, such as oil or stains. Replace the extension cord immediately if it is cut or damaged in any way.

6. Wind the cord in a series of equal loops to prevent it from tangling.

7. Do not cover the lawn mower with a solid plastic sheet. Plastic coverings trap moisture around the lawn mower, which can damage the unit.

8. The handle on your lawn mower can be folded for compact storage or hanging. Follow the instruction below.

Storage Position

i) Loosen the lower handle knobs on both sides.
ii) Flip the handle assembly to the front until the second arrow on the gear lines up with the storage position indicator. Make sure the gear snaps in (Fig. 17).

iii) Loosen the upper handle knobs on both sides. Flip the upper handle back (Fig. 18).

Hanging Position

i) Loosen the lower handle knobs on both sides.

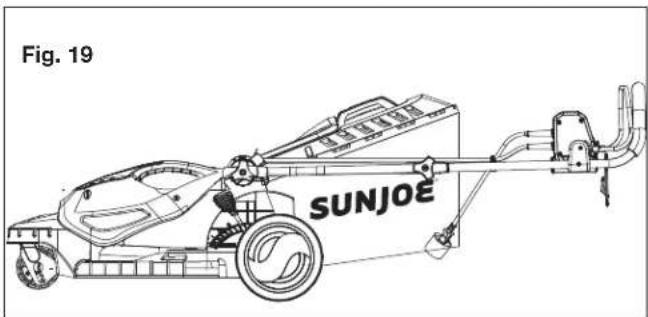

ii) Flip the handle assembly to the back until the first arrow on the gear lines up with the hanging position indicator. Make sure the gear snaps in (Fig. 19).

iii) Tighten the lower handle knobs.
iv) Hang the mower on the wall (Fig. 20).

Fig. 20

Technical line drawing of a mechanical device with no visible text or symbols

Service + Support

If your Sun Joe ^® MJ404E-360 electric lawn mower requires service or maintenance, please call 1-866-SNOWJOE (1-866-766-9563) for assistance.

Model + Serial Numbers

When contacting the company or reordering parts, you will need to provide the model and serial numbers of your product. These are found on the decal affixed to the housing or handle of your lawn mower. Copy these numbers into the space provided below.

Troubleshooting

Problem Remedy
Motor does not run	Unplug the unit from the power source and check that the blade is able to rotate freely. If the lawn mower was previously in use, let the motor cool down for a while before restart.Check mains, and extension cord.Clean discharge channel/housing.Start lawn mower on short grass or in a previously mowed area and tilt back.Correct the cutting height.
Motor power drops	Check that you are using a suitable extension cord of proper gauge and length (see Extension Cord Chart pg. 2).Power source (e.g. generator) has too low voltage.
Motor performance drops	Correct the cutting height.Clean discharge channel/housing.Replace or resharpen mowing blade (contact an authorized Snow Joe^® + Sun Joe^® service center).
Grass collection bagnot filling sufficiently	Correct the cutting height.Allow the lawn to dry.Clean the grille on the grass collection bag.Clean the discharge channel/housing.

Only a company specialist may be able to correct faults that cannot be rectified with the aid of this table. Please call the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

Optional Accessories

⚠ WARNING! ALWAYS use only authorized Snow Joe® + Sun Joe® replacement parts and accessories. NEVER use replacement parts or accessories that are not intended for use with this tool. Contact Snow Joe® + Sun Joe® if you are unsure whether it is safe to use a particular replacement part or accessory with your tool. The use of any other attachment or accessory can be dangerous and could cause injury or mechanical damage.

		ModelAccessor
1	14.2-Inch (36 cm) mower blade	MJ404E-BLD
2	9.3 gal (35.2 l) grass collection bag	MJ404E-BAG
3	Snow Joe® + Sun Joe® SJTW-A 14-gauge 50-foot extension cord with lighted end	PJEXT50-B
4	Snow Joe® + Sun Joe® Universal Wall Bracket with Mounting Hardware	SJWB

NOTE: Accessories are subject to change without any obligation on the part of Snow Joe ^® + Sun Joe ^® to provide notice of such changes. Accessories can be ordered online at snowjoe.com or via phone by contacting the Snow Joe ^® + Sun Joe ^® customer service center at 1-866-SNOWJOE (1-866-766-9563).

NOTES

NOTES

NOTES

SNOW JOE® + SUN JOE® CUSTOMER PROMISE

ABOVE ALL ELSE, Snow Joe ^® + Sun Joe ^® are dedicated to you, our customer. We strive to make your experience as pleasant as possible. Unfortunately, there are times when a product does not work or breaks under normal operating conditions. We think it's important that you know what you can expect from us. That's why we created the Snow Joe ^® + Sun Joe ^® promise.

OUR PROMISE: Snow Joe® + Sun Joe® warrant new products for two years from the date of purchase. If your product does not work, or there's an issue with a specific part, we will fix this by either sending you a free replacement part or by sending you a new or comparable product at no charge. How cool is that! Before you know it, you'll be back in action cutting, sawing, mowing, washing and...?

PRODUCT REGISTRATION:

Snow Joe®, LLC ("Snow Joe® + Sun Joe®") strongly encourages you to register your purchase. You can register online at snowjoe.com/ProductRegistration, or by printing and mailing in a registration card available online from our website, or calling our Customer Service Department at 1-866-SNOWJOE (1-866-766-9563), or by e-mailing us at [e-mail]. Failure to register your product purchase will not diminish your warranty rights. However, registering your purchase will allow Snow Joe® + Sun Joe® to better serve you with any of your customer service needs.

WHO CAN SEEK WARRANTY COVERAGE?

This Warranty is extended by Snow Joe® + Sun Joe® to the owner of this Machine (a "Machine" consists of a product powered by a motor) for residential and personal household use only. This Warranty does not apply to products used for commercial, rental or re-sale purposes. Should ownership of this machine change during the 2-year period, please update the Machine's owner information at snowjoe.com/ProductRegistration.

WHAT IS COVERED?

Snow Joe ^® + Sun Joe ^® warrants to the owner that if this Machine fails within 2 years from the date of purchase due to a defect in material or workmanship or as a result of normal wear and tear from ordinary household use, Snow Joe ^® + Sun Joe ^® will send a replacement part or product, as needed, free of charge and with free shipping to the original purchaser.

If, in Snow Joe ^® + Sun Joe ^® 's sole discretion, the failed Machine cannot be repaired with a part, Snow Joe ^® + Sun Joe ^® will elect to either (A) send a new Machine at no charge and with free shipping or (B) refund the full purchase price to the owner.

WHAT IS NOT COVERED?

This Warranty does not apply to the Machines that have been used commercially or in non-household applications. This Warranty does not cover cosmetic changes that do not affect performance. This Warranty is only valid if the Machine is used and maintained in accordance with the instructions, warnings and safeguards contained in the owner's manual. Snow Joe ^® + Sun Joe ^® will not be responsible for the cost of any unauthorized warranty repairs. This warranty does not cover any cost or expense incurred by the purchaser in providing substitute equipment or service during reasonable periods of malfunction or non-use of this product while waiting for a replacement part or unit under this warranty.

Wearing parts like belts, augers, chains and tines are not covered under this warranty, and can be purchased at snowjoe.com or by calling 1-866-SNOWJOE (1-866-766-9563). Batteries are covered in full for 90-days from the date of purchase.

Repair, replacement or refund of the purchase price are the exclusive remedies of purchaser and the sole liability of Snow Joe ^® + Sun Joe ^® under this warranty. No employee or representative of Snow Joe ^® + Sun Joe ^® is authorized to make any additional warranty or any modification to this warranty which may be binding upon Snow Joe ^® + Sun Joe ^® . Accordingly, purchaser should not rely upon any additional statements made by any employee or representative of Snow Joe ^® + Sun Joe ^® . In no event, whether based on contract, indemnity, warranty, tort (including negligence), strict liability or otherwise, shall Snow Joe ^® + Sun Joe ^® be liable for any special, indirect, incidental, or consequential damages, including, without limitation, loss of profit or revenue.

Some states do not allow limits on warranties. In such states, the above limitations may not apply to you.

Outside the USA, other warranties may apply.

snowjoe.com

⚠ WARNING! This product or its power cord contains chemicals, including lead, known to the State of California to cause cancer and birth defects or other reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov.

⚠ WARNING! Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known [to the State of California] to cause cancer, birth defects, or other reproductive harm. Some examples of these chemicals are:

• lead from lead-based paints,
  • crystalline silica from bricks and cement and other masonry products, and
  • arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specifically designed to filter out microscopic particles. For more information go to www.P65Warnings.ca.gov.
