DLA-VS4500 - Video projector JVC - Free user manual and instructions

Product Type	D-ILA Video Projector
Resolution	4K (4096 x 2160)
Light Source	Laser Phosphor
Brightness	2000 lumens
Contrast Ratio	100,000:1 (native)
Dimensions (W x H x D)	500 x 200 x 550 mm
Weight	18.5 kg
Power Consumption	430 W (max)
Inputs	2x HDMI 2.0, 1x DisplayPort, 1x RJ45, 1x USB
Outputs	1x 3D Sync, 1x Trigger, 1x RS-232C
Lens Shift	Vertical ±80%, Horizontal ±34%
Keystone Correction	None (optical alignment only)
3D Support	Active shutter, compatible with JVC glasses
HDR Support	HDR10, HLG
Fan Noise	24 dB (low mode)
Light Source Life	20,000 hours
Cleaning	Clean lens with microfiber cloth; air filter every 100 hours
Safety	Class 1 laser product, low risk
Repairability	Professional service center only, user not serviceable
Warranty	3 years parts and labor

Frequently Asked Questions - DLA-VS4500 JVC

What is the native resolution of the DLA-VS4500?

The DLA-VS4500 features a native 4K D-ILA panel with a resolution of 4096 x 2160.

How long does the laser light source last?

The laser phosphor light source is rated for 20,000 hours of operation, reducing maintenance needs.

Does this projector support 3D content?

Yes, it supports active shutter 3D with compatible JVC 3D glasses and a 3D emitter.

What HDR formats are supported?

The projector supports HDR10 and HLG (Hybrid Log-Gamma) for high dynamic range content.

Can I mount the projector on the ceiling?

Yes, it is designed for ceiling mounting. Use a compatible mount with appropriate weight capacity (18.5 kg).

How do I clean the air filter?

Turn off the projector and unplug it. Remove the filter cover, clean the filter with a vacuum cleaner or water, dry completely, then reinstall.

What lens shift adjustment is available?

The lens can be shifted vertically ±80% and horizontally ±34% for flexible installation without keystone distortion.

Does the projector have a keystone correction feature?

No, this high-end model relies on optical lens shift for alignment; no digital keystone correction is available.

How can I update the firmware?

Download the latest firmware from the JVC support website, copy it to a USB drive, insert into the projector, and follow the on-screen update menu instructions.

What is the warranty period?

JVC provides a 3-year parts and labor warranty for the DLA-VS4500 projector.

USER MANUAL DLA-VS4500 JVC

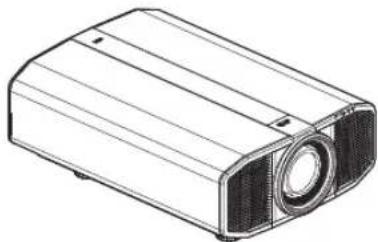

Line drawing of a rectangular electronic device with ventilation grilles and a central lens (no text or symbols)

For Customer use :

Enter below the serial No. which is located on the side of the cabinet. Retain this information for future reference.

DLA-VS4500Model No.

Serial No.

Safety Precautions

IMPORTANT INFORMATION

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

WARNING:

THIS APPARATUS MUST BE EARTHED.

CAUTION:

To reduce the risk of electric shock, do not remove cover. Refer servicing to qualified service personnel.

This projector is equipped with a 3-blade grounding type plug to satisfy FCC rule. If you are unable to insert the plug into the outlet, contact your electrician.

NOISE EMISSION DECLARATION

The sound pressure level at the operator position is equal or less than 60dB(A) according to ISO7779.

WARNING

REMOVE THE LENS COVER BEFORE TURNING ON THE PROJECTOR

WARNING

This equipment is compliant with Class A of CISPR 32.

In residential environment this equipment may cause radio interference.

FCC INFORMATION (U.S.A. only)

CAUTION:

Changes or modification not approved by JVC could void the user's authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

About the installation place

Do not install the projector in a place that cannot support its weight securely.

If the installation place is not sturdy enough, the projector could fall or overturn, possibly causing personal injury.

IMPORTANT SAFEGUARDS

Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARD. In order not to defeat the safeguards incorporated into this product, observe the following basic rules for its installation, use and service. Please read these Important Safeguards carefully before use.

• All the safety and operating instructions should be read before the product is operated.
• The safety and operating instructions should be retained for future reference.
• All warnings on the product and in the operating instructions should be adhered to.
• All operating instructions should be followed.
• Place the projector near a wall outlet where the plug can be easily unplugged.
• Unplug this product from the wall outlet before cleaning.
• Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
• Do not use attachments not recommended by the product manufacturer as they may be hazardous.
• Do not use this product near water. Do not use immediately after moving from a low temperature to high temperature, as this causes condensation, which may result in fire, electric shock, or other hazards.
• Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. The product should be mounted according to the manufacturer's instructions, and should use a mount recommended by the manufacturer.

- When the product is used on a cart, care should be taken to avoid quick stops, excessive force, and uneven surfaces which may cause the product and cart to overturn, damaging equipment or causing possible injury to the operator.

- Slots and openings in the cabinet are provided for ventilation. These ensure reliable operation of the product and protect it from overheating. These openings must not be blocked or covered. (The openings should never be blocked by placing the product on bed, sofa, rug, or similar surface. It should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided and the manufacturer's instructions have been adhered to.)

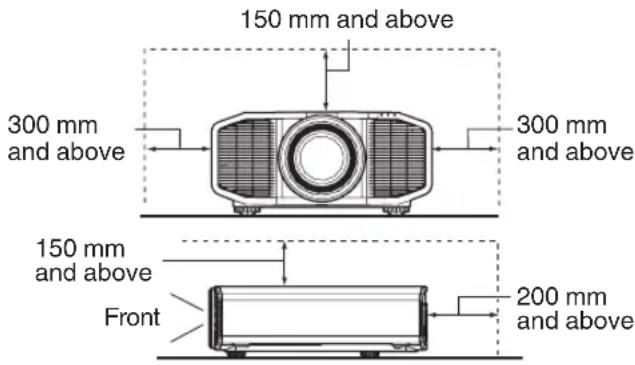

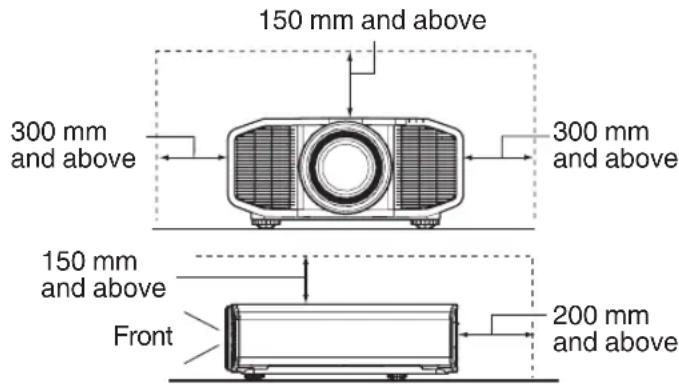

- To allow better heat dissipation, keep a clearance between this unit and its surrounding as shown below. When this unit is enclosed in a space of dimensions as shown below, use an air-conditioner so that the internal and external temperatures are the same. Overheating can cause damage.

PORTABLE CART WARNING (symbol provided by RETAC)

S3126A

• Power source indicated on the label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.
• This product is equipped with a three-wire plug. This plug will fit only into a grounded power outlet. If you are unable to insert the plug into the outlet, contact your electrician to install the proper outlet. Do not defeat the safety purpose of the grounded plug.
• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention to cords at doors, plugs, receptacles, and the point where they exit from the product.
• For added protection of this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power line surges.
• Do not overload wall outlets, extension cords, or convenience receptacles on other equipment as this can result in a risk of fire or electric shock.
• Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
• Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltages and other hazards. Refer all service to qualified service personnel.
• Unplug this product from the wall outlet and refer service to qualified service personnel under the following conditions:

a) When the power supply cord or plug is damaged.

b) If liquid has been spilled, or objects have fallen on the product.

c) If the product has been exposed to rain or water.

d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the Operation Manual, as an improper adjustment of controls may result in damage and will often require extensive work by a qualified technician to restore the product to normal operation.

e) If the product has been dropped or damaged in any way.

f) When the product exhibits a distinct change in performance, this indicates a need for service.

• When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or with same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
• Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
• The product should be placed more than one foot away from heat sources such as radiators, heat registers, stoves, and other products (including amplifiers) that produce heat.
• When connecting other products such as VCR's, and DVD players, you should turn off the power of this product for protection against electric shock.
• Do not place combustibles behind the cooling fan. For example, cloth, paper, matches, aerosol cans or gas lighters that present special hazards when over heated
• Do not ceiling-mount the projector to a place which tends to vibrate; otherwise, the attaching fixture of the projector could be broken by the vibration, possibly causing it to fall or overturn, which could lead to personal injury.
• Use only the accessory cord designed for this product to prevent shock.
• Once every three years, please perform an internal test. This unit is provided with replacement parts needed to maintain its function (such as cooling fans). Estimated replacement time of parts can vary greatly depending on frequency of use and the respective environment. For replacement, please consult your dealer, or the nearest authorized JVC service center.
• When fixing the unit to the ceiling, Please note that we do not take any responsibility, even during the warranty period, if the product is damaged due to use of metal fixtures used for fixation to the ceiling other than our own or if the installation environment of said metal fixtures is not appropriate. If the unit is suspended from the ceiling during use, please be careful in regard to the ambient temperature of the unit. If you use a central heating, the temperature close to the ceiling will be higher than normally expected.
• Video images can burn into the electronic component parts. Please do not display screens with still images of high brightness or high contrast, such as found in video games and computer programs. Over a long period of time it might stick to the picture element. There is no problem with the playback of moving images, e.g. normal video footage.

- Not using the unit for a long time can lead to malfunction. Please power it on and let it run occasionally. Please avoid using the unit in a room where cigarettes are smoked. It is impossible to clean optical component parts if they are contaminated by nicotine or tar. This might lead to performance degradation.

\* DO NOT allow any unqualified person to install the unit.

Be sure to ask your dealer to install the unit (e.g. attaching it to the ceiling) since special technical knowledge and skills are required for installation. If installation is performed by an unqualified person, it may cause personal injury or electrical shock.

• Do not use optical instruments (such as magnifying glass or reflector) viewing the laser output. It may pose an eye hazard.
• When turning on the projector, ensure that no one is looking into the projection lens.
• Do not look into the lens and openings when the light is on. Doing so would have serious effects on the human body.
• Do not detach or attach the projection lens with the power connected.
• Attempting to disassemble, repair or modify the projector yourself may lead to serious safety issues.
• Using a faulty product not only results in electrical shock or fire hazard, it can cause visual impairment.
• When abnormality occur, stop using the projector immediately and send it to your authorized dealer for repair.

POWER CONNECTION

For USA and Canada only

Use only the following power cord.

Power cord

The power supply voltage rating of this product is AC100V – AC240V. Use only the power cord designated by our dealer to ensure Safety and EMC. Ensure that the power cable used for the projector is the correct type for the AC outlet in your country. Consult your product dealer.

Power cord

Line drawing of a plug with a screw and terminal socket (no text or symbols)

For European continent countries

WARNING:

Do not cut off the main plug from this equipment.

If the plug fitted is not suitable for the power points in your home or the cable is too short to reach a power point, then obtain an appropriate safety approved extension lead or adapter or consult your dealer. If nonetheless the mains plug is cut off, dispose of the plug immediately, to avoid a possible shock hazard by inadvertent connection to the main supply.

WARNING:

THIS APPARATUS MUST BE EARTHED.

Dear Customer,

This apparatus is in conformance with the valid European directives and standards regarding electromagnetic compatibility and electrical safety. European representative of JVC KENWOOD Corporation is: JVCKENWOOD Deutschland GmbH Konrad-Adenauer-Allee 1-11, 61118 Bad Vilbel, GERMANY

IMPORTANT (Europe only):

The wires in the mains lead on this product are colored in accordance with the following cord:

Green-and-yellow : Earth

Blue : Neutral

Brown : Live

As these colors may not correspond with the colored making identifying the terminals in your plug, proceed as follows:

The wire which is colored green-and-yellow must be connected to the terminal which is marked M with the letter E or the safety earth or colored green or green-and-yellow. The wire which is colored blue must be connected to the terminal which is marked with the letter N or colored black.

The wire which is colored brown must be connected to the terminal which is marked with the letter L or colored red.

ENGLISH

Information for Users on Disposal of Old Equipment and Batteries

Products

Battery

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

FRANÇAIS

For the customers In the U.S.A. and Canada

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

This Projector is classified as a CLASS 3R LASER PRODUCT.

This CLASS 3R LASER PRODUCT label and Caution label is located on the Rear Side surface of the projector.

Location information of the labels

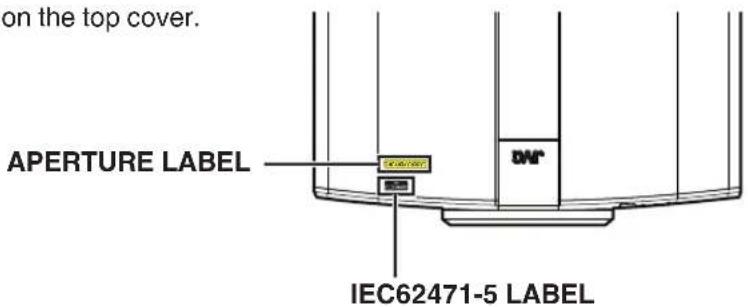

APERTURE LABEL

LASER APERTURE

The APERTURE LABEL is located on the top cover.

WARNING

LASER RADIATION AVOID DIRECT EYE EXPOSURE CLASS 3R LASER PRODUCT.

CAUTION

Do not look into the lens while in use.

Light source specifications

30 W Laser diodes ×6

Wavelength 450 - 460 nm

Maximum output is 64.12 W

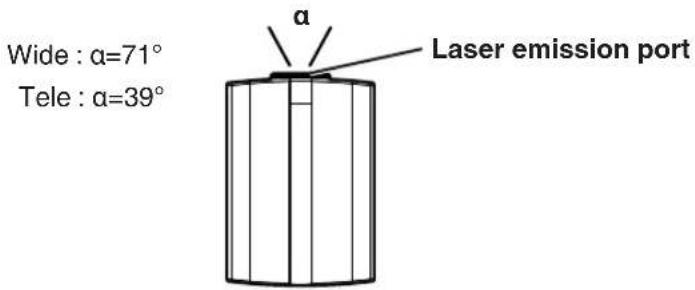

Beam divergence angle from lens of this unit

For the customers In other countries

CLASS 1 LASER PRODUCT

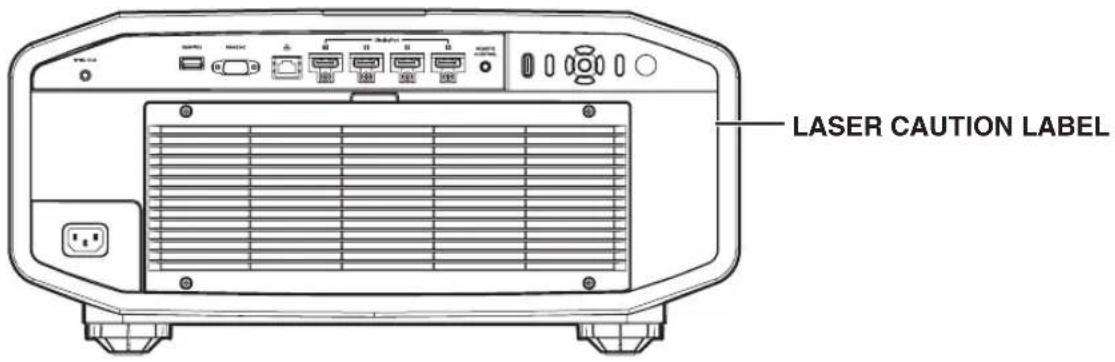

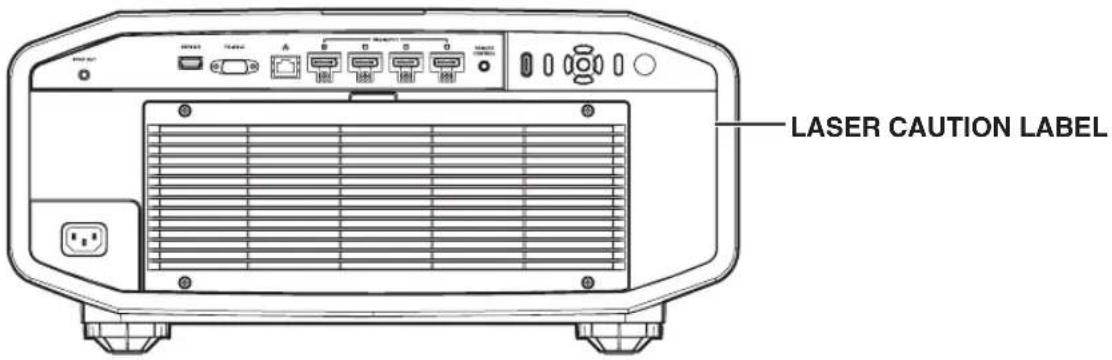

LASER CAUTION LABEL

WARNING

Do not look into the lens while in use.

CAUTION

Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Location information of the labels

IEC62471-5

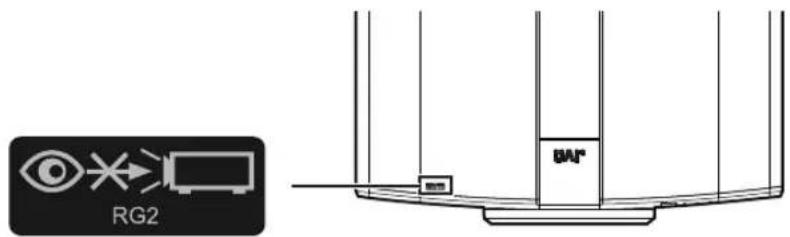

Location information of the labels

As with any bright light source, do not stare into the beam, RG2 IEC 62471-5:2015

Contents

Getting Started

Safety Precautions 2

Accessories/Optional Accessories 10

Check the Accessories 10

Controls and Features 11

Main Unit - Front 11

Main Unit - Bottom 11

Main Unit - Rear 12

Main Unit - Input Terminals 13

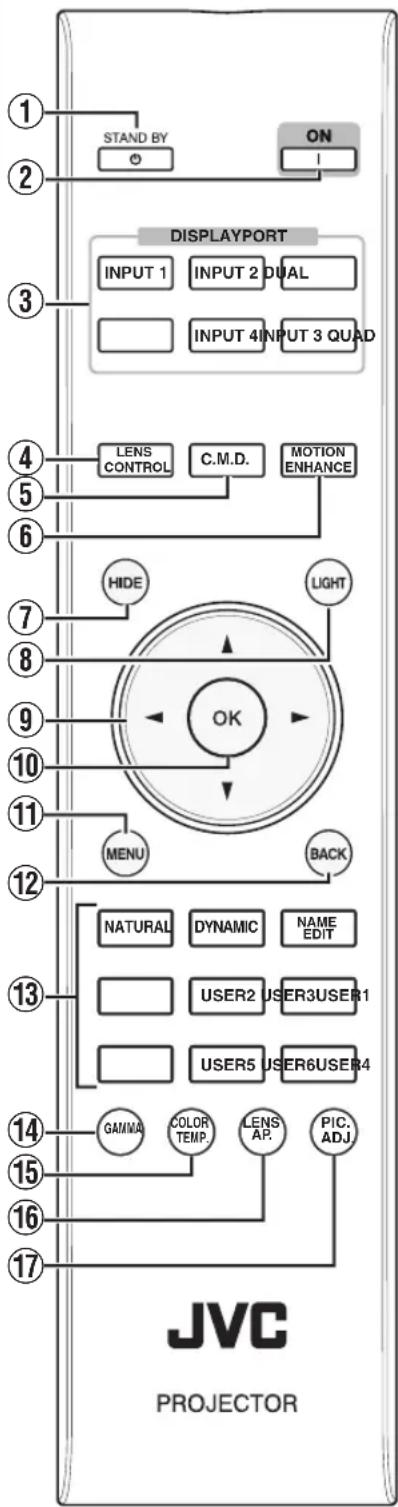

Remote Control 14

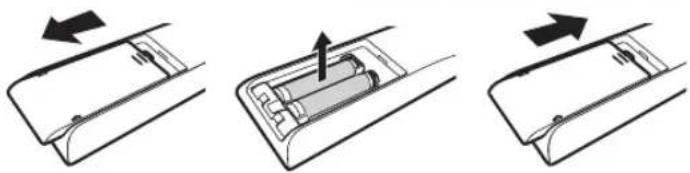

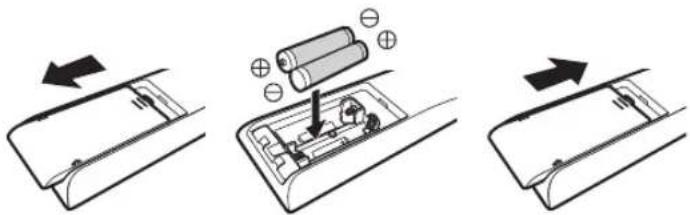

Loading Batteries into the Remote Control ..... 15

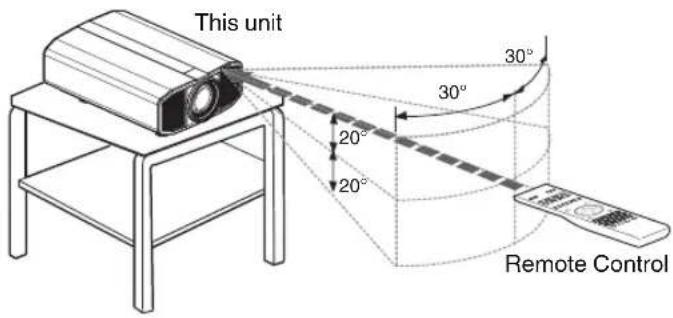

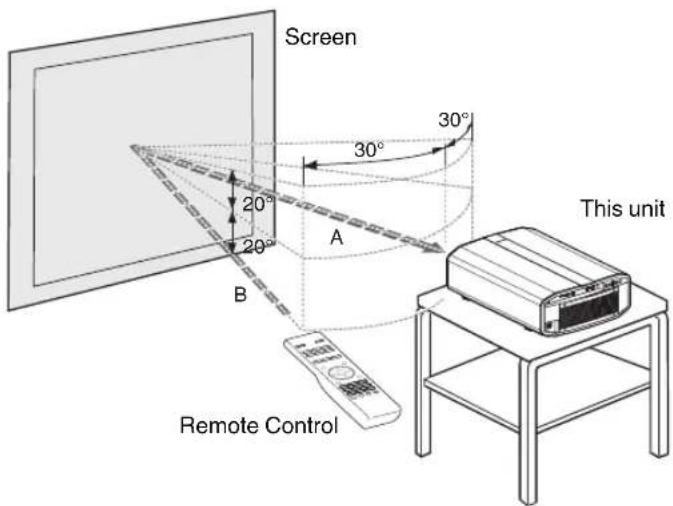

Effective Range of Remote Control Unit 15

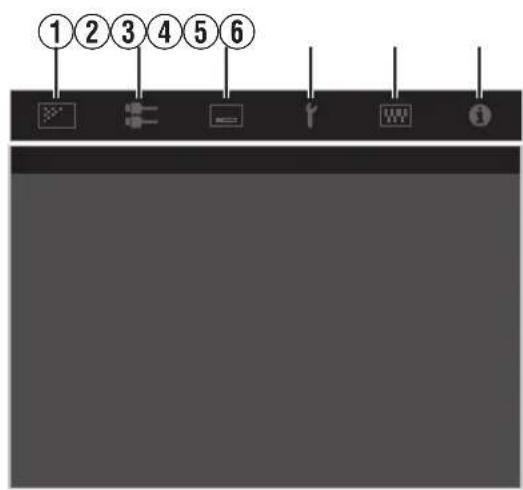

Menu 16

Set up

Installing the Projector 17

Precautions during Installation 17

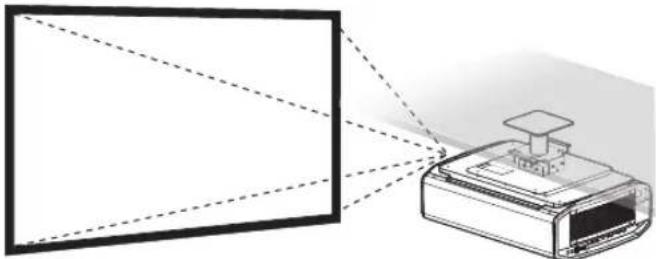

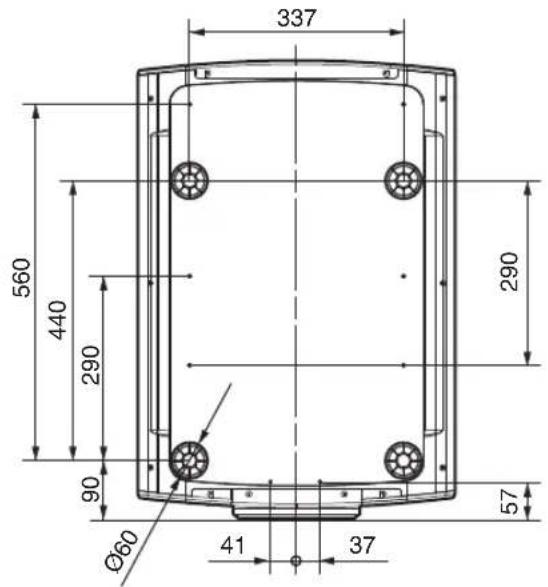

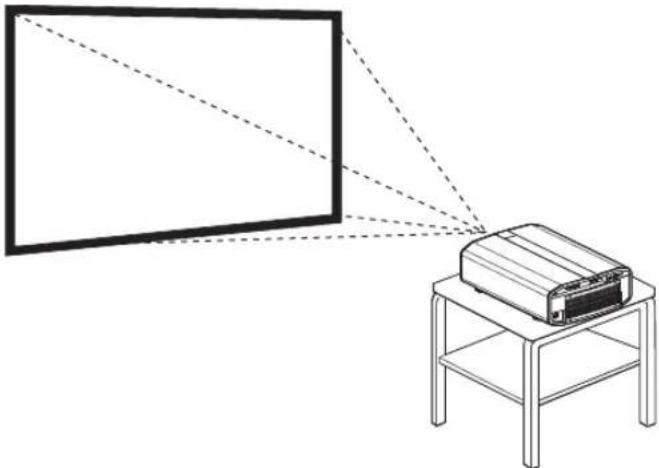

Precautions during Mounting 18

Adjusting the Position 20

Connecting the Projector 21

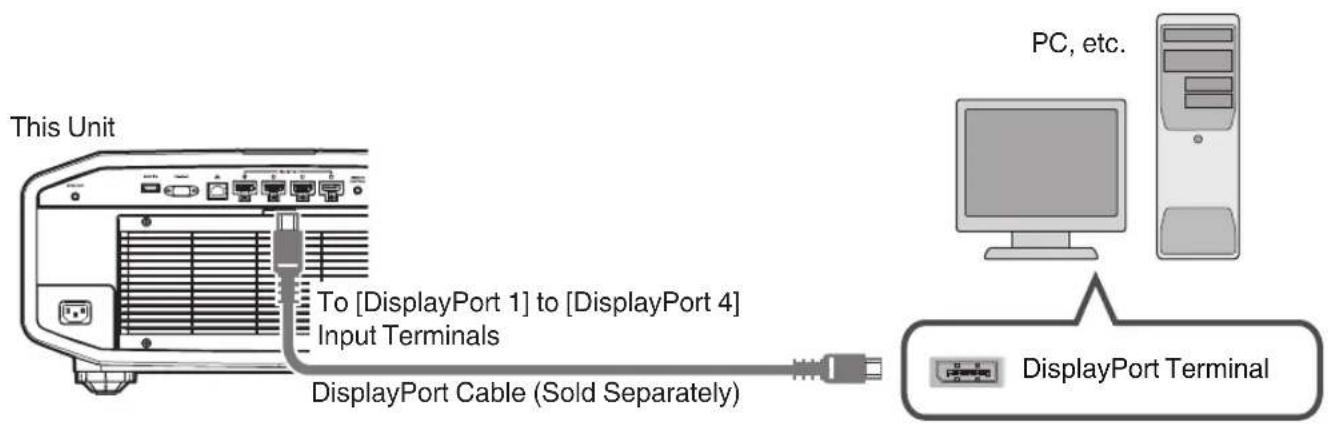

Connecting to the DisplayPort Terminals ..... 21

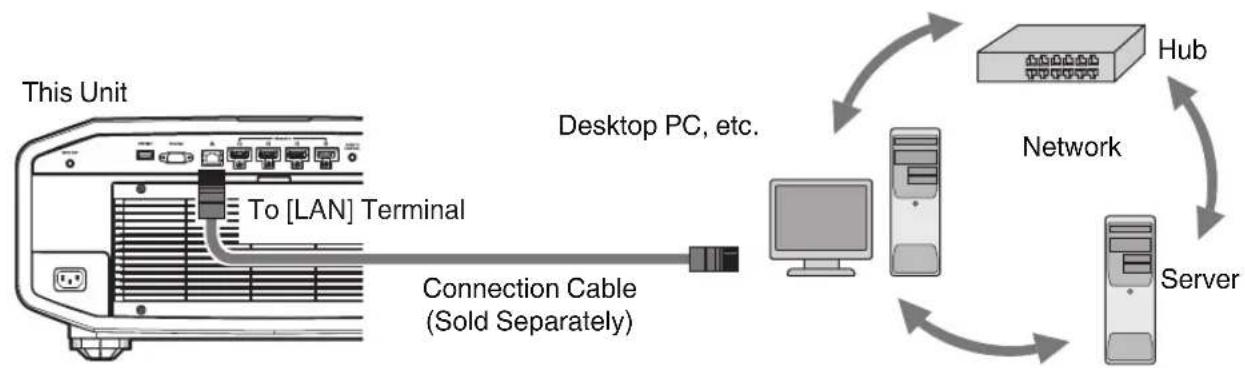

Connecting to the LAN Terminal 21

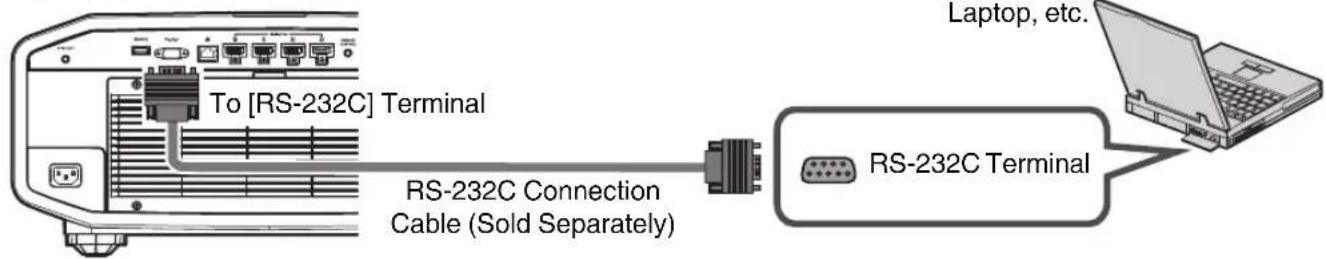

Connecting to the RS-232C Terminal 22

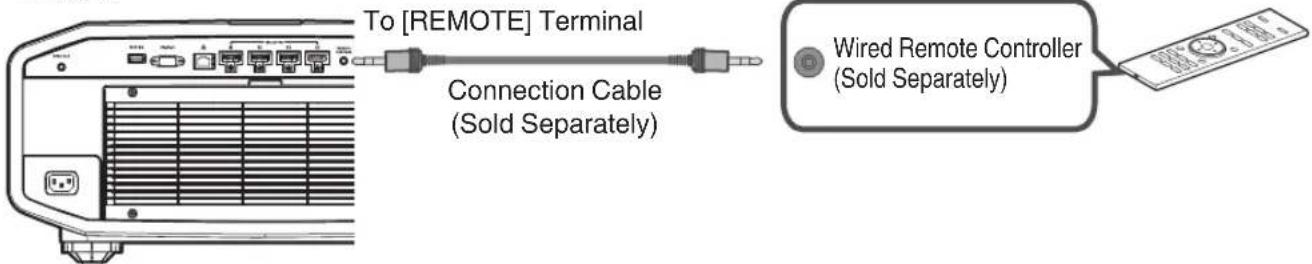

Connecting to the REMOTE Terminal 22

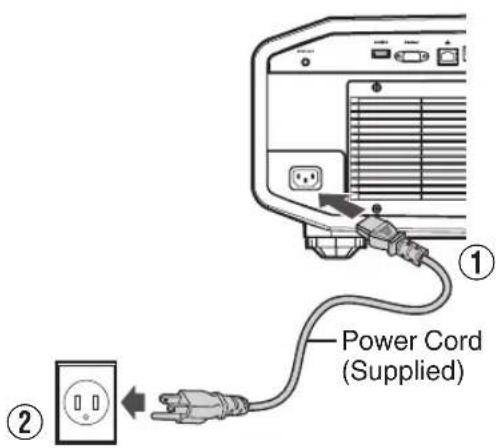

Connecting the Power Cord (Supplied Accessory) ..... 22

Operate

Viewing Videos 23

Adjust/Set

Adjustments and Settings in the Menu 25

List of Menu Items 25

Picture Adjust 27

Input Signal 32

Installation 33

Display Setup 41

Function 42

Information 44

Maintenance

Maintaining the Cabinet and Remote Control ..... 45

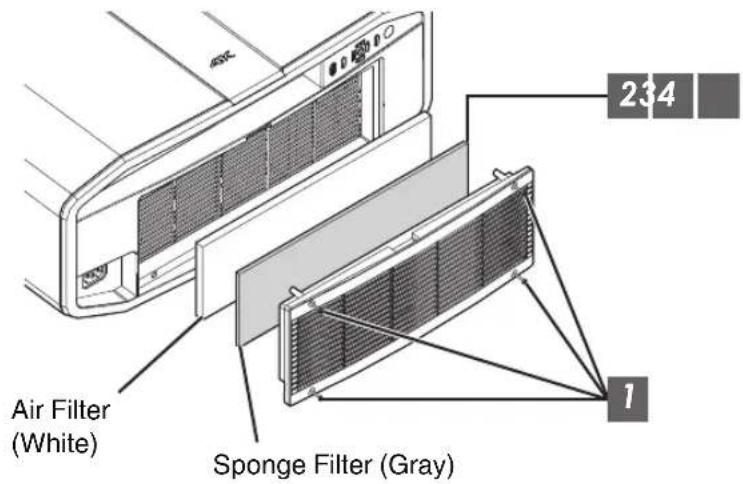

Cleaning and Replacing the Filter 45

About the Lens 46

Troubleshooting

Troubleshooting 47

When the Following Messages Appear... 49

Others

External Control 50

RS-232C Specifications 50

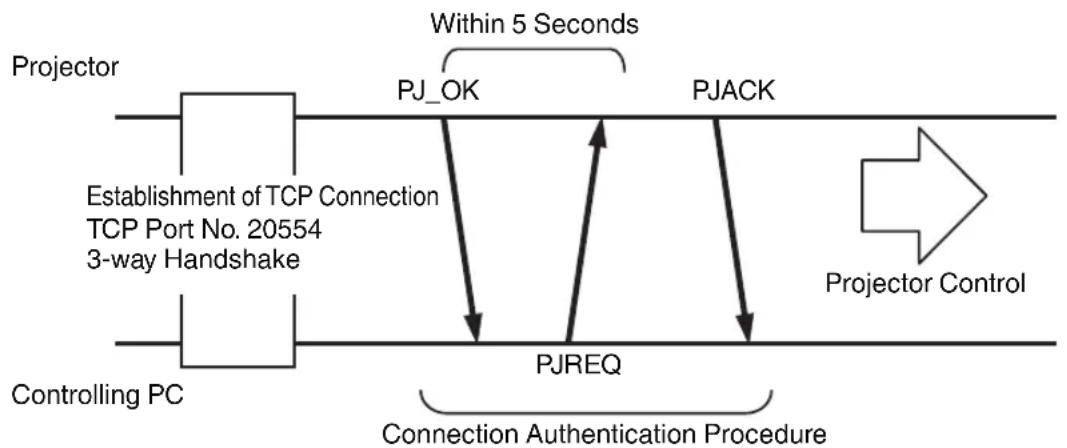

TCP/IP Connection 50

Command Format 51

Remote Control Code 52

Communications Example 53

Specifications 54

Index 65

Accessories/Optional Accessories

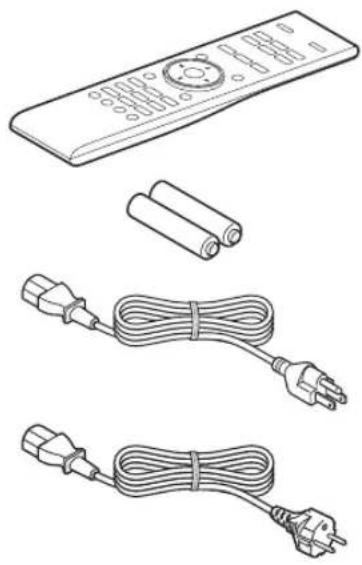

Check the Accessories

Remote control .... 1 piece

AAA-size batteries (for operational check) 2 pieces

Power cord (for USA) (about. 2 m) .... 1 piece

Power cord (for EU) (about 2 m) .... 1 piece

- Be sure to read the "Safety Precautions" before using this projector.

Line drawings of four household appliances: remote control, batteries, cord cable, and plug electrical connectors (no text or symbols)

Controls and Features

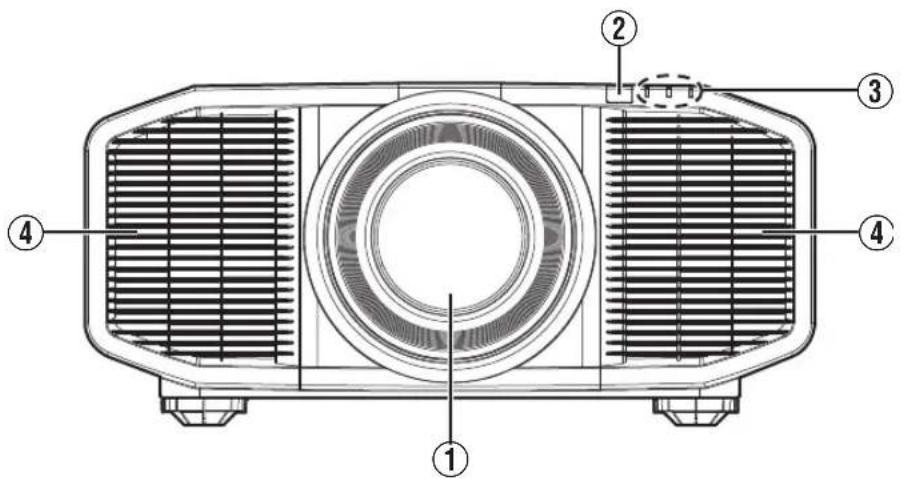

Main Unit - Front

① Lens (sold separately)

Zoom lens or short focal length lens is optional.

② Remote Sensor (front)

Please aim the remote control at this area when using it.

* There is also a remote sensor at the rear.

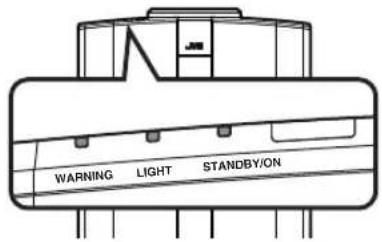

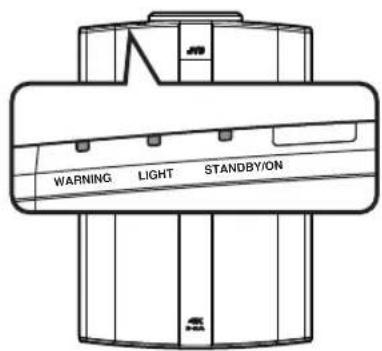

③ Indicator

Refer to "Indicator Display on the Main Unit" P. 62.

④ Exhaust vent

Warm air is discharged to cool down the internal temperature.

Do not block the vents.

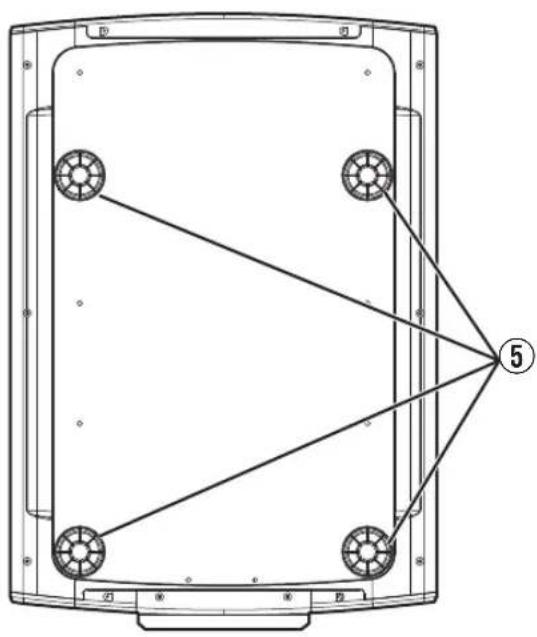

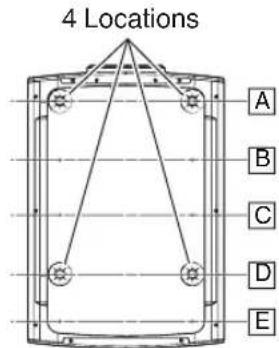

Main Unit - Bottom

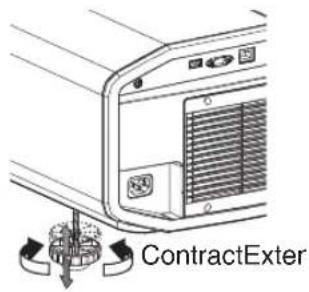

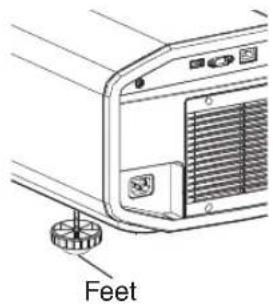

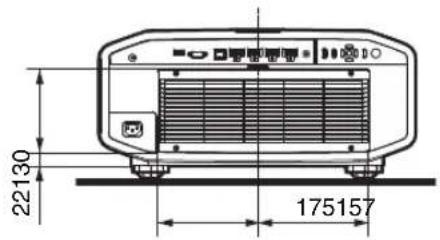

⑤ Feet

The height and angle of the projector can be adjusted by turning the foot. (0 to 5 mm) (P. 20)

When the foot is removed, it can be used as the mounting hole for the ceiling mount bracket.

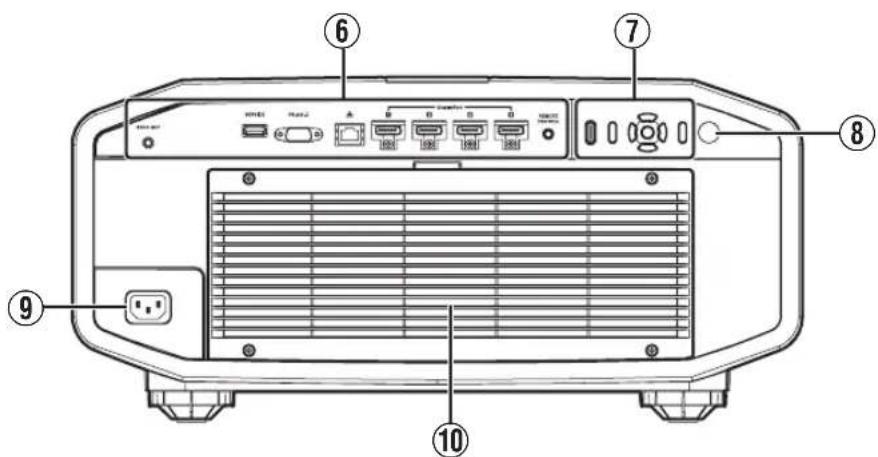

Main Unit - Rear

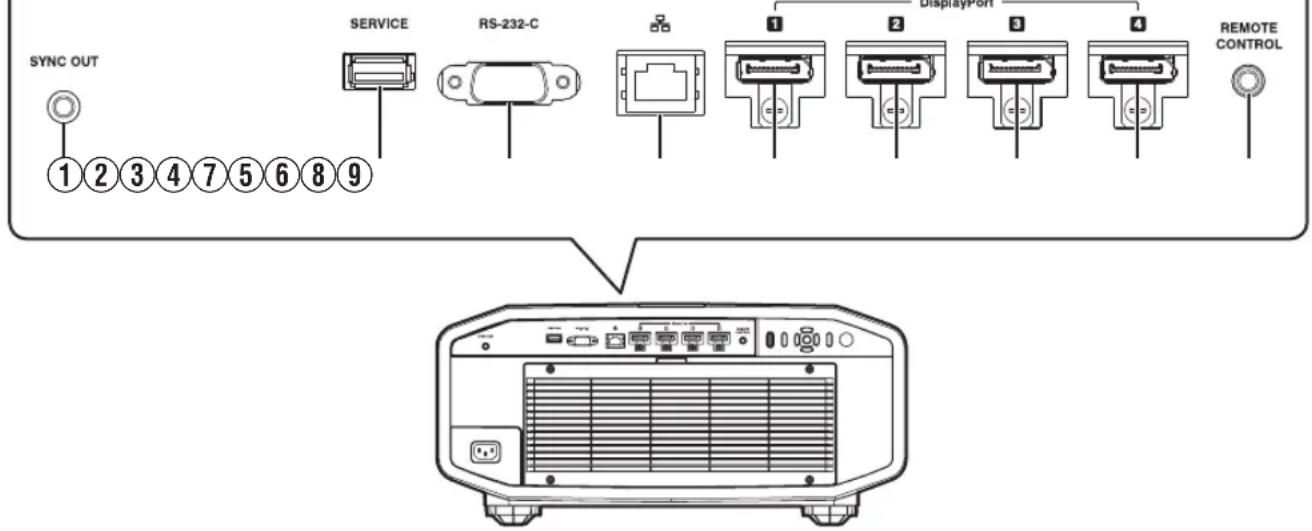

⑥ Input terminals

For details on the terminals, refer to "Main Unit - Input Terminals" P. 13.

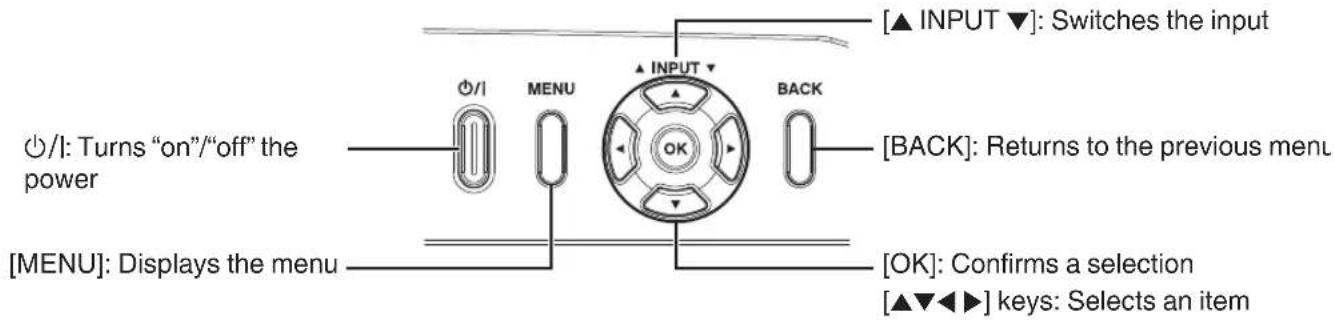

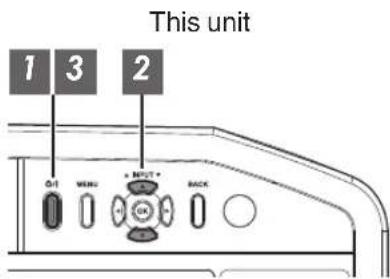

⑦ Operation panel

For more details, please refer to the "Operation panel" in the diagram below.

⑧ Remote Sensor (rear)

Please aim the remote control at this area when using it.

* There is also a remote sensor at the front.

⑨ Power input terminal

Connect the supplied power cord to this terminal.

⑩ Air Inlets

The inlets take in air to cool down the internal temperature.

Do not block the inlet. Do not blow hot air on the inlet.

Doing so may cause the unit to malfunction.

Operation panel

Main Unit - Input Terminals

Enlarged View of Rear Face

① [SYNC OUT] terminal

For synchronizing with other equipment.

② [SERVICE] terminal

For updating the software using a commercially available USB flash drive.

③ [RS-232C] terminal (D-sub 9-pin male)

The projector can be controlled by connecting a PC to this terminal.

④ [LAN] terminal (RJ-45)

The projector can be controlled by connecting it to a PC through the computer network for control commands to be sent to the projector.

⑤ [DisplayPort 1] input terminal
⑥ [DisplayPort 2] input terminal
⑦ [DisplayPort 3] input terminal
⑧ [DisplayPort 4] input terminal (20-pin male)

For connecting to devices that support DisplayPort output. (P. 21)

⑨ [REMOTE CONTROL] terminal (stereo mini jack)

This terminal is used to connect the remote control directly to the projector with the cable.

Remote Control

① ⏻ [STANDBY]

Turns off the power. (P. 24)

② I [ON]

Turns on the power. (P. 23)

③ [DISPLAYPORT]

Switches the input to [DisplayPort 1] to [DisplayPort 4], [Dual] or [Quad]. (P. 23)

④ [LENS CONTROL]

For adjusting focus and zoom. (P. 33)

⑤ [C.M.D.]

For setting frame processing. (P. 31)

- Pressing the button each time switches the mode in the following sequence: "Off" → "Mode 1" → "Mode 2" → "Mode 3"...

⑥ [MOTION ENHANCE]

Switches the Motion Enhance setting. (P. 31)

⑦ [HIDE]

Hides the image temporarily. (P. 23)

⑧ [LIGHT]

Illuminates the buttons on the remote control.

⑨ [▲▼◀▶] keys

For selecting an item.

⑩ [OK]

Confirms a selected item.

⑪ [MENU]

Displays the menu, or hides the menu if it is displayed.

⑫ [BACK]

Returns to the previous menu.

⑬ [PICTURE MODE]

Switches the picture mode. (P. 27)

• Press [NATURAL], [DYNAMIC] or [USER1] to [USER6] to switch to the respective picture mode.

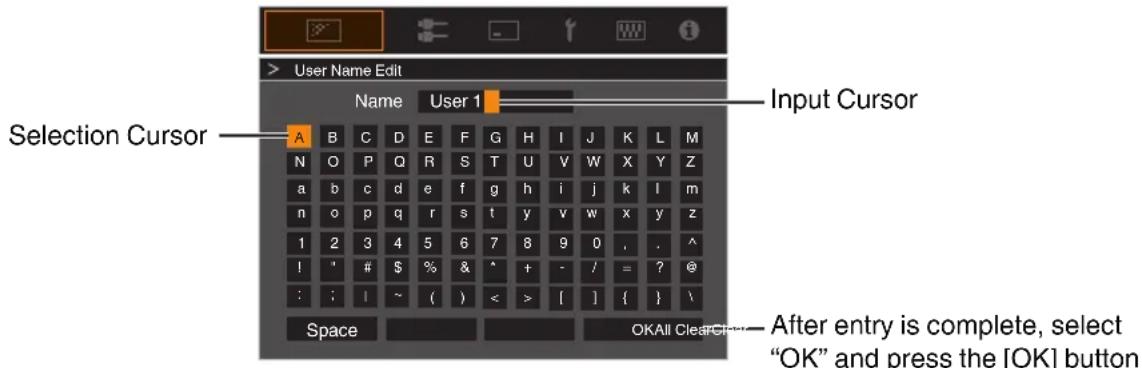

• Pressing [NAME EDIT] enables the name of the picture mode from [USER1] to [USER6] to be edited.

⑭ [GAMMA]

Switches the gamma. (P. 30)

- Pressing the button each time switches the configurable gamma in sequence.

⑮ [COLOR TEMP.]

Switches the color temperature. (P. 29)

- Pressing the button each time switches the configurable color temperature in sequence.

⑯ [LENS AP.]

For setting the aperture. (P. 27)

⑰ [PIC. ADJ.]

Displays the picture quality adjustment gauge. (P. 31)

- Pressing the button each time displays the adjustment gauge in the following sequence: “Contrast” → “Brightness” → “Color” → “Tint” → “Sharpness” → “LD Current” → “Aperture” → “Picture Tone” → “Dark Level” → “Bright Level”.

Loading Batteries into the Remote Control

Loading the batteries

Removing the batteries

Three-step diagram showing a battery inside a car door, with arrows indicating direction of movement (no text or symbols)

• If the remote control has to be brought closer to the uni to operate, it means that the batteries are wearing out. Replace the batteries with new ones (AAA).
• Insert the batteries according to the marks. Be sure to insert the end first. When removing the battery, do so from the end.
• If an error occurs while using the remote control, remove the batteries and wait for five minutes. Load the batteries again and operate the remote control.

Effective Range of Remote Control Unit

When aiming the remote control toward the sensor on this unit (front or rear), ensure that the distance to the sensor is within 7 m.

If the remote control fails to work properly, move closer to this unit.

Control through reflection off a screen, etc.

Ensure that the total of distance A (between this unit and the screen) and distance B (between the remote control and the screen) is within 7 m.

* As the efficiency of signals reflected from the remote control unit varies with the type of screen used, the operable distance may decrease.

CAUTION

• Do not put the remote control in a place with an exposure to direct sun light or high temperature. It may deformed due to heat, or the internal components may be adversely affected resulting in fire hazard.
• Remove the batteries from the remote control when storing the remote control. Storing the remote control for a prolonged period without removing the batteries can cause battery leakage.

Menu

Select the icon at the top of the menu to display its corresponding setting item as shown below.

① Picture Adjust

② Input Signal

③ Installation

④ Display Setup

⑤ Function

⑥ Information

Installing the Projector

Precautions during Installation

Please read the following carefully before installing this unit.

When carrying this unit

This unit is heavy in weight. Please ensure that there are at least two persons carrying it.

Do not install at the following

This unit is a precision device. Please refrain from installing or using it at the following locations. Otherwise, it may cause fire or malfunction.

• Dusty, wet and humid places
- Places subject to oily smoke or cigarette smoke
- On top of a carpet or bedding, or other soft surfaces
- Places exposed to direct sunlight
- Places with a high or low temperature
- Do not install this unit in a room that is oily or subject to cigarette smoke. Even a small quantity of smoke or oiliness can have a long-term impact on this unit.
* This unit produces a great amount of heat, and is designed to take in cool air to cool its optical components. Using the unit at the above locations may cause dirt to attach to the light path, thereby resulting in dark images or dull colors.
* Dirt that sticks to the optical components cannot be removed.

Using the projector

There is no particular limitation on the positioning of the projector during installation.

You can install at your preferred angle.

Maintain clearance from the wall, etc.

As the unit discharges a large amount of heat, install it with adequate clearance from the surroundings as shown below.

Leave the front area of the unit unblocked. If there is any obstructing object in front of the exhaust vent, hot air will flow back to the unit and cause it to heat up. Hot air flowing out of the unit may cast shadows on the screen (heat haze phenomenon).

Installing the screen

Install the unit and the screen such that they are perpendicular to each other.

• Please choose a screen material with non-uniform patterns. Uniform patterns such as checks may cause interference patterns to occur.
• In this case, you can change the size of the screen to make the interference patterns less noticeable.

Using the projector at a high altitude

When using this unit at a location that is higher than 900 m above sea level (low air pressure), set the “High Altitude Mode” to “On”. (P. 41)

Precautions during Mounting

Securing (mounting) the projector

Diagram showing a projector on a stand with a large screen, no text or symbols present

• When this unit is to be mounted to a fixed position for use, install it horizontally.
• Make sure to secure the main unit to prevent accidents such as during an earthquake.

Securing with screws

Remove the four feet at the bottom, and fasten using the screws (M5 screws, 15 to 25 mm).

* Using screws other than those designated may cause the unit to break down.
* Do not use 2 adjacent locations (A+B, B+C, C+D, D+E) only.

Securing the projector (ceiling mount)

Diagram showing light rays projecting onto a device (no text or symbols present)

- Be sure to ask your dealer to install the unit for you. Installing the unit on your own may cause the unit to fall resulting in injury.

• Take the necessary actions to prevent the main unit from falling off such as during an earthquake.

- Regardless of the warranty period, JVC is not liable for any product damage caused by mounting the unit with non-JVC ceiling fittings or to an environment that is not suited for ceiling mount.

- When using the unit with it suspended from a ceiling, pay attention to the surrounding temperature. When a heater is in use, the temperature around the ceiling may be higher than expected.

- To attach the unit to the ceiling mount bracket, set the torque between the range of 1.5N m to 2.0N m. Tightening with torque exceeding the above range may cause damage to the unit, which may result the unit to fall.

- When reusing the ceiling mount bracket of an old model, consult the specialist to check if there are any issues with the surrounding space and increase in weight.

• Install the outlet at an accessible height to unplug from the wall. Or install the circuit breaker at an accessible height to shut down the projector. If you need information, please consult your authorized dealer or specialist.

Installing the ceiling mounting bracket

① Remove the rear foot (x2).

• The removed feet can be installed to the rear holes. (*1)
• It is not necessary to remove the front feet. However, it will not pose any usage problems even when they are removed.

Front

Rear

② Install the ceiling mounting brackets to the screw holes indicated by the arrows.

• Use screws that meet the specification.
• For details, contact your authorized dealer.

Front

Pure technical diagram of a rectangular frame with directional arrows, no text or symbols present

Rear

Adjusting the Position

Adjusting the elevation angle of the projector

The height and inclination of the unit (0 to 5 mm) can be adjusted by turning the feet.

Lift the unit and adjust the four feet.

Diagram of a device's rear panel and side arm, labeled 'Feet' (no other text or symbols)

4 Locations

Pure technical diagram of a mechanical component with no text, numbers, or symbols

Connecting the Projector

• Do not turn on the power until connection is complete.
• The connection procedures differ according to the device used. For details, please refer to the instruction manual of the device to be connected.
• This projector is used for projecting images. To output the audio of connected devices, please connect a separate audio output device, such as an amplifier or speaker.
• Some cables cannot be connected to this unit due to the size of their connector cover.

Connecting to the DisplayPort Terminals

• For single-channel input signals, connect to one of the [DisplayPort 1], [DisplayPort 2], [DisplayPort 3] or [DisplayPort 4] input terminals.
• For two-channel input signals, connect to the [DisplayPort 1] and [DisplayPort 3] input terminals.
• For four-channel input signals, connect to the [DisplayPort 1] to [DisplayPort 4] input terminals.
  → "Types of Possible Input Signals" (P. 57)
  • Video images may not appear if a cable that does not support HBR2 is used. Use a cable that supports HBR2.
• When disconnecting the DisplayPort cable, make sure to release the latch and unplug the cable.

Connecting to the LAN Terminal

• The network is used to control this unit. It is not used for sending or receiving video signals.
• Please contact your network administrator for information concerning the network connection.
• For more information on control, please refer to "External Control" P. 50.

Connecting to the RS-232C Terminal

This Unit

- For more information on control, please refer to "External Control" P. 50.

Connecting to the REMOTE Terminal

This Unit

- For more details on the wired remote controller and connection cable, please consult your dealer.

Connecting the Power Cord (Supplied Accessory)

① Connect the power cord supplied to the power input terminal on the main unit
② Insert the supplied power plug into the wall outlet.

Precautions to prevent fire and electric shock

• The power consumption of this unit is large. Please connect it directly to the wall outlet.
• When you are not using the projector, please unplug the power cord from the outlet.
• Connect it using only the power cord supplied.
• Do not use a voltage other than the indicated power voltage.
• Do not damage, break or modify the power cord. Do not place a heavy object on the power cord, or heat or pull it. Doing so may damage the power cord.
• Do not unplug the power cord with wet hands.

Viewing Videos

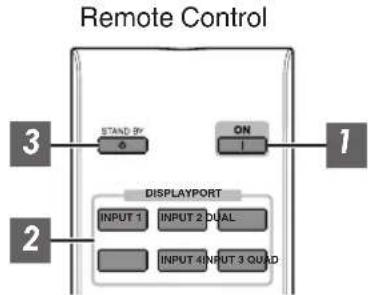

Technical line drawing of a rectangular electronic device with a central lens and side ports (no text or symbols)

MEMO

- Connect the power cord, and ensure that the "STANDBY/ON" indicator lights up in red.

1 Turn on the power

Remote control: press the I [ON] button

Projector unit: press the ⏻/I button

"STANDBY/ON" lights up (red) "STANDBY/ON" lights up (green) In standby state When LD block is starting up

0

□

2 Choose the image to project

Remote control:

Button Terminal
[INPUT 1] DisplayPort 1
[INPUT 2] DisplayPort 2
[INPUT 3] DisplayPort 3
[INPUT 4] DisplayPort 4
[DUAL] Dual (*1)
[QUAD] Quad (*2)

*1, *2: Refer to "Types of Possible Input Signals" P. 57

Projector unit: press the [INPUT] button to switch the input

- Play back the selected device to project the image.

To hide the image temporarily

Press the [HIDE] button on the remote control

• The "STANDBY/ON" indicator light starts to blink in green. When "LED Indication" is set to "Off", the indicator does not blink.
• Press the [HIDE] button again to resume display of the image.
• The power cannot be turned off when the image is temporarily hidden.

3 Turn off the power

Remote control: press the ⏻ [STANDBY] button

Projector unit: press the ⏻/I button

• While the "Are you sure you want to turn off?" message is displayed, press the button again.
• Thelight of the LD block goes off, and the “STANDBY/ON” indicator switches from a green light to a red blinking light.
• After the light goes off, the fan will run for about 10 seconds to cool down the LD block (Cool-down mode). Do not disconnect the power cable while cooling is in progress.
• After about 10 seconds, the "STANDBY/ON" indicator switches from a blinking red to a solid red light.

"STANDBY/ON" blinking (red) In the Cool-down mode

"STANDBY/ON" lights up (red) In standby state

CAUTION

• The power cannot be turned off within approximately 30 seconds after it has been turned on.
• The power cannot be turned on again while cooling is in progress (10 seconds).
• Pull out the power plug when the unit is not to be used for a prolonged period of time.
• If the indication of indicator differs from the description, refer to "Indicator Display on the Main Unit" P. 62 for details.

Adjustments and Settings in the Menu

Pressing the [MENU] button displays the menu.

Press the [▲▼◀▶] keys to select an item, followed by pressing the [OK] button to confirm the selection.

List of Menu Items

Picture Adjust

▶ Picture Mode ...... P. 27
→ Sharpness ...... P. 27
DLC P.27
→ Auto Intensity ...... P. 27
→ LD Current P.27
Aperture P.27
→ User Name Edit ...... P. 28
▶ Color Management ...... P. 28
▶ Color Temp. P. 29
▶ Gamma ...... P. 30
▶ Blur Reduction ...... P. 31
→ Clear Motion Drive ...... P. 31
→ Motion Enhance ...... P. 31
▶ Contrast ...... P. 31
▶ Brightness ...... P. 31
▶ Color P. 31
▶Tint P.31

Input Signal

▶ Input Level ...... P. 32
▶ Color Space ...... P. 32
▶ Channel Hide ...... P. 32

Installation

▶ Lens Control ...... P. 33

→ Focus P. 33
→ Zoom P. 33
→ Image Pattern P. 33

▶ Pixel Adjust ..... P. 34

→ Adjust P. 34
→ Adjust Area P. 34
→ Adjust Color P. 34
→ Adjust Pattern P. 34
→ Adjust Pattern Color P. 34
→ Adjust (Pixel) P. 34
→ Adjust (Fine) P. 34
→ Reset P. 34

▶ Mask P. 38
▶ Distortion Correction ...... P. 38
▶ Edge Blending ...... P. 40
▶ Installation Style ...... P. 40
▶ LED Indication ...... P. 41
▶ High Altitude Mode ...... P. 41

Display Setup

▶ Back Color ...... P. 41
▶ Menu Position ...... P. 41
▶ Signal Display ...... P. 41
▶ Logo ...... P. 41

Function

▶ Off Timer P. 42
▶ Network ...... P. 42
▶ Remote Code ...... P. 43
▶ Hide Mode ...... P. 43
▶ Software Update ...... P. 43

Information

You can adjust the image quality according to the type of video image you are viewing.

Setting Description
Natural Image quality that focuses	on natural color and gradation reproduction. Suitable for displaying video images in general.
Dynamic This is the picture setting	best suited for viewing the picture in a room that cannot be made completely dark.
User 1 to User 6 Enables user-defined image quality data to be saved and retrieved.

You can configure the following setting items by pressing the [MENU] button to display the menu, followed by selecting "Picture Adjust" → "Picture Mode" and pressing the [OK] button.

Sharpness

The sharpness of the image can be adjusted.

- Setting: 0 (low sharpness) to 50 (high sharpness)

DLC

Expands the dynamic range by controlling the LD current based on information superimposed on the image data.

Setting Description
Off Turns off the DLC function. LD	current is the value configured in “LD Current” or the current value controlled by “Auto Intensity”.
On Turns on the DLC function.

Auto Intensity

Controls the LD current value to maintain the projector brightness at a constant level.

Setting Description
Off Light intensity is manually set.
On Light intensity will be constant.

* This item cannot be set when "DLC" is set to "On".

LD Current

Controls the brightness of the light source by controlling the LD current.

• Setting range: 38 to 100
  * This function is disabled when "Auto Intensity" is set to "On" or when "DLC" is set to "On".

Aperture

For changing the brightness through controlling the aperture.

- Setting range: -7 (stops down) to 0 (opens up)

User Name Edit

You can edit the "User 1" to "User 6" names in the Picture mode.

• Characters that are usable include alphabets (upper or lower case), numeric characters, and symbols.
• Enter not more than 10 characters.

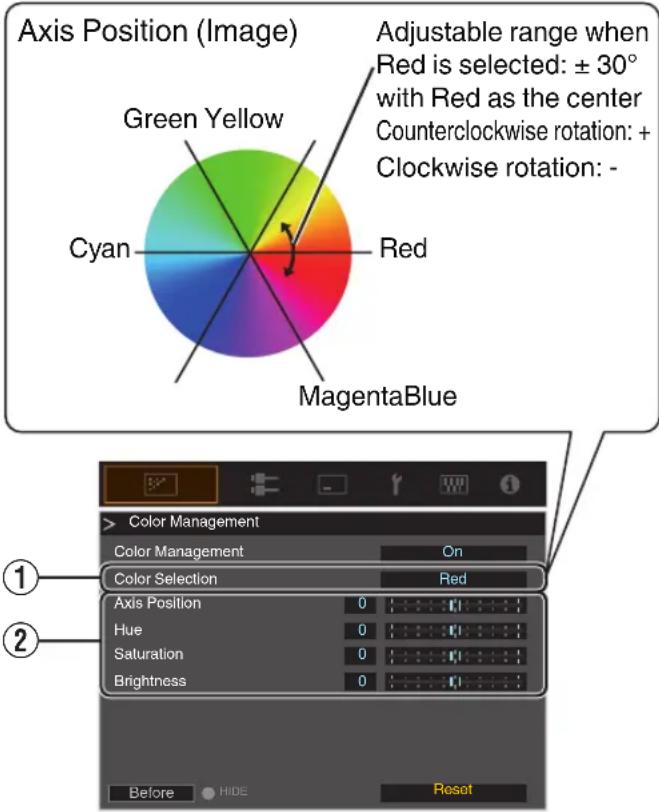

Color Management

Each of the colors is adjustable according to the user's preference.

1 Select the “Picture Adjust” → “Color Management” menu, and press the [OK] button.
2 Set "Color Management" to "On", and press the [OK] button
3 Adjust to the preferred color

① Select "Color Selection", and press the ◀▶ keys to select the color to adjust

- For color adjustment, select the color from the following: "Red", "Yellow", "Green", "Cyan", "Blue", "Magenta".

② Adjust the selected color

Item	Setting Range	Description
Axis Position -	30 to 30 Fine-tune the position of the central axis of the selected color.
Hue -30 to 30	Adjusts the hue (color tone).
Saturation -30	to 30 Adjusts the color saturation (vividness). -30 (dull) to +30 (vivid)
Brightness -30	to 30 Adjusts the brightness. -30 (dark) to +30 (bright)

- Selecting "Reset" resets all the adjustment data.

- Pressing the [HIDE] button on the remote control enables you to check the image before adjustment. Press the [HIDE] button again to return to the adjustment screen.

4 Press the [MENU] button to exit

Color Temp.

For setting the color temperature of the video image.

- The selectable "Color Temp." settings vary according to "Picture Mode".

"Color Temp."

Color Temp. Description
5500K Increasing the value enhances the blue tone of the video image, while decreasing the value enhances the red tone.
6500K
9500K
High Bright Color temperature that gives priority to brightness.
Custom 1 to Custom 2 The color temp. temperature of video images can be adjusted manually and saved as one of the three customized settings.

List of selectable "Color Temp." according to "Picture Mode"

Picture Mode Color Temp.
NaturalUser 1 to User 6	5500K
	6500K
	9500K
	High Bright
	Custom 1 to Custom 2
Dynamic High Bright

Correction Value

For setting the base color temperature for the adjustment of "Gain Red" / "Gain Green" / "Gain Blue" / "Offset Red" / "Offset Green" / "Offset Blue" when one of the "Custom 1" to "Custom 2" setting is selected in "Color Temp.".

Gain Red / Gain Green / Gain Blue

Adjusts each color in the bright parts of the video image.

- Setting range: -255 (reduces the red/green/blue tone) to 0 (no adjustment)

Offset Red / Offset Green / Offset Blue

Adjusts each color in the dark areas of the video image.

• Setting range: -50 (reduces the red/green/blue tone) to 0 (no adjustment) to +50 (enhances the red/green/blue tone)
• Setting “Color Temp.” to “Custom 1” or “Custom 2” allows you to select and adjust a base correction value (initial value) for adjustment.
• The selectable correction values vary according to "Picture Mode". (Refer to the table below.)

List of selectable "Correction Value" according to "Picture Mode"

Picture Mode Correction	Value
NaturalUser 1 to User 6	5500K
	6500K
	9500K
	High Bright
Dynamic Not selectable

Gamma

You can adjust the output value of the projected image with respect to the video signal input.

"Gamma"

Gamma Description
2.2 The gamma is set to “2.2”.
Custom 1 to Custom 3 Enables fine adjustment of gamma according to preference.

You can perform fine adjustments based on the selected gamma adjustment setting.

Adjustment item and its setting

Item Description	Setting
Color Selection For selecting the color for adjusting “Picture Tone”, “Dark Level” and “Bright Level”.		White / Red / Green / Blue
Picture Tone Adjusts the overall brightness automatically for a well-balanced result without compromising the gradation of the image.		-16 (darkens image for an underexposed effect) to +16 (brightens image for an overexposed effect)
Dark Level Adjusts the dark areas of the input image.• To do so, use the ◀▶ keys to move the cursor.		-7 (darkens the shadows) to +7 (brightens the shadows)
Bright Level Adjusts the bright areas of the input image.• To do so, use the ◀▶ keys to move the cursor.		-7 (darkens the highlights) to +7 (brightens the highlights)

Selecting the Base Correction Value (Initial Value) for Adjustment

• Selecting one of the "Custom 1" to "Custom 3" settings in "Gamma" allows you to select the "Correction Value".
• Select the base "Correction Value" for adjustment using the ◀▶ keys.

When “Correction Value” is set to “Import”

• By selecting "Import" for "Correction Value", the gamma data created externally can be selected as the base setting value for adjustment.
• The factory setting for "Import" is "2.2".
• You can use the calibration software to customize the gamma data adjustment, and import the created gamma data.

Please check with your authorized dealer for details.

Blur Reduction

For reducing the after-image, which occurs in a fast-moving scene.

Clear Motion Drive

For reducing the after-image, which occurs in a fast-moving scene.

• Pressing the [C.M.D.] button each time switches the mode in the following sequence: "Off" → "Mode 1" → "Mode 2" → "Mode 3" → "Off"...
  * C.M.D. is the abbreviation for Clear Motion Drive.

Setting Description
Off Doubles the frame rate of the input image by drawing the original image twice.
Mode 1 Displays the image as it is at the frame rate of the input image.
Mode 2 Displays the image as it is at the frame rate of the input image.Applies black insertion to reduce blurriness in the video images.
Mode 3 Reduce blurriness in the video image by applying black insertion to the Off mode.

Motion Enhance

You can reduce motion blur with this function enhancing the response of D-ILA image devices. If the image outline is unnatural, set this item to "Off".

Setting Description
Off Does not perform correction.
On Reduces image blurring.
Gain When Motion Enhance is set to “On”, the overall intensity is adjusted using Gain, while adjustment of each color is performed using Red/Green/Blue.
Red
Green
Blue

Contrast

For adjusting the white level point to avoid clipping or over saturation.

- Setting range: -50 (little difference in brightness) to +50 (large difference in brightness)

Brightness

For adjusting the black level point to avoid clipping or over saturation.

- Setting range: -50 (darker) to +50 (brighter)

Color

For adjusting the color density of the video image.

- Setting range: -50 (lighter) to +50 (deeper)

Tint

For adjusting the hue of the video image.

- Setting range: -50 (reddish) to +50 (greenish)

Input Level

For setting the dynamic range (gradation) of the video input.

- If the dynamic range is not appropriate, the bright areas become overexposed, and the dark areas become underexposed.

Setting Description
16-235 (Video) Select this setting if you are inputting video signals (dynamic range: 16 - 235).
0-255 (PC) Select this setting if you are inputting PC signals (dynamic range: 0 - 255).

Color Space

For setting the color space of the input signal.

Setting Description
YCbCr444 Select this setting when	inputting YCbCr (4:4:4) video signals.
YCbCr422 Select this setting when	inputting YCbCr (4:2:2) video signals.
RGB Select this setting when inputting RGB video signals.

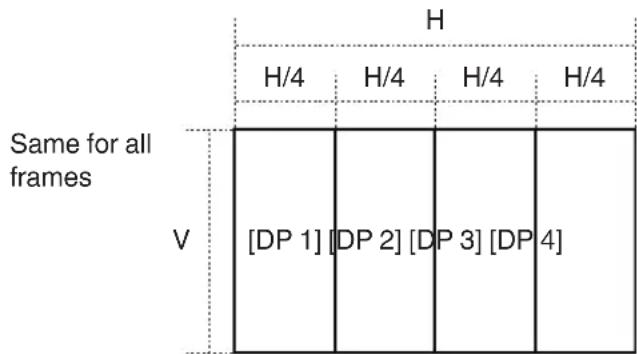

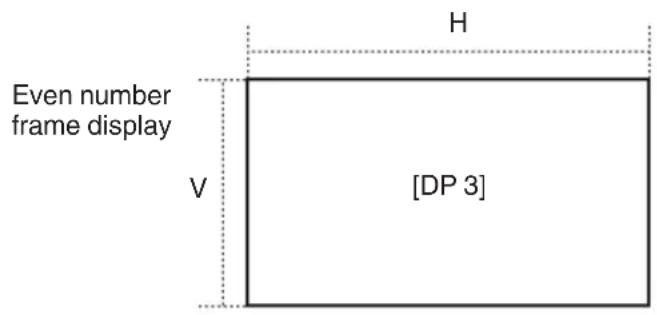

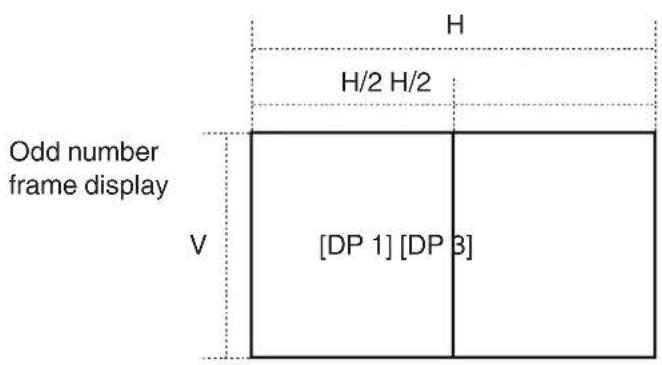

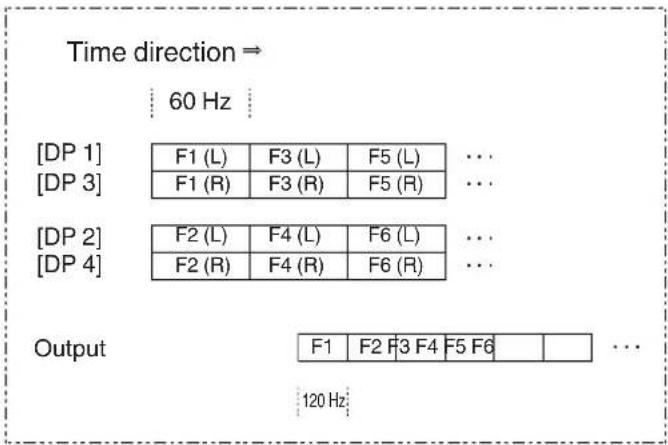

Channel Hide

A function for configuring whether to display video images for each DisplayPort input terminal.

Setting Description
DP 1	Off Displays video images with the Hide function disabled.
DP 2
DP 3	On Enables the Hide function and does not display video images.
DP 4

Installation

Lens Control

Focus / Zoom

For adjusting the lens according to the projection position

1

Press the [LENS CONTROL] button, and use the [▲▼] keys to adjust Focus (focus) and Zoom (screen size)

- Pressing the [LENS CONTROL] or [OK] button each time switches the mode in the following sequence: "Focus" → "Zoom" → "Focus"...

2 Press the [MENU] button once, or the [BACK] twice, to end adjustment

Image Pattern

For setting whether to display the lens adjustment pattern.

Setting Description
Off Displays external signals, and does not display the lens adjustment pattern.
On Displays the lens adjustment pattern.

Pixel Adjust

For correcting the phase shifting between each RGB color by adjusting the pixel.

Adjust

For setting the adjustment feature to On or Off.

Adjust Area

Setting Description
Whole Adjusts the entire image.
Zone Enables fine adjustment of each area by dividing the screen evenly into 10 vertical and horizontal zones.

Adjust Color

For selecting the color to adjust ("Red" or "Blue").

Adjust Pattern

Setting Description
Off Displays the external signals without displaying the test pattern for adjustment.
On Displays the test pattern for adjustment.

Adjust Pattern Color

For setting the color of the adjustment pattern displayed during adjustment to "White" or "Yellow / Cyan".

Adjust (Pixel)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of one pixel on the screen of the color selected in “Adjust Color”.

→ "Whole Adjust (Pixel) Operation Procedure" (P. 35)
- Adjustment cannot be made when "Adjust Area" is set to "Zone".

Setting Description
H (Horizontal) Setting range: -2 (moves red/blue to the left) to +2 (moves red/blue to the right)
V (Vertical) Setting range: -2 (moves red/blue downward) to +2 (moves red/blue upward)

Adjust (Fine)

When “Adjust Area” is set to “Whole”, adjustment can be made by moving in units of 1/8 pixel on the screen of the color selected in “Adjust Color”.

→ "Whole Adjust (Fine) Operation Procedure" (P. 36)

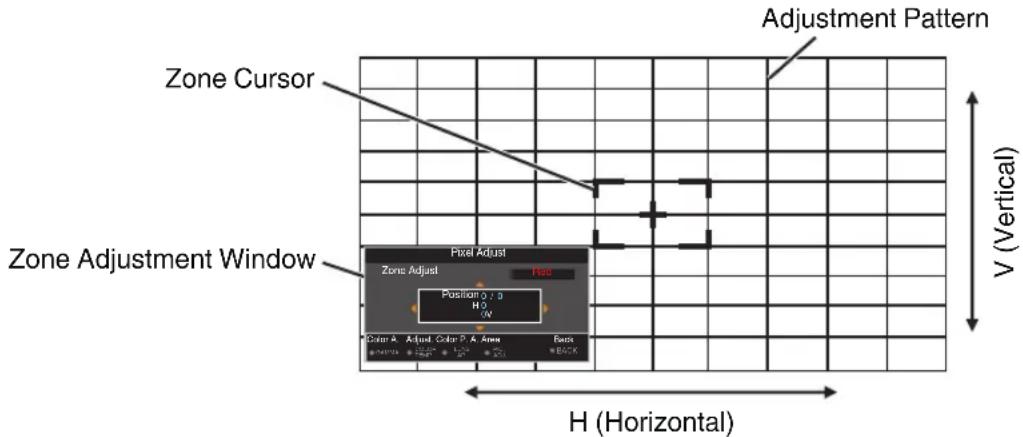

When “Adjust Area” is set to “Zone”, the screen is divided evenly into 10 vertical and horizontal zones, and fine adjustment of each area is possible.

→ "Zone Adjust Operation Procedure" (P. 37)

Setting Description
H (Horizontal) Setting range: -31 (moves red/blue to the left) to +31 (moves red/blue to the right)
V (Vertical) Setting range: -31 (moves red/blue downward) to +31 (moves red/blue upward)

Reset

Restores all pixel adjustment data to the factory default.

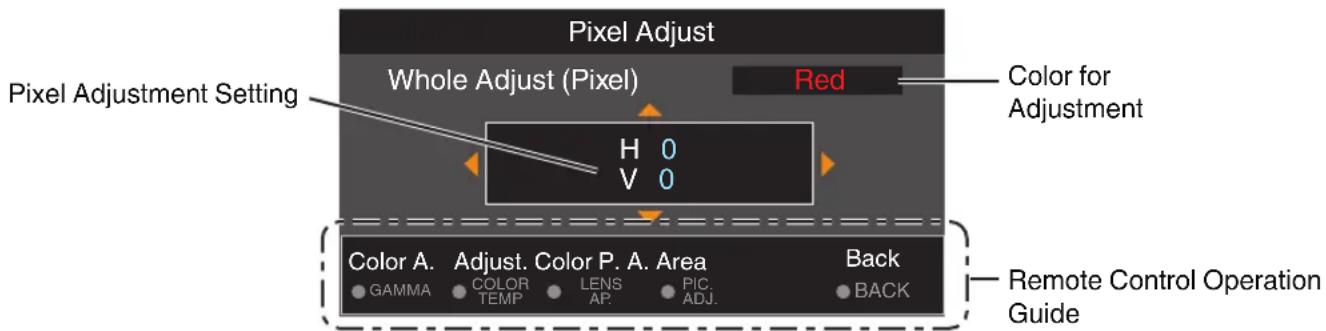

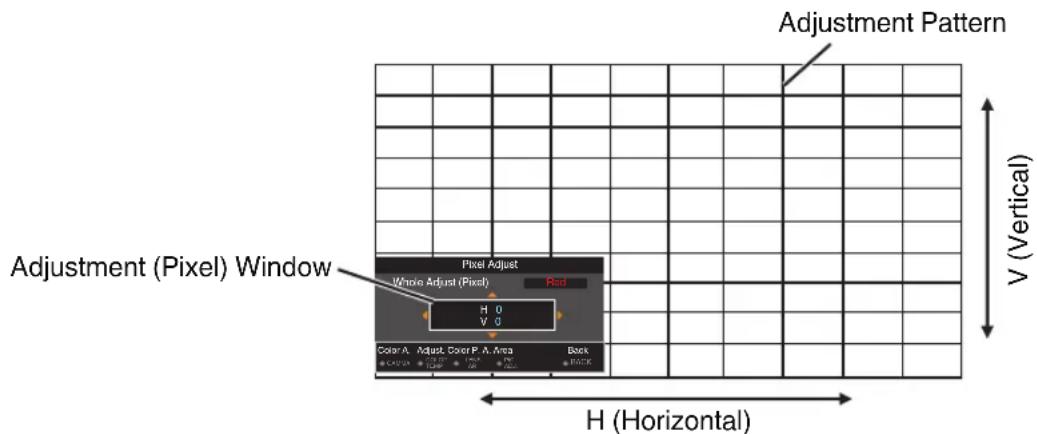

Whole Adjust (Pixel) Operation Procedure

For making general adjustments to slight color fringing in the horizontal/vertical directions of the video image.

① Set “Adjust Area” to “Whole”
② Select "Adjust Color" and "Adjust Pattern Color"
③ Select "Adjust (Pixel)", and press the [OK] button

- The Adjustment mode is activated, and the selected adjustment pattern and Adjustment (Pixel) window are displayed.

④ Use the [▲▼◀▶] keys to move and adjust the vertical and horizontal pixels of the entire zone

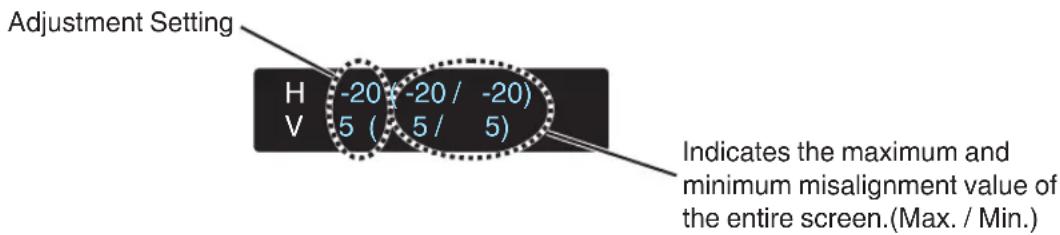

- The adjustment setting appears at the center of the Adjustment (Pixel) window.

⑤ After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

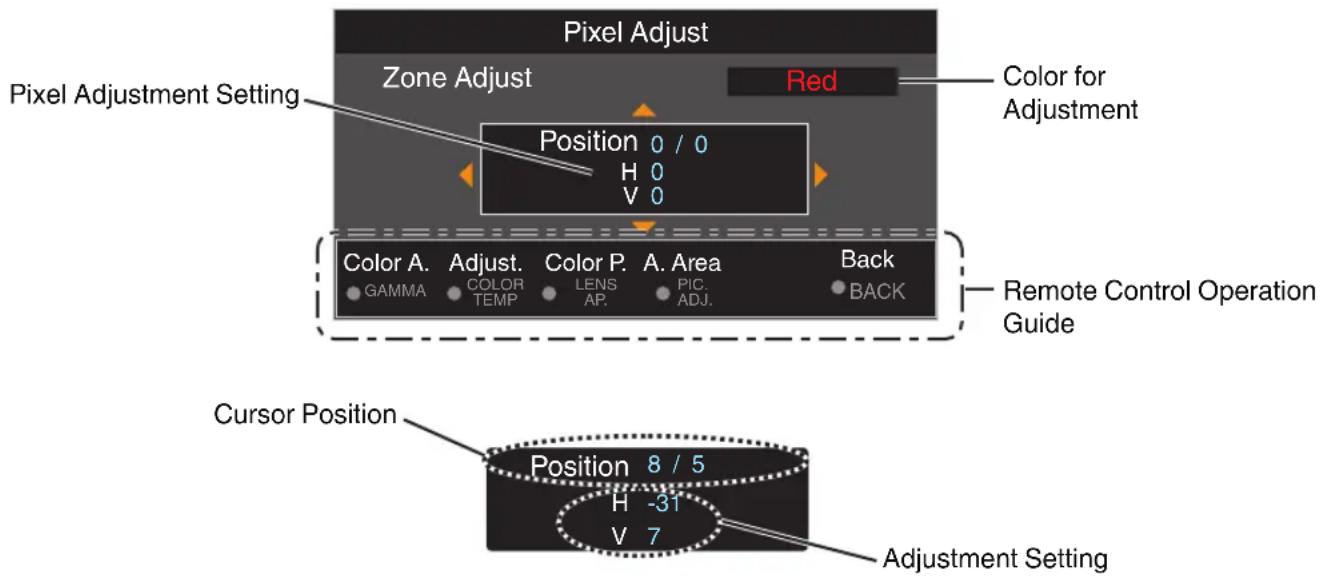

Remote Control Operation Guide

Button Name Function Description of Operation
[GAMMA] Color A. Changes “Adjust Color”.
[COLOR TEMP.] Adjust Switches between “Adjust (Pixel)” and “Adjust (Fine)”.		• Switches to “Adjust (Pixel)” when “Adjust Area” is set to “Zone”.
[LENS AP.] Color P. Changes “Adjust Pattern Color”.
[PIC ADJ.] A. Area	Switches “Adjust Area”.	• A zone cursor appears on the adjustment pattern when the “Zone” setting is selected.

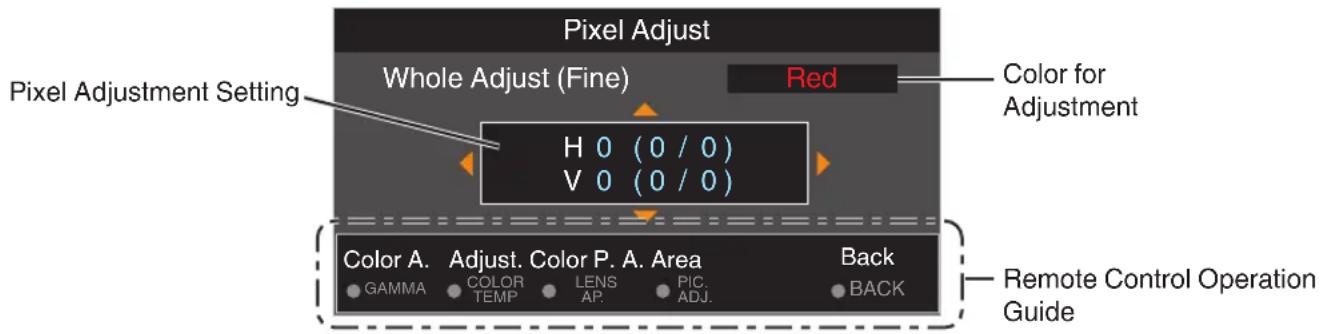

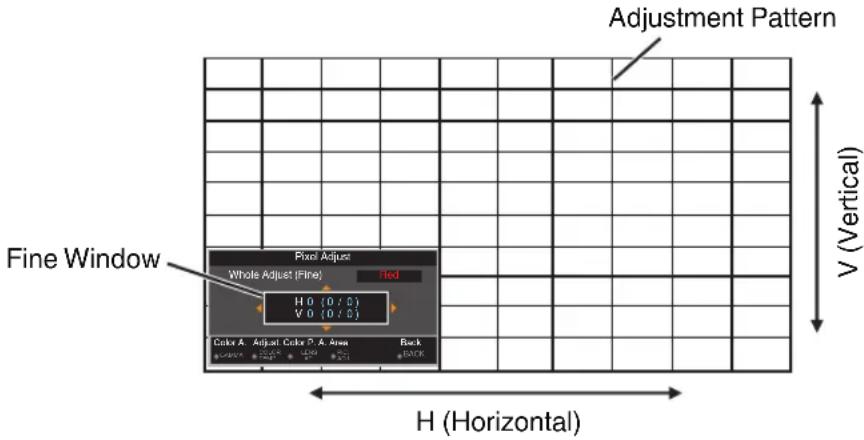

Whole Adjust (Fine) Operation Procedure

For making general adjustments on the misalignment of the entire screen using “Adjust (Pixel)”, followed by making fine adjustments.

① Set “Adjust Area” to “Whole”
② Select "Adjust Color" and "Adjust Pattern Color"
③ Select Adjust (Fine), and press the [OK] button

• The Adjustment mode is activated, and the selected adjustment pattern and Fine window are displayed.
• The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

④ Use the [▲▼◀▶] keys to move and adjust the vertical and horizontal pixels of the entire zone

- The adjustment setting appears at the center of the Fine window.

⑤ After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

MEMO

• If both the maximum overall screen misalignment of H (horizontal direction) and V (vertical direction) are "31", you cannot select a value that is larger than the displayed setting even when the adjustment setting is lower than the maximum value.
• If the minimum overall screen misalignment is “-31”, you cannot select a value that is smaller than the displayed setting even when the adjustment setting is higher than the minimum value.

Zone Adjust Operation Procedure

For fine-tuning misalignments on a part of the screen after adjusting the overall screen misalignment using “Adjust (Pixel)” and “Adjust (Fine)”.

- The screen can be divided vertically and horizontally into 10 sections for partial adjustments to be made.

① Set "Adjust Area" to "Zone"
② Select "Adjust Color" and "Adjust Pattern Color"
③ Select Adjust (Fine), and press the [OK] button

- The Adjustment mode is activated, and the selected adjustment pattern and Zone Adjustment window are displayed.

- The adjustable range may be smaller depending on the pixels being adjusted on the entire screen.

④ Press the [▲▼◀▶] keys to move the cursor to the point to be adjusted
⑤ Press the [OK] button to enter the Adjustment mode
⑥ Use the [▲▼◀▶] keys to move and adjust the vertical and horizontal pixels of the entire zone

- The adjustment setting appears at the center of the Zone Adjustment window.

⑦ After adjustment is complete, press the [BACK] button twice to exit the Adjustment mode

Mask

For hiding the peripheral area of the image with a mask (black strip).

Setting Description
Off Not masked.
On Hides the ranges specified in “Top”, “Bottom”, “Left” and “Right” by masking (with black strips).

Off

Newborn baby resting on a fluffy white surface, wearing a knitted hat (no text or symbols visible)

On

Newborn baby sleeping on fluffy white bedding (no text or symbols visible)

Mask: black strip around the periphery

"Top" / "Bottom" / "Left" / "Right"

For specifying the ranges to hide by masking (with black strips).

- Setting range: 0 to 220

Distortion Correction

Corrects distortion of the screen.

Distortion Correction

For setting the adjustment feature to On or Off.

Adjust Pattern Color

For setting the color of the adjustment pattern displayed during adjustment to "White" or "Green".

Adjust Pattern

Setting Description
Off Displays the external signals without displaying the test pattern for adjustment.
On Displays the test pattern for adjustment.

Adjust

Displays the adjustment screen.

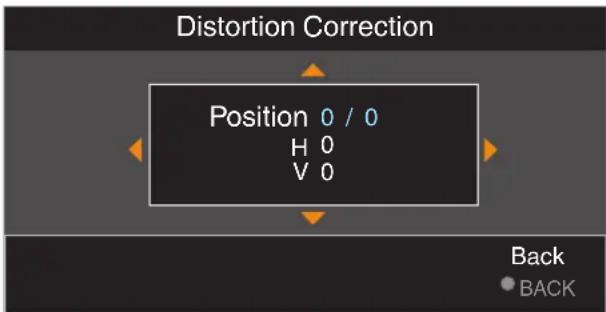

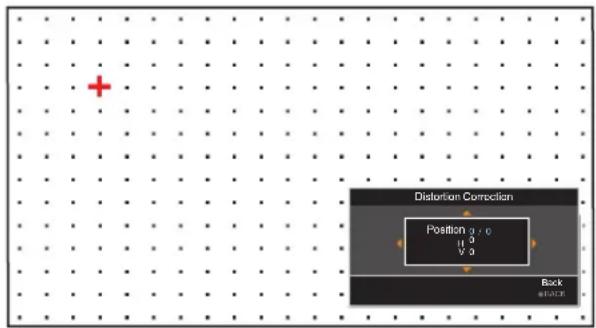

Operation procedure for Adjust

① Select "Adjust Pattern Color"
② Select "Adjust", and press the [OK] button

- The Adjustment mode is activated, and the selected adjustment pattern and Adjustment window are displayed.

③ Select the position to compensate by using the [▲▼◀▶] keys to move the cursor, followed by pressing the [OK] button.
④ Use the [▲▼◀▶] keys to set the compensation value

• Pressing the [OK] button each time switches the setting item in sequence. "Position" "H" "V" "Position"...
• The item that is currently being set is displayed in blue.
• A red cursor is displayed when setting the position. A blue cursor is displayed when setting the compensation value.

⑤ After adjustment is complete, press the [BACK] button to exit the Adjustment mode

MEMO

- Noise may occur during adjustment. This is not a malfunction.

Edge Blending

Corrects the seam between the images during projection by multiple projectors.

* This function is disabled when "Picture Mode" is set to "Dynamic".

Edge Blending

For setting the function to On or Off.

Setting Description
Off Disables the Edge Blending function.
On Enables the Edge Blending function.

Guide

For setting the guideline display (start point: green; end point: red).

Setting Description
Off Hides the guideline.
On Displays the guideline.

Position Select

For setting the compensation position.

Setting Description
Top For setting the start and end points using the Start/End item.
Bottom
Left
Right

Start/End

For setting the start and end points of the compensation position selected in "Position Select".

- Setting range: 0 to 255 (left/right), 0 to 135 (up/down)

Black Level

For adjusting the black level.

- Setting range: 0 to 50

Installation Style

For setting to “Front”, “Ceiling Mount (F)”, “Rear”, or “Ceiling Mount (R)” according to the installation status of the projector.

• “Front” or “Ceiling Mount (F)” is set when projector is installed in the front with respect to the screen.
• “Rear” or “Ceiling Mount (R)” is set when projector is installed in the rear with respect to the screen.
  * When using the projector with the lens shifted in the vertical direction, the amount of distortion at the upper and lower ends may be different and the curvature distortion may not be fully corrected.

LED Indication

When “LED Indication” is set to “Off”, the LED indicator does not light up or blink under the following status.

• When the time to replace the laser light source is near. (P. 44)
• When HIDE is on. (P. 62)
• When the projector receives a signal from a remote control which is set to a different code mode (A or B). (P. 43)

High Altitude Mode

For setting the high altitude mode to "On" or "Off".

Set to "On" when using the projector at a location of low atmospheric pressure (higher than 900 m above sea level).

Display Setup

Back Color

For setting the color of the background to "Blue" or "Black" when there is no signal input.

Menu Position

For setting the display position of the menu.

Signal Display

For setting the display of the input information to "On" or "Off".

Setting Description
Off Not displayed.
On Shows the input terminal for 5 seconds when input is switched.

Logo

For setting the display of logo during startup to "On" or "Off".

Setting Description
Off Not displayed.
On Displays the “D-ILA” logo for 5 seconds during startup.

Setting Description
Off Turns off the laser light source	when displaying the menu.
On Turns on the laser light source	when displaying the menu.

Off Timer

For setting the duration before the power turns off automatically when the projector is not operated.

• Setting values: "Off", "1 Hour", "2 Hours", "3 Hours" and "4 Hours"
  * The setting will be retained even after the Off Timer operation has completed.

Network

For specifying the settings for external control from a PC or smartphone.

Setting Description
DHCP Client On Obtains	the IP address automatically from the DHCP server inside the connected network.
	Off For configuring the network settings manually.
IP Address For configuring the IP address.
Subnet Mask For configuring the subnet mask.
Default Gateway For configuring the default gateway.
MAC Address Displays the MAC address of the unit.
Set Applies the network settings.

Glossary of Network Terminology

DHCP : Abbreviation for Dynamic Host Configuration Protocol. This is a protocol for the network to assign an IP address automatically to the connected device.

IP Address : Numeric characters for identifying the device that is connected to the network.

Subnet Mask : Numeric characters that define the bit count used for the network address that is a segment of the IP address.

Default Gateway : Server for communicating beyond the network that is divided by the subnet mask.

MAC Address : Abbreviation for Media Access Control address. This is a number that is unique to each network adapter. Each of the network adapters is assigned with a unique MAC address.

Remote Code

For changing the remote control code.

Setting Description
A Change the remote control code	from “B” to “A”.
B Change the remote control code	from “A” to “B”.

- You need to configure the remote control according to the settings of this unit.

On the remote control unit, press the [MENU] and [BACK] buttons at the same time for three seconds or longer to switch the code.

- The backlight of the remote control blinks 3 times: change the remote control code to "A"

- The backlight of the remote control blinks 2 times: change the remote control code to "B"

- If the setting differs between this unit and the remote control, the “STANDBY/ON” indicator blinks in green when receiving the remote control code.

(Green)

Hide Mode

For reducing the power consumption through suppressing the current supply for the LD block when the [HIDE] button is pressed to hide the image temporarily.

Setting Description
Off Do not suppress the current supply	apply when the [HIDE] button is pressed to hide the image temporarily.
On Suppresses the current supply	when the [HIDE] button is pressed to hide the image temporarily.

Software Update

For performing a software update.

For the latest information on the software, refer to http://www3.jvckenwood.com/english/download/.

Information

Page 1

Setting Description
Input Displays video input terminal.
Status Displays the image output status.
Resolution (DP 1 / DP 2 / DP 3 / DP 4)	Displays the resolution information of signal input to each of the DP 1 to DP 4 terminals.
Light Source Time Displays the laser light source time.
Soft Ver. Displays the firmware version.

Pages 2 to 5

Setting Description
DP 1 to DP 4 Displays the terminal	for which the corresponding information is displayed.
Resolution	Displays the image resolution.
H Frequency	Displays the horizontal frequency.
V Frequency	Displays the vertical frequency.
Color Depth Displays the color bit	depth of the input video signal.Not displayed when YCbCr (4:2:2) is input.Displayed when Deep Color information is received from the source device.
Color Space Displays the Color Space detected by AVI Info frame.
Link Rate Displays the transmission frequency of the input signal.
Lane Count Displays the number of lanes used for the input signal.

Maintaining the Cabinet and Remote Control

• Gently wipe off dirt on the cabinet with a soft cloth.
- If it is extremely dirty, wet a cloth in water, wring dry and use it to wipe off the dirt, followed by wiping again with a dry cloth.
- Pay attention to the following as the cabinet may deteriorate in condition or the paint may come off.

• Do not wipe with thinner or benzine
- Do not allow prolonged contact with rubber or plastic products
- Do not spray volatile chemicals such as insecticide

Cleaning and Replacing the Filter

Clean the filter regularly. Using a filter without cleaning may reduce the brightness of the image. Dirt that enters the unit may also appear as shadows on the image.

1 Loosen the 4 screws and remove the cover
- The screws cannot be removed from the cover. Do not try to remove the screws from the cover by force.
2 Remove the sponge filter
3 Use a vacuum cleaner to remove dirt from the sponge filter carefully
4 Restore the sponge filter
5 Restore the cover and fasten the 4 screws

CAUTION

• Do not wash the air filter with water. Doing so may cause the filter to deteriorate.
• Make sure to attach the air filter and sponge filter in the correct sequence.

MEMO

• If the air filter or sponge filter is damaged and requires replacement, or if dust gets into the unit, consult your authorized dealer or nearby service center.
  • Air filter Product no.: F1K-0062-00
• Sponge filter Product no.: J3K-0049-00

About the Lens

• This projector does not come with a projection lens.
  To use the projector, please mount a projection lens according to your requirements.
• The use of a separate spacer may be required depending on the specifications of the lens.
• Please connect the connector before a projection lens attached.

Troubleshooting

Before sending the unit to your authorized dealer for repair, please check the following points.

The following symptoms are not malfunctions.

You do not need to worry about the following symptoms if there is no abnormality on the screen.

• A part of the top or front surface of the unit is hot.
• A creaking sound is heard from the unit.
• An operating sound is heard from the inside of the unit.
  • Color smear occurs on some screens.

This unit is a digital device. This unit may become unable to operate normally due to external static or noise. Perform the following operations when such malfunctions occur.

① If the unit is in the Standby mode, pull out the power plug, followed by inserting it again
② Press the ⏻/I button on the projector unit to turn on the power again

Power is not supplied

Check Action Refer to
Is the power cord disconnected? Insert the power cord (plug) firmly. P. 22
Is the unit in the Cool-down mode? After exiting the Cool-down mode, turn on the power again. P. 24

Power shuts down automatically

Check Action Refer to
Has “Off Timer” been configured? Set “Off Timer” to “Off”. P. 42
Are the air inlets and exhaust vent blocked?	Leave proper clearance when installing the unit. P. 12, 17
Is there a large amount of dirt attached to remove the dirt using a vacuum cleaner. P. 45 the sponge filter?

Video image does not appear

Check Action Refer to
Is the correct external input selected? Select the correct external input terminal. P. 23
Is the power of the AV device or PC turned on?	Turn on the power of the AV device or PC and play the video.	P. 21
Is the AV device or PC properly connected?	Connect the AV device or PC properly. P. 21
Are the correct signals being output from the AV device or PC?	Set the AV device or PC properly. P. 21
Is an intermediate device (AV amplifier, divider, etc.) in use?	Change the sequence of turning on the source device, intermediate device and the projector. And after turning on each device, ensure that the signal output is stable before turning on the next device.	P. 21

Video image looks unnatural

Colors are unnatural

Check Action Refer to
Is the color space of the input signal correctly set?	The color may turn out unnatural when the input signal is different from that in the projector setting. Set the “Color Space” for “Input Signal” correctly.	P. 32
Is the image correctly adjusted? Adjust “Color” and “Tint” accordingly. P. 31
Is the AV device or PC properly connected?	Connect the AV device or PC properly. P. 21

* The video image may appear slightly reddish immediately after starting up. This is not a malfunction.

Video image is fuzzy

Check Action Refer to
Is the focus correctly adjusted? Adjust the focus. P. 33
Is the unit placed too near or too far away from the screen?	Set the unit at a correct distance from the screen. P. 55

Projected image is dark

Check Action Refer to
Is the laser light source near exhaustion?	Check the laser light source time in the “Information” menIf 20,000 hours have elapsed, the brightness will be half the brightness at shipment.	P. 44
Is the aperture closed? Increase the value of the “Aperture” setting. P. 27
Is the value of the “LD Current” setting small?	Increase the value of the “LD Current” setting. P. 27

Striped patterns appear on the screen

Check Action Refer to
Does the fabric of the screen have a regular pattern?	Interference fringes may sometimes occur between the fabric pattern and the pixels. Please consult the authorized dealer.	—

Video images are missing

Check Action Refer to
Has screen mask been configured? Set	“Mask” to “Off”.	P. 38

Zoom or focus does not work

Check Action Refer to
Is the lens replaced? Depending on the lens position, the lens may not work when it has been replaced.While at the Focus / Zoom adjustment screen, press and hold the ▲ or ▼ key for 2 seconds or longer. Doing so will allow the lens to recover from this condition.	P. 33

Remote control does not work

Check Action Refer to
Are the batteries correctly loaded?	Match the polarities (⊕⊖) correctly when loading the batteries.	P. 15
Are the batteries exhausted? Replace with new batteries. P. 15
Is there an obstructing object between the remote control and remote sensor?	Remove any obstructing object. P. 15
Is the remote control held too far away from the unit?	Hold the remote control closer to the sensor during use. P. 15	15

Noise is heard

Check Action Refer to
Is the exhaust vent blocked?Is the unit used near a heater or air-conditioner?	Check the installation condition of the projector.When the surrounding temperature of the projector is high, the fan revolution speed increases to protect the projector unit, hence a louder operating sound.	P. 17

There are small black or colored dots on the screen

The D-ILA device is manufactured using high-precision technologies, but there may be some (less than 0.01%) missing pixels or pixels that remain permanently lit. This is not a malfunction.

When the Following Messages Appear...

Message Description	Action
	No device is connected to the input terminal.The input terminal is connected but there is no signal.	Input the video signals.
	A video signal that cannot be used with this unit has been input (the names of input terminals such as “DP 1” will be displayed in yellow).	Input video signals that can be used.(P. 57)

External Control

It is possible to control this unit by connecting it to a PC using an RS-232C cross cable (D-sub 9-pin).

The projector can be controlled by connecting it to a PC through the computer network with a LAN cable for control commands to be sent to the projector.

→ “Network” (P. 42)

- Please use it after you have gained proper understanding from professional books or consulting the system administrator.

RS-232C Specifications

Pin No. Signal Function Signal Direction
2 RxD Receive data PC →			This unit
3 TxD Transmission data This unit → PC
5 GND Signal ground			—
1, 4, 6 - 9 N/C		—	—

- PC refers to the controller, such as a personal computer.

Mode Non-synchronous
Character length 8 bit
Parity None
Start bit 1
Stop bit 1
Data rate 19200 bps
Data format	Binary

TCP/IP Connection

Before controlling via LAN, it is necessary to establish connection of the TCP layer by a "3-way handshake", followed by sending out "PJREQ" and receiving "PJACK" within five seconds after the projector sends out "PJ_OK" for connection authentication.

If you are unable to complete sending within five seconds, or when "PJ_NG" or "PJNAK" is received, check the operating status of the projector, followed by performing the steps again starting from establishment of a TCP connection.

Command Format

The command between this unit and the computer consists of "Header", "Unit ID", "Command", "Data" and "End".

- Header (1 byte), Unit ID (2 bytes), Command (2 bytes), Data (n bytes), End (1 byte)

Header

This binary code indicates the start of communication.

Binary Code Type	Description
21 Operating command	PC →	This unit
3F Reference command	PC →	This unit
40 Response command	This unit → PC
06 ACK This unit → PC	(returns to PC after the	command is accepted without error)

Unit ID

This is a code that specifies the unit. The binary code is fixed at "8901".

Command and data

Operating command and data (binary code)

Command	Type Description
0000	Connection check	Check whether communication is enabled between this unit and the PC during standby.
5057 Power supply		During standby31: Turns on the powerWhen power is on30: Turns off the power (Standby mode)
4950 Input	When power is on38: DP 139: DP 241: DP 342: DP 4
5243 Remote control		Sends the same code as the supplied remote control.“Remote Control Code”P. 52

Reference command and data (binary code)

Command	Type Description
5057 Power supply		During standby or when power is on30: Standby mode31: When power is on32: In the Cool-down mode34: When error occurs on this unit
4950 Input	When power is on38: DP 139: DP 241: DP 342: DP 4

End

This code indicates the end of communication. The binary code is fixed at "0A".

Remote Control Code

Binary code is sent during communication.

- The following applies to the case when the remote control code is “A”. In the case of “B”, add “36” to the beginning of the code.

Remote Control Button Name Binary Code
STAND BY 37 33 30 36
ON 37 33 30 35
INPUT 1 37 33 37 30
INPUT 2 37 33 37 31
DUAL 37 33 34 44
INPUT 3 37 33 34 42
INPUT 4 37 33 34 43
QUAD 37 33 34 36
LENS CONTROL 37 33 33 30
C.M.D. 37 33 38 41
MOTION ENHANCE 37 33 46 36
HIDE 37 33 31 44
▲	37 33 30 31
▼	37 33 30 32
▶	37 33 33 34
◀	37 33 33 36

Remote Control Button Name Binary Code
OK 37 33 32 46
MENU 37 33 32 45
BACK 37 33 30 33
NATURAL 37 33 36 41
DYNAMIC 37 33 36 42
NAME EDIT 37 33 46 37
USER1	37 33 36 43
USER2	37 33 36 44
USER3	37 33 36 45
USER4	37 33 43 41
USER5	37 33 43 42
USER6	37 33 43 43
GAMMA	37 33 37 35
COLOR TEMP.	37 33 37 36
LENS AP.	37 33 32 30
PIC. ADJ.	37 33 37 32

Communications Example

This section shows the communication examples of RS-232C.

Operating command

Type Command Description
Connection check PC → This unit: 21 89 01 00 00 0AThis unit → PC: 06 89 01 00 00 0A		Connection check
Power (On) PC → This unit: 21 89 01 50 57 31 0AThis unit → PC: 06 89 01 50 57 0A		When power is turned on from the Standby mode
Power (Off) PC → This unit: 21 89 01 50 57 30 0AThis unit → PC: 06 89 01 50 57 0A		When power is turned off (Standby mode) from power-on mode
Remote control (MENU)	PC → This unit: 21 89 01 52 43 37 33 32 45 0AThis unit → PC: 06 89 01 52 43 0A	When the same operation as pressing the [MENU] button on the remote control is performed

Reference command

Type Command Description
Power (On) PC →	This unit: 3F 89 01 50 57 0AThis unit → PC: 06 89 01 50 57 0AThis unit → PC: 40 89 01 50 57 31 0A	When information on the power-on state is acquired
Input (DP 1) PC → This	unit: 3F 89 01 49 50 0AThis unit → PC: 06 89 01 49 50 0AThis unit → PC: 40 89 01 49 50 38 0A	When information on DP 1 input is acquired

Specifications

Product Name D-ILA Projector
Model Name DLA-VS4500
Display Panel/Size D-ILA device *1, 2		0.69" 4K D-ILA (4096 x 2160 pixels) x 3
Light Source Blu-Escent Laser / Phosphor
Screen Size Approx. 60" to 300" (Aspect ratio of 4096 x 2160)
Brightness 3000 lm
Projection Distance Refer to P. 55.
Input Compatibility Signal Refer to P. 57.
Display Resolution 4096 x 2160 pixels
Input Terminal DisplayPort Input DisplayPort 1.2a, 20-pin (male) x 4
Output Terminal SYNC OUT Mini jack, TTL output x 1 *3
Control Terminal	RS-232C Terminal Single, D-sub 9-pin (male) x 1 *4
	Remote Terminal Stereo mini jack (remote control) x 1
	LAN Terminal	Single, RJ45 jack, 10BASE-T/100BASE-TX x 1
Service Terminal	SERVICE	Single (USB Type A) x 1 *5
Power Requirements		AC 100 V to 240 V, 50 Hz/60 Hz
Power Consumption		750 W (during standby: 1.5 W *6)
Operation Environment		Temperature: 5°C to 35°C; humidity: 20% to 80%; storage temperature: -10°C to 60°C
Installation Height		Below 6,561 ft (2,000 m)
Dimensions (Width x Height x Depth)		500 mm x 235 mm x 719 mm (including feet)
Mass		35.5 kg
Accessories		Refer to P. 10.

*1 D-ILA is the abbreviation for Direct Drive Image Light Amplifier.
*2 D-ILA devices are manufactured using extremely high-precision technology with a pixel effectiveness of 99.99%. Only 0.01% or less of the pixels are either missing or would remain permanently lit.
*3 For synchronizing with other equipment.
*4 For external control.
*5 Exclusively for firmware update.
*6 The power consumption of this product during networked standby when all wired network ports are connected is 1.5 W.
- Design and specifications are subject to change without prior notice.
- Please note that some of the pictures and illustrations may have been abridged, enlarged or contextualized in order to aid comprehension. Images may differ from the actual product.

Screen Size and Projection Distance

GL-MZ4009Z

Screen Size Diagonal (Inch)	Projection Distance (m)
	17:9 Screen 16:9 Screen
	Wide-end Tele-end Wide-end Tele-end
60 1.22 1.74 1.29 1.83
70 1.44 2.04 1.52 2.15
80 1.65 2.34 1.74 2.47
90 1.87 2.65 1.97 2.78
100 2.08 2.95 2.19 3.10
110 2.30 3.25 2.42 3.42
120 2.52 3.55 2.65 3.74
130 2.73 3.85 2.87 4.05
140 2.95 4.15 3.10 4.37
150 3.16 4.46 3.33 4.69
160 3.38 4.76 3.55 5.00
170 3.59 5.06 3.78 5.32
180 3.81 5.36 4.01 5.64
190 4.02 5.66 4.23 5.95
200 4.24 5.96 4.46 6.27
210 4.45 6.26 4.69 6.59
220 4.67 6.57 4.91 6.90
230 4.88 6.87 5.14 7.22
240 5.10 7.17 5.36 7.54
250 5.32 7.47 5.59 7.85
260 5.53 7.77 5.82 8.17
270 5.75 8.07 6.04 8.49
280 5.96 8.37 6.27 8.81
290 6.18 8.68 --
300 6.39 8.98 --

GL-MZ4014Z

Screen Size Diagonal (Inch)	Projection Distance (m)
	17:9 Screen 16:9 Screen
	Wide-end Tele-end Wide-end Tele-end
60 1.66 3.43 1.75 3.61
70 1.96 4.02 2.06 4.23
80 2.25 4.60 2.37 4.84
90 2.54 5.19 2.67 5.46
100 2.83 5.77 2.98 6.07
110 3.12 6.36 3.28 6.69
120 3.41 6.94 3.59 7.30
130 3.70 7.53 3.90 7.92
140 3.99 8.11 4.20 8.53
150 4.28 8.70 4.51 9.15
160 4.58 9.28 4.81 9.76
170 4.87 9.87 5.12 10.38
180 5.16 10.45 5.43 10.99
190 5.45 11.04 5.73 11.61
200 5.74 11.62 6.04 12.22
210 6.03 12.21 6.34 12.84
220 6.32 12.79 6.65 13.45
230 6.61 13.38 6.95 14.07
240 6.90 13.96 7.26 14.68
250 7.19 14.55 7.57 15.30
260 7.49 15.13 7.87 15.91
270 7.78 15.72 8.18 16.53
280 8.07 16.31 8.48 17.14
290 8.36 16.89 - -
300 8.65 17.48 - -

Types of Possible Input Signals

Single - DP1 - DP4

Original Input Signal
Designation	Resolution	Projector Terminal for Connection	Resolution fn [kHz] fv [Hz]		dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
VGA 640 x 480		[DP 1]/[DP 2]/[DP 3]/[DP 4]	640 x 480 31	.469 59.94	0 25.18 800	525 640 480
1080p 1920	x 1080 1920		0 50.000 148	.50 2640 1	125 1920 1080
				67.433 59	940 148.35	2200 1125	1920 1080
				67.500 60	000 148.50	2200 1125	1920 1080
2K 2048 x 1080	2048 x 1080	56.250 50	0.000 148.50	2640 1125	2048 1080
				67.433 59	940 148.35	2200 1125	2048 1080
				67.500 60	000 148.50	2200 1125	2048 1080
UXGA 1600	x 1200 1600	x 1200 75.00	0 60.000 162	.00 2160 1	250 1600 1200
WUXGA 1920	x 1200 1920	x 1200 74.	556 59.885 1	93.25 2592	1245 1920 1200
QXGA	2048 x 1536	2048 x 1536	95.446 59.95	54 267.25 2	800 1592 2048 1536
WQXGA 2560	x 1600 2560	x 1600 99.	458 59.987 3	48.50 3504	1658 2560 1600
4K 3840 x 2160	3840 x 2160	60 53.946 23	3.976 296.70	5500 2250	3840 2160
				54.000 24	000 297.00	5500 2250	3840 2160
				56.250 25	000 297.00	5280 2250	3840 2160
				67.433 29	970 296.70	4400 2250	3840 2160
				67.500 30	000 297.00	4400 2250	3840 2160
				112.500 50	0.000 594.00	5280 2250	3840 2160
				134.865 59	9.940 593.41	4400 2250	3840 2160
				135.000 60	0.000 594.00	4400 2250	3840 2160
	4096 x 2160	4096 x 2160	53.946 23.97	76 296.70	500 2250 4096 2160
				54.000 24	000 297.00	5500 2250	4096 2160
				56.250 25	000 297.00	5280 2250	4096 2160
				67.433 29	970 296.70	4400 2250	4096 2160
				67.500 30	000 297.00	4400 2250	4096 2160
				112.500 50	0.000 594.00	5280 2250	4096 2160
				134.865 59	9.940 593.41	4400 2250	4096 2160
				135.000 60	0.000 594.00	4400 2250	4096 2160

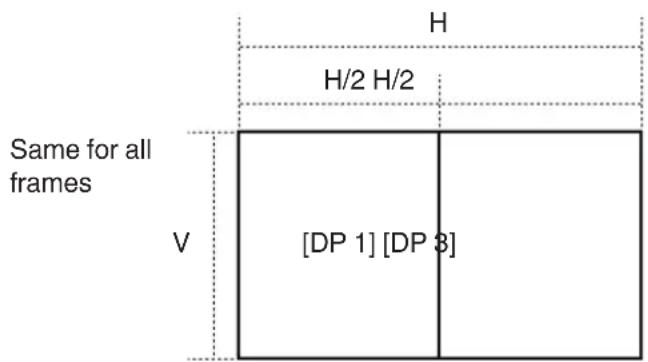

Dual - stripes

Original Input Signal
Designation	Resolution	Projector Terminal for Connection	Resolution fh [kHz] fv [Hz]			dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
WQXGA 2560 x 1600 [DP 1], [DP 3]		160 135.0002048 x 2160	1280 x 1600	99.458 59.1987 174.25		1752 1658	1280 1600
				198.916 119.973 348		50 1752 1658	1280 1600
4K 3840 x 2160 1920 x 2			60.000 297.00	2200 225		0
				270.000 120.000 594		00 2200 225	1920 2160
			112.500 50.000 297.00		2640 2250	2048 2160
					135.000 60.000 297.00		2048 2160
					270.000 120.000 594		2048 2160

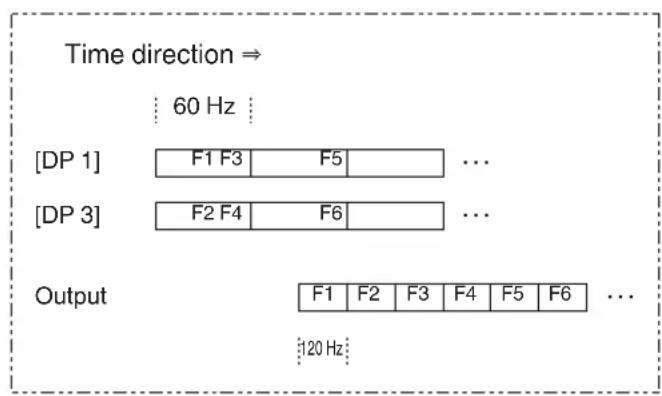

Dual - frame sequential

Original Input Signal
Designation	Resolution	Projector Terminal for Connection	Resolution fn [kHz] fv [Hz]			dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
WQXGA 2560 x 1600		[DP 1], [DP 3]	2560 x 1600	99.46 59.9	9 348.5 350	4 1658 2560	1600
4K 3840 x 2160 x 2160		60 3840 x 2160	94 593.4 440	00 2250 38	40 2160
				135.00 60.	00 594.0 44	400 2250 38	40 2160
		4096 x 2160	112.50 50.00	594.0 528	0 2250 409	6 2160
				134.87 59.	94 593.4 44	400 2250 40	96 2160
				135.00 60.	00 594.0 44	400 2250 40	96 2160

Original Input Signal
Designation	Resolution	Projector Terminal for Connection	Resolution	fh [kHz] fv [Hz]		dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
WQXGA 2560 x 1600 [DP 1], [DP 3]		2560 x 1600	99.458	59.987	348.50	3504	1658	2560	1600

Quad - stripes

Original Input Signal
Designation	Resolution	Projector Terminal for Connection	Resolution	fh [kHz] fv [Hz]		dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
4K 3840 x 2160	[DP 1],	[DP 2], [DP 3], [DP 4] x 2160	960 x 2160	35.000 60.000 148.50		1100 2250	960 2160
				270.000 120.000 297		00 1100 2250	960 2160
	4096 x 2160		135.000 60.000 148.50		1100 2250	1024 2160
					270.000 120.000 297		00 1100 2250	1024 2160

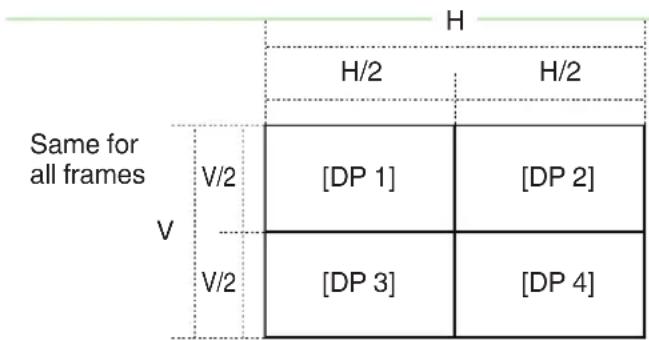

Quad - cross

Original Input Signal
Designation	Resolution	Projector Terminal for Connection	Resolution fn [kHz] fv [Hz]			dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
4K 3840 x 2160	[DP 1],	[DP 2], [DP 3], [DP 4]	1920 x 1080	67.500 60.000 148.50		2200 1125	1920 1080
				135.000 120.000 297		00 2200 11	25 1920 1080
	4096 x 2160		67.500 60.000 148.50		2200 1125 2048 1080
					135.000 120.000 297		25 2048 1080

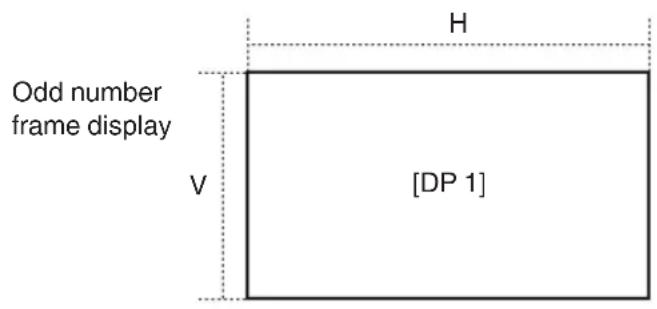

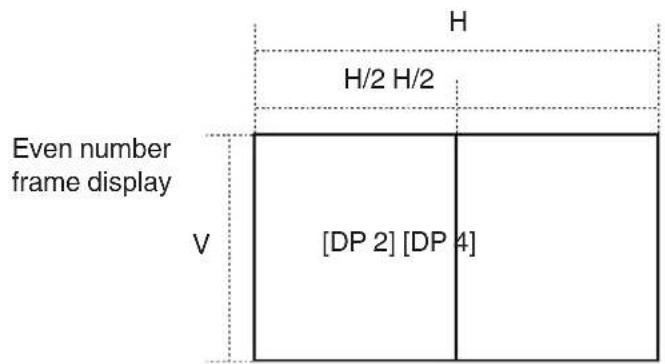

Quad - frame sequential

Original Input Signal
Designation	Resolution	Projector Terminal for Connection	Resolution	fh [kHz] fv [Hz]		dot CLK [MHz]	Total No. of Dots [dot]	Total No. of Lines [line]	No. of Effective Dots [dot]	No. of Effective Lines [line]
4K 3840 x 2160	[DP 1],	[DP 2],2048 x 2160	1920 x 2160	135.000 60.000 297.00		0 2200 2250	1920 2160
	4096 x 2160	[DP 3],[DP 4]	135.000 60.000 297.00		2200 2250	2048 2160

Indicator Display on the Main Unit

Meaning of the front panel indicators

The indicator lights up.

The indicator appears blinking.

Operation mode display

Displays using the different colors and solid/blinking light of the indicator on the projector unit.

"STANDBY/ON" lights up (red)

• In standby state

"STANDBY/ON" lights up (green)

- When LD block is starting up

"STANDBY/ON" blinking (red)

• In the Cool-down mode

"STANDBY/ON" blinking (green)

- When the video image is temporarily hidden (HIDE is on) *

* "LIGHT" indicator does not blinking when "LED Indication" is set to "Off".

Estimated timing for laser light source replacement

Displays using the solid/blinking light of the "LIGHT" indicator.

* "LIGHT" indicator does not light up when "LED Indication" is set to "Off".

"LIGHT" lights up (orange)

- Lights up when the "LD Current" gauge reaches 95 and above. (When the "Auto Intensity" function is "On".)

Warning display

You can tell the details of a warning from the (repeated) displays of the "WARNING" and "LIGHT" indicators. The "STANDBY/ON" indicator will light up or appear blinking according to the operation mode of the projector unit. (Please refer to ""Operation mode display"P. 62".)

The Warning mode is activated once the message is displayed. Projection is interrupted, and the cooling fan is turned on for about 10 seconds.

The power cannot be turned on again while cooling is in progress. Check the following after cooling is complete.

Indicator Status			Blinking Frequency	Description Check and	Countermeasure
(Red) (*) Mode Display			x2 Cooling	fan stopped abnormally	• Check that nothing is blocking the air inlets.• Check that the external temperature is normal. Countermeasure: Leave the unit unoperated until it cools down. After that, turn on the power again.
			x3 Internal	temperature is abnormally high
			x4 External	temperature is too high
(Red) Blinking Simultaneously			x1 Abnormal	circuit operation
			x2
			x3
			x4
(Red)	(Orange) Mode Display		x1
			x3
			x4 When the safety switch is activated Request		for repair at your authorized dealer or a nearby service center.
	(GA5D)	(X4X5) (Green)	x3 The remote control code differs between this unit and the remote control		Set the remote control code for this unit and the remote control correctly.(P. 43)

If the Warning mode is activated again, wait for the cooling fan to stop, followed by pulling out the power plug from the outlet.

Request for repair at your authorized dealer or a nearby service center.

Dimensions

(Unit: mm)

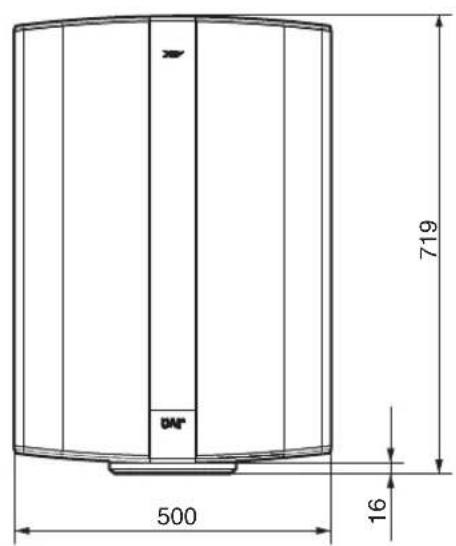

Top Surface

Bottom Surface

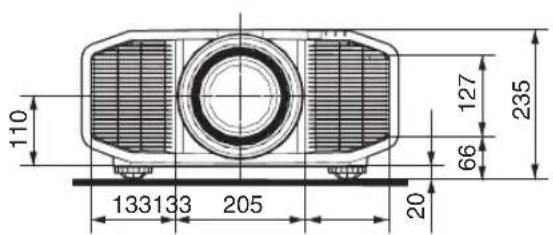

Front

Rear Surface

Index

A Accessories 10

Adjusting Distortion of the Projection Screen ..... 33

Adjustment and Setting by the Menu 25

Aperture 27

B Back Color 41

Blur Reduction 31

Brightness 31

C Ceiling Mount 19

Cleaning and Replacing the Filter 45

Clear Motion Drive 31

Color 31

Color Management 28

Color Space 32

Color Temp. 29

Connection 21

Contrast 31

Controls and Features 11

D Dark Level / Bright Level 30

Dimensions 64

E External Control 50

F Filter Product no. 46

Focus 33

G Gamma 30

GAMMA 30

H HIDE 23

High Altitude Mode 41

I Indicator Display 62

Input Resolution 44, 57

Input Signal 44,57

Input terminals 13

Installation Method 17

L Lens Control 33

M Mask 38

Menu Items 25

Menu Position 41

N Network 42

0 Off Timer 42

P PIC. ADJ. 14

Picture Adjust 27

Picture Mode 27

Pixel Adjust 34

Precautions during Installation 17

Projection Distance 55

R Remote Control 14

RS-232C 22

S Screen Size and Projection Distance 55

Signal Display 41

Soft Ver. 44

Specifications 54

T Tint 31

Troubleshooting 47

U User Name Edit 28

V Viewing Videos 23

W When the following messages appear.... 49

Z Zoom 33

JVC
