Product Type	Power Supply Unit (PSU)
Brand	StarTech.com
Model	ATXPOW250Pro
Input Voltage	100-240 V AC, 50-60 Hz
Output Power	250 W
Output Voltage Rails	+3.3V, +5V, +12V, -12V, +5VSB
Form Factor	ATX
Dimensions (L x W x H)	150 mm x 140 mm x 86 mm
Weight	1.5 kg
Main Connector	20+4 pin ATX
Peripheral Connectors	4x SATA, 2x Molex, 1x Floppy
Cooling	120 mm fan
Efficiency	80 PLUS (standard)
Safety Certifications	CE, FCC, RoHS
Warranty	2 years
Operating Temperature	0°C to 40°C
MTBF	100,000 hours
Protection	Over voltage, over power, short circuit
Maintenance	Keep vents clean; avoid moisture
Included Accessories	Power cord, mounting screws, manual

Frequently Asked Questions - ATXPOW250Pro StarTech.com

What is the ATXPOW250Pro?

The ATXPOW250Pro is a 250W ATX power supply unit from StarTech.com, designed for desktop computers and workstations.

What are the dimensions of this power supply?

The dimensions are 150 mm x 140 mm x 86 mm (L x W x H), standard for a compact ATX PSU.

Is the ATXPOW250Pro compatible with my motherboard?

Yes, it features a 20+4 pin main connector, compatible with most ATX and micro-ATX motherboards.

What is the warranty period?

StarTech.com provides a 2-year warranty for the ATXPOW250Pro.

Can I use this power supply internationally?

Yes, it supports 100-240V AC input, making it usable worldwide with the appropriate power cord.

What connectors are included?

It includes a 20+4 pin ATX, 4x SATA, 2x Molex, and 1x floppy power connector.

How do I install the power supply?

Install it in the PSU bay of your case, secure with screws, and connect the cables to your components following the manual.

Does it have a fan?

Yes, it is equipped with a 120 mm fan for active cooling.

What safety certifications does it have?

The unit is certified CE, FCC, and RoHS, ensuring compliance with safety and environmental standards.

What should I do if the power supply fails?

Contact StarTech.com support with your proof of purchase for warranty service or replacement.

USER MANUAL ATXPOW250Pro StarTech.com

Reliable High-Performance 350 Watt ATX 12V Power Supply

ATXPOW350PRO

Instruction Manual

FCC Compliance Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Use of Trademarks, Registered Trademarks, and other Protected Names and Symbols

This manual may make reference to trademarks, registered trademarks, and other protected names and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur these references are for illustrative purposes only and do not represent an endorsement of a product or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks, service marks, and other protected names and/or symbols contained in this manual and related documents are the property of their respective holders.

Instruction Manual

Table of Contents

Introduction ...... 1

Features ....1

Installation 2

Specifications 3

Technical Support 4

Warranty Information 4

Introduction

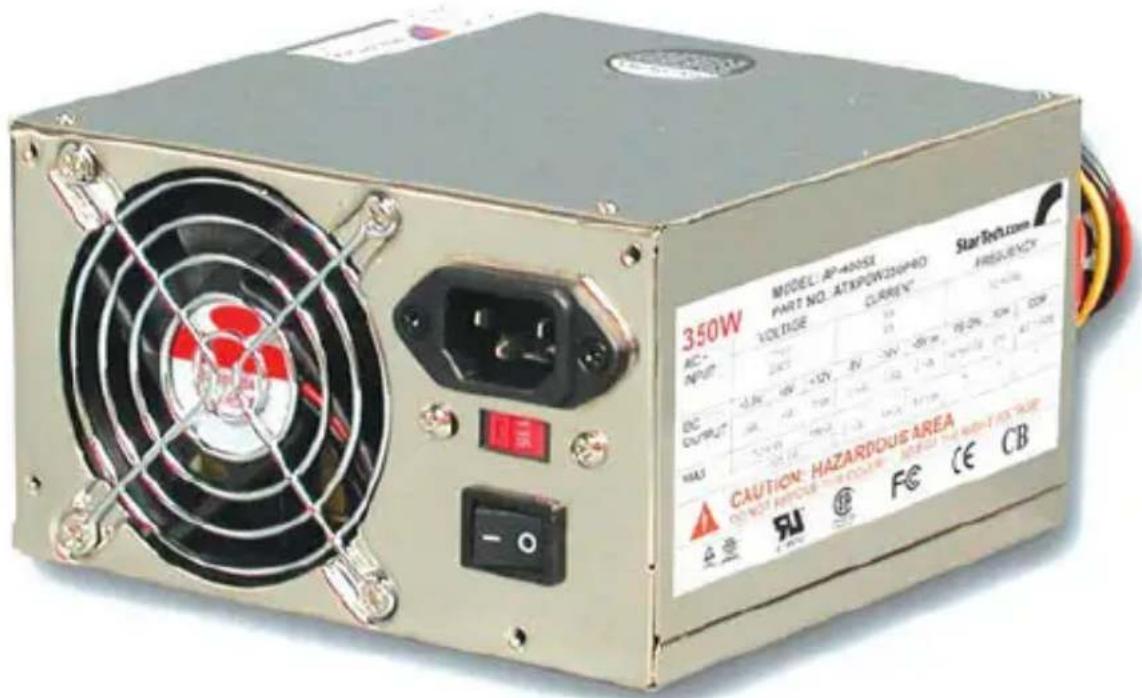

Thank you for buying a StarTech.com 350-Watt heavy-duty power supply. Guaranteed compatible with Pentium 4 (and below) processors, the high-quality ATXPOW350PRO is a reliable way to ensure that optimum power is delivered your computer's demanding components. A dual ball-bearing temperature-controlled fan adjusts its speed to maintain an optimum operating environment for heat-sensitive components.

Features

• Ideal for Pentium 3, Pentium 4, and AMD Athlon processors
• Constructed from the highest quality components to assure a long life
• Provides extra power capacity for PC servers with several hard drives
• Provides the extra current required by 1 GHz and faster CPUs
• Automatically detects temperature and adjusts fan speed to maintain optimal performance
• Uses superior EMI/RFI power filtration system ensure system components receive clean, stable power

Contents

This package should contain:

• 1 x ATXPOW350PRO power supply
- 1 x power cord

WARNING! Computer parts can be severely damaged by static electricity. Be sure that you are properly grounded before opening your computer case. StarTech.com recommends that you wear an anti-static strap when installing any computer component. If an anti-static strap is unavailable, discharge yourself of any static electricity build-up by touching a large grounded metal surface (such as the computer case) for several seconds. Also make sure that your computer is turned off and unplugged before attempting to open your computer case.

Installation

NOTE: Check the power supply voltage before installation. It should be the same as your local power voltage (115V for North America and 230V for most of the European countries). Change the voltage setting if necessary.

1. Make sure that your computer is turned off and unplugged. Remove the power cord from your old power supply.
2. Remove the cover of your system (see your computer's user manual for details, if necessary).
3. Disconnect all the power connectors from the mother board and the peripheral devices such as hard drives, floppy disks, etc. Make sure there are no devices connected to the existing power supply.
4. Remove the existing power supply from your computer case and replace it with the new StarTech.com power supply.
5. Connect the power connectors to your motherboard and peripheral devices.
6. Close your computer case.
7. Connect the power cord to the StarTech.com power supply.

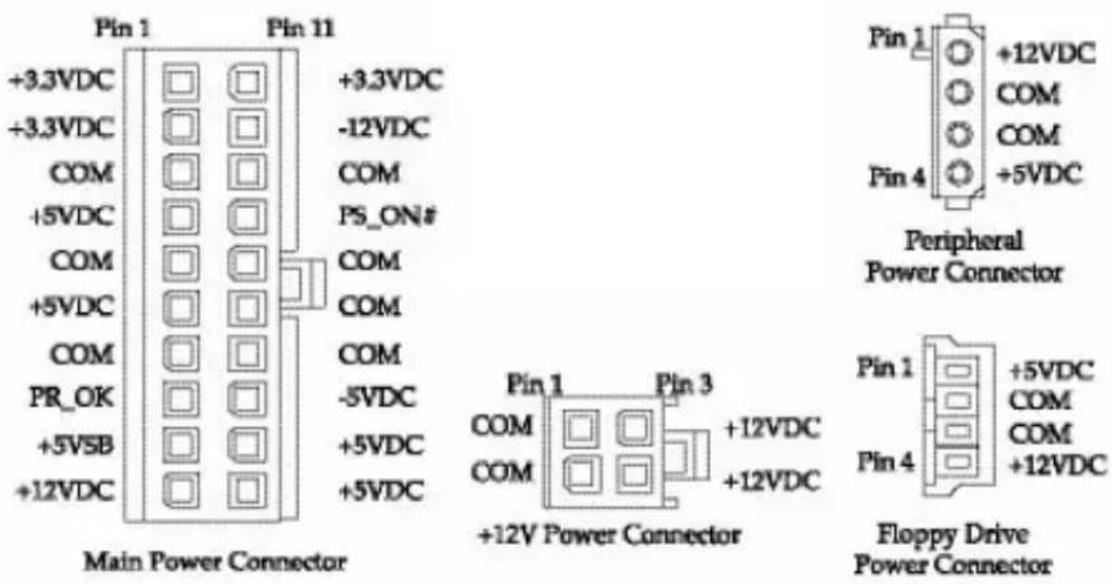

ATXPOW350DF Connectors

Instruction Manual

Specifications

Dimensions	5.9 x 3.35 x 5.87 inches (150 x 85 x 149mm)
Output Power	350W
Fan Type	Ball bearing
Connectors	FCC, UL, CSA, CE, TUV, CB
Connectors	6 x 4-pin-LP4-female2 x small-internal-power1 x 20-pin-ATX-motherboard-adapter1 x 4-pin extended ATX power 12V plug
MTBF	100,000 hrs. @ 25°C
Safety Approvals	FCC, UL, CSA, CE, TUV, CB
AC Input	Voltage 115V ~ Current 8AVoltage 230V ~ Current 4AFrequency 5-~60Hz
DC Output	+ 3.3V (30A)+ 5V (40A)+ 12V (18A)-5V (1A)-12V (1A)+ 5V Standby (2.5A)

Technical Support

StarTech.com's lifetime technical support is an integral part of our commitment to provide industry-leading solutions. If you ever need help with your product, visit www.startech.com/support and access our comprehensive selection of online tools, documentation, and downloads.

Warranty Information

This product is backed by a three year warranty.

In addition, StarTech.com warrants its products against defects in materials and workmanship for the periods noted, following the initial date of purchase. During this period, the products may be returned for repair, or replacement with equivalent products at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.

Limitation of Liability

In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers, directors, employees or agents) for an (whether direct or indirect, special, punitive, incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising out of or related to the use of the product exceed the actual price paid for the product. Some states do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions contained in this statement may not apply to you.
