FC-26 - Controller Kramer - Free user manual and instructions

Product Type	Controller
Brand	Kramer
Model	FC-26
Dimensions (WxDxH)	19" x 9.84" x 1.73" (483 x 250 x 44 mm)
Weight	2.5 kg (5.5 lbs)
Power Supply	100-240V AC, 50/60Hz, internal
Power Consumption	50W max
Inputs	2x RS-232, 2x Ethernet (RJ-45), 4x IR, 4x Relay
Outputs	2x RS-232, 2x Ethernet (RJ-45), 4x IR, 4x Relay, 2x K-NET
Control Protocols	Kramer Protocol 3000, TCP/IP, UDP
Programming Software	Kramer K-Config
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% non-condensing
Mounting	19" rackmount, 1U
Included Accessories	Power cord, rack ears, quick start guide
Certifications	CE, FCC, UL
Warranty	3 years
Maintenance	Clean with dry cloth; do not use liquids
Safety Precautions	Use in dry environment; avoid moisture and condensation
Repairability	Repairs must be performed by qualified personnel

Frequently Asked Questions - FC-26 Kramer

How do I connect the FC-26 to my network?

Connect an Ethernet cable from your router or switch to one of the RJ-45 ports on the rear panel. Ensure the device is powered on and configure the IP address via the front panel or K-Config software.

What software is needed to program the FC-26?

Use Kramer K-Config software, available for free download from the Kramer website. It allows you to set up control logic, port configurations, and system integration.

How to reset the FC-26 to factory settings?

Locate the reset button on the rear panel (or front, depending on model). Press and hold it for 10 seconds until the LEDs blink. Alternatively, use the K-Config software reset command.

Can the FC-26 control multiple devices simultaneously?

Yes, the FC-26 has multiple RS-232, IR, relay, and K-NET ports that can control up to 10 devices or more, depending on programming. Each port can operate independently.

What is the maximum cable length for IR connections?

For reliable operation, keep IR emitter/receiver cable lengths under 50 feet (15 meters). Longer runs may require an IR repeater.

Does the FC-26 support Power over Ethernet (PoE)?

No, the FC-26 requires its own internal power supply (100-240V AC). It does not support PoE.

How to update the firmware on the FC-26?

Download the latest firmware from the Kramer support site. Connect via Ethernet, open K-Config, go to the firmware update section, and follow the on-screen instructions. Do not power off during update.

What is the difference between K-NET and RS-232?

K-NET is Kramer's proprietary control bus using a single cable for data and power. RS-232 is a serial standard for point-to-point control. K-NET can daisy-chain devices, while RS-232 typically requires dedicated ports.

Is the FC-26 rackmountable?

Yes, the FC-26 comes with rack ears included and fits a standard 19-inch rack, occupying 1U of space.

What should I do if the FC-26 does not power on?

First, check the power cable connection and ensure the outlet is live. Verify the power switch is on (if equipped). If still no power, the internal fuse may have blown; contact qualified service personnel for replacement.

USER MANUAL FC-26 Kramer

This guide helps you install and use your product for the first time. For more detailed information, go to http://bit.ly/k-prod-downloads to download the latest manual or scan the QR code on the left.

Step 1: Check what's in the box

FC-26 Ethernet Controller

1 Power adapter (5V DC)

1 IR Cable (C-A35M/IRE-10)

1 Quick Start Guide

4 Rubber feet

Step 2: Install the FC-26

Mount the device in a rack (using the optional rack adapter RK-3T available for purchase) or attach the rubber feet and place the device on a shelf.

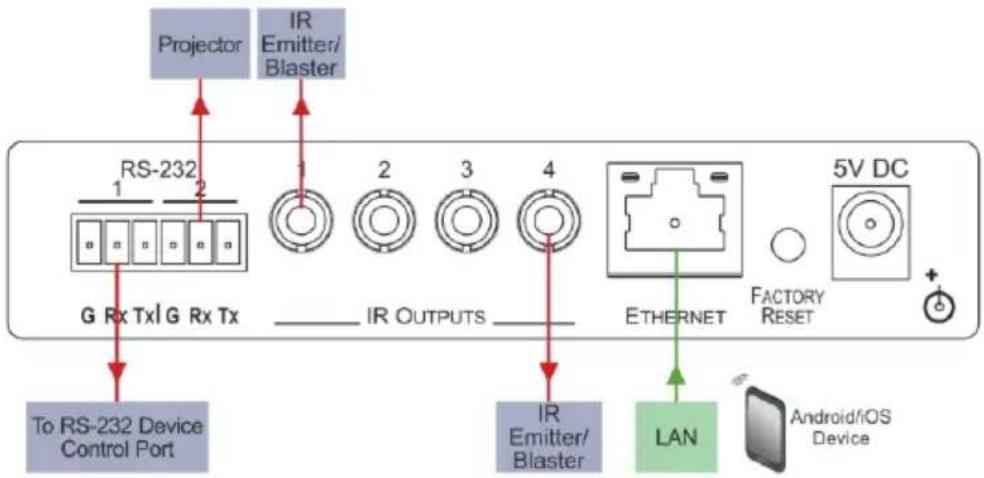

Step 3: Connect the inputs and outputs

Always switch off the power to all devices before connecting them to your FC-26.

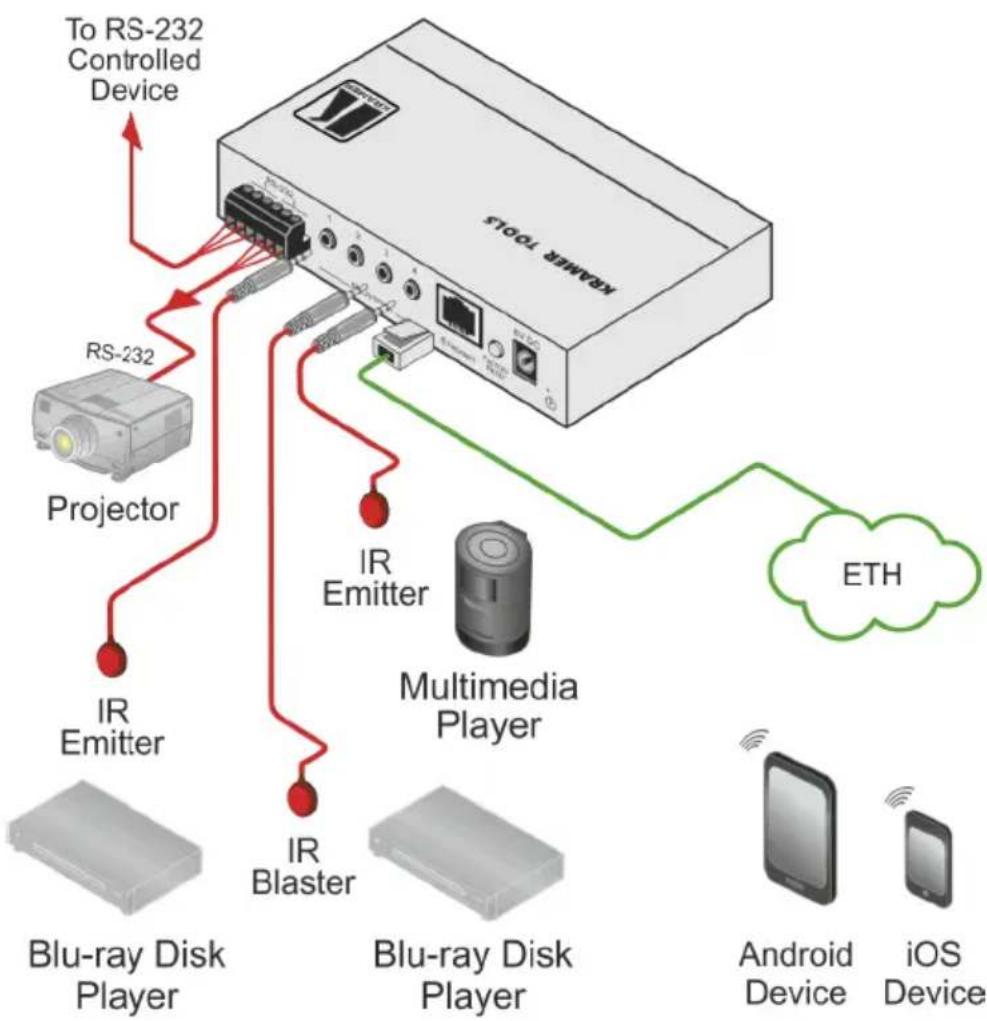


Always use Kramer high-performance cables for connecting equipment to the FC-26.

Step 4: Connect the power

If the device does not receive power via PoE, connect the power adapter to the FC-26 and plug the power adapter it into the mains electricity.

Step 5: Configure and Operate the FC-26

Note: The FC-26 is dispatched from the factory with the DHCP enabled and a random IP address. This means that if the device is connected to a LAN, you must identify the IP address of the FC-26 in order to connect to it. This can be done by using K-LAN Configurator to discover the IP address of the FC-26. This is available for download from our website at http://www.kramerav.com.

To browse the FC-26 Web pages on taking the device out of the box, use the default host name "FC-26-xxxx", where xxxx are the last four digits of the serial number of the device.

Note: If you perform a factory reset, DHCP is disabled and the IP address of the device is set to 192.168.1.39.

To reset the device to its factory default settings:

1. Turn off the power to the device.
2. Press and hold the Reset button on the front panel.
3. Turn on the power to the device while holding down the Reset button for a few seconds.
4. Release the button.

The device is reset to the factory default settings.

To configure and operate the FC-26:

1. Using the embedded Web pages, configure the Ethernet controller:

2. Set DHCP or assign a static IP address
   • Associate IP port(s) with serial port(s)

3. Configure the serial port parameters

4. Configure virtual port(s) on the K-Touch control device/PC.

5. Configure Ethernet connection(s) on the K-Touch control device/PC.
6. Switch port(s) on the Ethernet Controller.

Contents

1 Introduction 1

2 Getting Started 2

2.1 Achieving the Best Performance 2

2.2 Safety Instructions 2

2.3 Recycling Kramer Products 3

3 Overview 4

3.1 About the Power over Ethernet Feature 6

4 Defining the FC-26 Ethernet Controller 7

5 Initial Configuration and Use Overview 9

5.1 Configuring the FC-26 Ethernet Controller 9

5.2 Configuring a Virtual Port on the PC 11

5.3 Setting Up an Ethernet Connection on the PC 11

6 Connecting the FC-26 12

6.1 Connecting via Ethernet 13

7 Remote Operation via the Web Pages 18

7.1 Browsing the Web Pages 18

7.2 Connected Clients Page 20

7.3 Device Settings Page 21

7.4 Communication Page 23

7.5 Serial Port Settings Page 24

7.6 IR Command Learner Page 25

7.7 Security Page 26

7.8 Logs Page 29

7.9 About Us Page 30

8 Configuring and Maintaining the FC-26 31

8.1 IR Learning 31

8.2 Resetting to the Factory Default Settings 32

8.3 Upgrading the Firmware 32

9 Technical Specifications 33

9.1 Data Handling Performance 34

9.2 Example Bandwidth Calculation 34

10 Default Communication Parameters 35

11 Kramer Protocol 3000 36

11.1 Kramer Protocol 3000 – Syntax 36

11.2 Kramer Protocol 3000 – Command List 39

11.3 Kramer Protocol 3000 – Detailed Commands 40

11.4 Parameters 61

Figures

Figure 1: FC-26 Controlling Devices Remotely Using K-Touch 3.0 over a LAN 5

Figure 2: FC-26 Ethernet Controller Front Panel 7

Figure 3: FC-26 Ethernet Controller Rear Panel 8

Figure 4: Connecting the FC-26 for Initial Configuration 9

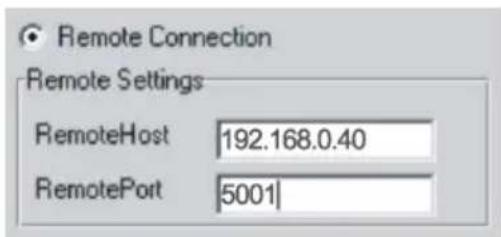

Figure 5: Configuring a Remote Connection 11

Contents

Figure 6: Connecting the FC-26 Ethernet Controller 12

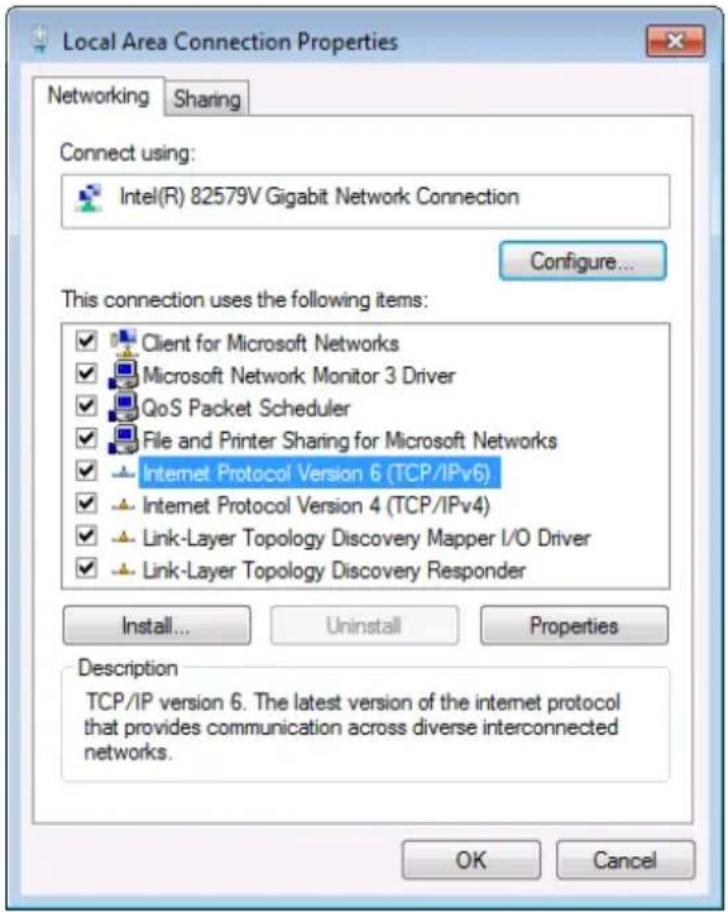

Figure 7: Local Area Connection Properties Window 14

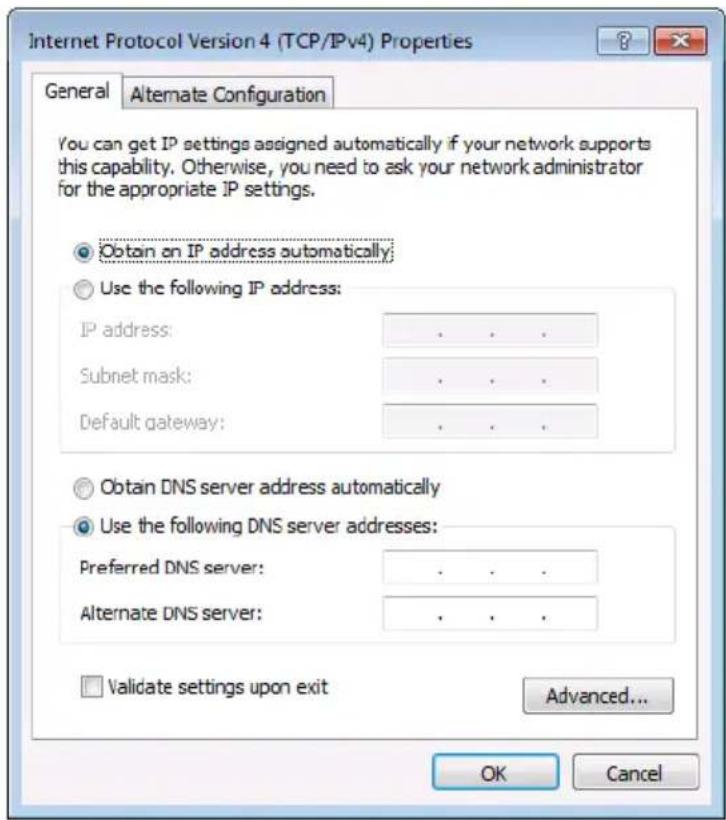

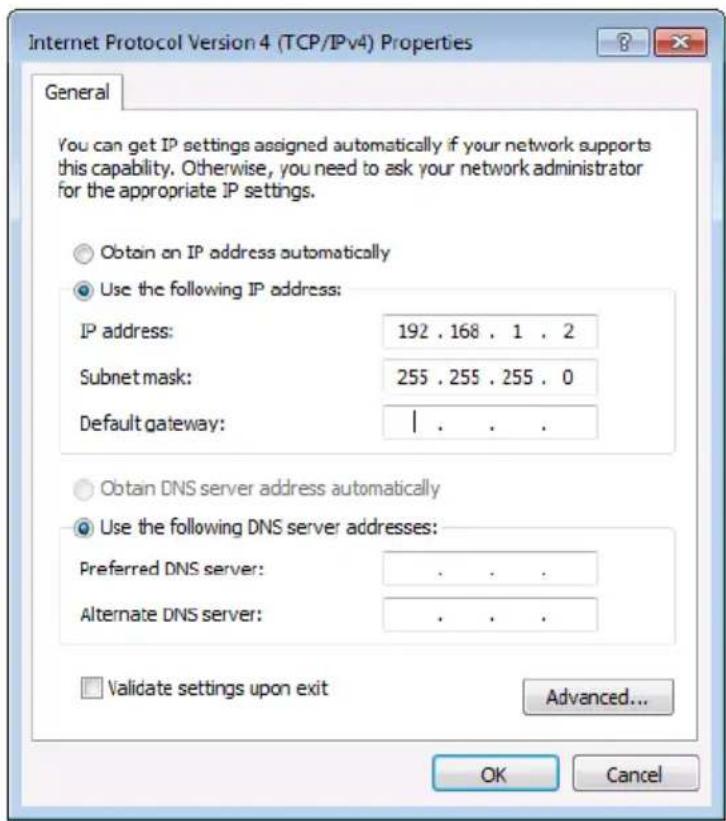

Figure 8: Internet Protocol Version 4 Properties Window 15

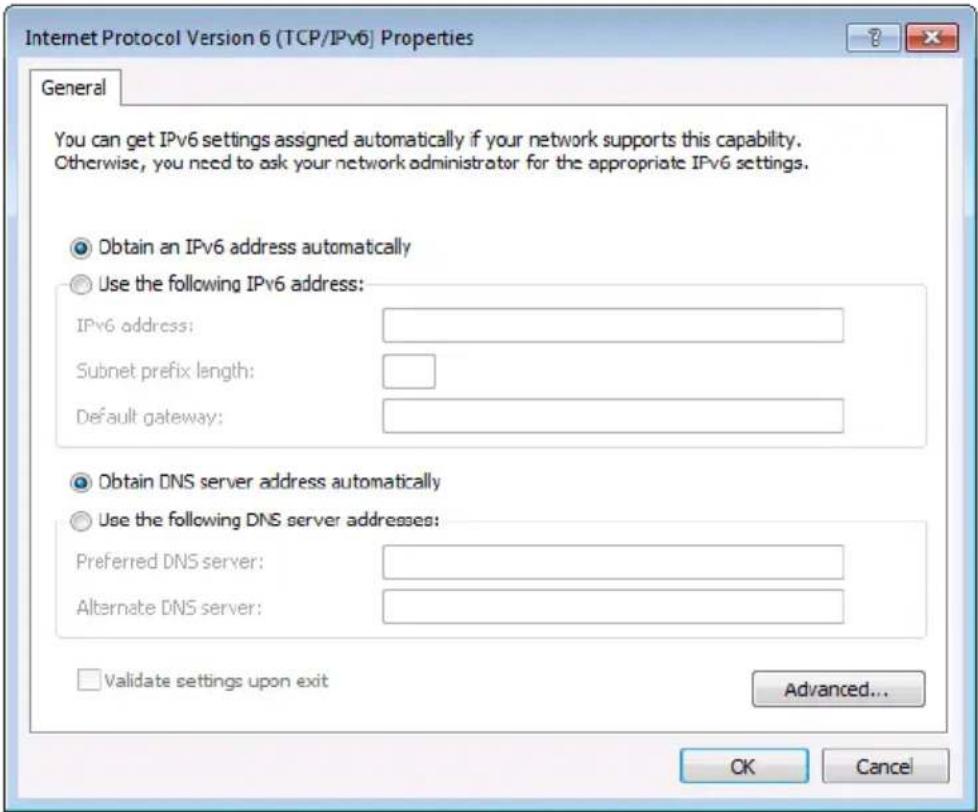

Figure 9: Internet Protocol Version 6 Properties Window 15

Figure 10: Internet Protocol Properties Window 16

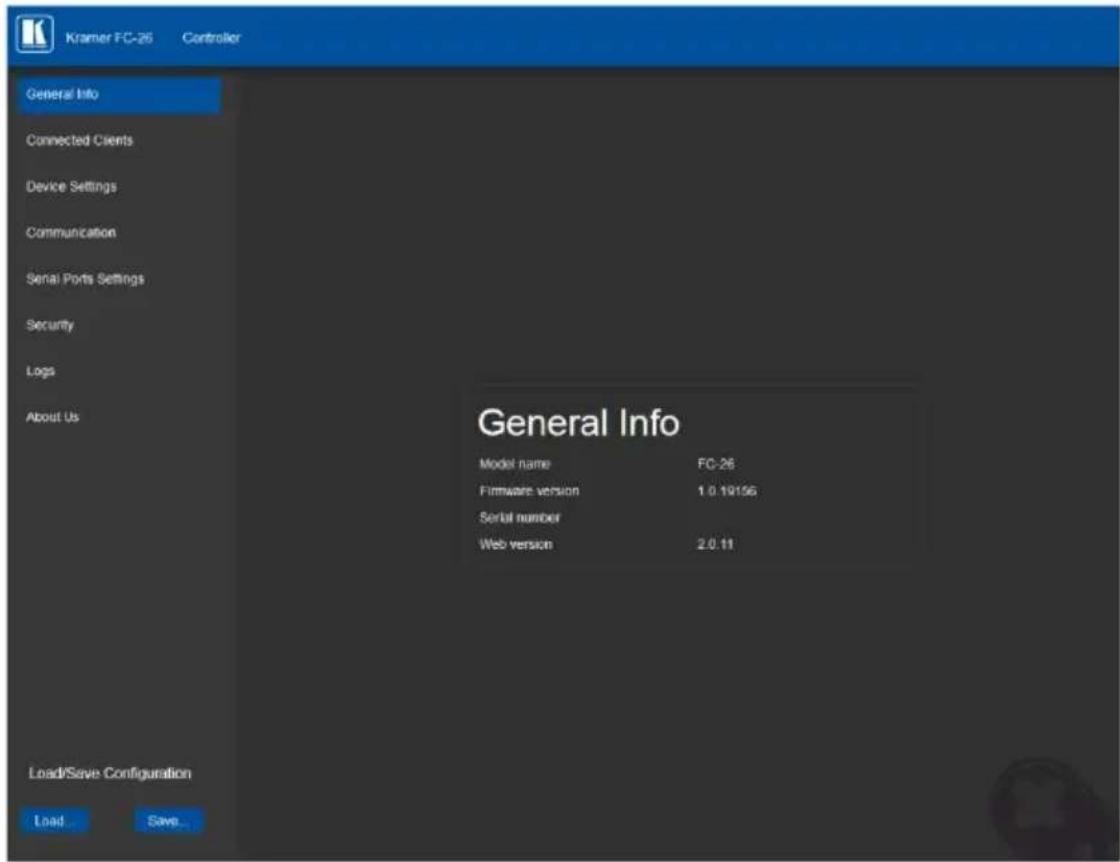

Figure 11: General Info Page 19

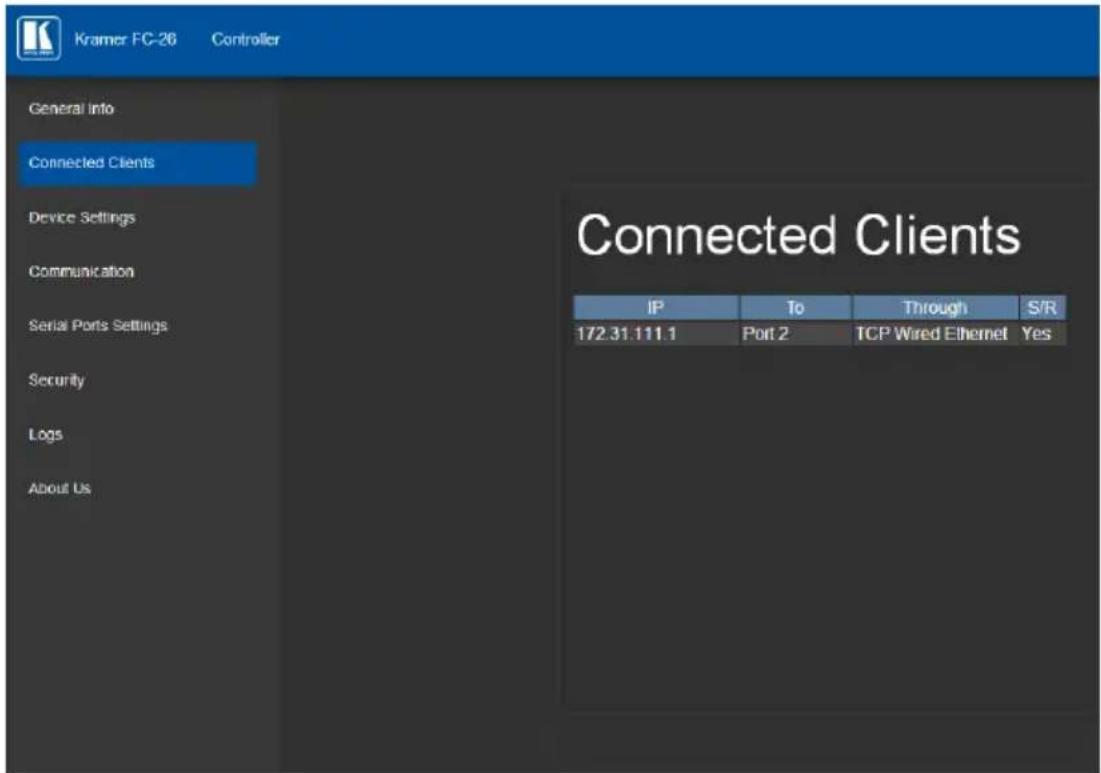

Figure 12: Connected Clients Page 21

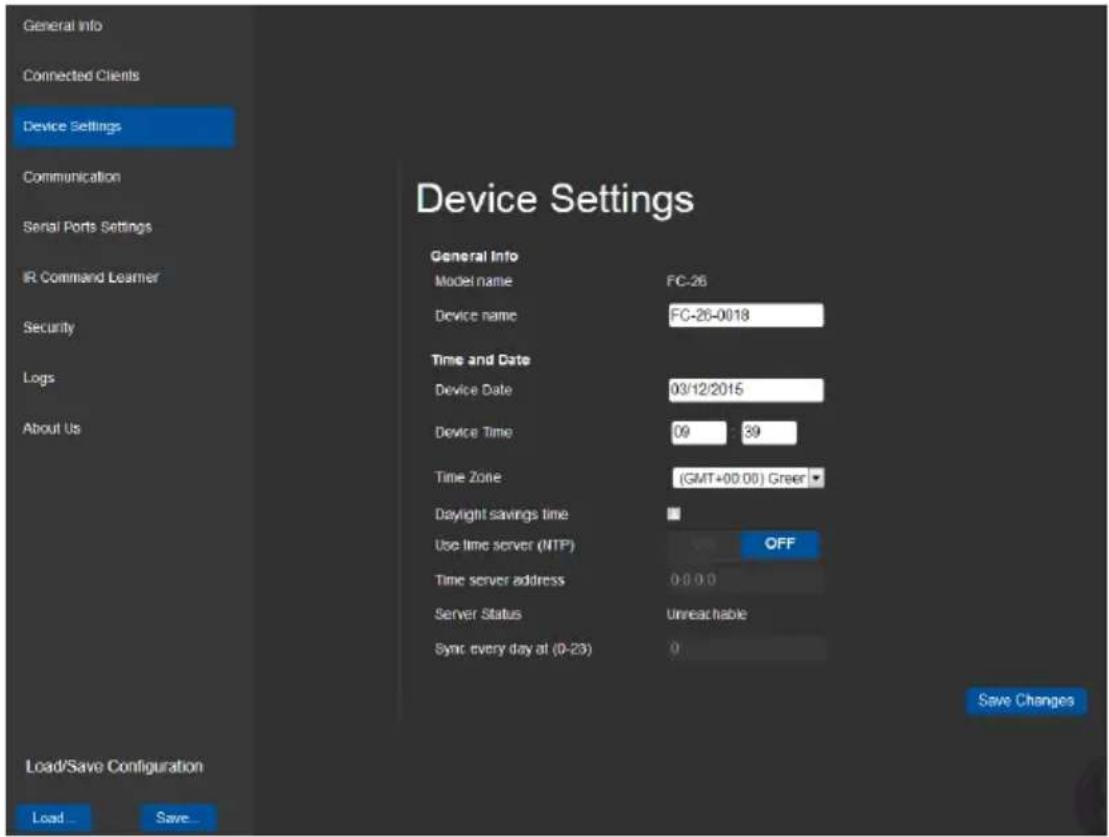

Figure 13: Device Settings Page 22

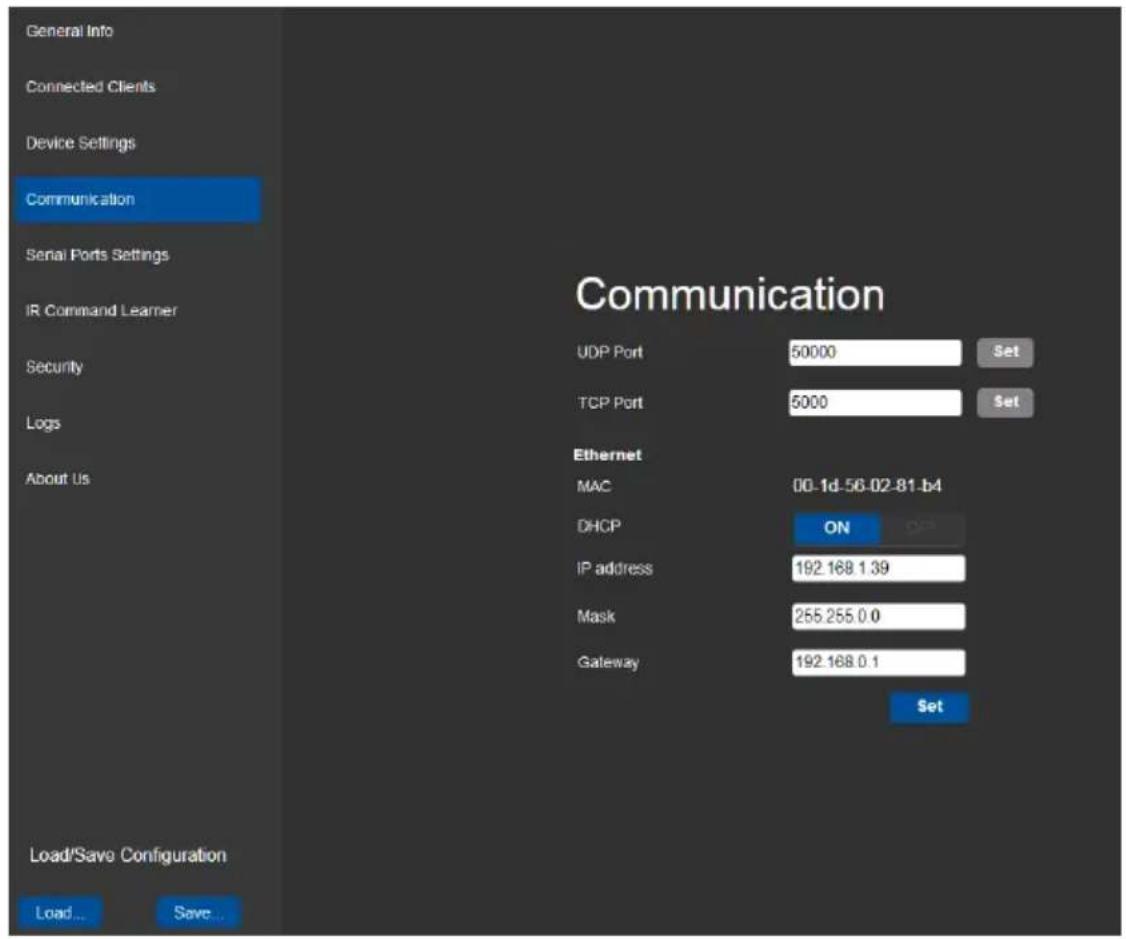

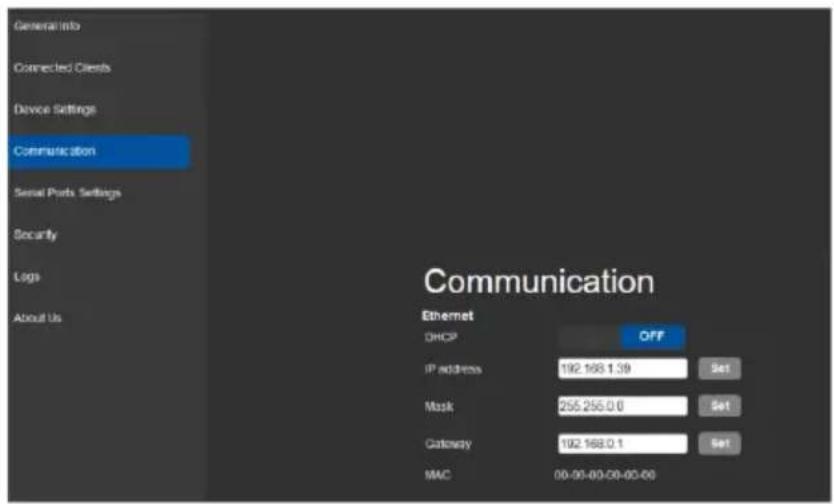

Figure 14: Communication Page 23

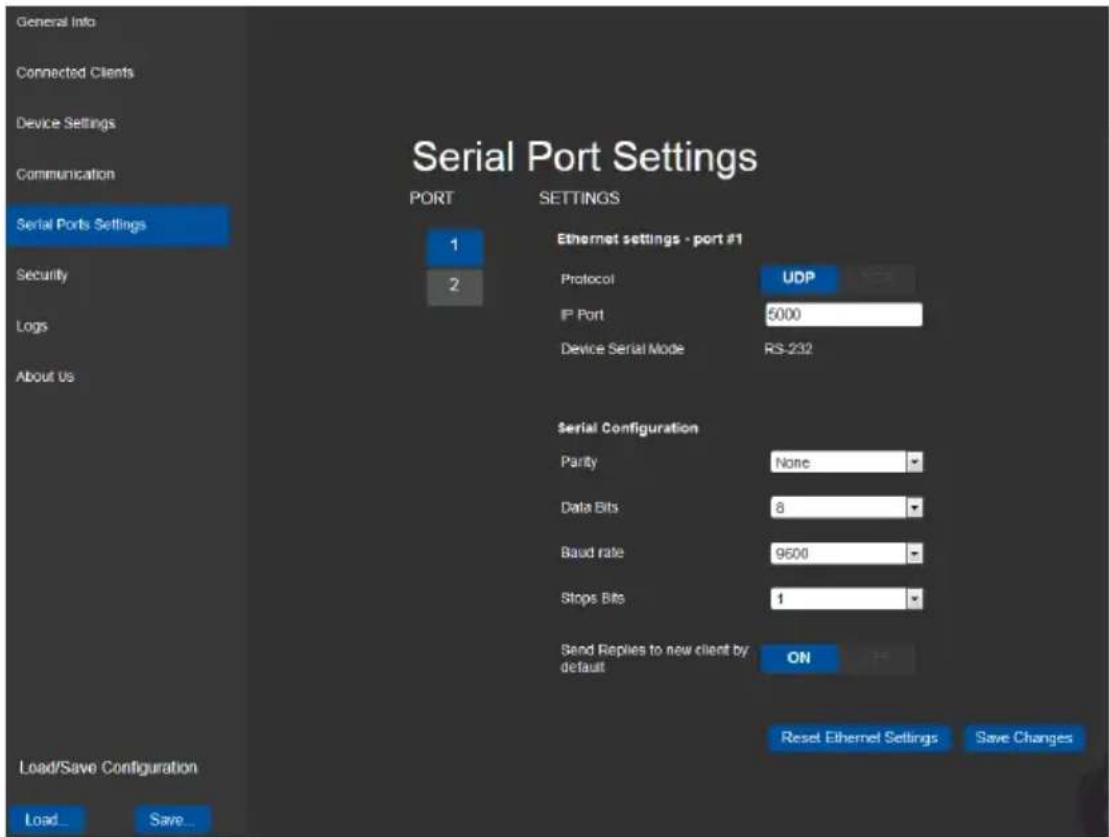

Figure 15: Serial Port Settings Page 25

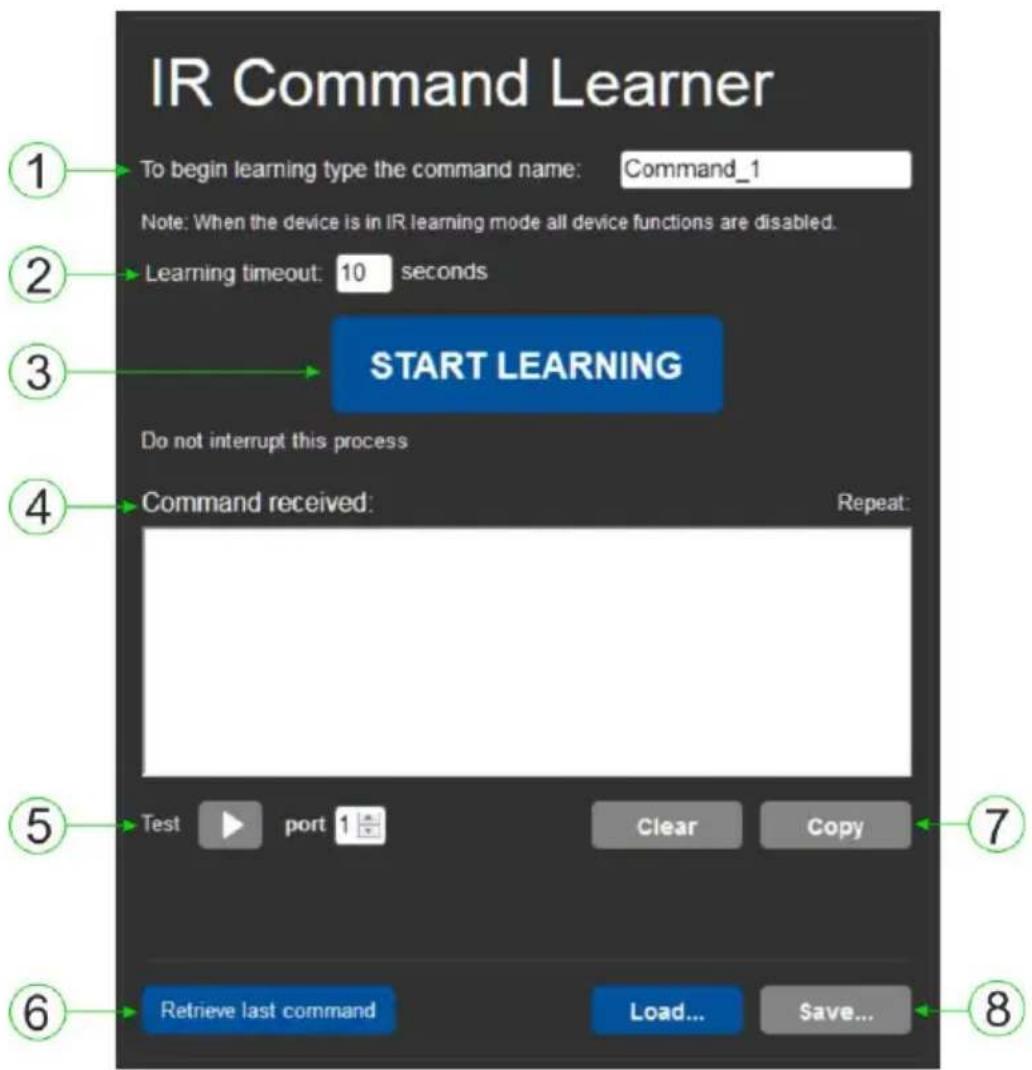

Figure 16: IR Command Learner Page 25

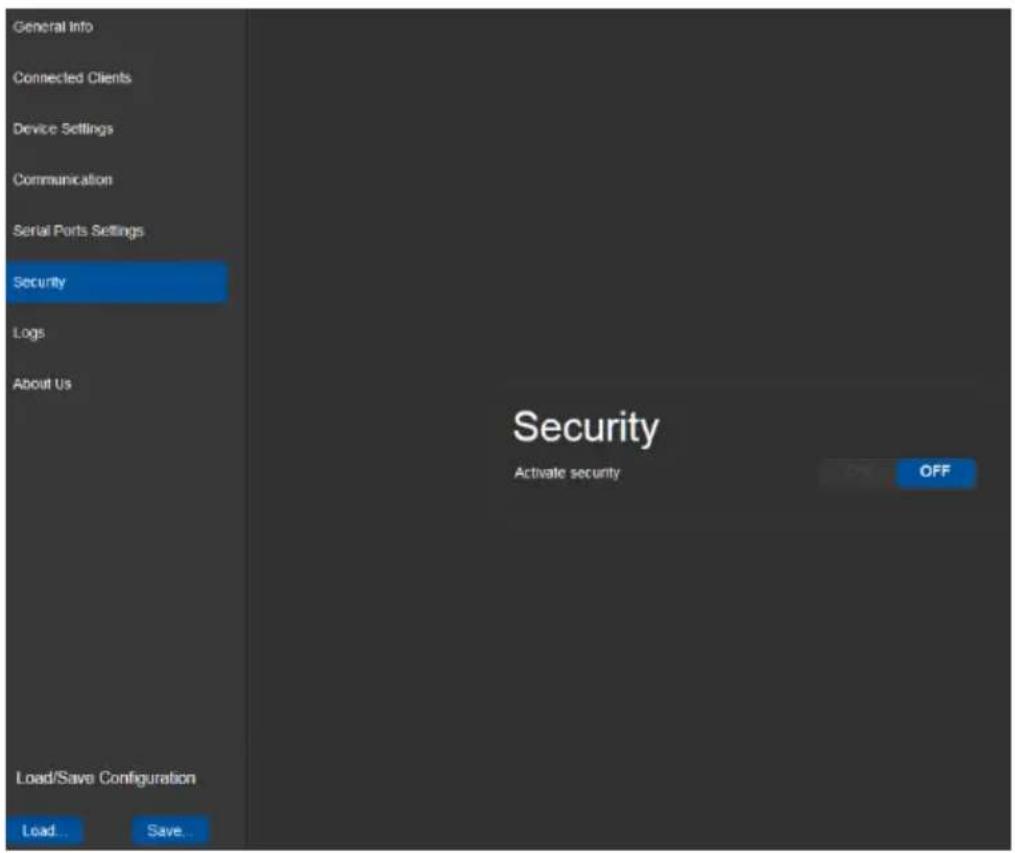

Figure 17: Security Page 26

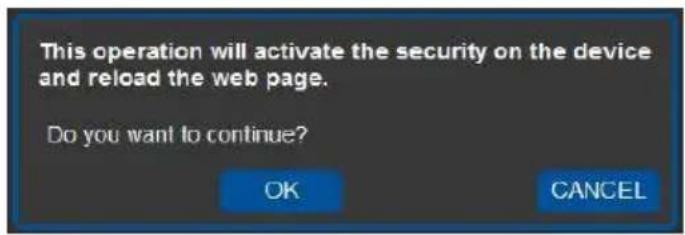

Figure 18: Security Confirmation Popup 27

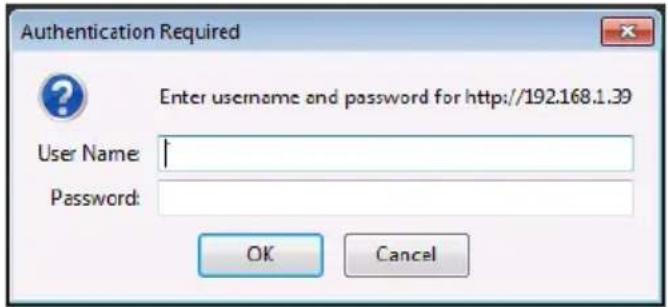

Figure 19: Authentication Required Popup 27

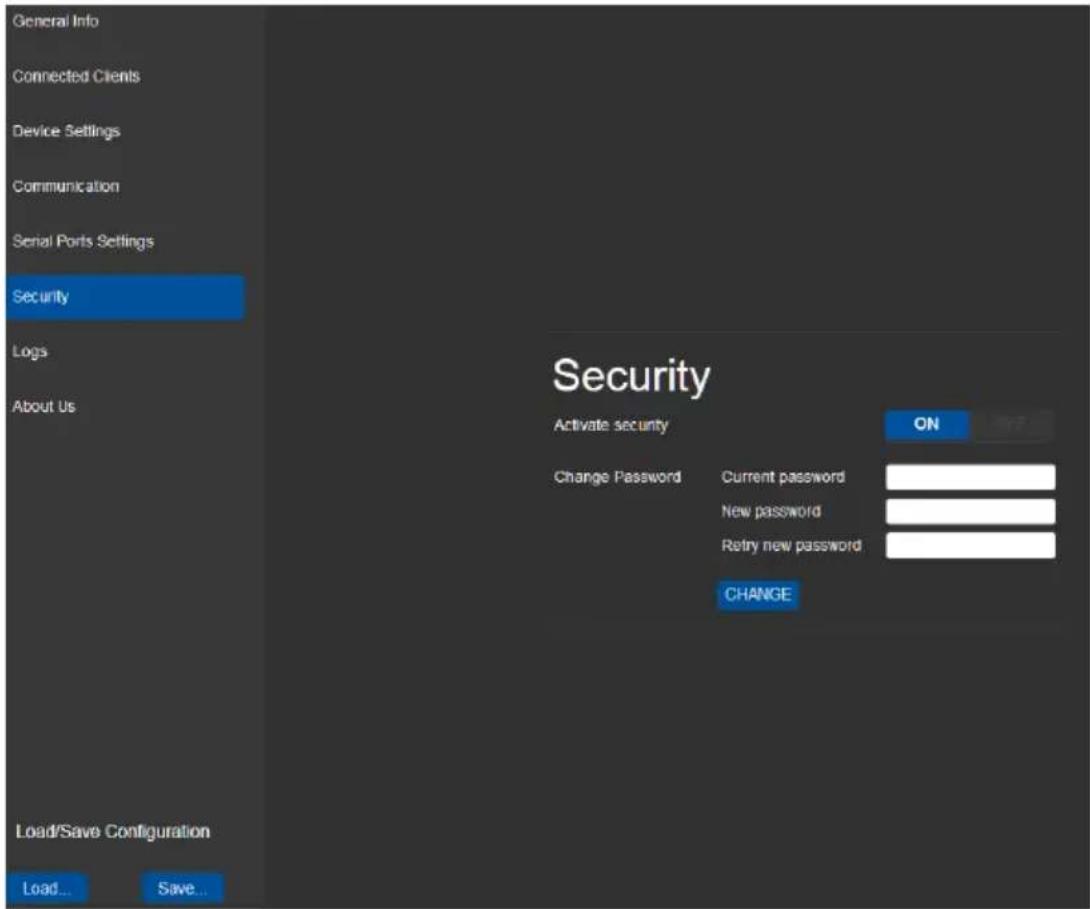

Figure 20: Security Activated Page 28

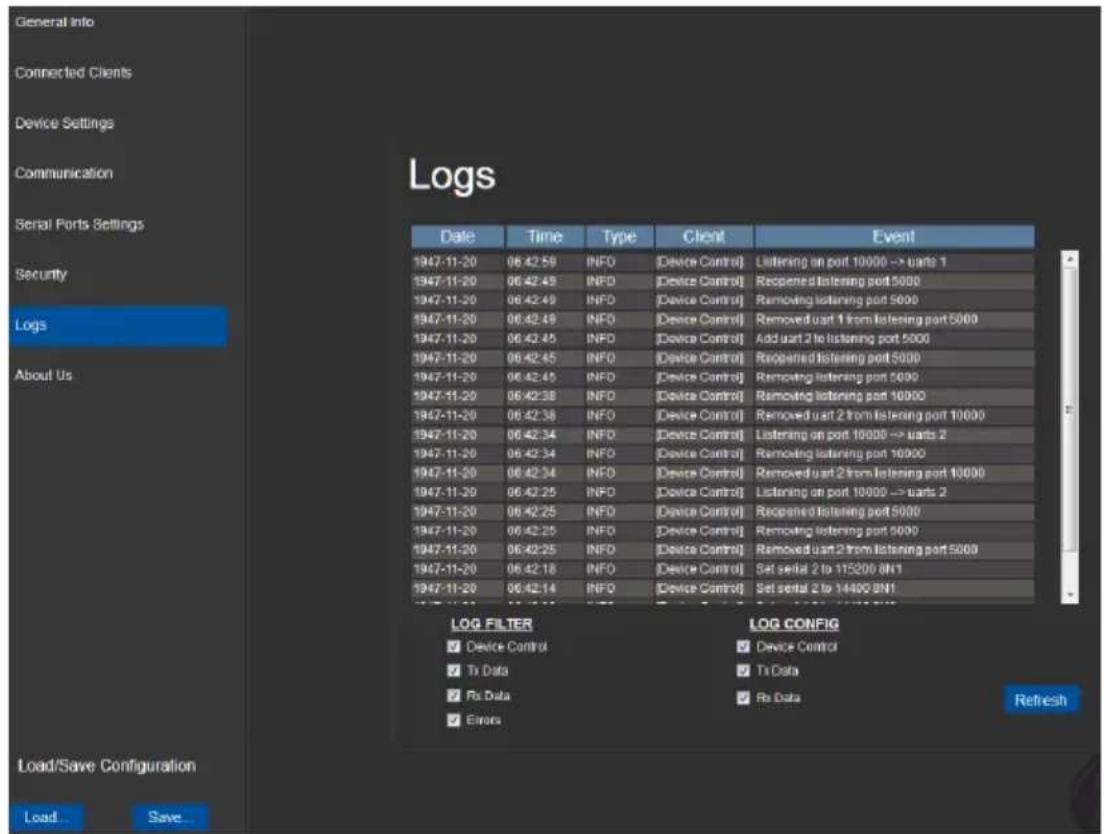

Figure 21: Logs Page 29

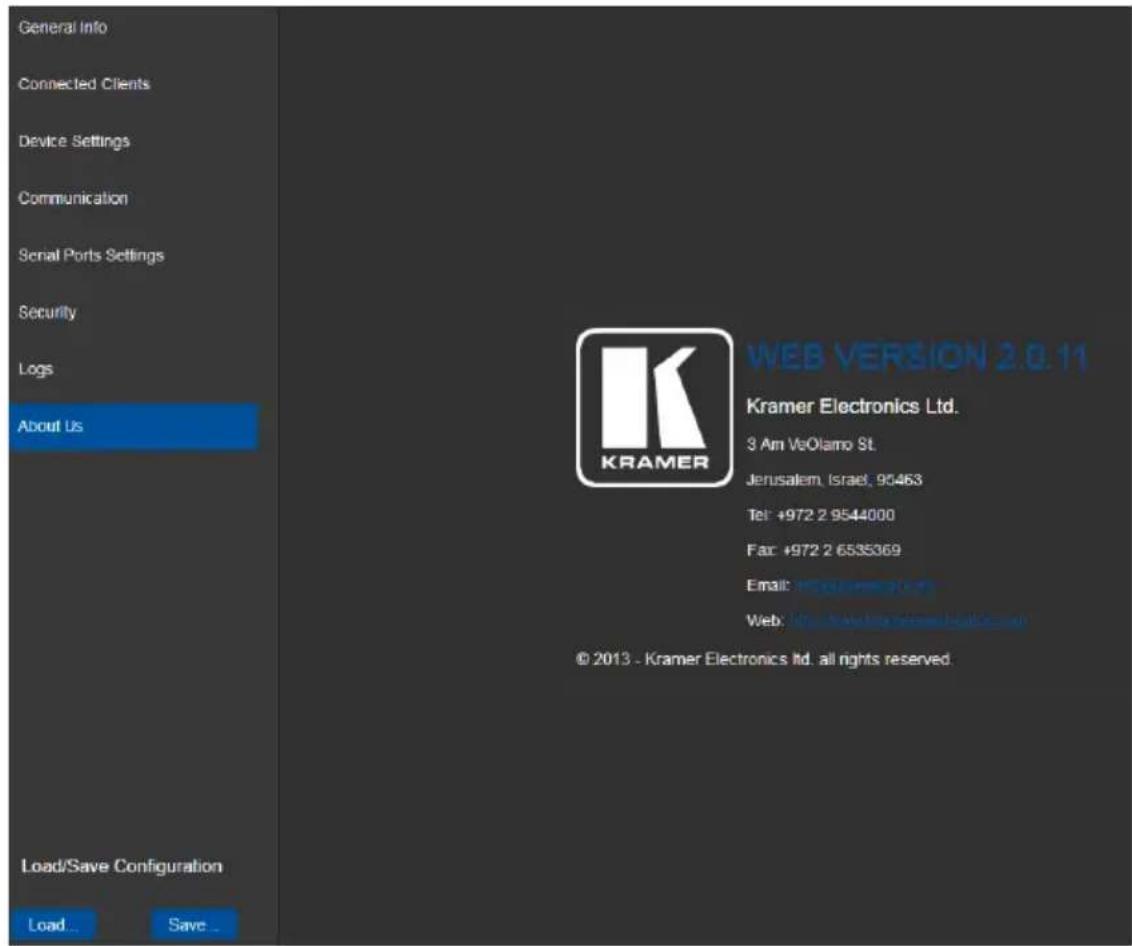

Figure 22: About Us Page 30

1 Introduction

Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our line, making the best even better!

Our 1,000-plus different models now appear in 13 groups that are clearly defined by function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers; GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio, and GROUP 14: Collaboration.

Congratulations on purchasing your Kramer FC-26 Ethernet Controller that is ideal for use with Ethernet/RS-232 interfaces.

2 Getting Started

We recommend that you:

• Unpack the equipment carefully and save the original box and packaging materials for possible future shipment
• Review the contents of this user manual
• Use Kramer high performance high resolution cables

Go to http://www.kramerelectronics.com/support/product_downloads.asp to check for up-to-date user manuals, application programs, and to check if firmware upgrades are available (where appropriate).

2.1 Achieving the Best Performance

To achieve the best performance:

• Use only good quality connection cables (we recommend Kramer high-performance, high-resolution cables) to avoid interference, deterioration in signal quality due to poor matching, and elevated noise levels (often associated with low quality cables)
• Do not secure the cables in tight bundles or roll the slack into tight coils
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality
  • Position your Kramer FC-26 away from moisture, excessive sunlight and dust

This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building.

2.2 Safety Instructions

Caution: There are no operator serviceable parts inside the unit

Warning: Use only the Kramer Electronics input power wall adapter that is provided with the unit.

Warning: Disconnect the power and unplug the unit from the wall before installing

2.3 Recycling Kramer Products

The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce the amount of WEEE sent for disposal to landfill or incineration by requiring it to be collected and recycled. To comply with the WEEE Directive, Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer's recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/.

3 Overview

The FC-26 is high-performance, easy-to-use, bidirectional hardware and software interface system for controlling RS-232 and IR-controllable devices via an Ethernet LAN.

These Ethernet to serial controllers bridge the gap between Ethernet infrastructures and serial communication devices by offering bidirectional Ethernet to serial and IR conversion. All setup and maintenance of the devices is done from built-in Web pages which are accessible using any common Web browser.

The FC-26 can receive K-Touch Ethernet-based per-IR port or per-serial port commands and convert them into IR/serial signals on the requested IR/serial port. Responses are sent back to all Ethernet connected panels.

In particular, the FC-26:

• Offers network connectivity that lets you connect a Kramer (or other) device via its RS-232 port to an Ethernet LAN
• Works in conjunction with K-Touch 3 for remote control of devices over an Ethernet LAN via IR or serial connections, (see Figure 1)
• Allows you to control up to two RS-232 devices via Ethernet from a PC, tablet, smartphone, and so on
• Allows you to control a device from multiple Ethernet points (PCs or remote controllers), via a LAN or the Internet
• Has IR learning capabilities
• Provides IR ports for device control via IR blasters/emitters
• Includes Windows ^ -based Virtual Port software for setting up virtual ports on a PC
  • Supports static or dynamic (DHCP) IP addressing
• Can act as a PoE receiver
• Has a USB port for upgrading the firmware
  • Supports remote firmware upgrades via a LAN

- Is housed in a compact, Kramer TOOLS™ enclosure which can be mounted side by side in a 19-inch rack using suitable rack adapters


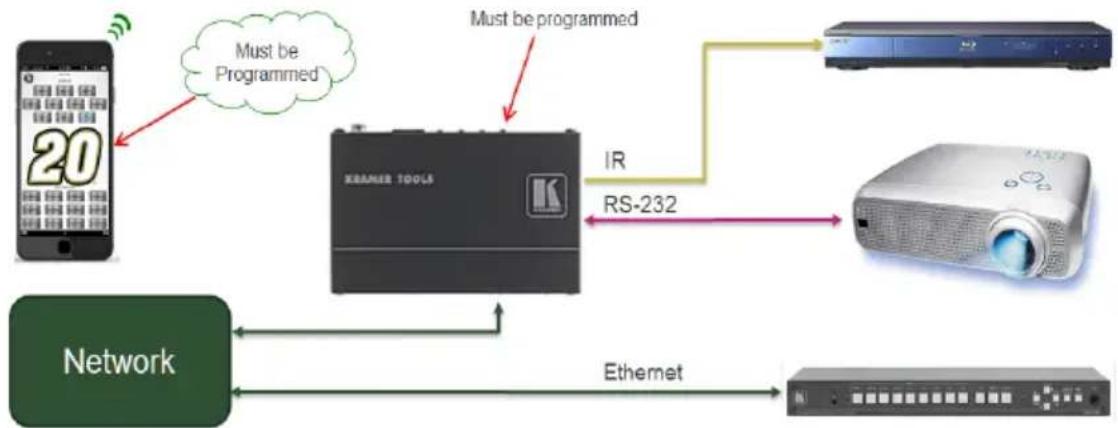

Figure 1: FC-26 Controlling Devices Remotely Using K-Touch 3.0 over a LAN

Using K-Touch you can design advanced room-control and automation systems that can be operated from iOS or Android touch devices. K-Touch can be used to perform device discovery over the network as the FC-26 is set to be a DHCP client by default.

You can use the Kramer LAN Configurator software to discover devices that are attached to the network, including the FC-26.

The FC-26 includes the Virtual Serial Port Manager (Kramer VSPM) for compatibility with applications based on COM-port communication. Virtual Serial Port Manager:

- Makes the FC-26 compatible with all Windows®-based applications which require a physical COM port. This includes all versions of K-Router and other Kramer control applications. It lets you operate all RS-232 controllable devices via an Ethernet LAN using their existing PC software

- Allows virtual serial ports to operate like physical COM ports, that is, logical COM ports that behave exactly like a standard hardware COM port. In reality, it transparently reroutes the data using the TCP/IP network to the FC-26 interface via a virtual connection which you can emulate over the Ethernet or Internet

- Allows the creation of any number of serial ports on your PC which do not occupy any physical serial ports

3.1 About the Power over Ethernet Feature

Power over Ethernet passes electrical power along with data on Ethernet cabling. This allows a single cable to provide both data connection and electrical power to compatible devices.

4 Defining the FC-26 Ethernet Controller

Figure 2 defines the front panel of the FC-26.

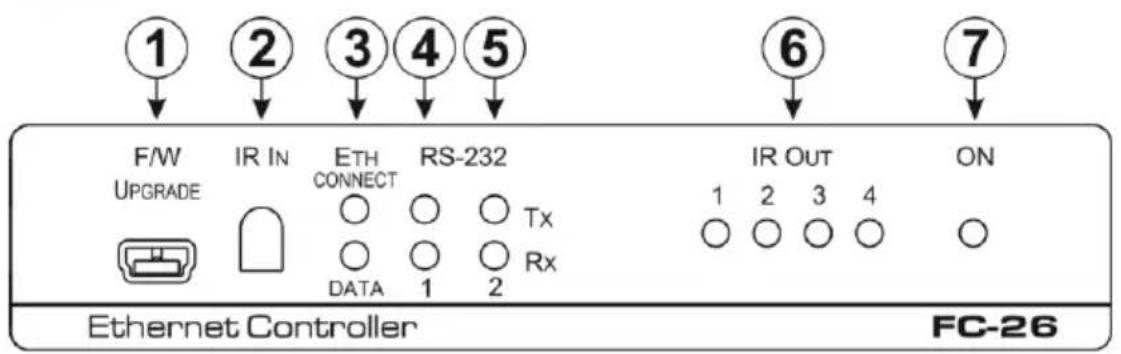

Figure 2: FC-26 Ethernet Controller Front Panel

#	Feature		Function
1	F/W UPGRADE Mini USB Connector		Connect to a PC to perform a firmware upgrade
2	IR IN Sensor		Sensor for IR learning
3	ETH LEDs	CONNECT	Lights orange when the Ethernet port is connected
		DATA	Flashes green when data is transferred over the Ethernet link
4	RS-232 LEDs	TX 1	Lights green when data is transmitted on serial port 1
		RX 1	Lights red when data is received on serial port 1
5		TX 2	Lights green when data is transmitted on serial port 2
		RX 2	Lights red when data is received on serial port 2
6	IR OUT 1 ~ 4 LEDs		The associated LED lights green when the relevant IR port transmits data.Note: When IR learning is in progress, the four IR Out LEDs light and the FC-26 is unavailable for normal operation
7	ON LED		Lights green when the unit is on

Figure 3 defines the rear panel of the FC-26.

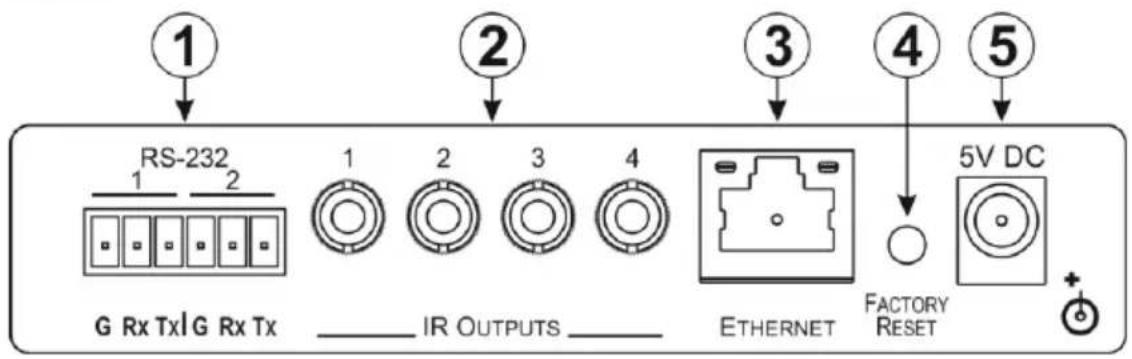

Figure 3: FC-26 Ethernet Controller Rear Panel

#	Feature		Function
1	RS-232 6-pinTerminal Block	1	Connect to the first RS-232 controlled device
		2	Connect to the second RS-232 controlled device
2	IR OUTPUTS 1 ~ 43.5mm Mini Jacks		Connect to IR blasters/emitters using cables up to 80 m (260ft) long
3	ETHERNET RJ-45 Connector		Connect to a PC or other controller directly or via a LAN (see Section 6.1)
4	FACTORY RESET Button		Press and hold while power-cycling the device to reset to factory default parameters, (see Section 10)
5	5V DC Connector		Connect to the 5V DC power supply, center pin positive. Not needed when the device is supplied power by a PoE provider

5 Initial Configuration and Use Overview

This chapter provides an overview of the initial configuration and basic operation of the FC-26 and comprises:

• Configuring the FC-26 (see Section 5.1)
• Configuring a virtual port on the PC (see Section 5.2)
• Configuring an Ethernet connection on the PC (see Section 5.3)


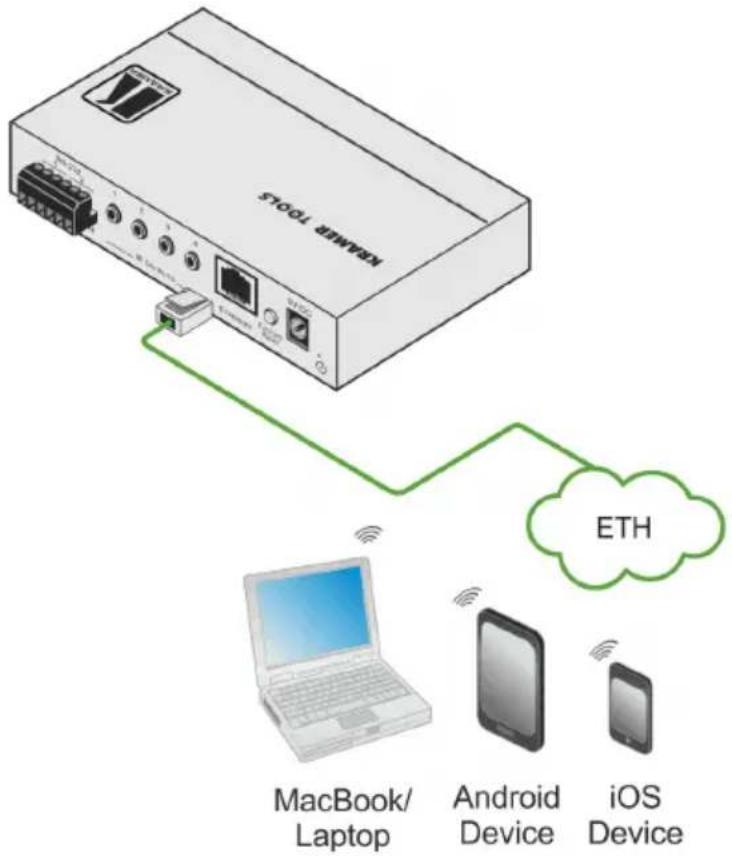

Figure 4: Connecting the FC-26 for Initial Configuration

5.1 Configuring the FC-26 Ethernet Controller

Note: The FC-26 is dispatched from the factory with DHCP enabled and a random IP address. This means that in order to connect to the FC-26 on first installation, you need to identify what IP address has been automatically assigned to the

FC-26. This can be done by using K-LAN Configurator to discover the IP address of the FC-26. This is available for download from our website at

http://www.kramerav.com.

To browse the FC-26 Web pages on taking the device out of the box, use the default host name, (see Section 10).

To configure the FC-26:

1. Connect the Ethernet port on the rear panel of the FC-26 to a PC, either directly or via a LAN, (see Section 6.1).
2. Using a Web browser and the relevant IP address, browse the General Info home page (see Figure 11).
3. Click on Device Settings to browse to the Device Settings page, (see Figure 13).
4. Enter the time and date manually, or enter the Time server address for automatic time and date synchronization.
5. Click Save Changes.
6. Click on Communication to browse to the Communication page, (see Figure 14).
7. Enter the IP address, mask and gateway for static IP addressing and Click Set. We recommend that you set a meaningful host name.
   Note: If you have changed the IP from the default setting, you must reload the General Info home page again using the new IP address.
8. Click on Serial Ports Settings to browse to the Serial Port Settings page, (see Figure 15).
9. Associate the required serial ports with their corresponding TCP/UDP settings.
10. For each associated serial port, enter the serial port configuration parameters using the drop-down lists under Serial Configuration.
11. Click Save Changes.

12. If required, click on Security to browse to the Security page.

13. Click ON to activate security.
    The user name and password credentials popup appears.

14. Enter the required user name and password.

5.2 Configuring a Virtual Port on the PC

If the control application cannot work with an Ethernet driver, download the Kramer VSPM from our Web site to set a virtual port for each local port on your FC-26.

The Kramer VSPM software lets you emulate virtual ports which normally would be present in the machine hardware. After setup, the virtual port lets you control Kramer machines via your PC.

5.3 Setting Up an Ethernet Connection on the PC

If the control application can directly connect to the Ethernet driver, select the host IP and port number according to your FC-26 configuration, as illustrated in Figure 5.

Figure 5: Configuring a Remote Connection

6 Connecting the FC-26

Always switch off the power to each device before connecting it to your FC-26. After connecting your FC-26, connect its power and then switch on the power to each device.

Figure 6: Connecting the FC-26 Ethernet Controller

To connect the FC-26 as illustrated in the example in Figure 6:

1. Connect the device to a LAN or PC via the RJ-45 Ethernet connector.

2. Connect up to two serially controlled devices, (for example, the control port of a switcher and a projector) to the 3-pin, RS-232 terminal blocks.

3. Connect IR emitters to the IR Outputs, (for example, two IR emitters for Blu-ray disk player and multimedia player control, and an IR blaster).

4. If the FC-26 is not supplied with power by a PoE provider, connect the device to the power adapter and connect the power adapter to the mains electricity (not shown in Figure 6).

6.1 Connecting via Ethernet

You can connect to the FC-26 via Ethernet using either of the following methods:

• Directly to the PC using a crossover cable (see Section 6.1.1)
• Via a network hub, switch, or router, using a straight-through cable (see Section 6.1.2)

Note: If you want to connect via a router and your IT system is based on IPv6, speak to your IT department for specific installation instructions.

6.1.1 Connecting the Ethernet Port Directly to a PC

You can connect the Ethernet port of the FC-26 directly to the Ethernet port on your PC using a crossover cable with RJ-45 connectors.

This type of connection is recommended for identifying the FC-26 with the factory configured default IP address.

After connecting the to the Ethernet port, configure your PC as follows:

1. Click Start > Control Panel > Network and Sharing Center.
2. Click Change Adapter Settings.
3. Highlight the network adapter you want to use to connect to the device and click Change settings of this connection.
   The Local Area Connection Properties window for the selected network adapter appears as shown in Figure 7.

Figure 7: Local Area Connection Properties Window

1. Highlight Internet Protocol Version 4 (TCP/IPv4) and click Properties. The Internet Protocol Properties window relevant to your IT system appears as shown in Figure 8 or Figure 9.

Figure 8: Internet Protocol Version 4 Properties Window

Figure 9: Internet Protocol Version 6 Properties Window

1. Select Use the following IP Address for static IP addressing and fill in the details as shown in Figure 10.

For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department.

Figure 10: Internet Protocol Properties Window

1. Click OK.
2. Click Close.

6.1.2 Connecting the Ethernet Port via a Network Hub or Switch

You can connect the Ethernet port of the FC-26 to the Ethernet port on a network hub or using a straight-through cable with RJ-45 connectors.

6.1.3 Connecting to the FC-26 via RS-232 or IR

To connect to the FC-26 via RS-232:

- Connect the RS-232, 3-pin, terminal block connectors on the rear panel of the FC-26 using 3-wire cable (pin TX to pin 2, RX to pin 3, and G to pin 5) to the RS-232 9-pin D-sub port on the devices to be controlled

To connect to the FC-26 via IR either:

- Connect an IR blaster to one of the IR Outputs and place it within 4m to 8m (13 to 26ft) and in line-of-sight of the device to be controlled

—OR—

- Connect an IR emitter cable to one of the IR Outputs and stick the emitter to the IR sensor on the device to be controlled

7 Remote Operation via the Web Pages

The embedded Web pages can be used to remotely operate the FC-26 using a Web browser and an Ethernet connection.

Before attempting to connect:

• Perform the procedures in Section 5.1 and in Section 6.1
- Ensure that your browser is supported (see Section 9)

7.1 Browsing the Web Pages

To browse the Web pages:

1. Open your Internet browser. Type the IP address of the device (see Section 5.1) in the Address bar of your browser.

The Loading page appears followed shortly by the General Info page shown in Figure 11.

The General Info page displays the following:

• Model Name
• Firmware version
  • Device serial number
• Web page version

At the bottom left hand side of all pages there are Load/Save Configuration buttons. These allow you to save the current configuration and load any pre-saved configurations.

Figure 11: General Info Page

7.1.1 Loading and Saving Configurations

Loading and saving configurations can be performed using the buttons at the bottom left-hand side of the screen irrespective of which page is displayed.

To load a configuration:

1. Click Load.
   The Explorer window opens.

2. Browse to the required file.

3. Select the required file and click Open.

The device is configured according to the saved preset.

To save the current configuration:

1. Configure the device as required.
2. Click Save.
   The Save File window opens.
3. Browse to the required location to which to save the file.
4. Enter the required name for the saved preset.
5. Click OK.
   The current configuration is saved.

Note: When using Chrome, the file is automatically saved in the Downloads folder.

7.2 Connected Clients Page

The Connected Clients page allows you to view the following details of any client devices connected via Ethernet to the FC-26:

• IP address
  • The port it is connected to
  • Method of connection
• Whether or not Send Replies is enabled for the port

Figure 12: Connected Clients Page

7.3 Device Settings Page

The Device Settings page allows you to view the model name and time server status. You can also modify the following fields:

• Device name
  • Device time, date, and time zone
• Use a timeserver to set the time and date automatically using a (if the device is connected to the Internet), including the Time Zone and daylight savings time

Figure 13: Device Settings Page

The FC-26 has a built-in clock that can synchronize with a Time Server if required.

To enable Time Server synchronization:

1. Browse to the Device Settings page by clicking Device Settings. The Device Settings page is displayed as shown in Figure 13.
2. Click the Use Time Server ON button.
3. Enter the IP address of the Time Server.
4. Enter the time of day at which the FC-26 should synchronize with the Time Server.
5. Click Save Changes.

7.4 Communication Page

The communication page allows you to:

• Turn DHCP for the device on and off
• Edit the IP settings for static IP addressing

Note: The default IP address setting for the device is DHCP.

Figure 14: Communication Page

After modifying any of the IP settings, click Set to save the changes.

7.5 Serial Port Settings Page

The Serial Port Settings page allows you to:

- Set the following Ethernet parameters for each Ethernet port:

■ Select TCP or UDP
IP port label
TCP keep-alive time: 0-3600sec (default 60sec) time internal, after which detected idle connection is disconnected

- Set the following serial parameters for each serial port:

Parity
Data bits
Baud rate
- Stop bits

- Select whether or not to send replies on the port to the new client

Figure 15: Serial Port Settings Page

7.6 IR Command Learner Page

The IR Command Learner page allows you to teach the FC-26 IR commands. These can be saved for later use.

Note: While learning is in progress, the four IR Out LEDS light and the FC-26 is not available for normal operation.

Figure 16: IR Command Learner Page

#	Feature	Function
1	Command Name Field	Enter the required name for the command
2	Learning Timeout	Set the time that will elapse before the learning mode is exited if no command is received
3	Start Learning Button	Press to start the learning process.Note: While learning is in progress, the four IR Out LEDS light and the FC-26 is not available for normal operation.
4	Command Received Window	Displays the command string received during the process. This command can be copied/pasted to another application
5	Test Button and Port Selection Spinner	Select the port on which to test the learned command and press the Test button to start the test
6	Retrieve Last Command Button	Press to retrieve that last command learned
7	Load/Save Buttons	Press Load to retrieve a previously saved command. Press Save to save the current command

7.7 Security Page

The Security page allows you to turn logon authentication on or off.

Figure 17: Security Page

When security is on, access to the Web pages is granted only on submission of a valid user and password. For default logon credentials see Section 10.

To activate Web page security:

1. On the Security page, click ON.

The confirmation popup is displayed as shown in Figure 18.

Figure 18: Security Confirmation Popup

1. Click OK.

The Authentication Required popup is displayed as shown in Figure 19.

Figure 19: Authentication Required Popup

1. Enter the default username and password.

2. Click OK.

3. Wait until the Web pages have reloaded. Click the Security page button.

The page show in Figure 20 is displayed.

Figure 20: Security Activated Page

1. If required, click OFF to turn security off, or change the password and click Change.

7.8 Logs Page

The Logs page allows you to:

• View current logs
- Configure the logs
- Filter the logs

Figure 21: Logs Page

The display may not update automatically. Click Refresh to update the display.

Use the Log Filter check-boxes to select which events to display from the log. Use the Log Config check-boxes to select which events are recorded.

7.9 About Us Page

The About Us page displays the Web page version and the Kramer company details.

Figure 22: About Us Page

8 Configuring and Maintaining the FC-26

8.1 IR Learning

Note: While learning is in progress, the four IR Out LEDS light and the FC-26 is not available for normal operation.

At the start and end of learning a message is sent to all attached clients.

To perform IR learning, the IR remote control must be approximately five to seven centimeters (2" and 2.7") from the FC-26 front panel.

To teach the FC-26 an IR command:

1. Put the FC-26 in IR Learning mode either by sending the P3000 command, (see Section 11.2) or by using the Web pages, (see Section 7.6).
   The four IR Out LEDs light, the device is no longer in normal operation, and the FC-26 sends an IR Leaning start message to all connected clients.

2. Using the IR remote control, send the required command to the FC-26. The FC-26 processes the IR signal and generates the pronto code. When using the Web page for IR learning, the FC-26 also displays the learned command code on screen. (This command can be copied/pasted to other applications, for example, K-Touch when creating a driver.) The FC-26 then sends the IR Leaning stop message to all connected clients to indicate return to normal operation.

3. Optional—Test the command if using the IR Learning Web page. Test results are displayed on screen.

4. Save the learned command.

8.2 Resetting to the Factory Default Settings

To reset the device to its factory default settings:

1. Turn off the power to the device.
2. Press and hold the Reset button on the front panel.
3. Turn on the power to the device while holding down the Reset button for a few seconds.
4. Release the button.
   The device is reset to the factory default settings.

8.3 Upgrading the Firmware

For instructions on upgrading the firmware see the "Kramer K-Upload User Manual".

9 Technical Specifications

OUTPUTS:	4 IR on 3.5mm mini jacks
PORTS:	2 RS-232 serial on 3-pin terminal blocks1 Ethernet on an RJ-45 connector1 USB on a mini USB connector for programming
SUPPORTED SERIAL PORT BAUD RATES:	1200, 2400, 4800, 9600, 19200, 38400, 57600, 15200bps
RS-232 COMMUNICATION:	Transparent up to 115200bps
IR EMITTER CABLE RANGE:	80m (260ft)
SUPPORTED IR INPUT FREQUENCIES:	20kHz to 60kHz
SUPPORTED IR OUTPUT FREQUENCIES:	20kHz to 1.2MHz
MAXIMUM DATA HANDLING OF DEVICE:	Up to 150kbps (summed on all ports, see Section 9.1)
SUPPORTED WEB BROWSERS:	Windows 7 and higher:Internet Explorer (32/64 bit) version 11Firefox version 30Chrome version 35MAC:Chrome version 35Firefox version 27Safari version 7Android OS:Chrome version 35iOS:Chrome version 35Safari version 7
POWER CONSUMPTION:	5V DC, 230mA
OPERATING TEMPERATURE:	0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE:	-40° to +70°C (-40° to 158°F)
HUMIDITY:	10% to 90%, RHL non-condensing
COOLING:	Convection
ENCLOSURE TYPE:	Aluminium
RACK MOUNT:	With optional rack adapter
DIMENSIONS:	12cm x 7.5cm x 2.44cm(4.72" x 2.95" x 0.96") W, D, H
PRODUCT WEIGHT:	0.182kg (0.4lbs) approx.
SHIPPING WEIGHT:	0.43kg (0.95lbs) approx.
VIBRATION:	ISTA 1A in carton (International Safe Transit Association)
SAFETY REGULATORY COMPLIANCE:	CE
ENVIRONMENTAL REGULATORY COMPLIANCE:	Complies with appropriate requirements of RoHs and WEEE
INCLUDED ACCESSORIES:	Power adapter, IR Cable C-A35M/IRE-10
OPTIONS:	19" Rack adapter RK-3TIR Cables—C-A35M/2IRE-10, C-A35M/IRR-3,C-AS35M/AS35F-50, CA35M/IRE-10Bulk cable for serial control—BC-1T-300M
Specifications are subject to change without notice at http://www.kramerelectronics.com

9.1 Data Handling Performance

The FC-26 is designed to support mainly AV-relevant RS-232 communication.

These devices have overall data bandwidth limits which should be high enough in most AV installations to support the required communication bandwidth.

In extremely demanding cases, we recommend that you take into account the bandwidth limitations.

The total sustained data bandwidth that each device can handle for all ports simultaneously is 150kbps.

9.2 Example Bandwidth Calculation

The FC-26 has two serial ports. Each serial port can support up to:

• 150kbps / 2 = 75kbps

If each protocol commands is 100 bytes, (that is, 800 bits), you can safely send and receive a minimum of 96 commands per second on each serial port. This is shown using the following calculation:

(150kbps * 1024) / 800 bits / 2 = 96

The same calculation applies to all devices. A similar calculation applies when fewer ports are used at the same time where a higher bandwidth per port can be achieved.

In critical applications requiring a lossless data transfer, we recommend that communication on all the other ports is stopped when making a long file transfer (for example, when performing a firmware upgrade via one of the serial ports).

10 Default Communication Parameters

RS-232Protocol 3000
Baud Rate:	115200
Data Bits:	8
Stop Bits:	1
Parity:	None

Note: The FC-26 is dispatched from the factory with DHCP enabled and a random IP address. After performing a factory reset, the DHCP and the IP address are set to the values shown below.

Ethernet
DHCP:	Off
IP Address:	192.168.1.39
Host Name:	FC-26-xxxxwhere xxxx are the last four digits of the serial number of the device
Subnet Mask:	255.255.0.0
Gateway:	192.168.0.1
Maximum Simultaneous Connections:	40
TCP Port 1:	5001
TCP Port 2:	5002
UDP Port:	50000

Default Logon Authentication

Web Page Access
User name:	Admin
Password:	Admin

11 Kramer Protocol 3000

The FC-26 can be operated using serial commands from a PC, remote controller or touch screen using the Kramer Protocol 3000.

This section describes:

• Kramer Protocol 3000 syntax (see Section 11.1)
- Kramer Protocol 3000 commands (see Section 11.2)

11.1 Kramer Protocol 3000 – Syntax

11.1.1 Host Message Format

Start	Address(optional)	Body	Delimiter
#	Destination_id@	Message	CR

11.1.1.1 Simple Command

Command string with only one command without addressing:

Start	Body	Delimiter
#	Command SP Parameter_1,Parameter_2,...	CR

11.1.1.2 Command String

Formal syntax with commands concatenation and addressing:

Start	Address	Body	Delimiter
#	Destination_id@	Command_1Parameter1_1,Parameter1_2,...|Command_2Parameter2_1,Parameter2_2,...|Command_3Parameter3_1,Parameter3_2,...|...	CR

11.1.2 Device Message Format

Start	Address(optional)	Body	delimiter
~	Sender_id@	Message	CR LF

11.1.2.1 Device Long Response

Echoing command:

Start	Address (optional)	Body	Delimiter
~	Sender_id@	Command SP [Param1,Param2 ...] result	CR LF

CR = Carriage return (ASCII 13 = 0x0D)
LF = Line feed (ASCII 10 = 0x0A)
SP = Space (ASCII 32 = 0x20)

11.1.3 Command Terms

Command

A sequence of ASCII letters ('A'-'Z', 'a'-'z' and '-'').

Command and parameters must be separated by at least one space.

Parameters

A sequence of alphanumeric ASCII characters ('0'-9', 'A'-Z', 'a'-z' and some special characters for specific commands). Parameters are separated by commas.

Message string

Every command entered as part of a message string begins with a message starting character and ends with a message closing character.

Note: A string can contain more than one command. Commands are separated by a pipe ( ' |' ) character.

Message starting character

'#' – For host command/query
'~' – For device response

Device address (Optional, for K-NET)

K-NET Device ID followed by '@'

Query sign

'?' follows some commands to define a query request.

Message closing character

CR- For host messages; carriage return (ASCII 13)

CRLF – For device messages; carriage return (ASCII 13) + line-feed (ASCII 10)

Command chain separator character

When a message string contains more than one command, a pipe ('|') character separates each command.

Spaces between parameters or command terms are ignored.

11.1.4 Entering Commands

You can directly enter all commands using a terminal with ASCII communications software, such as HyperTerminal, Hercules, etc. Connect the terminal to the serial or Ethernet port on the Kramer device. To enter CR press the Enter key.

( LF is also sent but is ignored by command parser).

For commands sent from some non-Kramer controllers like Crestron, some characters require special coding (such as, /X##). Refer to the controller manual.

11.1.5 Command Forms

Some commands have short name syntax in addition to long name syntax to allow faster typing. The response is always in long syntax.

11.1.6 Chaining Commands

Multiple commands can be chained in the same string. Each command is delimited by a pipe character ("|"). When chaining commands, enter the message starting character and the message closing character only once, at the beginning of the string and at the end.

Commands in the string do not execute until the closing character is entered.

A separate response is sent for every command in the chain.

11.1.7 Maximum String Length

64 characters

11.2 Kramer Protocol 3000 – Command List

Command	Description
#	Protocol handshaking
BUILD-DATE?	Read device build date
DEL	Deletes a file
DIR	List files
ETH-PORT	Sets protocol port
FACTORY	Restart the machine with the default
FORMAT	Format the file system
FS-FREE?	Print free file space
GET	Get file content
HELP	List of commands
IR-LEARN	Send IR learning command
IR-SND	Send IR command to port
IR-STOP	Stop IR command to port
LOGIN	Set/get protocol permission
LOGOUT	Demotes the terminal security level to minimum
LOG_LEVEL?	Gets current logging level
MACH-NUM	Set device ID
MODEL?	Read device model
NAME	Set/get device (DNS) name
NAME-RST	Reset device name to default
NET-DHCP	Set/get DHCP mode
NET-GATE	Set/get gateway IP
NET-IP	Set/get device IP address
NET-MAC?	Get the MAC address
NET-MASK	Set/get the device subnet mask
PASS	Set/get the password for login level
PROT-VER?	Get protocol version
RESET	Reset device
SECUR	Set/get current security state
SN?	Get device serial number
TIME	Set/get the time
TIME-LOC	Set/get local time offset from UTC/GMT
TIME-SRV	Set/get time synchronization from server
UART	Set/get a port serial parameters
VERSION?	Get firmware version number

11.3 Kramer Protocol 3000 – Detailed Commands

This section lists the detailed commands applicable to the FC-26.

Command - #		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	#	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Protocol handshaking	#CR
Get:	-	-
Response
~nn@SPOKCR LF
Parameters
Response triggers
Notes
Use to validate the Protocol 3000 connection and get the machine number

Command - BUILD-DATE?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	BUILD-DATE?	End User	Public
Description		Syntax
Set:	Read device build date	#BUILD-DATECR
Get:	-	-
Response
~nn@BUILD-DATESPdateSPtimeCRLF
Parameters
date - Format: YYYY/MM/DD where YYYY = Year, MM = Month, DD = Day time - Format: hh:mm:ss where hh = hours, mm = minutes, ss = seconds
Response triggers
Notes
Command - DEL		Command Type - File System
Command Name		Permission	Transparency
Set:	DEL	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Delete file	#DELSPfile_nameCR
Get:
Response
~nn@DELSPfile_nameSPOKCR LF
Parameters
file_name - name of file to delete (file names are case-sensitive)
Response Triggers
Notes

Command - DIR		Command Type - File System
Command Name		Permission	Transparency
Set:	DIR	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	List files in device	#DIRCR
Get:	-	-
Response
Multi Line:~nn@DIRCR LFfile_name TAB file_size SP bytes, SP ID: SP file_id CR LFTAB free_size SP bytes. CR LF
Parameters
file_name - name of filefile_size - file size in bytes. A file can take more space on device memoryfile_id - internal ID for file in file systemfree_size - free space in bytes in device file system
Response Triggers
Notes
Command - ETH-PORT		Command Type - Communication
Command Name		Permission	Transparency
Set:	ETH-PORT	Administrator	Public
Get:	ETH-PORT?	End User	Public
Description		Syntax
Set:	Set Ethernet port protocol	#ETH-PORT _SP portType, ETHPort _CR
Get:	Get Ethernet port protocol	#ETH-PORT? _SP portType _CR
Response
~hn@ ETH-PORT _SP portType, ETHPort, portNum _CR LF
Parameters
portType - TCP/UDPETHPort - TCP/UDP port number
Response Triggers
Notes

Command - FACTORY		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	FACTORY	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device to factory defaults configuration	#FACTORYCR
Get:	-	-
Response
~nn@BUILD-DATESPdateSPtimeCRLF
Parameters
Response triggers
Notes
This command deletes all user data from the device. The deletion can take some time
Command - FORMAT		Command Type - File System
Command Name		Permission	Transparency
Set:	FORMAT	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Format file system	#FORMATCR
Get:	-	-
Response
~nn@FORMATSP OKCRUF
Parameters
Response Triggers
Notes
Response could take some time (seconds) until formatting completes

Command - FS-FREE?		Command Type - File System
Command Name		Permission	Transparency
Set:	-	-	-
Get:	FS-FREE?	Administrator	Public
Description		Syntax
Set:	-	-
Get:	Get file system free space	#FS-FREE?CR
Response
~nn@FS_FREESP free_sizeOR LF
Parameters
free_size - free size in device file system in bytes
Response Triggers
Notes
Command -GET		Command Type - File System
Command Name		Permission	Transparency
Set:	-	-	-
Get:	GET	Administrator	Public
Description		Syntax
Set:	-	-
Get:	Get file	#GETSPfile_nameCR
Response
Multi-line:~nn@GETSPfile_name, file_sizeSPREADYCR LFcontents~nn@GETSPfile_nameSPOKCR LF
Parameters
file_name - name of file to get contentscontents - byte stream of file contentsfile_size - size of file (device sends it in response to give user a chance to get ready)
Response Triggers
Notes
Command - HELP		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	HELP	End User	Public
Description		Syntax
Set:	-	-
Get:	Get command list or help for specific command	2 options:1. #HELPCR2. #HELPSPcommand_nameCR
Response
1. Multi-line: ~nn@Device available protocol 3000 commands: CR LF command, SP command... CR LFTo get help for command use: HELP (COMMAND_NAME) CR LF2. Multi-line: ~nn@HELPSPcommand: CR LF description CR LF USAGE: usage CR LF
Parameters
Response triggers
Notes

Command - IR-LEARN		Command Type - IR
Command Name		Permission	Transparency
Set:	IR-LEARN	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Send IR learning command	# IR-LEARN _SP CommandName,Timeout _CR
Get:	-	-
Response
~nn@IR-LEARN _SP CommandName,IR_Status _CR LF
Parameters
CommandName - String: IR command name limited to 15 chars. Controlling device must send the correct name (whitespace or commas forbidden)Timeout - Timeout in seconds (1 to 60)IR_Status - (seeSection 11.4.4)
Response Triggers
Notes

Command - IR-SND

Command Type - IR

Set: IR-SND

End User

Public

Get: -

- -

Set: Send IR command to port

IR-SND ^5 PortNum,Cmdid,CmdName,Repeat,

TotalPackages,PackageNum,ProntoCmdDat

Get: -

-

\~nn@IR-SND ^5 PortNum,Cmdid,CmdName,Status ^r_k

PortNum - [1..4] IR port transmitting the command. '*' broadcasts to all ports

Cmdid – serial number of command for flow control and response commands from device

CmdName – a string, the alias of the IR command. The controlling device is responsible for sending the correct name

Repeat – number of times the IR command is transmitted (limited to 50; repeats > 50 are truncated to 50)

TotalPackages – number of messages (packages) the original command was divided into, default = 1

PackageNum – the message (package) serial number (only valid when TotalPackages >1)

ProntoCmdDat – Pronto format command (in HEX format, no leading zeros, no '0x' prefix)

Status - 0=no error (see Section 11.4.3)

##IR-SND

3,1,1,1,1,0000,0067,0033,0000,0000,014b,003a,0013,003a,0014,003a,0014,003a,0014,0013,003a,003a,0014,0013,003b,003a,0013,0013,003a,003a,0014,0013,003a,003a,0014,0013,003b,003a,0014,0013,003b,003a,0014,0013,003a,003a,0014,0013,003b,0013,003a,003a,0013,003a,0014,0013,003a,0014,0013,003a,0013,003b,0013,003a,0013,003a,0013,025b,003a,0013,003a,0013,003a,0014,003a,0014,0013,003a,003a,0014,0013,003a,003a,0014,0013,003a,003a, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , .

Command – IR-STOP

Command Type - IR

Set: IR-STOP

End User

Public

Get: -

-

Set: Send IR stop command to port

IR-STOP PortNum,Cmdid,CmdName

Get: -

-

\~nn@IR-STOP PortNum,Cmdid,CmdName,Status

PortNum - [1..4] IR port transmitting the command. '*' broadcasts to all ports

Cmdid – serial number of command for flow control and response commands from device

CmdName – a string, the alias of the IR command. The controlling device is responsible for sending the correct name

Status - 0=no error (see Section 11.4.3)

Command - LOGIN		Command Type - Authentication
Command Name		Permission	Transparency
Set:	LOGIN	Not Secure	Public
Get:	LOGIN?	Not Secure	Public
Description		Syntax
Set:	Set protocol permission	#LOGIN _SP login_level, password _CR
Get:	Get current protocol permission level	#LOGIN? _CR
Response
Set: ~nn@LOGIN _SP login_level,password _SP OK _CR LFor~nn@LOGIN _SP ERR _SP 004 _CR LF(if bad password entered)Get: ~nn@LOGIN _SP login_level _CR LF
Parameters
login_level - level of permissions required (End User or Admin)password - predefined password (by PASS command). Default password is an empty string
Response triggers
Notes
For devices that support security, LOGIN allows to the user to run commands with an End User or Administrator permission levelIn each device, some connections can be logged in to different levels and some do not work with security at allConnection may logout after timeoutThe permission system works only if security is enabled with the “SECUR” command
Command - LOGOUT		Command Type - Authentication
Command Name		Permission	Transparency
Set:	LOGOUT	Not Secure	Public
Get:	-	-	-
Description		Syntax
Set:	Cancel current permission level	#LOGOUTCR
Get:	-	-
Response
~nn@LOGOUTSP OKCR LF
Parameters
Response triggers
Notes
Logs out from End User or Administrator permission levels to Not Secure

Command - MACH-NUM		Command Type - System
Command Name		Permission	Transparency
Set:	MACH-NUM	End User	Public
Get:	-	-	-
Description		Syntax
Set:	Set machine number	#MACH-NUMSPmachine_numberCR
Get:	-	-
Response
~nn@MACH-NUMSPmachine_numberOKCR LF
Parameters
machine_number - new device machine number
Response Triggers
Notes
Some devices do not set the new machine number until the device is restartedSome devices can change the machine number only from DIP-switches
Command - NAME		Command Type - System (Ethernet)
Command Name		Permission	Transparency
Set:	NAME	Administrator	Public
Get:	NAME?	End User	Public
Description		Syntax
Set:	Set machine (DNS) name	#NAMESPmachine_nameCR
Get:	Get machine (DNS) name	#NAME?CR
Response
Set: ~nn@NAMESPmachine_nameSPOKCR LF
Get: ~nn@NAME?SPmachine_nameCR LF
Parameters
machine_name - String of up to 14 alpha-numeric chars (can include hyphen, not at the beginning or end)
Response Triggers
Notes
The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS feature on)

Command - MODEL?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	MODEL?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get device model	#MODEL?CR
Response
~nn@MODELSPmodel_nameCRLF
Parameters
model_name - String of up to 19 printable ASCII chars
Response triggers
Notes
Command - NAME		Command Type - System (Ethernet)
Command Name		Permission	Transparency
Set:	NAME	Administrator	Public
Get:	NAME?	End User	Public
Description		Syntax
Set:	Set machine (DNS) name	#NAMESPmachine_nameCR
Get:	Get machine (DNS) name	#NAME?CR
Response
Set: ~nn@NAMESPmachine_nameSPOKCR LF
Get: ~nn@NAME?SPmachine_nameCR LF
Parameters
machine_name - String of up to 14 alpha-numeric chars (can include hyphen, not at the beginning or end)
Response triggers
Notes
The machine name is not the same as the model name. The machine name is used to identify a specific machine or a network in use (with DNS feature on)

Command - NAME-RST		Command Type - System (Ethernet)
Command Name		Permission	Transparency
Set:	NAME-RST	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset machine (DNS) name to factory default	#NAME-RSTCR
Get:	-	-
Response
~nn@NAME-RSTSPOKCR LF
Parameters
Response Triggers
Notes
Factory default of machine (DNS) name is “KRAMER_” + 4 last digits of device serial number
Command - NET-DHCP		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-DHCP	Administrator	Public
Get:	NET-DHCP?	End User	Public
Description		Syntax
Set:	Set DHCP mode	#NET-DHCPSPmodeCR
Get:	Get DHCP mode	#NET-DHCP?CR
Response
Set: ~nn@ NET-DHCPSPmodeSPOKCR LF
Get: ~nn@ NET-DHCPSPmodeCR LF
Parameters
mode - 0 - Do not use DHCP. Use the IP set by the factory or using the IP set command1 - Try to use DHCP. If unavailable, use IP as above
Response triggers
Notes
Connecting Ethernet to devices with DHCP may take more time in some networksTo connect with a randomly assigned IP by DHCP, specify the device DNS name (if available) using the command “NAME”. You can also get an assigned IP by direct connection to USB or RS-232 protocol port if availableFor proper settings consult your network administrator
Command - NET-GATE		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-GATE	Administrator	Public
Get:	NET-GATE?	End User	Public
Description		Syntax
Set:	Set Gateway IP	#NET-GATESPip_addressCR
Get:	Get Gateway IP	#NET-GATE?CR
Response
Set: ~nn@ NET-GATESPip_addressSPOKCR LF
Get: ~nn@ NET-GATESPip_addressCR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response triggers
Notes
A network gateway connects the device via another network and maybe over the Internet. Be careful of security problems. For proper settings consult your network administrator

Command - NET-IP		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-IP	Administrator	Public
Get:	NET-IP?	End User	Public
Description		Syntax
Set:	Set device IP address	#NET-IP _SP ip_address _CR
Get:	Get device IP address	#NET-IP? _CR
Response
Set: ~nn@ NET-IP _SP ip_address _SP OK _CR LF
Get: ~nn@ NET-IP _SP ip_address _CR LF
Parameters
ip_address - format: xxx.xxx.xxx.xxx
Response triggers
Notes
For proper settings consult your network administrator
Command - NET-MAC?		Command Type - Communication
Command Name		Permission	Transparency
Set:	-	-	-
Get:	NET-MAC?	End User	Public
Description		Syntax
Set:
Get:	Get MAC address	#NET-MAC?CR
Response
~nn@NET-MACSP mac_addressCR LF
Parameters
mac_address - Unique MAC address. Format: XX-XX-XX-XX-XX where X is hex digit
Response triggers
Notes

Command - NET-MASK		Command Type - Communication
Command Name		Permission	Transparency
Set:	NET-MASK	Administrator	Public
Get:	NET-MASK?	End User	Public
Description		Syntax
Set:	Set device subnet mask	#NET-MASKSPnet_maskCR
Get:	Get device subnet mask	#NET-MASK?CR
Response
Set: ~nn@NET-MASKSPnet_maskSPOKCR LF
Get: ~nn@NET-MASKSPnet_maskOR LF
Parameters
net_mask - format: xxx.xxx.xxx.xxx
Response triggers
The subnet mask limits the Ethernet connection within the local networkFor proper settings consult your network administrator
Notes
Command - PASS		Command Type - Authentication
Command Name		Permission	Transparency
Set:	PASS	Administrator	Public
Get:	PASS?	Administrator	Public
Description		Syntax
Set:	Set password for login level	#PASS _SP login_level, password _CR
Get:	Get password for login level	#PASS? _SP login_level _CR
Response
~hn@PASS _SP login_level, password _SP OK _CR LF
Parameters
login_level - level of login to set (End User or Administrator).password - password for the login_level. Up to 15 printable ASCII chars
Response triggers
Notes
The default password is an empty string

Command - PROT-VER?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	PROT-VER?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get protocol version	#PROT-VER?CR
Response
~nn@PROT-VERSP3000:versionCR LF
Parameters
Version - XX.XX where X is a decimal digit
Response triggers
Notes
Command - RESET		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	RESET	Administrator	Public
Get:	-	-	-
Description		Syntax
Set:	Reset device	#RESETCR
Get:	-	-
Response
~hn@RESETSP OKCR LF
Parameters
Response triggers
Notes
To avoid locking the port due to a USB bug in Windows, disconnect USB connections immediately after running this command. If the port was locked, disconnect and reconnect the cable to reopen the port.

Command - SECUR		Command Type - Authentication
Command Name		Permission	Transparency
Set:	SECUR	Administrator	Public
Get:	SECUR?	Not Secure	Public
Description		Syntax
Set:	Set security	#SECURSPsecurity_modeCR
Get:	Get current security state	#SECUR?CR
Response
Set: ~nn@SECURSPsecurity_modeSPOKCR LF
Get: ~nn@SECURSPsecurity_modeCR LF
Parameters
security_mode – 1/ON - enables security, 0/OFF - disables security
Response triggers
Notes
The permission system works only if security is enabled with the “SECUR” command
Command - SN?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	SN?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get serial number	#SN?CR
Response
~nn@SNSPserial_numberCRLF
Parameters
serial_number - 11 decimal digits, factory assigned
Response triggers
Notes
For new products with 14 digit serial numbers, use only the last 11 digits

Command - TIME		Command Type - System
Command Name		Permission	Transparency
Set:	TIME	Administrator	Public
Get:	TIME?	End User	Public
Description		Syntax
Set:	Set device time and date	#TIMESPday_of_week, date, timeCR
Get:	Get device time and date	#TIME?CR
Response
~nn@TIME SP day_of_week, date, time SP OK CR LF
Parameters
day_of_week - one of {SUN,MON,TUE,WED,THU,FRI,SAT}date - Format: DD-MM-YYYY.time - Format: hh:mm:ss
Response triggers
Notes
The year must be 4 digitsThe device does not validate the day of week from the dateTime format - 24 hoursDate format - Day, Month, Year
Command - TIME-LOC		Command Type - System
Command Name		Permission	Transparency
Set:	TIME-LOC	End User	Public
Get:	TIME-LOC?	End User	Public
Description		Syntax
Set:	Set local time offset from UTC/GMT	#TIME-LOC _SP UTC_off,DayLight _CR
Get:	Get local time offset from UTC/GMT	#TIME-LOC? _CR
Response
~hn@TIME-LOC _SP UTC_off,DayLight _CR LF
Parameters
UTC_off - Offset of device time from UTC/GMT (without daylight time correction)DayLight - 0 - no daylight saving time, 1 - daylight saving time
Response triggers
Notes
If the time server is configured, device time calculates by adding UTC_off to UTC time (that it got from the time server) + 1 hour if daylight savings time is in effectTIME command sets the device time without considering these settings
Command - TIME-SRV		Command Type - System
Command Name		Permission	Transparency
Set:	TIME-SRV	End User	Public
Get:	TIME-SRV?	End User	Public
Description		Syntax
Set:	Set time synchronization from server	#TIME-SRVSPmode, srv_ip, sync_hourCR
Get:	Get time synchronization settings	#TIME-SRV?CR
Response
For Set: ~nn@TIME-SRVSPmode,srv_ip,sync_hourCR LFFor Get: ~nn@TIME-SRVSPmode,srv_ip,server_status,sync_hourCR LF
Parameters
Mode - 0 - disabled, 1 - enabledsrv_ip - time server IP addresssync_hour - hour in day for time syncserver_status - ON/OFF
Response triggers
Notes
Device must have a valid gateway (NTGT command) and DNS server (NTDNS command)
Command - UART		Command Type - Communication
Command Name		Permission	Transparency
Set:	UART	Administrator	Public
Get:	UART?	End User	Public
Description		Syntax
Set:	Set com port configuration	# UART _SP COM_Num, baud_rate, data_bit, parity, stop_bit _CR
Get:	Get com port configuration	# UART? _SP COM_Num _CR
Response
Set: ~ nn@ UART _SP COM_Num, baud_rate, data_bit, parity, stop_bit _CR LF Get: ~ nn@ UART _SP COM_Num, baud_rate, data_bit, parity, stop_bit, serial1_type, 485_term _CR LF
Parameters
COM_Num - 1-4baud_rate - 9600 - 115200data_bit - 7-8parity - See Section11.4.1 Parity Typesstop_bit - 1-2serial1_type - 232/485 (see Section 11.4.2 Serial Types)485_term - 1/0 (optional - this exists exist only when serial1_type = 485)
Response triggers
Notes
In the FC-2x the serial port is selectable to RS-232 or RS-485 (usually serial port 1).If Serial1 is configured when RS-485 is selected, the RS-485 UART port is automatically changed

Command - VERSION?		Command Type - System-mandatory
Command Name		Permission	Transparency
Set:	-	-	-
Get:	VERSION?	End User	Public
Description		Syntax
Set:	-	-
Get:	Get firmware version number	#VERSION?CR
Response
~nn@VERSIONSPfirmware_versionCR LF
Parameters
firmware_version - XX.XX.XXXX where the digit groups are: major.minor.build version
Response triggers
Notes

11.4 Parameters

11.4.1 Parity Types

Number	Value
0	No
1	Odd
2	Even
3	Mark
4	Space

11.4.2 Serial Types

Number	Value
0	232
1	485

11.4.3 IR Transmit Status

Number	Value
0	IR_SENT
1	IR_STOP
2	IR_BUSY
3	IR_WRONG_PARAM
4	IR-NOTHING_TO_STOP

11.4.4 IR Status

Number	Value
0	Sent
1	Stop
2	Done
3	Busy
4	Wrong Parameter
5	Nothing to Stop
6	Start
7	Timeout
8	Error

LIMITED WARRANTY

The warranty obligations of Kramer Electronics for this product are limited to the terms set forth below:

What is Covered

This limited warranty covers defects in materials and workmanship in this product.

What is Not Covered

This limited warranty does not cover any damage, deterioration or malfunction resulting from any alteration, modification, improper or unreasonable use or maintenance, misuse, abuse, accident, neglect, exposure to excess moisture, fire, improper packing and shipping (such claims must be presented to the carrier), lightning, power surges, or other acts of nature. This limited warranty does not cover any damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Kramer Electronics to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product. This limited warranty does not cover cartons, equipment enclosures, cables or accessories used in conjunction with this product.

Without limiting any other exclusion herein, Kramer Electronics does not warrant that the product covered hereby, including, without limitation, the technology and/or integrated circuit(s) included in the product, will not become obsolete or that such items are or will remain compatible with any other product or technology with which the product may be used.

How Long Does this Coverage Last

Seven years as of this printing; please check our Web site for the most current and accurate warranty information.

Who is Covered

Only the original purchaser of this product is covered under this limited warranty. This limited warranty is not transferable to subsequent purchasers or owners of this product.

What Kramer Electronics will do

Kramer Electronics will, at its sole option, provide one of the following three remedies to whatever extent it shall deem necessary to satisfy a proper claim under this limited warranty:

1. Elect to repair or facilitate the repair of any defective parts within a reasonable period of time, free of any charge for the necessary parts and labor to complete the repair and restore this product to its proper operating condition. Kramer Electronics will also pay the shipping costs necessary to return this product once the repair is complete.

2. Replace this product with a direct replacement or with a similar product deemed by Kramer Electronics to perform substantially the same function as the original product.

3. Issue a refund of the original purchase price less depreciation to be determined based on the age of the product at the time remedy is sought under this limited warranty.

What Kramer Electronics will not do Under This Limited Warranty

If this product is returned to Kramer Electronics or the authorized dealer from which it was purchased or any other party authorized to repair Kramer Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re-installation of this product from or into any installation. Kramer Electronics will not be responsible for any costs related to any setting up this product, any adjustment of user controls or any programming required for a specific installation of this product.

How to Obtain a Remedy under this Limited Warranty

To obtain a remedy under this limited warranty, you must contact either the authorized Kramer Electronics reseller from whom you purchased this product or the Kramer Electronics office nearest you. For a list of authorized Kramer Electronics resellers and/or Kramer Electronics authorized service providers, please visit our web site at www.kramerelectronics.com or contact the Kramer Electronics office nearest you.

In order to pursue any remedy under this limited warranty, you must possess an original, dated receipt as proof of purchase from an authorized Kramer Electronics reseller. If this product is returned under this limited warranty, a return authorization number, obtained from Kramer Electronics, will be required. You may also be directed to an authorized reseller or a person authorized by Kramer Electronics to repair the product.

If it is decided that this product should be returned directly to Kramer Electronics, this product should be properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization number will be refused.

Limitation on Liability

THE MAXIMUM LIABILITY OF KRAMER ELECTRONICS UNDER THIS LIMITED WARRANTY SHALL NOT EXCEED THE ACTUAL PURCHASE PRICE PAID FOR THE PRODUCT. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY. Some countries, districts or states do not allow the exclusion or limitation of relief, special, incidental, consequential or indirect damages, or the limitation of liability to specified amounts, so the above limitations or exclusions may not apply to you.

Exclusive Remedy

TO THE MAXIMUM EXTENT PERMITTED BY LAW, THIS LIMITED WARRANTY AND THE REMEDIES SET FORTH ABOVE ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS, WHETHER ORAL OR WRITTEN, EXPRESS OR IMPLIED. TO THE MAXIMUM EXTENT PERMITTED BY LAW, KRAMER ELECTRONICS SPECIFICALLY DISCLAIMS ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IF KRAMER ELECTRONICS CANNOT LAWFULLY DISCLAIM OR EXCLUDE IMPLIED WARRANTIES UNDER APPLICABLE LAW, THEN ALL IMPLIED WARRANTIES COVERING THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL APPLY TO THIS PRODUCT AS PROVIDED UNDER APPLICABLE LAW. IF ANY PRODUCT TO WHICH THIS LIMITED WARRANTY APPLIES IS A 'CONSUMER PRODUCT' UNDER THE MAGNUSON-MOSS WARRANTY ACT (15 U.S.C.A. §2301, ET SEQ.) OR OTHER APPLICABLE LAW, THE FOREGOING DISCLAIMER OF IMPLIED WARRANTIES SHALL NOT APPLY TO YOU, AND ALL IMPLIED WARRANTIES ON THIS PRODUCT, INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR THE PARTICULAR PURPOSE, SHALL APPLY AS PROVIDED UNDER APPLICABLE LAW.

Other Conditions

This limited warranty gives you specific legal rights, and you may have other rights which vary from country to country or state to state.

This limited warranty is void if (i) the label bearing the serial number of this product has been removed or defaced, (ii) the product is not distributed by Kramer Electronics or (iii) this product is not purchased from an authorized Kramer Electronics reseller. If you are unsure whether a reseller is an authorized Kramer Electronics reseller, please visit our Web site at

www.kramerelectronics.com or contact a Kramer Electronics office from the list at the end of this document.

Your rights under this limited warranty are not diminished if you do not complete and return the product registration form or complete and submit the online product registration form. Kramer Electronics thanks you for purchasing a Kramer Electronics product. We hope it will give you years of satisfaction.

For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found.

We welcome your questions, comments, and feedback.

Web site: www.kramerelectronics.com

E-mail: [e-mail]

SAFETY WARNING

Disconnect the unit from the power supply before opening and servicing

P/N: 2900-300463

Rev: 3
