G86TG2X2C - Loudspeaker Speco Technologies - Free user manual and instructions

Product Type	Wireless Speaker
Brand	Speco Technologies
Model	G86TG2X2C
Color Options	Black
Dimensions (W x D x H)	8.5 x 6.3 x 5.1 inches (216 x 160 x 130 mm)
Weight	2.2 lbs (1.0 kg)
Power Output	20W (RMS)
Power Source	AC 100-240V, 50/60Hz or built-in rechargeable battery
Battery Life	Up to 8 hours
Frequency Response	80 Hz - 20 kHz
Impedance	4 ohms
Connectivity	Bluetooth 5.0, AUX input (3.5mm), USB playback
Speaker Type	2-way: 1x full-range driver, 1x tweeter
Additional Features	Built-in microphone, LED indicator, compatible with voice assistants
Included Accessories	AC adapter, 3.5mm audio cable, user manual
Warranty	1 year limited warranty

Frequently Asked Questions - G86TG2X2C Speco Technologies

How do I pair the speaker with my phone via Bluetooth?

Turn on the speaker and press the Bluetooth button until the LED flashes. Activate Bluetooth on your phone, select G86TG2X2C from the list, and confirm pairing. The LED will turn solid when connected.

How long does the battery last and how do I charge it?

The built-in rechargeable battery provides up to 8 hours of playtime. Charge via the included AC adapter. While charging, the LED light may turn red and turn off when fully charged.

Can I use the speaker while it is charging?

Yes, you can use the speaker while it is connected to the charger. However, for optimal battery health, it is recommended to charge the battery fully before use.

What should I do if there is no sound from the speaker?

Ensure the speaker is turned on and paired with your device. Check that the volume is turned up on both the speaker and your device. Also, verify the audio cable (if using AUX) is fully inserted. If problems persist, reset the speaker by turning it off and on.

How do I clean the speaker?

Use a soft, dry cloth to wipe the exterior. Avoid using water, solvents, or abrasive cleaners. Do not spray liquid directly onto the speaker. Keep the ports clean and free of dust.

Is the speaker waterproof?

This speaker is not waterproof. Keep it away from water, rain, and high humidity to avoid damage.

Can I connect multiple speakers together?

This model does not support multi-speaker pairing. You can only use one speaker at a time.

How do I reset the speaker to factory settings?

To reset, turn off the speaker. Then press and hold the Bluetooth button and the Volume + button for about 3 seconds until the LED flashes red and white. Release buttons; the speaker will restart in pairing mode.

What is the range of the Bluetooth connection?

The Bluetooth range is approximately 33 feet (10 meters) in open space. Walls and obstacles may reduce the range.

Where can I download the user manual for the G86TG2X2C?

The user manual can be downloaded for free from the Speco Technologies website or from notice-facile.com by selecting your device and language.

USER MANUAL G86TG2X2C Speco Technologies

Thank you for your purchase of one of Speco Technologies 86 series speakers. This classic design sets the standard for background music and paging in commercial installations. All Speco Technologies' indoor speakers come with a LIFETIME warranty against manufacturing defects, so you can be confident in your choice of product.

INSTALLATION INSTRUCTIONS:

1) These speakers are intended for use in 2' x 2' or 2' x 4' ceiling tile grids.
2) These speakers drop directly onto the tile grid, saving you large amounts of time over many speakers by removing the requirement to cut precise holes to mount the speaker.
3) If your ceiling tile grid is 2' x 2', this speaker can drop directly into the grid and mounting is complete.
4) If your ceiling tile grid is 2' x 4', this speaker will need to be mounted next to either a 2' x 2' ceiling tile, or next to some other apparatus such as an HVAC vent. For aesthetics, we recommend using a 2' tile bar in between (not included).
5) Wiring should be done prior to laying the speaker in the tile grid.
6) Wire the positive lead from your amplifier to the colored lead of your desired power on the transformer.
7) Wire the negative lead from your amplifier to the black/common lead on the transformer.
8) IMPORTANT: Ensure the total power of all wattage taps selected on all speakers running from this amplifier does not exceed 80% of the rated power of the amplifier. (e.g., If the amp rated power is 100W, do not put more than 80W of speakers on it). Speco Technologies is NOT responsible for damage to equipment due to improper installation.
9) IMPORTANT: Ensure you are wiring the proper voltage. Only use 70V taps with a 70V amplifier, and 25V taps with a 25V amplifier. Speco Technologies is NOT responsible for damage to equipment due to improper installation.

10) If daisy chaining speakers, ensure speakers remain in phase by keeping all the positives wired together and all the negatives wired together.

11) Cutoff bare portion of unused leads and terminate with electrical tape or wire nuts.

12) For G86TG2X2C, adjust volume control knob on grille to desired level.

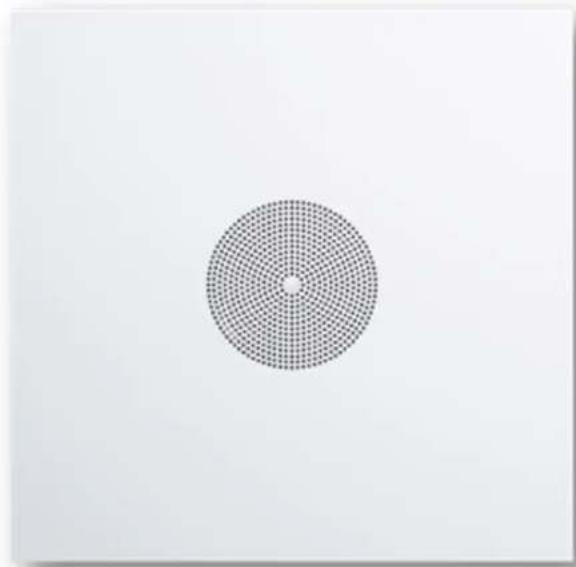

Circular dot pattern composed of evenly spaced small dots on a plain background (no text or symbols)

Speco Technologies is constantly developing and improving products.

We reserve the right to modify product design and specifications without notice and without incurring any obligation.

Speco Technologies . 200 New Highway . Amityville . NY . 11701 . www.specotech.com

Rev. 05/06//20
