Product type	Ultra-short throw laser projector
Native resolution	WUXGA (1920 x 1200)
Brightness	4000 lumens ANSI
Contrast ratio	300 000:1 (dynamic)
Light source technology	Laser phosphor
Light source life	20 000 hours (normal mode)
Throw ratio	0.25:1
Image size	80 to 120 inches diagonal
Keystone correction	Automatic and manual (vertical)
Connectivity	2x HDMI (1 with HDCP 2.2), 1x VGA, 1x USB-A, 1x RJ45, 3.5 mm audio output
Dimensions (W x D x H)	383 x 308 x 85 mm
Weight	5.5 kg
Power supply	AC 100-240 V, 50/60 Hz
Power consumption	330 W (max), 280 W (eco)
Noise level	28 dB (eco mode)
Security	Password protection, Kensington lock
Maintenance	Air filter cleaning (recommended every 500 hours)
Repairability	Spare parts available, repairability index available online

Frequently Asked Questions - ZW410UST OPTOMA

How to connect my computer to the ZW410UST projector?

Use an HDMI or VGA cable depending on your source. Connect one end to the projector and the other to your computer, then select the corresponding input in the Source menu.

How to adjust focus and zoom?

The projector has a fixed focal length; focus is adjusted manually using the ring on the lens. Digital zoom is not available, but you can adjust image size by moving the projector closer to or farther from the wall.

How to clean the air filter?

Turn off the projector and unplug it. Remove the filter cover, take out the filter, and gently tap it to remove dust. Use a vacuum cleaner if necessary. Put the filter and cover back in place. It is recommended to clean the filter every 500 hours of use.

How to reset the light source hours after replacement?

The ZW410UST uses a laser source that does not require standard replacement. If a maintenance message appears, go to the Settings menu > Information and select Reset laser hours. Confirm with the OK button.

How to use automatic keystone correction?

Activate the function in the Keystone correction menu by selecting Auto. The projector will automatically adjust vertical tilt. For manual adjustment, use the arrow keys on the remote or control panel.

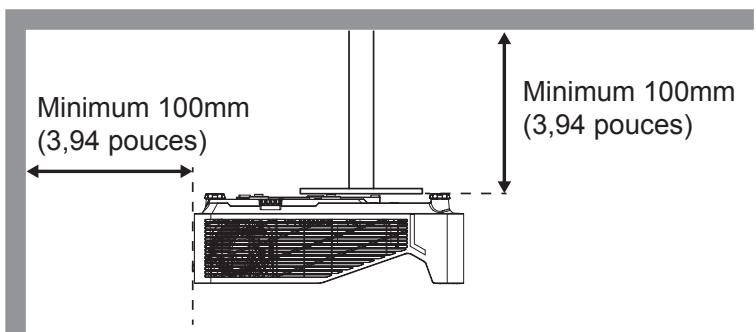

Can I install the projector on the ceiling?

Yes, the ZW410UST is compatible with a standard ceiling mount (not included). Make sure to use a mounting kit suitable for the device weight (5.5 kg). Follow the manufacturer's instructions for safe installation and adjust the orientation in the Projection menu.

What is the projection distance for a 100-inch image?

Thanks to its ultra-short throw ratio of 0.25:1, the projector should be placed about 55 cm from the wall or screen to achieve a 100-inch diagonal. Refer to the distance table in the manual for other sizes.

How to update the projector firmware?

Download the latest firmware from OPTOMA's website. Copy the file to a USB drive formatted as FAT32. Plug the drive into the projector's USB port, go to Settings > Update, and follow the on-screen instructions. Do not disconnect the device during the update.

What to do if the projector displays 'No signal'?

Check that the cable is properly connected at both ends. Make sure the source is powered on and in transmission mode. Press the Source button on the remote to cycle through inputs until you find the correct one. Restart the projector if necessary.

How to use wireless projection?

The ZW410UST supports wireless projection via an optional adapter (OPTOMA HDCast Pro). Plug the adapter into the HDMI port, then connect your device to the adapter's Wi-Fi network. Follow the instructions of the app or software to mirror your screen.

USER MANUAL ZW410UST OPTOMA

Line drawing of an Optoma device with wheels and control buttons (no text or symbols on the device itself)

TABLE DES MATIÈRES

SÉCURITÉ .... 4

IEC 60825-1:2014, EN 60825-1:2014+A11:2021, EN 50689:2021 CLASS 1 CONSUMER LASER PRODUCT RISK GROUP 2, Complies with 21 CFR 1040.10 and 1040.11 except for conformance as a Risk Group 2 LIP as defined in IEC 62471-5:Ed.1.0. For more information see Laser Notice No. 57, dated May 8, 2019.

IEC 60825-1:2014 等級1雷射產品RG2危險等級

IEC 60825-1:2014 1类激光产品RG2危险等级

Do not look into the beam within 1 m.

Direct eye exposure to the beam is not permitted.

This Class B digital apparatus complies with Canadian ICES-003.

Illustration of a projected electric heater with a door and wheels (no text or symbols on the device itself)

Line drawing of a person sitting in a chair watching a television from a desk, with no text or symbols present.

Line drawing of a person sitting in a chair facing a projector mounted on a wall, with no text or symbols present.

Line drawing of a person sitting in a chair watching a projector on a TV, with no text or symbols present.

Line drawing of a person sitting in a chair facing a wall-mounted device, no text or symbols present

Diagram of a double-chamber refrigerator with red prohibition symbols (no text or labels)

CONFIGURATION ET INSTALLATION

Illustration of a hand using a tool to adjust or install a small object, with red arrows indicating direction (no text or symbols present)

Marche

UTILISER LE PROJECTEUR

UTILISER LE PROJECTEUR

INFORMATIONS SUPPLÉMENTAIRES

Modèle 1080p

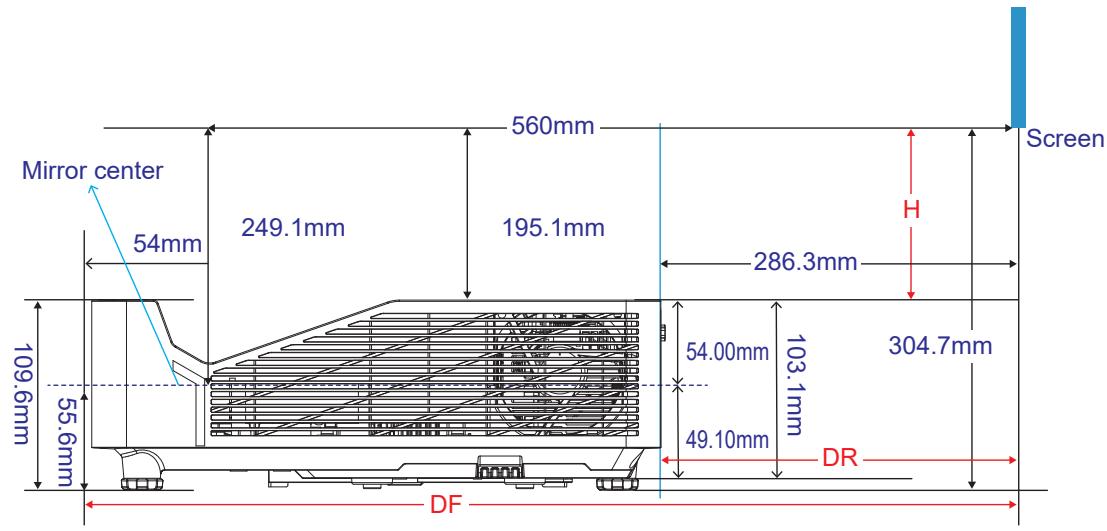

Taille d'image (pouces)	Taille de l'image (L x H)				DF (±5%)		DR (±14%)		Décalage H= 121% ~ 131%
	Largeur (m)	Hauteur (m)	Largeur (pouce)	Hauteur (pouce)	m	pouce	m	pouce	m	pouce
85"	1,77	1	69,73	39,22	0,53	20,87	0,20	7,96	0,105 ~ 0,211	4,125 ~ 8,292
90"	1,99	1,12	78,44	44,12	0,56	21,97	0,23	9,07	0,114 ~ 0,226	4,493 ~ 8,905
100"	2,21	1,25	87,16	49,03	0,61	24,18	0,29	11,27	0,133 ~ 0,257	5,228 ~ 10,131
110"	2,44	1,37	95,87	53,93	0,67	26,38	0,34	13,48	0,151 ~ 0,342	5,963 ~ 13,482
120"	2,66	1,49	104,59	58,83	0,73	28,59	0,40	15,68	0,17 ~ 0,374	6,699 ~ 14,708

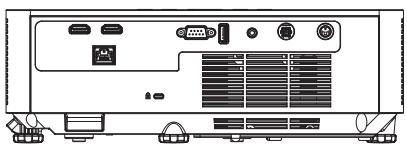

INFORMATIONS SUPPLÉMENTAIRES

Technical line drawing of a mechanical component with internal grid structure (no text or symbols)

Front view of a computer monitor with ports and ventilation slots (no text or symbols visible)

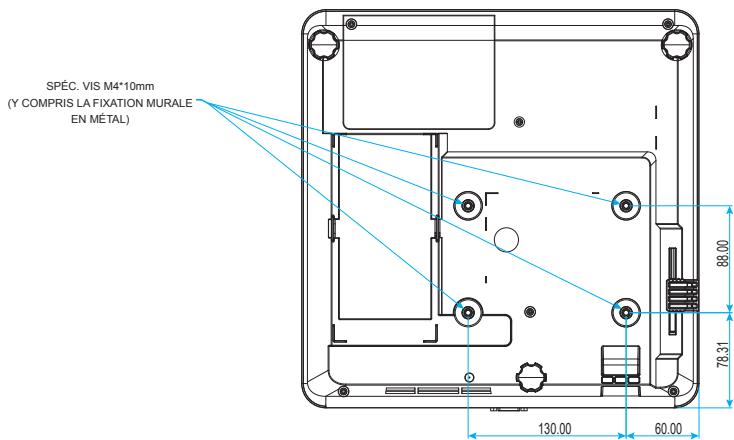

Unité : mm
