Product type	Ultra-short throw projector (UST)
Brand	Optoma
Model	ZW400UST
Display technology	DLP
Native resolution	WUXGA (1920 x 1200)
Brightness	4000 ANSI lumens
Contrast	300,000:1 (dynamic contrast)
Lamp life	Up to 20,000 hours (eco mode)
Throw ratio	0.25:1 (100-inch image at 30 cm from wall)
Keystone correction	Vertical and horizontal (± 20°)
Video inputs	HDMI (with HDCP 2.2), VGA, USB-A (media playback)
Audio output	3.5 mm headphone jack, built-in speaker (10 W)
Network functions	RS-232, LAN port (remote control)
Power supply	100-240 VAC, 50/60 Hz, power consumption 300 W (max)
Dimensions (W x D x H)	470 x 340 x 150 mm
Weight	Approximately 10.5 kg
Mounting	Table or ceiling (optional suspension kit)
Maintenance and cleaning	Clean air filter every 500 hours; use a soft dry cloth for optics
Safety	Mandatory ventilation around the device; do not block ventilation grilles
Spare parts and repairability	Lamp and air filter user-replaceable; other interventions by authorized technician

Frequently Asked Questions - ZW400UST OPTOMA

What is the projection distance for a 100-inch image?

With a throw ratio of 0.25:1, place the projector about 30 cm from the wall to get a 100-inch diagonal image.

How to replace the projector lamp?

Turn off and unplug the device, wait for it to cool. Open the lamp compartment on the side, unclip the old lamp and insert the new one. Replace the cover and reset the lamp counter in the menu.

Can I use the projector without the air filter?

No, the air filter is essential to prevent dust from entering. Always use the filter and clean it regularly.

How to correct a distorted image?

Use the vertical and horizontal keystone correction knobs located on top of the projector or in the Image Settings menu.

Does the projector support 4K?

The ZW400UST has a native WUXGA (1920x1200) resolution. It accepts 4K signals via HDMI, but displays them at reduced resolution.

Can I connect external speakers?

Yes, use the 3.5 mm audio output to connect amplified speakers. The built-in 10 W speaker may suffice for a small room.

How to clean the lens?

Use a soft, dry microfiber cloth. If necessary, lightly dampen with optical cleaner. Never use abrasive products.

What is the procedure to mount the projector on the ceiling?

Use a compatible ceiling mount kit. Attach the bracket to the projector with the provided screws, then to the ceiling while respecting weight limits. Ensure the image is straight.

Does the projector get very hot?

Yes, ventilation is active. Leave at least 30 cm of free space around the ventilation grilles to prevent overheating.

How to reset to factory settings?

Go to the Setup menu, select Reset and confirm. This erases all custom settings.

USER MANUAL ZW400UST OPTOMA

Line drawing of a rectangular electronic device with ventilation slots and a control panel (no text or symbols)

Table des matières

Table des matières ......2

Line drawing of a rectangular electronic device with ventilation slots and a display screen (no text or symbols)

Projecteur

Line drawing of a bundle of cables with connectors (no text or symbols)

Line drawing of a remote control with keypad and scroll (no text or symbols)

Télécommande

Diagram of a cable connector with multiple connectors and wires (no text or symbols)

Câble VGA

Coiled cable with two connectors, no text or symbols visible

Câble HDMI

Technical line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Module rideau laser

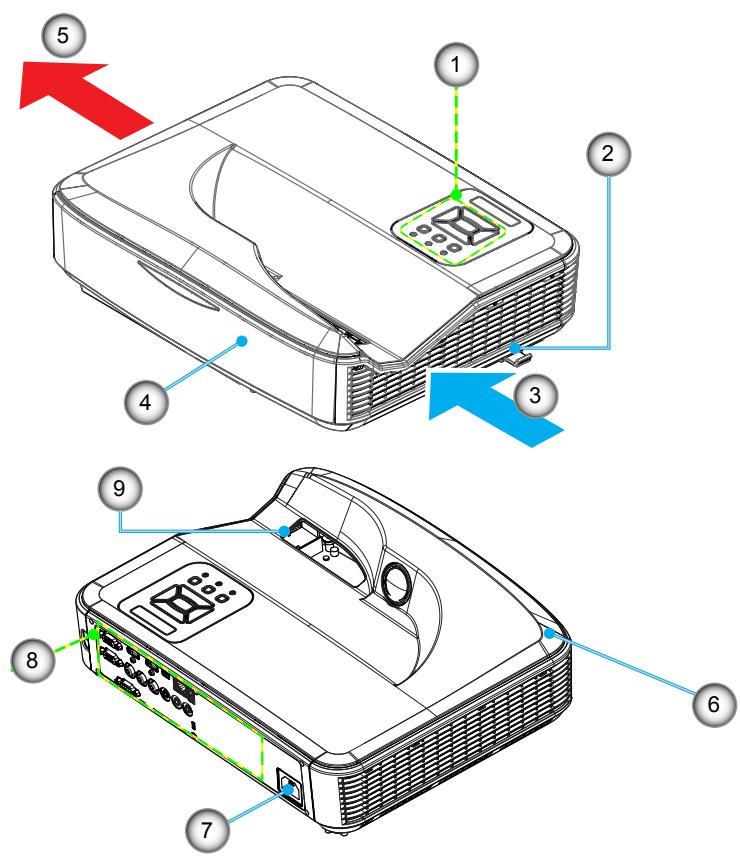

Aperçu du produit

Unité principale

Adresse MAC

Line drawing of an electronic device with ports and a plug, no text or symbols present

Multimédia

Multimédia

Grid of 20 grayscale landscape photos including landscapes, forests, and water under different lighting or sky conditions (no text or symbols)

Beach scene with a wooden boat on the shore under a clear blue sky, surrounded by rope bundles and a person sitting nearby (no text or symbols visible)

Multimédia

Wifi Concurrent Mode

AP Setting

AP List (Client Mode)

Connecting to dlink-123.....

Wifi Concurrent Mode

AP Setting

AP List (Client Mode)

Connect successfully, soft_ap will re_start!

Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No.50, dated June 24, 2007
