Product Type	Built-In Trim Kit for Microwaves
Brand	Whirlpool
Model	Built-In Trim Kit
Use	Above an electric built-in oven
Certification	UL certified for use above electric built-in ovens
Cutout Width (27" oven)	25 1/2 in (64.77 cm)
Cutout Width (30" oven)	25 1/2 in (64.77 cm) min - 28 1/2 in (72.39 cm) max
Cutout Depth	21 in (53.34 cm) min (with flush receptacle) or 22 3/4 in (57.79 cm) min (without flush receptacle)
Cutout Height	16 3/4 in (42.55 cm)
Power Supply Required	120 V, 60 Hz, 15 or 20 A circuit, protected by time-delay fuse or circuit breaker
Grounding	Required, 3-prong grounded outlet
Kit Contents	Trim frame, side duct, top duct, bottom duct with floor, anti-tip bracket, bottom bracket, duct supports, template, screws
Required Tools	Tape measure, Phillips #2 screwdriver, pencil, 5/64 in drill bit, scissors
Installation	Requires wall fasteners and pre-drilling pilot holes
Safety	Anti-tip bracket included to prevent microwave tipping
Maintenance	Clean with a damp cloth and mild detergent; avoid abrasives
Microwave Compatibility	Models MK1170XP, MK1177XP and others listed in the manual
Approximate Weight	Approximately 2 kg

Frequently Asked Questions - BUILT-IN TRIM KIT WHIRLPOOL

Which microwave models are compatible with this trim kit?

This kit is designed for Whirlpool models MK1170XP and MK1177XP, as well as other models listed in the manual. Check compatibility with your microwave before purchasing.

Can this kit be used above a gas oven?

No, the kit is UL certified only for use above electric built-in ovens. Never install it above a gas oven.

What are the required cutout dimensions?

For a 27-inch oven: width 25 1/2 in (64.77 cm), minimum depth 21 in (53.34 cm) with flush receptacle, height 16 3/4 in (42.55 cm). For a 30-inch oven: width from 25 1/2 to 28 1/2 in (64.77–72.39 cm).

What tools are needed for installation?

Recommended tools are a tape measure, Phillips #2 screwdriver, pencil, 5/64 in drill bit, and scissors. No special power tools are required.

Does the kit include a power cord?

No, the kit does not include a power cord. The microwave must be plugged into a 3-prong grounded outlet, according to the electrical specifications in the manual.

How to properly install the anti-tip bracket?

Use the provided template to mark the floor location inside the cavity, drill two holes with a 5/64 in drill bit, then secure the bracket with two 1/2 in screws. This bracket prevents the microwave from tipping forward.

Can I install this kit without professional help?

Yes, if you have basic DIY skills. Follow the instructions in the manual carefully. However, for electrical connections, consult a qualified electrician if needed.

Is the trim frame oriented in a specific way?

Yes, the louvers must be tilted forward and downward. Make sure to center the frame and pre-drill pilot holes before securing with the 1-inch screws.

What if the cavity depth is insufficient?

The minimum required depth is 21 in with a flush receptacle, or 22 3/4 in without. If your cavity is shallower, you may need to modify the installation or choose another kit.

How to clean the trim kit?

Use a damp cloth with a mild detergent. Avoid abrasive cleaners that could scratch the surface of the trim frame.

USER MANUAL BUILT-IN TRIM KIT WHIRLPOOL

MICROWAVE OVEN BUILT-IN TRIM KIT INSTALLATION INSTRUCTIONS

Built-In Trim Kit Models MK1170XP, MK1177XP

UL listed for use over built-in electric ovens:

27" (68.6 cm): (Y)RBS275PD, (Y)GBS277PD, KEBI171D, (Y)KEBS177D

30" (76.2 cm): (Y)RBS305PD, GBS307PD, (Y)KEBI101D, (Y)KEBS107D

INSTRUCTIONS D'INSTALLATION GARNITURE ENCASTRÉE POUR FOUR À MICRO-ONDES

INSTALLATION INSTRUCTIONS ....2

Tools Recommended....2

Parts Supplied 2

Cutout Dimensions....2

Electrical Requirements....3

Microwave Oven Preparation....3

Bottom Duct Assembly 3

Side Duct and Upper Duct Assembly 3

Anti-Tip Bracket Installation....4

Microwave Oven Placement 4

Trim Kit Frame Installation....5

SÉCURITÉ DU FOUR À MICRO-ONDES ....5

INSTRUCTIONS D'INSTALLATION ....6

Outillage recommandé....6

Pièces fournies....6

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

! DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

INSTALLATION INSTRUCTIONS

Tools Recommended

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

■ Measuring tape

■ #2 Phillips screwdriver

■ Pencil

■ 5/64" drill

Scissors

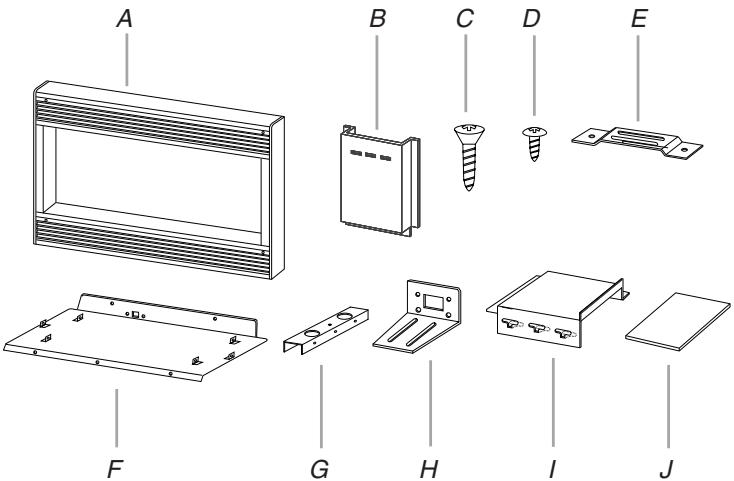

Parts Supplied

A. Trim kit frame

B. Side duct (1)

C. 1" screws (4, plus 2 extra)

D. 12 " screws (15, plus 2 extra)

E. Anti-tip bracket (1)

F. Bottom duct floor (1)

G. Bottom duct supports (2)

H. Bottom bracket (1)

I. Upper duct (1)

J. Template (1)

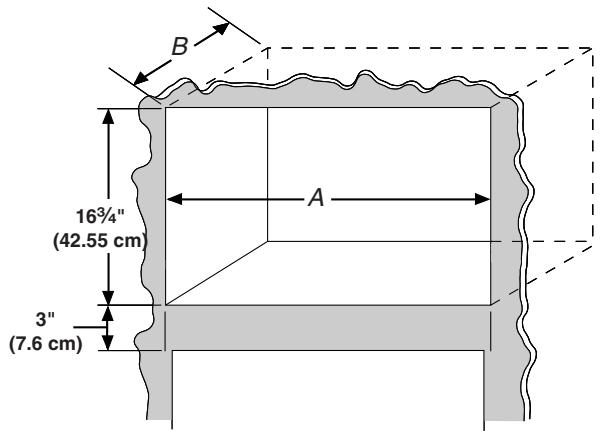

Cutout Dimensions

A. Width

B. Depth

DIMENSION S	OVER 27" (68.6 CM) BUILT-IN OVEN	OVER 30" (76.2 CM) BUILT-IN OVEN
Width	25 12 " (64.77 cm)	25 12 " (64.77 cm) min;28 12 " (72.39 cm) max.
Depth	21" (53.34 cm) min. with flush mount receptacle;22 34 " (57.79 cm) min. without flush mount receptacle
Height	16 34 " (42.55 cm) (for all models)

Electrical Requirements

WARNING

Black-and-white illustration of a hand with a lightning bolt symbol and a curved line above it (no text or symbols)

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Observe all governing codes and ordinances. A 120-Volt, 60-Hz, AC-only, 15- or 20-amp fused electrical supply (or circuit breaker) is required. (A time-delay fuse or circuit breaker is recommended.) It is recommended that a separate circuit serving only this appliance be provided.

GROUNDING INSTRUCTIONS

■ For all cord connected appliances:

The microwave oven must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. The microwave oven is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

WARNING: Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if doubt exists as to whether the microwave oven is properly grounded.

Do not use an extension cord. If the power supply cord is too short, have a qualified electrician or serviceman install an outlet near the microwave oven.

SAVE THESE INSTRUCTIONS

Microwave Oven Preparation

1. Unplug microwave oven before proceeding with installation.
2. Remove any loose items inside microwave oven.

Bottom Duct Assembly

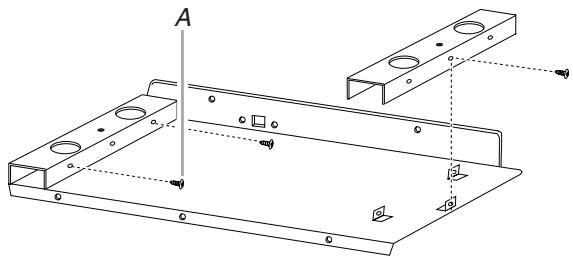

1. Position supports over tabs of bottom duct floor, making sure all 3 tabs are inside each support. Align the tab holes with the screw holes on the sides of the supports. Fasten supports to bottom duct floor with six 12 " screws, as shown.

Technical line drawing of a metal bracket assembly with mounting holes and mounting points (no text or symbols)

A. 12 " screws

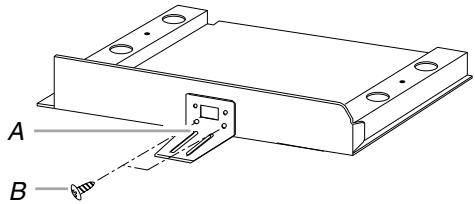

1. Fasten bottom bracket to bottom duct using two 12 " screws.

(Rear view of bottom duct)

A. Bottom bracket
B. 12 " screws

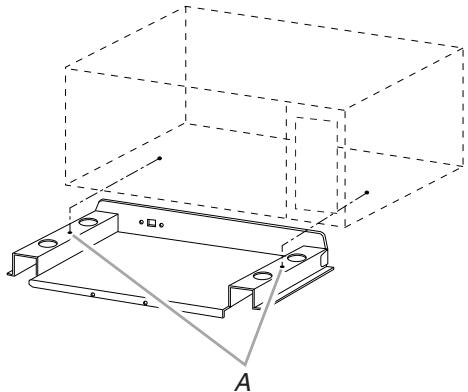

1. Install bottom duct with two 12 " screws.

(Front view of microwave oven)

Technical line drawing of a mechanical assembly with dashed and solid lines indicating hidden dimensions (no text or symbols)

A. 12 " screws

Side Duct and Upper Duct Assembly

1. Remove existing screw from left side of microwave oven.

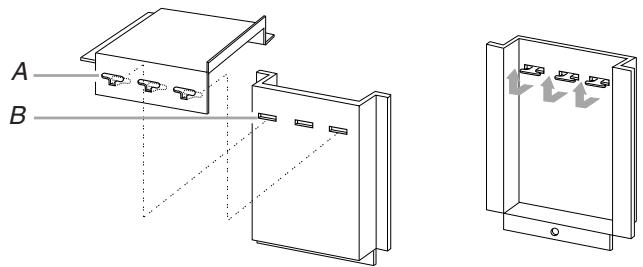

2. Connect side duct to upper duct:

Insert projecting tabs of upper duct into holes of side duct. Then bend tabs upward.

Technical line drawing of a two-port electrical enclosure with labeled components A and B, showing internal structure and mounting features (no text or symbols beyond labels)

A. Tabs of upper duct
B. Holes in side duct

NOTE: Remove any dirt or oil on microwave oven surface before ducts are attached.

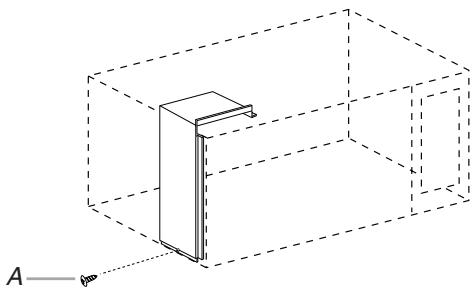

1. Peel off backing of double-sided tape. Attach the side duct and upper duct assembly to left side of microwave oven cabinet. Press down firmly on ducts. Fasten duct assembly to cabinet with existing screw.

Pure 3D diagram of a vertical rectangular structure inside a cube, with no text or symbols present.

A. Existing screw

Anti-Tip Bracket Installation

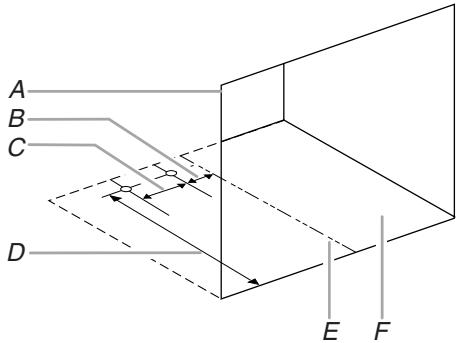

1. On cutout floor, use template to mark hole centers for anti-tip bracket. Be sure to align the centerline of template to centerline of cutout floor.

(Dimensions as shown are not to scale.)

A. Cutout opening
D. 16 ^3/4 " (42.55 cm)
B. 1316 " (2.06 cm)
E. Centerline
C. 3" (7.62 cm)
F. Cutout floor

1. Drill 2 holes for anti-tip bracket. (Use 5 164 " drill.)
2. Install anti-tip bracket onto cutout floor using two 12 " screws.

Technical diagram of a metal bracket with two screw holes and mounting points, labeled A and B (no text or symbols present)

A. 12 " screws
B. Anti-tip bracket

Microwave Oven Placement

1. Slide microwave oven partway into cutout opening.

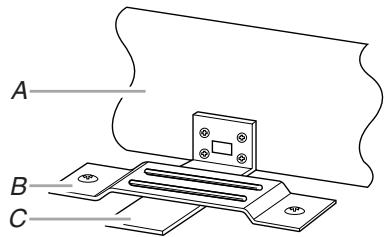

NOTE: Bottom bracket must be flat against cutout floor in order to correctly engage with anti-tip bracket.

A. Bottom duct
B. Anti-tip bracket
C. Bottom bracket

1. Plug in microwave oven.
2. Make sure microwave oven is centered within cutout opening and slide it into place, engaging anti-tip bracket.

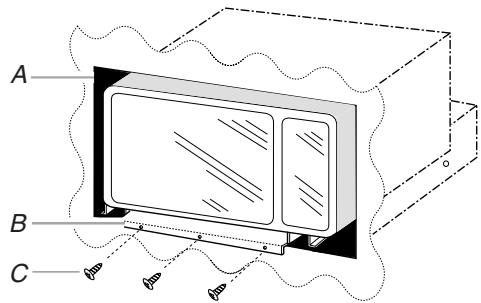

3. Drill pilot holes through positioning flange. (Use 564 " drill.) Then install three 12 " screws at front of bottom duct.

A. Cutout opening
B. Positioning flange
C. 12 " screws

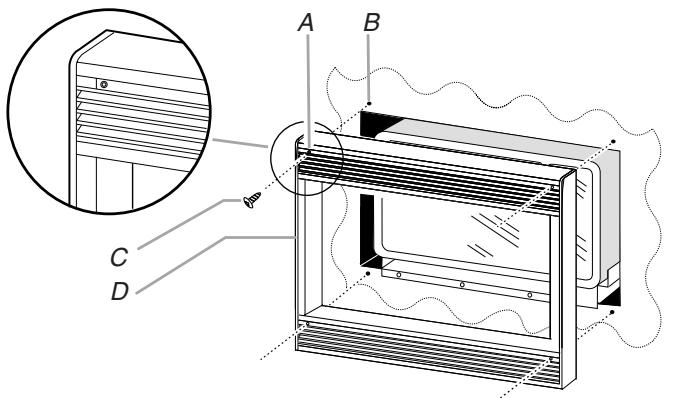

Trim Kit Frame Installation

A. Mounting hole
B. Pilot hole
C. 1" screw
D. Trim kit frame

1. Place trim kit frame over microwave oven.
   NOTE: Trim kit frame must be oriented so that the louvers are sloping downward in the front.
2. Make sure the trim kit frame is level and equally centered on all 4 sides with respect to microwave oven. Mark 4 hole centers through the 4 mounting holes of trim kit frame.
3. Remove trim kit frame and drill 4 pilot holes. (Use 5/64 " drill.)
4. Attach trim kit frame using four 1" screws. Make sure orientation is correct as stated in Step 2.

Installation is now complete. Replace any loose items that have been removed from microwave oven cavity.

Save this installation instruction for future reference.

SÉCURITÉ DU FOUR À MICRO-ONDES

Black-and-white illustration of a hand with a lightning bolt symbol and a curved line above it (no text or symbols)

Technical line drawing of a metal bracket assembly with mounting holes and mounting holes (no text or symbols)

A. Vis de 12 "

Technical line drawing of a 3D mechanical assembly with mounting holes and a base plate, no text or symbols present.

A. Vis de 12 "

Technical line drawing of a two-port electrical enclosure with labeled components A and B, showing internal structure and mounting features (no text or symbols present)

Pure 3D diagram of a vertical rectangular block inside a cube, with no text, numbers, or symbols present.

A. Vis existante

Installation de la bride antibasculement

D. 16^3/4 " (42,55 cm)

E. Axe central

Technical diagram of a metal plate with two screw holes and mounting holes, labeled A and B (no text or symbols present)

A. Vis de 12 "

B. Bride antibasculement

A. Trou de montage

C. Vis de 1"

B. Avant-trou

D. Cadre de garniture
