Product Type	Paper Shredder
Model	Aurora AU870MA
Shred Size	Micro-cut (4x40 mm)
Sheet Capacity	10 sheets (A4, 80 g/m²)
Bin Capacity	5.3 gallons (20 liters)
Security Level	P-4 (DIN 66399)
Dimensions (L x W x H)	13.8 x 10.2 x 15.7 inches
Weight	10.6 lbs (4.8 kg)
Power Supply	120 V ~ 60 Hz, 2.5 A
Motor Type	Thermal overload protection
Operation	Auto start/stop, reverse function
Media Type	Paper, credit cards, staples, small paper clips
Shred Speed	8.2 ft/min (2.5 m/min)
Duty Cycle	3 minutes on / 30 minutes off
Noise Level	≤ 60 dB
Warranty	2 years limited
Included Accessories	Shredder oil, waste bin, user manual

Frequently Asked Questions - AU870MA AURORA

How do I oil my Aurora AU870MA shredder?

Unplug the shredder, apply shredder oil across the paper entry, run the unit in reverse for 10 seconds, then shred a few sheets to absorb excess oil. Repeat monthly.

Why is my shredder not starting?

Check if the safety switch is activated (head must be properly seated on bin). Ensure the unit is plugged in and the overheat protection has not tripped. Wait 30 minutes if overheated.

Can I shred credit cards and staples?

Yes, the AU870MA can shred credit cards (one at a time) and staples/small paper clips. Do not shred large metal objects or continuous forms.

What is the maximum sheet capacity?

The rated capacity is 10 sheets of 80 g/m² paper. Do not exceed this to avoid jams and motor damage.

How do I clear a paper jam?

Unplug the unit. Use the reverse function to back out the paper. If jammed firmly, gently pull the paper free. Avoid using sharp objects.

What security level does this shredder have?

It has a P-4 security level (micro-cut), suitable for confidential office documents.

How often should I empty the waste bin?

Empty when shreds reach the ‘full’ indicator line (approx. 20 liters). Overfilling can cause jams.

Can I use the shredder continuously?

The duty cycle is 3 minutes on / 30 minutes off. After 3 minutes of shredding, let it cool for 30 minutes.

What type of oil is recommended?

Use a lightweight, non-aerosol shredder oil (e.g., Aurora brand oil). Vegetable oil is not recommended.

Does the shredder have a warranty?

Yes, it comes with a 2-year limited warranty covering manufacturing defects. Consumables like oil and blades are not covered.

USER MANUAL AU870MA AURORA

Shredder User Manual

Black Aurora 10000 handwash press device with open lid and control buttons (no visible text or symbols on body)

1-800-327-8508

For more information, please visit us at:

www.auroracorp.com

AU870MA

Model No.

Modelo No.

Please read these operating instructions before using the unit.

Read instructions before use.

Do not spray or keep any aerosol products in or around the shredder.

Avoid touching the document feed opening with hands.

Keep loose clothing or jewelry away from the paper entry slot.

Product is not intended for use by children (product is not a toy).

Avoid getting hair near the paper entry slot.

Do not insert foreign objects into the paper entry slot.

• Always turn the shredder off and unplug the power cord from the AC outlet when not in use, before cleaning it, moving it, or emptying the waste basket.
- RISK OF FIRE - Serious injury, loss or damage may occur. Never use any petroleum based or flammable oils, spray can oil or lubricants, or any aerosol products in or around the machine as some oils can combust causing serious injury.
- NEVER dispose of flammable chemicals or materials that have come into contact with flammable chemicals (for example, nail polish, acetone and gasoline) in the shredder basket.
- Never shred large paper clips, window or insulated envelopes, continuous forms, newsprint, bound pages (in example: notepads, checkbooks, magazines, etc...), transparencies, laminated documents, cardboard, any items with adhesives, hard materials or plastic (except Credit Cards).
- A socket-outlet should be near the equipment and be easily accessible.
- Never let the wastebasket become full. This will lead to shredded material being pulled back up into the shredder and cause jams.
- Never place the shredder near water or any heat source.
- Do not use the shredder if the power cord is damaged in any way.
- Do not attempt to service this product yourself as doing so may expose you to sharp cutting blades and/or electricity and will void the manufacturer's warranty.
- Never try to clean or clear the shredder blade.
- Never shred beyond the specified sheet capacity. This may result in extensive damage to the machine.

Paper Shredder Operating Instructions

Installation

Operation

Maintenance

Troubleshooting

Service Center

Limited Warranty

Sheet Capacity	8 Sheets of 20 lb. bond paper*
Paper Shred Size	5/32 in. x 15/32 in. pieces0.4 cm x 1.2 cm pieces
Paper Entry Width	8.7 in / 220 mm
Credit Card	1 at a time
Duty Cycle	5 min. on / 30 min. off
Voltage	120V~60Hz / 3.0 A

\* ONE FOLDED SHEET OF PAPER EQUATES TO 2 SHEETS OF PAPER

Heavier paper, humidity or other than rated voltage may reduce shredding capacity.

INSTALLATION

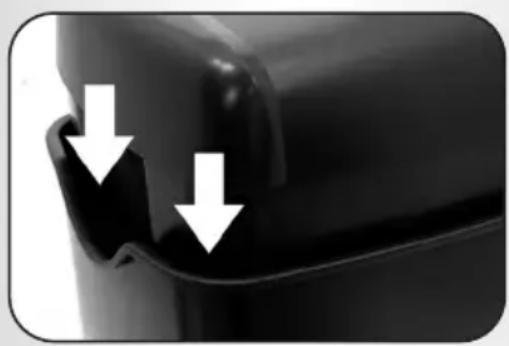

1. This model includes a built-in safety interlock mechanism, which requires the shredder to be correctly mounted on to the included wastebasket. Located on the back center of the shredder, next to the power cord, there is a curved flap-like shape that must FIT OVER THE OUTSIDE matching ridge of the wastebasket. (FIGURE 1) THE SHREDDER WILL NOT OPERATE UNLESS IT IS PROPERLY MOUNTED AS PICTURED.
2. A socket-outlet should be near the equipment and be easily accessible.
3. Connect the power cord to any standard 120 volt AC outlet.

Caution:

Microcut shredders have very sharp exposed blades on the underside. Use care when mounting the shredder on the wastebasket.

Close-up of a black plastic component with two white arrows pointing to a defect or indentation (no text or symbols visible)

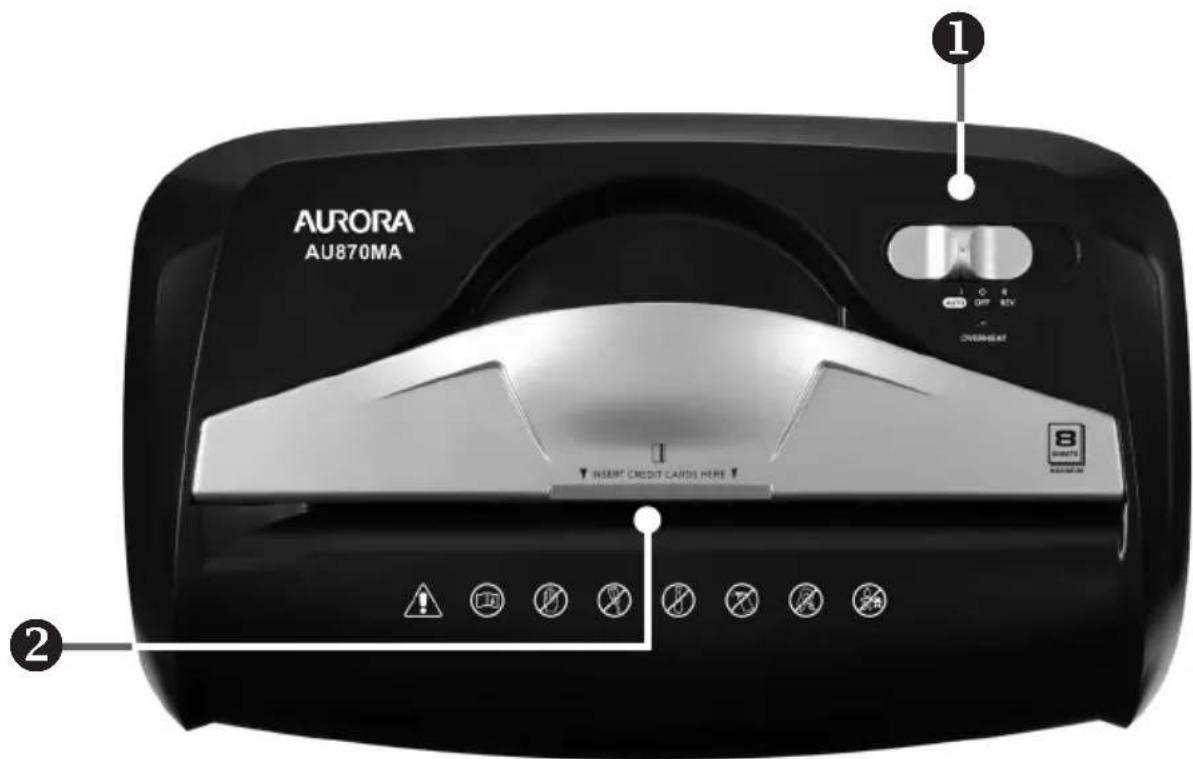

FIGURE 1

① Control Switch

■ Using the switch located on the unit, select one of the following settings by sliding the switch either left or right. (FIGURE 2)

FIGURE 2

I AUTO:

This setting allows the shredder to be automatically started by inserting paper into the feed slot. Always feed the paper in as straight as possible. When the paper has passed through, the shredder will automatically stop.

O OFF:

This setting turns off all features of the shredder. For safety reasons, we recommend that you leave the shredder in the "Off" position whenever the shredder is unattended or not in use.

R REV (REVERSE):

In the unlikely event of a paper jam, the reverse setting can be used to help clear the cutters of paper that did not pass through. Never attempt to clear a jam by using the reverse function until you have emptied the wastebasket.

CONTINUED NEXT PAGE

LED Status Indicator:

Overheat:

Red light – Shredder has shred continuously beyond the maximum shred time and needs to cool down before operation can restart. If this happens, switch the shredder off for 30 minutes or longer before resuming normal operation.

② Paper / Credit Card Entry:

Close-up of a black Aurora printer with paper feed and control panel (no visible text or symbols)

① Make sure you do not exceed sheet count per pass (8 sheets max). Insert paper as straight as possible into feed slot and release.

② Insert one credit card at a time into the middle of the feed slot.

NOTE:

• Always turn off and unplug the shredder when not in use.
- This shredder will shred staples and small paper clips. It is recommended that you remove paper clips whenever possible to extend the lifespan of your shredder.
- Only shred credit cards by feeding them vertically into the middle of the entry, releasing when shred ding begins. Never feed more than one credit card at a time.
• Overfeeding the shredder: Shredding beyond the specified sheet capacity can result in extensive damage to the shredder. Overfeeding will strain the machine and quickly wear and break the cutting blades and internal components.
• Overheating with extended use: In the event that the shredder has shred continuously beyond the maximum running time and overheating, the unit will automatically shut off. If this happens, switch the shredder Off for 30 minutes or longer before resuming normal operation.

MAINTENANCE

■ Warning: Failure to properly maintain your shredder will void the warranty.

■ Oil the shredder blades every month with basic vegetable, cooking oil or shredder oil. Follow oiling procedure below (FIGURE 3). It helps to keep the shredder blades operating well over many years of use.

Hand using a plastic tool to lift a white cylindrical component into a black industrial machine (no visible text or symbols)

FIGURE 3

Oiling procedure:

1. Turn off shredder.
2. Apply shredder oil across paper entry.
3. Turn shredder in reverse mode for 3\~5 seconds.

Note: lubricating oil is NOT included.

Caution:

• Do not spray or keep any aerosol products in or around shredder.
  • DO NOT USE CANNED AIR ON SHREDDER.

■ CLEANING:

• ALWAYS UNPLUG THE SHREDDER BEFORE CLEANING!
- Only clean the shredder by carefully wiping the unit with a dry soft cloth or towel.
- Do not clean or immerse shredder in water. Having the unit wet may result in damage or malfunction to the electrical components. If the shredder happens to get wet, be sure to completely dry the unit immediately with a cloth or towel.
- Never use anything flammable to clean the shredder. This may result in serious injury or damage to the product.

If there is a problem with your shredder, check below for the symptoms and steps to resolve. If you continue to have problems, contact customer support at our Service Center 1-800-327-8508. DO NOT ATTEMPT TO REPAIR BY OPENING THE SHREDDER HEAD. This will completely void the product warranty.

■ The shredder does not work at all.

1) Make sure the unit is plugged in and that the outlet is in good working order.
2) Overheating with extended use: In the event that the shredder has shred continuously beyond the maximum running time and overheated, the unit will automatically shut off. If this happens, switch the shredder Off for 30 minutes or longer before resuming normal operation.
3) If using a plastic bag to line the wastebasket, please remove it. This may cause the shredder not to operate properly.
4) The activation sensor of the shredder is located near the center of the feed slot. Be sure to feed directly into the center area to activate the machine (especially applies to smaller pieces of paper or credit cards).

■ The shredder runs in "Rev (Reverse)" mode but not in "Auto (On)" mode.

While in "Auto" mode, the motor will not start running until paper is inserted into the feed slot. Set the unit to "Auto" and insert paper to shred. The sensor that activates the shredder in Auto mode is located directly in the center of the slot. If the paper you are inserting is narrow, it may not be activating the optical sensor. It is also possible that the feed slot has become blocked with paper. Insert an index card or any rigid sheet of cardstock (old greeting card or folded file folder), directly in the center of the feed slot, while applying force to help push the jammed paper through. This will usually clear any paper blockage.

■ How to clear a paper jam in the shredder.

1) Switch the shredder over into Reverse (REV) mode. While in Reverse, the shredder will back up and loosen the jammed paper. If required, you may need to tug and remove several sheets to effectively clear the machine. When jammed paper is loosened or removed, switch back to the Auto-On mode to continue shredding. Repeat steps if needed.
2) With stubborn situations where the reverse function does not help, you may loosen the jammed paper with shredder oil (cooking oil is acceptable, nothing aerosol). Start by drizzling oil into the feed slot where the paper is jammed. Let it soak for about 30 minutes to completely saturate. Return the shredder back to Auto-On mode. If required, an index card or a rigid sheet of cardstock (old greeting card or folded file folder) can be fed into the shredder to help push the jammed paper through.

CONTINUED NEXT PAGE

TROUBLESHOOTING

Power switch in auto position

Use thick paper stock or greeting card ▶ to push the jam through

Close-up of hands pressing down a paper with two downward arrows (no text or symbols)

■ The shredder is constantly running while in "Auto (On)" mode.

1) It is possible that the activation sensor, which starts the shredder, has become blocked with paper. Insert an index card or any rigid sheet of cardstock (old greeting card or folded file folder), directly in the center of the feed slot, while applying force to help push the jammed paper through. This will usually clear any paper blocking the activation sensor and feed entry.
2) The activation sensor is being triggered by dust, debris, or oil. A cotton swab may be used to clean the sensor. DO NOT USE CANNED AIR. The activation sensor of the shredder is located around the center of the feed entry.

SERVICE CENTER

If you have any questions in regards to the operation of this shredder or in need of a spare part, please contact our service center at:

Telephone: [phone] (U.S.A. only) or 1-310-793-5650 (International)

Business hours: Monday to Friday 8:00 am - 5:00 pm PST (Pacific Standard Time)

Email: [e-mail]

Or for more information, please visit our website at http://www.auroracorp.com

LIMITED PRODUCT WARRANTY

We warrant the cutting cylinders of the machine against defects of workmanship and material for a period of 5 years from the original purchase date to the original consumer, and all other parts of the machine against defects of workmanship and material for a period of 1 year from the original purchase date to the original consumer.

Should there be a defect or malfunction of this product, we will repair or replace the product free of charge. Customer is responsible for all shipping charges to return the defective product to us. A copy of the proof of purchase showing original purchase date is required. This warranty is void if the product has been subject to damage, unreasonable use, improper service, or other causes not arising from defects in original material or workmanship. This warranty is void if factory seal is broken or removed from the product. This warranty does not include adjustments, parts or repairs required by circumstances beyond the control of us.

There are no expressed warranties other than those stated herein.

Any expressed or implied warranties, including but not limited to merchantability and fitness for a particular purpose are limited to the above warranty period. We shall not be liable for any incidental or consequential cost, expenses or damages resulting from any failure defect or malfunction of this product.

Some states do not allow the exclusion of limitations of implied warranties or consequential damages, therefore, the above limitations may not apply to you.

This warranty grants you specific legal rights, and you may also have other rights that vary from state to state.

Before returning any product, please call our Service Center for specific return instructions.

1-800-327-8508 USA ONLY

1-310-793-5650 INTERNATIONAL

[e-mail]

Close-up of a black plastic object with two white arrows pointing to a surface defect or indentation (no text or symbols visible)

FIGURA 1

① Interruptor de control

FIGURA 2

Close-up of a black Aurora medical device with white paper and control panel, no visible text or symbols on the device itself.

Hand using a plastic bag to press down a circular device with directional arrows (no text or symbols visible)

FIGURA 3

Person printing a document with two downward arrows, no text or symbols visible
