SC-VC80C330 - Vacuum Cleaner Scarlett - Free user manual and instructions

Product Type	Canister Vacuum Cleaner
Brand	Scarlett
Model	SC-VC80C330
Dimensions (L x W x H)	40 x 28 x 25 cm
Weight	5.5 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1200 W
Dust Capacity	2.0 L
Dust Bag Type	Disposable paper bag
Filtration System	HEPA filter
Cord Length	5 m
Hose Length	1.5 m
Noise Level	75 dB
Accessories Included	Crevice tool, upholstery brush, floor nozzle
Features	Variable suction power, automatic cord rewinder, carry handle
Maintenance	Replace dust bag when full; clean HEPA filter regularly
Safety	Overheat protection, thermal cut-off
Spare Parts	Dust bags, HEPA filter, brush roll
Reparability	User-replaceable parts; professional repair recommended for motor issues
Warranty	2 years

Frequently Asked Questions - SC-VC80C330 Scarlett

How do I replace the dust bag?

Open the front lid of the vacuum cleaner, remove the full bag, and insert a new SC-VC80C330 compatible dust bag. Ensure it is seated properly before closing the lid.

What type of filter does it use and how often should I clean it?

It uses a HEPA filter. Clean it every 3 months under running water and let it dry completely before reinserting. Replace it once a year.

Why is the suction power weak?

Check if the dust bag is full, the filter is clogged, or the hose is blocked. Also ensure the suction power setting is not set to low.

Can I use it on hardwood floors?

Yes, the included floor nozzle is suitable for hardwood. For best results, use the hard floor setting if available, or lower the suction power.

How do I rewind the power cord?

The cord rewinds automatically when you press the cord rewind button located on the top of the vacuum cleaner. Hold the plug while it retracts to avoid whipping.

What accessories are included?

The package includes a crevice tool for tight spaces, an upholstery brush for furniture, and a combination floor nozzle for carpets and hard floors.

How do I clean the filter?

Remove the filter, tap off loose dust, and rinse under lukewarm water. Do not use detergent. Let it air dry for 24 hours before reinstalling.

Is there a thermal cut-off safety feature?

Yes, the vacuum has overheat protection. If it shuts off automatically, let it cool for 30 minutes before restarting.

Where can I buy spare parts?

Spare parts such as dust bags, filters, and accessories are available from Scarlett authorized retailers or online marketplaces. Use model number SC-VC80C330.

How do I clean the brush roll?

Remove the floor nozzle and use scissors to cut away any hair or threads wrapped around the brush roll. For thorough cleaning, detach the brush roll if possible.

USER MANUAL SC-VC80C330 Scarlett

Black and red compact vacuum cleaner with transparent glass casing (no visible text or symbols)

www.scarlett.ru

GB DESCRIPTION

1. Wheel
2. Dust collector
3. Dust collector handle
4. Dust collector cover
5. Sucking inlet
6. Dust collector bottom release button
7. Dust collector bottom
8. Dust collector lock button
9. ON/OFF button
10. Power cord winding button
11. Sponge filter
12. FLOOR/CARPET nozzle
13. FURNITURE/CREVICE nozzle

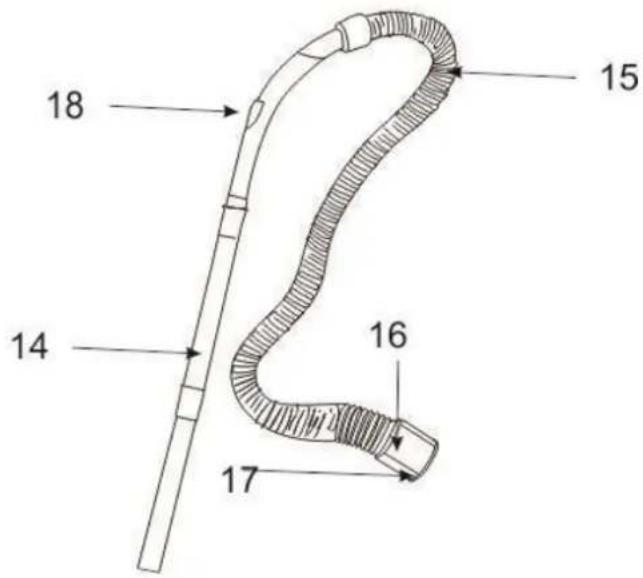

14. Retractable tube
15. Hose
16. Hose locks
17. Hose base
18. Hose air flow control switch
19. Power cord and plug
20. Outlet-sponge filter

13

12

CB INSTRUCTION MANUAL IMPORTANT SAFEGUARDS

• Read this instruction manual carefully to prevent any unit damage or injure when using.
• When using this appliance, basic precautions should always be followed:
• Before the first use of the appliance check that the voltage indicated on the rating label corresponds to the mains voltage in your home.
• For home use only. Do not use for industrial purposes.
• The appliance is intended for use only in domestic aims.
• To prevent risk of electric shock and fire, do not immerse the appliance in water or any other liquids. If it has happened DO NOT TOUCH the appliance, unplug it immediately and check in a service center.
• Do not handle the plug with wet hands. Never switch off the appliance by pulling the cord.
• Do not let the cord hang over sharp edges or touch hot surfaces.
• Always unplug the appliance from the power supply when not in use and before servicing.
• In case of power cord is damaged, its replacement should be done by the manufacture or service department or the other high-skill person to avoid any danger.
• To avoid deforming of plastic components of the appliance or fire accident, never leave the appliance exposed to direct sun light or near any heater.
• The appliance is not intended for use for physically, sensory or mental disabled person (including children) or for person with lack of life experience or knowledge, if only they are under supervision or have been instructed about the use of the unit by responsible person.
• Children must be under control in order not to be allowed to play with the appliance.
• To avoid damage of the flexible hose, do not fold or pull it strongly.
• Do not put any object into air outlets. Do not use with outlet blocked. Keep free of dust, hair and anything that may reduce airflow.
• Be careful when cleaning on stairs.
• Before you start using the vacuum cleaner, please remove all large or sharp objects from the floor in order to prevent damage of the unit.
• CAUTION: To avoid voltage overload do not plug the unit and other powerful electrical appliances to the power supply at the same time.
• Never use the vacuum cleaner without filters.
• Do not use the appliance on wet surfaces. This unit does not absorb water.
• If you have cleaned the carpet with liquid detergent, let the carpet dry up completely before vacuuming it.
• Never use the appliance without dust bin. Replace the dust bin without delay if it is damaged.
• Do not attempt to repair, adjust or replace parts in the appliance. Repair the malfunctioning appliance in the nearest service center.
• If the product has been exposed to temperatures below 0^ C for some time it should be kept at room temperature for at least 2 hours before turning it on.
• The manufacturer reserves the right to introduce minor changes into the product design without prior notice, unless such changes influence significantly the product safety, performance, and functions.
• Production date mentioned on the unit and/or on the packing materials and documentations.
• Unpack the device and remove the sticker from the body.
• In order to connect the hose to the vacuum cleaner insert hose base into sucking inlet and turn clockwise until it stops, disconnect the hose, turn it in the opposite direction.
• Insert the hose into the tube.
• Attach one of the nozzles to the tube:
• The "FLOOR/CARPET" combined nozzle is designed for carpet mats and similar floor coatings, and for flat surfaces;

PREPARATION

IM019

INSTRUCTION FOR USE

• The "FURNITURE/SLOT" nozzle is designed for cleaning upholstered furniture, curtains and decorative surfaces.
• "Cyclone" system ensures maximum power during cleaning.
• Before starting, unwind the cord to sufficient length and insert the plug into the power supply. The yellow mark on the cord shows optimal cord length. Do not unwind the cord beyond the red mark.
• Press On/Off button to switch the unit on and press again to stop it.
• You can adjust the air flow using the air flow regulator on the flexible hose handle:
• Decrease flow for cleaning curtains, books, furniture, etc.
• Increase flow for cleaning bare floor.
• To rewind the cord, press the rewind button and guide the cord with hand to ensure that it does not whip causing damage.
• WARNING!
• Be sure to clean the container after each cleaning.
• Never use the vacuum cleaner without installed filter and with damaged or dirty filter. Otherwise, dust will fall into the motor and cause damage to the vacuum cleaner.
• Don't use the vacuum cleaner if the container is filled to the mark "MAX". When the container is filled, dirty air clogs up the vacuum cleaner filter and the engine can overheat and disable.
• Don't use the vacuum cleaner for cleaning of material debris such as cement, whitewash, plaster, metal shavings and etc. These particles cause to the engine damage.
• Don't wash vacuum cleaner parts in a dishwasher or a construction machine.

CARE AND CLEANING

• Switch off the appliance and pull the plug from the power supply.
• Clean the appliance outside surface with soft cloth using mild non-abrasive detergent.
• Vacuum cleaner or cord should never be immersed into water or any liquids.

DUST COLLECTOR CLEANING

• Disconnect the vacuum cleaner from the mains.
• Detach the dust collector. For this purpose press the dust collector lock button.
• Empty the dust collector. For this purpose press the dust collector release button.

CLEANING OF FILTERS

• Clean the filters at least once a year. In case if the vacuum cleaner is used frequently, wash the filters after each 3 to 5 dust collector cleaning operations.
• Disconnect the vacuum cleaner from the mains.
• Open the dust collector cover and remove the main filter.
• Wash all plastic parts and sponge of the filter with warm running water, and then dry them thoroughly.
• After cleaning insert the filter into place. Close the dust collector cover rotating it clockwise.
• Wash the filter with running water and dry it thoroughly.
  • After cleaning insert the filter into place.

STORAGE

• Place the appliance vertically.
• Insert the tube into special holder on the body.

- The symbol on the unit, packing materials and/or documentations means used electrical and electronic units and battery's should not be toss in the garbage with ordinary household garbage. These units should be pass to special receiving point.

• For additional information about actual system of the garbage collection address to the local authority.
• Valid utilization will help to save valuable resources and avoid negative work on the public health and environment which happens with incorrect using garbage.
