AR09-AM4 - PC-Lüfter SILVERSTONE - Kostenlose Bedienungsanleitung

Produkttyp	CPU-Kühler-Lüfter
Modellnummer	AR09-AM4
Marke	SilverStone
Kompatibilität	AMD AM4-Sockel
Abmessungen (L x B x H)	92 mm x 92 mm x 25 mm
Gewicht	ca. 150 g
Lagertyp	Gleidlager
Drehzahlbereich	800 – 2800 U/min (PWM)
Lautstärke	16 – 28 dB(A)
Luftdurchsatz	bis zu 54,5 CFM
Statischer Druck	2,5 mmH₂O
Spannung	12 V DC
Stromaufnahme	0,18 A
Anschluss	4-Pin-PWM
Lebensdauer	40.000 Stunden bei 40 °C
Lieferumfang	Lüfter, Montageklammern, Schrauben
Besonderheiten	Lüfterrahmen mit vibrationsdämpfenden Pads
Reinigung	Staub mit Druckluft oder weichem Pinsel entfernen
Garantie	1 Jahr

Häufig gestellte Fragen - AR09-AM4 SILVERSTONE

Welche Sockel sind kompatibel mit dem SilverStone AR09-AM4?

Der Lüfter ist speziell für den AMD AM4-Sockel ausgelegt und wird mit entsprechenden Halterungen geliefert.

Wie installiere ich den Lüfter auf dem CPU-Kühler?

Befestigen Sie die mitgelieferten Montageklammern am Lüfter und rasten Sie diese am Kühler ein. Achten Sie auf die korrekte Ausrichtung des Luftstroms.

Kann ich die Lüftergeschwindigkeit steuern?

Ja, über den 4-Pin-PWM-Anschluss kann die Drehzahl durch das Mainboard oder einen Lüftercontroller geregelt werden.

Wie reinige ich den Lüfter?

Verwenden Sie Druckluft oder einen weichen Pinsel, um Staub von den Rotorblättern und dem Rahmen zu entfernen. Nicht mit Wasser reinigen.

Ist der Lüfter sehr laut?

Die Geräuschentwicklung liegt zwischen 16 und 28 dB(A), abhängig von der Drehzahl. Im Leerlauf ist er nahezu unhörbar.

Welche Schrauben werden für die Montage benötigt?

Im Lieferumfang sind passende Schrauben für die Befestigung am Kühler enthalten.

Kann ich den Lüfter auch an einem anderen Kühler verwenden?

Der AR09-AM4 ist für AM4-Kühler optimiert. Bei anderen Kühlern prüfen Sie bitte die Kompatibilität der Montageklammern.

Wie hoch ist die Lebensdauer des Lagers?

Das Gleitlager ist für eine Lebensdauer von 40.000 Stunden bei 40 °C Umgebungstemperatur ausgelegt.

Was tun, wenn der Lüfter nicht läuft?

Überprüfen Sie den Anschluss am 4-Pin-PWM-Header des Mainboards und stellen Sie sicher, dass die Spannung 12 V beträgt. Testen Sie ggf. an einem anderen Anschluss.

Gibt es eine Garantie?

Ja, SilverStone gewährt eine Garantie von 1 Jahr auf den Lüfter.

BEDIENUNGSANLEITUNG AR09-AM4 SILVERSTONE

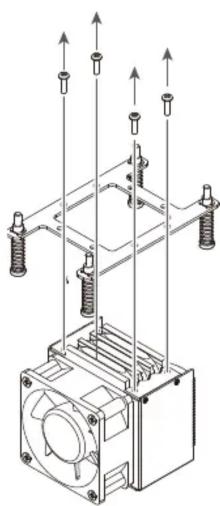

Technical line drawing of a mechanical component with mounting holes and spring supports (no text or symbols)

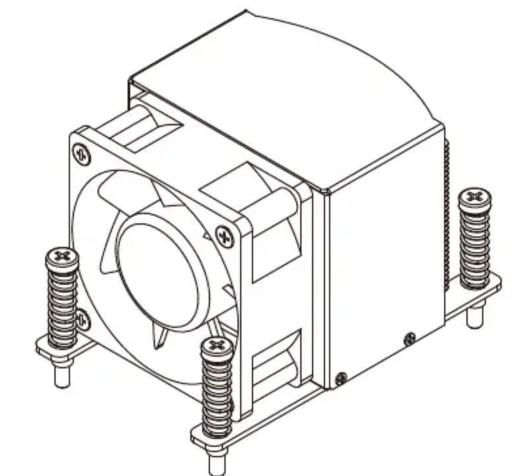

AR09-AM4
Superior 2U server thermal solution for AMD AM4

2

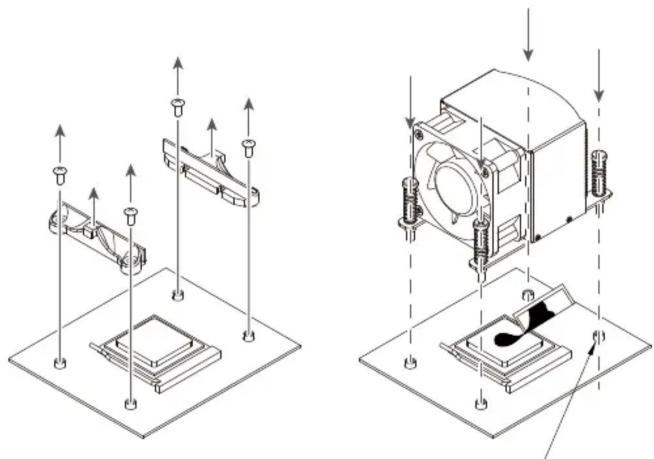

Technical line drawing of a mechanical assembly with mounting flanges and vertical supports (no text or symbols)

[Non-Text]

1

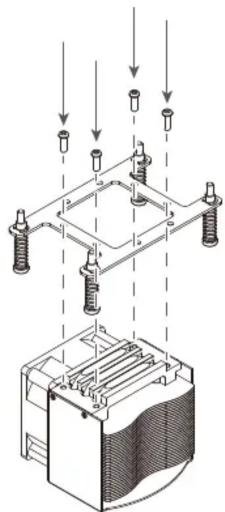

Technical line drawing of mechanical assembly with mounting base and housing (no text or symbols)

*Please use the AMD backplate comes with mainboard

3

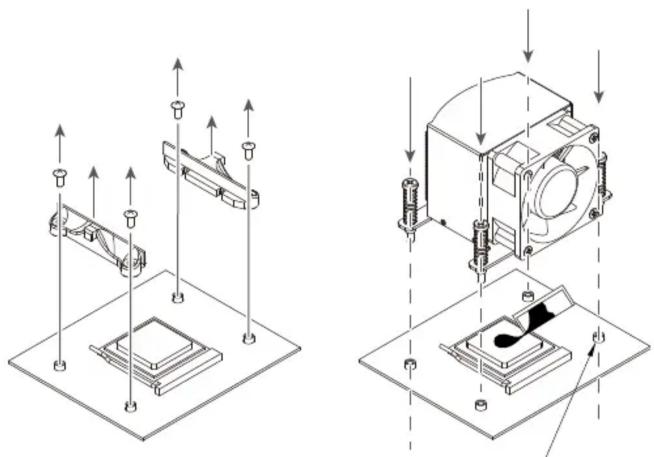

Technical line drawings of mechanical components and assembly (no text or symbols)

*Please use the AMD backplate comes with mainboard,
