Produkttyp	Digitaler Camcorder
Modell	PV-DV700
Marke	Panasonic
Abmessungen (Kamera)	67 × 95 × 132 mm (B×H×T)
Gewicht (Kamera)	ca. 530 g (nur Gerät)
Stromversorgung	7,2 V DC (Akku) / 8,4 V DC (Netzteil)
Akku-Typ	Lithium-Ionen, 7,2 V, 1,25 Ah (PV-DBP5)
Leistungsaufnahme	ca. 6,2 W (Kamera), Netzteil: 20 W (Betrieb), 2 W (Standby)
Videoaufnahme	NTSC, 525 Zeilen, 60 Halbbilder, SP/LP Modus
Audioaufnahme	12 Bit (32 kHz) 4 Spuren / 16 Bit (48 kHz) 2 Spuren
Bildsensor	1/4-Zoll CCD mit RGB-Farbfilter
Objektiv	10-fach optischer Zoom, F1:1,4, Brennweite 4,7–47 mm, Filter ∅ 30,5 mm
Sucher	0,5-Zoll-Farb-LCD-Elektroniksuche (EVF)
Mindestbeleuchtungsstärke	7 lx (0,7 fc)
Betriebstemperatur	0 °C bis 40 °C
Besondere Merkmale	Digital EIS, Digitalzoom (bis 100×), Digital Photo Shot, Programmautomatik, Digitaleffekte (Wipe, Mix, Strobe, Gain Up, Sepia, Mono, Trail, Solarisation), Manueller Fokus, Gegenlichtkorrektur, Ein-/Ausblendung, Weißabgleich, Audio-Überspielung
Anschlüsse	DV (IEEE1394), S-Video, Video, Audio, System (5-polig), Mikrofon, Kopfhörer
Lieferumfang	Netzteil (PV-DAC7), Akku (PV-DBP5), Dockingstation, Schultergurt, Fernbedienung, DV-Kabel, Kassette AY-DVM30EA, Objektivdeckel, Soft-Tasche
Wartung und Reinigung	Gehäuse mit trockenem Tuch reinigen; Objektiv mit handelsüblicher Reinigungslösung und -papier. Videoköpfe nur von Fachpersonal reinigen lassen.
Sicherheitshinweise	Nicht Regen oder Feuchtigkeit aussetzen; nicht in der Nähe von Wasser verwenden; nur vom Hersteller empfohlenes Zubehör; Netzteil vor Reinigung abziehen.
Ersatzteile und Reparatur	Reparaturen durch autorisierten Panasonic-Kundendienst; Ersatzteile über Panasonic-Zubehörservice erhältlich.

Häufig gestellte Fragen - PV-DV700 PANASONIC

Wie lade ich den Akku des Panasonic PV-DV700?

Schließen Sie das mitgelieferte Netzteil (PV-DAC7) an eine Steckdose an. Setzen Sie den Akku (PV-DBP5) in die Ladeschale des Netzteils ein. Die Ladekontrollleuchten zeigen den Ladezustand an. Wenn alle vier Lampen dauerhaft leuchten, ist der Akku vollständig geladen (ca. 1 Stunde 20 Minuten).

Wie kann ich die Aufnahmen auf einem Fernseher ansehen?

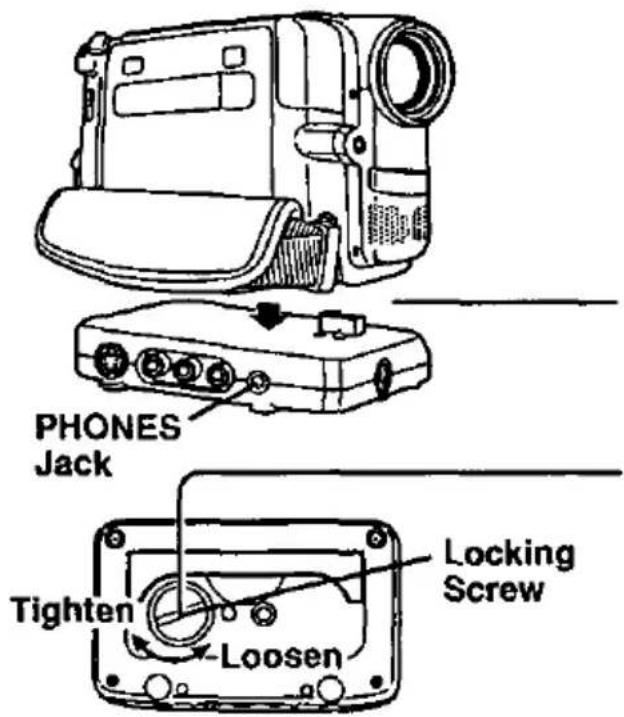

Setzen Sie den Camcorder auf die mitgelieferte Dockingstation und schließen Sie diese über ein AV-Kabel (nicht im Lieferumfang) an den TV an. Schalten Sie den Camcorder ein, drücken Sie die CAMERA/VCR-Taste, bis die VCR-Lampe grün leuchtet, und legen Sie eine bespielte Kassette ein. Starten Sie die Wiedergabe mit PLAY.

Was bedeutet die Anzeige 'DEW DETECTED'?

Diese Warnung erscheint, wenn sich im Inneren des Geräts Feuchtigkeit niedergeschlagen hat (z.B. beim Wechsel von kalter zu warmer Umgebung). Schalten Sie den Camcorder sofort aus und warten Sie einige Stunden, bis die Anzeige erlischt. Versuchen Sie nicht, das Gerät bei eingeschalteter Warnung zu betreiben.

Wie verwende ich den Digitalzoom?

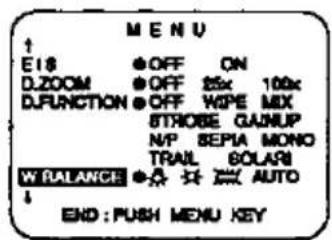

Rufen Sie im Kameramodus das MENÜ auf, wählen Sie D.ZOOM und stellen Sie entweder 25× oder 100× ein. Der optische Zoom (1× bis 10×) arbeitet normal. Jenseits von 10× wird der Bildausschnitt digital vergrößert. Die Zoomstufe wird im Sucher angezeigt.

Wie kann ich Audio nachträglich hinzufügen?

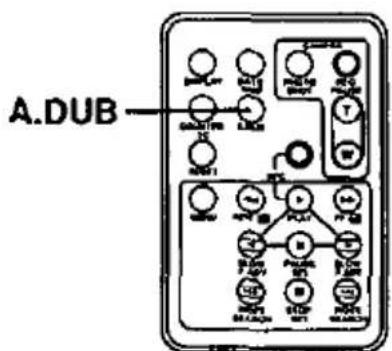

Schalten Sie in den VCR-Modus. Öffnen Sie das Menü, wählen Sie A-DUB und stellen Sie auf MIC (Mikrofon) oder DV (DV-Eingang). Legen Sie die zu überspielende Kassette ein, suchen Sie die Stelle und drücken Sie PAUSE. Drücken Sie auf der Fernbedienung A.DUB und dann PAUSE, um die Überspielung zu starten.

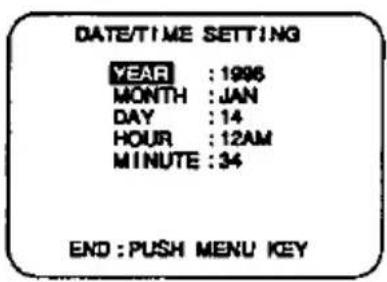

Wie stelle ich Datum und Uhrzeit ein?

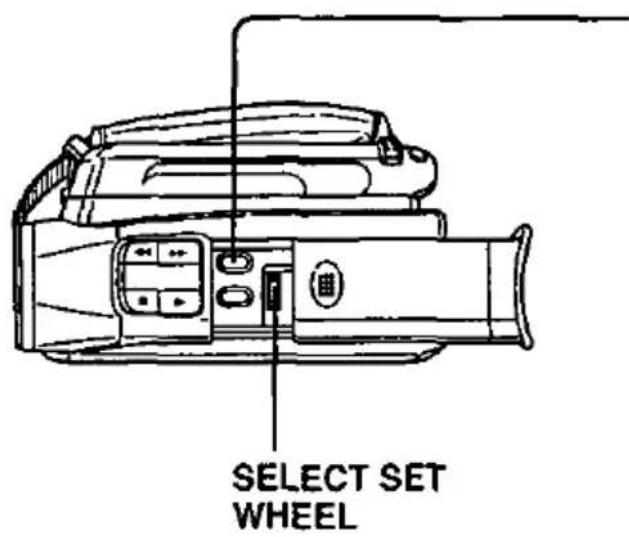

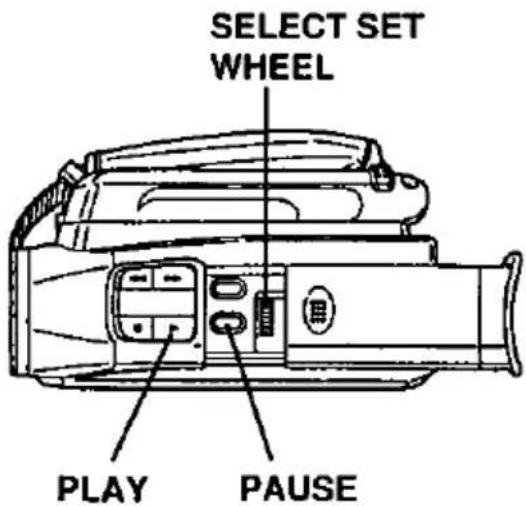

Drücken Sie MENU, wählen Sie mit dem SELECT SET WHEEL den Punkt CLOCK-SET und drücken Sie das Rad, um ON zu wählen. Stellen Sie nun Jahr, Monat, Tag, Stunde und Minute ein. Drücken Sie zur Bestätigung erneut MENU. Die eingestellte Uhrzeit wird auf der Kassette aufgezeichnet.

Was ist der Unterschied zwischen SP und LP?

SP (Standard Play) bietet die beste Bildqualität und eine Aufnahmezeit von 30 Minuten mit einer AY-DVM30EA-Kassette. LP (Long Play) verlängert die Aufnahmezeit um das 1,5-Fache (45 Minuten mit AY-DVM30EA), aber die Bildqualität kann geringfügig beeinträchtigt sein. Wählen Sie die gewünschte Geschwindigkeit im Kameramenü unter REC-SPEED.

Wie reinige ich die Videoköpfe?

Wenn die Meldung NEED HEAD CLEANING erscheint, sollten die Videoköpfe gereinigt werden. Verwenden Sie dafür die spezielle Reinigungskassette AY-DVMCL von Panasonic und befolgen Sie die Anweisungen sorgfältig. Übermäßige Reinigung kann die Kopfbeeinträchtigen. Oder lassen Sie die Reinigung von einem autorisierten Panasonic-Service durchführen.

Wie erstelle ich eine Diashow mit Standbildern?

Drücken Sie im Kameramodus auf PHOTO SHOT, um ein ca. sieben Sekunden langes Standbild mit Ton aufzunehmen. Wechseln Sie in den VCR-Modus, öffnen Sie das Menü und setzen Sie INDEX auf PHOTO. Verwenden Sie dann die INDEX SEARCH-Tasten auf der Fernbedienung, um zwischen den Standbildern zu blättern. So können Sie eine Diashow abspielen.

Welche Akkulaufzeit hat der PV-DV700?

Mit einem vollständig geladenen Akku (PV-DBP5, 1,25 Ah) beträgt die Betriebsdauer etwa eine Stunde bei kontinuierlicher Aufnahme. Die tatsächliche Laufzeit kann je nach Nutzung (Zoom, Sucherhelligkeit, etc.) variieren. Es wird empfohlen, einen Ersatzakku mitzuführen.

BEDIENUNGSANLEITUNG PV-DV700 PANASONIC

Panasonic®

Digital Palmcorder®

Camcorder

Operating Instructions

Line drawing of a vintage digital camera with a remote control unit (no text or symbols)

Mini DY

DIGITAL 6

PV-DV700

Before attempting to connect, operate or adjust this product, please read these instructions thoroughly.

Spanish Quick Use Guide is included.

Guía para rápida consulta en español está incluida.

Things You Should Know

Thank you for choosing Panasonic!

You have purchased one of the most sophisticated and reliable products on the market today. Used properly, we're sure it will bring you and your family years of enjoyment. Please take time to fill in the information at right. The serial number is on the tag located on the underside of your Palmcorder. Be sure to retain this manual as your convenient Palmcorder information source.

Date of Purchase

Dealer Purchased From

Dealer Address

Dealer Phone No.

Model No.

Serial No.

Unpack your Palmcorder

These accessories are provided in order to set up or use your Palmcorder.

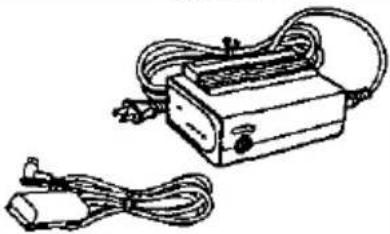

1 pc. AC Adaptor (PV-DAC7)

with AC Cord and

DC Power

Cable

1 pc. Battery Pack (PV-DBP5)

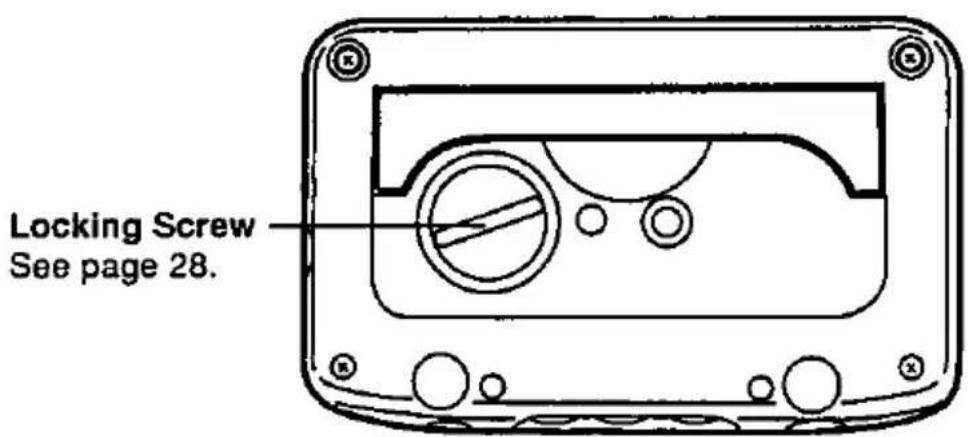

1 pc. Docking

Station (VSQS1511)

1 pc. Shoulder Strap

(VFC2494)

1 pc. Remote Control (VSQS1555) with one Remote Control Battery (CR2025)

Illustration of a tray with beads and a coin, no text or symbols present

1 pc. DV Interface Cable (VJA1011K)

1 pc. Digital Video

Cassette Tape

(AY-DVM30EA)

1 pc. Lens Cap

(VYFS0122)

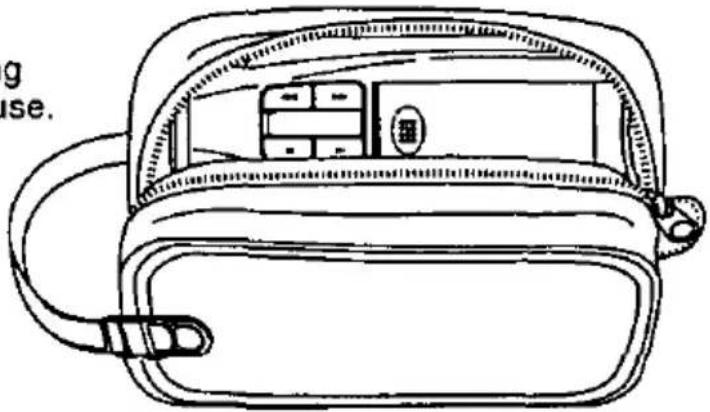

1 pc. Soft Carring

Case (VYCS1120)

Remote Control has been loaded with battery. See page 24.

Safety Precautions

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,

DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

Your "D" Palmcorder is designed to record and play back in Standard Play (SP) mode only.

This Palmcorder is equipped with the HQ System to provide excellent video pictures. It is recommended that only cassette tapes that have been tested and inspected for use in VCR machines with the MINI IN mark be used.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK)

NO USER-SERVICEABLE PARTS INSIDE

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

This symbol wams the user that uninsulated voltage within the unit may have sufficient magnitude to cause electric shock. Therefore, it is dangerous to make any kind of contact with any inside part of this unit.

This symbol alerts the user that important literature concerning the operation and maintenance of this unit has been included. Therefore, it should be read carefully in order to avoid any problems.

Important Safeguards

1. Read Instructions — All the safety and operating instructions should be read before the unit is operated.
2. Retain Instructions — The safety and operating instructions should be retained for future reference.
3. Heed Warnings — All warnings on the unit and in the operating instructions should be adhered to.
4. Follow Instructions — All operating and maintenance instructions should be followed.
5. Cleaning — Unplug this video unit from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a dry cloth for cleaning.
6. Attachments — Do not use attachments not recommended by the video product manufacturer as they may be hazardous.
7. Water and Moisture — Do not use this video unit near water — for example near a bath tub, wash bowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, and the like.
8. Accessories — Do not place this video unit on an unstable cart, stand, tripod, bracket, or table. The video unit may fall, causing serious injury to a child or adult, and serious damage to the unit. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the video unit. Any mounting of the unit should follow the manufacturer's instructions and should use a mounting accessory recommended by

the manufacturer. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

1. Ventilation — Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the video unit and to protect it from overheating. These openings must not be blocked or covered. Never place the video unit on a bed, sofa, rug, or other similar surface, or near or over a radiator or heat register. This video unit should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

2. Power Sources — This video unit should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your appliance dealer or local power company. For video units intended to be operated from battery power, or other sources, refer to the operating instructions.

3. Grounding or Polarization — This video unit may be equipped with either a polarized 2-wire AC (Alternating Current) line plug (a plug having one blade wider than the other) or 3-wire grounding type plug, a plug having a third (grounding) pin. The 2-wire polarized plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug still fails to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

The 3-wire grounding type plug will fit into a grounding type power outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the grounding type plug.

1. Power-Cord Protection — Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords of plugs, convenience receptacles, and the point where they exit from the unit.

2. Outdoor Antenna Grounding — If an outside antenna or cable system is connected to the video unit, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Part 1 of the Canadian Electrical Code, in USA Section B10 of the National Electrical Code, provides information with respect to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

1. Lightning — For added protection of this video unit receiver during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the video unit due to lightning and power-line surges.

Important Safeguards

1. Power Lines -- An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

2. Overloading — Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.

3. Objects and Liquids — Never push objects of any kind into this video unit through openings as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock. Never spill liquid of any kind onto the video unit.

4. Servicing -- Do not attempt to service this video unit yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

5. Damage Requiring Service — Unplug this video unit from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.

b. If any liquid has been spilled onto, or objects have fallen into the video unit.
c. If the video unit has been exposed to rain or water.
d. If the video unit does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the video unit to its normal operation.
e. If the video unit has been dropped or the cabinet has been damaged.
f. When the video unit exhibits a distinct change in performance — this indicates a need for service.
20. Replacement Parts — When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
21. Safety Check—Upon completion of any service or repairs to this video unit, ask the service technician to perform safety checks to determine that the video unit is in sale operating order.

Precautions

USE & LOCATION

• TO AVOID SHOCK HAZARD ... Your Camcorder and power supply should not be exposed to rain or moisture. Do not connect the power supply or operate your Camcorder if it gets wet. Your Camcorder has been designed for outdoor use, however it is not designed to sustain direct exposure to water, rain, sleet, snow, sand, dust, or a direct splashing from a pool or even a cup of coffee. This action could permanently damage the internal parts of your Camcorder. Do not attempt to disassemble this unit. There are no user serviceable parts inside. Unplug your Camcorder from the power supply before cleaning.
• DO NOT AIM YOUR CAMCORDER AT THE SUN OR OTHER BRIGHT OBJECTS
• DO NOT LEAVE THE PALMCORDER WITH THE EVF AIMED DIRECTLY AT THE SUN AS THIS MAY CAUSE DAMAGE TO THE INTERNAL PARTS OF THE EVF
- DO NOT EXPOSE YOUR CAMCORDER TO EXTENDED HIGH TEMPERATURE ... Such as, in direct sunlight, inside a closed car, next to a heater, etc... This action could permanently damage the internal parts of your Camcorder.
- AVOID SUDDEN CHANGES IN TEMPERATURE ... If the unit is suddenly moved from a cold place to a warm place, moisture may form on the tape and inside the unit.
• DO NOT LEAVE YOUR CAMCORDER OR THE POWER SUPPLY TURNED ON WHEN NOT IN USE.
- STORAGE OF YOUR CAMCORDER ... Store and handle your Camcorder in a manner that will not subject it to unnecessary movement (avoid shaking and striking). Your Camcorder contains a sensitive pick-up device which could be damaged by improper handling or storage.

CARE

• TO CLEAN YOUR CAMCORDER ... Do not use strong or abrasive detergents when cleaning your Camcorder body.

• TO PROTECT THE LENS ... Do not touch the surface of the lens with your hand. Use a commercial camcorder lens solution and lens paper when cleaning the lens. Improper cleaning can scratch the lens coating.

• TO PROTECT THE FINISH OF YOUR CAMCORDER ... Before handling your Camcorder, make sure your hands and face are free from any chemical products, such as suntan lotion, as it may damage the finish.

Table of Contents

Getting Started

Things You Should Know 2

Important Safeguards 3

Precautions 4

Quick Guide 6

Supplying Power 8

Cassette Information 11

Setting the Clock 12

Using the Palmcorder Menu 13

MENU OSD 14

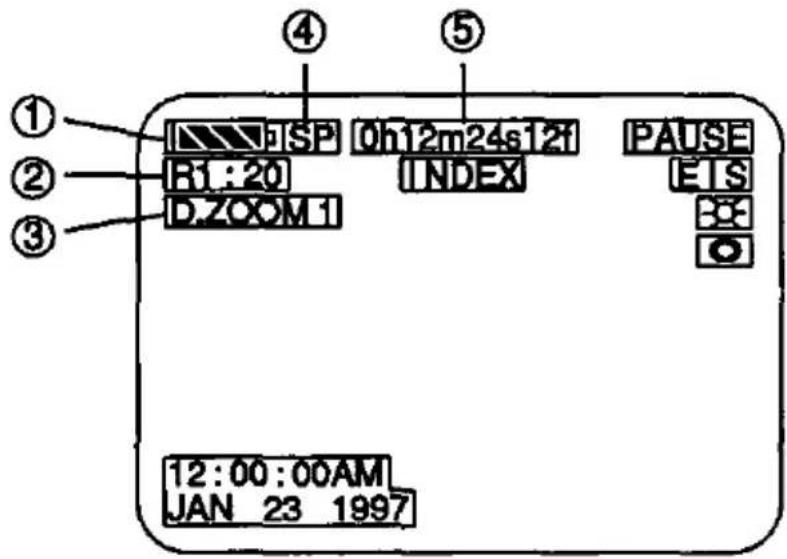

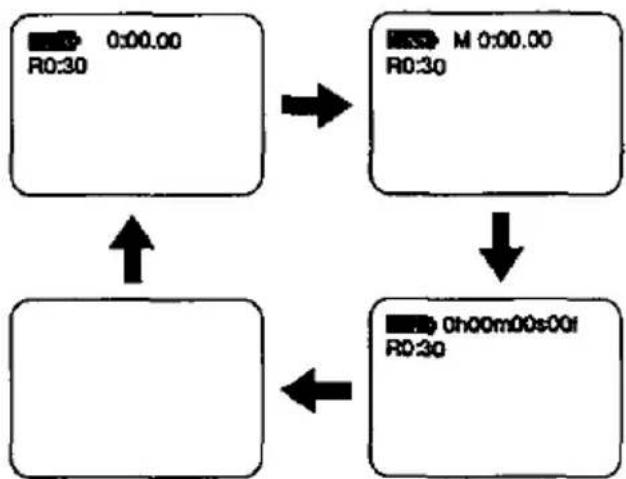

Electronic Viewfinder Indications 16

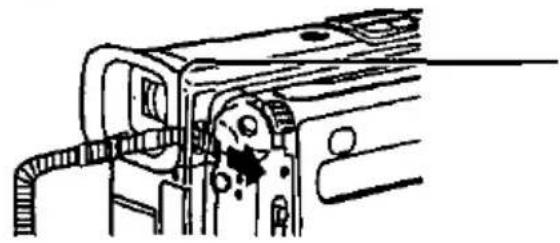

Attaching the Shoulder Strap 20

Basic Operation

Camera Recording 21

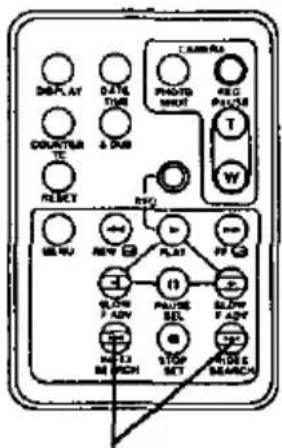

Remote Control 23

Playback Your Recordings 25

Special Features

Digital Electronic Image Stabilization System (D.E.I.S.) 30

Zoom 31

Digital Photo Shot 32

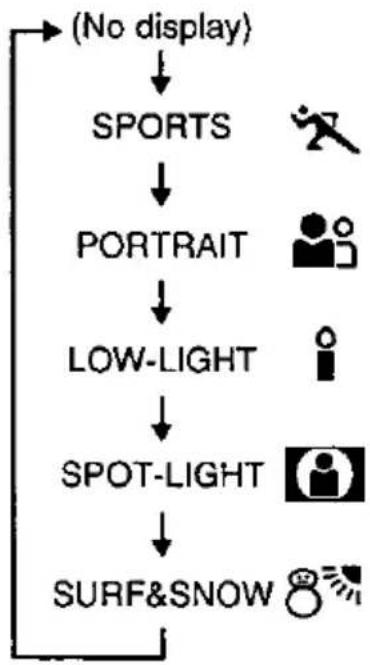

Program AE 33

Digital Functions 34

Focus 35

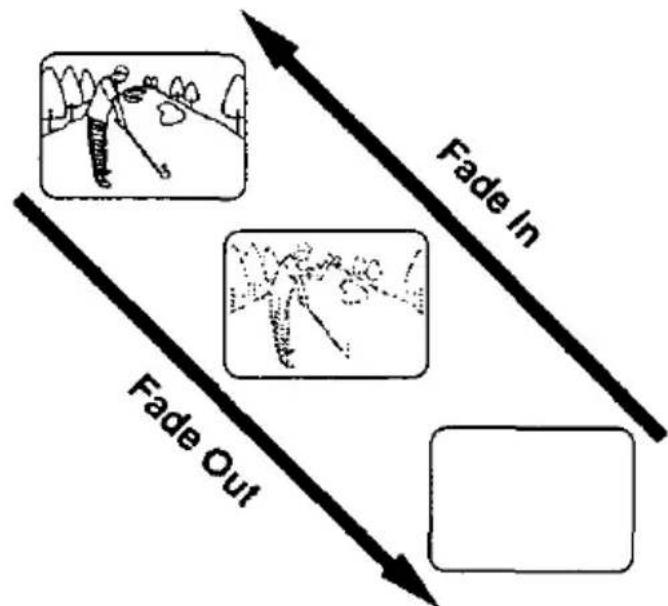

Audio/Video Fade In/Out 36

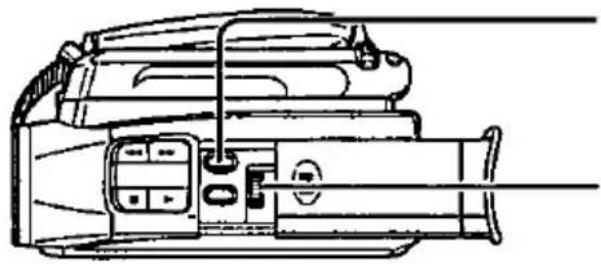

White Balance 37

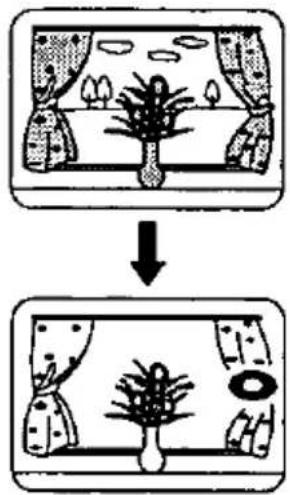

Backlight 37

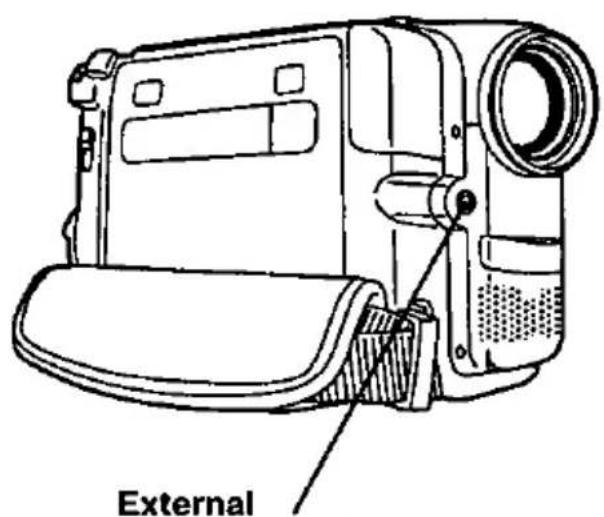

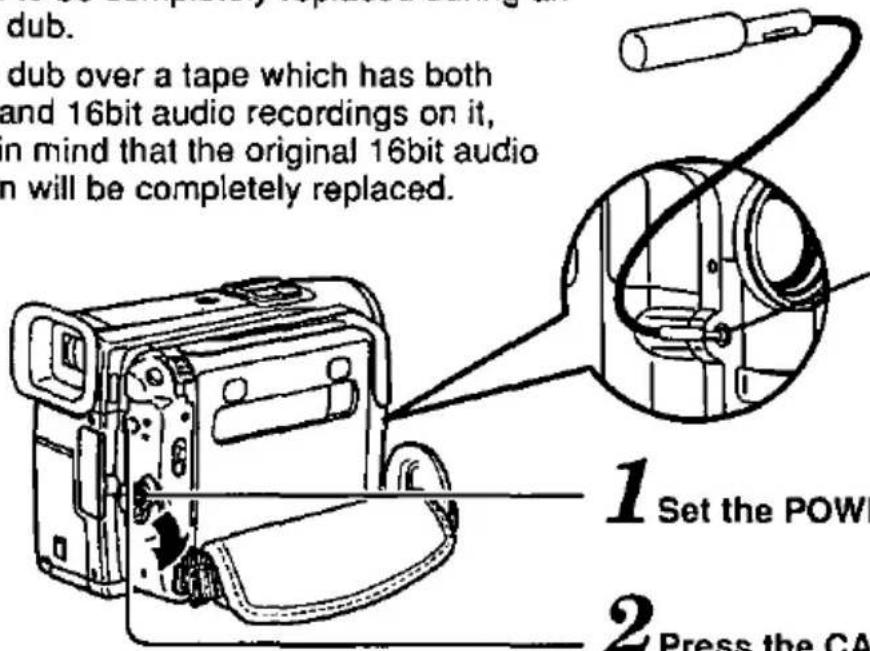

Audio Dubbing using the External or Built-in Microphone 38

Audio Dubbing using the DV Terminal 40

Memory-Stop Editing 41

Copying your Tapes to S-VHS or VHS Cassette 42

Copying from Digital Equipment (dubbing) 43

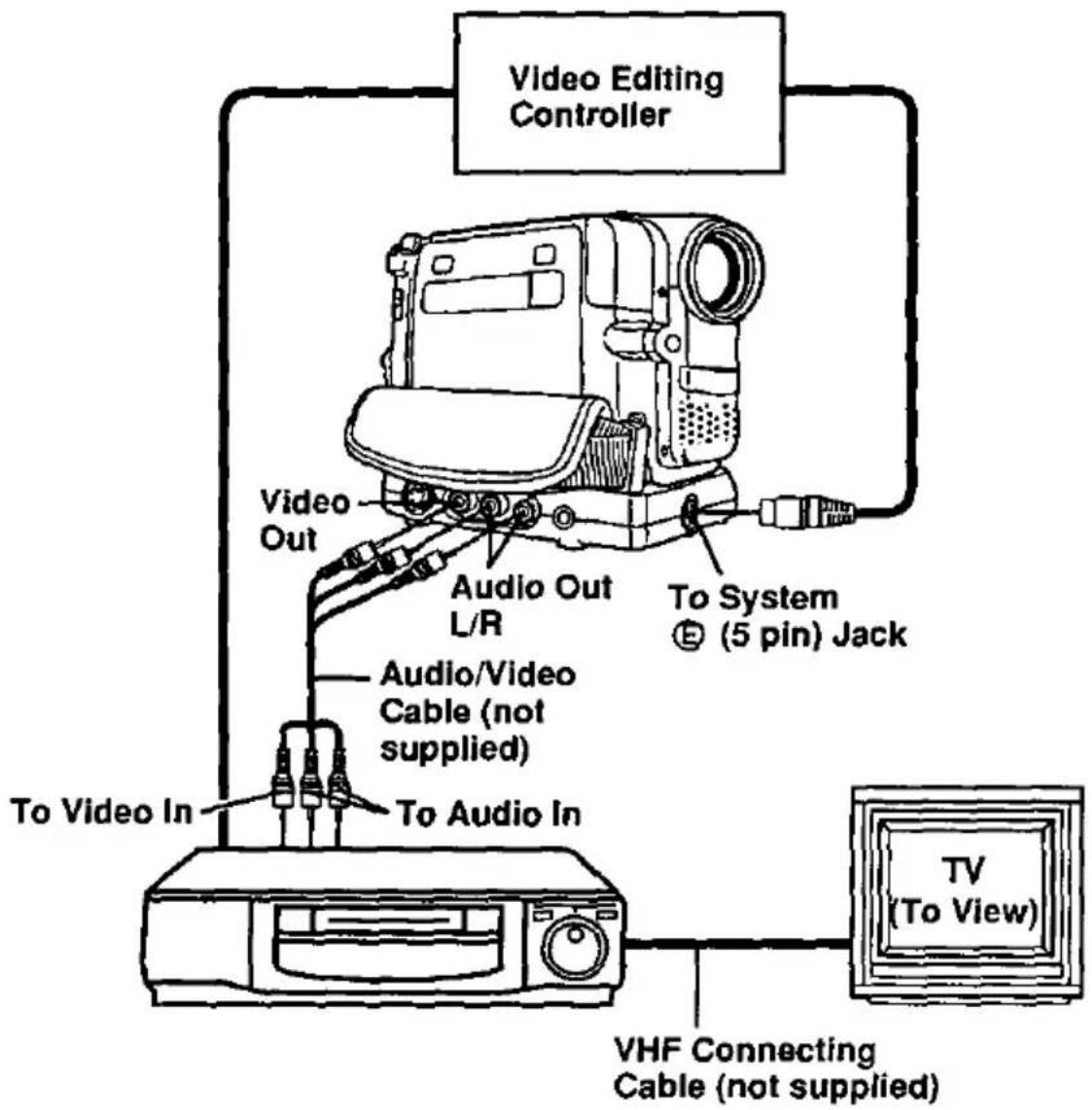

System (5 pin) Jack 44

For Your Information

Palmcorder Accessory System 46

Paimcorder Accessory Order Form 47

Notes Regarding Operations 48

Specifications 49

Before Requesting Service 50

Request for Service Notice 51

Index of Controls 52

Carring Case 56

Index 56

Warranty 57

Spanish Quick Use Guide/Guía Para Uso Rápido 59

Quick Guide

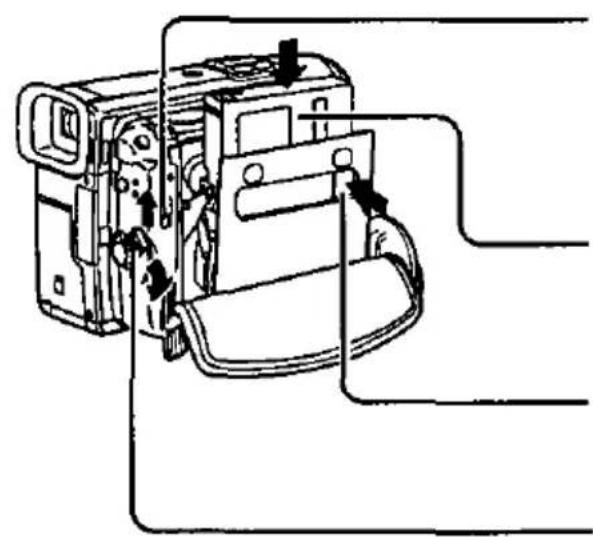

Camera Recording

Line drawing of a handheld device with handle and control panel (no text or symbols)

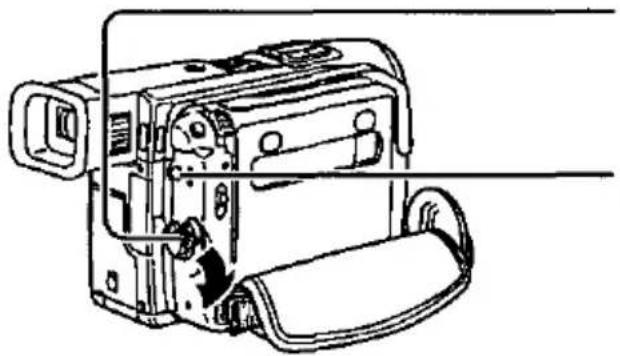

Before you begin...

- Charge the Battery (see page 8).

1 Slide the BATTERY DOOR OPEN Button to open the Battery cover.

2 A Insert the Battery into the Battery Compartment until it locks with a click. B Close the Battery Cover.

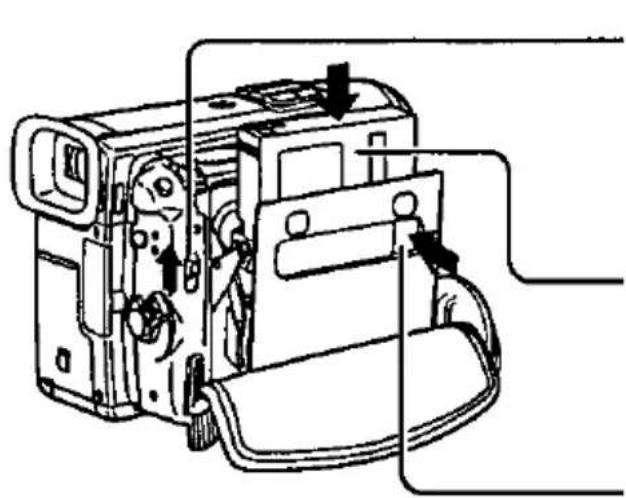

3 Slide the TAPE EJECT switch to open the door. • It takes a few seconds for the mechanism to eject. 4 Insert a cassette with its window side facing out. • Make sure record tab is closed. (see page 11). 5 Press here to close the door. 6 Set the POWER switch to ON.

Technical line drawing of a mechanical device with no visible text or symbols

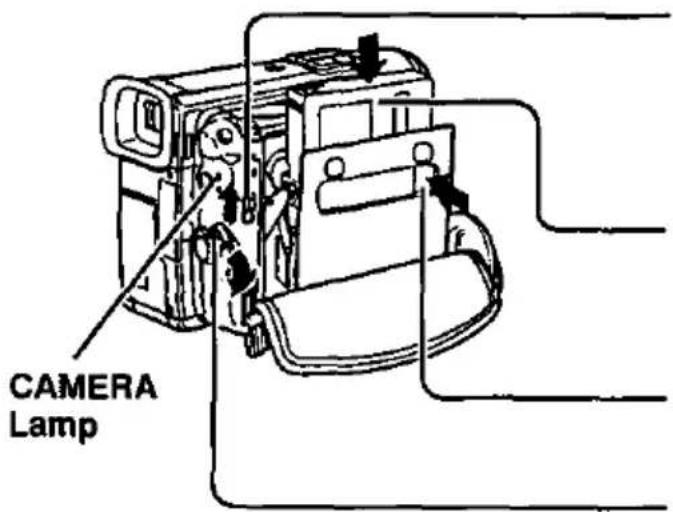

7 Press CAMERA/VCR. The CAMERA lamp lights red.

8 Slide the Viewfinder to its fully extended position and adjust the Vision Adjustment Control to your eyesight.

(Continued on next page.)

Line drawing of a vintage digital camera with scroll wheel and lens (no text or symbols)

9 Press RECORD/PAUSE to start recording. Press RECORD/PAUSE again to pause recording.

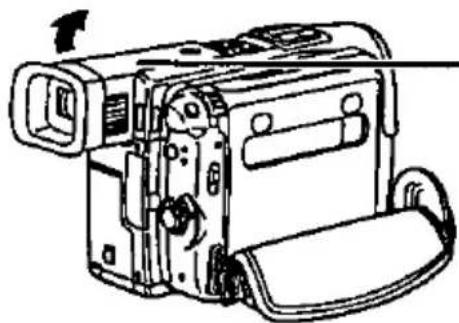

To Watch Playback in the EVF (Electronic Viewfinder)

VCR Lamp

Line drawing of a digital camera with lens and frame (no text or symbols)

1 Set the POWER switch to ON.

2 Press CAMERA/VCR.

The VCR lamp lights green.

Line drawing of a vintage digital camera with scroll wheel and control panel (no text or symbols)

3 Slide the Viewfinder to its fully extended position.

- If desired, the Viewfinder can be swung up for an angled viewing position.

4 Press REW to rewind the tape.

Technical line drawing of a mechanical device with internal components (no text or symbols)

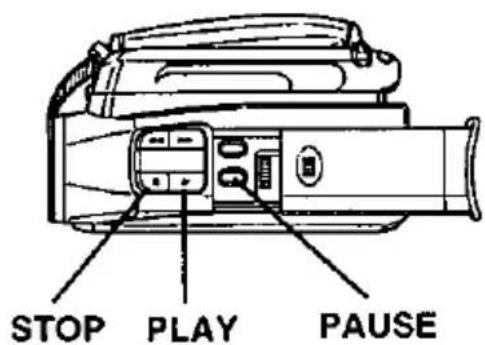

5 Press PLAY to start playback.

6 Press STOP to stop playback.

Supplying Power

Charge the Battery Pack on the AC Adaptor

1 Connect and plug in the Cords as shown.

• POWER Lamp will light.

2 Attach the battery as shown to charge.

- Charge lamps on the AC Adaptor will flash and then turn solid green to indicate current charge level. When all 4 lamps are constantly on, the battery is fully charged. (approx. 1 hour 20 minutes) Expect approx. 1 hour of operation when fully charged.

3 Remove the Battery.

Slide the Battery out and then lift up.

Battery Charging Confirmation Marker Use this marker as a reminder to yourself when the battery is fully charged or in need of a charge. This marker performs no function and is for your reference only.

- The Battery is no longer serviceable if the operation time is very short, even after a sufficient charge.

Battery Care

Caution:

• Charge only with specified charger.
• The Battery can be charged within a temperature range of 32^ (0^) and 104^ (40^) .
• The Battery may be warm after charging or just after use. This is normal.
• Do not use an insufficiently charged or worn out Battery.
• In extreme cold surroundings, Battery charging time will increase.

Safety precautions:

• Do not get the Battery near, or dispose of in fire.
• Do not directly connect (short circuit) the positive (+) and negative (−) terminals.
• Never attempt to disassemble or reassemble the Battery.

To avoid damage to the Battery:

• Do not drop or jar the Battery.
• Use the Battery with specified models only.
• If the Battery is used in extremely high temperatures, a safety device will automatically prevent operation.

To insure longer battery life:

• While not in use, remove Battery from the Palmcorder and AC Adaptor and store in a cool, dark, dry place. If you leave the Battery in the Palmcorder or on AC Adaptor, the Battery will no longer be rechargeable.
• Keep the Battery terminals clean.

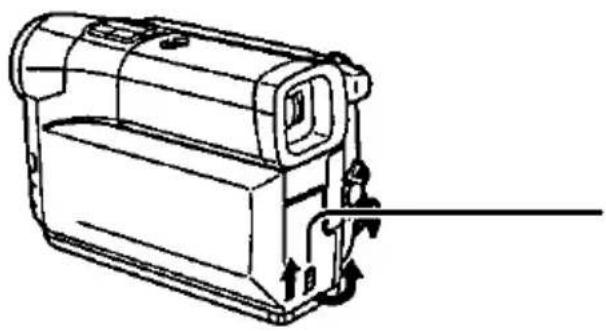

Insert/Remove the Battery Pack

Line drawing of a digital camera module with no text or symbols

1 Slide the BATTERY DOOR OPEN Button to open the Battery cover.

2 A Insert the Battery into the Battery Compartment until it locks with a click. B Close the Battery Cover.

Line drawing of a handheld electronic device with no visible text or symbols

To remove the Battery: Follow step 1 above. Then, press the BATTERY RELEASE catch and remove.

Supplying Power

AC Adaptor

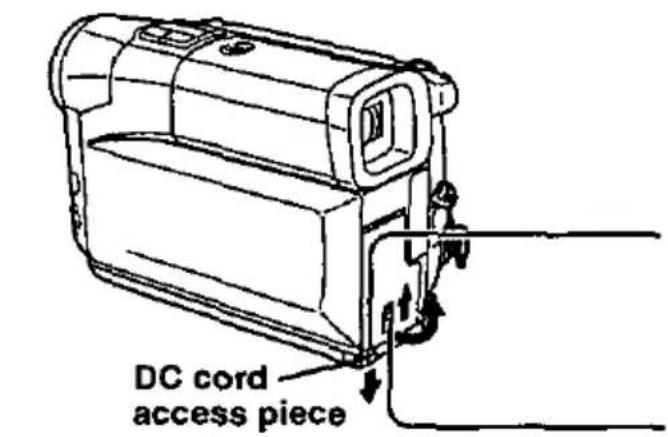

1 Gently extend the DC cord access piece downward.

• To avoid damage, be careful not to pull it out too far.

2 Slide the BATTERY DOOR OPEN button to open the Battery Cover.

3 Insert the DC Power Cable (battery shaped side) into the Battery Compartment.

Line drawing of a vintage digital camera with attached cable (no text or symbols)

4 Close the Battery Cover until it locks. • Make sure the DC Power Cable is not pinched.

5 Connect the other end of the DC Power cable to the AC Adaptor as shown.

6 Plug in the AC Adaptor. The POWER Lamp lights up.

Note:

- When not in use, unplug the AC Adaptor from the AC outlet. (AC Adaptor consumes 2W of electric power when plugged into an AC outlet even when not in use.)

DC Power Cable

AC Cord

Cassette Information

Cassette Insertion

Connect the Palmcorder to a power source.

Line drawing of a device interior with arrows indicating movement or force (no text or symbols)

1 Slide the TAPE EJECT switch to open the cassette door.

2 Insert a cassette (supplied) with its window side facing out.

3 Press here only to close the door.

Record Speed/Playback Time

Use only those tapes having the "IN" logo indicating the 6.35mm digital standard.

Cassette type	Record Speed/Playback time
	SP	LP
AY-DVM30EA	30 minutes	45 minutes
AY-DVM60EA	60 minutes	90 minutes

Erase Protection

Cassettes have a sliding record tab to ensure recordings are not accidentally erased.

Two identical 3D rectangular electronic devices with internal components and directional arrows indicating movement (no text or symbols)

1 To prevent accidental erasure Slide the tab to the left (open).

2 To record again Slide the tab to the right (close).

Setting the Clock

Set the Date and Time

The date and time is calculated, including leap year, up to DEC. 31 2089.

Technical line drawing of a vehicle interior showing dashboard, air vent, and seat components (no text or labels)

EXAMPLE:

YEAR : 1996

Rotate

YEAR : 1997

Push

MONTH : JAN

Before you begin...

• Connect the Palmcorder to a power source.
• Set the POWER switch to ON.

1 Press MENU to display the Camera Mode menu screen (see page 13).
2 Rotate the SELECT SET WHEEL to select CLOCK-SET.
3 Press SELECT SET WHEEL down to select CLOCK-SET ON. The DATE/TIME SETTING menu appears.
4 Rotate the SELECT SET WHEEL to select the desired numbers, then, press SELECT SET WHEEL down to fix that portion and move to the next. Adjust the shaded items for the Year, month, day, hour, and minute.

When time setting is completed, press the MENU button to start the clock.

Note:

If you should pass the current year, continue pressing down on the SELECT SET WHEEL until the year appears again.

Using the Palmcorder Menu

The Palmcorder features two menu displays: one for camera mode (recording) and the other for VCR mode (Playback).

• While the Menu screen is displayed, you cannot record or play the tape.
• While recording, the Menu screen will not be displayed.
• While playback, the Menu screen can be displayed.

Displaying the MENU

Before you begin...

• Connect the Palmcorder to a power source.
• Set the POWER switch to ON.

1 Press the MENU button to display the CAMERA menu.

2 Press CAMERA/VCR to change to the VCR menu if desired.

Setting the MENU Items

1 Rotate the SELECT SET WHEEL to select a menu item.

- Character color will change from white to green indicating your selection.

2 Press down on the SELECT SET WHEEL to set your selection.

- The "●" mark will indicate your selection.

3 Press MENU to exit from the display. Note:

- The EVF can only display seven MENU items at a time. Rotate the SELECT SET WHEEL to display additional lines.

Camera Mode Menu Screen

① EIS OFF ● ON
② D. ZOOM OFF ●25× 100×
③ D. FUNCTION OFF WIPE MIX STROBE GAINUP N/P SEPIA MONO TRAIL SOLARI
④ W.BALANCE AUTO
⑤ SHUTTER OFF ●ON
⑥ REC-SPEED ●SP LP
⑦ AUDIO-REC ●12bit 16bit
⑧ WIND-CUT ●OFF ON
⑨ COUNTER OFF ●LINEAR
⑩ C.RESET ●OFF ON
⑬ DATE/TIME OFF ●D/T DATE
⑫ REMOTE OFF ●VCR1 VCR2
⑬ INDEX ●DAY 2HOUR
⑭ TALLY-LED OFF ●ON
⑮ CLOCK-SET ●OFF ON

① EIS (page 30) Set to ON to stabilize the picture when the camera cannot be held stable.

② D. ZOOM (page 31) OFF: Optical zoom from 1× to 10×. 25×: Digital zoom from 10× to 25×. 100×: Digital zoom from 10× to 100×.

③ D. FUNCTION (page 34) Select from nine different digital effects while recording.

④ W.BALANCE (page 37) When the source of illumination is a halogen lamp. When shooting outdoors on a sunny day. When the source of illumination is a fluorescent lamp. AUTO: Automatically maintains optimum color balance in most lighting conditions.

⑤ SHUTTER (page 32) To hear a shutter sound effect when the digital photo shot is button is pressed.

⑥ REC-SPEED (page 11) SP: Standard Play LP: Long Play

⑦ AUDIO-REC (page 38) 12 bit: 12 bit (32kHz) Audio Recording. 16 bit: 16 bit (48kHz) Audio Recording.

⑧ WIND-CUT (page 21) Set to ON to reduce the wind noise of the microphone during recording.

⑨ COUNTER (page 16) Select the desired counter type indication.

⑩ C.RESET (Counter Reset) (page 41) To set or reset the counter to 0:00:00.

⑪ DATE/TIME (page 17) OFF: No date or time display. D/T: Display date and time. DATE: Display date only.

⑫ REMOTE (page 23) VCR1: Receives signal from the Remote Control set to VCR1. VCR2: Receives signal from the Remote Control set to VCR2. OFF: Will not respond to any signal from the Remote Control.

⑬ INDEX (page 27)

2 HOUR: An invisible index mark is automatically placed on the tape at the beginning of the recording when there is an interval of 2 hours or more between recordings.

DAY: An invisible index mark is automatically placed on the tape at the beginning of the first recording of each day.

Index marks are also placed on the tape in the following conditions:

The first recording after cassette is inserted.

The first recording after changing from VCR mode to CAMERA mode.

④ TALLY-LED (page 21)

Tally LED lights during recording when set to ON.

⑮ CLOCK-SET (page 12)

To set the clock, select ON.

VCR Mode Menu Screen

1 INDEX	●PHOTO	SCENE
2 B.SEARCH	●OFF	ON
3 AUDIO	●ST1	ST2 MIX
4 REC-SPEED	●SP	LP
5 A-DUB	●MIC	DV
6 COUNTER	OFF	●LINEAR
	MEMORY	T.CODE
7 C.RESET	●OFF	ON
8 DATE/TIME	OFF ●D/T	DATE
9 REMOTE	OFF ●VCR1	VCR2
10 CLOCK-SET	●OFF	ON

① INDEX (pages 27, 32)
PHOTO: Searches for Photo Shot recordings.
SCENE: Searches for indexed recordings.
② B.SEARCH (Bookmark Search) (page 22) Select ON to go directly to a blank portion of the tape.
③ AUDIO (The following selection is for 12bit recording only) (pages 38, 39)
ST1: Listen to the original sound only.
ST2: Listen to the audio dubbed sound only.
MIX: Listen to both the original sound and the dubbed sound.
④ REC-SPEED (page 11)
Same as ⑥ in the Camera mode menu.
⑤ A-DUB (pages 38, 40)
MIC: Record sound from either the built-in microphone or an external microphone. DV: Record sound from another DV unit.
⑥ COUNTER (page 16)
Same as ⑨ in the Camera mode menu.
⑦ C.RESET (Counter Reset) (page 41)
Same as ⑩ in the Camera mode menu.
⑧ DATE/TIME (page 17)
Same as ① in the Camera mode menu.
⑨ REMOTE (page 23)
Same as ⑫ in the Camera mode menu.
⑩ CLOCK-SET (page 12)
Same as ⑮ in the Camera mode menu.

Electronic Viewfinder Indications

Here are some of the basic indications which appear in the Palmcorder EVF. These indications except the Date and Time will not be recorded on the tape.

① Battery Remaining

② Tape Remaining

- It will take several seconds for the tape remaining indicator to operate after the tape starts moving.

③ Digital Zoom (see page 31) This display appears when the digital zoom function has been activated.
④ Tape Speed Indication (see page 14) Indicates the tape speed (SP or LP).

⑤ Counter/Time Code

The indication switches as shown below when the desired "COUNTER" mode is selected from the menu (see page 14) or the COUNTER/TC button on the remote is pressed.

- Even if display off is selected the Tape Mode and Date and Time indication can be displayed.

Memory Counter M 0:00.00

The Palmcorder will stop whenever it reaches the point where the counter was previously set to M 0:00.00 during audio or video dub, fast forward or rewind.

Time Code 0h00m00s00f

The Palmcorder calculates and displays exactly where you are on any tape in terms of hours, minutes, seconds, and frames (30 frames = 1 second).

• This display can not be reset.

Electronic Viewfinder Indications

⑥ Date and Time Indication (see page 12)

As shown below, the date and time indication changes each time the DATE/TIME is selected from the Palmcorder's MENU (see page 14) or the DATE/TIME button is pressed on the remote.

⑦ INDEX (see page 27) This display appears when an index signal is being recorded.

⑧ Tape Mode Indications REC Recording. PAUSE Paused during reco PLAY Playback. R PLAY Repeat Playback. FF Fast forward. REW Rewind. SEARCH Book Mark Search.

⑨ Digital EIS Indications (see page 30)
⑩ Zoom Magnification Level (see page 31)
⑪ Manual Focus Indication (see page 35)
⑫ White Balance Indication (see page 37)
⑬ PROGRAM-AE indication (see page 33)
⑭ Backlight indication (see page 37)

Electronic Viewfinder Indications

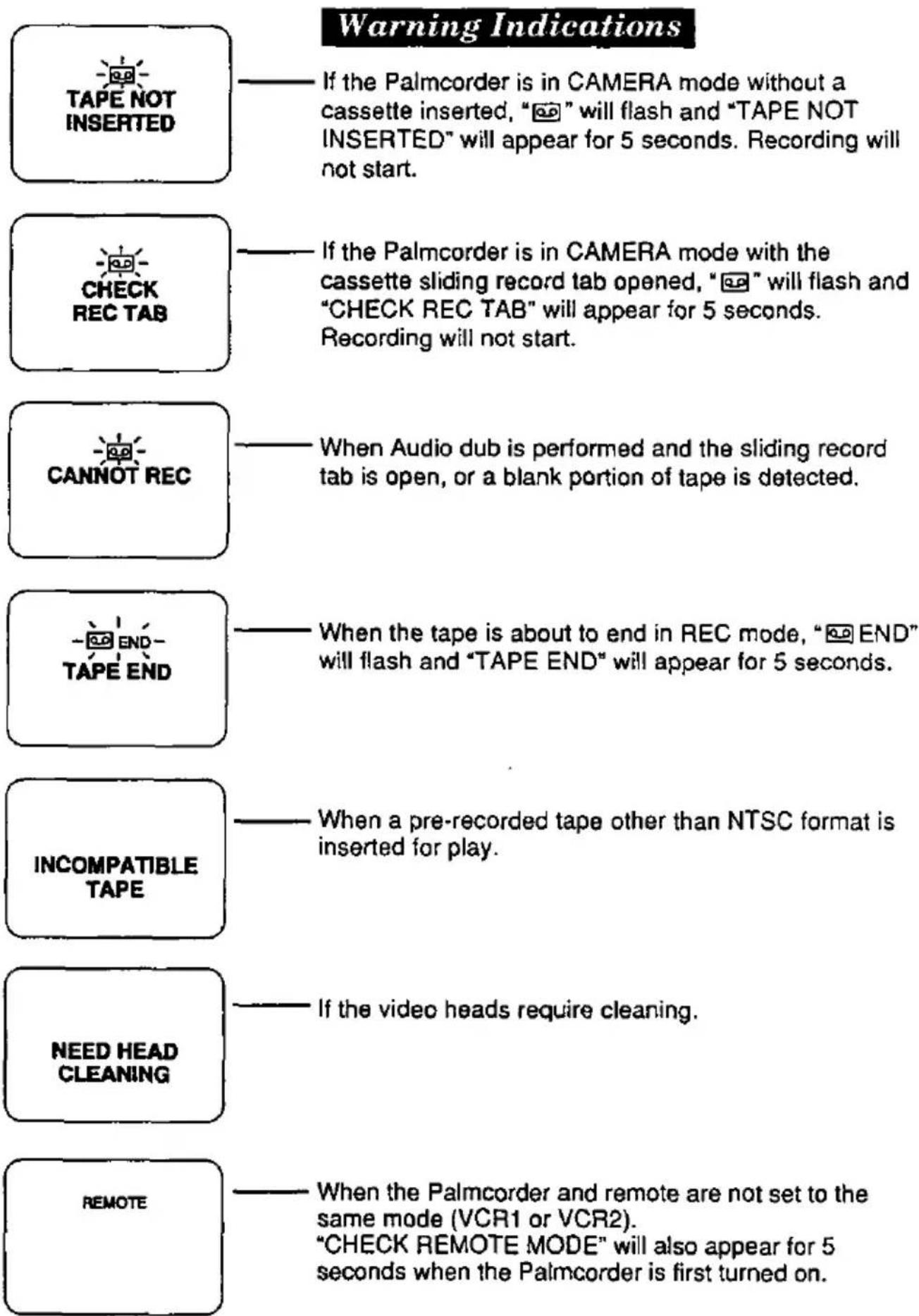

The following warning displays appear in the EVF.

Electronic Viewfinder Indications

Attaching the Shoulder Strap

Pure mechanical assembly diagram without any text, numbers, or symbols

Mechanical assembly diagram showing a fastener and chain connection (no text or labels)

1 Thread one of the strap ends through the strap attachment slot on the Palmcorder.

- You may need to jiggle the strap a little to get it to go through.

2 Fold the strap end over and slide the clasp over and up to the Palmcorder attachment slot.

3 Pull a large loop of the strap loose from the Buckle and thread the strap end through the Buckle as shown.

• Make sure the strap is not twisted.

4 Attach the other strap end to the strap attachment ring located on the hand strap following steps 1-3.

Adjust the Length

Hand Strap

Lens Cap

Line drawing of a vintage digital camera with attached cable and lens (no text or symbols)

1 Loosen the strap from the Buckle and create a loop.

2 Pull the strap firmly through the Buckle to shorten or lengthen the strap.

Adjust the length of the Hand Strap to the size of your hand as illustrated.

Attaching the Lens Cap Cord to the Hand Strap

Remove the Hand Strap from the front clasp and run the Strap through the Lens Cable Loop.

Reattach the Hand Strap.

Camera Recording

Simple Recording

Remove the lens cap and clip it to the hook.

Diagram showing two devices connected by wires, one with a magnified inset view (no text or symbols)

Before you begin...

• Connect the Palmcorder to a power source.
• Insert a cassette with record tab closed (see page 11).

Tally Lamp

Flashes during Remote Control operation (see page 23).

Line drawing of a vintage digital camera with attached strap and control panel (no text or symbols)

1 Set POWER to ON.

The CAMERA lamp lights red.

Line drawing of a digital camera with scroll wheel and adjustment knob (no text or symbols)

Record/Pause mode.

2 Record/Pause mode. With the Viewfinder Eye Cup up to your eye, adjust the Vision Adjustment Control to your eyesight.

3 Press RECORD/PAUSE to start recording.

The Tally Lamp will be on.

To turn the Tally Lamp off, see TALLY-LED on page 14.

Press RECORD/PAUSE again to pause recording.

• To reduce microphone wind noise, set the WIND-CUT to ON (see WIND-CUT on page 14).

WARNING:

• Do not leave the Palmcorder with the EVF aimed directly at the sun as this may cause damage to the internal parts of the EVF.
• Do not lift or carry the Palmcorder by the EVF.

- When Palmcorder is aimed at excessively bright objects, or bright lights, a vertical bar may appear in the picture. This is a normal characteristic of the CCD pick-up device. Try to avoid this whenever possible.

To conserve power

After 5 minutes, the Record/Pause mode will automatically change to Standby mode.

To resume recording, set POWER to OFF and then ON again.

Camera Recording

Edit Search

You can visually search for scenes during CAMERA mode to maintain proper continuity when taping.

Line drawing of a digital camera with handle and screen (no text or symbols)

1 Set POWER to ON.

2 In RECORD/PAUSE mode, hold down EDIT SEARCH ➤ to perform a forward visual search and EDIT SEARCH ← to perform a reverse visual search. Releasing the button stops the search.

3 Press RECORD/PAUSE to continue recording.

Record Review:

Press EDIT SEARCH ← once while in Record/Pause mode to review the last few seconds of your recording.

Note:

• During Edit Search, the picture will become mosaic and the sound will be muted.
• Make sure the SP/LP tape speed setting is the same as the recording to eliminate distortion during edit search.

Abstract black-and-white geometric pattern with overlapping squares and triangles (no text or symbols)

Book Mark Search

You can go directly to a blank portion of tape and start recording exactly where you left off.

Line drawing of a vintage digital camera with scroll wheel and lens (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

1 Set the POWER switch to ON.

2 Press CAMERA/VCR.

VCR lamp lights (green lamp).

3 Press MENU to display the menu screen. Then rotate the SELECT SET WHEEL to select B.SEARCH (see page 15).

4 Press the SELECT SET WHEEL to select ON. The Palmcorder will start a forward Book Mark Search.

Remote Control Operation

You can operate the major functions of your Palmcorder from up to approximately 16 feet (5 m) away (indoors). Aim the Remote Control toward the front of the Palmcorder and press the desired buttons (sensor is located under the lens).

To operate Camera functions:

Set the POWER switch to ON and make sure CAMERA lamp is red.

To operate VCR functions:

Set the POWER switch to ON, press CAMERA/VCR button, and make sure the VCR lamp is green.

Controlled Functions

Rec/Pause (see page 21)

Tele (Zoom) (see page 31)

Wide (Zoom) (see page 31)

Date/Time (see page 17)

Reset (see page 41)

Photo Shot (see page 32)

Display (see page 29)

Counter/Time Code (see pages 16, 41)

Audio Dubbing (see page 38)

Record (see page 43)

Menu (see page 13)

Play (see page 25)

FF/Search (see page 25)

REW/Search (see page 25)

Pause/Select (see page 26)

Stop/Set (see page 25)

Slow/Frame Advance (Forward) (see page 26)

Slow/Frame Advance (Backward) (see page 26)

Index Search (Forward) (see page 27)

Index Search (Backward) (see page 27)

Top Scan (see page 27)

Remote Controlling Two Palmcorders

You can control any two PV-DV700's with one Remote control. In order for the remote to distinguish between the two units, it is necessary to set one of the Palmcorders to VCR 2. On the remote, press VCR 1 or VCR 2 to control the desired Palmcorder.

For VCR 2: Press these buttons at same time.

For VCR 1: Press these buttons at same time.

1 Display the menu and select REMOTE VCR 2 on one Palmcorder (see pages 14 and 15). Leave the other Palmcorder set to VCR1.

2 Set the Remote Control to VCR 1 or VCR 2 to correspond with the Palm-corder you wish to control. (See illustration at left.)

Note:

- When the Palmcorder and remote are not set to the same mode (VCR1 or VCR2). "CHECK REMOTE MODE" will also appear for 5 seconds when the Palmcorder is first turned on.

REMOTE

• After replacing the Remote Control Battery, the remote will default to VCR 1.

Remote Control

Replace the Battery

1 Insert a slender, pointed object, such as the tip of a ball-point pen into the slot so that it fits into the hole (as shown) ①. Then, while sliding to the right, pull the battery holder out with your fingernail.

2 Insert the battery into the Battery Tray with the ⊕ mark facing up. Do not reverse the polarity.

Simple line drawing of a mechanical component with a curved pipe and base, no text or symbols present

3 Replace the Battery Tray.

Replace battery with Panasonic PART NO. VSBW0004 (CR2025) only. Use of another battery may present a risk of fire or explosion. Caution-battery may explode if mistreated. Dispose of used battery promptly. Keep away from children. Do not recharge, disassemble or dispose of in fire.

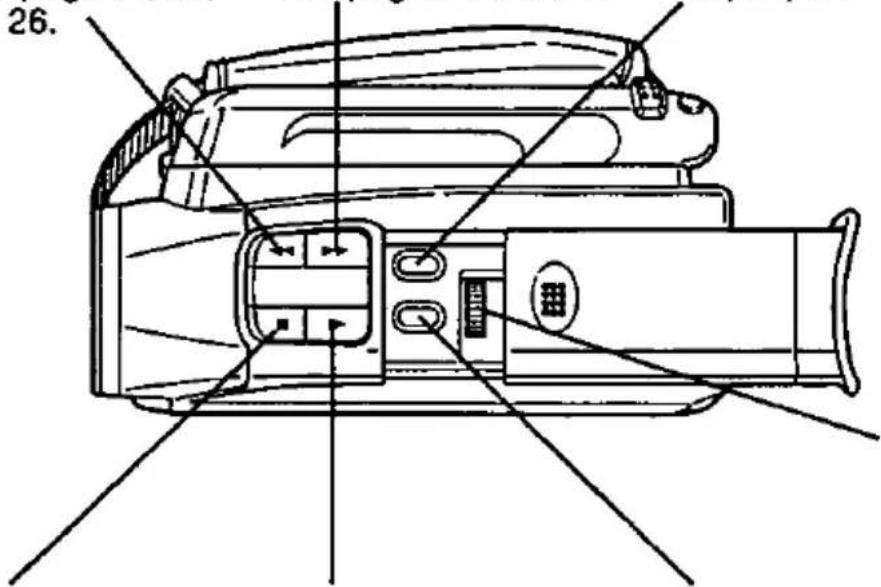

Playback Your Recordings

Playback using the EVF

Before you begin...

• Connect the Palmcorder to a power source.
• Insert a recorded cassette.

Line drawing of a vintage digital camera with handle and screen (no text or symbols)

1 Set the POWER switch to ON.
2 Press CAMERA/VCR. VCR lamp lights.
3 Press REWIND/SEARCH to rewind the tape.
4 Press PLAY to start playback.
5 Press STOP to stop playback.

• When the tape reaches its beginning during rewind or rewind search, it will stop automatically.
• If you press PLAY for more than 5 seconds, the Palmcorder will start the Repeat Playback mode when the tape reaches its end. The letter "R" will appear in the EVF. To exit the Repeat mode, turn the Palmcorder OFF.

R PLAY

Note:

- When a tape recorded in LP mode on another digital video camera is played back on this unit, the picture may appear mosaic.

Playback Your Recordings

Special Effect Features During Playback

(Sound is muted during all special effects)

Fast Forward/Rewind Check

Monitor normal picture playback during fast forward or rewind.

• Hold down the FAST FORWARD/SEARCH during fast forward.
• Hold down the REWIND/SEARCH during rewind.
• The picture will appear for as long as the button is held down.

Rapid Visual Search

During playback, hold down FAST FORWARD/SEARCH or REWIND/SEARCH buttons.

The search will continue for as long as the button is held down.

OR

Press FAST FORWARD/SEARCH or REWIND/SEARCH buttons once for a continuous rapid visual search.

Press PLAY to release.

Note:

- When executing a rapid visual search, the picture may become bluish for an instant or mosaic. This is normal during this mode.

Abstract geometric pattern with scattered squares and a central heart shape (no text or symbols)

STILL Picture

Press PAUSE during playback. Press PLAY or PAUSE to release.

Note:

• To protect the tape and video heads, your Palmcorder's operating modes will revert as follows:
  STILL → STANDBY after 5 minutes.
  STANDBY → POWER OFF after 5
  minutes when using a Battery Pack.

Slow Motion Playback

Forward Slow = Press ▶ SLOW/F.ADV during play.

Reverse Slow = Press ◀ SLOW/F.ADV during play.

Press PLAY to release. (During reverse slow motion playback, time code indication may not change regularly.)

Note:

• Palmcorder will automatically STOP when in slow motion for more than 10 minutes.
• During slow motion playback, picture may move up and down. This is normal.
• When you start or stop slow motion playback, the picture may become bluish for an instant.

Playback Your Recordings

Special Effect Features During Playback Continued

(Sound is Muted during all special effects)

Frame by Frame Advance

Press PAUSE during playback.

Press ▶ SLOW/F.ADV to do a frame by frame advance.

Press ← SLOW/F.ADV to do a frame by frame reverse.

Press PLAY to release.

Note:

• If you hold down SLOW/F.ADV, you can see a continuous series of still images at a slower speed than normal slow mode.
• During frame by frame advance, a few frames may move automatically, and the picture may become bluish for an instant.

Jog Frame by Frame Search

(Palmcorder only)

During Still mode, rotate the SELECT SET WHEEL to advance or reverse the picture one frame at a time.

Index Forward/Reverse Search (Remote Control only)

Search for a particular scene by using the electronic index marks placed at the beginning of each recording. (See page 15 for details on the two different kinds of index marks.)

1 Place Palmcorder in the VCR STOP mode.
2 Press the INDEX SEARCH fast forward or rewind buttons the number of recordings (indexes) forward or back to want to view. The Palmcorder will advance or rewind to the desired recording and automatically PLAY.
- The number of times you press the button is displayed in the EVF if you set INDEX on the VCR menu to SCENE (see page 15). (Ex., if you press the button three times, "S3" will appear.)
- If the interval between scenes is less than 1 minute, index search may not operate properly.

Top Scan

If you hold down the INDEX SEARCH button more than 2 seconds, the Palmcorder will scan for scenes (or photo shots) and playback the first few seconds of each.

To cancel this function, press PLAY or STOP.

Playback Your Recordings

Install the Docking Station for TV Viewing

Your Palmcorder may be connected to a TV to play back tapes or to view what you are recording by connecting to the Docking Station.

Before you begin...

• Connect the Palmcorder to a power source.
• Connect the Palmcorder to your TV as illustrated at left.

IMPORTANT:

Turn off the Palmcoder and Docking Station before power connecting.

1 Place the Palmcorder onto the Docking Station.

2 Tighten the Locking Screw located on the bottom of the Docking Station.

Note:

• Use an AC Adaptor PV-DAC7 (included) so that you do not have to worry about depleting the battery.
• Connect earphones (not supplied) to the PHONES jack.

Playback Your Recordings

Connections

TV with AUDIO/VIDEO IN Jacks.

TV with S-VIDEO IN Jacks.

For best Chrominance and Luminance it is suggested to use the S-Video connection if available on your TV.

1 Set the POWER switch to ON.

The CAMERA lamp lights.

You can now view what the Palmcorder is recording on your TV.

Or, to playback a tape, press the CAMERA/VCR button.

The VCR lamp lights.

You can now playback a recorded tape on your TV.

2 Turn your TV ON and set it to LINE INPUT or S-VIDEO.

Check your TV operating instructions for further information.

3 Start playback or begin a recording.

Note:

• Make sure the Palmcorder and TV are turned off while connecting.

You can display the various EVF indications on your TV by pressing DISPLAY on remote control. Press again to remove the indications.

CATV System Installer

This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC in USA (and to the Canadian Electrical code in Canada) that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

Special Features

Digital Electronic Image Stabilization System (D.E.I.S.)

Before you begin...

- Set the POWER switch to ON.

This feature helps stabilize the picture in situations such as walking or shooting from a moving vehicle.

1 Press MENU to display the menu screen.
2 Rotate and press the SELECT SET WHEEL to select EIS and set ON (see page 14).

• Picture flicker may be observed when taping under fluorescent lighting conditions.

• Turn D.E.I.S. OFF during recording when using a tripod.

3 Set EIS OFF to cancel.

- Be sure that the D.E.I.S. is turned off when not needed.

D.E.I.S. may not function when...

• Palmcorder movement is too extreme.
• Recording a subject with distinct horizontal or vertical stripes.
  • Recording in low light situations.
• Recording a subject under a great amount of fluorescent light.
• Recording a scene with very fast motions.

Zoom

You can gradually zoom in for close ups or zoom out for wide angle shots.

The zooming speed ranges from a slow 15 seconds to a fast 3.7 seconds according to the amount of pressure applied to the zoom buttons.

Line drawing of a vintage digital camera with attached cable (no text or symbols)

Zoom slowly by lightly moving the power zoom switch toward the "T" (Telephoto) or the "W" (Wide Angle).

Zoom quickly by applying more pressure.

Digital Zoom

To enable this feature: Display the CAMERA mode menu (see page 14). Rotate the SELECT SET WHEEL to select D. ZOOM. Press down on the SELECT SET WHEEL to select 25x (D.ZOOM1) or 100x (D.ZOOM2).

D.ZOOM1

• The normal optical zoom functions from 1x to 10x.
• D.ZOOM1 functions from 10x to 25x. D.ZOOM2 functions from 10x to 100x.
• The magnification level is displayed in the EVF.
- Because the image is enlarged digitally, the picture may become distorted when higher magnification levels are used.
- When the level falls below 10x, the normal zooming function will resume.
- Focus length becomes 4 feet (1.2m) if the lens is in full telephoto.

Special Features

Digital Photo Shot

Use this feature to record a seven second (approx.) still image from the current camera picture. Audio is also recorded for on the spot narration. Or, you can add narration later with the Audio Dubbing feature to make an interesting slide show, etc. (see pages 38, 40).

Line drawing of a digital camera with attached cable and scroll (no text or symbols)

Technical line drawing of a firearm internal component (no text or symbols)

EVF Indication

Simple line drawing of a basketball going into the hoop, with no text or symbols present.

INDEX SEARCH Button

Before you begin...

- Set the POWER switch to ON.

1 Press PHOTO SHOT in Record/Pause mode.

"PHOTO" will appear in the EVF.

- If SHUTTER on the menu screen is set to ON, a sound effect similar to the shutter of a film camera will be heard when the tape is played back.

2 Press the CAMERA/VCR button to change to the VCR mode.

- Lamp should be green.

3 Press MENU to display the VCR mode menu screen in the EVF.

4 Rotate the SELECT SET WHEEL to select INDEX and press down to select PHOTO.

5 Press one of the INDEX SEARCH buttons on the remote control to advance or rewind the tape to playback a photo shot scene.

• To view the next photo shot, the INDEX SEARCH button must be pressed again.

Notes:

• The picture quality will deteriorate slightly.
- The tape remaining indicator will not appear while PHOTO SHOT feature is used.
- When the AUDIO-REC mode is changed, the shutter sound effect may not be able to be heard even when SHUTTER is set to on.

Program AE

The Auto Exposure feature can be used to make quality recordings in a variety of scene situations.

Technical line drawing of a mechanical device with no visible text or symbols

1 In camera mode, press PROGRAM AE repeatedly to select one of the five modes shown below.

2 Press PROGRAM AE and select no display to cancel this feature.

Sports mode

For recording fast actions scenes.

Portrait mode

For recording only subjects in the foreground, while ignoring subjects in the background.

Low-light mode

For recording in extreme low light conditions.

Spot-light mode

Recording in situations where subjects are under a spotlight(s).

Surf & Snow mode

For recording in locations with a high degree of "Dazzle", such as snow slopes and the seashore.

Notes:

SPORTS mode

• The recorded images will not be so blurred when they are viewed later using slow or still picture playback.
- When playing back a sports mode recording, the movement may appear slightly jerky.
- Do not use this mode when recording under fluorescent, mercury or sodium lighting. These types of lights will affect the color and brightness of the images.
- A vertical band of light might appear when recording objects that are brightly illuminated or which are highly reflective.
- If the amount of light is insufficient, the SPORTS "R" indicator will flash in the EVE.
- The image may flicker if this mode is used indoors.

PORTRAIT mode

- The image may flicker if this mode is used indoors.

LOW-LIGHT mode

- Scenes recorded in extremely low light levels may not come out properly.

SPOT-LIGHT mode

- If the recorded subject is extremely bright, the picture may appear whitish.

SURF&SNOW mode

• If the recorded subject is extremely bright, the picture may appear whitish.
• If you selected GAIN UP in the Digital function camera menu, SPORTS mode and PORTRAIT mode can not be selected.

Special Features

Digital Functions

Use the following features to add interest and professionalism to your recordings. Select from nine special effects.

Technical line drawing of a camera with lens and control panel (no text or symbols)

1 In Camera mode, press MENU to display the menu screen.
2 Rotate the SELECT SET WHEEL to select D.FUNCTION. Then, press down on the SELECT SET WHEEL repeatedly to select one of the Digital Functions listed below.
3 To cancel the Digital Function, press down on the SELECT SET WHEEL to select OFF.

- EIS and Digital Zoom features are turned off when Digital Function is used.

Types of Digital Effects

WIPE

Successive scenes are separated in a way which simulates the drawing of a curtain.

MIX

The current scene is mixed in with the following scene during scene changes.

STROBE

The recording appears as a sequence of still frames.

GAIN UP

Picture sensitivity is increased.

- Only Manual Focus is available.

N/P (Neg/Pos)

The recorded picture is inverted to appear as a film negative.

SEPIA

The picture is recorded in sepia, brownish color, giving it an antique look.

MONO (Monotone)

The picture is recorded in black-and-white.

TRAIL

The subject being recorded creates a trail when in motion.

SOLARI (Solarization)

The scene takes on a appearance similar to an oil painting.

To use the WIPE:

a. In Camera mode, set the "D.FUNCTION" item in the menu screen to "WIPE" (page 14).
b. Press the RECORD/PAUSE to start recording.
c. Press the RECORD/PAUSE to pause the recording. The last scene will be memorized.
d. Press the RECORD/PAUSE to start recording again. The new scene will take the place of the memorized scene.

To use the MIX:

Perform steps a-d above. The memorized scene and the new scene will appear mixed as the scene changes from one to the other.

Special Features

Auto Focus

The Palmcorder automatically adjusts the focus over the entire zoom range.

Manual Focus

Use Manual Focus (MF) when recording ...

• a subject through glass.
• a scene where the subject is far from the Palmcorder and there are objects in the foreground.
• a subject with distinct horizontal stripes.
• a subject not centered in the Viewfinder.
• subjects with shiny surfaces.

Line drawing of a vintage digital camera with handle and front panel (no text or symbols)

• an obliquely angled subject.
• a bright, flat subject such as a white wall.
  • in low light situations.
• a scene with fast motions, like a golf swing.
• Re-focusing may be required when your Palmcorder is aimed at a new scene.

1 Press down on the SELECT SET WHEEL until "MF" (Manual Focus) appears in the EVF.

2 Slide the POWER ZOOM switch to the "T" side (Full Telephoto) until the lens is zoomed in all the way (subject at maximum size).
3 Rotate the SELECT SET WHEEL until the picture is in focus.
4 Slide the POWER ZOOM switch to "W" or "T" as desired.

- The subject will remain in focus over the entire zooming range.

- It may be necessary to back away from the subject to focus the image properly.

Macro Focus (for close-ups)

Press the "W" side of the POWER ZOOM switch to the wide angle position. Auto Focus will function with the subject as close as 1 inch (25mm) in front of the lens.

Special Features

Audio/Video Fade In/Out

This feature allows you to make smoother scene transitions for a more professional look.

Line drawing of a handheld electronic device with ports and buttons (no text or symbols)

FADE

Fade In:

Starting the first scene with "fade in" is very effective.

In Record/Pause mode, hold down FADE until the picture and sound fade out. Then, press RECORD/PAUSE to start recording.

Release FADE and the picture and sound will gradually fade in.

Fade Out:

Use to create a soft ending or (together with fade in) for a soft transition from one scene to the next.

During recording, hold down FADE until the picture and sound fade out. Then, press RECORD/PAUSE to pause the recording.

White Balance

Auto White Balance automatically maintains optimum color balance in most lighting conditions. However, when using Digital functions, etc., you may get better results using the manual adjustment.

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Auto/Manual White Balance Set

1 Press MENU to display the camera mode menu in the EVF.

2 Rotate the SELECT SET WHEEL to select W.BALANCE, and then press down on the SELECT SET WHEEL repeatedly to select AUTO, Indoor halogen lamp "☐", Outdoors "☒", or Indoor fluorescent lamp "☒".

When the source of illumination is a halogen lamp.

When shooting outdoors on a sunny day.

When the source of illumination is a fluorescent lamp.

AUTO: Automatically maintains optimum color balance in most lighting conditions.

Backlight

Use when recording a subject that is darker than the surrounding scene, in a shadowed area or when the light source is in back of your subject.

EVF

There are three levels of backlight compensation. Press the BACKLIGHT button until the subject can be clearly seen.

The Indicator "○" will appear in the EVF.

When lighting conditions are normal, press the BACKLIGHT button until the indicator disappears in the EVF.

Special Features

Audio Dubbing using the External or Built-in Microphone

The original sound can be replaced with new sound using the built-in Palmcorder microphone or an external microphone.

The AUDIO setting in CAMERA MENU mode should be as follows:

12bit The original sound is recorded on ST (Stereo) 1, and the new sound will be recorded on ST (Stereo) 2.

16bit The original sound is replaced with the new sound.

• Select 12bit if you do not want the original sound to be completely replaced during an audio dub.
• If you dub over a tape which has both 12bit and 16bit audio recordings on it, keep in mind that the original 16bit audio portion will be completely replaced.

Before you begin...

• Connect the external Microphone (if used).
  • Turn On the Palmcorder.
• Insert a pre-recorded tape to be dubbed.

External Microphone with M3 connector (not supplied)

External Microphone Jack

1 Set the POWER switch to ON.
2 Press the CAMERA/VCR button to change to VCR mode (green lamp). Press MENU and set the A-DUB item in the VCR mode menu (see page 15) to MIC.
3 Press PLAY. Then press PAUSE where you want dubbing to begin.

4 Press A.DUB on the remote control to put the Palm-corder in the Audio Dub mode.

(Continued on next page.)

Special Features

Technical line drawing of a mechanical device with internal components (no text or symbols)

5 Press PAUSE to start Audio Dubbing. Connect Palmcorder to TV in order to monitor the sound. (see page 28)

A-DUB

Only NTSC (National Television Standards Committee) recorded tapes can be audio dubbed. The following screen appears if the tape was not recorded in NTSC format.

INCOMPATIBLE TAPE

6 Press STOP to stop Audio Dubbing.

To listen to the desired audio sound, set the AUDIO setting of the VCR mode MENU (see page 15) as follows:

AUDIO (The following selections are available 12bit AUDIO dubbed recording only)

ST1 Set this position to listen to the original sound.

ST2 Set this position to listen to the audio dubbed sound.

MIX Set this position to listen to both the original sound and the audio dubbed sound.

Note:

• 16bit dubbed sound completely erases the original 16bit recorded sound.
• If you select 12bit AUDIO recording and dubbed the sound with the AUDIO-MIX on, the sound will be stereo regardless of the AUDIO-OUT setting.

• If you recorded in LP mode, you can not use the A-DUB feature.

• Refer to page 41 for Memory-Stop Editing.

• If the microphone used for dubbing, gets too near the speaker of your TV, a howling noise (feedback) may occur.
• If the tape position lies or starts in a blank section, you can not use the A-DUB feature.

Special Features

Audio Dubbing using the DV Terminal

Your own sound track may be substituted onto a tape using a DV terminal. Connect the Palmcorder to Digital Equipment with the DV Output Terminal using DV cable (supplied).

The original sound can be replaced with new sound using the DV In/Out Terminal Jack.

Before you begin...

• Turn on both Palmcorders.
- Insert the pre-recorded tape in the recording Palmcorder.
• Uncover the DV Input/output connectors on both Palmcorders and connect with the supplied DV cable.

1 Set the POWER switch to ON.

2 Press the CAMERA/VCR button on both Palmcorders to change to VCR mode (green lamp). Press MENU and set the A-DUB item in the VCR mode menu (see page 15) to DV.

3 Press PLAY on the recording Palm-corder. Then press PAUSE where you want dubbing to begin.

4 Press A.DUB on the remote control to put the recording Palmcorder in the Audio Dub mode.

Technical line drawing of a mechanical device with internal components and no visible text or symbols

5 Press PLAY on the playing Palm-corder.

6 Press PAUSE to start Audio Dubbing.

A-DUB

Only NTSC (National Television Standards Committee) recorded tapes can be audio dubbed. The following screen appears if the tape was not recorded in NTSC format.

INCOMPATIBLE TAPE

Note:

• If you recorded in LP mode, you can not use the A-DUB feature.
• If two Palmcorders are used for dubbing, recording speed on both units must be the same.
• If two Palmcorders are used for dubbing, set one of the Palmcorders to VCR2 to avoid mis-operation.
  • Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, and 4,819,098, licensed for limited viewing uses only.

Memory-Stop Editing

You can set an automatic Edit stopping point.

7 Press STOP to stop Audio Dubbing.

- This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Before step 4, locate the point at which you want the dubbing to stop.

Press MENU and set COUNTER to MEMORY (page 15).

Then, press RESET on the remote control to reset the Counter Memory to M 0:00:00.

Now, rewind to the editing start point, and continue with steps 3-6. The tape will now stop automatically at "M 0:00:00".

Special Features

Copying your Tapes to S-VHS or VHS Cassette

Before you begin...

• Connect the Palmcorder and the Docking Station (see page 28).
• Connect the Palmcorder to a VCR as illustrated below.
• Turn ON both units.
• Set the recording VCR's Input Signal Selector to LINE.
• Set the Palmcorder CAMERA/VCR button to VCR.

Monitor with your TV

• Turn the TV ON and select its VCR channel (either CH3 or CH4).
• Set the VCR/TV Selector on the recording VCR to VCR.

1 Insert a pre-recorded tape into the source (playing) Palmcorder and a blank tape with record tab in place into the target VCR (Recorder).
2 Press PLAY on the Palmcorder. When the tape reaches the point you want to start dubbing, press PAUSE.
3 Press REC or simultaneously REC and PLAY (depends on VCR) and then pause the recorder.

VCR Buttons

4 Simultaneously, press PAUSE on the both units to begin the copying.
5 Press STOP on both units when dubbing is complete.

Notes:

• For technical reasons, dubbing a tape may reduce its quality.
• Press DISPLAY on the Palmcorder remote control to eliminate EVF indications to be recorded on the tape. Eliminate all OSD functions on the VCR as well.
• If the Time Code is displayed in the EVF, this display cannot be reset.

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

Copying from Digital Equipment (dubbing)

High quality digital-to-digital copying can be accomplished if both Palmcorders incorporate the digital in/out IEEE1394 interface (DV cable is supplied).

Before you begin...

• Connect both Palmcorders to their power sources.
• Connect the two digital Palmcorders using the supplied DV interface cable.
  • Turn both Palmcorders ON.

1 Insert a pre-recorded tape into the source (playing) Palmcorder, turn on, and press CAMERA/VCR button to set into the VCR mode (green lamp).

2 Insert a blank tape with the record tab in place into the target (recorder) Palmcorder turn on, and press CAMERA/VCR button to set into the VCR mode (green lamp).

3 Press PLAY on the source Palm-corder. When the tape reached the point you want to start dubbing, press PAUSE.

4 On the remote control, hold down the REC button and press PLAY. Press PAUSE to pause the tape at the starting point of the dub.

5 Simultaneously, press the PAUSE buttons on both units to begin the copying.

6 Simultaneously, press the STOP buttons on both units to end the copying.

Notes:

• When two Palmcorders are used for dubbing, it is recommend that the remote control VCR1 or VCR2 setting be used to avoid mis-operation.
• When two Palmcorders are connected using the supplied DV interface cable, a Video Editing Controller cannot be used.

CAUTION:

Unauthorized exchanging and/or copying of copyrighted recordings may be copyright infringement.

System Ⓔ (5 pin) Jack

This jack allows for easy connection to stand-alone controllers, or computer interface devices.

The following is an example for the connection to a video editing controller (not supplied).

"For further information regarding video editing controllers and the Panasonic PV-S4690 and PV-S7680 editing VCR's with 5 pin control, please call your dealer or contact Panasonic Customer Service Center at 800-222-4213 (9am--9pm 7 days a week, EST)."

System Ⓔ (5 pin) Jack

Product Information for Edit Controllers and 5-Pin VCRs/Camcorders.

COMPANY	MODEL	CONSUMER INFORMATION
Panasonic PBTS Edit Controller	AG-A96* only!	800-524-1448 Product Information
MCEC 5-Pin VCRs and Camcorders	PV-S4690/PV-S7680 PV-DV700/DV710 PV-D607	201-348-9090 Product Information
Future Video Co. Computer Editing Program	V-Stations only!	714-770-4416 Product information/purchase

*All control Functions of AG-A96 are not available for all consumer models.

COMMAND	PV-S4690/PV-S7680	PV-DV700/DV710	PV-D607
STOP	YES	YES	YES
EJECT	YES	YES	----
REWIND/LOCKING REVIEW	YES	YES	YES
FF/LOCKING CUE	YES	YES	YES
REVIEW	YES	YES	YES-in Play mode
CUE	YES	YES	YES-in Play mode
STILL/PAUSE	YES	YES	YES
RECORD	YES	YES	YES
SLOW SPEED UP	YES	----	----
SLOW SPEED DOWN	YES	----	----
ASSEMBLE INSERT	YES	YES-Camera mode only	----
ASSEMBLE RECORD	YES	YES-Camera mode only	----
ASSEMBLE PLAY	YES	YES	YES
POWER ON/OFF	YES	----	----
COUNTER RESET	YES	YES	YES
ASSEMBLE A-DUB	YES	YES-Camera mode only	----
ASSEMBLE A/V INSERT	YES	YES-Camera mode only	----
REHEARSAL A-DUB	YES	YES-Camera mode only	----
REHEARSAL A/V INSERT	YES	YES-Camera mode only	----
REHEARSAL INSERT	YES	YES-Camera mode only	----
REHEARSAL RECORD	YES	YES-Camera mode only	----
FRAME REQUEST	YES	YES	YES
NOP (CONNECT)	YES	YES	----
NOP (CONNECT)	YES	YES	YES
PLAY	YES	YES	YES
REVERSE PLAY	YES	YES	----
FRAME ADVANCE	YES	YES	one frame every 20
FRAME REVERSE 1/60	YES	YES	----
FORWARD SLOW 1/9	YES	----	----
JOG SHUTTLE CONTROL
SHUTTLE ON STILL	YES	----	----
REVERSE SLOW 1/5	YES	----	----
FORWARD SLOW 1/5	YES	----	----
REVERSE PLAY	YES	----	----
FORWARD PLAY	YES	----	----
REVERSE SLOW SPEED 5X	YES	----	----
CUE 5X	YES	----	----
REVERSE HIGH SPEED 9X	YES	----	----
CUE 9X	YES	----	----
REVERSE SLOW 1/59	YES	----	----
FORWARD SLOW 1/59	YES	----	----
REVERSE SLOW 1/9	YES	----	----
FORWARD SLOW 1/9	YES	----	----
JOG ON/OFF	YES	----	----

Palmcorder Accessory System

For ordering instructions, see the Accessory Order Form page.

Accessory #	Figure	Description	Price
PV-DAC7		AC Adaptor with DC Power Cable	140.00
PV-DBP5		1.25Ah Battery Pack	100.00

Palmcorder Accessory Order Form

Please photocopy this form when placing an order.

1. Palmcorder Model # ____
2. Items Ordered

Accessory #	Description	Price Each	Quantity	Total Price
Subtotal
Your State & Local Sales Tax
Shipping & Handling				5.00
Total Enclosed

1. Method of payment (check one)

☐ Check of Money Order enclosed (NO C.O.D.SHIPMENTS)
□ VISA Credit Card # ____
□ MasterCard Expiration Date
□ Discover Customer Signature ____

Make Check or Money Order to: MATSUSHITA ACCESSORIES

(Please do not send cash)

1. Shipping information (UPS delivery requires complete street address)

Ship To:

Mr.

Mrs.

Ms.

First	Last
Street Address
City	State	Zip

Phone #:

Day ( )

Night ( )

TO OBTAIN ANY OF OUR OMNIMOVIE/PALMCORDER ACCESSORIES YOU CAN DO ANY OF THE FOLLOWING:

VISIT YOUR LOCAL PANASONIC DEALER OR

LOCATE YOUR AUTHORIZED ACCESSORY STOCKING DISTRIBUTOR AT 1-800-545-2672 OR

CALL PANASONIC'S ACCESSORY ORDER LINE AT 1-800-332-5368 [6 AM-6 PM M-F, 6-10:30 SAT PACIFIC TIME] OR

MAIL THIS ORDER TO: PANASONIC SERVICES COMPANY ACCESSORY ORDER OFFICE 20421 84th Avenue South Kent, WA. 98032

Notes Regarding Operations

Rough Values of Brightness

Your Palmcorder has been designed for normal scene illumination of 150 footcandles (1500 lx). However, the Palmcorder may be used at F1:1.6, if illumination is more than 0.5 footcandles (5 lx).

The table below shows the color temperature for reference.

PALMCORDER SETTINGS	NATURAL LIGHT CONDITIONS	KELVIN COLOR TEMPERATURE	ARTIFICIAL LIGHT SOURCE	COLOR TINT MIXTURE
(Amber Filter Range)	·Fair weather, blue sky	-10,000	·Color television	Bluish
	·Slightly cloudy sky	-8,000
	·Cloudy or rainy sky	-7,000
		-6,500	·Fluorescent lamp (Daylight)
	·Sunlight in clear weather at midday	-6,000	·Camera flash bulb
		-5,500
	·Average sunlight in clear weather	-5,000	·Blue lamp for photography
	·Sunlight 2 hours after sunrise and before sunset	-4,500	·Fluorescent lamp (White)	Whitish
		-4,000	·Normal flash bulb
		-3,500	·Fluorescent lamp (Off-white)
			·Tungsten lamp for photography
	·Sunlight 40 min. after sunrise and before sunset	-3,200
			·Halogen lamp
			·lodine lamp
	·Sunlight 30 min. after sunrise and before sunset	-2,800	·Tungsten lamp	Yellowish
			·Acetylene lamp
	·Sunlight 20 min. after sunrise and before sunset		·Kerosene lamp
		-2,000	·Candlelight	Reddish

FCC Warning: Any unauthorized changes or modifications to this equipment would void the user's authority to operate.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with Part 15 and part 18 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when operated in a residential environment.

If this equipment does cause interference to radio or television reception, which can be determined by turning the equipment off and on, use the equipment in another location and/or utilize an electrical outlet different from that used by the receiver.

If necessary, consult the dealer or an experienced radio/TV technician for help. You may find the booklet, 'Something About Interference' available from FCC local regional offices helpful.

Specifications

Power Source:	Digital Video Camera: 7.2V DC (Battery)8.4V DC (AC Adaptor)AC Adaptor: 110/120/220/240V AC, 50/60 HzBattery: Lithium-Ion Type DC 7.2V
Power Consumption:	Digital Video Camera: 7.2V DC (Battery) 6.2W8.4V DC (AC Adaptor) 6.2WAC Adaptor: 20W2W (when not in use.)
Video Signal:	EIA Standard (525 lines, 60 fields) NTSC color signal
Video Recording System:	2 rotary heads. helical scanning system
Audio:	12bit (32kHz) 4 tracks16bit (48kHz) 2 tracks
Pick-Up System and Device:	One integral color filter Charge Coupled Device (CCD)(RGB color filter)
Lens:	10:1 zoom lens, F1:1.4 with auto iris controlFocal length: 4.7mm - 47mmPower zoom functionLens filter diameter: 30.5mm
Viewfinder:	0.5 inch (12.7mm) Liquid Crystal Color Electronic Viewfinder
Minimum Illumination Required:	7 lx (F1:1.4) 0.7 footcandles
Operating Temperature:	32°F~104°F (0°C~40°C)
Operating Humidity:	10%~75%
Weight:	Digital Video Camera: 1.1 lbs.0.53 kgAC Adaptor: 0.39 lbs.0.18 kg
Dimensions:	Digital Video Camera:2-5/8 (W) × 3-3/4 (H) × 5-1/4 (D) inch67 (W) × 95 (H) × 132 (D) mmAC Adaptor: 3-7/8 (W) × 1-5/8 (H) × 2-7/8 (D) inch97 (W) × 43 (H) × 73 (D) mm

Weight and dimensions shown are approximate.
Designs and specifications are subject to change without notice.

Before Requesting Service

If you have a problem with your Palmcorder, it may be something you can correct yourself. Check the list below for symptoms and corrections.

Symptom	Correction
No picture in the EVF ...	Make sure the Power Source is connected. (pp. 6, 10)Make sure the POWER switch is set to ON. (pp. 21, 25)Check the Dew Indicator. (p. 19)Make sure the battery is fully charged. (p. 8)Make sure all necessary cables are connected correctly and firmly. (p. 10)Make sure the Lens Cap is removed. (p. 21)
Video cassette can't be inserted ...	Make sure the Power Source is connected. (pp. 6, 10)Insert the cassette with the window side facing out. (p. 11)
Video cassette can't be removed ...	Make sure the Power Source is connected. (pp. 6, 10)
No operation starts when operation buttons are pressed ...	Check the Dew Indicator. (p. 19)
Recording cannot be done ...	Make sure the record tab is closed. (p. 11)Check the Battery Indicator. (p. 16)Check the Dew Indicator. (p. 19)
Auto Focus does not operate ...	Make sure the FOCUS is set to AUTO. (p. 35)Make sure the unit is ON with CAMERA mode. (p. 21)
Sound from microphone can't be monitored ...	Make sure the unit is set to REC or Record/Pause mode.
Sound can't be heard ...	Make sure the Audio on the VCR MENU is set to ST1. (p. 15)

Before Requesting Service

Cleaning Care for Video Heads

Simple line drawing of a person in motion with a fence and trees (no text or symbols)

Clogged Video Head

(a) Video Head Cleaning: Normally, your Palmcorder will not normally require head cleaning. However, it is possible that the heads may become clogged due to dust in the air, damaged tape, long term use, etc. If "CLOGGED HEAD" flashes and "NEED HEAD CLEANING" appears for 5 seconds in the EVF, the heads may require cleaning.
(b) Cleaning the Heads: It is recommended that head cleaning be performed by a qualified service technician. Please contact your nearest Panasonic Service Center. An alternate solution is to obtain a head cleaning cassette. Please use Panasonic cleaning cassette (AY-DVMCL). Be sure to follow the cleaning instructions carefully. Excessive use of the cleaning cassette could shorten head life. Use this cassette only when a head clogging symptom occurs.
Refer servicing to qualified service personnel.

Caution for Tape Operations

• When you go from function to function (PLAY, FF, REW etc.), please note that the unit will not accept a new function operation until the previous operation is complete.
• The CAMERA/VCR Button, and all function buttons, (PLAY, FF, REW, etc.) are only operational after the tape has been completely loaded.

Request for Service Notice

Please photocopy this form when making a request for service notice.

Request for Service Notice:

In the unlikely event this product needs service.

• Please include your proof of purchase. (Failure to due so will delay your repair.)
• To further speed your repair please provide an explanation of what is wrong with the unit and any symptom it is exhibiting.

Index of Controls

Front View

Built-In Triple Capsule 2-Way Microphone System

External / Microphone Jack See page 38.

Rear View

BATTERY
RELEASE button
See page 9.

Top View

REWIND/EDIT

SEARCH

Button

See pages 7, 22, 25, 26.

FAST FORWARD/

EDIT SEARCH ▶

Button

See pages 22, 25, 26.

MENU Button

See pages 12, 13, 22, 23, 27, 30, 31, 32, 34, 37, 38, 39, 40, 41.

SELECT SET WHEEL

See pages 12, 13, 22, 27, 30, 31, 32, 34, 35, 37.

FOCUS Button

See page 35.

STOP Button

See pages 7, 25, 27, 39, 41, 42, 43.

FADE Button

See page 36.

PLAY Button

See pages 7, 25, 26, 27, 38, 40, 41, 42, 43.

BACK LIGHT Button

See page 37.

PAUSE Button

See pages 26, 27, 38, 39, 40, 41, 42, 43.

PROGRAM AE Button

See page 33.

Index of Controls

Underside View

Remote Control

AC Adaptor

Carring Case

To carry and store the Palmcorder.

Soft Carring Case

Keep the Palmcorder in the Soft Carring Case, with the lens facing the hand strap end when not in use.

Line drawing of a backpack with a closed lid and front panel, no text or symbols present

Index

A

AC Adaptor 2, 8, 10, 46

Accessories (Optional) 46

Accessories (Supplied) 2

Audio/Video Cable 29, 42, 44

Audio/Video Fade In/Out 36

Auto Focus 35

B

Backlight 37

Battery Charging Confirmation Marker 8

Battery Pack 2, 6, 8, 9, 46

Battery Remaining Indication 16

Battery Warning 19

Book Mark Search 22

C

Camera Recording 21, 22

Carring Case 56

Cleaning Care for Video Heads 51

Clock Battery 2

Clock Set 12

Copying from Digital Equipment 43

Copying your Tapes 42

D

Date and Time Indication 17

DC Power Cable 2, 10, 46

DEW Indication 19

Digital E.I.S. 30

Digital Functions 34

Digital Photo Shot 32

Digital Video Cassette Tape 2

Digital Zoom 31

Docking Station 2, 28, 42

Dubbing over Audio (DV Terminal) 40, 41

Dubbing over Audio (Microphone) 38, 39

DV Interface Cable 2,43

E

Edit Search 22

Erase Protection Tab 11

EVF Indications 16, 17, 18, 19

F

Fade In/Out 36

J

Jog Search 27

L

Lens Cap 2, 20

M

Macro Focus 35

Manual Focus 35

Memory Counter 16

MENU OSD 13, 14, 15

P

PLAY Indicator 17

Playback 25, 26, 27, 28, 29

Power Supply 8, 9, 10

Program AE 33

R

REC Indicator 17

Remote Control 2, 23, 24

Request for Service Notice 51

S

Safety Precautions 2

Set the Date and Time 12

Shoulder Strap 2, 20

Special Effects Playback 26, 27

Specifications 49

Still Picture 26

Symptom/Correction 50

System E (5 pin) Jack 44, 45

T

Tab 11

Tape Remaining Indications 16

Tape Speed 11

Tape Warning 18

v

VHF Connecting Cable 42, 44

Video Cassettes (tapes) 11

Volume Display 17

W

Warranty 57, 58

White Balance 37

Z

Zoom In/Out 31

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. Ave. 65 de Infantería, Km. 9.5 San Gabriel Industrial Park, Carolina, Puerto Rico 00985

PANASONIC/QUASAR Video Products Limited Warranty

Panasonic Consumer Electronics Company or Panasonic Sales Company (collectively referred to as "the Warrantor") will repair this product with new or refurbished parts, free of charge, in the USA or Puerto Rico, in the event of a defect in materials or workmanship as follows (all time periods commence from the date of the original purchase):

PRODUCT	PARTS	LABOR
CAMCORDER	ONE (1) YEAR, EXCEPT CCD IMAGE SENSORCCD IMAGE SENSOR - SIX (6) MONTHS	NINETY (90) DAYSNINETY (90) DAYS
VCR	ONE (1) YEAR	NINETY (90) DAYS
A/V MIXER	ONE (1) YEAR	NINETY (90) DAYS
MONITOR-VCR	ONE (1) YEAR, EXCEPT CRTCRT - TWO (2) YEARS	NINETY (90) DAYSCRT- NINETY (90) DAYSCUSTOMER PAYS ALLLABOR CHARGESAFTER 90 DAYS

Monitor-VCR In-home or carry-in Service: 19" (diagonal) CRT / LCD and Larger Monitor-VCR Carry-in Service: 18" (diagonal) CRT / LCD and smaller

Batteries (if included) - New rechargeable batteries in exchange for defective rechargeable batteries for ten (10) days. Non-rechargeable batteries are not warranted.

Tape (if included) - New video cassette tape in exchange for a defective video cassette tape for five (5) days.

In-home, carry-in or mail-in service, as applicable, in the USA can be obtained during the warranty period by contacting a Panasonic Services Company (PASC) Factory Servicenter listed in the Service Directory. Or call toll free 1-800-545-2672, to locate an authorized PASC Servicenter. Carry-in or mail-in service in Puerto Rico can be obtained during the warranty period by calling the Panasonic Sales Company telephone number listed in the Servicenter Directory.

This warranty is extended only to the original purchaser. A purchase receipt or other proof of the date of the original purchase is requires before warranty service is rendered.

This warranty only covers failures due to defects in materials and workmanship which occur during normal use and does not cover normal maintenance, including, but not limited to, video and audio head cleaning. The warranty does not cover damage which occurs in shipment, or failures which are caused products not supplied by the warrantor, or failures which result from accident, misuse, abuse, neglect, mishandling, misapplication, alteration, modification, faulty installation, set-up adjustments, improper antenna, inadequate signal pickup, maladjustment of consumer controls, improper operation, power line surge, improper voltage supply, lightning damage, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a PASC Factory Servicenter or a PASC authorized Servicenter, or damage that is attributable to acts of God.

LIMITS AND EXCLUSIONS

There are no express warranties except as listed above. THE WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES (INCLUDING, WITHOUT LIMITATION, DAMAGE TO TAPES) RESULTING FROM THE USE OF THIS PRODUCTS, OR ARISING OUT OF ANY BREACH OF THE WARRANTY, ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE APPLICABLE WARRANTY PERIOD SET FORTH ABOVE. Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the above exclusions or limitations may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state.

If a problem with this product develops during or after the warranty period, you may contact your dealer or Servicenter. If the problem is not handled to your satisfaction, then write to the Customer Satisfaction Center at the Panasonic Consumer Electronics Company address above.

SERVICE CALLS WHICH DO NOT INVOLVE DEFECTIVE MATERIALS OR WORKMANSHIP AS DETERMINED BY THE WARRANTOR, IN ITS SOLE DISCRETION, ARE NOT COVERED.

COSTS OF SUCH SERVICE CALLS ARE THE RESPONSIBILITY OF THE PURCHASER, warvid 2/11/97

PRODUCT INFORMATION · OPERATION ASSISTANCE · LITERATURE REQUESTS · DEALER LOCATIONS

Customer Service Center 2F-3, One Panasonic Way, Secaucus, NJ 07094 (Headquarters) 201-348-9090 (9:00am-8:00pm Monday-Friday, EST)

ACCESSORY PURCHASES

1-800-332-5368 (Consumer Orders Only)

Panasonic Services Company 20421 84th Avenue South Kent, WA 98032

(6 am to 6 pm Monday-Friday; 6 am to 10:30 am Saturday; PST)

(Visa, Mastercard, Discover card, American Express, Check)

AUTHORIZED SERVICENTERS · PARTS DISTRIBUTOR LOCATIONS

To locate an independent authorized servicenter or parts distributor in your area, within the USA dial toll free 1-800-545-2672, 24 hours a day, 7 days a week.

PRODUCT REPAIRS

Centralized Factory Servicenter

MAIL TO :

Panasonic Services Company

1705 N. Randall Road,

Elgin, IL 60123-7847

Attention: Camcorder Repair

Please carefully pack and ship, prepaid and insured, to the Elgin centralized repair Factory Servicenter. While there will be added handling delays, you may bring your unit to one of the following locations who will then forward the unit to Elgin for repair.

Customer's in Puerto Rico, please ship or carry in to location below ("Service in Puerto Rico").

Factory Servicenters

CALIFORNIA

6550 Katella Avenue

Cypress, CA 90630

Phone [phone]

Fax [phone]

800 Dubuque Avenue

S. San Francisco, CA 94080

Phone [phone]

Fax [phone]

20201 Sherman Way

Suite 102

Canoga Park, CA 91306

Phone [phone]

Fax [phone]

3878 Ruffin Road

Suite A

San Diego. CA 92123

Phone [phone]

Fax [phone]

COLORADO

1640 South Abilene Suite D

Aurora, CO 80012

Phone [phone]

Fax [phone]

FLORIDA

3700 North 29th Avenue

Suite 102

Hollywood, FL 33020

Phone [phone]

Fax [phone]

GEORGIA

8655 Roswell Road

Suite 100

Atlanta, GA 30350

Phone [phone]

Fax (770) 51B-6306

HAWAII

99-859 Iwaiwa Street

Aiea, Hawaii 96701

Phone [phone]

Fax [phone]

ILLINOIS

*1703 North Randall Road

Elgin, IL 60123

"12:30 to 4:30, Mon-Fn"

Phone [phone]

Fax [phone]

9060 Golf Road

Niles, IL 60714

Phone [phone]

Fax [phone]

MARYLAND

62 Mountain Road

Glen Burnie, MD 21061

Phone [phone]

Fax [phone]

MASSACHUSETTS

60 Glacier Drive, Suite G

Westwood, MA 02090

Phone [phone]

Fax [phone]

*Pick-up/drop-off only

MICHIGAN

37048 Van Dyke Avenue

Sterling Heights, MI 48312

Phone [phone]

Fax [phone]

MINNESOTA

7850-12th Avenue South

Airport Business Center

Bloomington, MN 55425

Phone [phone]

Fax [phone]

OH!O

2236 Waycross Road

Cincinnati, OH 45240

Phone [phone]

Fax [phone]

PENNSYLVANIA

2221 Cabot Boulevard West

Suite B

Langhorne, PA 19047

Phone [phone]

Fax [phone]

Chantiers Valley Shopping

Center

1025 Washington Pike

Bridgeville, PA 1

Phone [phone]

Fax [phone]

TENNESSEE

919-8th Avenue South

Nashville, TN 37203

Phone [phone]

Fax [phone]

TEXAS

7482 Hanwin Drive

Houston, TX 77036

Phone [phone]

Fax [phone]

13615 Welch Road

Suite 101

Farmers Branch, TX 75244

Phone [phone]

Fax [phone]

WASHINGTON

20425-84th Avenue South

Kent, WA 98032

Phone [phone]

Fax [phone]

Service in Puerto Rico

Matsushita Electric

of Puerto Rico, Inc.

Panasonic Sales Company/

Factory Servicenter

Ave. 65 de Intanteria. Km. 9.5

San Gabriel Industrial Park

Carolina, Puerto Rico 00985

Phone [phone]

Fax [phone]

REPAIR INQUIRIES

EAST(PCE)

2221 Cabot Boulevard West

Suite A

Langhome, PA 19047

Phone [phone]

Fax [phone]

Covers:

CT, DE, ME, MD, MA, NH, NJ

NY, PA, RI, VT, VA, DC, WV

Regional Customer Care Department

EAST (PCE)

1225 Northbrook Parkway

Suite 2-390

Suwanee, GA 30174

Phone [phone]

Fax [phone]

Covers:

AL, FL, GA, MS, NC, SC, TN

CENTRAL (PCC)

1707 North Randall Road

Elgin, IL 60123

Phone [phone]

Fax (B47) 468-5528

Covers:

AR, IL, IN, IA, KS, KY, LA, MI,

MN, MO, NE, ND, OK, SD, TX.

WI.OH

WEST (PCW)

6550 Katella Avenue

Cypress, CA 90630

Phone [phone]

Fax [phone]

Covers:

AK, AZ, CA, CO, ID, MT, NV,

NM, OR, UT, WA, WY, HI

Spanish Quick Use Guide/Guía Para Uso Rápido

PREPARATIVOS

- Conectar la videocámara a una fuente de alimentación (batería, adaptador de CA o cable para batería de coche).

GRABACION A CAMARA

Technical line drawing of a mechanical device with no visible text or symbols

1 Deslice el botón TAPE EJECT para abrir la tape.
2 Introduzca una cinta con el lado de la ventanilla hacia puera.
3 Presione aquí para cerrar la tape.
4 Fije el conmutador de power a la posición de ON. La luz indicador se enciende a color rojo.
5 Deslice todo el visor y ajuste el control de ajustamiento de la vision.

Line drawing of a vintage digital camera with lens and scroll (no text or symbols)

6 Oprimir RECORD/PAUSE para iniciar la grabación. Volver a oprimir RECORD/PAUSE para hacer una pausa en la grabación.

Line drawing of a vintage digital camera with scroll and lens (no text or symbols)

Spanish Quick Use Guide/Guía Para Uso Rápido

• Conectar la videocámara a una fuente de alimentación (batería, adaptador de CA o cable para batería de coche).
• Introducir una cinta de video en el compartimiento de cinta.

REPRODUCCION USANDO EL VISOR

Fije el botón POWER hacia ON.

2 Oprima CAMERA/VCR. Se enciende la luz indicador de VCR.

Technical line drawing of a digital camera with internal components and wiring (no text or symbols)

3 Deslice todo el visor.
4 Oprima REW para rebobinar la cinta.
5 Oprima PLAY para iniciar la reproducción.
6 Oprima STOP para parar la reproducción.

REPRODUCCION CON EFECTOS ESPECIALES

PARA LOCALIZAR RAPIDAMENTE UNA ESCENA ESPECIFICA

- Oprimir el botón de localización (SEARCH).

PARA CONGELAR UNA IMAGEN

• Oprimir el botón de pausa/imagen fija (PAUSE/STILL).
• Oprimir nuevamente el botón cuando se desea continuar reproduciendo.

Panasonic Consumer Electronics Company, Division of Matsushita Electric Corporation of America One Panasonic Way Secaucus, New Jersey 07094

Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc. ("PSC") Ave. 65 de Infanteria, Km. 9.5 San Gabriel Industrial Park Carolina, Puerto Rico 00985
