Produkttyp	GPS-Navigationsgerät
Marke und Modell	Navman MOVE85LM
Bildschirm	Touchscreen
Stromversorgung	Fahrzeugadapter (5 V Gleichstrom, 1 A); eingebauter Lithium-Ionen-Akku als Backup
GPS-Empfang	Interner GPS-Antenne; für optimalen Empfang freie Sicht zum Himmel erforderlich
Verkehrsinformationen	Integrierter TMC-Empfänger; Live-Verkehrsinformationen über Fahrzeugadapter (Antenne)
Bluetooth	Ja, für Freisprecheinrichtung und Telefonbuch-Synchronisation
Sprachsteuerung	Ja, für Adresseingabe, POI-Suche und mehr (nicht auf allen Modellen)
Kartendarstellung	2D/3D, Tag-/Nachtmodus, automatischer Zoom
Routenplanung	Schnellste, wirtschaftlichste, einfachste, kürzeste Route; Zwischenziele; Optimierung
POI-Datenbank	Umfangreiche Kategorien (Tankstellen, Restaurants, Hotels, Parkplätze, Notdienste usw.)
Speichererweiterung	MicroSD-Kartenslot
Anschlüsse	Mini-USB (Daten und Strom), Kopfhöreranschluss (nicht auf allen Modellen)
Präzise Adresseingabe	Assistent zur Suche nach Stadt, Postleitzahl, Straße, Kreuzung, Koordinaten
Zusatzfunktionen	Parkassistent, Reisebuch (Stadtführer), NavPix™, Meilenaufzeichnung, Fahrzeugstandort speichern
PC-Software	NavDesk für Kartenverwaltung, Software-Updates, Backup, POI-Import usw.
Reinigung und Pflege	Weiches, fusselfreies Tuch; keine aggressiven Reiniger; Gerät vorher ausschalten
Sicherheitshinweise	Nicht während der Fahrt bedienen; Halterung sicher anbringen, Sicht nicht behindern; Temperaturen über 60 °C vermeiden
Reparatur und Service	Keine vom Benutzer wartbaren Teile; nur autorisierte Servicestellen
Lieferumfang (typisch)	Navman MOVE85LM, Fahrzeugadapter, Halterung, USB-Kabel, Kurzanleitung (CD mit NavDesk und Handbuch)

Häufig gestellte Fragen - MOVE85LM NAVMAN

Wie schalte ich das Navman MOVE85LM ein und aus?

Drücken und halten Sie die Ein-/Aus-Taste für 2 Sekunden, um das Gerät einzuschalten. Zum Ausschalten halten Sie die Taste erneut gedrückt, bis das Gerät herunterfährt.

Wie kann ich eine Adresse eingeben und eine Route planen?

Tippen Sie auf dem Hauptmenü auf FIND. Wählen Sie dann Adresse und geben Sie Stadt, Straße und Hausnummer ein. Nach der Suche tippen Sie auf GO, um die Route zu berechnen.

Wie koppele ich mein Telefon per Bluetooth mit dem Navman?

Tippen Sie auf dem Hauptmenü auf Einstellungen > Bluetooth. Aktivieren Sie Bluetooth am Gerät und am Telefon. Suchen Sie auf dem Telefon nach Geräten und wählen Sie Ihren Navman aus. Geben Sie den PIN 1234 ein, wenn Sie dazu aufgefordert werden.

Wie empfange ich Verkehrsinformationen (TMC)?

Verkehrsinformationen werden automatisch über den Fahrzeugadapter (der als Antenne dient) empfangen. Stellen Sie sicher, dass das Gerät mit dem Adapter verbunden ist. Tippen Sie auf dem Hauptmenü auf Traffic, um die Verkehrslage anzuzeigen.

Wie kann ich ein Ziel als Favorit speichern?

Nachdem Sie eine Adresse oder einen POI gefunden haben, tippen Sie auf dem Zielbildschirm auf das Herz-Symbol (★), um den Ort zu Meine Orte hinzuzufügen. Um ihn als Zuhause zu speichern, tippen Sie auf ★ und dann auf das Haus-Symbol.

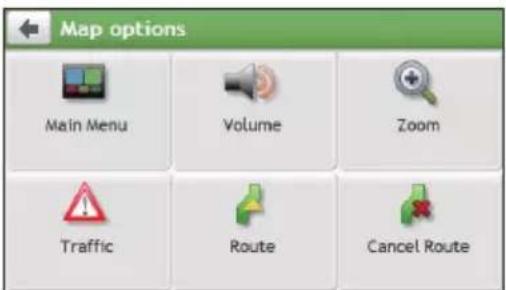

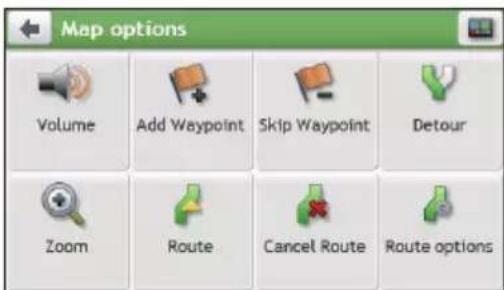

Wie kann ich die Karte vergrößern oder verkleinern?

Tippen Sie während der Navigation auf die Karte, um die Kartenoptionen anzuzeigen. Tippen Sie dann auf das Zoom-Symbol und nutzen Sie die + und - Tasten zum Vergrößern/Verkleinern. Die Zoom-Tasten verschwinden nach 5 Sekunden.

Wie stelle ich die Lautstärke ein?

Tippen Sie auf der Karte auf das Lautstärke-Symbol in den Kartenoptionen. Es erscheinen Schaltflächen zum Erhöhen/Verringern der Lautstärke und zum Stummschalten.

Kann ich mehrere Zwischenstopps zu einer Route hinzufügen?

Ja, tippen Sie auf dem Hauptmenü auf Trip Planner (nicht auf allen Modellen). Erstellen Sie eine neue Reise und fügen Sie über Hinzufügen mehrere Wegpunkte hinzu. Die Route wird über alle Punkte in der angegebenen Reihenfolge berechnet.

Wie setze ich das Navman MOVE85LM zurück?

Verwenden Sie einen dünnen Gegenstand (z. B. eine aufgebogene Büroklammer), um die Reset-Taste am Gerät zu drücken. Das Gerät startet automatisch neu.

Wie aktualisiere ich die Software und Karten?

Verbinden Sie den Navman über USB mit Ihrem Computer und starten Sie die NavDesk-Software. Klicken Sie auf Device Updates, um verfügbare Updates anzuzeigen und herunterzuladen. Folgen Sie den Anweisungen auf dem Bildschirm.

BEDIENUNGSANLEITUNG MOVE85LM NAVMAN

EZY400LMT

MOVE85LM

MY570LMT

MY670LMT

User Manual

Table of contents

Important safety information 5

Precautions 5

Declaration of conformity ....7

Getting to know your Navman 8

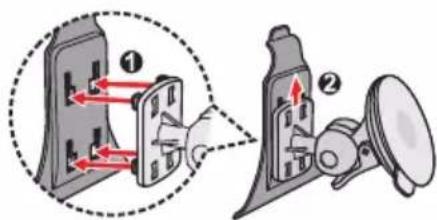

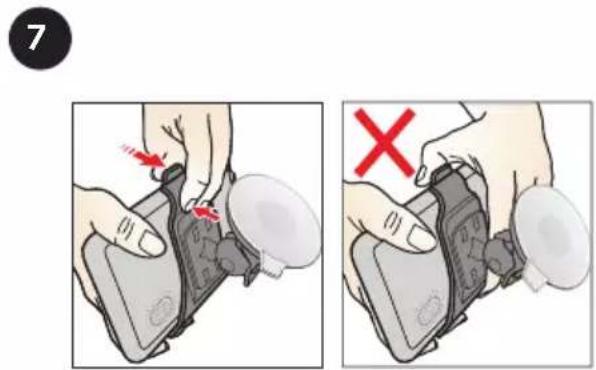

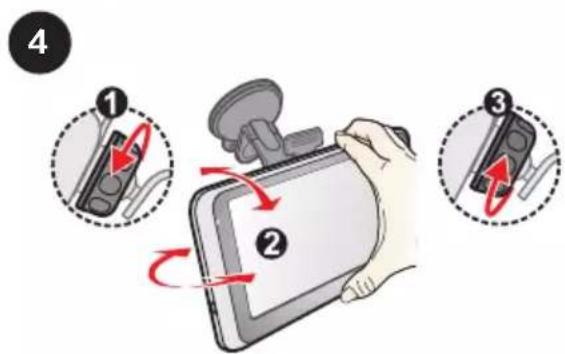

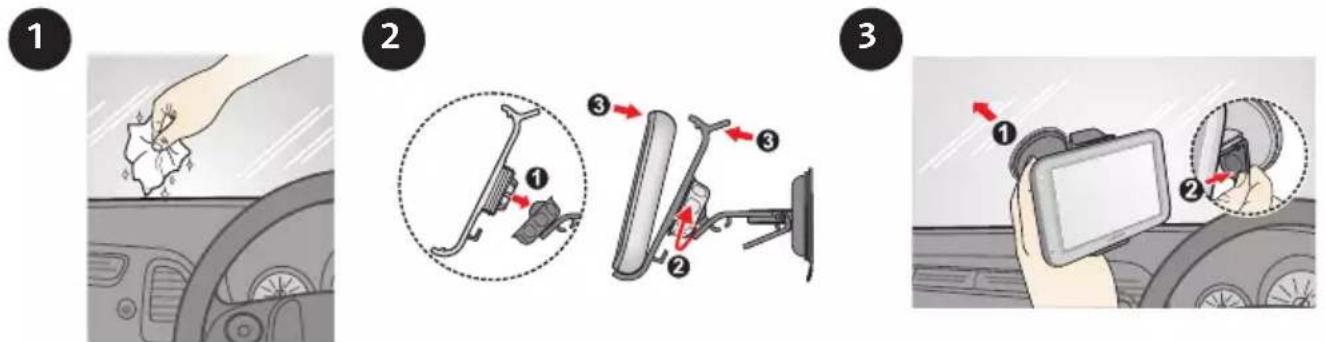

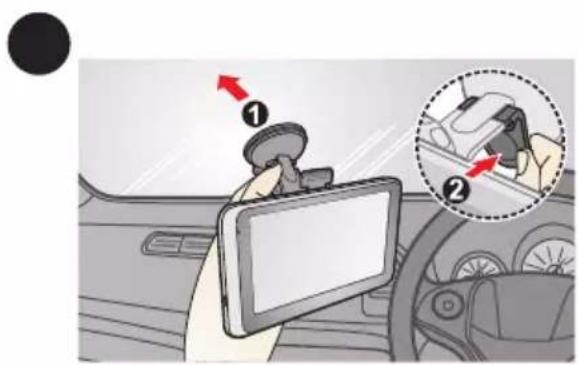

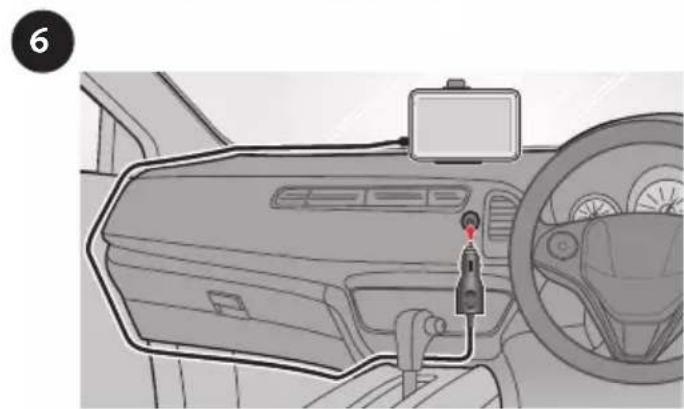

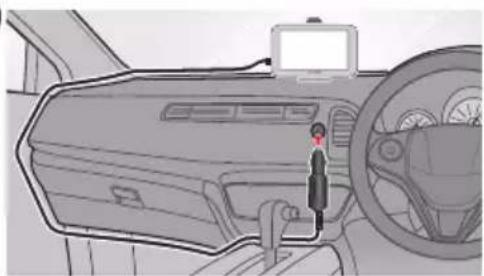

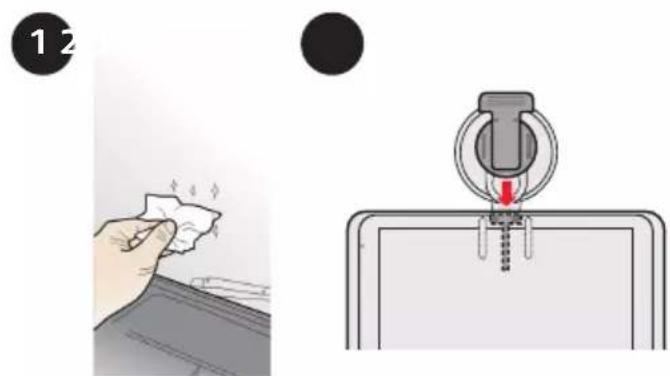

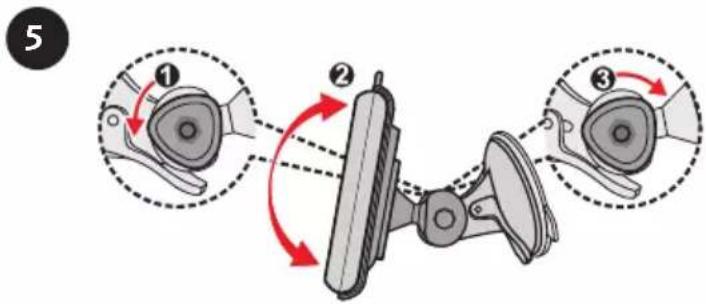

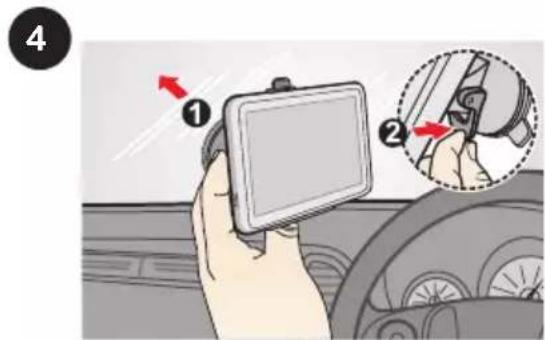

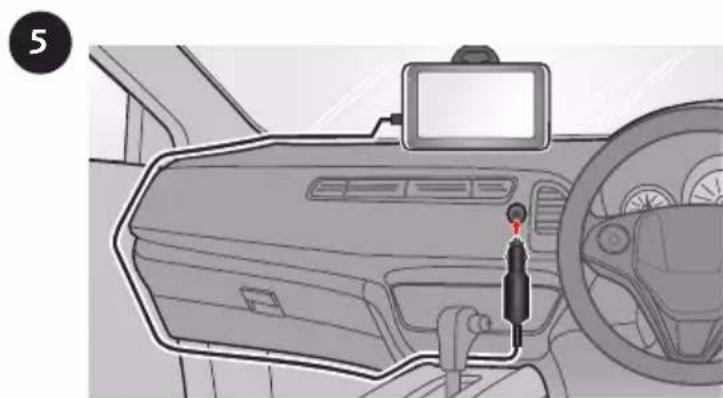

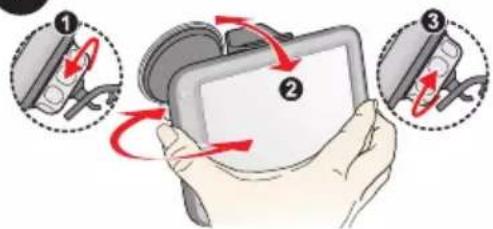

Mounting your Navman in a vehicle 11

Enabling traffic (TMC) reception 13

Turning your Navman ON and OFF 14

Resetting your Navman 15

Connecting your device to the computer 16

Inserting a memory card 17

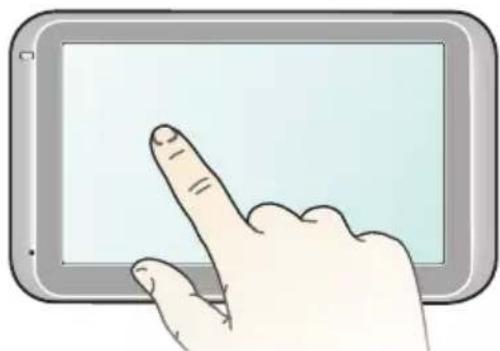

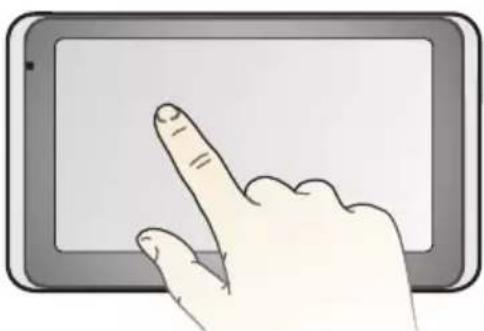

Navigating on the screen 18

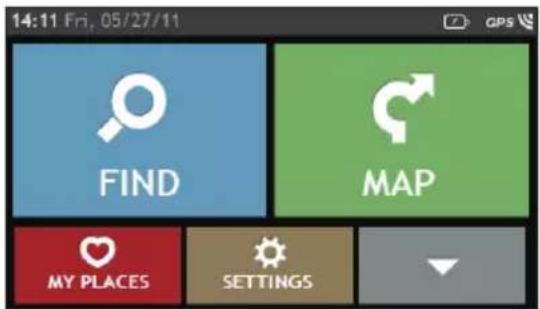

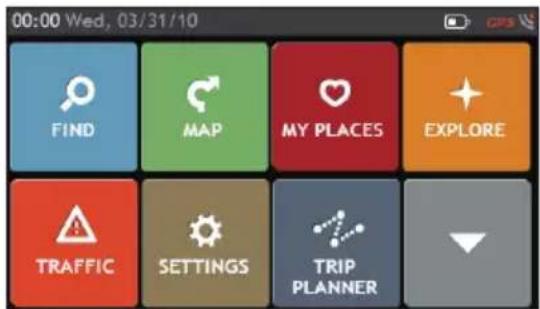

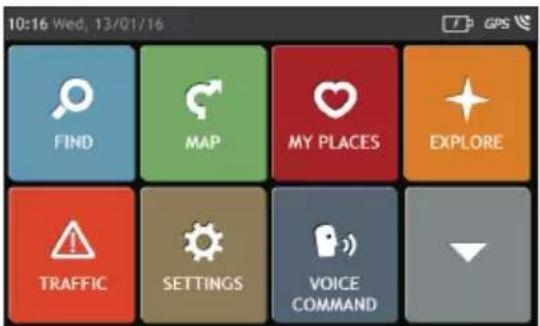

Main Menu 19

Navigating through the menu screens 21

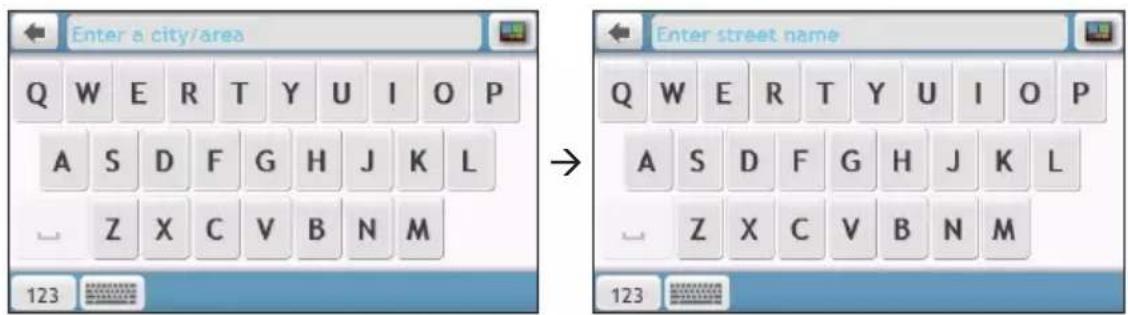

Using the Keyboard screen.... 22

How do I go from A-B? 23

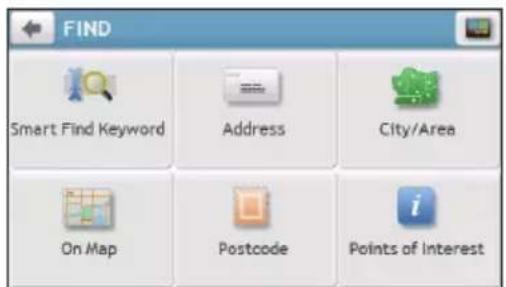

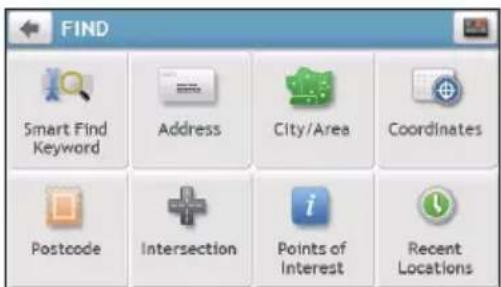

How do I use the FIND wizard? 23

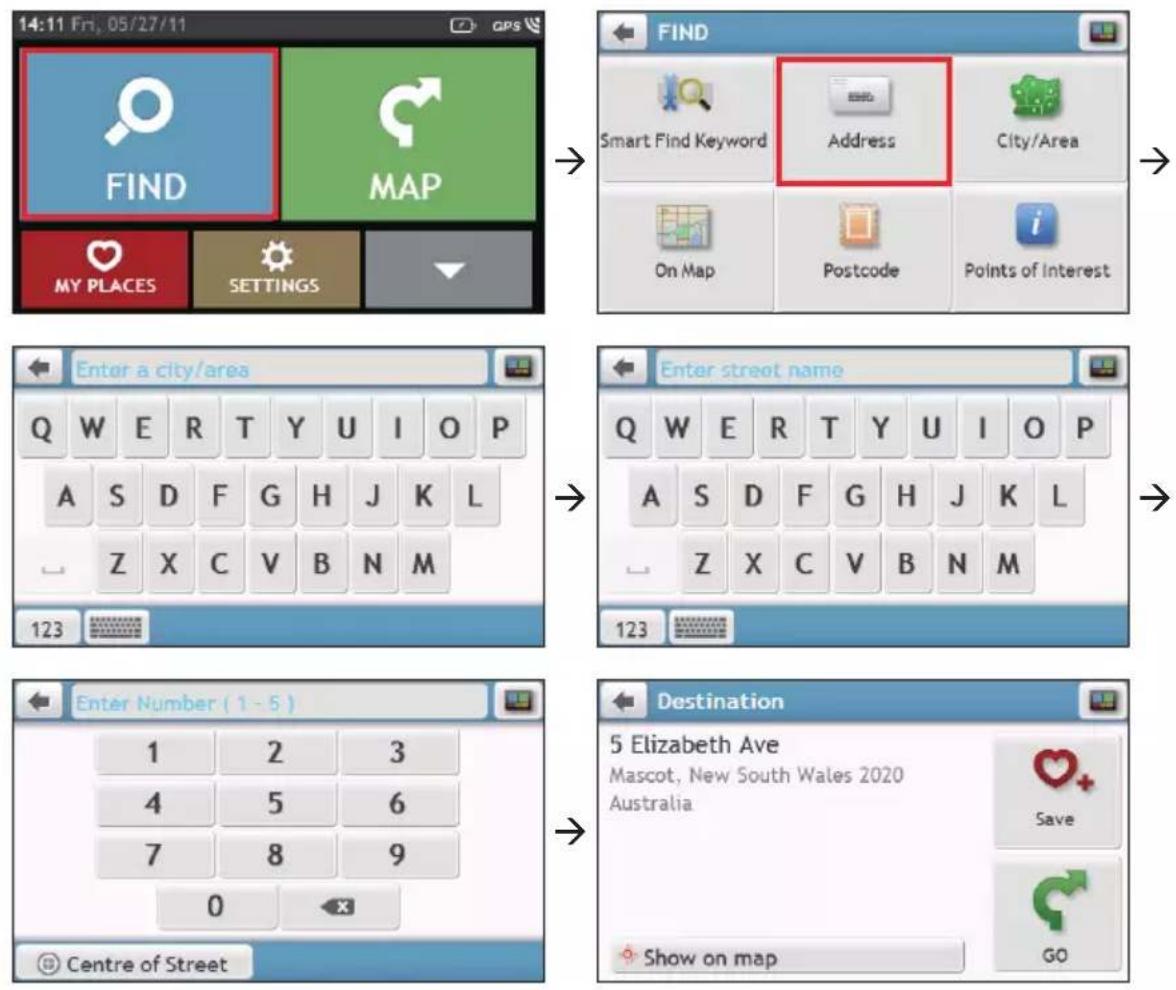

How do I plan my first trip? 24

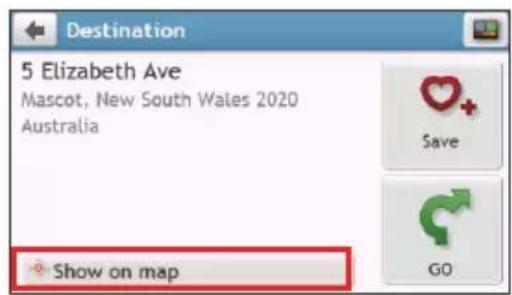

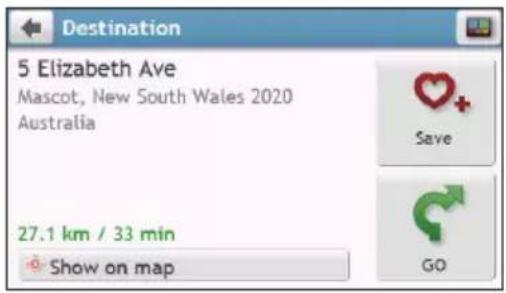

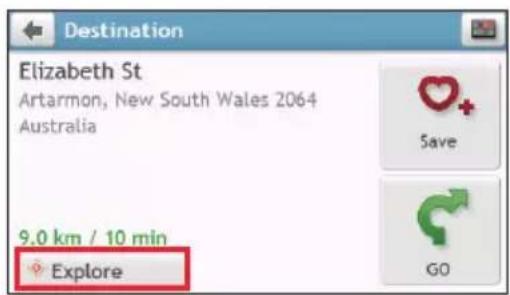

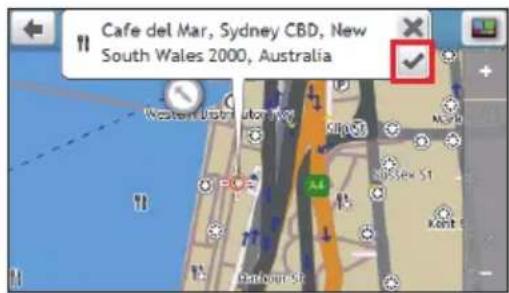

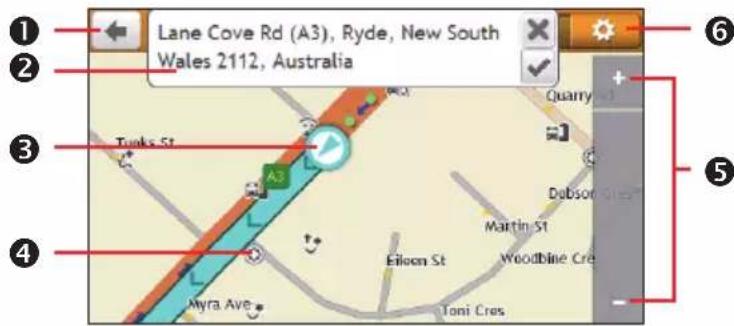

How do I preview the destination on map? 25

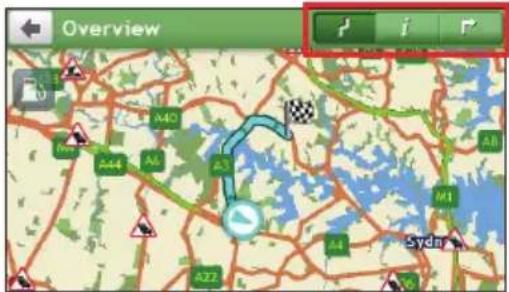

How do I preview a route? 26

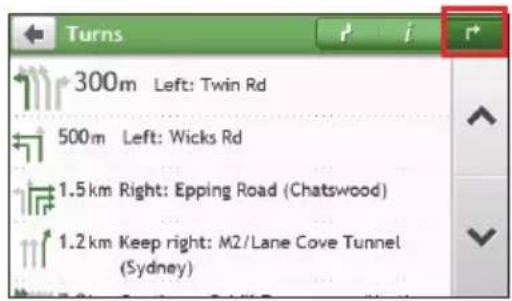

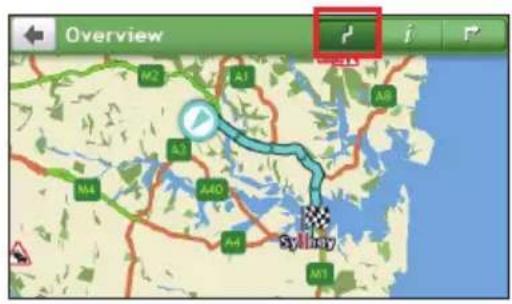

How do I view my route? 27

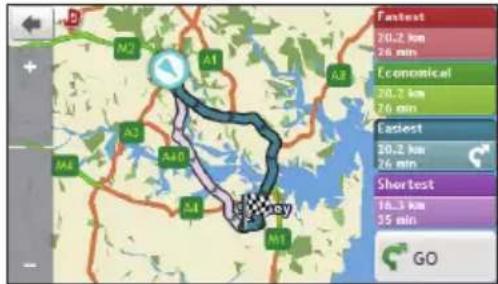

How do I select the route type? 27

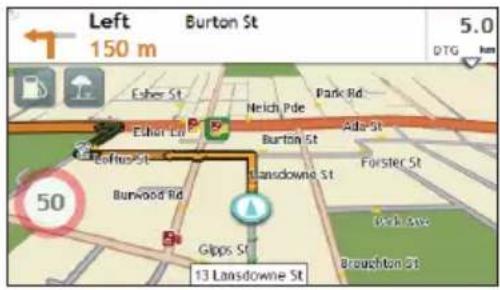

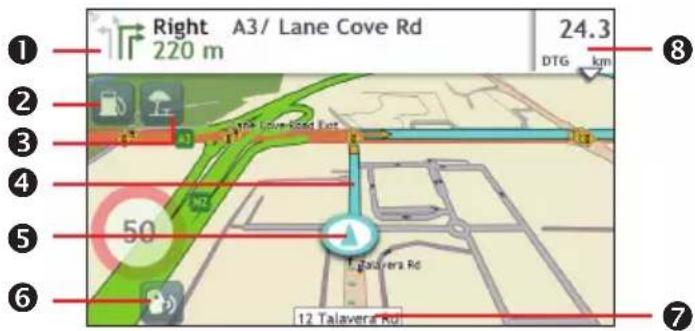

The driving map 27

How do I change the route configuration? 28

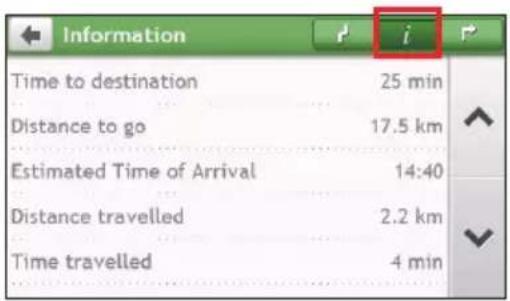

How do I view my route statistics? 28

How do I adjust the volume? 29

How do I zoom in/out the map? 30

How do I view the traffic status on my route? 30

Advanced routing functions 30

Smart Routes 30

My Drive 30

Back-On-Track™ automatic rerouting 31

Parking assistant 31

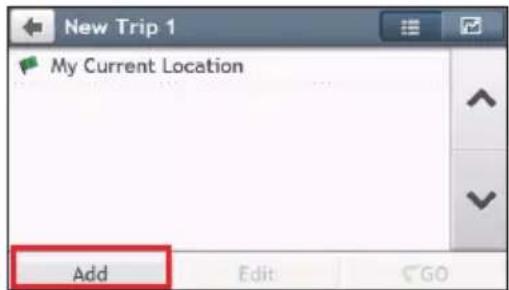

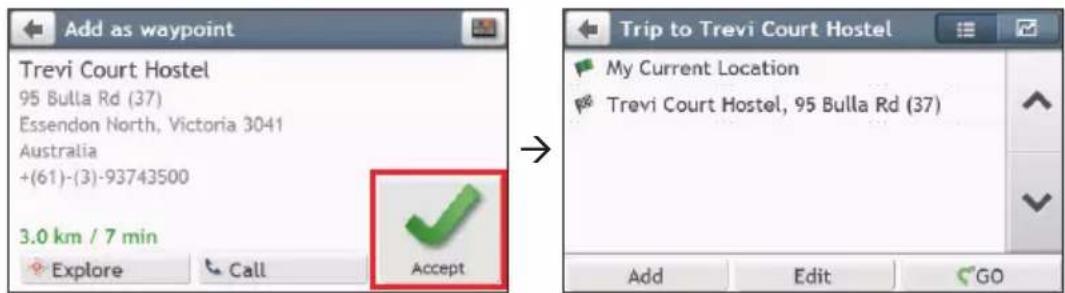

How do I create a trip with multiple stops? 32

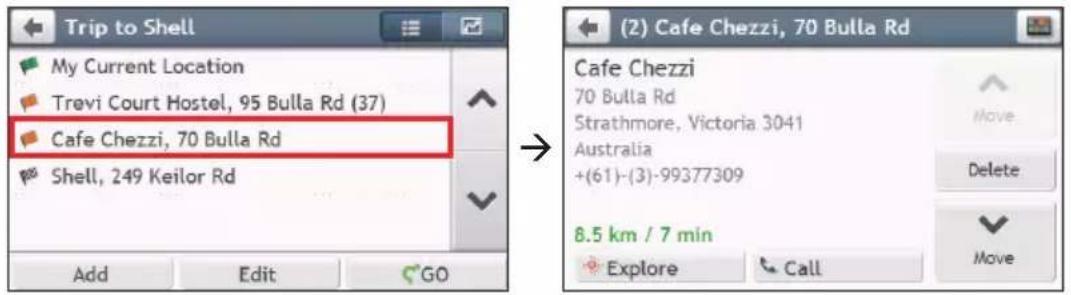

How do I edit the waypoints in the trip? 33

How do I skip a waypoint during a multi-stop trip? 33

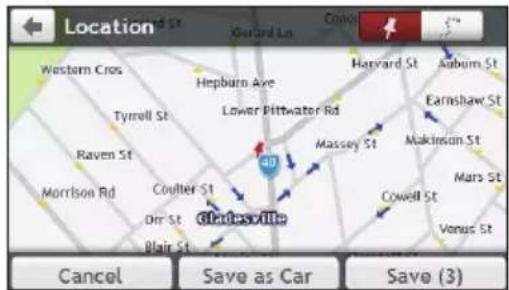

How do I capture a location or a journey? 34

How do I capture the GPS co-ordinates of my location? 34

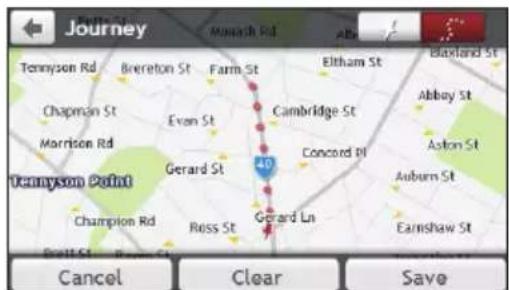

How do I capture a journey? 34

How do I navigate to a location I have captured? 35

How do I navigate to the saved car location? 35

How do I view a journey I have captured? 35

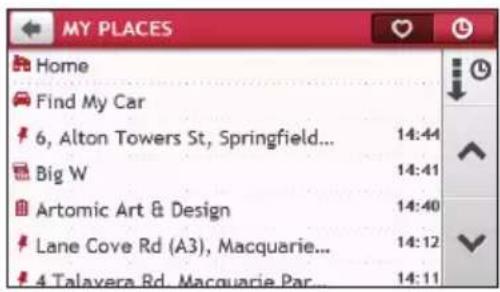

My Places 36

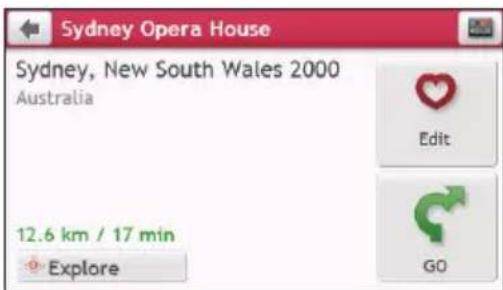

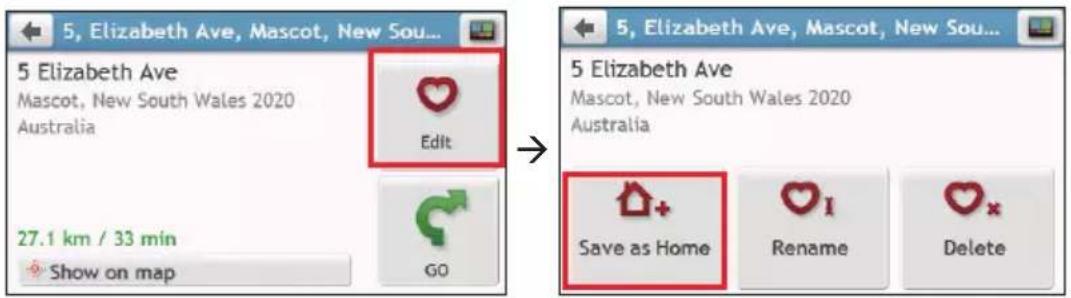

How do I save a location as My Place or Home? 36

How do I navigate to a location I have saved? 36

How do I navigate to Home? 37

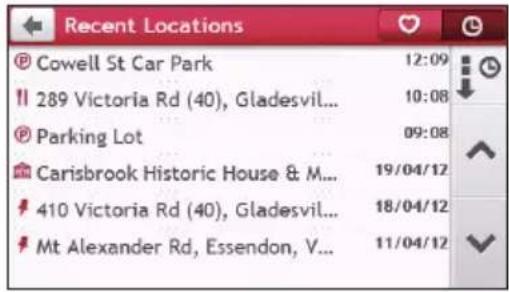

How do I navigate to a recent place? 37

How do I edit a saved location in My Places? 37

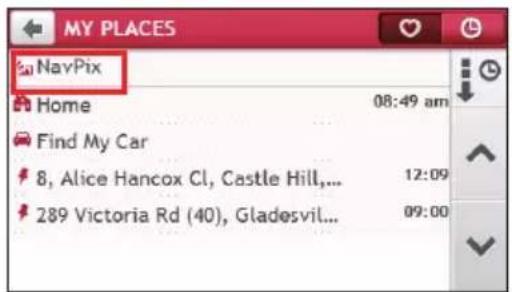

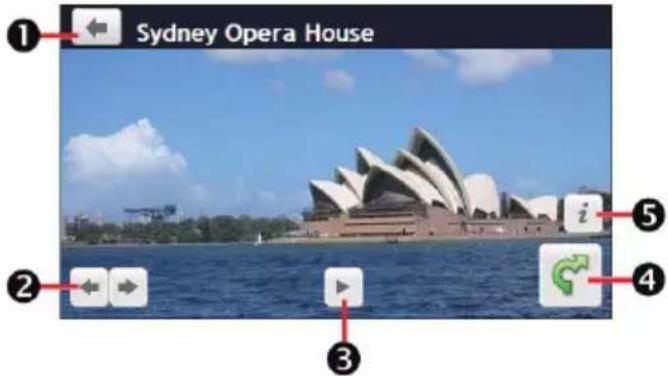

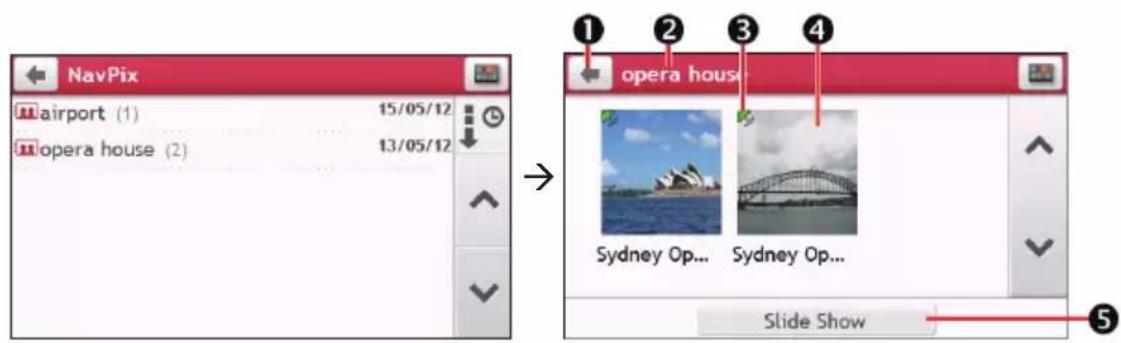

How do I navigate to a NavPix™? 38

How do I navigate to a NavPix™? 38

How do I edit the NavPix™? 39

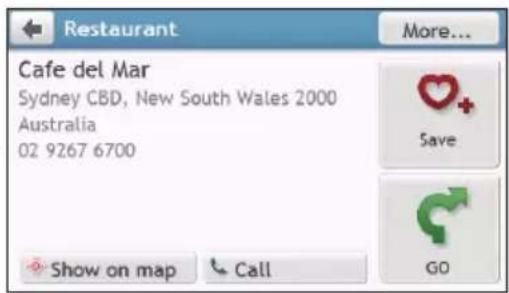

How do I search for a POI? 41

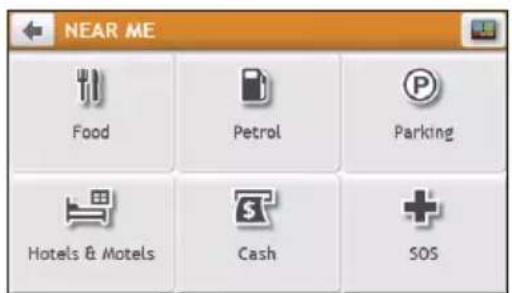

How do I find the nearest POIs using Near Me? 41

How do I find the POIs using Explore? 42

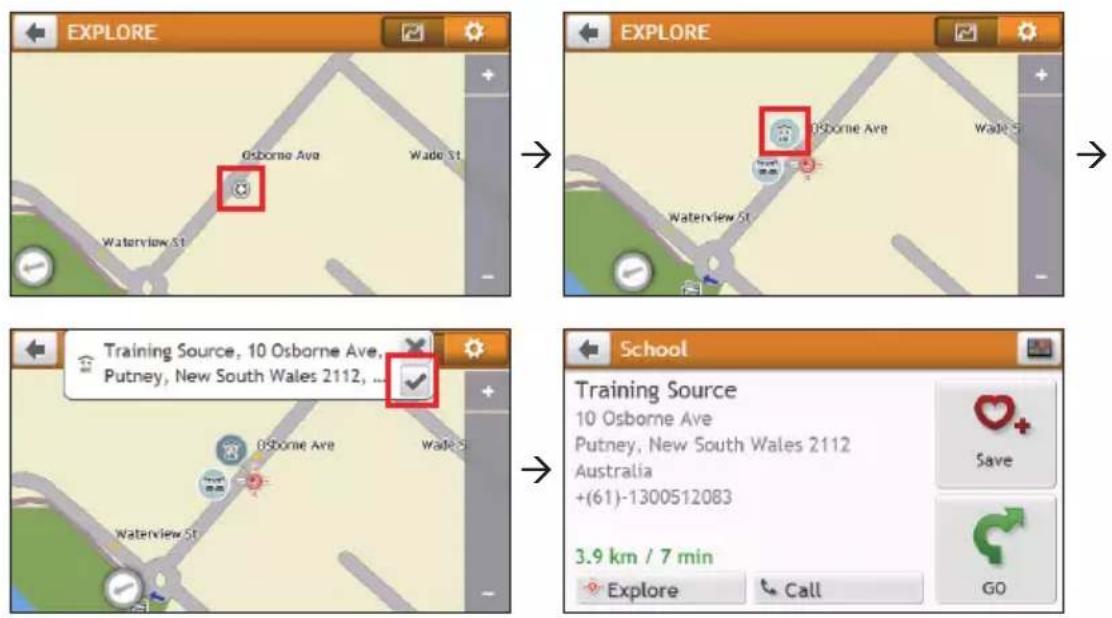

How do I find a POI using the POI cluster? 43

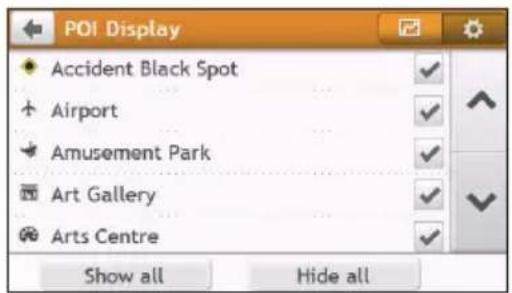

How do I set my POI preferences? 43

How do I find the nearest POIs using the POI category buttons? ...... 44

How do I search for a POI by type? 45

How do I search for a POI by Smart Find Keyword?...... 46

How do I receive current traffic information via TMC? 47

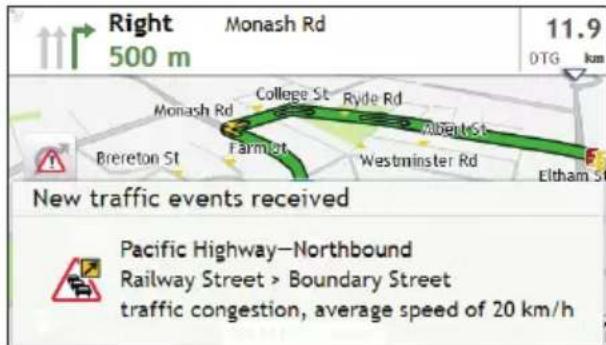

How will I know when a traffic event occurs? 47

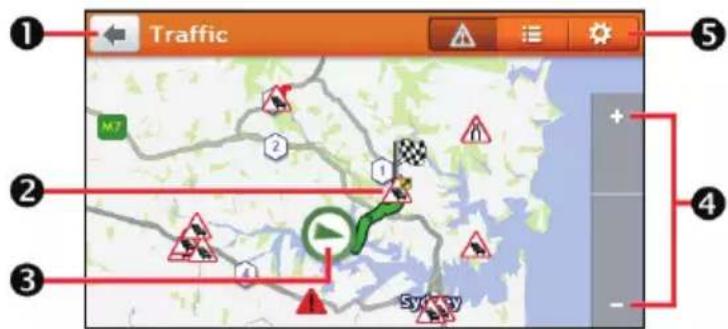

Traffic overview screen 47

How do I view a list of all events on my route? 48

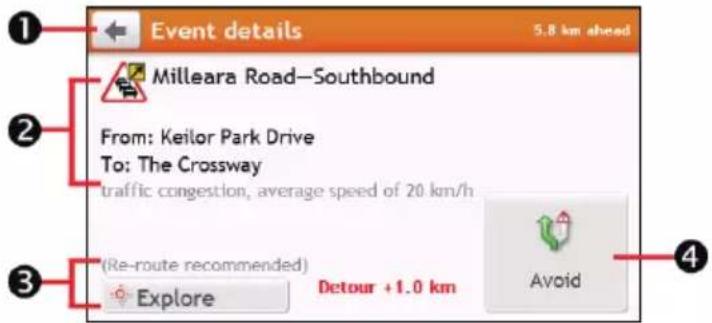

How do I view the traffic details? 49

How do I know if a detour is recommended? 49

How do I avoid an event on my route? 49

Traffic messages 50

Detour not available 50

Detour recommended 50

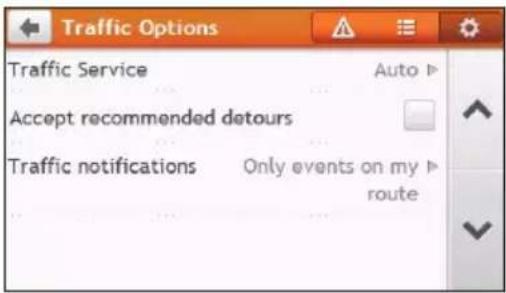

Traffic preferences 50

Traffic service 51

Accept recommended detours automatically 51

Traffic event notification 51

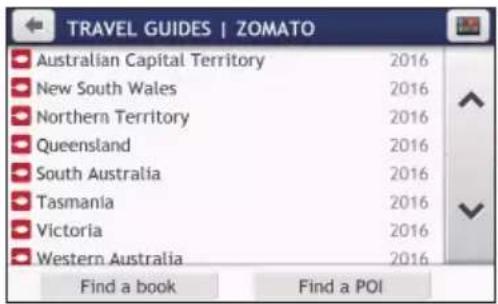

What is Travel Book? 52

How do I search for a POI using Travel Book? 52

How do I use the Bluetooth function? 53

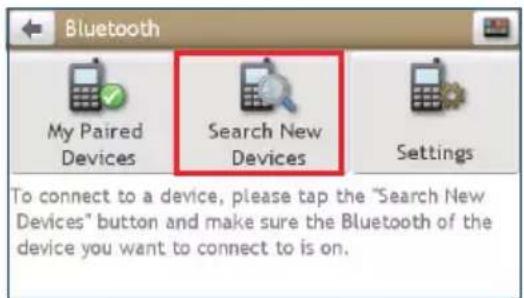

How do I pair my Navman with a Bluetooth device? 53

EZY400LMT/MOVE85LM/MY570LMT 53

MY670LMT 53

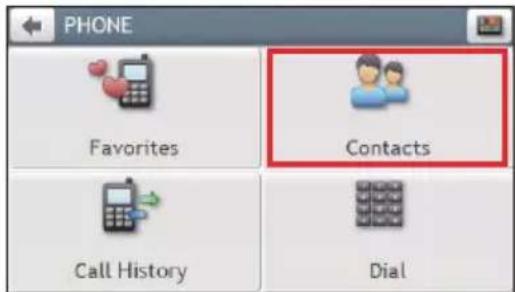

How do I add contacts to my Navman? 54

How do I make a hands-free call? 54

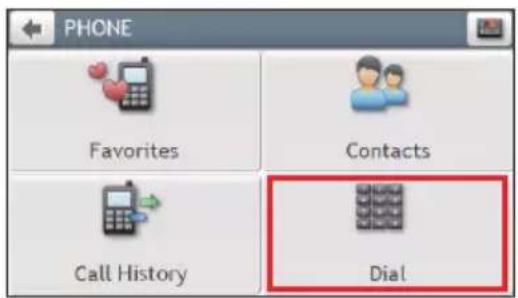

Making a call using the keypad 54

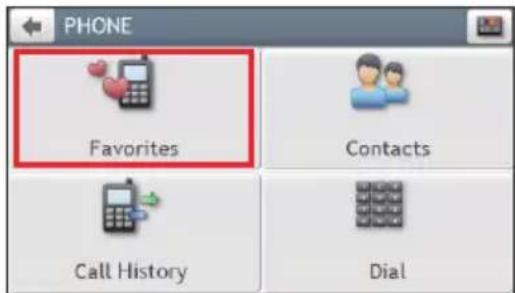

Making a call from the phonebook 55

How do I respond to a phone call? 55

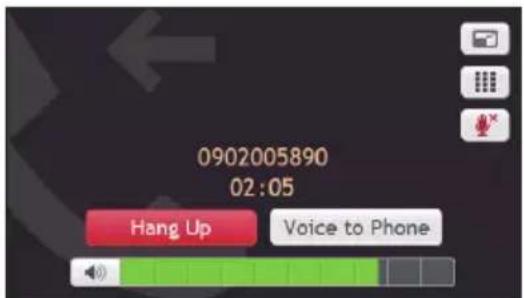

In-call options 55

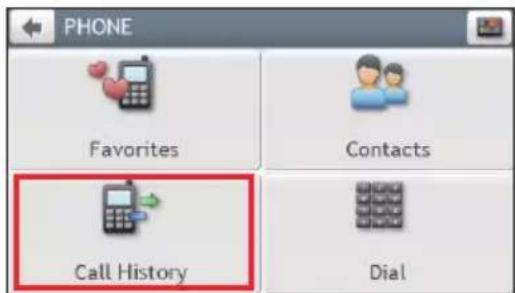

How do I view my call history? 56

How do I control my Navman using Voice Command?...... 57

Customising the system settings 58

What is NavDesk? 65

Can I use NavDesk with my computer? 65

How do I install NavDesk onto my computer? 65

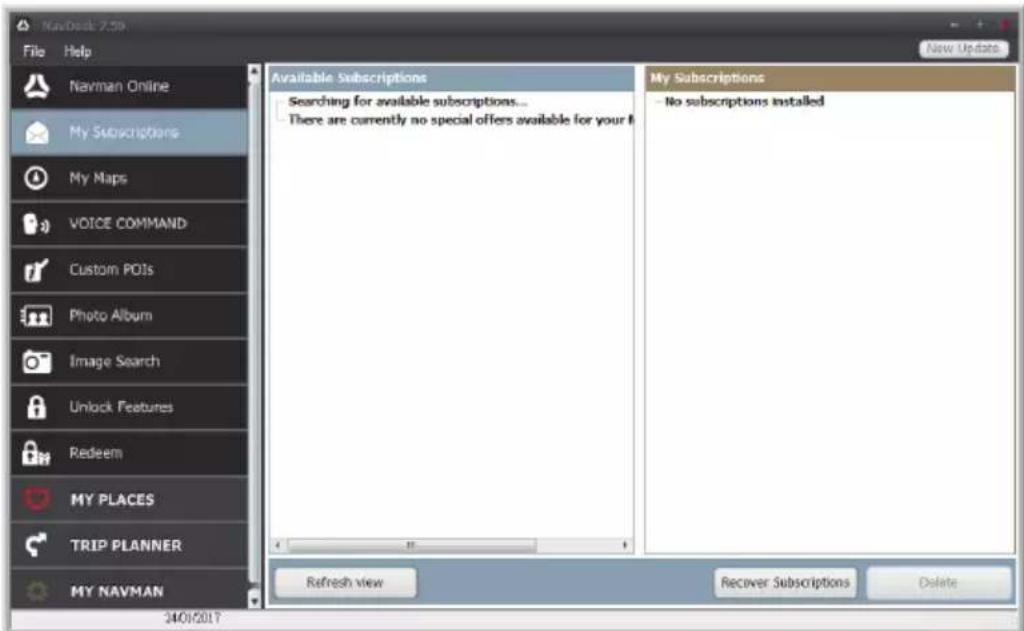

My Subscriptions 67

How do I purchase a subscription? 67

How do I activate my subscription? 68

How do I update subscriptions on my Navman? 68

How do I recover my subscription? 68

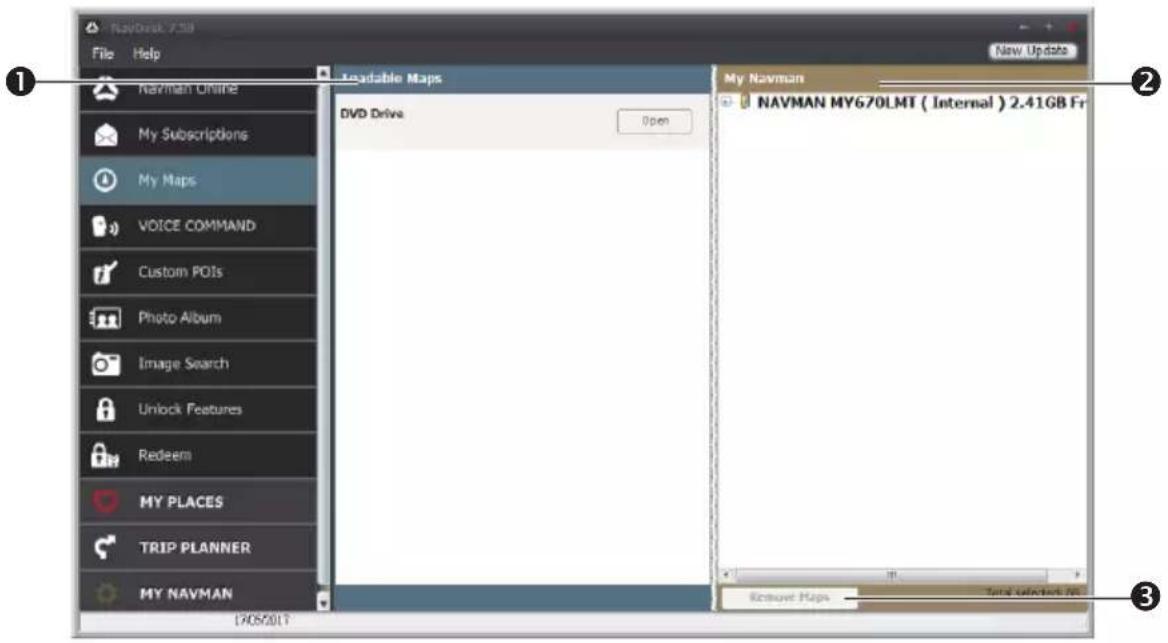

My Maps 68

How do I install maps onto my Navman? 69

How do I remove maps from my Navman? 70

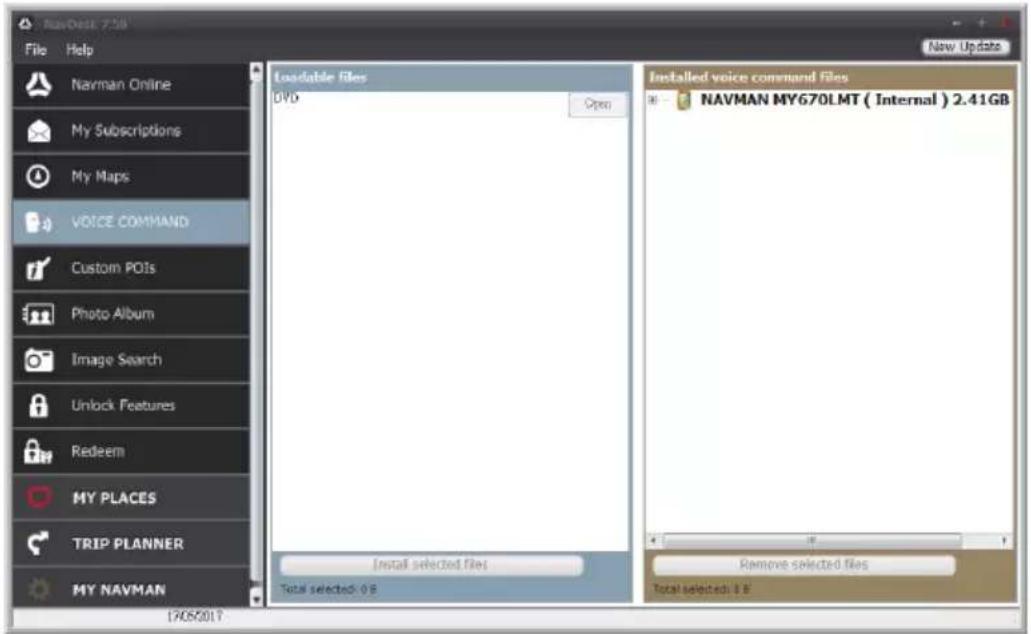

Voice Command 71

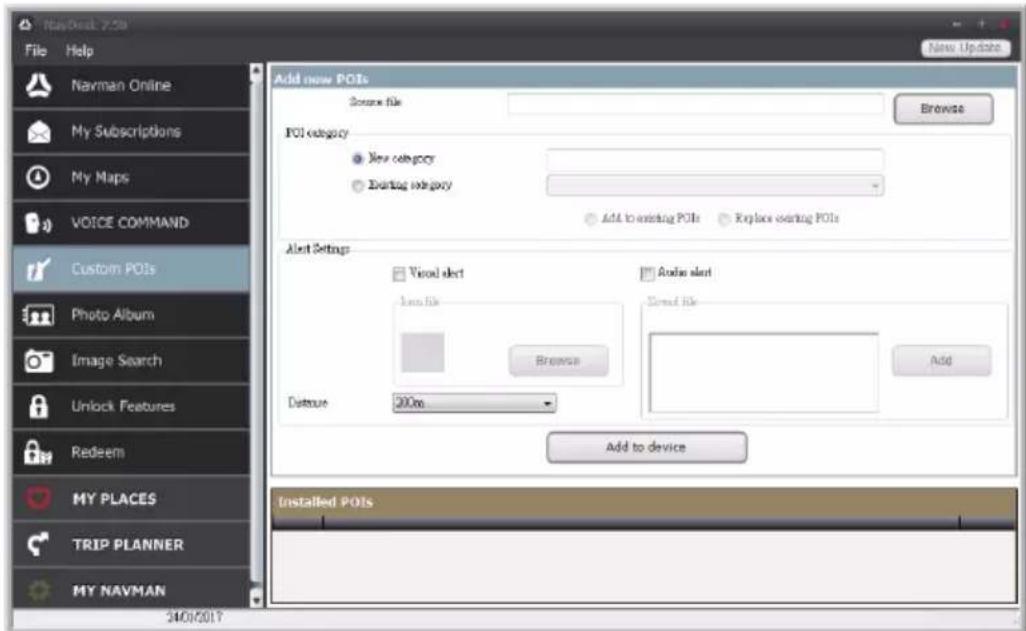

Custom POIs 72

How do I install custom POIs? 72

How do I delete a custom POI file/category from my Navman? ..... 74

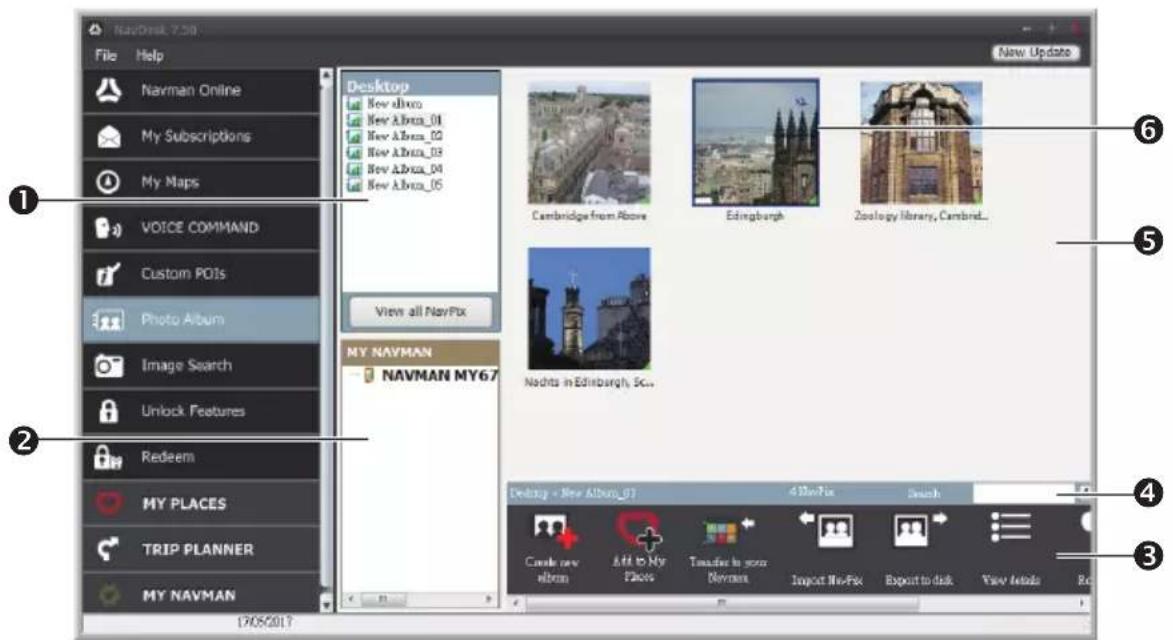

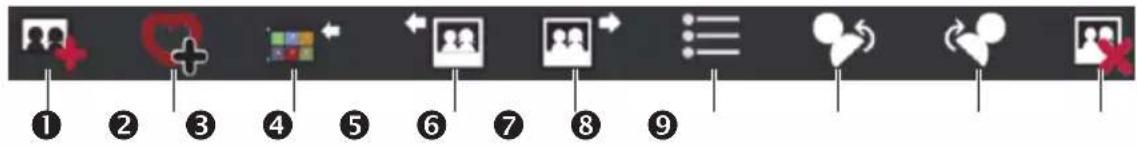

Photo Album 74

What else can I do with pictures and albums on my computer? ..... 75

Photo Album preferences 76

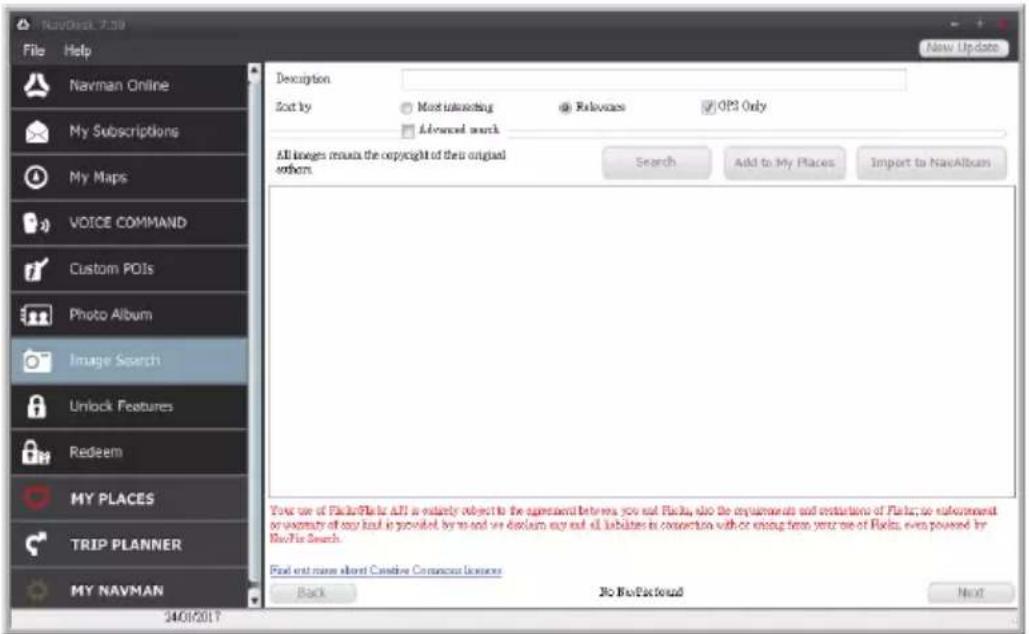

Image Search 77

How do I search for a photo with embedded GPS coordinates on the Internet? 77

How do I import a photo with embedded GPS coordinates to My Places? 78

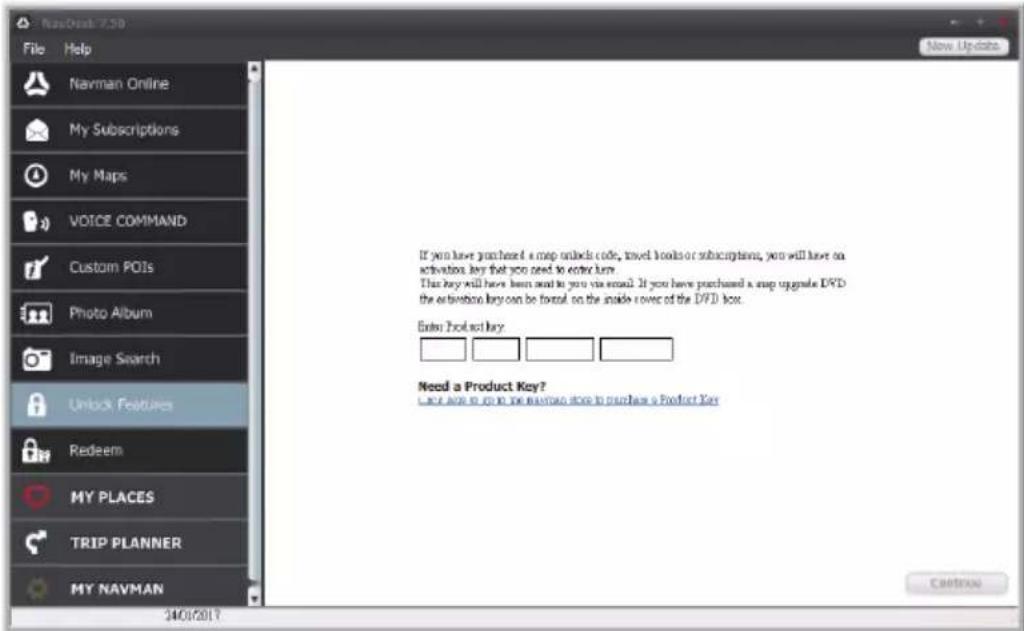

Unlock Features 78

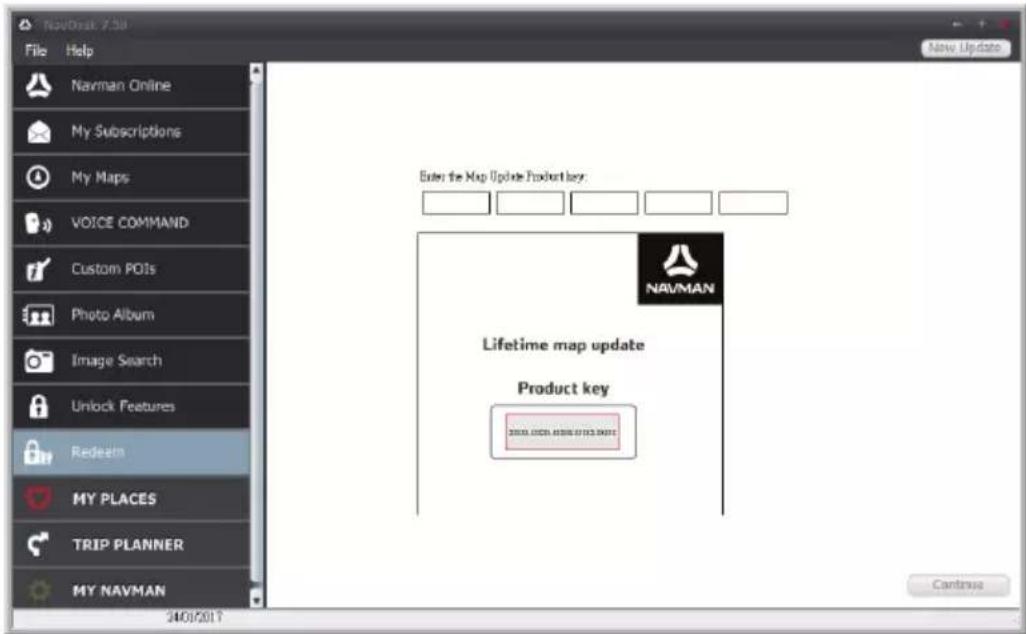

Redeem....78

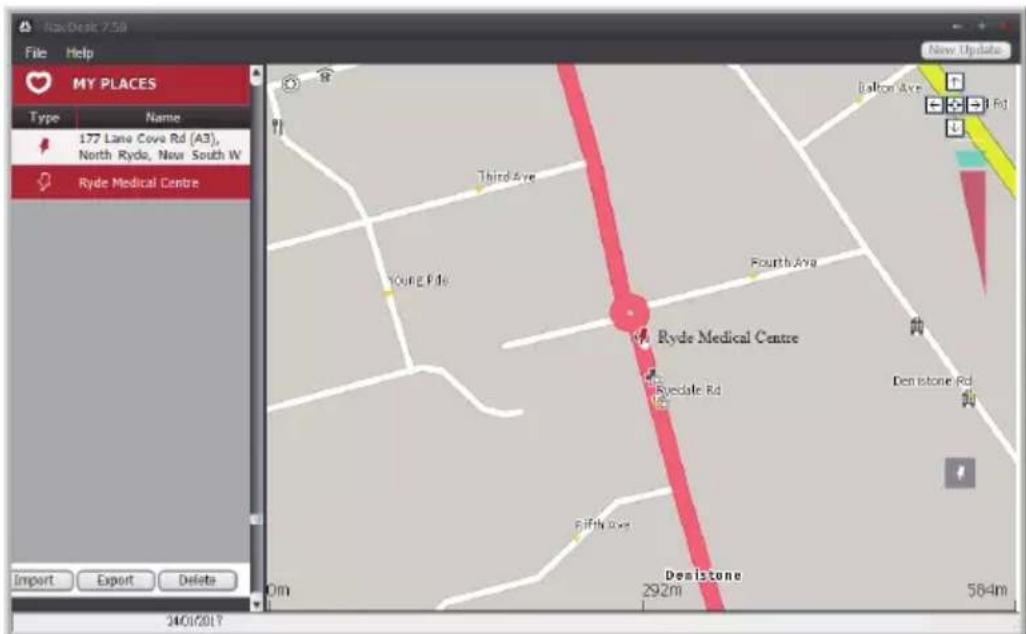

My Places 79

How do I sort My Place locations? 80

How do I import or export a location? 80

How do I edit a location from the map screen? 80

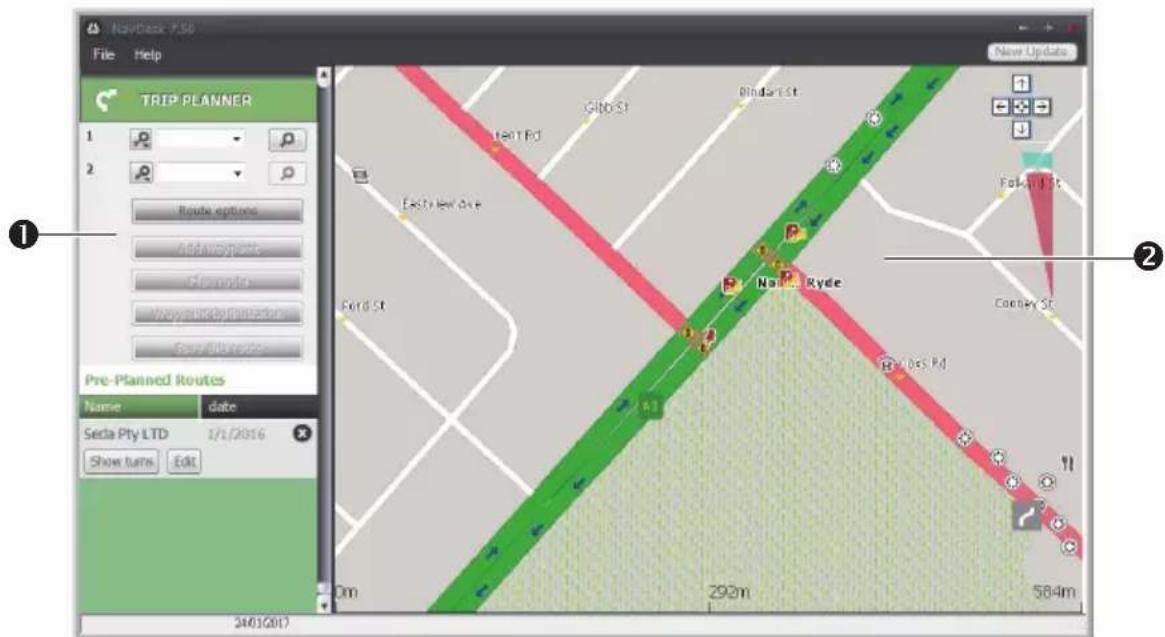

Trip Planner 81

How do I pre-plan a route by search? 82

How do I pre-plan a route using the map? 82

How do I edit a route? 83

My Navman 83

How do I change the displayed language for NavDesk?...... 83

How do I install or remove a voice file for my Navman? 83

How do I register my Navman and set a PIN? 84

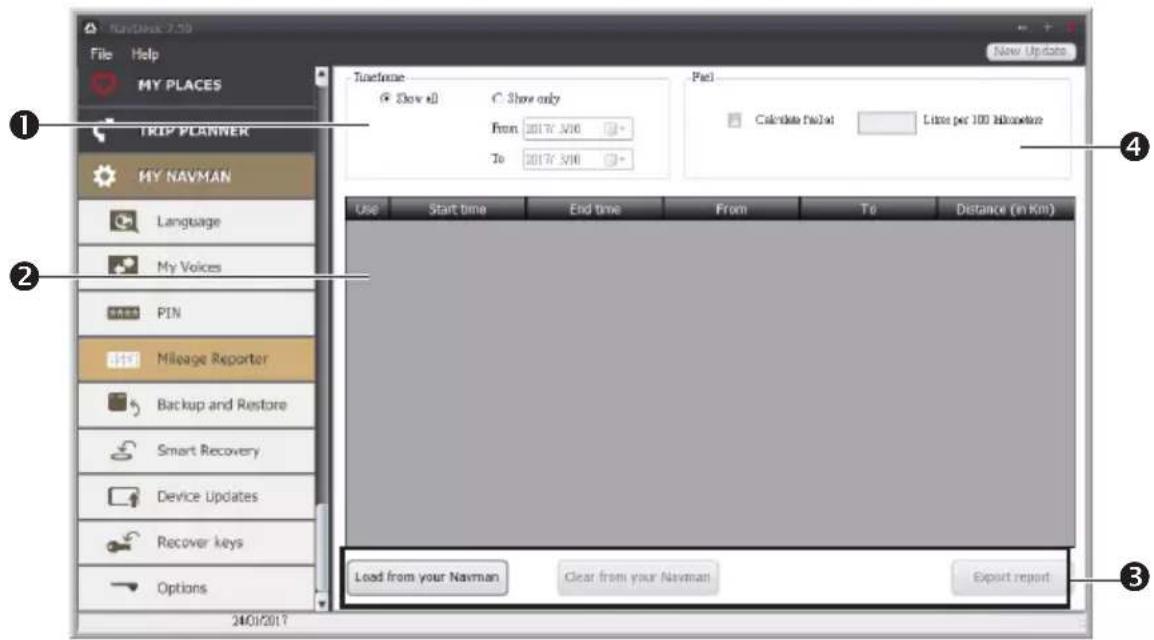

How do I report mileage? 84

How do I backup and restore my Navman? 85

How do I recover maps and voice files for my Navman? 85

How do I update my Navman? 86

How do I recover keys on my Navman? 86

How do I configure NavDesk? 86

Reference 88

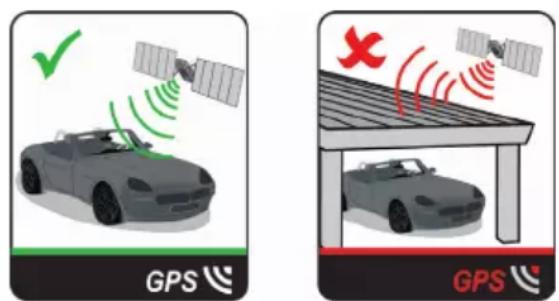

About GPS and signal reception 88

Caring for your Navman 88

Troubleshooting 89

For more information....91

Online support 91

Navman customer support 91

Speed limit 91

Safety camera POIs 91

POI categories 92

Branded POIs 93

Important safety information

- It is highly recommended for the GPS device to stay connected with the vehicle power adapter to ensure optimal performance and to enable the Traffic feature for eligible devices.

- The battery is designed as a backup power source for short-term use only in the event when the vehicle's power system is not available. It is not to be used as a sole source of power for prolonged periods.

- Removing original equipment, adding accessories or modifying your vehicle could affect the vehicle's safety or make it illegal to operate in some jurisdictions.

- Follow all product instructions and all instructions in your vehicle owner's manual regarding accessories or modifications.

- Consult your country's and/or state's laws regarding operation of a vehicle with any accessories or modifications.

- It is your sole responsibility to place, secure and use your Navman in a manner that will not cause accidents, personal injury or property damage. Always observe safe driving practices.

- Do not mount your Navman in a way that may interfere with the safe operation of the vehicle, the deployment of air bags or other safety equipment.

• Do not operate your Navman while driving.

- Before you use your Navman for the first time, familiarise yourself with your device and its operation.

- On main roads, the distance to an exit calculated by your Navman may be further than the distance shown on road signs. Road signs show the distance to the start of an exit while your Navman shows the distance to the next intersection, i.e., the end of the exit ramp or road. To prepare to exit a road, always follow distance information on road signs.

- The use of information regarding safety or speed camera locations may be subject to local laws in the country of use. You are responsible for checking that you can legally use the information in your country or in the country where the information will be used.

- Do not handle your Navman while it is hot. Let the product cool, out of direct sunlight.

Precautions

Failure to adhere to these warnings and cautions may lead to death, serious injury or property damage. Navman disclaims all liability for installation or use of your Navman that causes or contributes to death, injury or property damage or that violates any law.

About vehicle power adapter

- Use only the vehicle power adapter supplied with your device. Use of another type of vehicle power adapter will result in malfunction and/or danger.

• This product is intended to be supplied by a LISTED Power Unit marked with "LPS," "Limited Power Source" and output rated 5 V dc / 1 A or 5 V dc / 2A (MY670LMT only).
• Do not use the vehicle power adapter in a high moisture environment. Never touch the vehicle power adapter when your hands or feet are wet.
• Allow adequate ventilation around the vehicle power adapter when using it to operate the device or when it is connected. Do not cover the vehicle power adapter with paper or other objects that will reduce cooling. Do not use the vehicle power adapter while it is inside a carrying case.
• Connect the vehicle power adapter to a proper power source. The voltage requirements are found on the product case and/or packaging.
• Do not use the vehicle power adapter if the cord becomes damaged.
• Do not attempt to service the unit. There are no serviceable parts inside. Replace the unit if it is damaged or exposed to excess moisture.

About the battery

• CAUTION: The battery can burst or explode, releasing hazardous chemicals. To reduce the risk of fire or burns, do not disassemble, crush, puncture, or dispose of in fire or water.
• The Navman unit must be recycled or disposed of properly.
• Only use the correct home charger (sold separately) or vehicle power adapter supplied by Navman to connect your Navman unit.
• Do not modify and temper with your Navman unit.
• Your Navman uses a Lithium-ion battery. It is important to follow the guidelines set out regarding this type of Battery.

Electronic devices using a lithium – ion battery such as Mobile phones, GPSs and cameras are designed to operate at a temperature range of approximately 0^ C to 50^ C. Beyond these temperature limits, there may be a risk of battery failure, when these electronic goods are exposed to extreme heat conditions for long periods.

It is recommended that you do not use your Navman in a humid, wet and/or corrosive environment. Do not put, store or leave your product in or near a heat source, in a high temperature location, in strong direct sunlight and do not expose it to temperatures over 60^ C ( 140^ F). Failure to follow these guidelines may cause the Lithium-ion battery to leak acid, become hot, explode or ignite and cause injury and/or damage.

Do not pierce, open or disassemble the battery. If the battery leaks and you come into contact with the leaked fluids, rinse thoroughly with water and seek medical attention immediately. For safety reasons, and to prolong the lifetime of the battery, your Navman unit should not be connected at low (below 0^ C/ 32^ F) or high (over 45^ C/ 113^ F) temperatures.

THE LITHIUM-ION BATTERY CONTAINED IN THE PRODUCT MUST BE RECYCLED OR DISPOSED OF PROPERLY.

It is highly recommended you use your Navman only WITH AC ADAPTER (HOME CHARGER) OR THE SUPPLIED DC VEHICLE POWER ADAPTER.

For more information on how to recycle your old electronic devices, please contact your local council office. You can also visit www.navman.com.au / www.navman.co.nz to view our latest trade-in offers.

Declaration of conformity

Note: For regulatory identification purposes:

• NAVMAN EZY400LMT/MY570LMT is assigned a model name of N393-5000.
• NAVMAN MOVE85LM is assigned a model name of NAVMAN MOVE85LM.
• NAVMAN MY670LMT is assigned a model name of N538-6000.

Marking labels located on the exterior of your Navman indicate the regulations that your model complies with. Please check the marking labels on your Navman and refer to the corresponding statements in this chapter. Some notices apply to specific models only.

R-NZ

The user needs to switch off the device when exposed to areas with potentially explosive atmospheres such as petrol stations, chemical storage depots and blasting operations.

Bluetooth

Bluetooth®

NAVMAN EZY400LMT/MY570LMT: Bluetooth DID D027003

NAVMAN MY670LMT: Bluetooth DID D030689

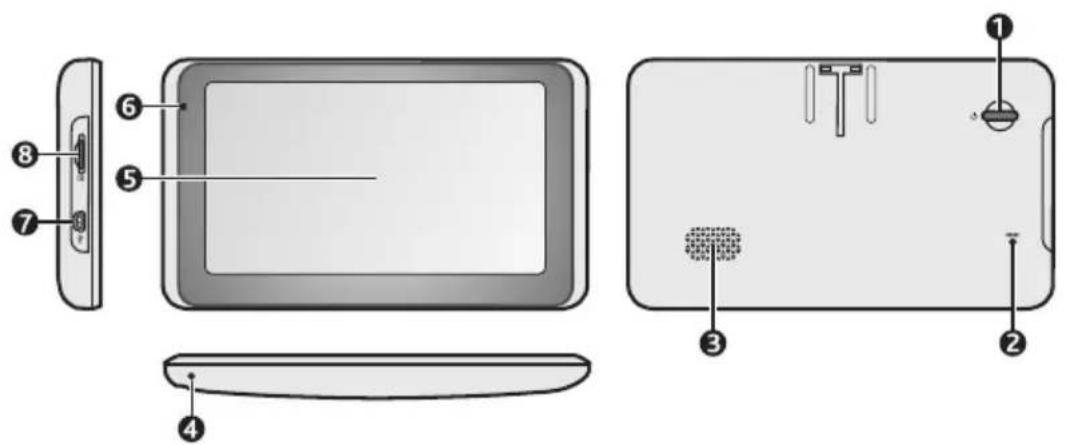

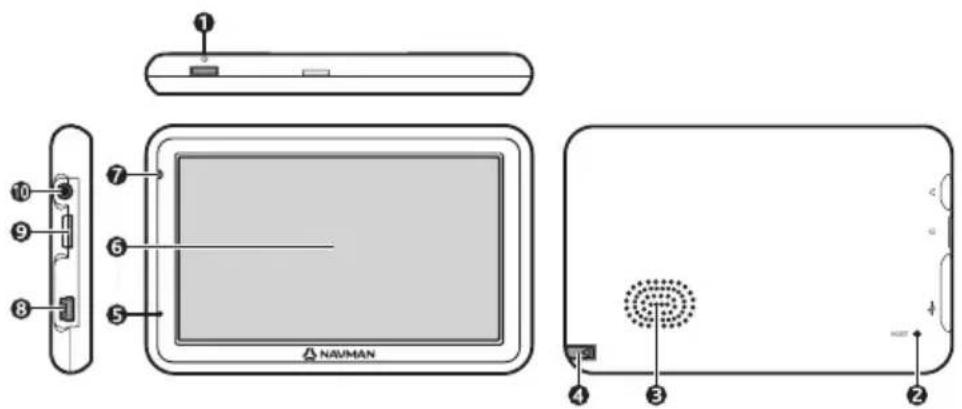

Getting to know your Navman

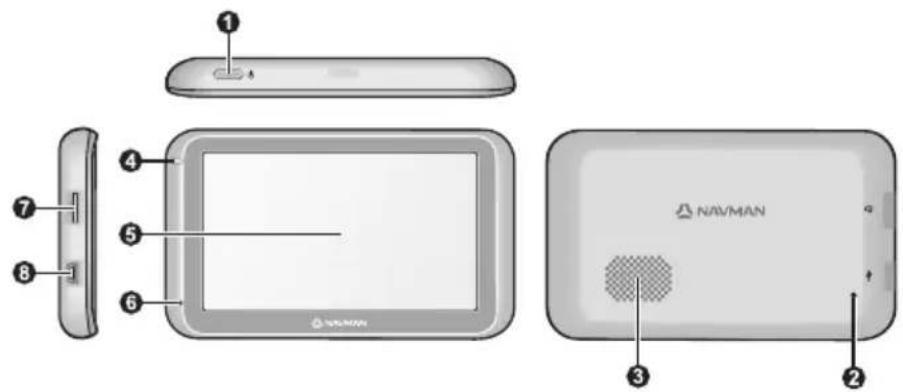

EZY400LMT/MY570LMT

Name Description
1	Power button Turns your	Navman on and off.
2	Reset button Restarts your	Navman.
3	Speaker Sends out sounds	and voice.
4	Power indicator • Glows in amber when powered.• Glows in green when the battery is full.
5	Touch screen Displays the	output of your Navman. Tap the screen with your fingertip to select menu commands or enter information.
6	Microphone Receives sound and voice. Note: This feature is not available on all models.
7	Memory card slot Accepts a MicroSD card for accessing data such as maps.
8	Mini-USB connector Connects to the vehicle power adapter or USB cable.

MOVE85LM

Name Description
1	Power button Turns your	Navman on and off.
2	Reset button Restarts your	Navman.
3	Speaker Sends out sounds	and voice.

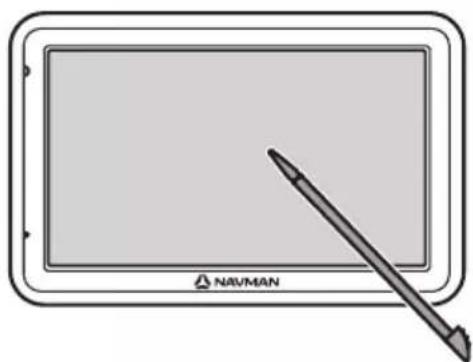

4	Stylus Tap on the touch screen	to make selections and enter information.Note: This feature is not available on all models.
5	Microphone Receives sound	and voice.Note: This feature is not available on all models.
6	Touch screen Displays the	output of your Navman.
7	Power indicator • Glows in red when powered.• Turns off when the battery is full.
8	Mini-USB connector Connects to the vehicle power adapter or USB cable.
9	Memory card slot Accepts a MicroSD card for accessing data such as maps.
10	Earphone jack Connects to stereo headphones or audio lead.Note: This feature is not available on all models.

MY670LMT

Name Description
1	Power button Turns your	Navman on and off.
2	Reset button Restarts your	Navman.
3	Speaker Sends out sounds	and voice.
4	Microphone Receives sound	and voice.
5	Touch screen Displays the	output of your Navman. Tap the screen with your fingertip to select menu commands or enter information.
6	Power indicator • Glows in amber when powered.• Glows in green when the battery is full.
7	Mini-USB connector Connects to the vehicle power adapter or USB cable.
8	Memory card slot Accepts a MicroSD card for accessing data such as maps.

Mounting your Navman in a vehicle

Use the provided device holder and mount to secure your Navman in your vehicle.

The device will turn on automatically when connecting to the external power source.

When disconnecting from the external power source, the device will enter a suspended state within 10 seconds automatically. To continue using the device, tap Yes.

It is highly recommended for the GPS device to stay connected with the in-vehicle power adaptor to ensure optimal device performance and to enable the Traffic feature.

CAUTION:

• Never mount your Navman where the driver's field of vision is blocked.
• If the windscreen is tinted with a reflective coating, it may be athermic and impact the GPS reception. In this instance, please mount your Navman where there is a "clear area" - usually just beneath the rear-view mirror.

EZY400LMT/MY570LMT

4

5

Interior view of a car dashboard and steering wheel (no visible text or symbols)

6

MOVE85LM
12

Illustration of a hand cleaning a car's dashboard with a cloth (no text or symbols)

●

●

Illustration of a computer monitor with two red downward arrows on its side, labeled with number 1 (no text or symbols on the monitor itself)

Illustration of a hand using a computer to interact with a screen, enclosed in a dashed circle (no text or symbols)

Interior view of a car dashboard and steering wheel (no text or symbols visible)

MY670LMT

Interior view of a car dashboard and steering wheel (no text or symbols visible)

CAUTION: For optimal performance of the lithium battery:

• Do not connect your navman unit where the temperature is high (e.g. in direct sunlight).
  • There is no need to fully discharge the Navman unit.
• When storing the product for a long period of time, be sure to connect your Navman at least once every two weeks. Over discharge of the Navman Unit can affect the performance.
• Failure to follow the Navman unit usage instructions could cause damage to your device and even bodily injury or property damage and will void any warranty.

Enabling traffic (TMC) reception

Note: Traffic information is not available on all models and is only available in selected countries.

Your Navman may have a built-in TMC receiver. You can receive live traffic information via the vehicle power adapter which is used as an antenna.

Note: Please note that you will not be able to receive the traffic information while using the third-party accessory (such as your own vehicle power adapter).

For information on using traffic information on your Navman, see the "How do I receive current traffic information via TMC?" section.

Turning your Navman ON and OFF

• For the initial start-up:

- EZY400LMT/MOVE85LM/MY570LMT: Press and hold the power button for 2 seconds to turn on your Navman.

EZY400LMT/MY570LMT

MOVE85LM

• MY670LMT: Briefly press the power button to turn on your Navman.

MY670LMT

Follow the prompts. The Main Menu will display.

Note: The first time you use your Navman, it may take several minutes to establish a GPS connection. When you have a GPS fix, you can start to use your Navman to plan your trip.

- To put your Navman in a suspended state, briefly press the power button. When you next turn it on, your Navman will return to the last screen that you used.

• To resume using the device, do one of the following:

• Press the power button briefly.
• Connect the device to an external power source.

• To turn off your Navman:

• EZY400LMT/MOVE85LM/MY570LMT:
Press and hold the power button until the device shuts down.
- MY670LMT:
Press and hold the power button for 3 seconds.

Resetting your Navman

Occasionally, you may need to perform a hardware reset when your Navman stops responding, or appears to be "frozen" or "locked-up."

Insert a small rod, such as a straightened paperclip into the reset button of your Navman. Your Navman will restart automatically.

EZY400LMT/MY570LMT

Exterior view of a modern office building (no signage)

MOVE85LM

MY670LMT

Connecting your device to the computer

1. Turn on your computer.
2. Plug the large end of the USB cable directly into a USB port on your computer (not a USB hub) and plug the small end into the mini-USB connector on your Navman.
   Note: Reset your device if it is not recognised correctly by your computer.
3. Before disconnecting your Navman from the computer, it is recommended to safely remove the USB drive from the system. This prevents data loss on the device.

CAUTION: When your Navman is turned on and connected to a computer, it is recognised as an external mass-storage device. Do NOT delete any files that are pre-installed on your Navman. Deleting the files can cause your Navman to crash. Navman is not responsible for product quality caused by file deletion.

Inserting a memory card

CAUTION:

• Do not apply pressure to the centre of the memory card.
• Inserting the card in the reverse direction may cause damage.
• Do not insert or remove the memory card when the device is turned on or in the suspend mode.

Hold the card (MicroSD) by the edges and gently insert it into the slot as shown in the illustration.

EZY400LMT/MY570LMT

Close-up of a smartphone door with a red circle highlighting the left side of the door (no text or symbols visible)

MOVE85LM

Diagram showing a device with a dotted circular pattern on the left side and a red arrow pointing to a black connector (no text or symbols)

MY670LMT

Illustration of a tablet device with a black icon and red arrow pointing to its screen (no text or symbols)

To remove a card, gently push the top edge of the card inwards to release it, and pull it out of the slot.

Note: Navman does not guarantee the product's compatibilities with MicroSD cards from all manufacturers.

Navigating on the screen

To operate your Navman, touch the screen with your fingertip. You can perform the following actions:

- Tap

Touch the screen once with your fingertip to open items or select on-screen buttons or options.

- Drag

Hold your fingertip on the screen and drag up/down/left/right or across the screen. (This is not applicable to all applications.)

EZY400LMT/MY570LMT

Illustration of a hand pointing at a tablet screen (no text or symbols visible)

MOVE85LM

Illustration of a digital tablet with a stylus, no text or symbols present

MY670LMT

Illustration of a hand pointing at a tablet screen (no text or symbols visible)

Main Menu

The Main Menu is your starting point for searching for a destination. The Main Menu also allows you to customise your Navman, view saved locations as My Place/Home, and search for POIs nearby, and so on.

EZY400LMT/MOVE85LM

MY570LMT

MY670LMT

Tap ▼ to show the next page of Main Menu.

Note: Main Menu screen options and the order of the options may differ from the above, depending on your region, maps installed or Navman model.

Icon Description
	Search for places, areas and streets to help plan your route.
	Display the Map screen.
	Access your saved locations.
	Explore the area around your current position or destination.
	Receive live traffic information on your route and set traffic preferences.
	Configure your Navman to enhance your navigation experience.
	Use your Navman as a hands-free car kit.
	Control your Navman by voice, allowing you to search for an address/place/POI easily.
	Add or begin a planned trip with multiple waypoints.
	Display the calculated route in simulation mode.
	Record GPS co-ordinates of a location or a journey.
	Search for information and POIs for the city you are visiting.
	Get help with just a phone call when your car breaks down on the road.
	Set or navigate to your home address.
	Search for the nearest petrol stations.
	Search for the nearest rest stops.
	Search for the nearest emergency services, including hospitals and police stations.
	Search for the nearest restaurants, cafes, fast-food premises and other dining establishments.
	Search for the nearest cafes.
	Search for the nearest hotels/motels.
	Search for the nearest parking places.
	Search for the nearest banks and ATMs.
	Search for POIs nearby.

Navigating through the menu screens

The system provides the Back button ( ▶ and Main Menu button ( / ) in the title bar of the menu screen which allow you to navigate through the menu screens easily. You can:

• Return to the previous screen by tapping the Back button.
• Return to the Main Menu by tapping the Main Menu button.

Note: In some menu screens, the Main Menu button will not appear in the title bar. In this instance, you may have to tap the Back button twice.

In some menu screens (such as the map Overview screen), the system provides the tab buttons in the title bar that allow you to enter the additional page in the menu screen.

Simply tap the desired tab to change the view. The selected tab will be highlighted as a darker-colour tab.

Using the Keyboard screen

The Keyboard screen will display when you are required to enter text, such as when searching for a street name.

The Keyboard screen can display with various layouts depending on the information you need to enter, including alphabets, numbers, alternate characters and combinations of these.

• To select a character, tap the character.
• To delete a character, tap ✗. Tap and hold ✗ to delete the entire text.
• To enter numbers, tap 123.
- To set the keyboard preference from the Keyboard screen, tap 📄. Select the preferred keyboard type from the list.

How do I go from A-B?

CAUTION: For your safety, enter destination information before you start a journey. Do not enter a destination while driving.

How do I use the FIND wizard?

Your Navman is equipped with maps that provide street-level details for door-to-door navigation, including POIs such as accommodation, parking areas, petrol stations, railway stations and airports. The FIND wizard allows you to search the location easily.

1. On the Main Menu, tap to display the FIND screen.

EZY400LMT/MOVE85LM

MY570LMT/MY670LMT

Note: FIND screen display and the order of the options may vary, depending on your region, maps installed or Navman model.

1. Complete the following:

If you want to... Then...
search all information on the device - city, streets, named sites, features, landmarks or venues,	tap [IMAGE].
search for an address,	tap [IMAGE].
search for a city/area,	tap [IMAGE].
search for a location from the Map screen (MOVE/EZY series only),	tap [IMAGE].
search for a location using a GPS coordinate (MY series only),	tap [IMAGE].
search a location by postcode,	tap [IMAGE].
search for a street intersection (MY series only),	tap [IMAGE].
search for a POI,	tap [IMAGE].
navigate to a recently visited location (MY series only),	tap [IMAGE].

Note: For more information on searching for a POI, see the "How do I search for a POI?" section.

How do I plan my first trip?

Note: Menu displays may vary, depending on your Navman model.

Using your Navman to plan your first trip is easy. There are several ways to select your destination. The following steps will show you how to plan your route by searching the address.

Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap ↻.
save the location as a favourite,	tap ♥+
save the location as Home,	tap ♥+ → ♥Then tap . ↻+
explore the map,	tap ↻.

How do I preview the destination on map?

After searching an address (or a POI), you can preview the destination on map to explore the area near the location.

1. On the Destination screen, tap the 🔒 button to display the destination preview map.

EZY400LMT/MOVE85LM

MY570LMT/MY670LMT

1. On the destination preview map, you can:

2. Tap the + / - button to zoom in/out the map.
   • View the information of your destination that is shown at the top of the Map screen.

3. Tap on a street/area/POI to display the related information of the location near your destination.
4. Tap the grey arrow icon ( ) to return to your current position on the map.
5. Drag and then tap on the map to select other destinations. The information of the selected street/area/POI near your destination will be displayed. Tapping the check mark will bring up the Destination screen of the selected location.

How do I preview a route?

Note: This feature is not available on all models.

You can plan a route in simulation mode that allows you to:

- preview a route.

- plan and view a route without a GPS fix, such as when you are inside a building.

The following steps will show you how to preview a route.

1. On the Main Menu, tap

1. Select a departure point through the Leaving from screen, and tap √.

Note: If you have a GPS fix, you can simply select the Here button (A) so that you do not need to select a departure point. Otherwise, use the FIND address wizard, Explore map, My Places/Recent places menu or Home to set the departure point if you want the demonstrated route to start elsewhere.

1. Select a destination point through the Going to screen.

2. When done, tap

3. Select a route type and tap, and the route demonstration will start automatically.

The Map screen will display the calculated route in route simulation mode. The simulated route will be displayed as orange colour.

How do I view my route?

How do I select the route type?

Note: This feature is not available on all models.

Depending on your Navman model, the Select Route Type screen may be displayed when you tap from the Destination screen. All of the four route types (Fastest, Economical, Easiest, and Shortest) will be calculated.

Select your preferred route and tap to start navigating.

Note: For more information on setting the preferred route type, see the "Route options" section in "Customising the system settings."

The driving map

When a route has been calculated (and selected, for some models), the Map screen will display. You will be directed to your destination by spoken and visual instructions.

Item Description
1	Direction and distance of next turn	The direction and distance to your next turn.Tap 📋 to repeat the vocal instruction.
2	Petrol stations	Search for the nearest petrol stations.Note: This feature is not available on all models.
3	Rest stops	Search for the nearest rest stops.Note: This feature is not available on all models.
4	Current route Your current route is highlighted.
5	Current position	Your current position is marked with [IMAGE].
6	Voice command Depending	on your Navman model, you may be able to tap [KBG2] to use the Voice Command function.
7	Address bar The current address will be displayed in the text box at the bottom of the screen.
8	Distance and time information	Tap to expand and select the following options:DTG (Distance to Go)TTG (Time to Go)km/h or mph (speed) and compass headingETA (Estimated Time of Arrival)Time

Note: Depending on your driving route, you may see some icons that provide different information on your Map screen. Please note that these icons will not be always displayed during your journeys.

How do I change the route configuration?

Tap anywhere on the Map screen to bring up the Map options screen, which allows you to change the route-related configuration.

For more information on changing the route configuration, see the following sections.

Note: Map options screen display and the order of the items may vary, depending on your region, maps installed or Navman model.

EZY400LMT/MOVE85LM MY570LMT/MY670LMT

How do I view my route statistics?

1. From the Map options screen, tap

1. Tap the tabs in the title bar to view the additional information in the different screens.

1. Your Navman provides the information on your:

• time to destination • time travelled
• distance to go • time stationary
• estimated time of arrival • TTD/DTG/ETA for the journey*
• distance travelled • traffic delay*

* Depending on the route calculated, you may see more information on the screen such as the estimated time/distance to the next stop when your trip contains multiple waypoints and the traffic delay information if a traffic event occurs in your trip.

How do I adjust the volume?

1. From the Map options screen, tap

1. The volume buttons will be displayed on the Map screen in translucent mode.

Note: The volume buttons will automatically disappear after the map is idled for 5 seconds.

1. Complete the following:

If you want to... Then...
increase/decrease the volume,	tap / The volume bar indicates the current volume level.
mute/unmute,	tap .The speaker icon indicates the status: : muted : unmuted

How do I zoom in/out the map?

1. From the Map options screen, tap
2. The zoom buttons will be displayed on the Map screen in translucent mode.
   Note: The zoom buttons will automatically disappear after the map is idled for 5 seconds.
3. Complete the following:

If you want to... Then...
zoom in the map,	tap and hold +.
zoom out the map,	tap and hold -.

How do I view the traffic status on my route?

Note: Traffic information is not available on all models and is only available in selected countries.

Depending on your Navman model, you can view the traffic status by:

• EZY series: tapping ⚠️ from the Map options screen.
  • MY series: tapping 🚠️ on the Main Menu.

For more information, see the "How do I receive current traffic information via TMC?" section.

Advanced routing functions

Smart Routes

Your Navman features Smart Routes, which intelligently anticipates congested roads at peak times so that they can be avoided. Smart Routes does this by using historical, anomalised data from millions of fellow drivers. Since Smart Routes helps you automatically avoid predicted heavy congestion, you will be able to save time and money during your journeys.

Note: Smart Routes is not available on all models and is only available in selected countries.

My Drive

Note: This feature is not available on all models.

With My Drive technology, your Navman includes an intelligent capability that learns and adapts to your personal driving style. Over time, your Navman learns your preference for road types and driving speeds, turns and more. Your Navman will save the information and provide a more personalised route and accurate time of arrival the next time you plan a trip.

Note: For more information on Smart Routes and My Drive settings, see the "Route options" section in "Customising the system settings."

Back-On-Track™ automatic rerouting

You will be redirected if you make a wrong turn. A message informing you that your route is being recalculated will display at the top of the screen.

To cancel a route recalculation, tap ✗ from the Map options screen. A warning will display asking you to confirm the cancellation. If confirmed, both the recalculation and your current route will be cancelled.

Parking assistant

Note: This feature is not available on all models.

You will be reminded of the parking information when you are arriving at the destination (within 1 km) of the route. Simply tap the P icon on the Map screen to show the nearby parking lots that are sorted by distance.

How do I create a trip with multiple stops?

Note: Trip Planner is not available on all models and is only available in selected countries.

Depending on your Navman model, you may be able to set multiple stops or waypoints for your trip. Your route will be calculated to go via each of these points in the specified order.

1. On the Main Menu, tap

2. Tap Create New Trip.

1. Tap Add. Use the FIND address wizard, Explore map, My Places/Recent Locations menu or Here/Return to start to set the waypoint.

1. When your search is done, tap

1. Complete the following:

If you want to... Then...
add another waypoint, tap Add.	Note: Waypoints added after a multi-stop trip has commenced will not be included in the current route.
navigate to your selected destination,	tap ↗.
edit the trip, tap Edit, then you can:	• optimise your trip by selecting Optimise. • change the trip title by selecting Rename. • delete the planned trip by selecting Delete.

Note: The Optimise function does not take all the factors into account. Your waypoints might be reordered to reduce your estimated travel distance. Be sure to confirm the trip on the map and make adjustments as appropriate, particularly if your trip returns to the start location.

How do I edit the waypoints in the trip?

1. On the Main Menu, tap
2. Tap the trip to edit.
3. Tap the desired waypoint in the trip.

1. Complete the following:

If you want to... Then...
delete a waypoint, tap Delete, then select OK.
change the order of the waypoint,	tap ∧ or √

How do I skip a waypoint during a multi-stop trip?

1. Tap anywhere on the Map screen to bring up the Map options screen.
2. Tap -, then select Yes. The next waypoint will be skipped and the route recalculated to the following waypoint.

Note: You can also add waypoints during the trip by selecting from the Map options screen.

How do I capture a location or a journey?

Note: The capture functionality is not available on all models.

Your Navman may have a capture feature which allows you to record GPS co-ordinates of a location and capture a journey, and save them so you can navigate back at a later time.

How do I capture the GPS co-ordinates of my location?

1. On the Main Menu, tap

1. Tap Save, or wait for 5 seconds. You will hear a shutter sound to indicate that the GPS co-ordinates have been saved. The location is saved in My Places.

Note: Tapping Save as Car will save the current car location in My Places.

How do I capture a journey?

To enable capturing of journeys, you must first enable Capture Journey from the Main Menu: tap → Route options. For more information, see the "Customising the system settings" section.

1. At the beginning of the journey you would like to record, tap Clear. All travel that you have made (i) since midnight, (ii) the previous time you tapped Clear, or (iii) last captured a journey, will be deleted.

2. Travel on your journey. Your Navman will keep a record of where you travel.

3. At the end of your journey, tap on the Main Menu.

4. On the Capture screen, tap

5. Tap Save, then Yes. The journey is saved in My Places.

How do I navigate to a location I have captured?

1. On the Main Menu, tap
2. Tap the captured destination you want to travel to (✗).
3. Tap G. Your Navman will calculate a route from your current location.

How do I navigate to the saved car location?

Note: This feature may not be available for all models.

1. On the Main Menu, tap

1. Tap Find My Car.

2. Tap F. Your Navman will calculate a route from your current location.

How do I view a journey I have captured?

1. On the Main Menu, tap

1. Tap the captured journey you want to view (✗).

My Places has all your saved locations.

How do I save a location as My Place or Home?

1. Search for an address until the Preview screen is displayed.

1. Tap The location will be added to My Places.
2. To save the location as Home, tap → The location will be set as Home.

How do I navigate to a location I have saved?

1. On the Main Menu, tap

1. Tap the Sort by button to change the sorting order of the items:

: by time : by name : by type

1. Tap the favourite destination you want to travel to.
2. Tap G. Your Navman will calculate a route from your current location.

How do I navigate to Home?

If you have not set an address as Home, the first time you try to navigate to Home you will be prompted to search for an address using the address-entry wizard.

1. On the Main Menu, tap 🤐️.

2. Tap

3. Tap ↗ . Your Navman will calculate a route from your current location.

Once your home has been set on your Navman, simply tap 🏠 on the Main Menu and you will be directed to Home.

How do I navigate to a recent place?

To make navigating to a location easier, your Navman will automatically save all your start locations and destinations in a list of recent places.

1. On the Main Menu, tap

2. Tap

1. Tap a recent place.

2. Tap . Your Navman will calculate a route from your current location.

Note: You can also tap on the Main Menu and tap to display a list of recent locations.

How do I edit a saved location in My Places?

1. On the Main Menu, tap .

2. Select a location to edit.

3. Tap♡.

4. Complete the following:

If you want to... Then...
save the location as Home,	tap 🔊+.
rename the location,	tap ♥I. After you have edited the name, tap OK.
delete the location,	tap ♥ ✗.

How do I navigate to a NavPix™?

Note: NavPix™ is not available on all models and is only available in selected countries.

NavPix™ is an image or picture, normally of a location, which contains embedded GPS co-ordinates that you can navigate to.

To navigate to a NavPix™ location, either a GPS fix must have been available when the NavPix™ was taken, or GPS co-ordinates have been added using NavDesk.

How do I navigate to a NavPix™?

Note: For more information about importing the NavPix™ to your Navman, refer to the "Photo Album" section in "What is NavDesk?"

1. On the Main Menu, tap

1. Tap NavPix.

1. From the list select the album (☐) you want. The album contains your pictures and displays them as thumbnails.

Item Description
1		Tap to return to the previous screen.
2	Album title Title of the album.
3		Indicates that the picture is a NavPixTM with embedded GPS co-ordinates.
4	Thumbnail A thumbnail of a	NavPixTM contained in the album.
5	Slide show Displays all images	in the album as a full screen slideshow.

1. Tap the desired thumbnail to open the NavPix™ in full screen.

Item Description
1		Tap to return to the previous screen.
2		Tap to display the previous/next NavPixTM.
3		Tap to start/stop slideshow.
4		Tap to calculate the route, open the Map screen and start navigating.
5		Tap to display the NavPixTM Details screen.

How do I edit the NavPix™?

1. From the Album screen, tap the desired thumbnail to open the NavPix™ in full screen.
2. Tap i.

1. Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap
edit the NavPixTM,	tap To save the location as Home, tap △+.To rename the title of theNavPixTM, tap ♥I.To delete theNavPixTM, tap ♥x.
explore the map,	tap

How do I search for a POI?

A POI (Point of Interest) is a named site, feature, landmark or public venue which can be displayed as an icon on the map. POIs are grouped by category, such as petrol stations, parks, beaches and museums.

Your Navman may provide several ways to search for the nearby POIs. Depending on your Navman model, you can search for the nearest POIs by using:

• Near Me
• Explore
  • the POI category buttons on the Main Menu

How do I find the nearest POIs using Near Me?

Near Me services allow you to quickly search the local area for common types of important POIs.

	Search for the nearest restaurants, cafes, fast-food premises and other dining establishments.
	Search for the nearest petrol stations.
	Search for the nearest parking places.
	Search for the nearest hotels and motels.
	Search for the nearest banks and ATMs.
	Search for the nearest emergency services, including hospitals and police stations.

1. On the Main Menu, tap
2. Select the desired POI category.
3. Tap or to scroll up or down the result list.
4. Select the desired item to display the destination screen.
5. Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap
save the location as a favourite,	tap .
explore the map,	tap

How do I find the POIs using Explore?

Note: Explore is not available on all models and is only available in selected countries.

Depending on your Navman model, you may search for the POIs using the Explore map. The Explore map allows you to explore the local area to find POIs or navigate to an address. If you do not have a GPS fix, the map will display your last known position.

1. On the Main Menu, tap

2. On the Explore map, you can:

• View the information of the selected POI that is shown at the top of the screen.
- Tap and drag the map to explore your desired local area.
- Tap and drag the map to display a POI cluster showing POIs in the surrounding area. Tap a POI icon to show more information and navigate to the POI.

Item Description
1		Tap to return to the previous screen.
2	rmation area Display the information of the selected POI/position.
3	rent position	Your current position is marked with [IMAGE].
4	cluster Tap an icon	or street name in the POI cluster to view information and options.
5	/ To zoom in or out,	tap and hold or . Zooming in or out will decrease or increase the area contained within the Explore area.
6		Tap to set POI preferences.

How do I find a POI using the POI cluster?

Tapping on the selected POI will bring up the screen with the POI destination details.

Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap ↗.
save the location as a favourite,	tap ♥+.
explore the map,	tap 🔍.
place a phone call to the POI,	tap ↙.Note: This feature is not available on all models and is only shown when the phone number of the POI is available.

How do I set my POI preferences?

POIs are grouped into categories. You may choose to either display (or hide) icons of all POI categories on the Map screen, or only display the icons from selected categories.

1. Tap

2. Complete the following:

If you want to... Then...
display all POI icons, tap Show all.
display no POI icons, tap Hide all.	Note: Hiding POIs will stop you from finding them when using explore mode/cluster search.
select a specific POI icon for display,	tap the required POI category to show (√) or hide (☐) on the Map screen.Repeat until all required categories are selected.
return to the Explore map,	tap [√].

- Your preferences are automatically saved.

How do I find the nearest POIs using the POI category buttons?

Note: The POI category buttons are not available on all models.

1. From the Main Menu, select one of the following:

If you want to... Then...
search for the nearest petrol stations,	tap [IMAGE].
search for the nearest rest stops,	tap [IMAGE].
search for the nearest emergency service,	tap [IMAGE].
search for the nearest restaurants,	tap [IMAGE].
search for the nearest cafe,	tap [IMAGE].
search for the nearest hotels/motels,	tap [IMAGE].
search for the nearest parking places,	tap [IMAGE].
search for the nearest banks and ATMs,	tap [IMAGE].

1. A list of the selected POI category based upon your current location is displayed.
2. Select the desired item to display the destination screen.
3. Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap
save the location as a favourite,	tap
explore the map,	tap
place a phone call to the POI,	tap Note: This feature is not available on all models and is only shown when the phone number of the POI is available.

How do I search for a POI by type?

1. On the Main Menu, tap

1. Tap i.

2. Complete the following:

If you want to... Then...
search for the POIs near your current location,	tap
search for the POIs in a specified city or area,	tap . After you have entered a name of a city/area, tap OK.
search for the POIs on your route,	tap
search for the POIs near your destination,	tap .

1. Complete the following:

If you want to... Then...
search for POIs by keyword,	tap . After you have entered a keyword, tap OK.
search for restaurants, cafes, fast-food premises and other dining establishments,	tap
search for petrol stations,	tap
search for parking places,	tap
view more POI types,	tap [6B3W] and select a POI type.
search for hotels and motels,	tap
search for banks and ATMs,	tap
search for emergency services,	tap

1. Tap the desired item from the list.
2. Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap
save the location as a favourite,	tap
explore the map,	tap
place a phone call to the POI,	tap Note: This feature is not available on all models and is only shown when the phone number of the POI is available.

How do I search for a POI by Smart Find Keyword?

Complete the following to navigate to a POI or the street address that you find by keyword.

1. On the Main Menu, tap
2. Tap ✉️. Enter the keyword of the POI or street address that you want to search.
3. Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap
save the location as a favourite,	tap
explore the map,	tap
place a phone call to the POI,	tap Note: This feature is not available on all models and is only shown when the phone number of the POI is available.

How do I receive current traffic information via TMC?

Note: Traffic information is not available on all models and is only available in selected countries.

The Traffic Message Channel (TMC) broadcasts real-time traffic information via the FM Radio Data System (RDS). FM radio stations transmit TMC data on a cycle of several minutes, with hundreds of events able to be broadcast to TMC receivers.

Your Navman can receive current traffic information for all main roads, motorways and major cities, enabling you to avoid potential delays on your route. Event messages and traffic icons will display as they occur. If an event message obscures your current location, the map will adjust to display both the message and your location.

You may have to pay for the TMC service in some countries.

How will I know when a traffic event occurs?

When travelling through an area in which you can receive traffic updates, your Navman will decode these events and display them. An icon will display at the event location on the Map screen, and an audible warning is given if an event is on your route. Where an event spans a specific distance, the road will be highlighted and arrows will indicate the direction affected.

A message will display at the bottom of the screen with the road name, the section of road affected and the type of event that has occurred. The message remains on the screen for 8 seconds and is added to the All traffic events.

Note: When the message is suppressed, the TMC icon ( ) will be displayed on the Map screen.

You can tap the icon to bring up the All traffic events screen.

Traffic overview screen

When you see the traffic event message on the Map screen, you can open the Traffic screen to display a general overview of the traffic situation on your route, including all events in the immediate vicinity.

On the Main Menu, tap ▲ to display the Traffic screen.

Item Description
1	←→KZ6]	Tap to return to the previous screen.
2	Event icon Displays an icon to indicate type of event.
3	Current position	Your current position is marked with [IMAGE].
4	/ To zoom in or out, tap and hold or .	+ -
5	T###e bar tabs Tap to change the display between the Traffic, All traffic events, and Traffic Options windows.

Item Description
4	Sort by	Tap to select All events or Only events on my route.

How do I view the traffic details?

On the All traffic events screen, tap the event you want to view.

Item Description
1		Tap to return to the previous screen.
2	Event icon and description	Displays details of the event, including:Name of road and direction in which the event is taking place.Location of where the event begins and ends.> indicates an event from a location, to a location.<> indicates an event between locations.Type of event.
3	Explore Tap to explore the map.
4	Avoid Tap to initiate a new route to avoid the event. Only available if a detour or re-route is available.The Unavoid button is displayed when a re-route has been calculated.

Note: When the detour information is provided, the details will be displayed as detour recommendation on the Event details screen.

How do I know if a detour is recommended?

When a Traffic or Clearance event occurs on your route, a detour will often be recommended. The detour event message will display in the status bar on Map screen.

Note: Detours are only recommended for Traffic or Clearance Events on a calculated route.

How do I avoid an event on my route?

1. On the All traffic events screen, tap the event.
2. If a detour has been calculated to avoid an event on your route, Avoid is available; tap to accept the new route and avoid the event.

Traffic messages

The Event Details screen displays detour status information.

Detour not available

If a detour is not available, one of the following messages will display:

Message Description
This event is not locatableThis clearance is not locatable	A specific location for the event cannot be identified.
This event does not affect your routeThis clearance does not affect your route	The event is not on the current leg of your journey, or is behind your current position.
You are avoiding this eventYou have accepted this clearance	The event is not on the current leg of your journey.
You are too distant to re-routeYou are too distant to accept this clearance	The event is currently too distant to affect your journey.
Detour not foundClearance route not found	A detour / re-route could not be calculated.

Detour recommended

If a detour is recommended, one of the following messages will display:

Message Description
Finding detour...Recalculating route...	Your Navman is calculating a new route. During calculation, the % complete will display.Note: Exiting this screen before the new route is calculated will cancel the operation.
Detour distance...Clearance change	A detour has been calculated. The difference between the distance of your current route and the proposed route is displayed.

Traffic preferences

You can view your current traffic system status and change options by customising the traffic preferences.

Traffic service

1. On the Traffic Options screen, tap Traffic Service.

The screen displays the frequency of the radio station currently used to receive traffic event information. A bar shows the strength of the traffic signal being received; the more green bars, the stronger the signal.

1. To change your preferred radio station, select your preferred radio station from the list. You can select Automatic to receive the traffic signal automatically.

Accept recommended detours automatically

When the Accept recommended detours is selected, your route will be re-planned automatically when the detour is recommended by the traffic event.

Traffic event notification

1. On the Traffic Options screen, tap Traffic notifications.

2. Complete the following:

If you want to... Then...
view all traffic events nearby, select All events nearby.
view the traffic events on your route, select Only events on my route.
view the traffic events with detour information provided,	select Only if a detour is recommended.
reject the traffic signal, select Turn off notifications.

What is Travel Book?

Note: This feature is not available on all models.

Travel Book is a collection of city guides that provide detailed POI maps for major cities in the local region. The city guides provide information on accommodation, dining, night life, business essentials, shopping, important tourist spots and practical information such as banks, medical centres, bus stations, etc.

Note: Travel Book is provided by third party. Navman does not guarantee the accuracy of the data contained within this database either expressed or implied.

How do I search for a POI using Travel Book?

1. On the Main Menu, tap

1. Follow the prompts to select your city, area or state and the POI category.
2. Enter the keyword to search a POI. When done, tap OK.
3. Select a POI from the list.
4. Complete the following:

If you want to... Then...
calculate the route and start navigating,	tap 📊.
save the location as a favourite,	tap ♥+.
view more information on the POI, tap More...
explore the map,	tap 🔍.
place a phone call to the POI,	tap 📊.Note: This feature is not available on all models.

How do I use the Bluetooth function?

Note: This feature is not available on all models.

If you have a compatible mobile phone with Bluetooth wireless technology, you can use your Navman as a hands-free car kit.

Note: A list of compatible mobile phones is listed at www.navman.com.au (Australia) or www.navman.co.nz (New Zealand).

How do I pair my Navman with a Bluetooth device?

EZY400LMT/MOVE85LM/MY570LMT

1. On the Main Menu, tap → Bluetooth.

2. Tap. The Search New Devices screen will display a list of nearby Bluetooth devices.

1. Select the device from the list. The Connecting screen will display.

2. To pair with a mobile phone, enter "1234" on the mobile phone when prompted.

3. When done, the Bluetooth screen will display.

4. The Bluetooth icon next to the paired device indicates the connection status:

icon	Status Device
	Connected headset
	Connection with hands-free enabled phone
	Connection with dial-up networking enabled phone

Note: The 12 most recently paired devices will be displayed on the My Paired Devices screen.

MY670LMT

1. On the Main Menu, tap → Bluetooth.

2. Tap On to turn on the Bluetooth of your Navman.

3. Make sure that the Bluetooth feature of your phone is turned on.

4. From your phone, scan for nearby Bluetooth devices.

5. From the device list, select your Navman.

6. To pair with your phone with your Navman, enter "1234" on the mobile phone when prompted.

Note: To pair another Bluetooth mobile phone with your Navman, first disconnect the current Bluetooth connection on the mobile phone, and then repeat the above procedure to set up a new connection.

How do I add contacts to my Navman?

On the Main Menu, tap

Your Navman uses contacts created on your mobile phone. If there are no contacts o your Navman, you will be prompted to download the contact list from your phone.

- To search for a contact, tap 📁 and tap Filter to enter the name of the contact. Then tap OK.

- To add a contact's number to your favourites, tap and tap the desired contact from the list. Then tap in the entry. Tap to remove the item from the favourites. You can view your favourites by tapping from the Phone screen.

• To refresh the contact list, tap next to the Filter field. (Selected models only.)

How do I make a hands-free call?

Making a call using the keypad

1. On the Main Menu, tap

1. From the Phone screen, tap

1. Enter the number you want to call.

To delete the last digit entered, tap

Note: International calls require a country code to be included in the phone number. On your Navman, the country code is separated from the rest of the number sequence by a + sign. If you are making an international call, tap and hold 0 until the + sign displays.

1. Tap to place the call.

Making a call from the phonebook

1. On the Main Menu, tap
2. From the Phone screen, tap

1. Select the desired item from the contact list.

2. Tap next to the desired number to place the call.

How do I respond to a phone call?

When you receive a call:

• tap Answer to answer the call.
• tap Ignore to reject the call.

In-call options

• To minimize the in-call screen, tap

• To display the keypad screen, tap

• To switch off the microphone so the receiving party cannot hear you, tap 📄To unmute, tap 🖱️.
  • To transfer the call to your phone, tap Voice to Phone.
  • To adjust the volume, tap on the volume bar to increase or decrease the volume.
  Note: The phone volume adjustment does not change the device volume.
  • To end the call, tap Hang Up.

How do I view my call history?

From the Phone screen, tap

The Call History screen lists the calls made during the time your Navman is connected to a mobile phone. Numbers are arranged by time with the most recent time at the top. Your Navman can store up to 30 history entries (limited to 10 entries for incoming, outgoing and missed calls each).

• To view the specific type of calls, tap the sorting button on the upper-right corner to select All, Outgoing Call, Incoming Call or Missed Call.
  • To delete an entry from the history, tap the entry and tap
  • To place a call, tap the entry and tap
  • To delete all entries in the history, tap from the Call History screen.

How do I control my Navman using Voice Command?

Note: Voice Command is not available on all models and is only available in selected countries.

Voice Command is a tool that allows you to complete a task without touching the screen.

Note: Voice Command requires the respective voice file, English (AUS) or English (UK/NZ), installed and used on your Navman. For further instructions on installing your preferred language, refer to the "Voice Command" section in "What is the NavDesk?"

1. On the Main Menu, tap

Note: When in navigation mode, you can launch Voice Command directly by tapping the icon on the Map screen.

1. You can use the following commands after the beep sound:

2. Address

3. Nearby Cash
4. Home
5. Nearby Petrol
6. Intersection
   • Nearby (Airport, Library, Zoo...)
7. My Places
8. Increase volume
9. Nearby Parking
10. Decrease volume
11. Nearby Food
12. Increase brightness
    • Nearby Hotels & Motels
13. Decrease brightness
14. Nearby SOS

Note: Only when your home has been set on your Navman can you be directed to Home by Voice Command.

1. Follow the prompts to finish your route settings.
2. When done, say "Correct" and your Navman starts to plan the route.

Customising the system settings

Note: Depending on your Navman model, certain features and setting options may not be available.

There are various customisation options available to enhance your navigation experience.

1. On the Main Menu, tap
2. Select the option you want to customise.
3. Once you change the settings and return to the previous screen, your preferences are automatically saved.

Note: While changing the settings, the checkbox next to the option indicates the setting status:

on/enabled

f/disabled

Audio

If you want to... Then...
increase/decrease the volume,	tap + / -Note: You can simply tap on the volume bar and the volume will be set immediately at the position you tapped. The volume bar indicates the current volume level.
mute/unmute,	tap .The speaker icon indicates the status: ✗ : muted : unmuted
hear the tapping sound when you tap an item on the touch screen,	tap Touch audio to turn it on.

Screen

If you want to... Then...
change the displayed screen mode, tap	Screen mode and select:Auto: set to automatically change between Day and Night modes.Day: set the screen to be displayed in Day mode.Night: set the screen to be displayed in Night mode.
change the screen brightness in day/night mode,	tap + / - on the Day brightness/Night brightness bar.The brightness bar indicates the brightness level.Note: You can simply tap on the brightness bar and the screen brightness will be set immediately at the position you tapped.Note: Your Navman can heat up when the brightness scale is set high, therefore, use lower brightness whenever acceptable.

Safety

If you want to... Then...
enable/disable the warning message after long-distance driving,	tap Driver fatigue alert to turn it on or off.
enable/disable speed limit alerts, which warn you of the speed limit on any given road,	tap Speed limit display to turn it on or off.
enable/disable speed limit alerts, which warn you of the speed limit on any given road,	tap Speed limit alerts and select:Off: disable the speed limit alert.Auto: set the system to alert automatically while your speed is above the limit.Speed limit + 5 km/h (+ 3 mph): set the system to alert while your speed is 5 km/h (3 mph) or more above the limit.Speed limit + 10 km/h (+ 7 mph): set the system to alert while your speed is 10 km/h (7 mph) or more above the limit.
set the speed limit alerts manually, tap Set	manual speed alert to select the speed limit or turn it off.
enable/disable a visual warning if the screen is accessed in a moving vehicle,	tap Warn me not to operate my Navman while driving to turn it on or off.
set how you want to receive the camera and safety alerts,set how you want to receive the driver alerts,	tap Speed Camera / Mobile Speed Camera / Average Speed Camera / Red Light Camera / Accident Black Spot / School Zone / Railway Crossing to select:No alertsVisual alertVisual & audible alertstapDriver Alertto select:Auto(default):When the driving speed is above 80 km/h, the audio and visual alerts of all driver alert options will be enabled automatically.When the driving speed is below 80 km/h, the audio and visual alerts for overtaking lane and merging lane options will be enabled, but all other driver alerts will have visual alert only.User-defined:Allows you to set all of the driver alerts manually by selecting:No alertsVisual alertVisual & audible alertsNote:Not all options are available on all models.

Route options

If you want to... Then...
set route type options for your route, tap	Route type to select your route type preference from the list:Fastest: The route that should be the fastest when navigating.Economical: The route with least number of stops, turns and urban areas which should save on fuel usage.Easiest: The simplest route with the least number of turns and favours motorways where appropriate. This is the default route type.Shortest: The route with the shortest physical length.Note: If you do not select the preferred route type, Choose on map is set as default for this option. All of the four route types will be calculated after your search. Then, you have to select one route type on the map to start navigating.
set types of road options for your route,	tap Types of road. Select your road preference from the list.Note: Avoiding ferry routes may prevent you from navigating between certain countries, even when a bridge or tunnel exists.
set the routing preferences, tap Advanced routing to turn the Smart Routes function on or off.Use historic traffic speed data: enable/disable the Smart Routes function.Use learned driver behaviour: enable/disable the My Drive function.Driving speed records: display the information of your driving speed on a motorway / highway / major road / minor road.
set the avoidance manually, tap Custom Avoidance.Tap Add Avoid Road and then follow the on-screen instructions to select the avoid road from the map view screen.Tap Add Avoid Area and then follow the on-screen instructions to select the avoid area from the map view screen.Once the avoidance has been set, it will not be added to your route while you are planning the trip.Note: To edit the assigned avoidance, tap the item from the Custom Avoidance screen and then select Enabled/Disabled, Rename, or Delete.Note: This feature is not available on all models.
display the installed custom POI, tap Custom POI alerts.
display the landmarks on your route, tap Landmark guidance to turn it on.Note: This feature is not available on all models and is only available in selected countries.
record mileage for your route to generate expense reports,	tap Mileage recorder to turn it on.Note: This feature is not available on all models.
record your journey, tap Capture Journey to turn it on.Note: This feature is not available on all models.

Map display

If you want to... Then...
enable/disable automatic zooming during navigation,	tap Auto-zoom map when navigating to turn it on.When selected, the Map screen will automatically zoom in or out, depending on your speed, to allow optimal viewing of your route.
display "no entry" icons on "no entry" roads on the Map screen,	tap Show no-entry road signs to turn it on.When turned on, the map display performance can slow down due to the number of no entry roads in some major cities.
display 3D landmarks on your route, tap 3D Landmarks to show or hide 3D landmarks.Note: This feature is not available on all models and is only available in selected countries.
set your Map screen preference,	tap Map to select between a 3D or 2D view of the Map screen.
set how to display the junction views,	tap the Junction views option to select Off or Still.Note: This feature is not available on all models.
change the map colour scheme, tap Map scheme, then select a colour scheme from the list.

My Maps

If you want to... Then...
view the map information, tapMap version	to display a list of all maps and the detailed information.
select a set of maps to load, tapMap set, then select your preference from the list.This may not be available in all regions.
check the expiring maps, tapExpiring maps	to display a list of maps that are to expire soon.

Language

If you want to... Then...
change the on-screen language, tapLanguageand select your preferred language from the list.
change the voice scheme,	tapVoiceand select your preferred voice scheme from the list.

Note: The available settings of the Voice option can be customised by adding/deleting the voice file through NavDesk when your Navman is connected to the computer. For more information, see the "My Navman" section in "What is NavDesk?"

Units

If you want to... Then...
change the distance units, tap Distance	units and then select your preferred distance unit type.
change the time format, tap Time format	and then select your preferred time format.
change the date format, tap Date format	and then select your preferred date format type.

Time Zone

If you want to... Then...
set the time zone automatically, select	Auto time zone.
change the time zone manually, select	Manual time zone, then adjust the setting by tapping + / -

Bluetooth

Note: This feature is not available on all models.

The Bluetooth option allows you to pair a Bluetooth mobile phone with your Navman. For the compatibility list, visit: www.navman.com.au (Australia) or www.navman.co.nz (New Zealand). For more information, see the "What is Travel Book?" section.

Trip Meter

Note: This feature is not available on all models.

The Trip Meter option displays the information of your trips.

display the current trip

display all trips

Device

If you want to... Then...
delete the saved information on your Navman,	tapDelete saved information:TapDelete My Placesand tapYeswhen the warning dialog box displays. The data saved in My Places will be deleted.TapDelete recent locationsand tapYeswhen the warning dialog box displays. The data of recent locations will be deleted.TapDelete planned tripsand tapYeswhen the warning dialog box displays. The planned trips saved on your Navman will be deleted.Note:This feature is not available on all models.TapDelete phone dataand tapYeswhen the warning dialog box displays.Note:This feature is not available on all models.
restore factory default settings, tapRestore factory defaults. When the warning dialog box displays, tapYes. Your Navman will restart. This option allows you to restore default factory settings; the recent locations and saved My Places destinations on the device will be deleted.
reset the GPS, tapReset GPS. When the warning dialog box displays, tapYes.Note: Occasionally, the GPS fix may need to be reset. This may occur if the receiver has been transported a long distance since last being used; for example, to a different country, and is still trying to establish the previous position.
record a GPS log of your trip, tapGPS loggingto turn it on.

Demo

If you want to... Then...
enable a shop demonstration of the navigation feature to be played,	select a demonstration country from the list and tapStart.Tap OK. Your Navman will restart.When your Navman is in Shop demo mode, you will see the navigation demonstration of the pre-defined route without having to set a destination.Note:You cannot operate your Navman properly in Shop demo mode.
enable the screen saver feature on your Navman,	tapScreen Saver Video.When your Navman is idle for 10/30/60 minutes, the screen saver will display.

Help

If you want to... Then...
view the tutorial, tap View Tutorial. To display the tutorial on each start-up, select the Show tutorial on start-up option on the initial screen of tutorial.
know how to update the software and maps of your Navman,	tap Update software and maps to view the update instructions.
view copyright and trademark information,	tap About.

What is NavDesk?

NavDesk is a suite of tools you can use to access greater functionality and product information via your computer.

NavDesk allows you to:

• obtain software updates
- manage maps
• search online for local POIs
- manage custom POIs

• manage safety camera subscriptions

• browse the Navman website for special offers

Can I use NavDesk with my computer?

Ensure your computer has the following minimum system requirements before installing NavDesk:

• IBM compatible PC or Mac computer
• Windows Vista, Windows 7, Windows 8, or Mac OS X and above
- Internet Explorer 6 and later versions, or Safari
- DVD drive
- USB port
• Internet connection for activation

Note: Microsoft .NET 2.0, 3.0 and 3.5 will be installed on your computer as part of the installation of NavDesk.

How do I install NavDesk onto my computer?

For Windows systems:

1. Close all programs on your computer.
2. Insert the NavDesk Application Installer DVD into your computer DVD drive. The NavDesk installer will start.
3. Select your preferred language.
4. Click Install Software, then Install NavDesk.
5. Follow the on-screen prompts to install NavDesk.
6. You can access NavDesk via: Start → All Programs → Navman → NavDesk.

For Mac systems:

1. Close all programs on your computer.

2. Insert the NavDesk Application Installer DVD into your computer DVD drive.

3. In Finder, access the NavDesk directory of the DVD.
4. Drag and drop the NavDesk vx.xx.xxxx(Mac).mpkg.zip file to the desktop.
5. Double-click the NavDesk vx.xx.xxxx(Mac).mpkg.zip file.
6. Access and double-click the NavDesk vx.xx.xxxx(Mac).mpkg file on the desktop.
7. Follow the on-screen prompts to install NavDesk.
8. You can access NavDesk in LaunchPad.

Connecting your Navman with NavDesk

1. Connect your Navman to your computer when prompted.
2. Turn on your Navman, and then select the Computer option from the pop-up message screen.

Note: If prompted to update your Navman software, follow the on-screen prompts.

Note: Once your Navman is connected and the system retrieves the device's data from the server, the First Use Date (FUD) information will be displayed in the status bar (at the bottom of the NavDesk window).

Note: Not all features and setting options are available on all models or in all countries.

Name Description PC Mac
Navman Online Display the Navman website, Navman Store and other online features.		√	√
My Subscriptions Information on your current subscriptions, including safety camera subscriptions.		√	√
My Maps Install and manage maps. √√
Voice Command Install or remove a voice command file. √
Custom POIs Application that allows you to import custom POIs. √√
Photo Album Import and edit NavPixTM images. √
Image Search	Search online and download images of locations that contain embedded GPS coordinates that you can navigate to.Note: This feature is powered by FlickrTM.	√
Unlock Features	Allow you to enter the activation key for the service you purchased.	√	√
Redeem	Allow you to enter the product key for the lifetime map update service.Note: This feature is not required for selected models.	√	√
My Places	View and modify all places including addresses, POIs and others added using NavDesk and stored on your Navman.	√
Trip Planner Add or begin a planned trip with multiple waypoints on your computer, and then save the trip to your Navman.		√
MY Navman A collection of applications that allow you to configure NavDesk, download updates, and transfer data to and from your Navman.		√	√

My Subscriptions

NavDesk → My Subscriptions

Your Navman contains pre-loaded subscriptions, such as safety camera information. For the latest subscription updates, visit www.navman.com.au (Australia) or www.navman.co.nz (New Zealand).

Note: Safety camera alerts can be enabled to provide warnings when on the route.

How do I purchase a subscription?

1. Select a type of subscription.
2. Select a region.
3. Select a subscription or offer, then click Purchase an activation key from the Navman store.
4. Follow the prompts to purchase your subscription.

A product key will be sent to you via email when you have subscribed. You will need to use this product key to activate your subscription.

How do I activate my subscription?

NavDesk → Unlock Features

1. Enter your product key.
2. Follow the prompts to activate your subscription.

How do I update subscriptions on my Navman?

The My Subscriptions section will display a list of subscriptions already installed on your Navman:

Icon Description
Red Expired subscriptions.	Right-click to purchase a new subscription.
Yellow Available subscriptions.	Right-click to update and purchase a new subscription.
Green Active subscriptions.	Note: No updates are available for these subscriptions.

How do I recover my subscription?

If your subscriptions are deleted and you want to recover them, click Recover Subscriptions at the bottom-right corner in My Subscriptions to recover all subscriptions.

My Maps

NavDesk → My Maps

My Maps allows you to install new maps, remove maps from your Navman and purchase new maps.

Note: The downloaded/purchased map (*.iso) from Navman Store website will be saved on your computer's map folder (e.g. C:\username\Documents\Maps) and then displayed in My Maps. The default map folder may vary depending on your operating system.

Name Description
1	Loadable Maps A list of maps on the DVD or available for purchase via the Navman Store website. Note: Map installation from the DVD is not available for Mac systems.
2	My Navman A list of maps installed on your Navman.
3	Remove map Click to remove the selected map from your Navman.

How do I install maps onto my Navman?

Your Navman comes with one or more pre-activated maps. Map files take up space on your Navman's internal memory. If you do not use a map file, you can remove it to free up space. You can later reinstall it to your Navman if required.

You can install maps from the following:

- DVD that came with your Navman You may need to purchase a Map Product Key to activate maps on the DVD that came with your Navman.

- The downloaded map update For more information on downloading the free map update, see the "How do I update my Navman?" section.

- The map that you have purchased separately on a memory card or your Navman internal memory

1. Open NavDesk, and then click My Maps.

2. Select a map source and then click Open to display the Map Source section.

• The maps already installed on your Navman are green.
- The maps that are unlocked and ready to be installed to your Navman are yellow.

• The maps that require activation before being installed to your Navman are red.
• The maps that are available for purchase from Navman are blue.

Note: If your computer opens Windows Explorer when the DVD is inserted, close the Windows Explorer window.

1. Complete the following:

If the map to be installed is... Then...
Yellow go to step 6.
Red the map needs to be activated via the Internet before it can be installed; continue to step 4.

1. If you connect to the Internet via a dial-up connection, connect to the Internet now.

2. Follow the prompts to activate your Map Product Key, including:

3. Enter the Map Product Key when prompted.

4. Your computer will connect to the Internet and activate your Map Product Key.

5. When activation has completed, the map will change colour to yellow; continue to step 6.

6. Click the map you want to install to your Navman. The map will change colour to a brighter yellow to indicate it has been selected. To deselect a map, click the map again.

Note: You may need to install multiple maps to cover the required geographical area. Please visit www.navman.com.au/map-installation/key/main.html and www.navman.com.au/map-installation/auto/main.html for more information.

1. Complete the following:

If you want to... Then...
install a yellow map, go back to step 6.
install a red map, the map needs to be activated	via the Internet before it can be installed; go back to step 4.
install the selected maps to your Navman, continue to step 8.

1. Select the destination media (Navman internal memory) for the selected maps, then click Install Maps.

The selected maps will be installed and change colour to green.

Do not disconnect the USB cable until the installed map or maps have changed colour to green.

1. To use your Navman, disconnect the USB cable. You may need to manually reset your Navman.

How do I remove maps from my Navman?

1. Open NavDesk, and then click My Maps.

2. From the My Navman panel, select the checkbox next to the map you want to remove.

3. Click Remove Maps to remove the selected maps.
4. Confirm that you want to remove the selected map when prompted. The map is removed from your Navman. You can reinstall these maps at any time via NavDesk.

Voice Command

NavDesk → VOICE COMMAND

Depending on your Navman model, you may be able to set the destination quickly by using Voice Command. NavDesk's Voice Command allows you to install or remove voice files on your Navman.

Note: You can download and install free Voice Command updates when available. For more information on downloading the updates, refer to the "How do I update my Navman?" section.

1. Open NavDesk, and then click VOICE COMMAND.
2. Complete the following:

If you want to... Then...
install a voice command file, from the	Loadable files section, select a file source and then click Open.In the Available voice command files section, select the desired voice command file and click Install selected files.
remove a voice command file, in the	Installed voice command files section, select the voice file you would like to remove and click Remove selected files.

Custom POIs

NavDesk → Custom POIs

The Custom POIs application allows you to create or import your own POI files. These are called custom POIs. Unlike preinstalled POIs, custom POIs can be removed from your Navman and can have audio as well as visual alerts associated with them.

To create your POI files, open Microsoft Excel and then enter the POI location details (including the longitude, latitude, name, and description) in separate cells. Always use decimal degrees for coordinates and start a new location from a new line. When done, click File → Save As to save it as a *.csv file. Now you have successfully created a POI CSV file. The following displays the example of creating the POI file by using Microsoft Excel:

	A	B	C	D
1	-0.29694	51.1076	Horsham	A market town on the upper reaches of the River Arun in the centre of the Weald, West Sussex.
2	-0.16258	51.14468	Gatwick Airport	London Gatwick Airport (IATA: LGW, ICAO: EGKK)
3
4

Note: Various POI files are available for free download or by subscription from third-party websites. Ensure that downloaded files are in .csv (Comma Separated Values) format. Navman is not responsible for the content or accuracy of the information or the reliability or availability of these websites. The use of information regarding safety camera locations may be subject to local laws in the country of use. You are responsible for checking that you can use the information in your country or in the country where the information will be used.

How do I install custom POIs?

1. In the Add new POIs section, click Browse to select a source file.
2. Select the file from your local or network drive, then click Open.
3. From the POI Category section:

If you want to... Then...

use an existing custom POI category, select Existing category, then select a type from the drop-down list.

replace an existing POI, select Existing category and a type from the drop-down list, then select Replace existing POIs.Note: If you want to create a new POI instead, then select Add to existing POIs.

create a new custom POI category, select New category, then type a name for the POI category.

4. Set alert settings as required:

If you want to... Then...
enable a visual warning when a POI of this category is in close proximity,	select the Visual alert checkbox.
select an icon to display on the Map screen for POIs of this category,	click Browse to select the icon file from your local or network drive.When you have located the icon file, select it and click Open.The icon file must be a bitmap (*.bmp or *.png) graphic with a minimum size of 6x6 pixels and a maximum size of 32x32 pixels.Note: If you do not select a custom icon, a default icon will display.
select the distance from a POI of this category at which the visual warning should display or the warning chime should sound,	select the distance from the Distance box.Note: To change the units used to measure the distance for this POI category, click My Navman → Options and from the General option select Use metric units checkbox.
enable a warning sound when a POI of this category is in close proximity,	select the Audio alert checkbox.
select a custom sound alert file to play when a POI of this category is in close proximity,	do one of the followings:Select a sound file from the list.Click Add to select a sound file (.WAV format) from your local or network drive. When you have located the file, select it and click Open.Note: If you do not select a custom sound file, a default sound alert will play.

5. Click Add to device to add the POI to your Navman.

Note: Each file corresponds to a POI category; for example, Hotels.csv will be listed on your Navman as the Hotels category.

How do I delete a custom POI file/category from my Navman?

1. In the Installed POIs section, click Delete next to the file name. The file is removed from the list, but is not yet deleted.

2. Accept the warning message. The selected file/category is deleted.

Photo Album

NavDesk → Photo Album

Photo Album is a NavDesk application which allows you to copy, delete or move pictures or albums between the NavPix™ library on your Navman and the NavPix™ library on your computer.

Name Description
1	Desktop albums Displays a list of all albums stored in the NavPixTM library on your computer.Click an album to display its contents in the album display area.Click View all NavPix to display all pictures stored in the NavPixTM library on your computer.
2	My Navman albums Displays a list of albums stored on the Navman internal memory and on the memory card if one is inserted.Click an album to display its contents in the album display area.
3	Toolbar When a picture is selected, the icons which can be used will be active.
4	Search Type to search for a NavPixTM by name.
5	Album display area Displays thumbnails of pictures in the selected album.
6	Selected picture	When a thumbnail is selected, it displays with a blue border.

Toolbar

Name Description
1	Create new album	Click to create a new album in the NavPixTM library you are viewing.
2	Add to My Places	Click to transfer NavPixTM to My Places.
3	Transfer to your Navman or Transfer to your computer	If you are viewing NavPixTM in the NavPixTM library on your computer, this will display as Transfer to your Navman.Click to transfer the selected NavPixTM to your Navman.If you are viewing NavPixTM in the Navman library, this will display as Transfer to your computer.Click to transfer the selected NavPixTM to your computer.
4	Import NavPixTM	Imports NavPixTM from your computer to the NavPixTM library on your computer.
5	Export to disk Click	to save NavPixTM to your computer or a network drive.
6	View details Click to	view the selected NavPixTM and edit NavPixTM details, including:NavPixTMnamelatitudelongitudedescription
7	Rotate left	Rotates the selected NavPixTM 90° to the left.
8	Rotate right Rotates	the selected NavPixTM 90° to the right.
9	Delete NavPixTM	Click to delete the selected NavPixTM.

What else can I do with pictures and albums on my computer?

If you want to...	Then...
add a picture to another album,	in the Desktop albums section, select the album containing theNavPixTMyou want to include in another album.Select theNavPixTMthen drag it to the other album.Note:The selected NavPixTMis included in the new album, but is not moved. One instance of theNavPixTMin the library may be included in multiple albums.
If you want to... Then...
remove a picture from an album, in the	the Desktop albums section, select the album containing the NavPixTM you want to remove.Right-click on the selected picture and select Remove from album.Note: If you want to delete the NavPixTM from all albums, right-click on the selected picture and select Delete NavPix, or simply click the Delete NavPix icon on the toolbar.
add a NavPixTM to My Places, in the	Desktop albums section, select the album containing the NavPixTM you want to add to My Places.Right-click on the selected picture and select Add to My Places.
upload picture to the Flickr website,	in the Desktop albums section, select the album containing the NavPixTM you want to upload to the Flickr website.Right-click on the selected picture and select Upload to Flickr.Note: You need a Flickr account to upload NavPixTM. To create a Flickr account, visit www.flickr.com.
export a NavPixTM to Google EarthTM,	in the Desktop albums section, select the album containing the picture you want to export to Google Earth.Right-click on the selected picture and select Export to Google Earth%.Navigate to a folder on your computer to save the file and then open it in Google Earth.Note: You need to install the Google Earth software on your computer to be able to view the file you have created. You can download Google Earth from earth.google.com.
search for other NavPixTM, right-click on the desired NavPixTM and select Search for NavPix near this.

Photo Album preferences

NavDesk → MY Navman → Options → Photo Album

Complete the following:

If you want to... Then...
change your NavPixTM location on your computer,	click Change and select a location for your NavPixTM library.Click Save or OK. The warning message will display and you will be prompted to confirm your action.
receive a warning message before deleting an image from your device,	select the Warn me when permanently deleting a NavPix from my Navman checkbox.
receive a warning message before deleting an image from your NavPixTM library,	select the Warn me when permanently deleting a NavPix from my library checkbox.
create a new folder every time you import new photos,	select the Import photos to a new album checkbox.
view NavPixTM when on a route, select the	Show NavPix on map checkbox.

Image Search

NavDesk → Image Search

Image Search is a NavDesk application powered by Flickr™ allowing you to download photos that contain embedded GPS coordinates. You can then upload the photo to the Flickr website, transfer photos to your Navman, or export pictures to Google Earth.

How do I search for a photo with embedded GPS coordinates on the Internet?

1. In the Description field enter a search description for the image you are looking for.
2. Select one of the Sort by options.
3. Click Search. Thumbnails of the photos with embedded GPS coordinates will be displayed in the display area.

Note: You can narrow your search by selecting the Advanced search checkbox and then selecting a city from the drop-down list or by entering the latitude and longitude details.

How do I import a photo with embedded GPS coordinates to My Places?

1. Select a picture or group of pictures you want to add to your My Places.

2. Do one of the following to add the selected image to My Places:

3. Click the Add to My Places button.
   • Right-click on the selected picture and then select Add to My Places.

Unlock Features

NavDesk → Unlock Features

If you have purchased a map unlock code or subscriptions for your Navman, you have to enter the activation key using the Unlock Features application.

Note: Make sure you have an active Internet connection for this feature.

Note: The activation key will be sent to you by email. You can click the provided link to purchase an activation key online.

Redeem

NavDesk → Redeem

To redeem Navman's lifetime map update service, you need to enter the product key using the Redeem application. Please note that the product key can only be used once and is not transferable.

Note: Make sure you have an active Internet connection for this feature.

Note: This feature is not required for selected models.

My Places

NavDesk → MY PLACES

My Places includes saved addresses, captured journeys, POIs, photos with embedded GPS coordinates, and other locations. You can select, modify and delete places. You can also add locations from Image Search to My Places.

Note: Make sure you have an active Internet connection for this feature.

Note: You can install a maximum of 99 locations on your Navman via My Places.

How do I sort My Place locations?

You can sort My Place locations by type and name:

If you want to... Then...
sort My Place locations by type, click	Type on the My Places panel.
sort My Place locations by name, click	Name on the My Places panel.

How do I import or export a location?

Complete the following:

If you want to... Then...
import a location from the computer to your Navman,	from the My Places panel, clickImport.Locate the file you want to import and then clickOpen.Note:The supported file format for importing includes:*.KML and*.KMZ.
export a location from your Navman to the computer,	from the My Places panel, select a location and then clickExport.Enter a descriptive name for the file and then clickSave.Note:The supported file format for exporting includes:*.KMZ.

Note: You can aslo import or export a location by clicking File → Import (or Export) → My Places.

How do I edit a location from the map screen?

1. From the My Places panel, select the location you want to edit.
2. Click the location icon on the map.
3. Complete the following:

If you want to... Then...
edit the location name, click the location name.	Enter a new name or edit the existing name. The location name is changed in both NavDesk and your Navman.
edit the location notes, click Edit notes.	Enter notes. The location notes are changed in both NavDesk and your Navman.
share the location,	clickAn email will open ready to send to your friends. Your friend will receive the email with links to either save the image or to save the location in My Places in NavDesk.Note: If the location is a photo with embedded GPS coordinates, your friend will receive the image as an attachment to the email.Note: If the location is a captured journey, your friend will receive the journey as a *.KMZ file attached to the email. Your friend will need to have Google Earth installed on the computer to view the KMZ file.
delete the location,	click, then click Yes to delete the location.Note: You can delete all locations in My Places by clicking Delete on the My Places panel.
export the location,	clickEnter a descriptive name for the file and then click Save.

Trip Planner

NavDesk → TRIP PLANNER

Trip Planner in NavDesk allows you to pre-plan your trip on the computer.

Name Description
1	Route planner	Plan a route by entering theFrompoint andTopoint. A list of planned routes will display in the Pre-Planned Routes section.
2	Display area Display	the route on the map.Note: You can also plan your route directly on the map.

How do I pre-plan a route by search?

1. From the Route planner panel, set your From and To points.

You can find a location by:

: Keyword

: Address

^123 : Postcode

Enter your text for search and click Ⓞ to start a search. You may need to select from a category list to narrow your search results.

1. Complete the following:

If you want to... Then...
add a waypoint, click Add Waypoint.
reset or remove a waypoint,	click ✗ next to the waypoint.
set the route preferences, click Route option and select:Mode: Select the desired mode to plan your route.Type of route: Select a way to plan your route.Avoidance: Avoid Unsurfaced roads, Tollroads or Ferry routes on your route.Note: The Route option settings will only apply to the route you are editing.
arrange the destinations in the most efficient order while two or more waypoints are included in the planned trip,	click Waypoint Optimisation.

1. Click Plan Route to calculate your route. The route will be displayed on the map.
2. Click Save this route. The route is saved to the Pre-Planned Routes section and your Navman simultaneously.

How do I pre-plan a route using the map?

1. From the map displayed in the display area, click
2. The cursor will be marked with "Add route." Move the cursor and then click on the map to set the From point.

3. The cursor will be marked with "Click to set destination." You can:

4. Move the cursor and then click on the map to set the waypoint.

5. Move the cursor and then double-click on the map to set the To point.

6. When done, click Save this route. The route is saved to the Pre-Planned Routes section and your Navman simultaneously.

How do I edit a route?

1. From the Pre-Planned Routes section, select a route to edit.
2. Complete the following:

If you want to... Then...
rename the route, click the title of the	route in the Name column, then enter a new name. Your changes are automatically saved.
delete a saved route,	click ✗ next to the route you want to remove.

My Navman

NavDesk → MY Navman

How do I change the displayed language for NavDesk?

1. Click Language.
2. Select your preferred language.

How do I install or remove a voice file for my Navman?

1. Click My Voices.
2. Complete the following:

If you want to... Then...
install a voice file, in the Available voice	files section, select the voice fileyou would like to install.Click Install selected voices.
remove a voice file, in the Available voice	files section, select the voice fileyou would like to remove.Click Remove selected voices.

Note: Voice files take up space on your Navman's internal memory. If you do not use a voice file, you can remove it to free up space. You can later reinstall it to your Navman if required. The provided DVD of your Navman is needed while installing the voice file.

How do I register my Navman and set a PIN?

PIN is a NavDesk application that allows you to set a security PIN on your Navman. The PIN will disable your Navman in the event of theft. To set a PIN, you must first register your Navman on Navman's website.

1. Click PIN.
2. Click Register now and follow the prompts to complete the registration form online.
3. When the registration is complete, click I have registered my Navman.

4. In the User Name and Password fields, enter the username and password that you have entered when registering online.

5. In the PIN field, enter the PIN you want to assign to your Navman. Your PIN must be between four and eight numerical digits.

6. Click OK. The PIN for your Navman has been set. You will be required to enter your PIN when you turn on your Navman.

7. To disable or change the PIN on your Navman at a later time, enter the Username and password to enter the PIN screen. Then do one of the following:

8. Leave the PIN field blank and click OK. The PIN is removed and your Navman will no longer require you to enter a PIN.

9. In the PIN field, enter a new PIN you want to assign to your Navman. The new PIN for your Navman has been set.

How do I report mileage?

Mileage Reporter is a NavDesk feature that allows you to create expense reports (.csv format) based on the mileage and estimated fuel usage recorded by your Navman.

Name Description
1	Timeframe Specifies	the time for which the mileage report will be created whenShow onlyis selected.Select Show Allto include all recorded mileage.
2	Report panel Displays your trip log data.
3	Report data buttons	Import report data from your Navman, clear all report data from your Navman or export data to a report (.csv and .HTML).
4	Fuel Select to include the amount of fuel (estimate) used for the mileage recorded. If selected, specify the number of miles travelled per gallon, or miles/kilometres travelled per litre.

Note: To use the Mileage Reporter function of NavDesk, the Mileage recorder option on your Navman must be enabled. For more information, see the "Route options" section in "Customising the system settings."

How do I backup and restore my Navman?

You can save backups of data from your Navman, and later restore it if required.

1. Click Backup and Restore.
2. Complete the following:

If you want to... Then...
backup your Navman, click Create new backup.	Select the data you would like to backup, then click OK. The backup will be saved to your computer. The backup will be listed on the Backup & Restore window.
restore a backup to your Navman, select the backup from the list that you would like to restore.Click Restore, then click OK. The backup will be restored to your Navman.
delete a backup, select the backup from the list that you would like to delete.Click Delete, then click OK. The backup will be deleted.

How do I recover maps and voice files for my Navman?

The Smart Recovery application allows you to recover all data to fix your Navman if a problem occurs during operation, including software, maps, voice files, and subscriptions.

1. Make sure you have an active Internet connection and the Installer DVD is inserted into your computer DVD drive.

2. Click Smart Recovery.

3. The available data will be displayed in the Maps and Voices fields. Select the desired data and click Recover to recover the data on your Navman.

How do I update my Navman?

Occasionally Navman may offer you free updates, including software applications, maps, and more. You can check the available updates via the Device Updates function.

1. If a free update is available and your Navman is connected to your computer, a message will display when you start NavDesk.

From the pop-up message window, click View to display the Device Updates screen that contains the available updates.

Note: You can also open the Device Updates screen by clicking the New Update button at the top-right corner of NavDesk.

Note: In some certain updates, you must upgrade your system to the latest version (including the NavDesk and your Navman) before you can use the updates. If the new version is detected, a message will display to ask you to upgrade the system. When prompted, click Yes to start upgrading the system.

1. Complete the following:

If you want to... Then...

download the updates, select the available update from the list, and then lick Download.

stop/pause the download, during the download:Click to stop the download.Click to pause the download; when paused, click to resume downloading.

change the download folder, click Change Path.

1. When completed, the downloaded file will be saved to the assigned folder.

2. For software update, the *.exe file will be launched automatically to install the update.

3. For map update, the system will display the My Maps screen automatically to install the update.

How do I recover keys on my Navman?

The Recover keys application allows you to fix your Navman if a problem occurs during operation. Click the Recover keys option in the menu and then follow the prompts to complete the process.

How do I configure NavDesk?

1. Click Options, and then select the desired setting options to configure.

2. Complete the following:

If you want to... Then...
keep NavDesk updated,	click General, and then select the Auto check for updates checkbox.When you select this option, every time you open NavDesk, the available service packs and bug fixes will be downloaded from the Navman server and applied to your Navman.
change the units of measurement that NavDesk uses,	click General, and then:Select or clear the Use metric units checkbox to change between imperial and metric units.Select or clear the Use decimal degrees checkbox to change between decimal degrees and latitude/longitude coordinates.
change the Mileage Reporter settings,	click Mileage Reporter, and then:Select or clear the Warn me when deleting all log files from my Navman checkbox.Select Distance per volume or Volume per distance to change the fuel economy style.
change the NavPixTM library location,	click Photo Album, and then click Change.Select a folder for the NavPixTM library. The downloaded NavPixTM is moved to the new location.
change the location of where downloaded updates will be saved,	click My Maps, and then click Change.Select a folder for the updates. The downloaded updates are moved to the new location.

About GPS and signal reception

The Global Positioning System (GPS) is available at any time, free of charge, and is accurate to within 5m (15ft). GPS navigation is made possible by a network of satellites that orbit the Earth at around 20,200km (12,552mi). Each satellite transmits a range of signals which are utilized by GPS receivers, such as your Navman, to determine an exact location. Although a GPS receiver can detect signals from up to 12 satellites at any time, only four signals are required to provide a position or "GPS fix" (latitude and longitude), for vehicle navigation systems.

Your Navman receives GPS signals via the internal GPS antenna. To guarantee the optimum GPS signal strength, ensure your Navman is outdoors, or in a vehicle outdoors, and has an unobstructed view of the sky. GPS reception is not usually affected by weather, however, very heavy rain or snow may have a negative effect on your reception.

Caring for your Navman

Taking good care of your Navman will ensure trouble-free operation and reduce the risk of damage to your Navman:

- Keep your Navman away from excessive moisture and extreme temperatures.

- Avoid exposing your Navman to direct sunlight or strong ultraviolet light for extended periods of time.

- Do not place anything on top of your Navman or drop objects on your Navman.

- Do not drop your Navman or subject it to severe shock.

- Do not subject your Navman to sudden and severe temperature changes. This could cause moisture condensation inside the unit, which could damage your Navman. In the event of moisture condensation, allow your Navman to dry out completely before use.

- The screen surface can easily be scratched. Avoid touching it with sharp objects. Non-adhesive generic screen protectors designed specifically for use on portable devices with LCD panels may be used to help protect the screen from minor scratches.

- Never clean your Navman when it is turned on. Use a soft, lint-free cloth to wipe the screen and the exterior of your Navman.

• Do not use paper towels to clean the screen.
• Never attempt to disassemble, repair or make any modifications to your Navman. Disassembly, modification or any attempt at repair could cause damage to your Navman and even bodily injury or property damage and will void any warranty.
• Do not store or carry flammable liquids, gases or explosive materials in the same compartment as your Navman, its parts or accessories.
• Do not expose your device to direct sunlight in an unattended vehicle for prolonged periods. Overheating may damage the unit.
• To discourage theft, do not leave your device, mounting bracket or any cables in plain view in an unattended vehicle.

Troubleshooting

If you encounter a problem you cannot solve, contact an authorized service centre for assistance.

Problem Solution
The unit is not turning on.	Try to power the unit through a USB cable connected to a computer. If the unit powers up then the issue is with the vehicle power adapter. If the unit still fails to power up, then the fault is with the unit.	Contact technical support and an RMA will be created to fix the unit or replace the vehicle power adapter.
I cannot get a GPS signal.	Make sure you are stationary and have a clear line of site to the sky. If this fails to resolve the issue, please reset the GPS chip through the Settings menu of your unit.	If the fault is still not resolved, please visit our self help site (see the information from "Navman customer support" section), or contact our technical support team.
My unit is always showing that the speed limit is 110 kph even when it is not.	The units are set at a manual speed limit defaulted at 110 kph. This can be changed through the "Safety" section of your Settings menu.	If the fault is still not resolved, please visit our self help site (see the information from "Navman customer support" section), or contact our technical support team.
Where is my product key? I want to activate my unit.	There is no need to activate your unit in any way. This Activation tab within the NavDesk software is for subscriptions, travel books, international maps and map upgrades only. Your unit will work straight out of the box and there is no need to activate it in any way.	If the fault is still not resolved, please visit our self help site (see the information below), or contact our technical support team.
My unit keeps displaying battery low.	Power your unit through a USB cable connected to a computer for 8 hours. Ensure the device is turned on and is displaying the USB connection screen.	If it is still displaying battery low after following this process, contact our technical support team.

Online support

For 24/7 help and support with Navman products, visit our Technical Support Website: www.navman.com.au (Australia), or www.navman.co.nz (New Zealand).

Navman customer support

If you have a faulty product or you would like to speak to a member of our Technical Support team, contact:

Australia: 1300 NAVMAN (1300 628 626), or visit www.navman.com.au

New Zealand: 0800 GO NAVM (0800 466 286), or visit www.navman.co.nz

Speed limit

Navman products are designed to be used as an aid to safer driving. Navman does not condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Navman accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Navman does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Navman is not responsible for any damages of any type. In some countries the data information regarding speed limits may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.

Safety camera POIs

Navman products are designed to be used as an aid to safer driving. You can receive messages to alert you to locations of safety cameras, which will enable you to monitor your speed through these areas. Navman does not warrant that all types and locations of safety camera data are available, as cameras may be removed, relocated or new cameras installed. Navman does not condone speeding or any other failure to comply with your local traffic laws. It is your responsibility to drive within the posted speed limit at all times and to drive in a careful manner. Navman accepts NO liability whatsoever for you receiving any speeding fines or points on your license through using this device. Navman does not guarantee the accuracy of the data contained within this database either expressed or implied. In the event you receive a fine or any other penalty for speeding or contravention of any traffic law, or are involved in an accident, Navman is not responsible for any damages of any type. In some countries the data information regarding safety or speed cameras may conflict with local law and/or regulations. It is your responsibility to make sure that your use of the data is in compliance with local laws and/or regulations. Usage is at your own risk.

POI categories

[CSAT]	Airport Amusement park
	Art centre ATM/Cash dispenser
	Bank Bar/Pub
	Beach Breakdown service/Car repair facility
	Bowling centre Business facility or company
	Business office Bus station
	Camping ground Car dealer/Automobile dealer
	Casino Cemetery
	Church Cinema
	City hall City, town or village
[SGYS]	Coffee shop College/University
	Community centre Commuter railway station
[77TS]	Courthouse Dentist
	Doctor		Embassy
	Exhibition centre Ferry terminal
	Fire Brigade		Golf course
	Government office		Grocery store
	Guest house		Higher education
	Hospital/Polyclinic Hotel
	Ice skating		Important tourist attraction
	Information/Tourist information office		Library
	Marina/Yacht basin		Medical
[67KE]	Monument		Motorcycle dealer
	Motoring organisation office		Mountain pass
	Museum		Music centre
[DCOX]	Natural attraction		Nightlife
[TSKW]	Park and ride		Parking
Icon Description Icon Description
	Parking garage Park/Recreation area
	Performance art/Theatre		Petrol station
	Pharmacy Place of worship
	Police station Post office
	Public restroom/Toilet facilities Public spot
	Railway crossing Rental car agency
	Rest area Restaurant	[BXH5]
	Road accident black spot Scenic/Panoram
	School School zone
	Shop Shopping
	Ski resort/Ski lift station Speed check
	Sport centre Sports hall
	Sports complex Stadium
	Tennis court		Travel agency
	Transport ferry Veterinarian
	Winery		Zoo

Note: The POI categories and the order may differ, depending on your region, maps installed or Navman model.

Branded POIs

Branded POIs are available on some maps. These include well known restaurants, accommodation providers, tourist attractions, Petrol stations, etc. The icon will usually display the company logo.

POI categories by subscription

Icon Description
	Safety Cameras
	Safety Camera (Mobile)
	Safety Camera (Average)
	Red Light Camera
	Combine Camera

My Places categories

Icon Description
	Home
	Saved locations
	Captured journey

Traffic and other TMC events

Each TMC Event is sorted in to one of nine categories. When an Event is received, one of the following icons will display:

Event Avoided Event		Message Type Event Description
		[Danger There is a dangerous situation on the route; for example, people are on the road.
		[Traffic Any event that will cause a delay on a route.
		[Weather Weather conditions are adversely affecting a route; for example, there is ice on the road.
		[Warnings There is a situation of which you should be aware on the route, but it is not serious enough to be considered a dangerous situation; for example, a minor accident has taken place.
		[Forecast An event is expected to occur on a route.
		[Restrictions There is a restricted flow of traffic on a route; for example, a lane has been closed on a motorway.
		[Clearance A traffic event that has now been cleared.
		[Information All other events.
		[Roadworks Roadworks are taking place on a route.

If a Traffic or Clearance event has a recommended detour, the following icons will display:

Event Avoided Event		Message Type Event Description
		Traffic Detour A Traffic Event, for which a detour is recommended.
		Clearance Re-route	A Clearance Event, for which a re-route is recommended.

Note: Avoided Event icons will only display on the Map screen, at the event location.

Revision: R02

(6/2017)

Trademarks

All brand and product names are trademarks or registered trademarks of their respective companies.

Disclaimer

Specifications and documents are subject to change without notice.

Notes

Not all models are available in all regions.

Depending upon the specific model purchased, the colour and look of your device and accessories may not exactly match the graphics shown in this document.

The screenshots and other presentations shown in this document are for reference only. They may differ from the actual screens and presentations generated by the actual product.
