PHA40 - Empfänger Pyle - Kostenlose Bedienungsanleitung

Produkttyp	AV-Receiver
Marke	Pyle
Modell	PHA40
Abmessungen (B x H x T)	43 x 10 x 30 cm
Gewicht	5,2 kg
Stromversorgung	230 V, 50 Hz
Leistungsaufnahme	150 W
Ausgangsleistung pro Kanal	50 W RMS (4 Ohm)
Frequenzgang	20 Hz - 20 kHz
Anzahl Kanäle	2 (Stereo)
Eingänge	3 x RCA, 1 x AUX, 1 x USB
Ausgänge	2 x Lautsprecher, 1 x Kopfhörer
Tuner	UKW/MW, 40 Senderspeicher
Fernbedienung	Ja, enthalten
Reinigung	Mit trockenem, fusselfreiem Tuch abwischen
Schutzart	Nur für Innenräume
Lieferumfang	Receiver, Fernbedienung, Batterien, Bedienungsanleitung

Häufig gestellte Fragen - PHA40 Pyle

Wie schließe ich den Pyle PHA40 Receiver an meine Lautsprecher an?

Verbinden Sie die Lautsprecherkabel mit den Lautsprecherklemmen auf der Rückseite. Achten Sie auf korrekte Polarität (Plus an Plus, Minus an Minus).

Kann ich einen USB-Stick am PHA40 verwenden?

Ja, der USB-Anschluss auf der Vorderseite unterstützt Musikwiedergabe von USB-Sticks mit MP3-Dateien.

Warum gibt der Receiver keinen Ton aus?

Überprüfen Sie die Lautstärkeeinstellung, die Quellenauswahl und ob die Lautsprecher richtig angeschlossen sind. Stellen Sie sicher, dass der Receiver nicht stummgeschaltet ist.

Wie kann ich Radiosender speichern?

Stellen Sie den gewünschten Sender ein und drücken Sie die Speichertaste (MEM) gefolgt von einer Zifferntaste, um den Sender zu speichern.

Welche Fernbedienungscodes benötige ich?

Der PHA40 wird mit einer Infrarot-Fernbedienung geliefert. Keine speziellen Codes erforderlich – einfach Batterien einlegen und verwenden.

Wie reinige ich den Receiver?

Verwenden Sie ein weiches, trockenes Tuch zur Reinigung. Vermeiden Sie aggressive Reinigungsmittel oder Wasser, um Schäden zu vermeiden.

Kann ich den Receiver in ein Rack einbauen?

Ja, der PHA40 hat eine Standardgröße von 43 cm Breite und kann in ein 19-Zoll-Rack mit optionalen Montagewinkeln eingebaut werden.

Was bedeutet die Anzeige 'PROTECT'?

Die Schutzschaltung wurde aktiviert. Ursachen können Kurzschluss, Überhitzung oder zu niedriger Lautsprecherwiderstand sein. Überprüfen Sie die Verkabelung und lassen Sie das Gerät abkühlen.

Wie stelle ich die Balance ein?

Mit der Balance-Taste oder über das OSD-Menü können Sie die Lautstärke zwischen linkem und rechtem Kanal anpassen.

Gibt es eine Garantie auf den Pyle PHA40?

Ja, Pyle gewährt eine eingeschränkte Garantie von 1 Jahr. Details entnehmen Sie bitte der Bedienungsanleitung oder der Pyle-Website.

BEDIENUNGSANLEITUNG PHA40 Pyle

IMPORTANT SAFETY INSTRUCTIONS

1. Read Instructions: All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions: The safety and operating instructions should be retained for future reference.
3. Heed Warnings: All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions: All operating and use instructions should be followed.
5. Water and Moisture: The appliance should not be used near water-for example, near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool, or a wet basement.
6. Ventilation: The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings: or placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
7. Heat: The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
8. Power Sources: The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
9. Grounding or Polarization: Precaution should be taken to insure that the grounding or polarization means of an appliance is not defeated.
10. Power-Cord Protection: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point at which they exit from the appliance.
11. Cleaning: The appliance should be cleaned only as recommended by the manufacturer.

12. Power Lines: An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

13. Non-use Periods:

The power cord of the appliance should be unplugged from the outlet when the appliance is to be left unused for a long period of time.

1. Object and Liquid En

Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

1. Carts and Stands: If the appliance is used with a cart or stand, the cart or stand should be a type recommended by the manufacturer. An appliance and cart combination should be moved wit
   Quick stops, excessive force, and uneven surfaces cause the appliance and cart combination to overturn.
2. Mounting: The appliance should be mounted only as recommended by the manufacturer.
3. Damage Requiring Service: The appliance should be serviced by qualified service personnel when:

A. The power-supply cord or plug has been damaged.
B. Objects have fallen into, or liquid has been spilled into the appliance enclosure.
C. The appliance has been exposed to rain.
D. The appliance has been dropped, or the enclosure damaged.
E. The appliance does not appear to operate normally or exhibits a marked change in performance.

1. Servicing: The user should not attempt to service the appliance beyond that described in the user's operating instructions. All other servicing should be referred to qualified personnel.
2. Overloading: Do not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
3. Replacement Parts: When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
4. Safety Check: Upon completion of any service or repairs to this appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operating condition.

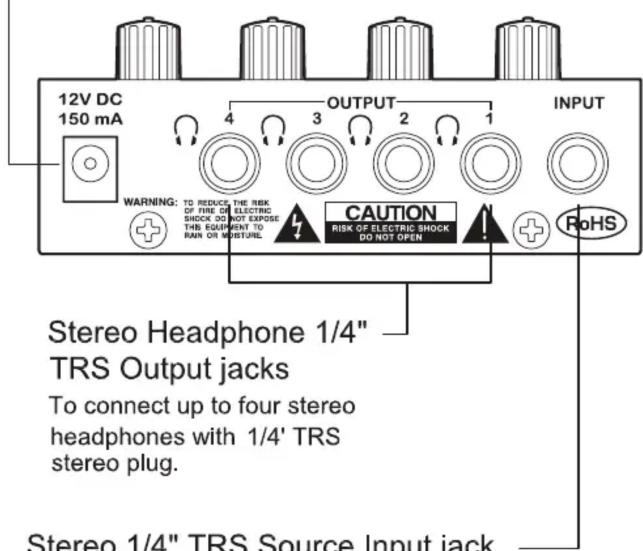

FEATURES AND CONTROLS

Power On LED Indicator The indicator lights when the power supply is connected to switch on.

Stereo Headphone Output Level Controls

Adjust the output signal level of each headphones output.

DC 12V/150mA Power Supply

To connect the power supply with DC 12V/150mA.

Stereo 1/4" TRS Source Input jack To connect the output of a stereo line level source with 1/4' TRS stereo plug.

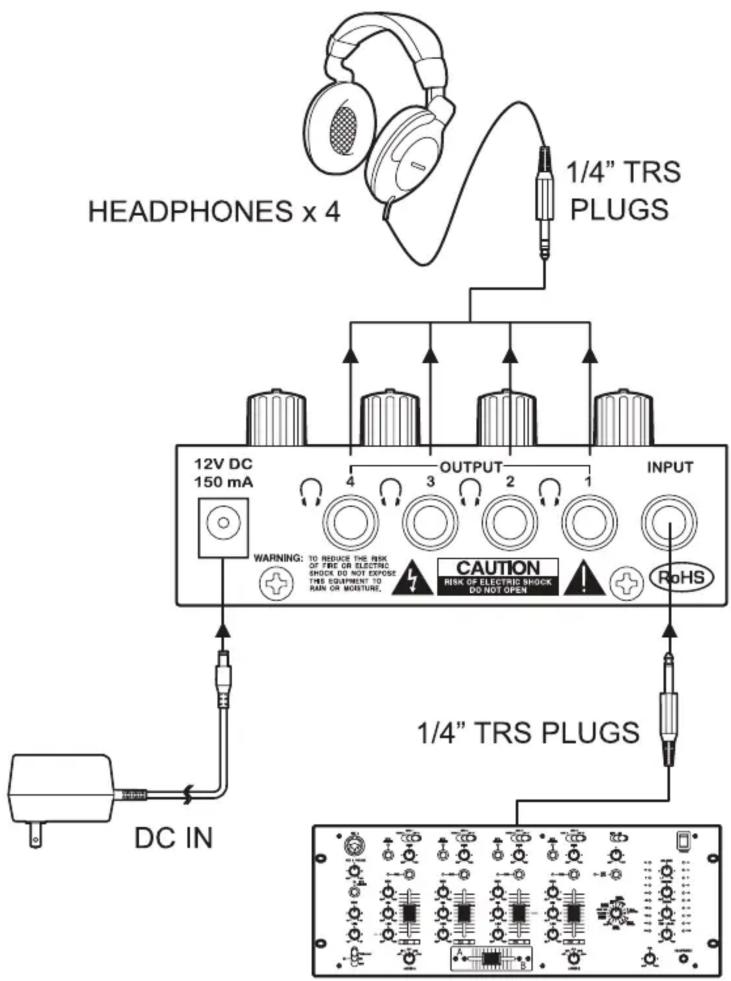

CONNECTION DIAGRAM

PYLE PRO MIXER

Features and Technical Specs:

• Compact Control Unit
• Stereo Headphone Output Level Adjustment
• Independent Channel Rotary Volume Controls
  • (4) 1/4" Stereo Headphone TRS Output Connector Jacks
  • 1/4" TRS Source Input Connector Jack
  • Power On LED Indicator
  • Power Supply Included, DC 12V/150mA
• Dimensions (W x D x H): 4.07" x 1.18" x 2.24"
