PPHP849KT.5 - Lautsprecher Pyle - Kostenlose Bedienungsanleitung
Finden Sie kostenlos die Bedienungsanleitung des Geräts PPHP849KT.5 Pyle als PDF.
| Produkttyp | Aktiver PA-Lautsprecher + Passiver Lautsprecher (System) |
| Marke | Pyle |
| Modell | PPHP849KT.5 |
| Maximale Leistung | 700 Watt |
| Verstärker | Klasse D |
| Impedanz | 8 Ohm |
| Frequenzbereich | 65 Hz - 18 kHz |
| Empfindlichkeit | 92 dB (±2 dB) |
| Gesamte harmonische Verzerrung (THD) | <1% |
| Bluetooth | Version 4.0, Reichweite über 30 m |
| Bluetooth-Netzwerkname | Pyle |
| Eingänge | XLR-Mikrofon, 1/4" SpeakOn, AUX 3,5 mm, USB, SD-Karte |
| Ausgang | 1/4" SpeakOn (8 Ohm) Lautsprecherausgang |
| Lautsprecherstand | Höhenverstellbar 150 cm - 210 cm, maximale Last 50 kg pro Ständer |
| Stromversorgung | 120/240 V, umschaltbar |
| Gewicht (pro Lautsprecher) | ca. 2,7 kg |
| Material | ABS-Kunststoff |
| Mitgeliefertes Zubehör | 2 Lautsprecherständer, Kabelmikrofon, Fernbedienung, Netzkabel |
| Kompatible digitale Audioformate | MP3, WMA |
| Max. USB/SD-Speicher | 32 GB |
| Anzeige | Digitales LCD-Display |
Häufig gestellte Fragen - PPHP849KT.5 Pyle
Benutzerfragen zu PPHP849KT.5 Pyle
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Lautsprecher kostenlos im PDF-Format! Finden Sie Ihr Handbuch PPHP849KT.5 - Pyle und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. PPHP849KT.5 von der Marke Pyle.
BEDIENUNGSANLEITUNG PPHP849KT.5 Pyle
PYLE
PyleUSA.com
Dual Loudspeaker Sound Package, 8" Subwoofers, Wireless BT Streaming, Includes (2) Speaker Stands, Wired Microphone, Remote Control, 700 Watt
USER MANUAL
PPHP849KT
- LCD screen
- Mp3 control
MODE: USB/SD/BT/FM convertor
▶: Play / Pause
SCAN: Press and hold to auto search under FM radio FOL: Press and hold for 5 seconds to enter the folder option function mode (press the previous/next songs button to choose the folder)
: Repeat one / Repeat all / Random
: PRE/NEXT under FM mode Press and hold to search lower/ higher station manually : Short press to tune to saved station
◀: Previous Song
Press and hold for fast rewind
▶: Next Song
Press and hold for fast forward
- USB input
- SD card input
- Remote control
- MIC level control
- MP3 level control
- Bass control
- Treble control
- XLR microphone line input
- Line input
- AUX input
- Master volume
- Speaker out 8Ohm
- Main power switch
- Fused IEC mains inlet

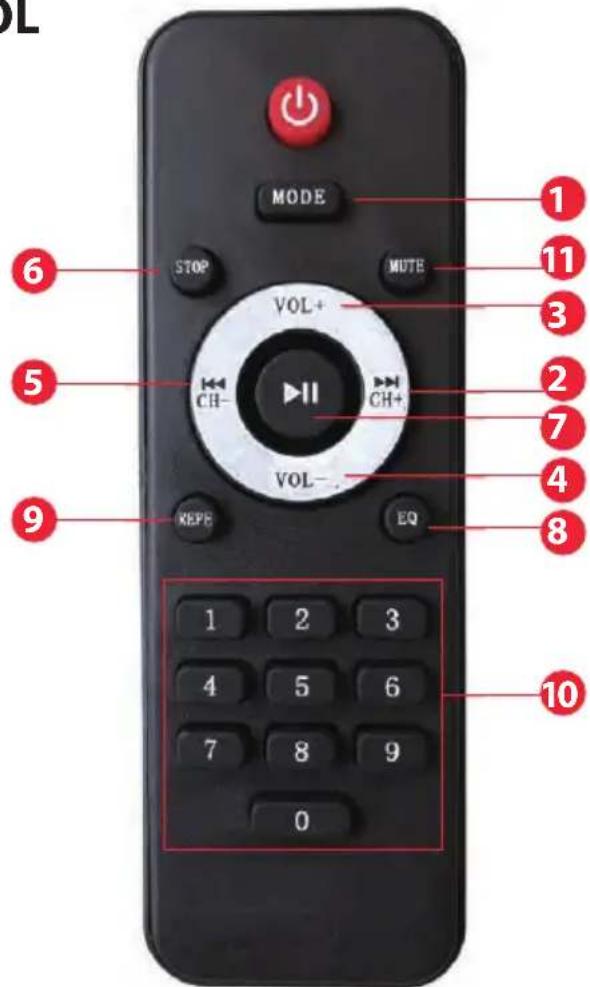

REMOTE CONTROL
- MODE : USB/SD/BT/FM CONVERTER
- In USB/SD: Previous Song, Press and hold for fast rewind In FM: switch to backward
- VOL +: Increase volume
- VOL -: Decresse volume
- ▶▶: In USB/SD : next Song, Press and hold for fast forward In FM : switch to next channel
- ■: Stop Switch the MP3 player off.
- ▶/SCAN : Play / Pause In FM : Auto search
- EQ : NORMAL, ROCK, POP, CLASS, JAZZ.
- REP : Shot press : Random/Single/Order
- 0-9 : choosing music by numbers
- MUTE : Mute the sound of the MP3 player
PPHP849KT
Active + Passive PA Speaker System Kit
Dual Loudspeaker Sound Package, 8" Subwoofers, Bluetooth Wireless Streaming, Includes (2) Speaker Stands, Wired Microphone, Remote Control, 700 Watt
System Features:
- Dual 8-inch High-Powered Loudspeaker PA Systems
- Includes (1) Active Speaker + (1) Passive Speaker + (2) Stands
• Rugged, Durable & Reliable Sound - Bluetooth Wireless Music Streaming Ability
• High-Frequency 1.0" Tweeters - Compression Driver with Titanium Diaphragm
• 2-Way Full Range Audio Projection
• Built-in Digital Audio Amplifier - XLR Microphone Input
- 1/4" SpeakOn (8 Ohm) Input
• 1/4" SpeakOn (8 Ohm) Speaker Output - Aux (3.5mm) Input Jack
- Connect & Stream Audio from External Devices
• USB Flash Drive & SD Memory Card Readers - Digital LCD Display
- Rear Panel Rotary Dial & Button Control Center
- Master Volume, Mic Volume, Treble, Bass Adjustable
- Integrated Carry Handles
• 35mm Speaker Stand Mount Compatible
• Heavy Duty Engineered ABS Housing
What's in the Box:
• (1) 8" Active PA Speaker
• (1) 8" Passive PA Speaker
• (2) Speaker Stands
- Wired Microphone
- Remote Control
- Power Cable
Bluetooth Wireless Streaming:
- Instantly Stream Music from Your Bluetooth Devices
- Works with All Your Favorite Bluetooth Devices (iPhone, Android, Smartphone, iPad, Tablet, PC, etc.)
- Bluetooth Version: 4.0
- Bluetooth Wireless Range: 100'+ Feet
- Bluetooth Network Name: 'Pyle'
Speaker Stands:
- Effectively Elevates Speakers for Optimum Sound Performance
• Universal Speaker Compatibility (35mm Insert) - Easy Setup and Quick Adjustment Control
• Reinforced Steel Support Construction - Speaker Support Arm Extension
- Rugged and Reliable
- Safety Lock-in Pin
- Foldable for Quick Storage and Transport
- Rubber Capped Tripod Feet Base
- Perfect for On-Stage or Studio Use
- For Professional or Beginner Applications
- Speaker Height Adjustable: 59.1" to 82.7"
• MAX. Load Capacity: 100 lbs. (50 kgs.) -Each
Technical Specs:
• MAX Power Output: 700 Watt
- Amplifier: Class D
- Impedance: 8 Ohm
• T.H.D.: <1%
- Magnet: 20 oz.
- Sensitivity: 92dB (+/-2dB)
- Mic Input Level: <15mV
• Line Input/Output Level: >250mV
• Frequency Response: 65-18kHz
• Digital Audio File Compatibility: MP3, WMA
• Maximum SD/USB Flash Memory Support: 32GB
• Power: 120/240V
• Single Speaker Weight: 5.98 lbs.
PYLE
PyleUSA.com
Have a question?
Need service or repair?
Want to leave a comment?
PyleUSA.com/ContactUs
Marke : Pyle
Modell : PPHP849KT.5
Kategorie : Lautsprecher
