| Produkttyp | Druckserver (MFP-Server) |
| Modell | PS-1206MF |
| Hersteller | Edimax |
| Abmessungen (B x H x T) | 62 x 22 x 77 mm |
| Stromversorgung | 7,5 V Gleichstrom / 0,5 A |
| CPU | RISC-Prozessor |
| Speicher | 512 KB NOR Flash, 2 MB SDRAM |
| Netzwerkstandards | IEEE 802.3, IEEE 802.3u |
| Unterstützte Druckprotokolle | LPR, IPP, RAW |
| DHCP-Client | Ja |
| Auto MDI/MDI-X | Ja |
| USB-Schnittstelle | 1x USB 2.0 |
| LAN-Schnittstelle | 1x 10/100 Mbps RJ-45 |
| Reset-Taste | Ja |
| LED-Anzeigen | READY, STATUS, LAN |
| Kompatible Betriebssysteme | Windows 2000/XP/Vista, Mac OS 10.4 und höher |
| Zertifizierungen | CE, FCC |
| Installationshilfe | Mehrsprachiger EZmax Setup Wizard, webbasiertes Management |
| Besonderheiten | MFP-Freigabe, fehlertolerantes Firmware-Upgrade |
| Betriebstemperatur | 0–55 °C |
| Luftfeuchtigkeit | 10–90 % (nicht kondensierend) |
| Reinigung | Mit einem trockenen, fusselfreien Tuch abwischen |
Häufig gestellte Fragen - PS-1206MF Edimax
Benutzerfragen zu PS-1206MF Edimax
0 Frage zu diesem Gerät. Beantworten Sie die, die Sie kennen, oder stellen Sie Ihre eigene.
Eine neue Frage zu diesem Gerät stellen
Laden Sie die Anleitung für Ihr Druckserver kostenlos im PDF-Format! Finden Sie Ihr Handbuch PS-1206MF - Edimax und nehmen Sie Ihr elektronisches Gerät wieder in die Hand. Auf dieser Seite sind alle Dokumente veröffentlicht, die für die Verwendung Ihres Geräts notwendig sind. PS-1206MF von der Marke Edimax.
BEDIENUNGSANLEITUNG PS-1206MF Edimax
Wired / Wireless USB MFP Server
Share your MFP (Multi-Function Printer)
The PS-1206MF/MFg MFP servers can let you share the MFP to all PCs through your wired or wireless network. All connected users can instantly avail of its printer sharing function. Sharing of the MFP's scanner, card reader and fax is fast. You can automatically or manually occupy the MFP through its utility and you're all set. The MFP server provides the best solution for users to share MFP conveniently and easily.
Broad Selection of Printing Methods
When configuring PS-1206MF/PS-1206MFg as a print server, it support a wide selection of printing protocols such as LPR, IPP, SMB/TCP and RAW printing. They can also work with different network protocols like, TCP/IP, IPX/SPX, NetBEUI, and Apple Talk. This gives you a variety of printing methods to choose from based on your requirements.
Fault-Tolerant Firmware Upgrades
Now, users need not worry about errors occurring in the midst of an upgrade that may subsequently stop its operations. PS-1206MF/PS-1206MFg MFP servers incorporate a fault-tolerant upgrade function that permits re-upgrading of the device should problems occur during the initial or previous upgrade session.
Secured Wireless Communication via 64/128-bit WEP, WPA Encryptions
PS-1206MF/PS-1206MFg have an IEEE802.11b/g wireless interface that makes a wireless connection possible. With this add-on flexibility, you can locate the PS-1206MF/PS-1206MFg and the printer even at a place that does not have an Ethernet connection. WEP and WPA encryptions are available in case the safe transmission of data is your concern.
User-friendly Setup CD Wizard and Driver\*
To facilitate connection to your printer the PS-1206MF/PS-1206MFg includes a user-friendly EZmax setup wizard. Its easy-to-use windows installation wizard simplifies and enhances driver installation for immediate use of the device. An add-on feature allows you to conveniently configure the MFP server from any network client that supports web-browsing.
- Complies with IEEE 802.3/802.3u standards (all models), and wireless 802.11b/g standards (PS-1206MFg only)
- Includes multilingual EZmax Setup Wizard
- Shares MFP (All-in-One) printer* among network users
- Compatible with most popular MFP printers*
• Supports LPR, IPP and RAW printing protocols
• Supports DHCP Client protocols
• Supports Auto MDI/MDI-X - Compatible with Windows 2000/XP/Vista, MAC OS 10.4.x and above
| STANDARDS & HARDWARE INTERFACE CPU / MEMORY | POWER ADAPTER | |
| IEEE802.3, IEEE802.3uWireless 802.11b/g (PS-1206MFg only)One USB portOne 10/100Mbps LAN portReset buttonOne 2dBi antenna (PS-1206MFg only) | PS-1206MF only:RISC CPU512KB NOR Flash2MB SDRAMPS-1206MFg only:RISC CPU1MB NOR Flash8MB SDRAM | 7.5VDC / 0.5A (PS-1206MF only)5VDC / 1A (PS-1206MFg only) |
| INSTALLATION & MANAGEMENT KITS | SECURITY | LED Indicators |
| Multilingual EZmax Setup WizardAdmin Utility includedWeb-based ManagementFirmware upgrade utility | 64/128-bit WEP Encryption and WPA-PSK security (PS-1206MFg only) | PS-1206MF only:READY, STATUS, LANPS-1206MFg only:WLAN, STATUS, LAN |
| SYSTEM REQUIREMENTS OUTPUT POWER | HUMIDITY & TEMPERATURE | |
| CPU: Pentium III 1G above or similarMemory size: 256MB RAMOne CD-ROM driveHard Disk: Min. of 100MB disk spaceMFP PrinterWireless 802.11b/g or Fast Ethernet network | 16dBm - 18dBm (PS-1206MFg only) | 10~90% (Non-condensing)0~55°C |
| DIMENSIONS | CERTIFICATIONS | |
| 62 (W) x 22 (H) x 77 (D) mm | CE, FCC | |

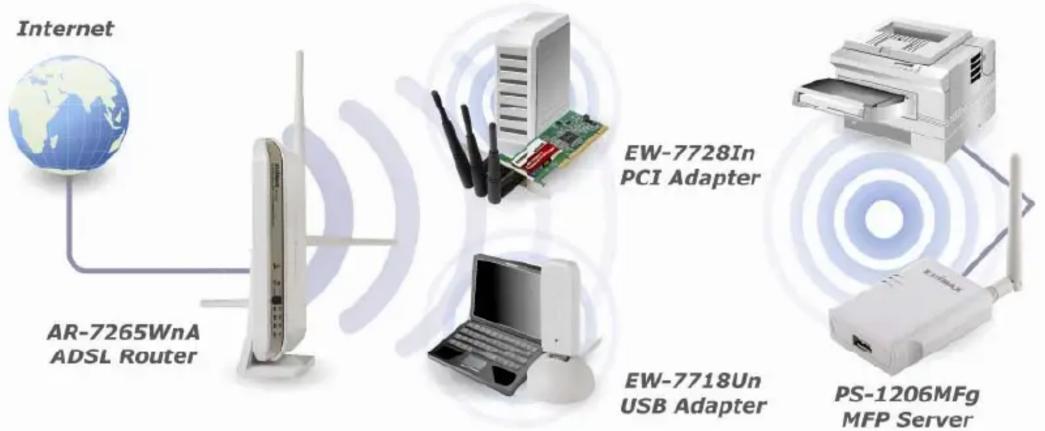

TYPICAL SETUP DIAGRAM AND RELATED PRODUCTS
- Please check the list of compatible MFP printers before you make your purchase.
- Product features and specifications are subject to change without notice.
